1. “A System and Language for Building System-Specific, Static Analyses” CMSC 631 – Fall 2003 Seth Hallem, Benjamin Chelf, Yichen Xie, and Dawson Engler (presented by Mujtaba Ali)

2. 2 Motivation Goal: Find as many bugs as possible Applications: –Free checker Detect double frees and dereference of freed pointers –Lock checker Warn if locks released without being acquired, double acquired, or not released at all –Statistical analysis to infer checking rules Infer whether routines a and b must be paired

3. 3 State Machine Transitions Analyses modeled as state machine transitions State machines are: –Simple enough for programmers to understand –Expressive enough to specify lots of analyses unknownfreedstop kfree(v) *v Note: stop state does not always imply an error

4. 4 Free Checker Example int contrived(int *p, int *w, int x) { int *q; if(x) { kfree(w); q = p; p = 0; } if(!x) return *w; // safe return *q; // using 'q' after free! } int contrived_caller (int *w, int x, int *p) { kfree (p); contrived (p, w, x); return *w; // using 'w' after free! } (p  freed) Assume x!=0 (p,w  freed) (p,w,q  freed) (w,q  freed,p  stop) Prune true branch (w  freed,q  stop) (p  freed)

5. 5 Free Checker Example int contrived(int *p, int *w, int x) { int *q; if(x) { kfree(w); q = p; p = 0; } if(!x) return *w; // safe return *q; // using 'q' after free! } int contrived_caller (int *w, int x, int *p) { kfree (p); contrived (p, w, x); return *w; // using 'w' after free! } (p  freed) Assume x==0 Prune false branch (p  freed) (w  freed,q  stop) (p  freed)

6. 6 Free Checker Example int contrived(int *p, int *w, int x) { int *q; if(x) { kfree(w); q = p; p = 0; } if(!x) return *w; // safe return *q; // using 'q' after free! } int contrived_caller (int *w, int x, int *p) { kfree (p); contrived (p, w, x); return *w; // using 'w' after free! } (p  freed) (w  freed,q  stop) (p  freed) (p,w  freed) (p  freed,w  stop) union

7. 7 A Unified Framework Two components: –metal Language used for expressing custom analyses I.e, for expressing state machines –xgcc Analysis engine that executes metal specifications

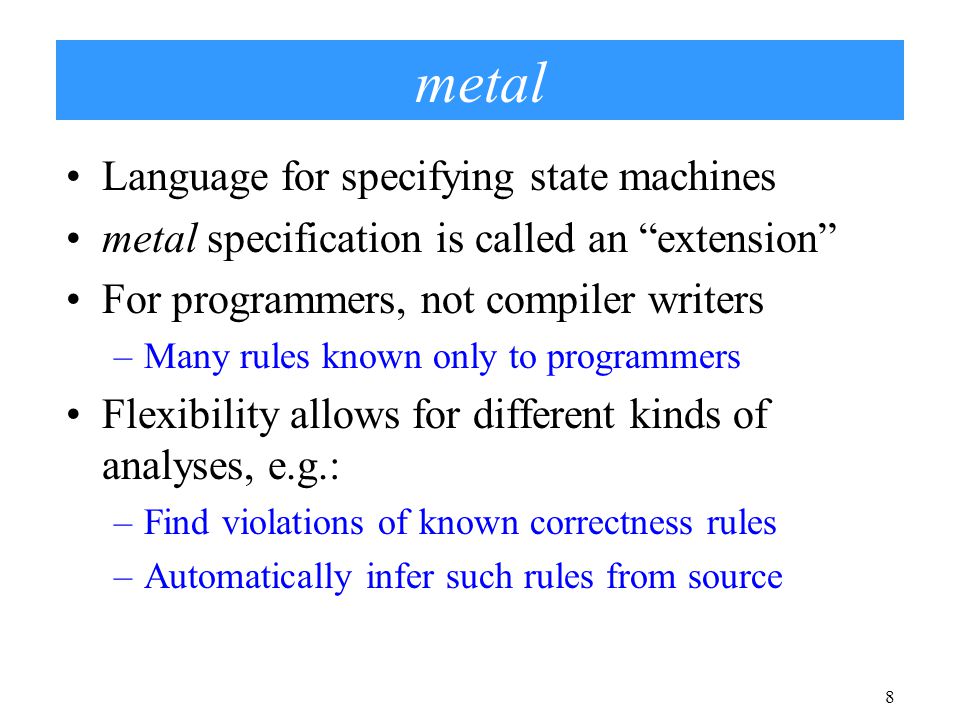

8. 8 metal Language for specifying state machines metal specification is called an “extension” For programmers, not compiler writers –Many rules known only to programmers Flexibility allows for different kinds of analyses, e.g.: –Find violations of known correctness rules –Automatically infer such rules from source

9. 9 Example Extension: Free Checker –Extensions feature ML-like pattern matching state decl any_pointer v; start: { kfree(v) } ==> v.freed; v.freed: { *v } ==> v.stop, { err("using %s after free!", mc_identifier(v)); } | { kfree(v) } ==> v.stop, { err("double free of %s!", mc_identifier(v)); } ;

10. 10 metal Extension Terminology –Global state variable (with exactly one instance) implied –Instances of variable-specific state variables come and go state decl any_pointer v; start: { kfree(v) } ==> v.freed; v.freed: { *v } ==> v.stop, { err(...); } | { kfree(v) } ==> v.stop, { err(...); } ; variable-specific state variable variable-specific state values global state value

11. 11 metal Extensions and SMs Extension composed of one or more SMs –Extension state = the state of these SMs State machine state is a state tuple: –Value of global instance –Value of one of variable-specific instances State tuple notation: (start,v:p  freed) So, extension state = set of state tuples, e.g. { (start,v:p  freed),(start,v:w  freed)}

12. 12 xgcc Executes metal extensions –Context-sensitive, interprocedural analysis Does not restrict metal extensions –Beyond determinism Scalability a primary design requirement –More rules + more code = more bugs found

13. 13 xgcc Algorithm Overview Applies extension to CFG for a function in depth-first order At each program point, looks for executable transition in all state machines Provides additional enhancements: –Prunes non-executable paths –Follows simple value flow –Deletes state attached to redefined expressions

14. 14 Intraprocedural Heuristics Basic block-level state caching Motivation: Exploit determinism of extension –Applying extension to same program point in same state always gives same result Algorithm: –Before traversal, record extension state in each basic block – a “block summary” –Subsequent traversals abort if their extension state is a subset of the block summary

15. 15 Block Summary (start,v:w  freed) (start,v:q  freed) multi-line basic blocks

16. 16 Interprocedural Heuristics Require additional cache information Block summary is now a union of: –Transition edges: (s,v:t  v s )  (s’,v:t  v s ’) –Add edges: (s,v:t  unknown)  (s’,v:t  v s ’) When new instances created inside basic block Suffix summary –Edges starting at a basic block and ending at function’s exit point –Function summary=entry block’s suffix summary –Built backwards (in contrast to block summaries)

17. 17 Block and Suffix Summaries (start,v:w  freed)  (start,v:w  freed) (start,v:q  freed)  (start,v:q  stop) (start,v:w  freed)  (start,v:w  freed) (start,v:p  freed)  (start,v:p  freed) (start,v:w  unknown)  (start,v:w  freed) (start,v:p  freed)  (start,v:p  freed)

18. 18 Unsoundness xgcc’s interprocedural analysis is unsound –But that’s OK (Jim Larus agrees) –If it can catch some errors, it’s still useful Unsound analyses can catch some errors that sound analyses can’t –Some analyses (e.g.,inferring which routines must be paired) can not be expressed soundly Focus is on executing extensions efficiently

19. 19 Reducing False Positives Killing variables and expressions –Remove state machine when variable is defined Synonyms False path pruning Targeted suppression –i.e., xgcc hacks p = q = kmalloc(...); if(!p) return 0; *q; /* safe dereference: q = p = not null */

20. 20 Free Checker Example int contrived(int *p, int *w, int x) { int *q; if(x) { kfree(w); q = p; p = 0; } if(!x) return *w; // safe return *q; // using 'q' after free! } int contrived_caller (int *w, int x, int *p) { kfree (p); contrived (p, w, x); return *w; // using 'w' after free! } (p  freed) Assume x!=0 (p,w  freed) (p,w,q  freed) (w,q  freed,p  stop) Prune true branch (w  freed,q  stop) (p  freed) On a write, if there is a state machine for p, we “kill” it.

21. 21 Reducing False Positives Killing variables and expressions –Remove state machine when variable is defined Synonyms False path pruning Targeted suppression –i.e., xgcc hacks p = q = kmalloc(...); if(!p) return 0; *q; /* safe dereference: q = p = not null */

22. 22 Ranking of Errors Impossible to eliminate all false positives xgcc ranks errors –Generic ranking: distance –Path-specific ranking by annotating extensions –Statistical ranking (z-ranking) Ranking can distinguish different uses –Linux semaphore routines up and down used as both counters and locks –Interprocedural analysis can not handle this case

23. 23 Extending metal Extensions Extend state space using general purpose code Path specific transitions –Different destination state for when analysis follows true branch or false branch C Code actions –Can manipulate extension’s state using xgcc’s interface start: {trylock(l) != 0} ==> true=l.locked, false=l.stop | {trylock(l) == 0} ==> true=l.stop, false=l.locked

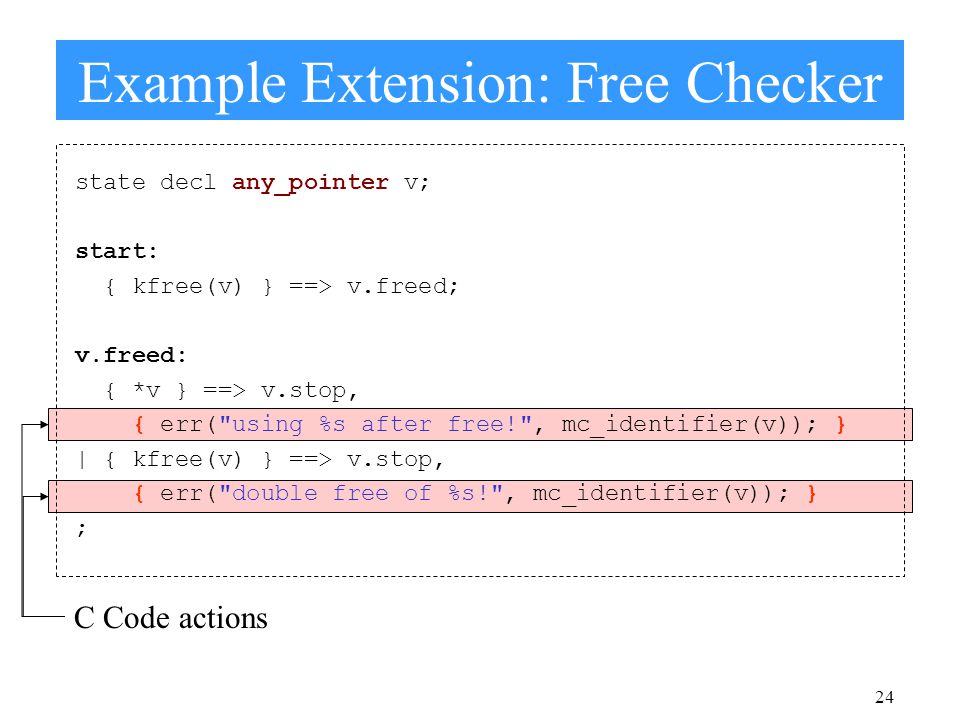

24. 24 Example Extension: Free Checker state decl any_pointer v; start: { kfree(v) } ==> v.freed; v.freed: { *v } ==> v.stop, { err("using %s after free!", mc_identifier(v)); } | { kfree(v) } ==> v.stop, { err("double free of %s!", mc_identifier(v)); } ; C Code actions

25. 25 Extending metal Extensions Extend state space using general purpose code Path specific transitions –Different destination state for when analysis follows true branch or false branch C Code actions –Can manipulate extension’s state using xgcc’s interface start: {trylock(l) != 0} ==> true=l.locked, false=l.stop | {trylock(l) == 0} ==> true=l.stop, false=l.locked

26. 26 The Good Unsoundness presents new opportunities Designed for use by “everyday” programmers Heuristics to speed up execution Heuristics to reduce false positives Ranking to help sift through false positives Tested on systems code (Linux, OpenBSD) Paper is very clearly written!

27. 27 The Bad Unsoundness is unsound –Jim Larus says eventually programmers will want to move to sound tools Designed for use by “everyday” programmers –Advanced features require analysis knowledge Path-specific state machine transitions Path-specific error ranking xgcc/metal is now commercial –Boooo!

28. 28 Related Work ESP –Sound –Uses state machine language like metal –More likely to scale in the interprocedural case SLAM –Model-checking approach –Verification tool intended for smaller code bases PREfix –Unsound, more expensive analysis –Fixed set of error types and analyses

29. 29 Related Work (con’t.) ESC/Java –Uses theorem prover –High annotation burden (1 ann / 3 loc) Recent efforts to infer annotations Cqual –Interprocedural, sound analysis –Annotations to express program properties and to suppress false positives

30. 30 Singular Key Idea Unsound, uncomplete analysis based on clever heuristics can be an effective bug fighting tool –Such analyses can allow techniques not possible with sound and complete analyses
