Warm Up Determine the measures of the indicated angles. 1.2. Now put it all together to solve for the missing angle.

Similar presentations


Presentation on theme: "Warm Up Determine the measures of the indicated angles. 1.2. Now put it all together to solve for the missing angle."— Presentation transcript:

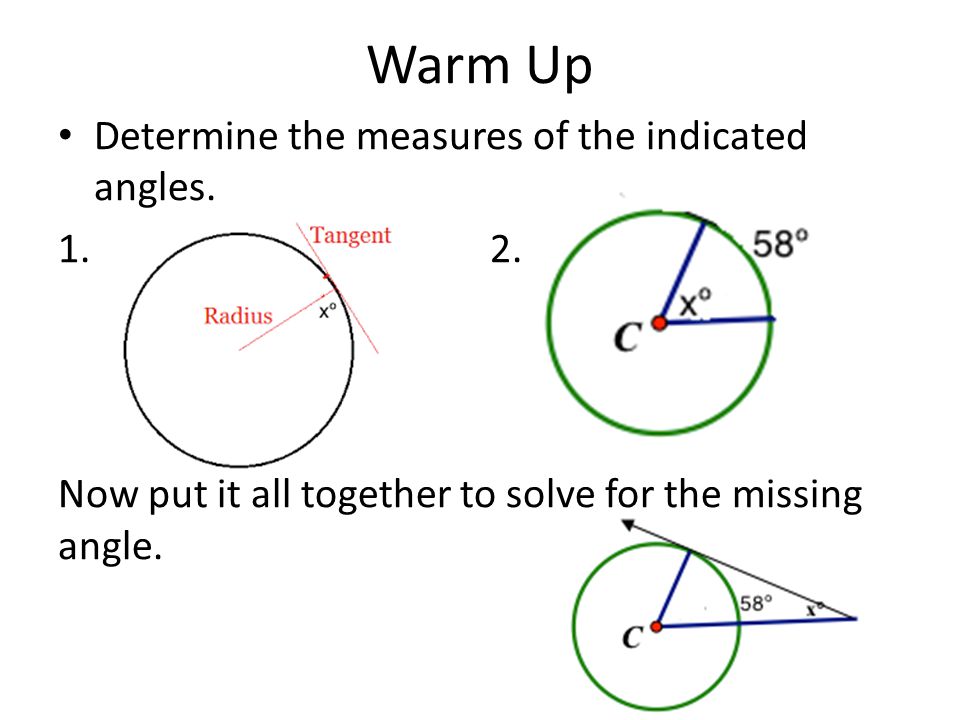

1 Warm Up Determine the measures of the indicated angles. 1.2. Now put it all together to solve for the missing angle.

2

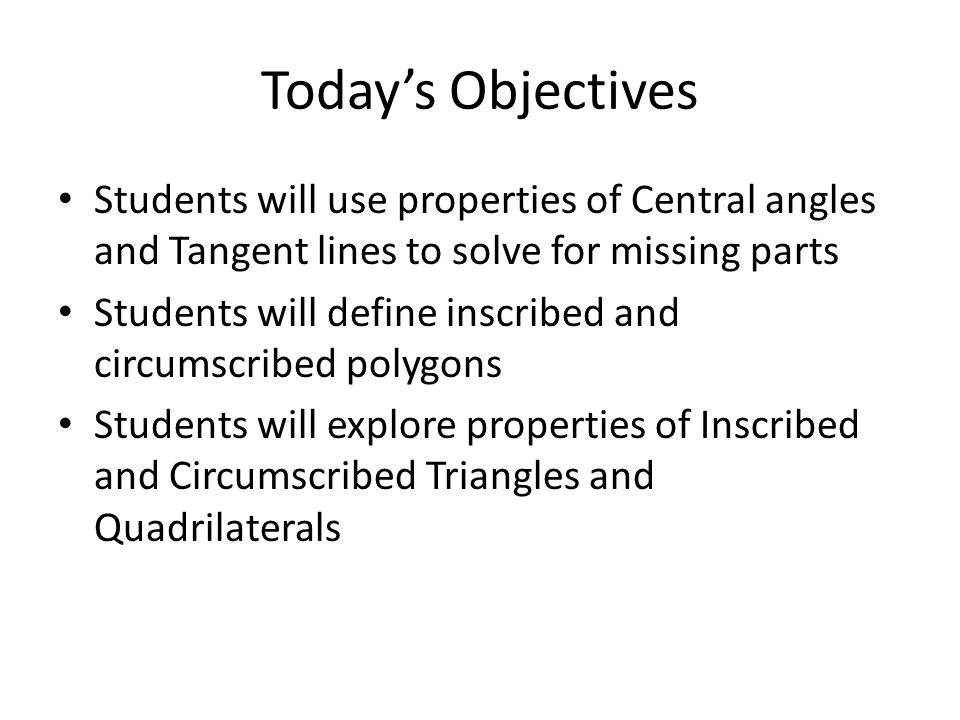

3 Today’s Objectives Students will use properties of Central angles and Tangent lines to solve for missing parts Students will define inscribed and circumscribed polygons Students will explore properties of Inscribed and Circumscribed Triangles and Quadrilaterals

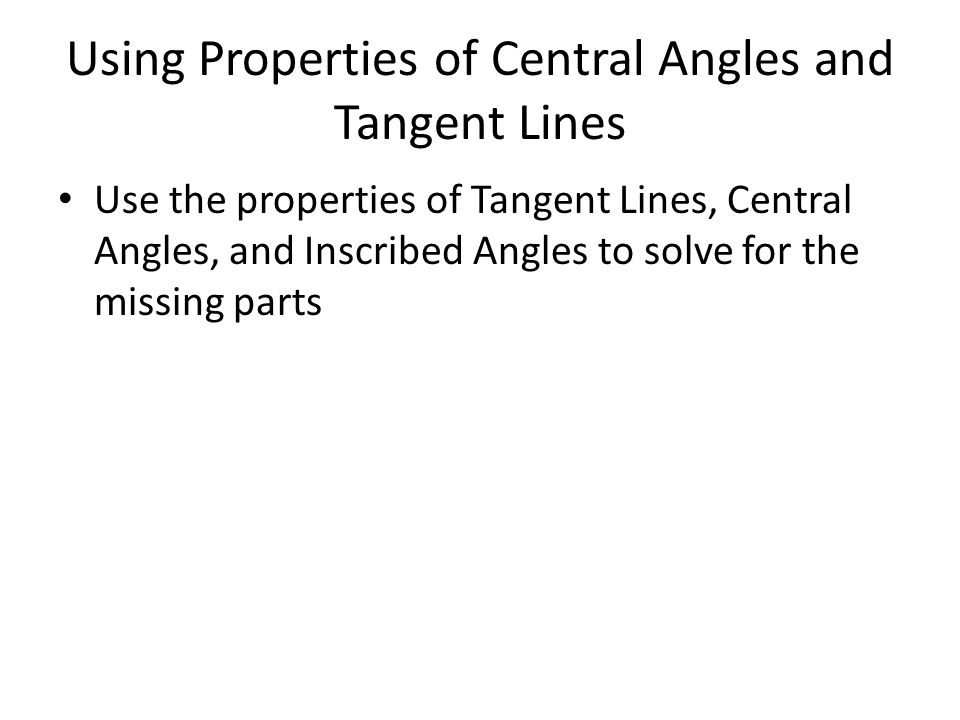

4 Using Properties of Central Angles and Tangent Lines Use the properties of Tangent Lines, Central Angles, and Inscribed Angles to solve for the missing parts

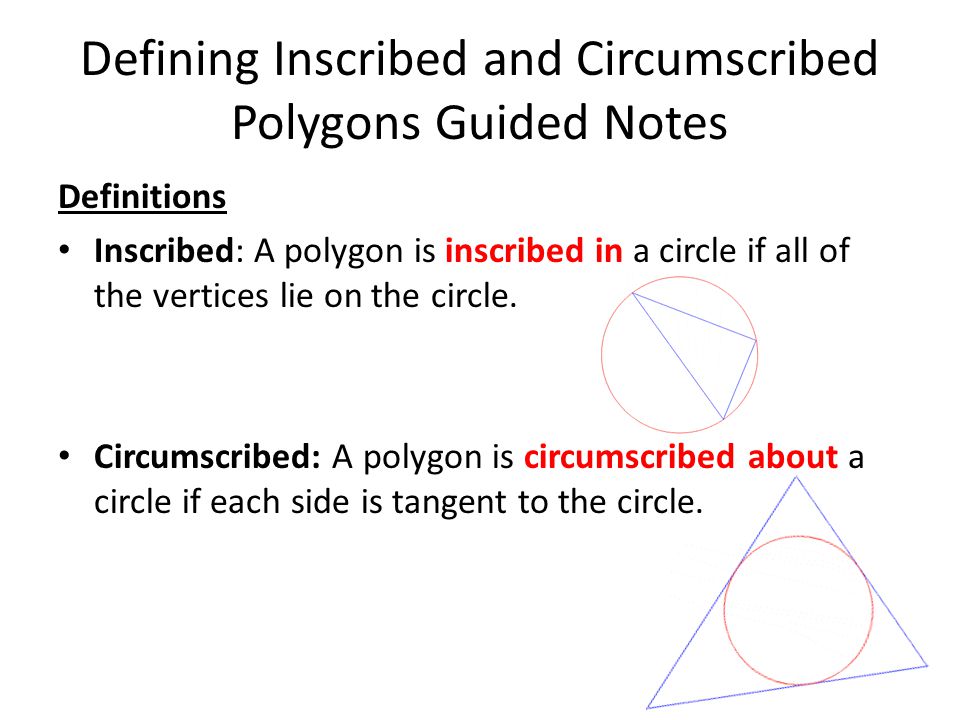

5 Defining Inscribed and Circumscribed Polygons Guided Notes Definitions Inscribed: A polygon is inscribed in a circle if all of the vertices lie on the circle. Circumscribed: A polygon is circumscribed about a circle if each side is tangent to the circle.

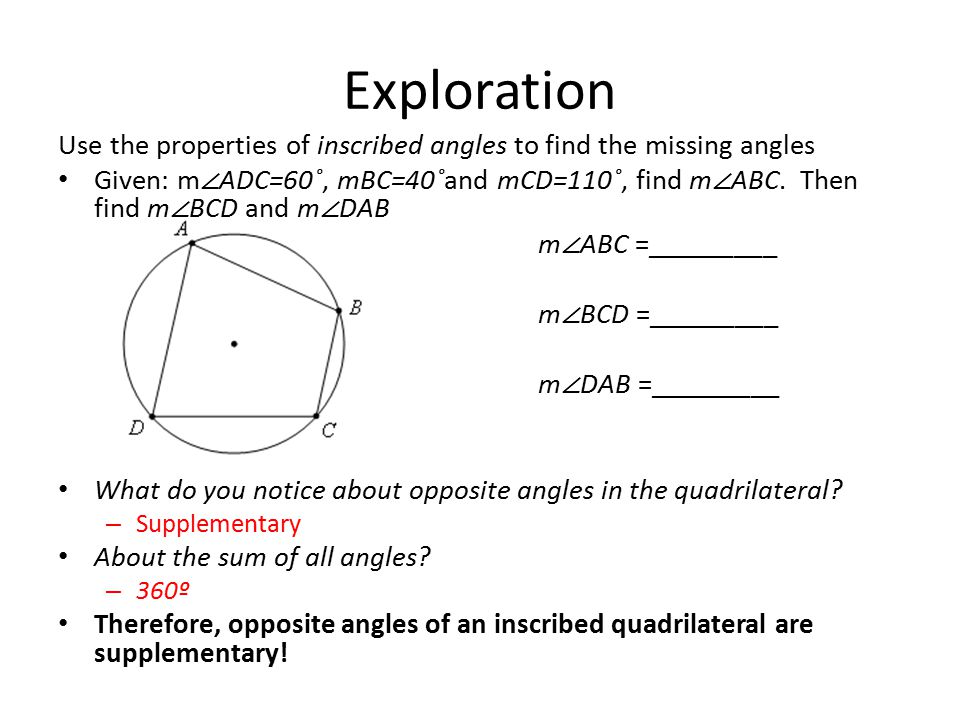

6 Exploration Use the properties of inscribed angles to find the missing angles Given: m ∠ ADC=60˚, mBC=40˚and mCD=110˚, find m ∠ ABC. Then find m ∠ BCD and m ∠ DAB m ∠ ABC =_________ m ∠ BCD =_________ m ∠ DAB =_________ What do you notice about opposite angles in the quadrilateral? – Supplementary About the sum of all angles? – 360º Therefore, opposite angles of an inscribed quadrilateral are supplementary!

7 Inscribed or Circumscribed? Describe the relationship between the polygon and the circle using “inscribed” and “circumscribed”?

8 Inscribed or Circumscribed? Describe the relationship between the polygon and the circle using “inscribed” and “circumscribed”?

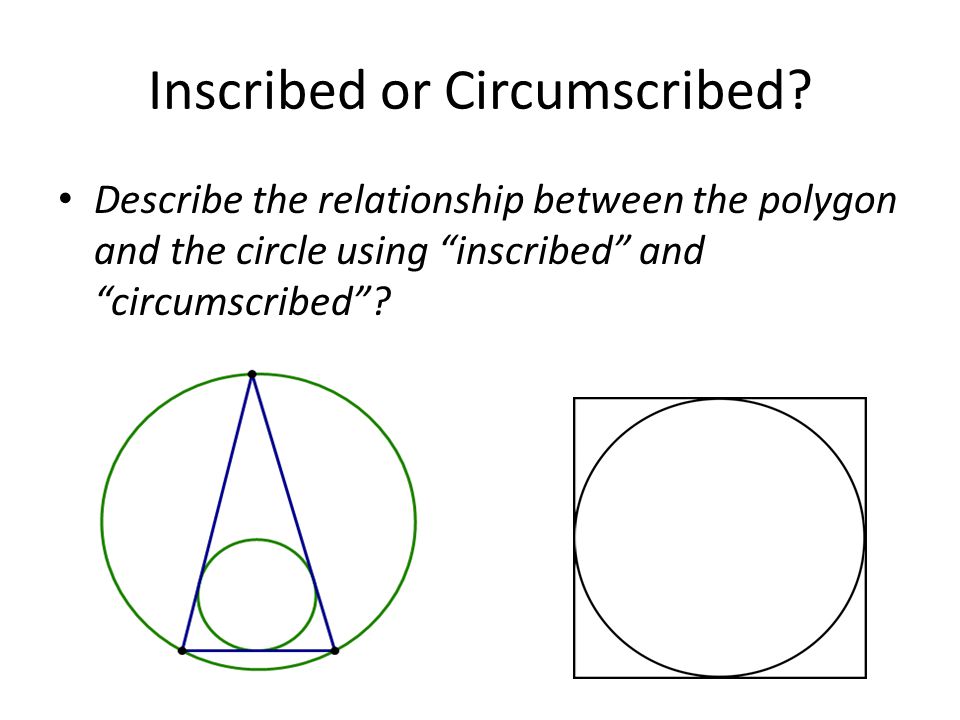

9 Inscribed or Circumscribed? Describe the relationship between the polygon and the circle using “inscribed” and “circumscribed”?

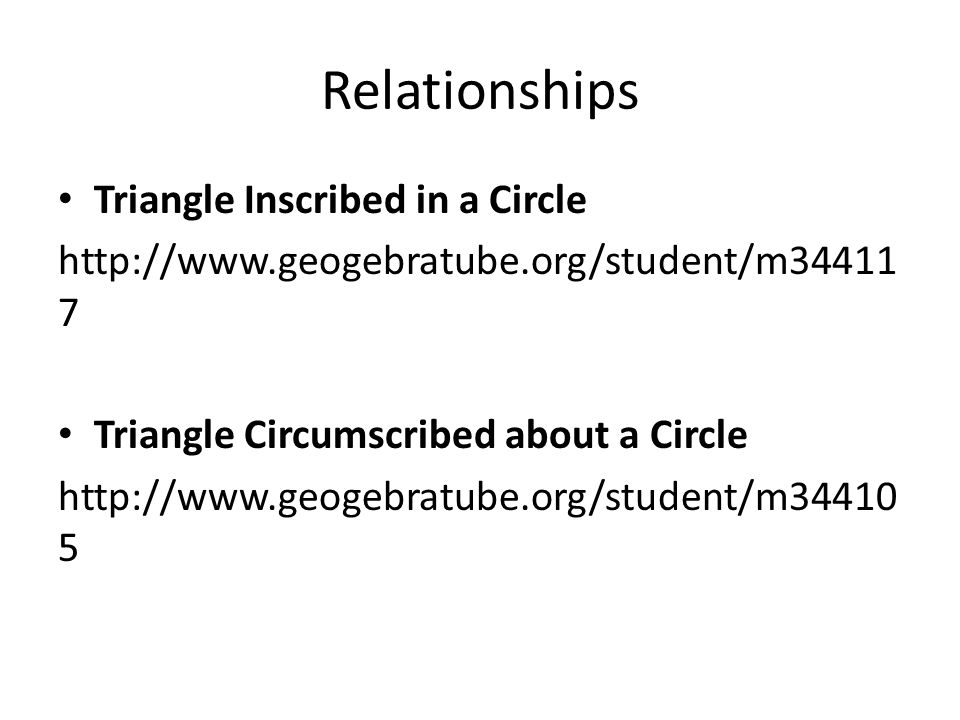

10 Relationships Triangle Inscribed in a Circle http://www.geogebratube.org/student/m34411 7 Triangle Circumscribed about a Circle http://www.geogebratube.org/student/m34410 5

11 Homework
