© T Madas Time Height

3
© T Madas Time Height Liquid is poured in the container at constant rate

4

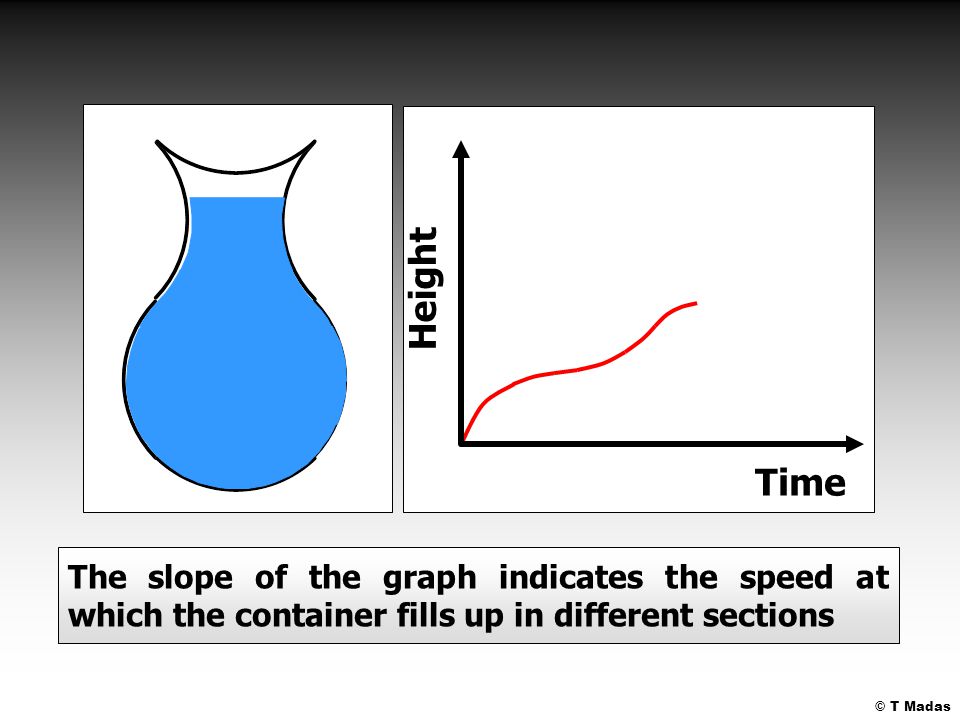

© T Madas Time Height The slope of the graph indicates the speed at which the container fills up in different sections

5
© T Madas Sketch a height-time graph 12345 678910

6
© T Madas Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time height

7
© T Madas Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time height

8
© T Madas Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time height

9
© T Madas Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time height

10
© T Madas Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time height

11
© T Madas Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time height

12
© T Madas Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time height

13
© T Madas Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time height

14
© T Madas Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time height

15
© T Madas Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time height

16
© T Madas

17
The cross section of 4 containers, labelled A to D, is shown. Water is poured into the empty containers at a constant rate and their graphs showing the height of the water against time is shown, not in the right order, labelled 1 to 4. Match the container to its graph. time height time height time height time height A B C D 1 2 3 4 3D 1C 4B 2A

18
© T Madas

19
The cross section of 4 containers, labelled A to D, is shown. Water is poured into the empty containers at a constant rate and their graphs showing the height of the water against time is shown, not in the right order, labelled 1 to 4. Match the container to its graph. A B C D 1 2 3 4 4D 2C 1B 3A time height time height time height time height

20
© T Madas

21
The cross section of 4 containers, labelled A to D, is shown. Water is poured into the empty containers at a constant rate and their graphs showing the height of the water against time is shown, not in the right order, labelled 1 to 4. Match the container to its graph. A B C D 1 2 3 4 4D 1C 3B 2A time height time height time height time height

22
© T Madas
