1 Introduce to Microarray

2 Copyright notice Many of the images in this power point presentation of other people. The Copyright belong to the original authors. Thanks!

3 Evolution & Industrialization
1989: First Affymetrix Genechip Prototype 1994: First Commercial Affymetrix Genechip 1994- First cDNAs arrays were developed at Stanford University. 1994: First Commercial Scanner-Affymetrix 1996- Commercialization of arrays 1997-Genome-wide Expression Monitoring in S. cerevisiae

4 Why use DNA Microarrays for Expression Analysis?
Conventional expression analysis only allows the study of the expression of a single gene in a single experiment The highly parallel nature of microarrays allows the simultaneous study of the expression of thousands or even tens of thousands of different genes in a single experiment Microarrays allow researchers to undertake global expression analysis that is not feasible with conventional techniques

5 What Microarrays detect?
What genes are Present/Absent in a cell? What genes are Present/Absent in the experiment vs. control? Which genes have increased/decreased expression in experiment vs. control? Which genes have biological significance?

6 Why analyze so many genes?
Just because we sequenced a genome doesn’t mean we know anything about the genes. Thousands of genes remain without an assigned function. Patterns/clusters of expression are more predictive than looking at one or two prognostic markers – can figure out new pathways


8 The 6 steps of a DNA microarray experiment
Manufacturing of the microarray 2. Experimental design and choice of reference: what to compare to what? 3. Target preparation (labeling) and hybridization

9 The 6 steps of a microarray experiment (cont.)
4. Image acquisition (scanning) and quantification (signal intensity to numbers) 5. Database building, filtering and normalization 6. Statistical analysis and data mining

10 Different Types of DNA Microarrays
How DNA sequences are laid down Spotting Photolithography (Affymetrix) type of DNA sequences cDNA (Complete sequences) Oligonucleotides

11 Affymetrix Microarrays
Involves Fluorescently tagged cRNA One chip per sample One for control One for each experiment Spotted Microarrays Involves two dyes/one chip Red dye Green dye Control and experiment on same chip

12 Production of Affymetrix Arrays
Choice of probes 25mer oligonucleotides 11-16 per gene 3’ biased Dispersed Chosen to minimize cross-hybridization Computer algorithms are used to design photolithographic masks for use in manufacturing

13 Each gene is represented on the probe array by multiple probe pairs
Each probe pair consists of a perfect match and a mismatch oligonucleotide

The exact match is a section of the mRNA sequence you wish to probe for The mismatch is identical except for one base difference from it’s exact match counterpart, and is used to calculate a background. There are typically 11 “probe pairs” scattered around the chip- called a probe set. By combining the expression values for a probe set, a value for the expression of mRNA can be found. ATGCTGTACAATCGCTTGATACTGG ATGCTGTACAATAGCTTGATACTGG Mismatch probe: Target sequence: Perfect match probe:

15 Why do we have mismatch probes?
Mismatch probes (MM) are trying to detect background. The mismatch probes are supposed to detect things that are close but not an exact match. It is assumed that these things also bind to the perfect match (PM), erroneously.

16 Production of Affymetrix Arrays: Photolithographic Synthesis

17 Creating Targets mRNA cDNA cRNA Target Reverse Transcriptase
in vitro transcription cRNA

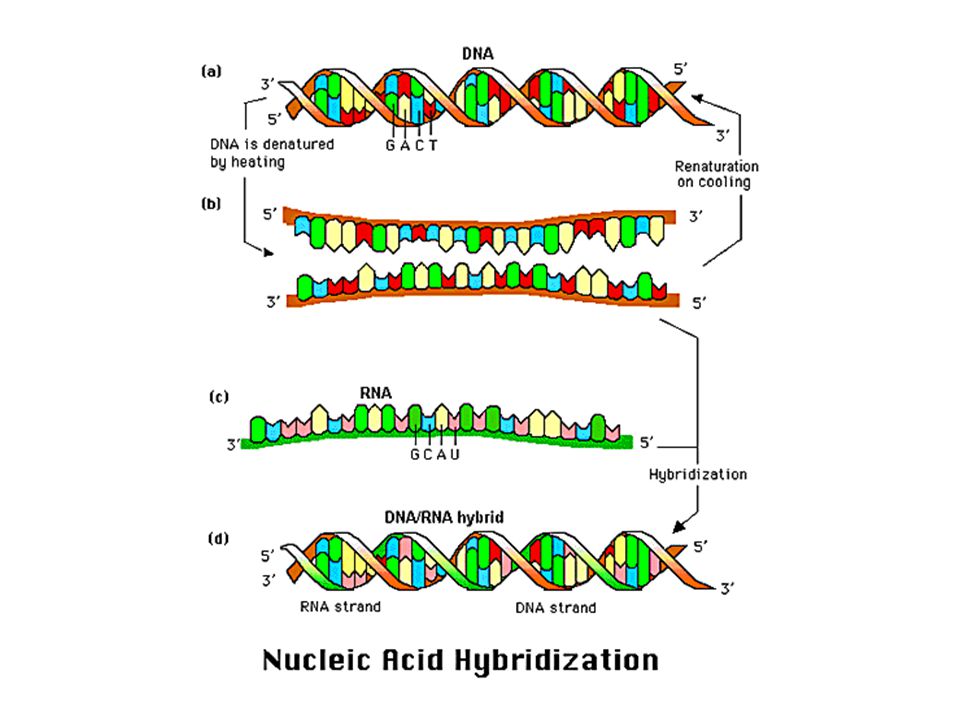

18 RNA-DNA Hybridization
Targets RNA probe sets DNA (25 base oligonucleotides of known sequence)

19 Non-Hybridized Targets are Washed Away
(fluorescently tagged) “probe sets” (oligo’s) Non-bound ones are washed away

20 Custom GeneChips Affymetrix offers over 120 prokaryotic arrays that are manufactured by Nimblegen Inc. Custom GeneChips are also available for both Eukaryotic and Prokaryotic systems.

21 Spotted Arrays Robotically spotted cDNAs or Oligonucleotides
Printed on Nylon, Plastic or Glass surface DNA probes prepared in 384-well plates Glass slides bought commercially or prepared in house Arrays are spotted with a commercial arrayer Replicates Controls

22 Microarray of thousands of genes on a glass slide

23 Spotted arrays steel spotting pin chemically modified slides
384 well source plate chemically modified slides 1 nanolitre spots um diameter

24 bacterial glycerol stocks)
Building the chip PCR amplification Directly from colonies with SP6-T7 primers in 96-well plates Consolidate into 384-well plates Arrayed Library (96 or 384-well plates of bacterial glycerol stocks) Slide 4 Ideally, you will have a slides consist of all genes in the genomeThe design of the array / template is an imporatnt bioinformatics question. As you are only able to detect expression of genes on this template. Spot as microarray on glass slides

25 Expression profiling with DNA microarrays
cDNA “B” Cy3 labeled cDNA “A” Cy5 labeled Laser Laser 2 Hybridization Scanning Slide 5 You will have another sample of interests consists of a portion of the genes and the questions is to find out what genes are being expressed in this sample. The simplified version of the experiments is to label the sample with a color dye hybridize the sample on the slides and scan the slides under some laser to see which spots that light up. This provides a list of genes and it’s corresponding expression levels in our samples. Our interest is on comparing the expression levels between the two samples. + Analysis Image Capture

26 Spotted Arrays Affymetrix Arrays Homemade Tailored Cheaper????? Maximum 24,000 features per array Prone to variability Commercially available “Off the rack” More expensive????? Maximum 500,000 features per array Less variability

27 Oligonucleotide cDNA Greatly reduced cross-hybridization Uniform Tm Requires knowledge of gene sequences More expensive??? Cross-hybridization possible Non-uniform Tm No gene sequence knowledge required Less expensive

28 Microarray Experiments Animation

29 Microarray Life Cycle Biological Question Data Analysis & Modelling
Sample Preparation Microarray Life Cycle MicroarrayDetection Microarray Reaction

30 W.W.W resources Complete guide to “microarraying”
Parts and assembly instructions for printer and scanner; Protocols for sample prep; Software; Forum, etc. Animation:
