Projectile Motion characteristics and analysis procedures Objectives –Review characteristics of projectile motion (pp 329-347) –Review factors influencing projectile motion –Present and explain calculation methods for analyzing projectile motion Homework – due Monday, Sept 13 –Problems 7,9,10 on page 347

2

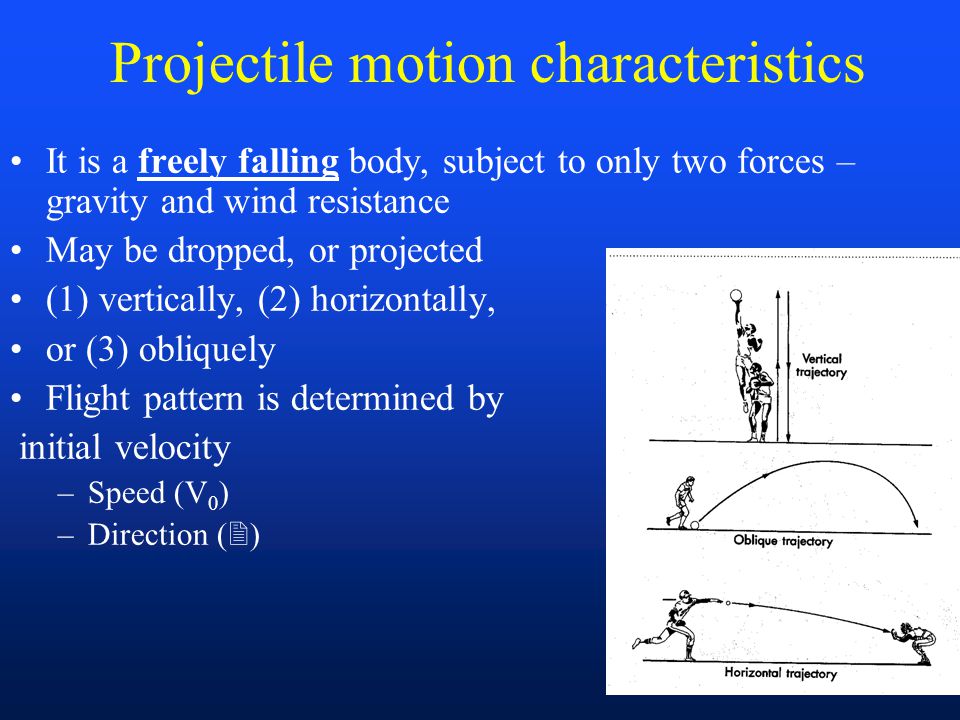

Projectile motion characteristics It is a freely falling body, subject to only two forces – gravity and wind resistance May be dropped, or projected (1) vertically, (2) horizontally, or (3) obliquely Flight pattern is determined by initial velocity –Speed (V 0 ) –Direction ( )

3

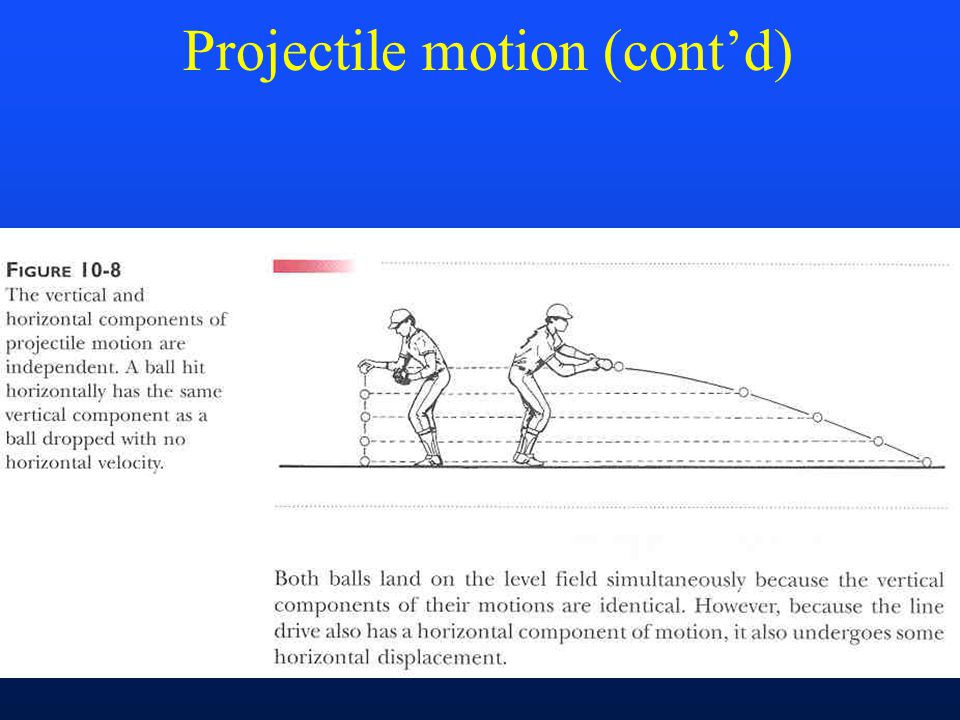

Projectile motion (cont’d)

4

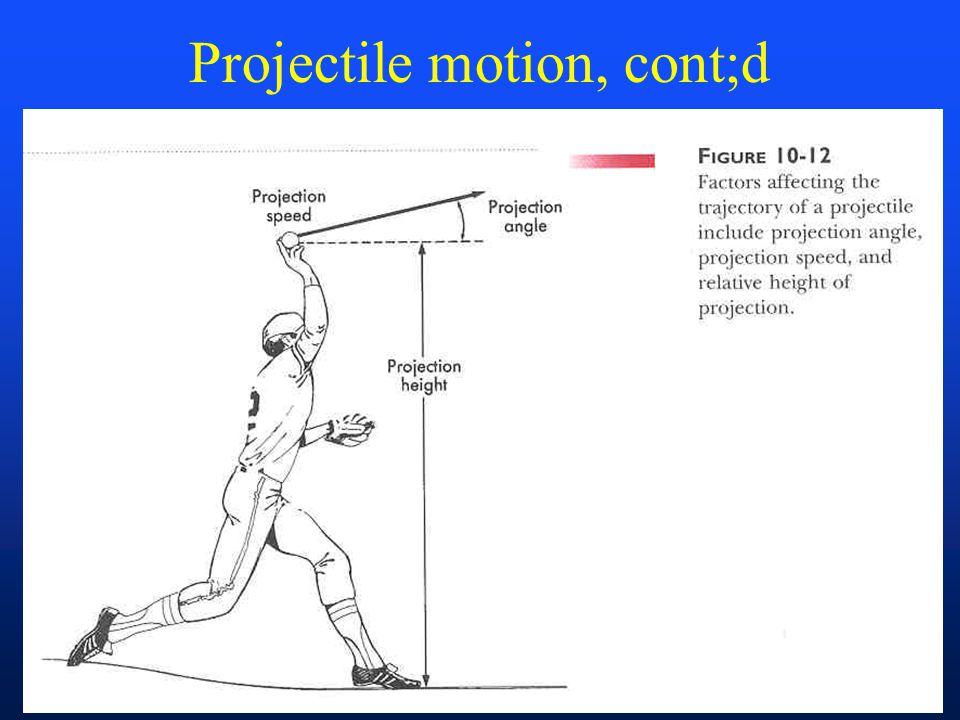

Projectile motion, cont;d

5

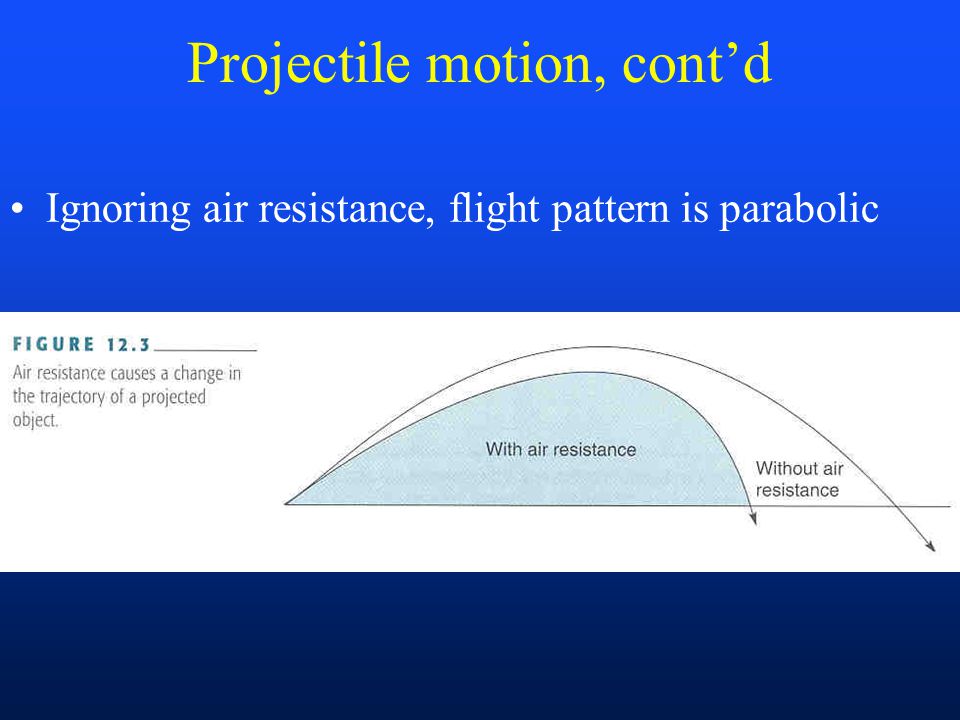

Projectile motion, cont’d Ignoring air resistance, flight pattern is parabolic

6

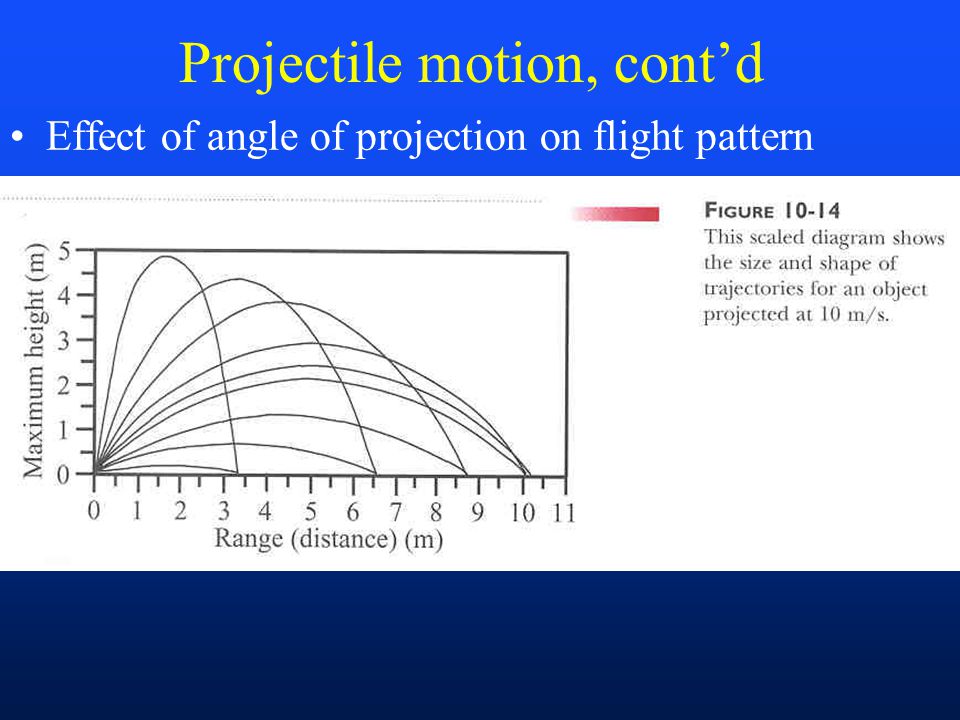

Projectile motion, cont’d Effect of angle of projection on flight pattern

7

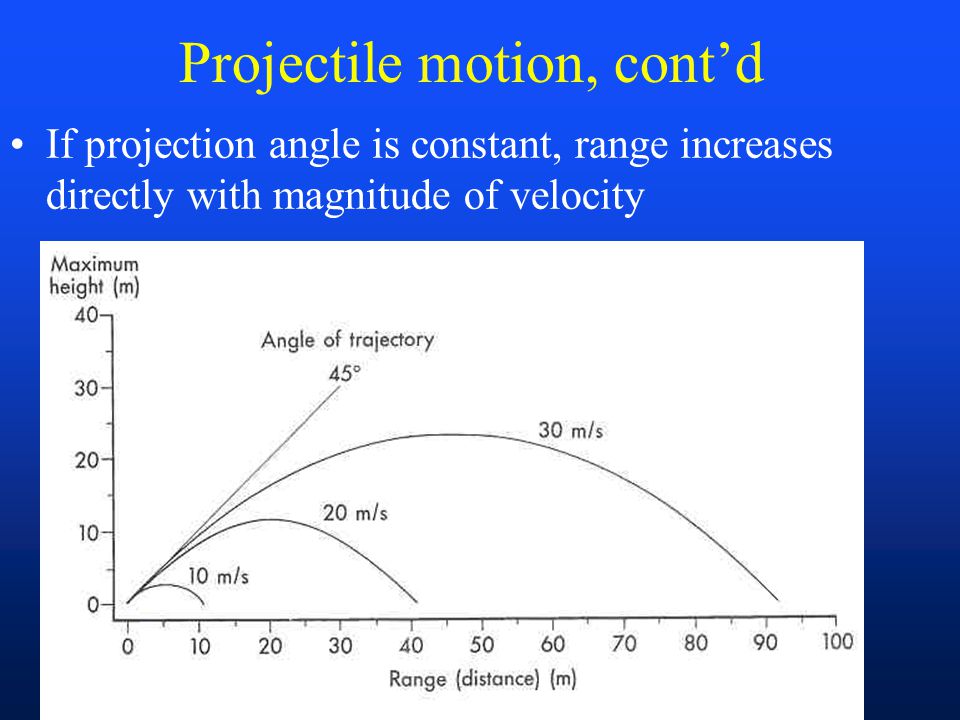

Projectile motion, cont’d If projection angle is constant, range increases directly with magnitude of velocity

8

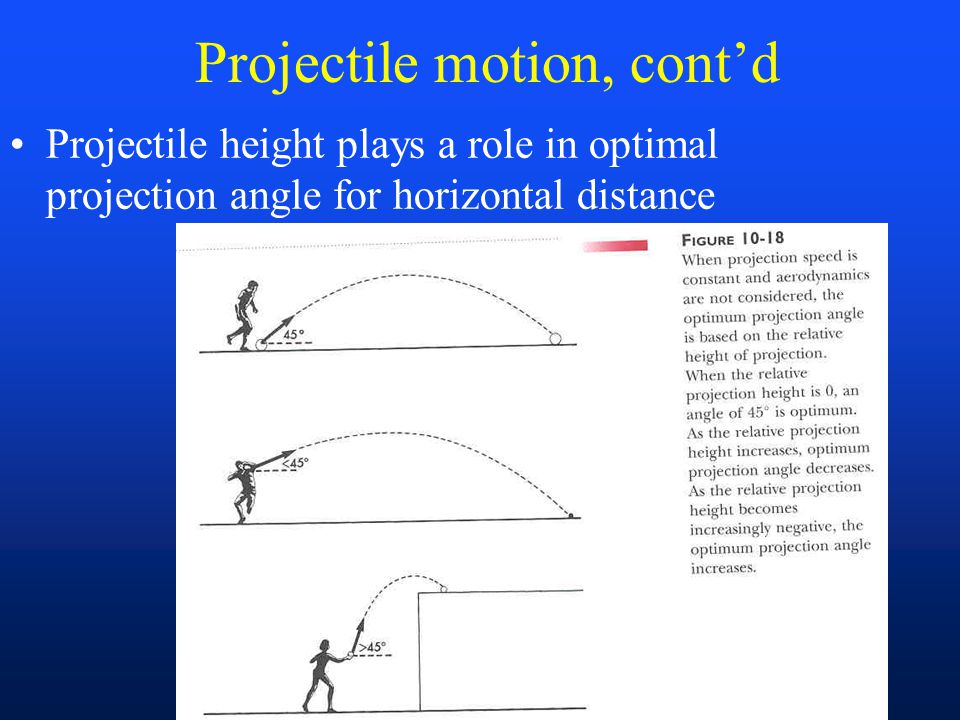

Projectile motion, cont’d Projectile height plays a role in optimal projection angle for horizontal distance

9

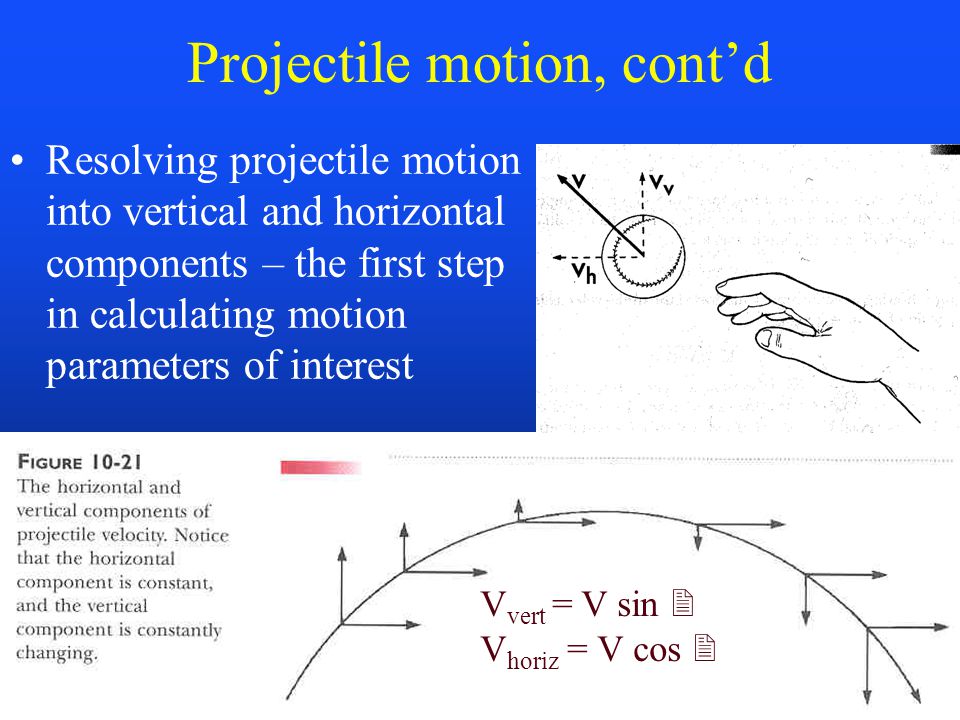

Projectile motion, cont’d Resolving projectile motion into vertical and horizontal components – the first step in calculating motion parameters of interest V vert = V sin V horiz = V cos

10
Projectile motion equations –Maximum height when given time of flight (hw prob #7) h = ½ at 2, where t = ½ total flight time –Maximum height when given initial velocity (hw prob #9) –Time of flight when given initial velocity (hw probs # 9, 10) –Range, or horiz dist when given initial Velocity (hw probs 9,10) –If time is calculated first, using above equation (hw probs 9,10) this reduces to: D horiz = V horiz T = V cos T

11

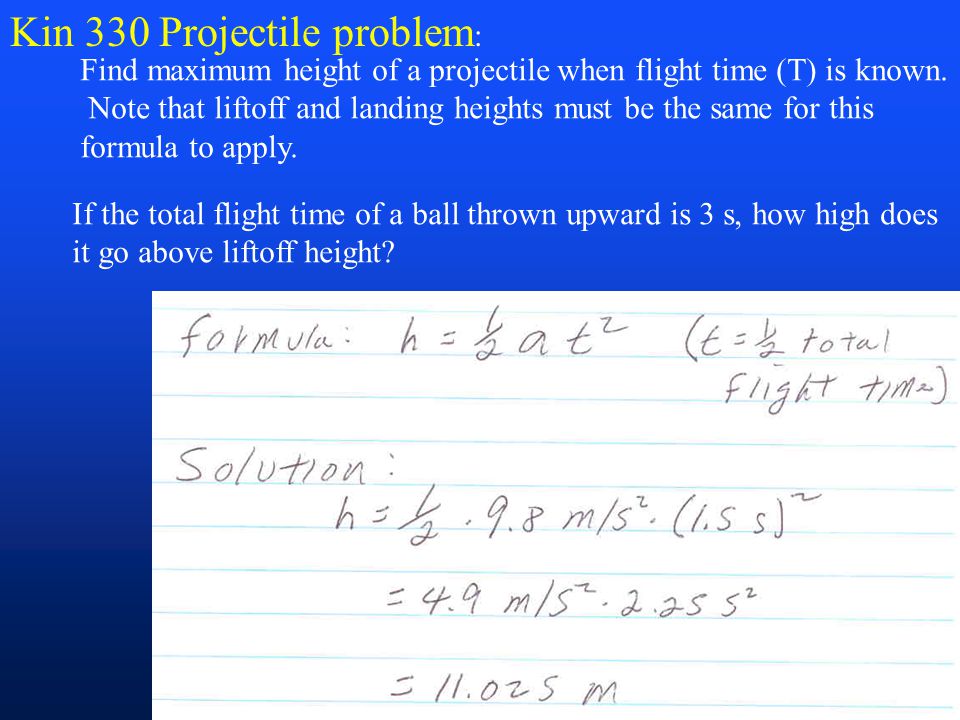

Kin 330 Projectile problem : Find maximum height of a projectile when flight time (T) is known. Note that liftoff and landing heights must be the same for this formula to apply. If the total flight time of a ball thrown upward is 3 s, how high does it go above liftoff height?

12

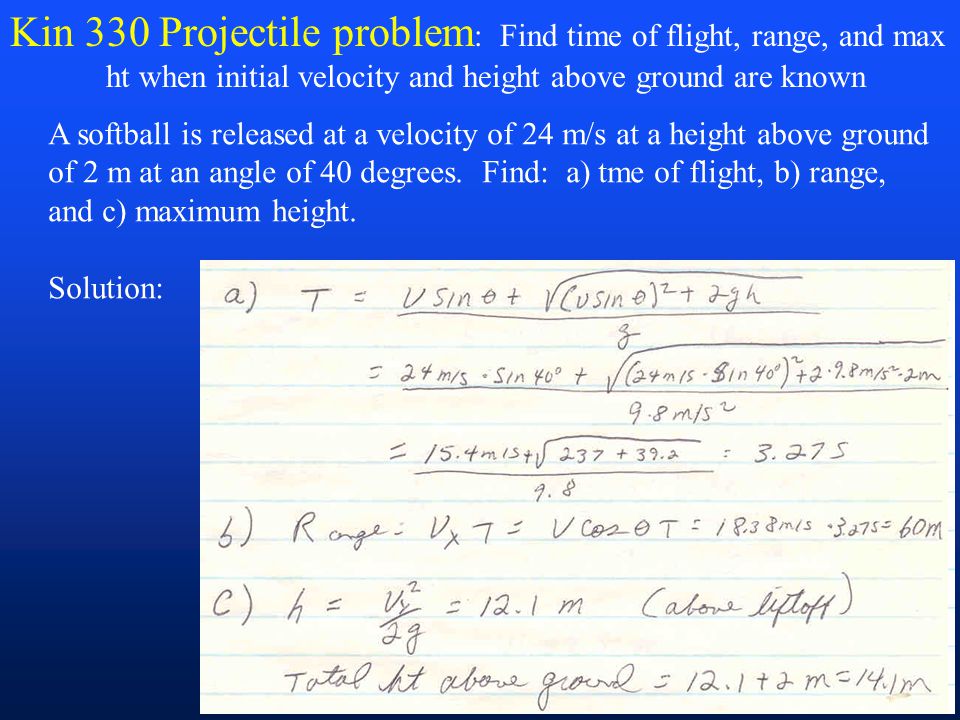

Kin 330 Projectile problem : Find time of flight, range, and max ht when initial velocity and height above ground are known A softball is released at a velocity of 24 m/s at a height above ground of 2 m at an angle of 40 degrees. Find: a) tme of flight, b) range, and c) maximum height. Solution:

13
Summary This chapter introduced basic concepts related to kinetics Several types of mechanical loads act on the human body. The distribution of force within a body structure is termed mechanical stress. Vectors quantities have magnitude & direction Vector problems may be solved by a graphic or a trigonometric approach. Kinematic concepts related to projectile motion were introduced Calculation methods for total body COM were presented
