1. Dawson Engler, Frans Kaashoek, James O’Toole
Exokernel: An Operating System Architecture for Application-Level Resource Management
Dawson Engler, Frans Kaashoek, James O’Toole
MIT Laboratory for Computer Science

2. Function of Traditional Kernel
Provides abstraction(s) of the hardware
Processes
Virtual Memory
File System
Provides Protection
Hardware
Kernel Itself
Users From Each Other

3. Motivation: A Database
I/O Abstraction: Cooked I/O
Operating System buffers I/O
Database Requirement
Cannot tell a Database user that transaction has committed until log pages have hit the surface of the disk
Database may need to sequence writes
Database better at predicting future I/O

5. The Ever Shrinking Kernel
Linux Windows –VM,FS..
MicroKernels – Fewer Abstractions: rm FS
Mach L4
Virtual Machines (VMM is between OS and hardware) -- Virtualization
DISCO
Xen
ExoKernel -- Multiplexing
Aegis
XOK

6. Exokernel Architecture
Environments
Request Revoke

7. Securely Expose Hardware
Disks, Physical Memory, TLB, Frame Buffer, Network Access
Less Tangible Resources:
CPU Time Slices
Interrupts, Exceptions, Cross Domain Calls
DMA
Privileged Instructions
Exokernel Exports (readonly):
Freelists, cached TLB entries, disk arm positions

8. Exokernel Functions Resource Allocation (Inter-environment)
Grant (or not) Resource Requests (Policy <- SysAd)
Process Release (Dealloc) Requests
Revoke Resources
Visible Revocation (May get to chose which to free)
Abort
Note: Usually some resources exempt: page table mem
Track Resource Ownership
Guard all resource usage or binding points
Environment  better word VM, DOMAIN revoke is an event vs. exception

9. Resource Allocation Allocation (almost always explicit) Deallocation
Alloc system call
Deallocation
Dealloc System Call
Visible Revocation
E.g.: Loss of the CPU when time slices expires:
Library OS must save required processor state
Abort Protocol
Break all existing secure bindings
Library OS gets a Repossession Exception – includes a Repossession Vector
Loss of CPU delivered in a manner similar to exceptions

10. Secure Bindings Break up protection into bind and access
Can be implemented in:
Hardware
TLB
Frame Buffer Ownership Tag
Software
STLB
Downloading Code into ExoKernel
Dynamic Packet Filter

11. Examples Physical Page Network Access
Bind: Get Exokernel to Load Mapping into TLB
Page allocation
Exokernel grants self-authenticating capability (R/W)
LibOS stores capability in Page Table
Passes Capability, Mapping on TLB write request
Access: LibOS/Application code uses TLB

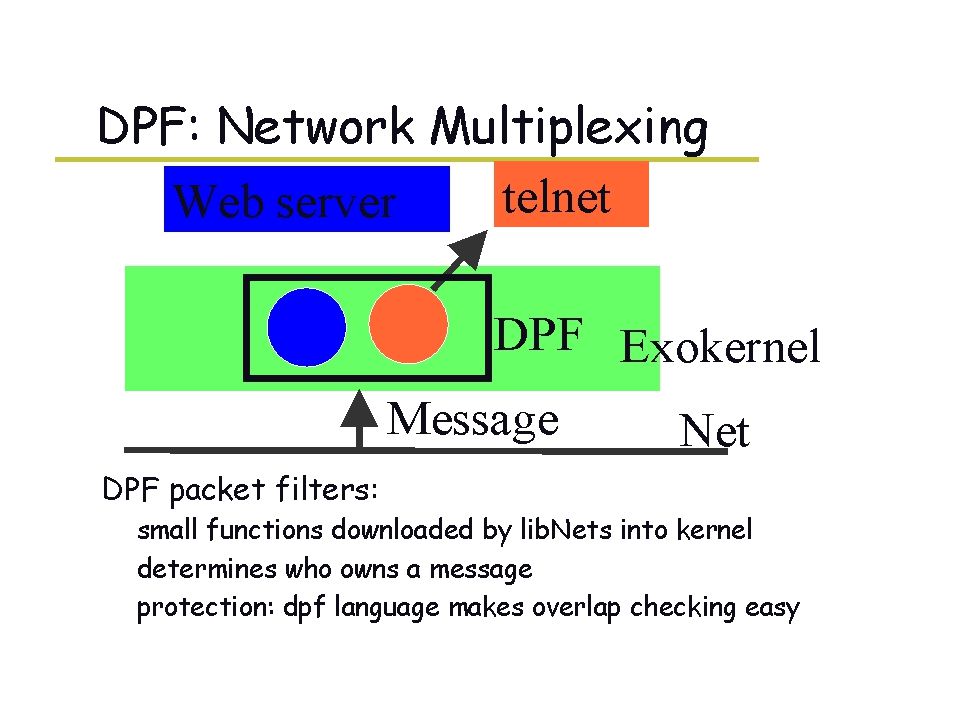

Network Access
Bind: Download DPF (Dynamic Packet Filter)
Access: Exokernel Runs DPF on every incoming pkt
Sends packets to correct Environment

12. strcpy(m, “The Ever Shrinking Kernel”);
m = malloc (3000); . . .
emacs
strcpy(m, “The Ever Shrinking Kernel”);
Virtual
Physical
CAP
Library OS 17 2
R only
freelist
Req Alloc 2 2 2 5
STLB v RW
ExoKernel
freelist
Check 2 5
Miss
TLB
Hardware
MIPs 1 2 3 4 5

13. Downloading Code Advantages: Specification Avoid Kernel Crossing
Executed when environment is not scheduled
Allowed because execution time is bounded
Specification
High Level Language
Individual DPF code can be merged
Safety by Language C
Application Specific Handlers
Dynamic Message Vectoring
Message Initiation
Protection: SFI (Sandboxing), Infinite Loop??

14. TLB Miss in Aegis
Aegis checks if mapping is in STLB. If so, load into TLB.
If the virtual address is one of the pinned pages, Aegis loads the mapping into the TLB.
Environment checks its page tables for segmentation fault. If not, use page tables to get physical page and associated capability.
Aegis checks the capability. If valid, loads mapping into TLB.
Control returned to the environment.

15. Protected Control Transfer
Two Properties  Use Registers to Pass Msg
Operation is Atomic
No overwrite of environment-visible registers
Acall
Donate remainder of Current Timeslice
Scall
Donate all timeslices

16. Micro benchmarks

17. IPC Performance ExOS vs. Ultrix

18. Performance Summary
Microbenchmarks: 10X
Cheetah web server (XOK) 8X

19. Persistent Storage Disk Block Shadowing Disk Block tag
Low level metadata language
Untrusted Deterministic Function

21. Persistent storage emacs ExOS Library OS ExOS Library OS XOK Disk PhD
Thesis
emacs
ExOS
Library OS
ExOS
Library OS
XOK
crash
Disk

22. Conclusions Microbenchmarks and #Kernel Crossings not critical
Power (E.g. downloaded code) is critical factor
Top Down vs. Bottom Up
Encourages Innovation
Writing an OS is like writing a compiler
Operating System is Untrusted
Untrusted Code Evolves Faster than Trusted
Processor for ultrix is MIPS?????

23. … and Caveats Hardware Specific: MIPs vs. 486
Persistent Storage is Complex
MultiCPU and scaleability??
Are all of the DISCO tricks available here??
Processor for ultrix is MIPS?????

24. Additional References
Application Performance and Flexibility on Exokernel Systems, Frans Kaashoek, Dawson Engler, Gregory Ganger et al
Pdos.csail.mit.edu/exo/exo-slides/sld001.htm

30. Overriding Abstractions
OS Extensions
How to override generic abstractions implemented in protected kernel, with better application specific abstractions in user space
Even if possible, won’t be efficient
OS extensions: sandboxing SFI also mach and L4? Kernel download code interpret high lvl compile, sfi, modula3
