1. 3D Computer Vision and Video Computing 3D Vision Lecture 15 Stereo Vision (II) CSC 59866CD Fall 2004 Zhigang Zhu, NAC 8/203A http://www-cs.engr.ccny.cuny.edu/~zhu/ Capstone2004/Capstone_Sequence2004.html

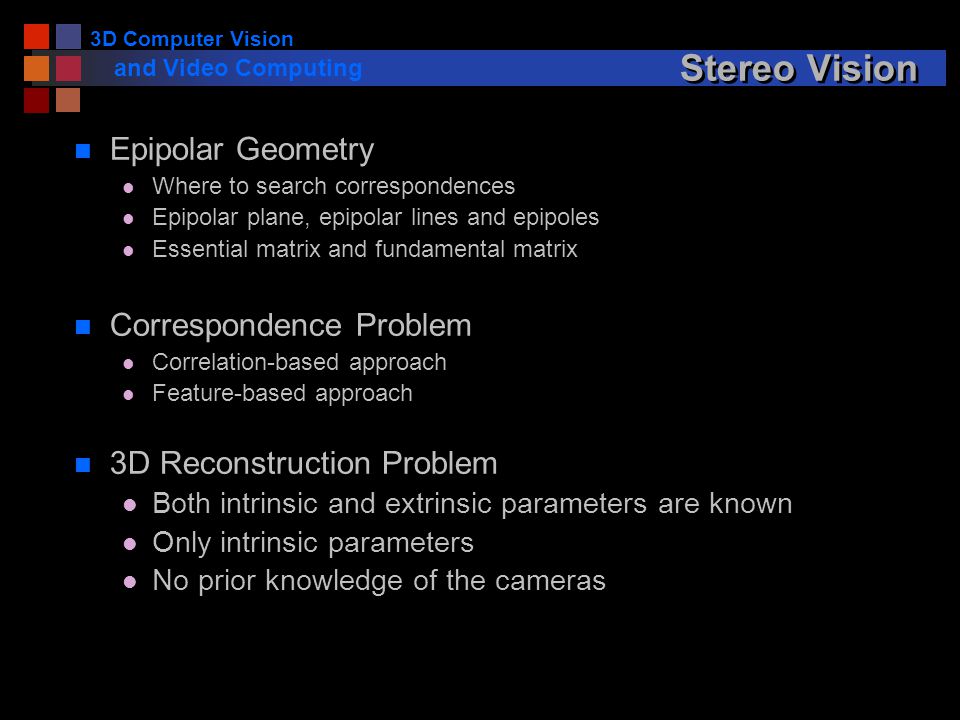

2. 3D Computer Vision and Video Computing Stereo Vision n Epipolar Geometry l Where to search correspondences l Epipolar plane, epipolar lines and epipoles l Essential matrix and fundamental matrix n Correspondence Problem l Correlation-based approach l Feature-based approach n 3D Reconstruction Problem l Both intrinsic and extrinsic parameters are known l Only intrinsic parameters l No prior knowledge of the cameras

3. 3D Computer Vision and Video Computing Epipolar Geometry n Notations l P l =(X l, Y l, Z l ), P r =(X r, Y r, Z r ) n Vectors of the same 3-D point P, in the left and right camera coordinate systems respectively l Extrinsic Parameters n Translation Vector T = (O r -O l ) n Rotation Matrix R l p l =(x l, y l, z l ), p r =(x r, y r, z r ) n Projections of P on the left and right image plane respectively n For all image points, we have z l =f l, z r =f r p l p r P OlOl OrOr XlXl XrXr PlPl PrPr flfl frfr ZlZl YlYl ZrZr YrYr R, T

4. 3D Computer Vision and Video Computing Epipolar Geometry n Motivation: where to search correspondences? l Epipolar Plane n A plane going through point P and the centers of projection (COPs) of the two cameras l Conjugated Epipolar Lines n Lines where epipolar plane intersects the image planes l Epipoles n The image in one camera of the COP of the other n Epipolar Constraint l Corresponding points must lie on conjugated epipolar lines p l p r P OlOl OrOr elel erer PlPl PrPr Epipolar Plane Epipolar Lines Epipoles

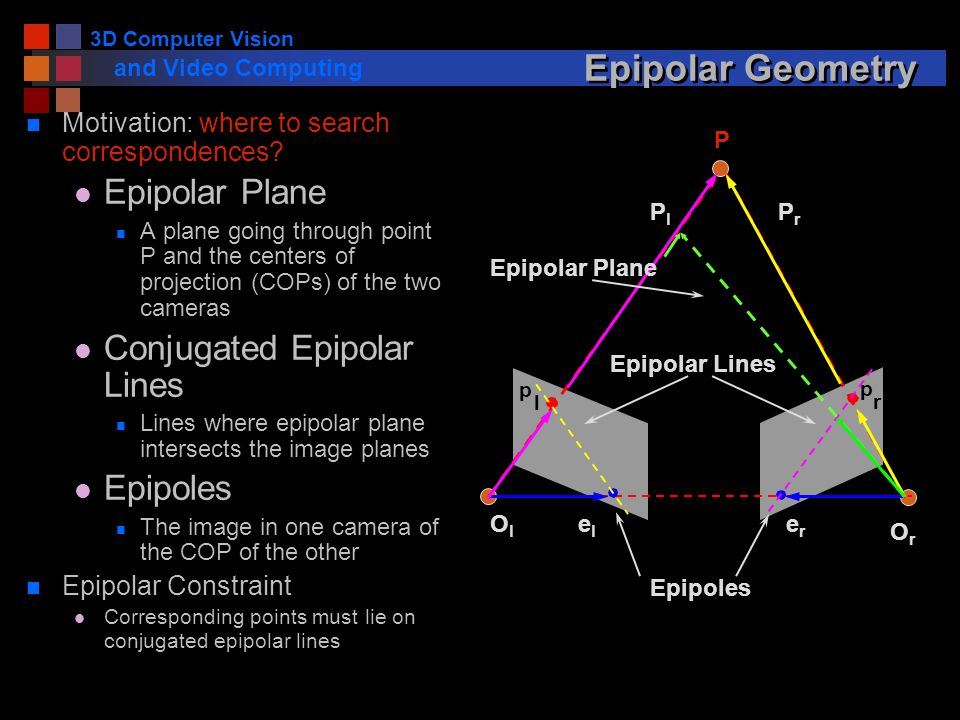

5. 3D Computer Vision and Video Computing Epipolar Geometry n Motivation: where to search correspondences? l Epipolar Plane n A plane going through point P and the centers of projection (COPs) of the two cameras l Conjugated Epipolar Lines n Lines where epipolar plane intersects the image planes l Epipoles n The image in one camera of the COP of the other n Epipolar Constraint l Corresponding points must lie on conjugated epipolar lines p l p r P OlOl OrOr elel erer PlPl PrPr Epipolar Plane Epipolar Lines Epipoles

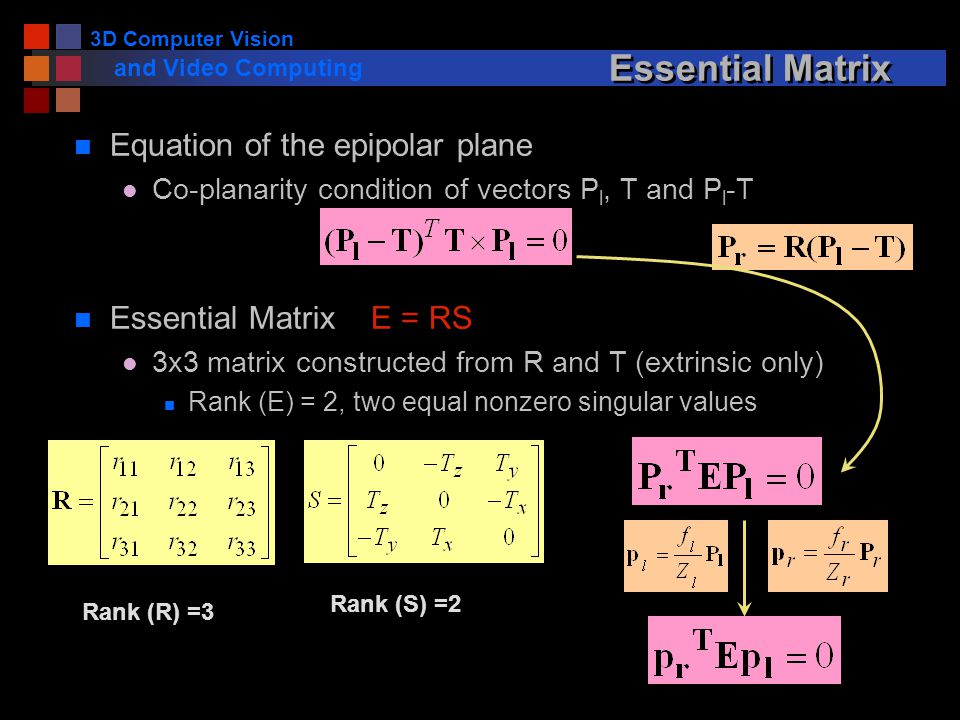

6. 3D Computer Vision and Video Computing Essential Matrix n Equation of the epipolar plane l Co-planarity condition of vectors P l, T and P l -T n Essential Matrix E = RS l 3x3 matrix constructed from R and T (extrinsic only) n Rank (E) = 2, two equal nonzero singular values Rank (R) =3 Rank (S) =2

7. 3D Computer Vision and Video Computing Essential Matrix n Essential Matrix E = RS l A natural link between the stereo point pair and the extrinsic parameters of the stereo system n One correspondence -> a linear equation of 9 entries n Given 8 pairs of (pl, pr) -> E l Mapping between points and epipolar lines we are looking for n Given p l, E -> p r on the projective line in the right plane n Equation represents the epipolar line of either pr (or pl) in the right (or left) image n Note: l pl, pr are in the camera coordinate system, not pixel coordinates that we can measure

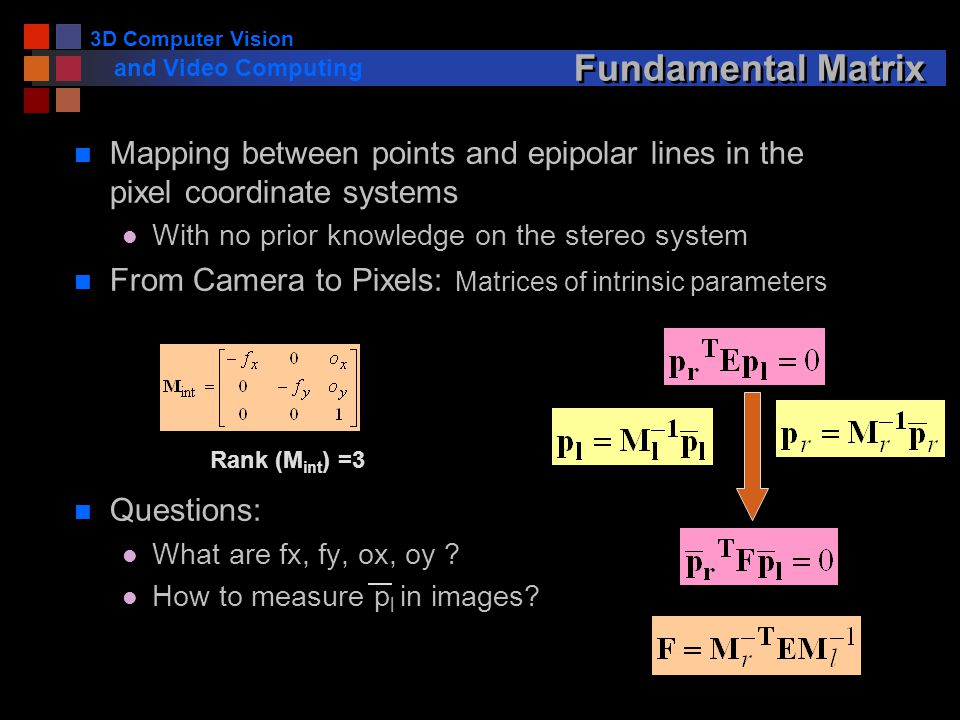

8. 3D Computer Vision and Video Computing Fundamental Matrix n Mapping between points and epipolar lines in the pixel coordinate systems l With no prior knowledge on the stereo system n From Camera to Pixels: Matrices of intrinsic parameters n Questions: l What are fx, fy, ox, oy ? l How to measure p l in images? Rank (M int ) =3

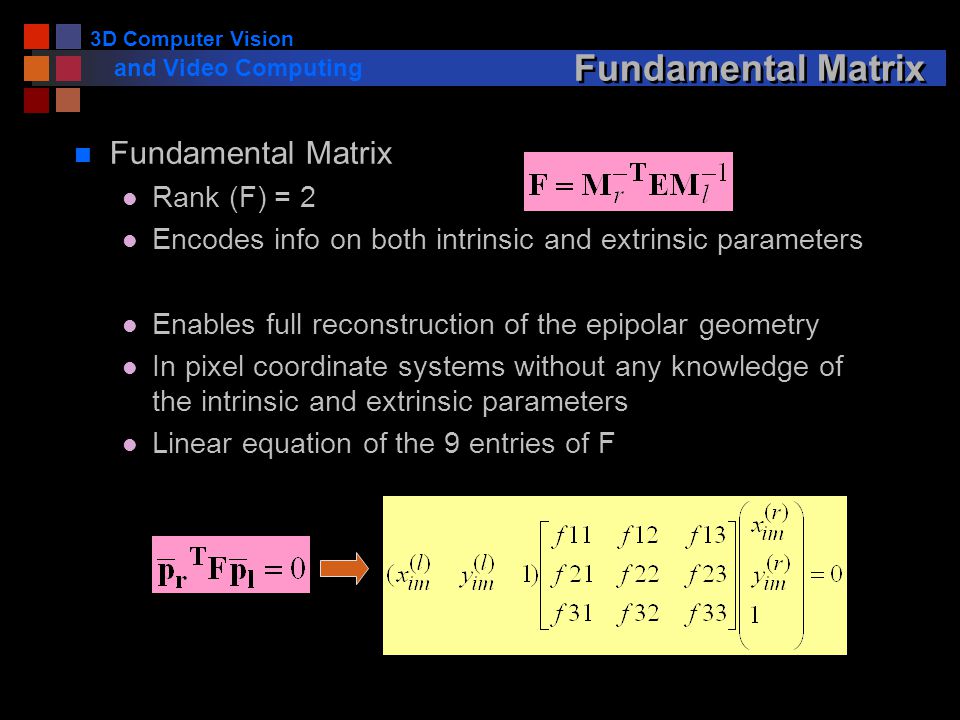

9. 3D Computer Vision and Video Computing Fundamental Matrix n Fundamental Matrix l Rank (F) = 2 l Encodes info on both intrinsic and extrinsic parameters l Enables full reconstruction of the epipolar geometry l In pixel coordinate systems without any knowledge of the intrinsic and extrinsic parameters l Linear equation of the 9 entries of F

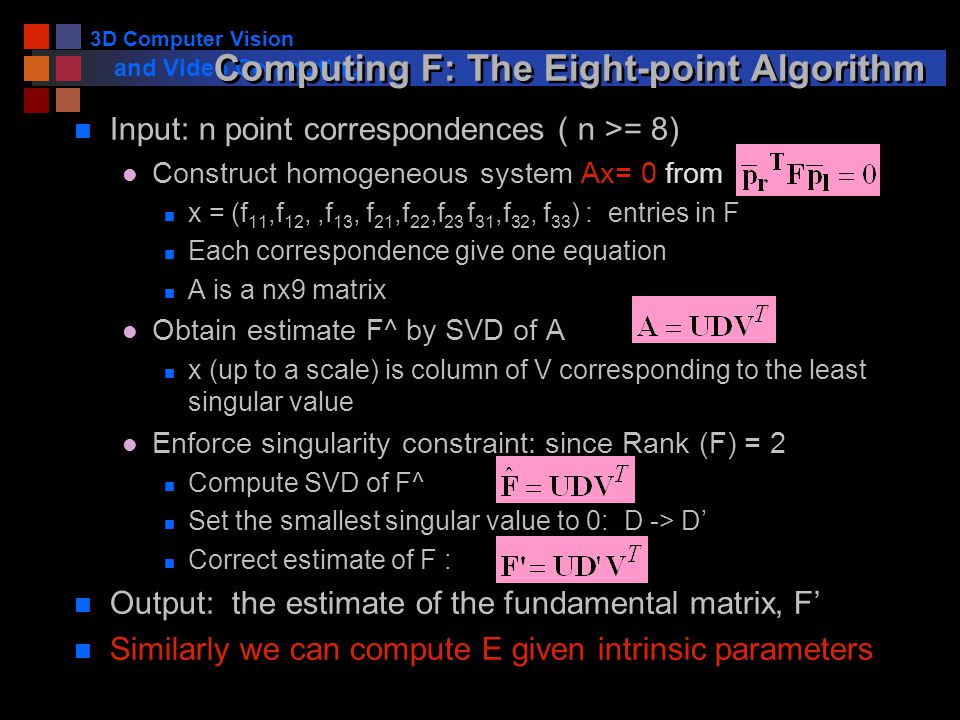

10. 3D Computer Vision and Video Computing Computing F: The Eight-point Algorithm n Input: n point correspondences ( n >= 8) l Construct homogeneous system Ax= 0 from n x = (f 11,f 12,,f 13, f 21,f 22,f 23 f 31,f 32, f 33 ) : entries in F n Each correspondence give one equation n A is a nx9 matrix l Obtain estimate F^ by SVD of A n x (up to a scale) is column of V corresponding to the least singular value l Enforce singularity constraint: since Rank (F) = 2 n Compute SVD of F^ n Set the smallest singular value to 0: D -> D’ n Correct estimate of F : n Output: the estimate of the fundamental matrix, F’ n Similarly we can compute E given intrinsic parameters

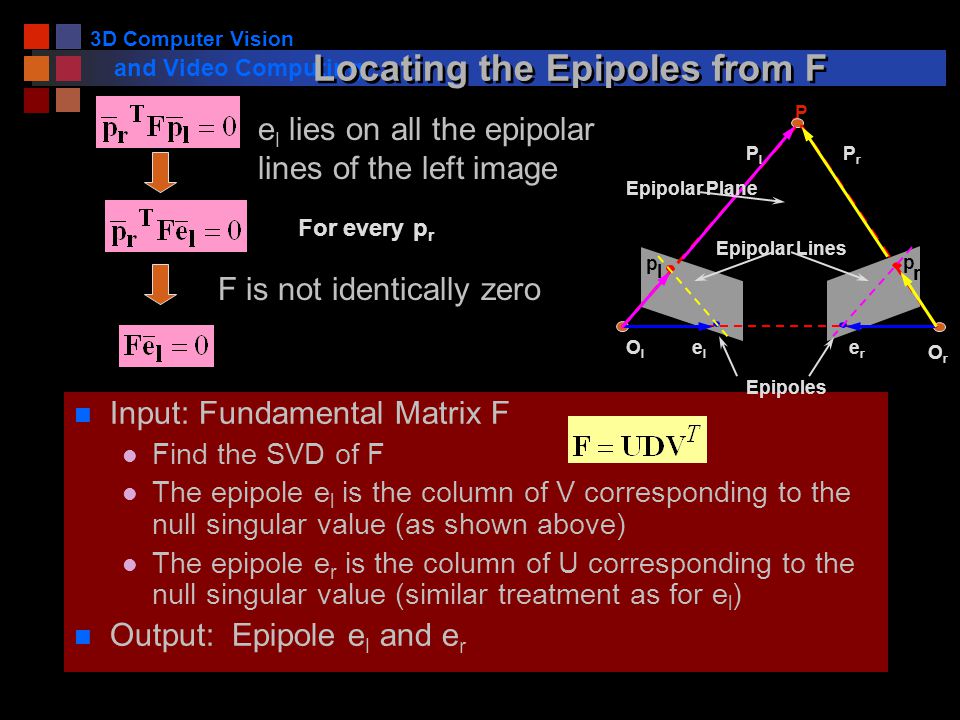

11. 3D Computer Vision and Video Computing Locating the Epipoles from F n Input: Fundamental Matrix F l Find the SVD of F l The epipole e l is the column of V corresponding to the null singular value (as shown above) l The epipole e r is the column of U corresponding to the null singular value (similar treatment as for e l ) n Output: Epipole e l and e r e l lies on all the epipolar lines of the left image F is not identically zero For every p r p l p r P OlOl OrOr elel erer PlPl PrPr Epipolar Plane Epipolar Lines Epipoles

12. 3D Computer Vision and Video Computing Stereo Rectification n Rectification l Given a stereo pair, the intrinsic and extrinsic parameters, find the image transformation to achieve a stereo system of horizontal epipolar lines l A simple algorithm: Assuming calibrated stereo cameras p’ l r P OlOl OrOr X’ r PlPl PrPr Z’ l Y’ l Y’ r TX’ l Z’ r n Stereo System with Parallel Optical Axes n Epipoles are at infinity n Horizontal epipolar lines

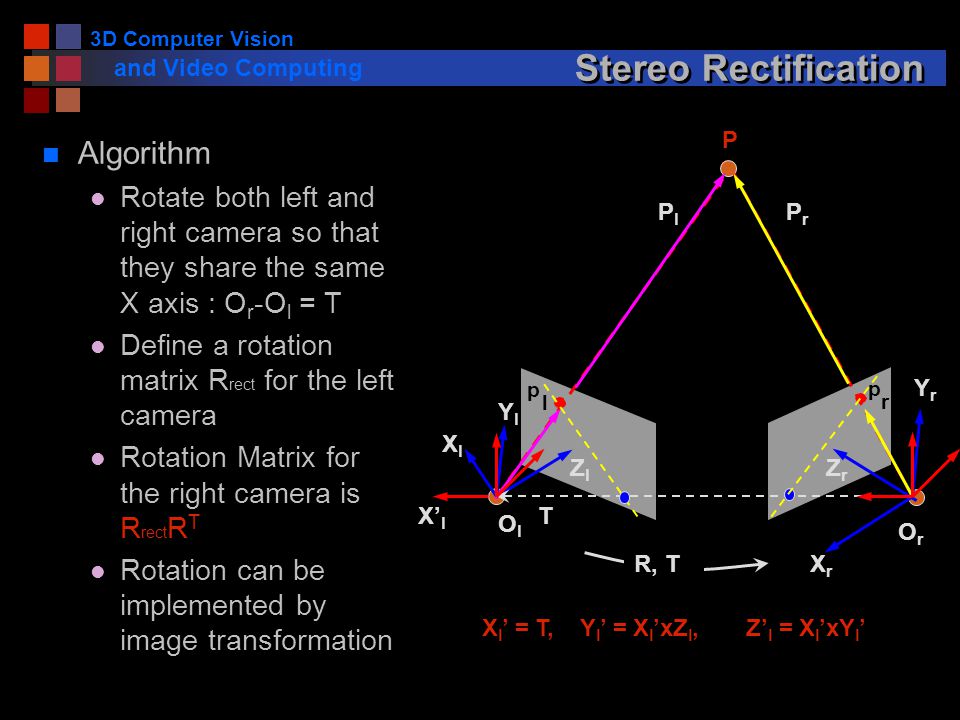

13. 3D Computer Vision and Video Computing Stereo Rectification n Algorithm l Rotate both left and right camera so that they share the same X axis : O r -O l = T l Define a rotation matrix R rect for the left camera l Rotation Matrix for the right camera is R rect R T l Rotation can be implemented by image transformation p l p r P OlOl OrOr XlXl XrXr PlPl PrPr ZlZl YlYl ZrZr YrYr R, T TX’ l X l ’ = T, Y l ’ = X l ’xZ l, Z’ l = X l ’xY l ’

14. 3D Computer Vision and Video Computing Stereo Rectification n Algorithm l Rotate both left and right camera so that they share the same X axis : O r -O l = T l Define a rotation matrix R rect for the left camera l Rotation Matrix for the right camera is R rect R T l Rotation can be implemented by image transformation p l p r P OlOl OrOr XlXl XrXr PlPl PrPr ZlZl YlYl ZrZr YrYr R, T TX’ l X l ’ = T, Y l ’ = X l ’xZ l, Z’ l = X l ’xY l ’

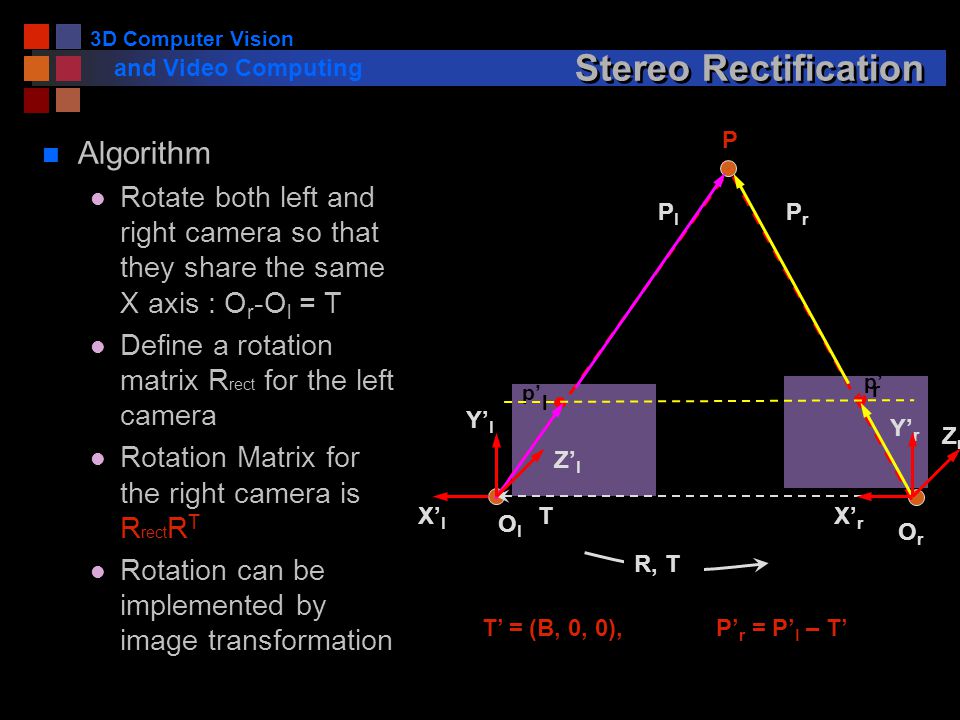

15. 3D Computer Vision and Video Computing Stereo Rectification n Algorithm l Rotate both left and right camera so that they share the same X axis : O r -O l = T l Define a rotation matrix R rect for the left camera l Rotation Matrix for the right camera is R rect R T l Rotation can be implemented by image transformation ZrZr p’ l r P OlOl OrOr X’ r PlPl PrPr Z’ l Y’ l Y’ r R, T TX’ l T’ = (B, 0, 0), P’ r = P’ l – T’

16. 3D Computer Vision and Video Computing Epipolar Geometry n Purpose l where to search correspondences n Epipolar plane, epipolar lines, and epipoles l known intrinsic (f) and extrinsic (R, T) n co-planarity equation l known intrinsic but unknown extrinsic n essential matrix l unknown intrinsic and extrinsic n fundamental matrix n Rectification l Generate stereo pair (by software) with parallel optical axis and thus horizontal epipolar lines

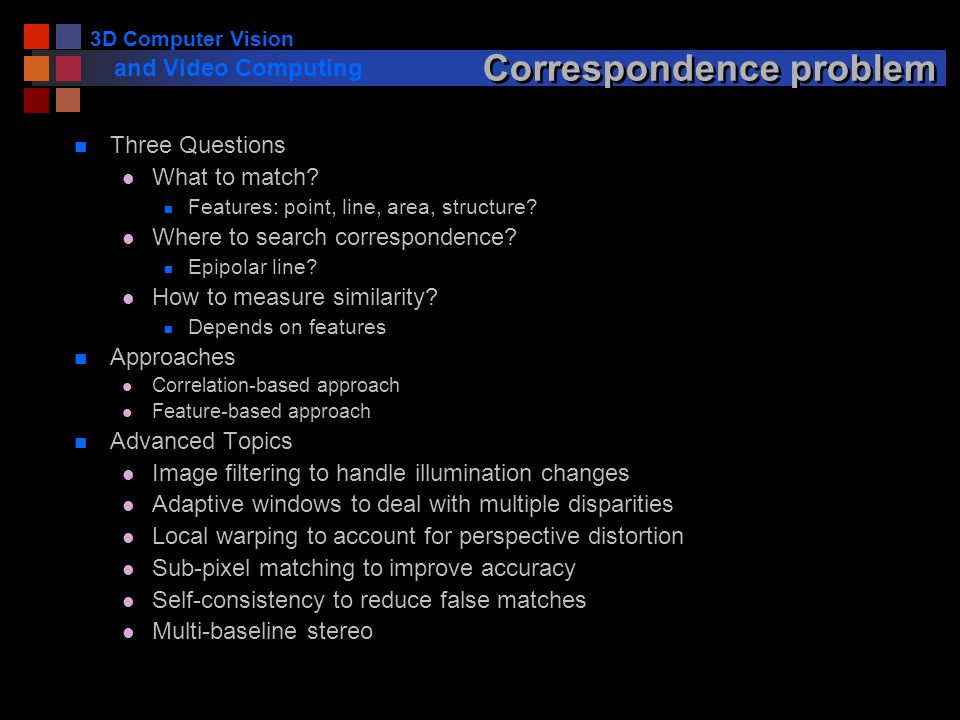

17. 3D Computer Vision and Video Computing Correspondence problem n Three Questions l What to match? n Features: point, line, area, structure? l Where to search correspondence? n Epipolar line? l How to measure similarity? n Depends on features n Approaches l Correlation-based approach l Feature-based approach n Advanced Topics l Image filtering to handle illumination changes l Adaptive windows to deal with multiple disparities l Local warping to account for perspective distortion l Sub-pixel matching to improve accuracy l Self-consistency to reduce false matches l Multi-baseline stereo

18. 3D Computer Vision and Video Computing Correlation Approach n For Each point (x l, y l ) in the left image, define a window centered at the point (x l, y l ) LEFT IMAGE

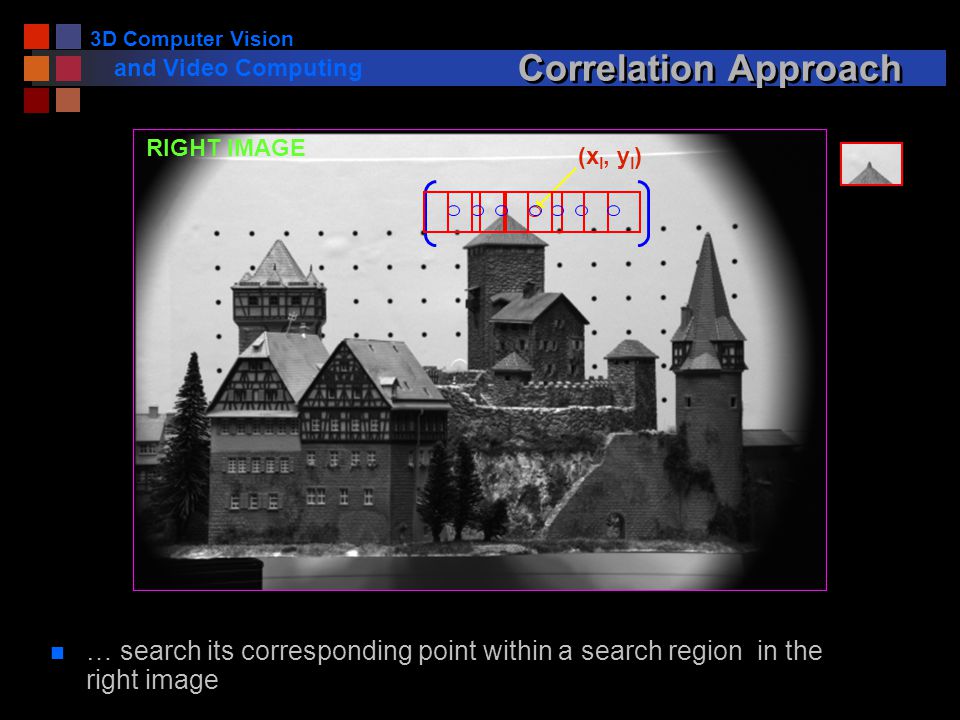

19. 3D Computer Vision and Video Computing Correlation Approach n … search its corresponding point within a search region in the right image (x l, y l ) RIGHT IMAGE

20. 3D Computer Vision and Video Computing Correlation Approach n … the disparity (dx, dy) is the displacement when the correlation is maximum (x l, y l )dx(x r, y r ) RIGHT IMAGE

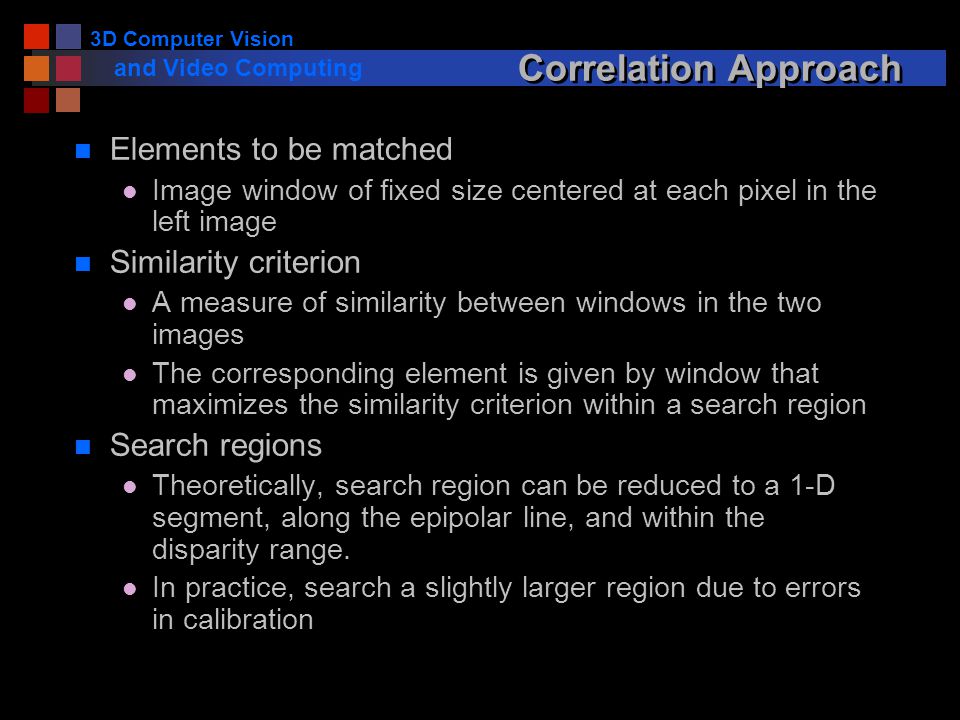

21. 3D Computer Vision and Video Computing Correlation Approach n Elements to be matched l Image window of fixed size centered at each pixel in the left image n Similarity criterion l A measure of similarity between windows in the two images l The corresponding element is given by window that maximizes the similarity criterion within a search region n Search regions l Theoretically, search region can be reduced to a 1-D segment, along the epipolar line, and within the disparity range. l In practice, search a slightly larger region due to errors in calibration

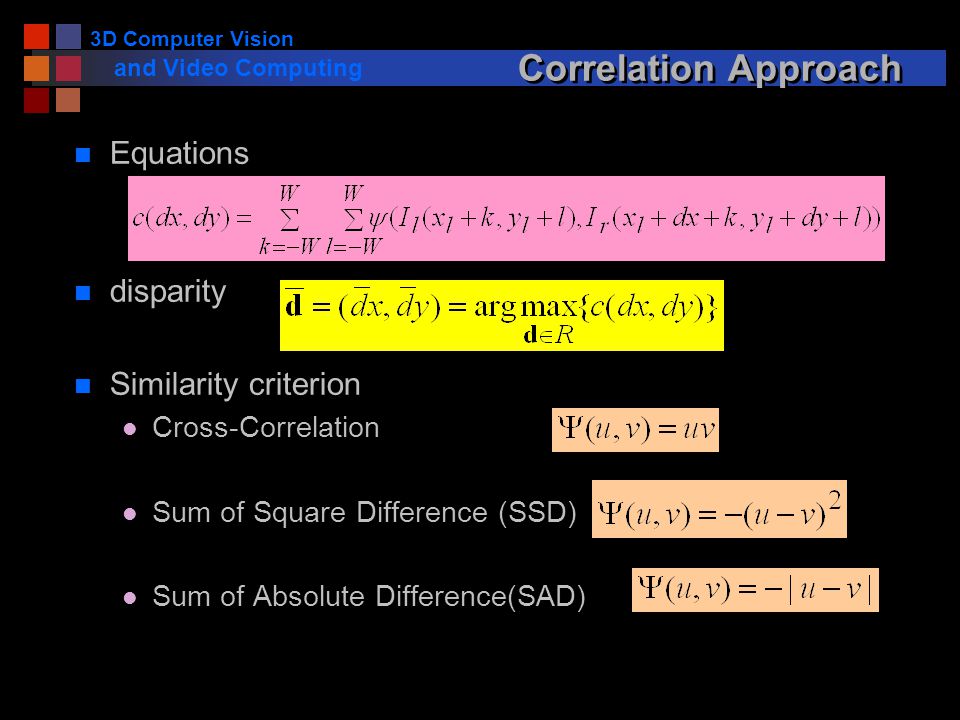

22. 3D Computer Vision and Video Computing Correlation Approach n Equations n disparity n Similarity criterion l Cross-Correlation l Sum of Square Difference (SSD) l Sum of Absolute Difference(SAD)

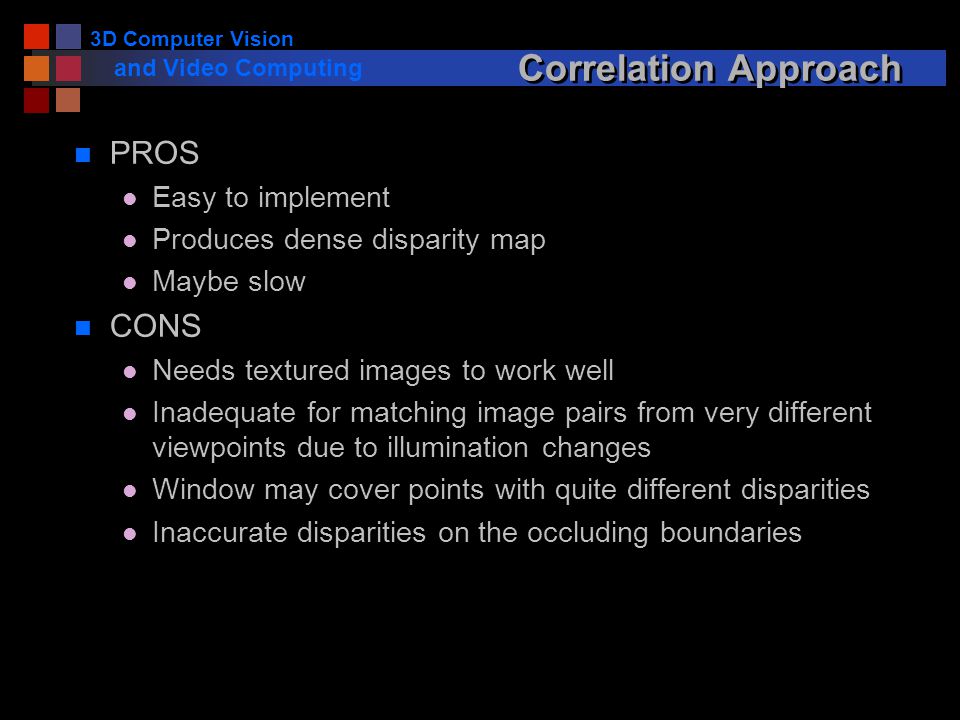

23. 3D Computer Vision and Video Computing Correlation Approach n PROS l Easy to implement l Produces dense disparity map l Maybe slow n CONS l Needs textured images to work well l Inadequate for matching image pairs from very different viewpoints due to illumination changes l Window may cover points with quite different disparities l Inaccurate disparities on the occluding boundaries

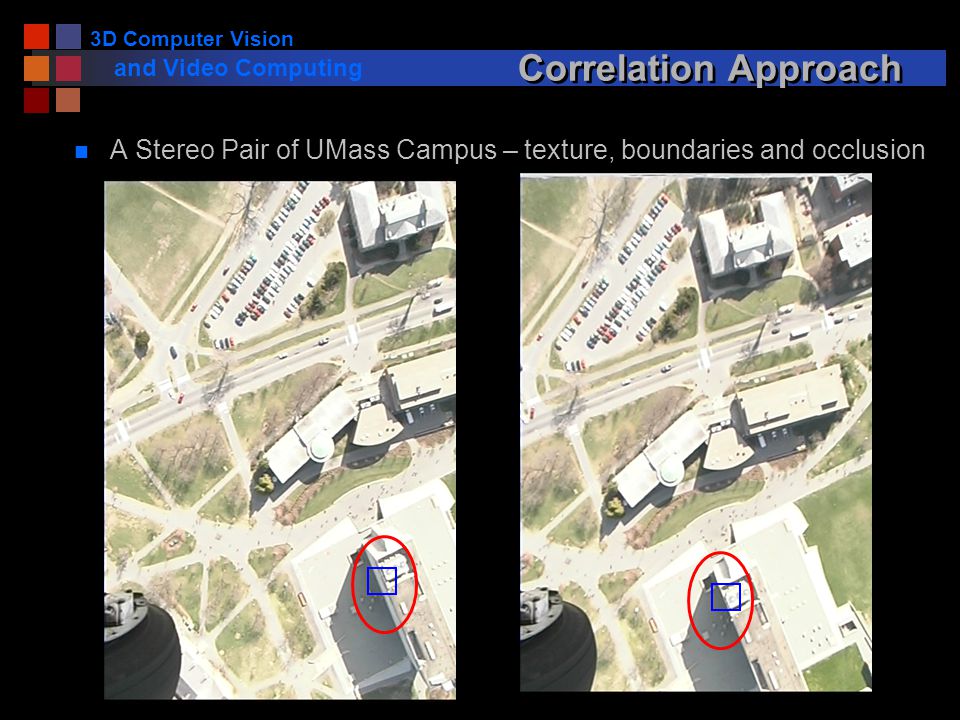

24. 3D Computer Vision and Video Computing Correlation Approach n A Stereo Pair of UMass Campus – texture, boundaries and occlusion

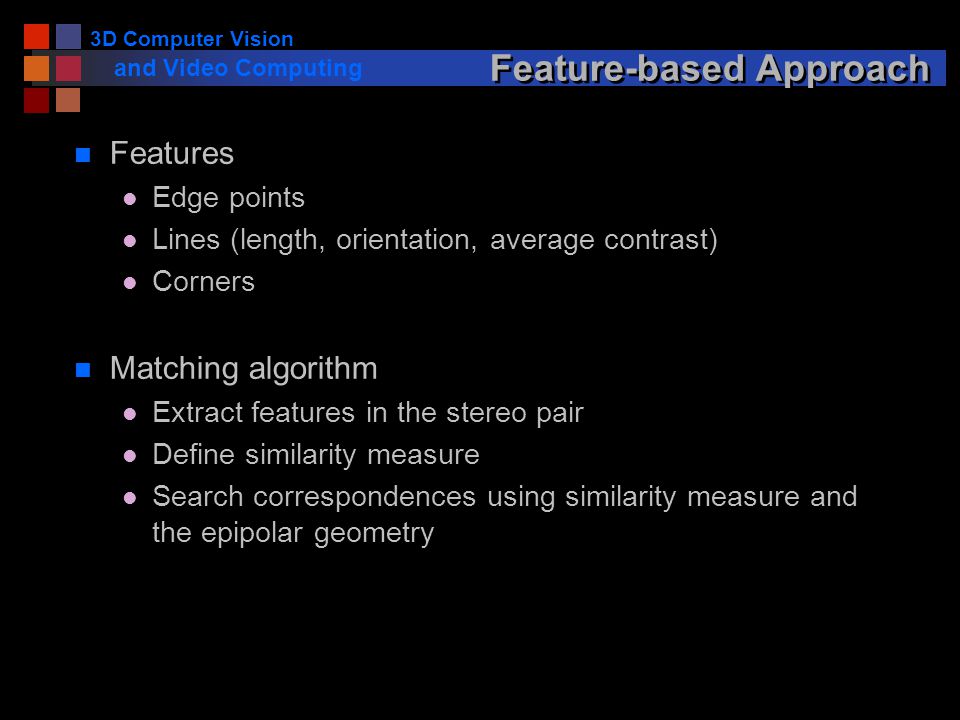

25. 3D Computer Vision and Video Computing Feature-based Approach n Features l Edge points l Lines (length, orientation, average contrast) l Corners n Matching algorithm l Extract features in the stereo pair l Define similarity measure l Search correspondences using similarity measure and the epipolar geometry

26. 3D Computer Vision and Video Computing Feature-based Approach n For each feature in the left image… LEFT IMAGE corner line structure

27. 3D Computer Vision and Video Computing Feature-based Approach n Search in the right image… the disparity (dx, dy) is the displacement when the similarity measure is maximum RIGHT IMAGE corner line structure

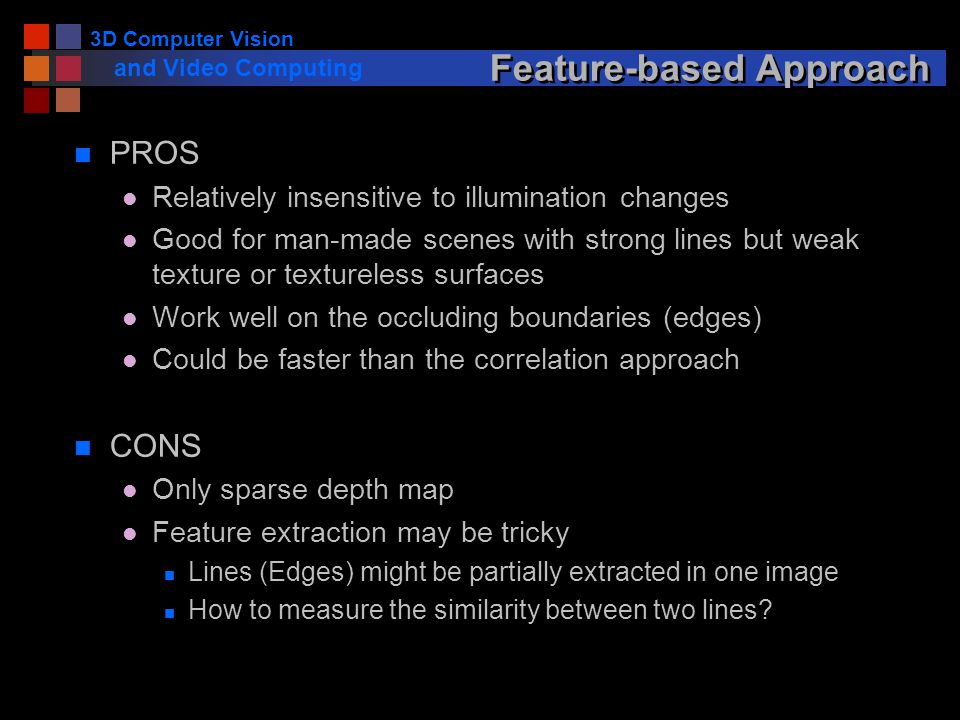

28. 3D Computer Vision and Video Computing Feature-based Approach n PROS l Relatively insensitive to illumination changes l Good for man-made scenes with strong lines but weak texture or textureless surfaces l Work well on the occluding boundaries (edges) l Could be faster than the correlation approach n CONS l Only sparse depth map l Feature extraction may be tricky n Lines (Edges) might be partially extracted in one image n How to measure the similarity between two lines?

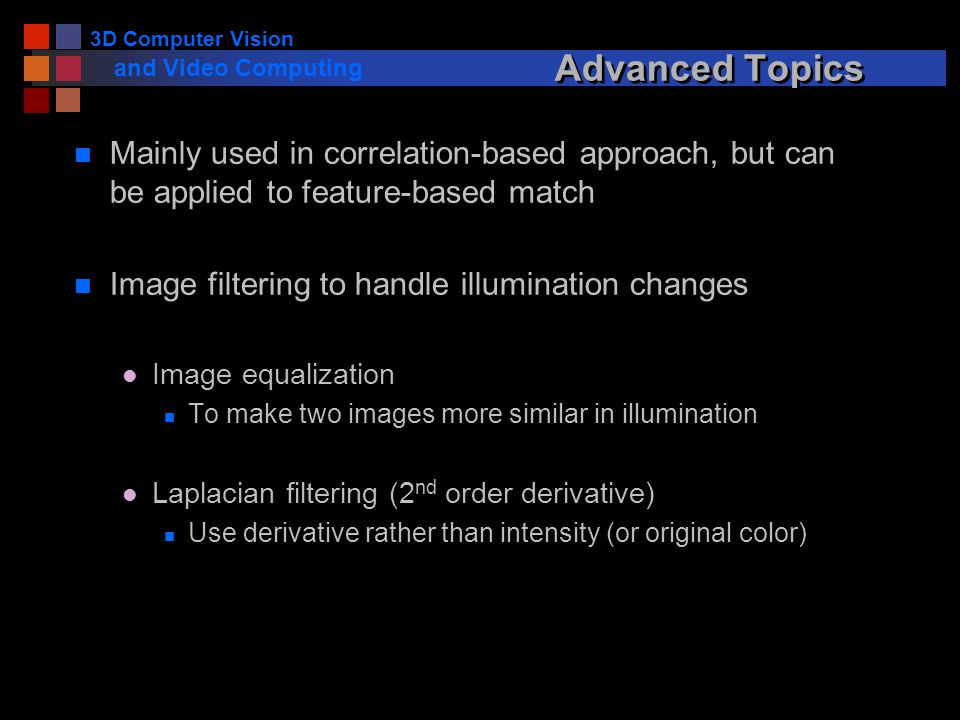

29. 3D Computer Vision and Video Computing Advanced Topics n Mainly used in correlation-based approach, but can be applied to feature-based match n Image filtering to handle illumination changes l Image equalization n To make two images more similar in illumination l Laplacian filtering (2 nd order derivative) n Use derivative rather than intensity (or original color)

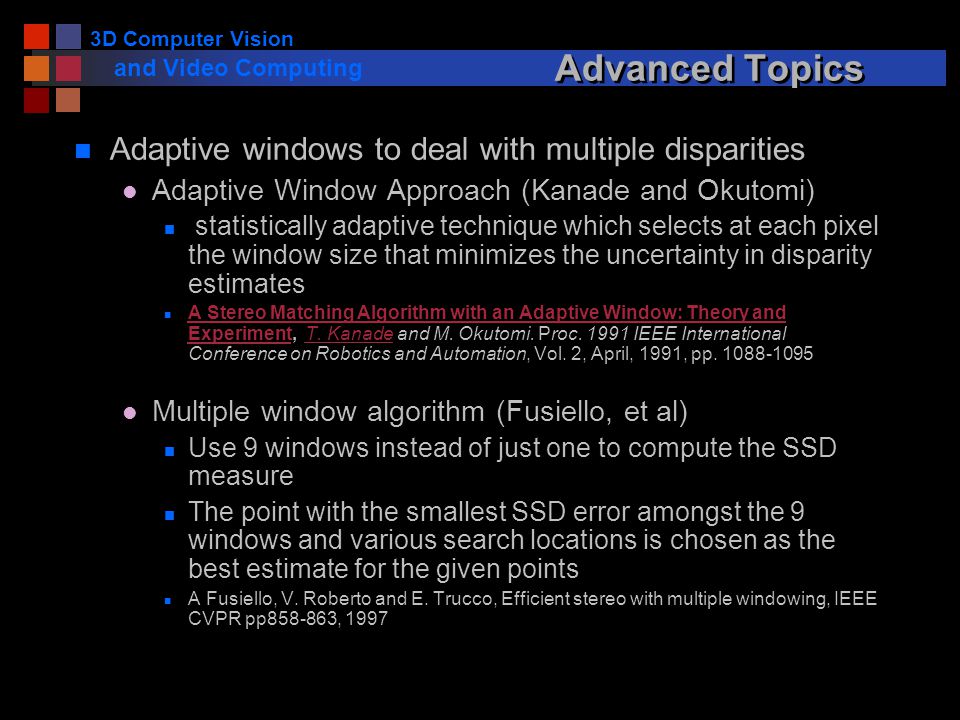

30. 3D Computer Vision and Video Computing Advanced Topics n Adaptive windows to deal with multiple disparities l Adaptive Window Approach (Kanade and Okutomi) n statistically adaptive technique which selects at each pixel the window size that minimizes the uncertainty in disparity estimates n A Stereo Matching Algorithm with an Adaptive Window: Theory and Experiment, T. Kanade and M. Okutomi. Proc. 1991 IEEE International Conference on Robotics and Automation, Vol. 2, April, 1991, pp. 1088-1095 A Stereo Matching Algorithm with an Adaptive Window: Theory and ExperimentT. Kanade l Multiple window algorithm (Fusiello, et al) n Use 9 windows instead of just one to compute the SSD measure n The point with the smallest SSD error amongst the 9 windows and various search locations is chosen as the best estimate for the given points n A Fusiello, V. Roberto and E. Trucco, Efficient stereo with multiple windowing, IEEE CVPR pp858-863, 1997

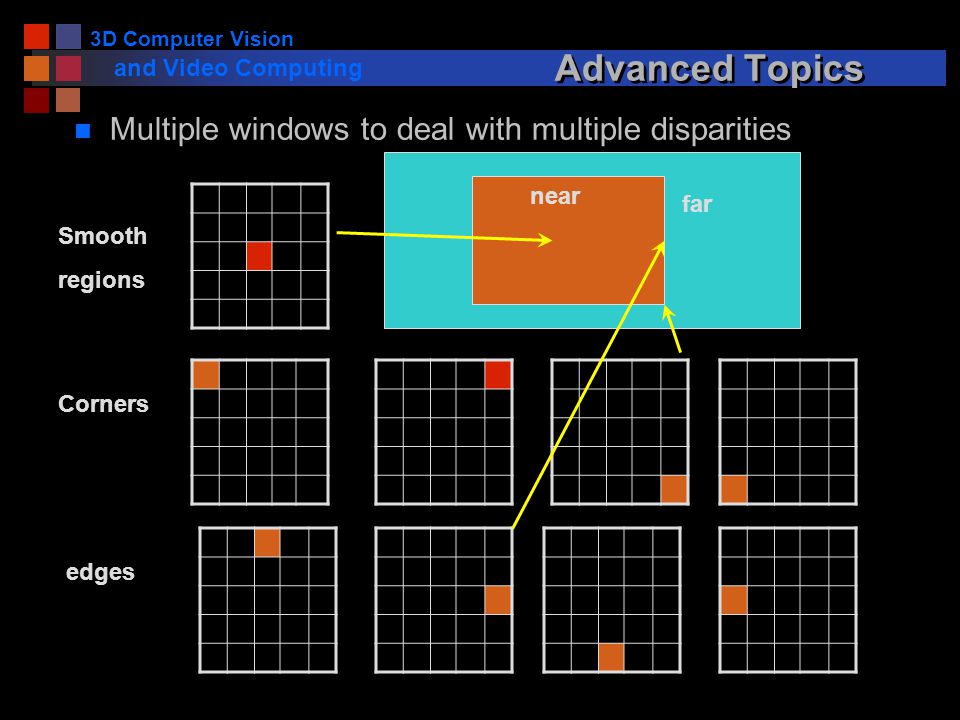

31. 3D Computer Vision and Video Computing Advanced Topics n Multiple windows to deal with multiple disparities Smooth regions Corners edges near far

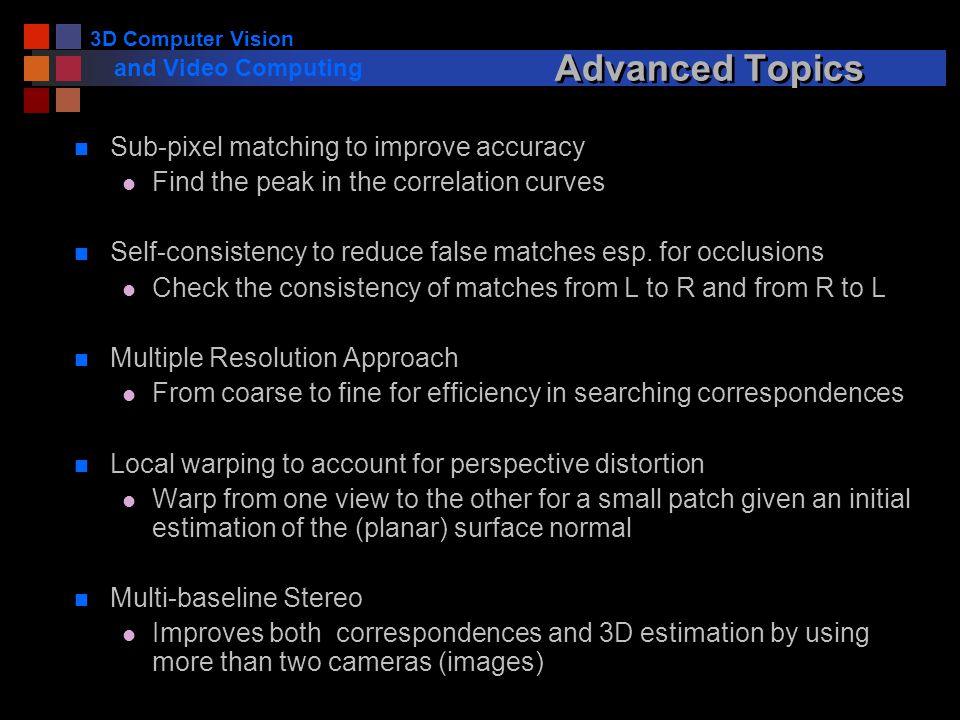

32. 3D Computer Vision and Video Computing Advanced Topics n Sub-pixel matching to improve accuracy l Find the peak in the correlation curves n Self-consistency to reduce false matches esp. for occlusions l Check the consistency of matches from L to R and from R to L n Multiple Resolution Approach l From coarse to fine for efficiency in searching correspondences n Local warping to account for perspective distortion l Warp from one view to the other for a small patch given an initial estimation of the (planar) surface normal n Multi-baseline Stereo l Improves both correspondences and 3D estimation by using more than two cameras (images)

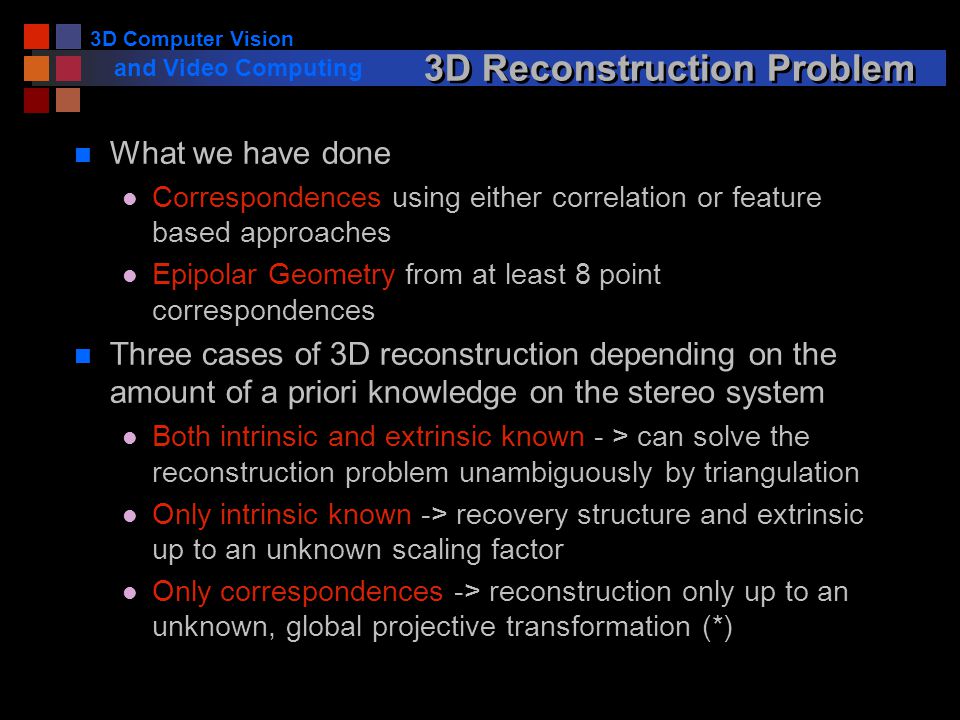

33. 3D Computer Vision and Video Computing 3D Reconstruction Problem n What we have done l Correspondences using either correlation or feature based approaches l Epipolar Geometry from at least 8 point correspondences n Three cases of 3D reconstruction depending on the amount of a priori knowledge on the stereo system l Both intrinsic and extrinsic known - > can solve the reconstruction problem unambiguously by triangulation l Only intrinsic known -> recovery structure and extrinsic up to an unknown scaling factor l Only correspondences -> reconstruction only up to an unknown, global projective transformation (*)

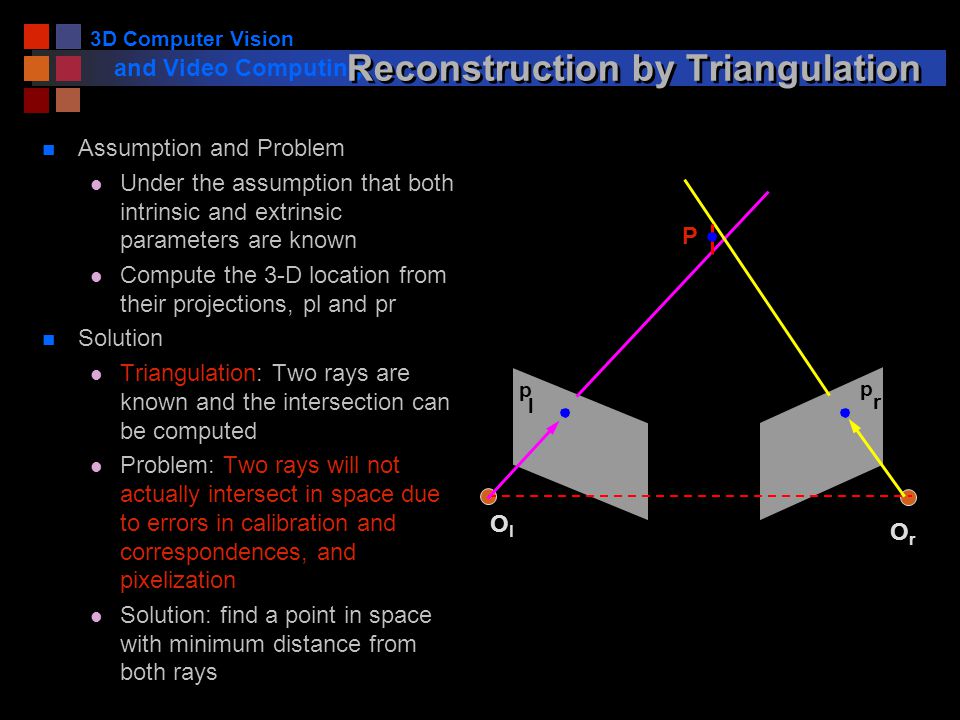

34. 3D Computer Vision and Video Computing Reconstruction by Triangulation n Assumption and Problem l Under the assumption that both intrinsic and extrinsic parameters are known l Compute the 3-D location from their projections, pl and pr n Solution l Triangulation: Two rays are known and the intersection can be computed l Problem: Two rays will not actually intersect in space due to errors in calibration and correspondences, and pixelization l Solution: find a point in space with minimum distance from both rays p p r P OlOl OrOr l

35. 3D Computer Vision and Video Computing Reconstruction up to a Scale Factor n Assumption and Problem Statement l Under the assumption that only intrinsic parameters and more than 8 point correspondences are given l Compute the 3-D location from their projections, pl and pr, as well as the extrinsic parameters n Solution l Compute the essential matrix E from at least 8 correspondences l Estimate T (up to a scale and a sign) from E (=RS) using the orthogonal constraint of R, and then R n End up with four different estimates of the pair (T, R) l Reconstruct the depth of each point, and pick up the correct sign of R and T. l Results: reconstructed 3D points (up to a common scale); l The scale can be determined if distance of two points (in space) are known

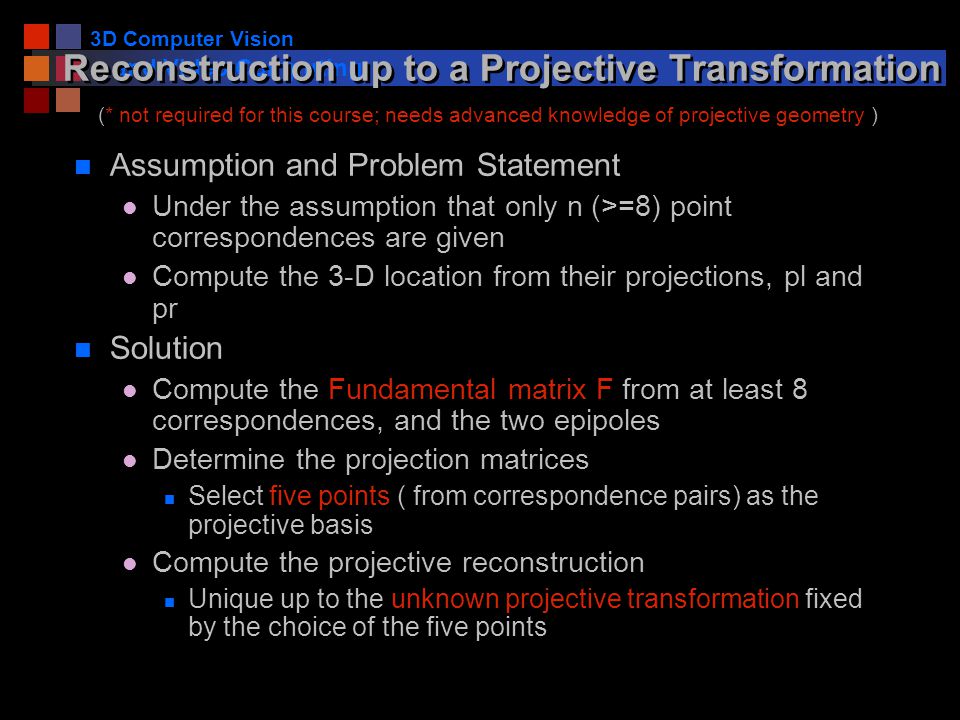

36. 3D Computer Vision and Video Computing Reconstruction up to a Projective Transformation n Assumption and Problem Statement l Under the assumption that only n (>=8) point correspondences are given l Compute the 3-D location from their projections, pl and pr n Solution l Compute the Fundamental matrix F from at least 8 correspondences, and the two epipoles l Determine the projection matrices n Select five points ( from correspondence pairs) as the projective basis l Compute the projective reconstruction n Unique up to the unknown projective transformation fixed by the choice of the five points (* not required for this course; needs advanced knowledge of projective geometry )

37. 3D Computer Vision and Video Computing Summary n Fundamental concepts and problems of stereo n Epipolar geometry and stereo rectification n Estimation of fundamental matrix from 8 point pairs n Correspondence problem and two techniques: correlation and feature based matching n Reconstruct 3-D structure from image correspondences given l Fully calibrated l Partially calibration l Uncalibrated stereo cameras (*)

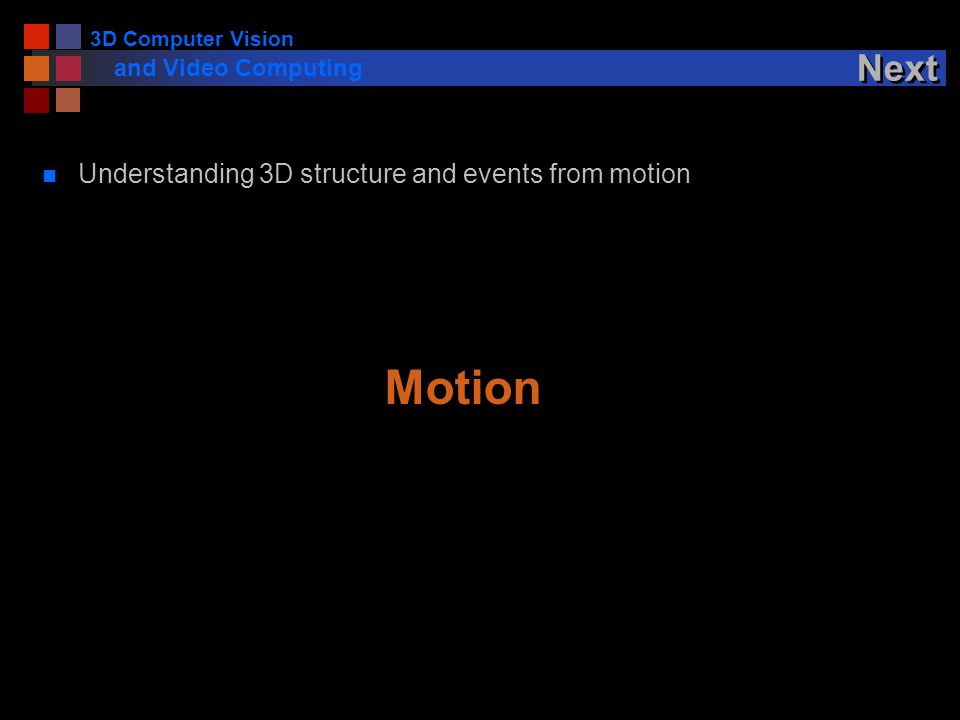

38. 3D Computer Vision and Video Computing Next n Understanding 3D structure and events from motion Motion
