1. SINGLE CRYSTAL SILICON PV CELLS www.solarcell.net

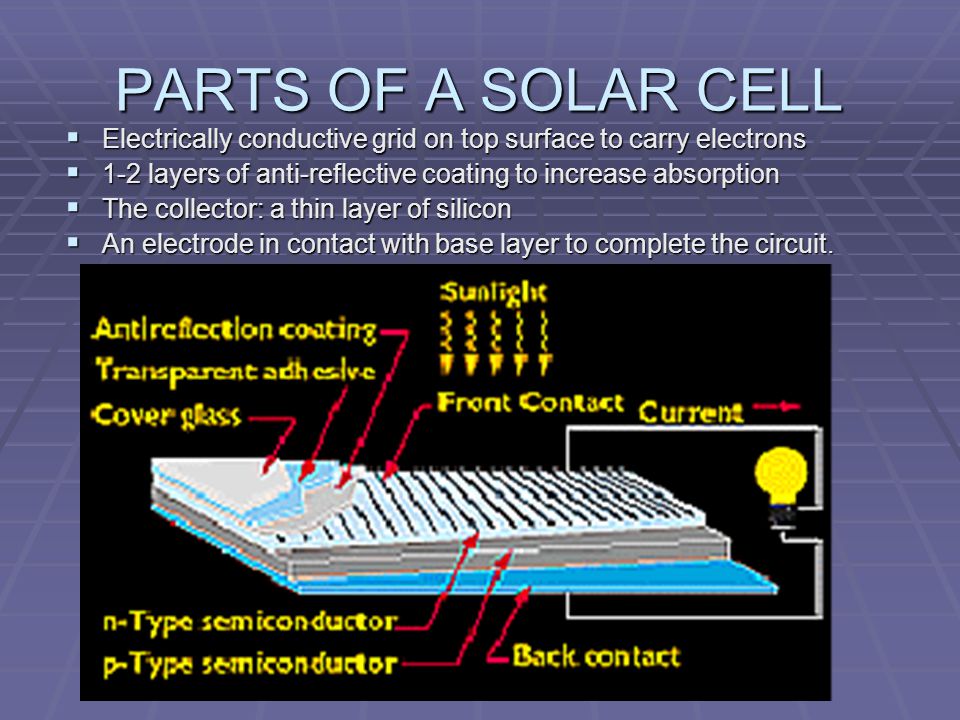

2. PARTS OF A SOLAR CELL  Electrically conductive grid on top surface to carry electrons  1-2 layers of anti-reflective coating to increase absorption  The collector: a thin layer of silicon  An electrode in contact with base layer to complete the circuit.

3. SILICON  Silicon is the most popular PV material  Most cells are made from left over computer chip manufacturing  Silicon must be refined to almost 100% purity  The uniform molecular structure of silicon makes it efficient for electron transport  Silicon wafers are cut from ingots

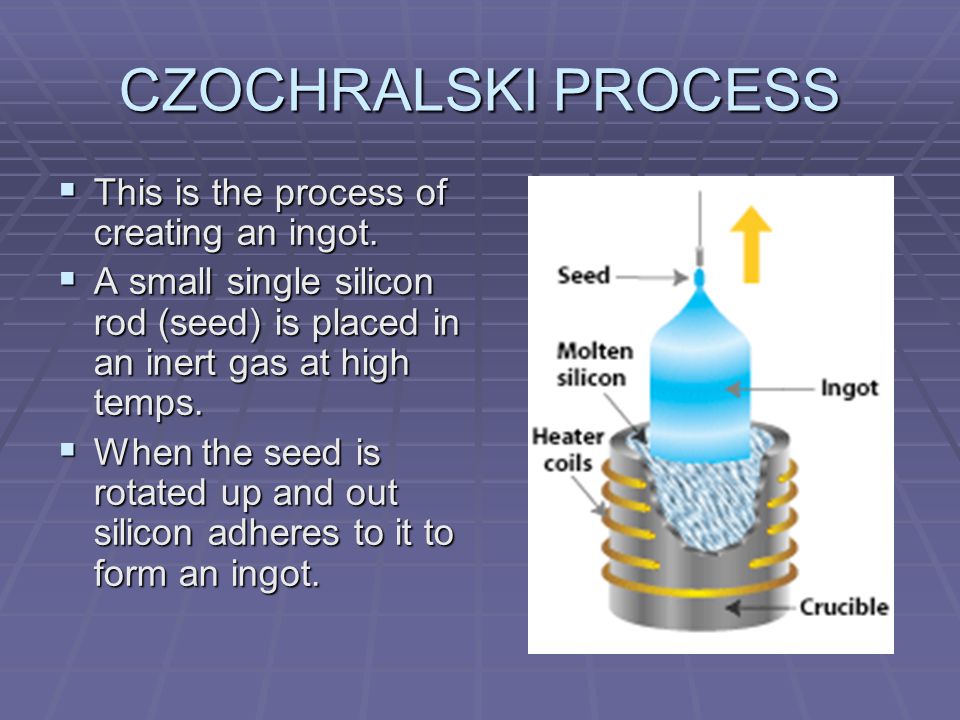

4. CZOCHRALSKI PROCESS  This is the process of creating an ingot.  A small single silicon rod (seed) is placed in an inert gas at high temps.  When the seed is rotated up and out silicon adheres to it to form an ingot.

5. CELLS -> MODULES  Wafers 5 inches square and.012 inches thick are sliced from the ingot.  They are then processed into cells and soldered together to achieve the desired voltage.  Cells arrayed in series are called modules.

6. TWO TYPES OF CELLS  There are two types of single crystal silicon cells: n-type or p-type

7. TECHNOLOGY  PV cells exhibit voltage or current when exposed to light.  The light liberates electrons which move through the cell creating current.  The larger area there is the more current.  Single crystal silicon cells are the most efficient at 15-24% sunlight-to-electricity conversion rate.  They are also the most expensive to produce at $6.50/ watt.

8. MANUFACTURERS  Sharp Electronics Corporation  Sanyo  bp Solar  Shell  Sunwise  Uni-Solar  AstroPower

9. PRICE COMPARISONS  Shell: 80 watt panel 47.2”x20.8”x1.3”$328.00  AstroPower: 75 watts 47.2”x20.7”x1.4”$325.00 Sunwise: 85 watt panel 56.89”x22.83” $351.00

10. BIBLIOGRAPHY “Photovoltaic Materials-Silicon”. www.azom.com/details.asp?ArticleID=1169 SOLARTROPE Supply Corporation. 2002. www.solartrope.com. Resource Center Technologies. G/rated. www.green-rated.org/resctr_tech.asp?id=1 www.physics.pomona.edu/COURSES/phys17/papers/PV.pdf www.mrsolar.com www.oksolar.com
