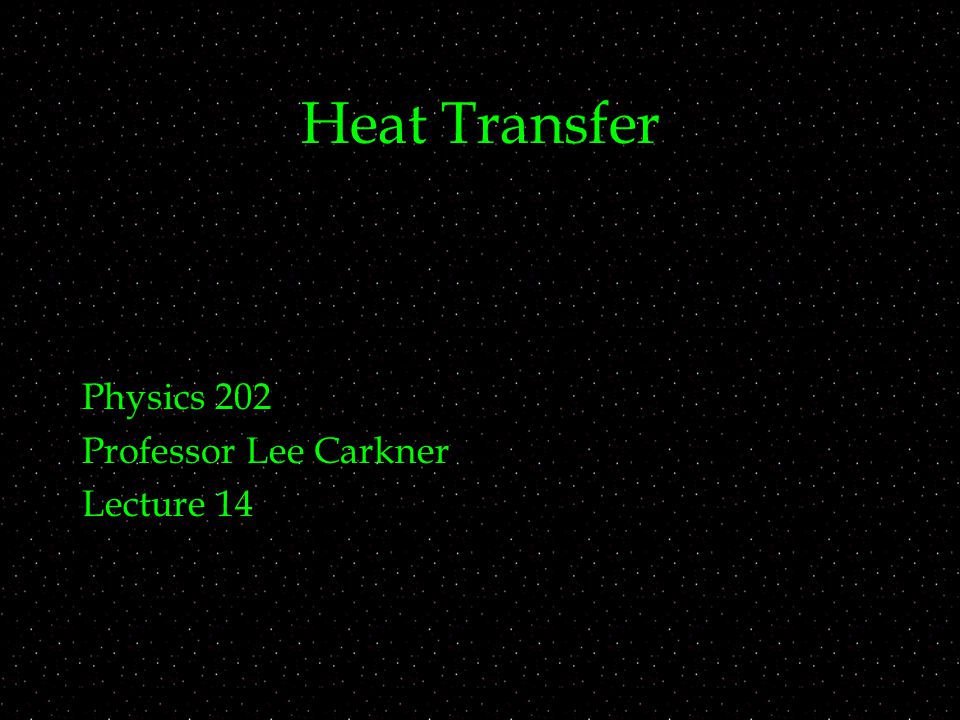

Heat Transfer Physics 202 Professor Lee Carkner Lecture 14

2

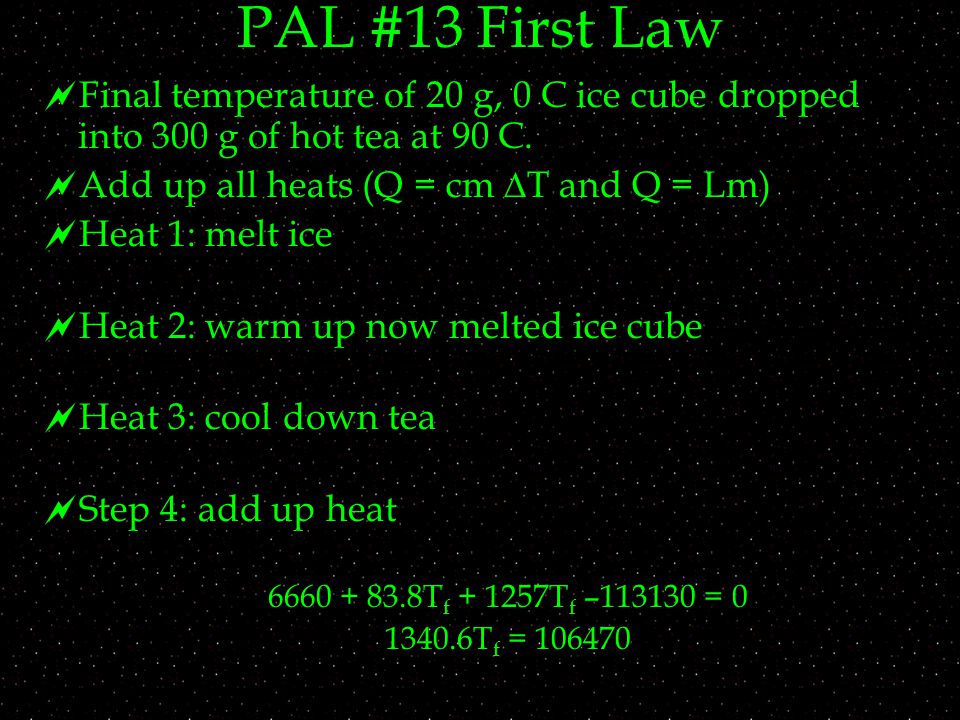

PAL #13 First Law Final temperature of 20 g, 0 C ice cube dropped into 300 g of hot tea at 90 C. Add up all heats (Q = cm T and Q = Lm) Heat 1: melt ice Heat 2: warm up now melted ice cube Heat 3: cool down tea Step 4: add up heat 6660 + 83.8T f + 1257T f –113130 = 0 1340.6T f = 106470

3

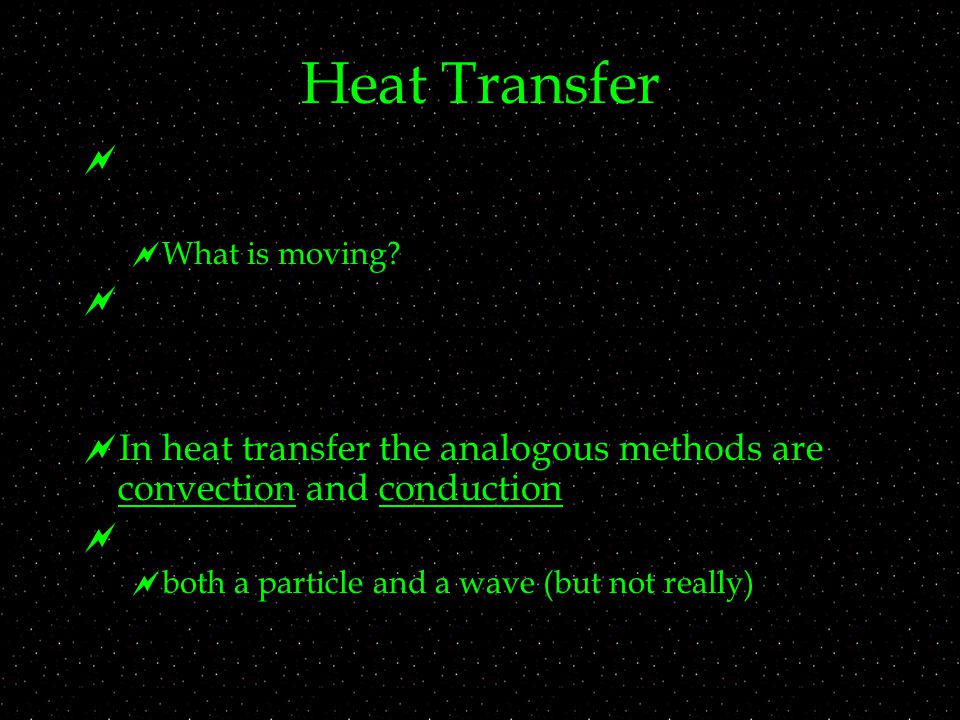

Heat Transfer What is moving? In heat transfer the analogous methods are convection and conduction both a particle and a wave (but not really)

4

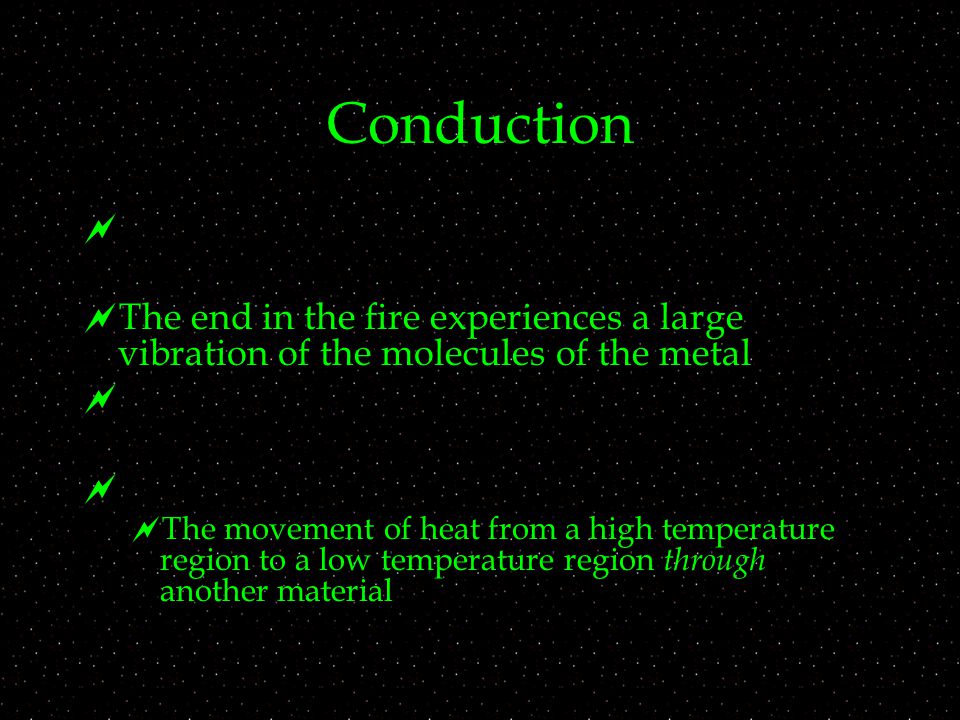

Conduction The end in the fire experiences a large vibration of the molecules of the metal The movement of heat from a high temperature region to a low temperature region through another material

5
Conduction Through a Slab

6

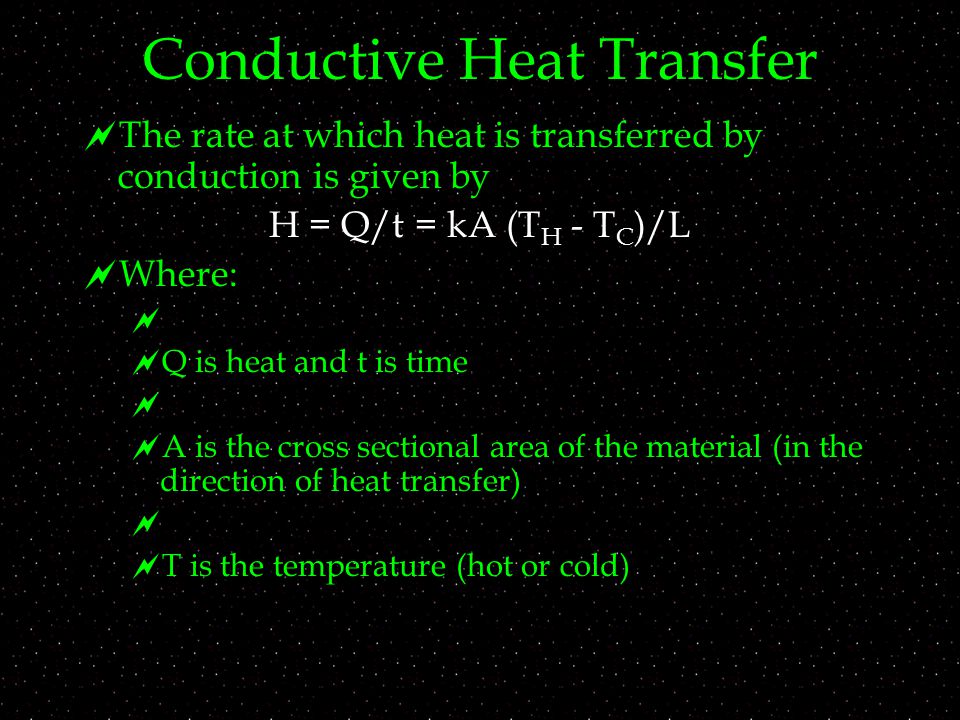

Conductive Heat Transfer The rate at which heat is transferred by conduction is given by H = Q/t = kA (T H - T C )/L Where: Q is heat and t is time A is the cross sectional area of the material (in the direction of heat transfer) T is the temperature (hot or cold)

7

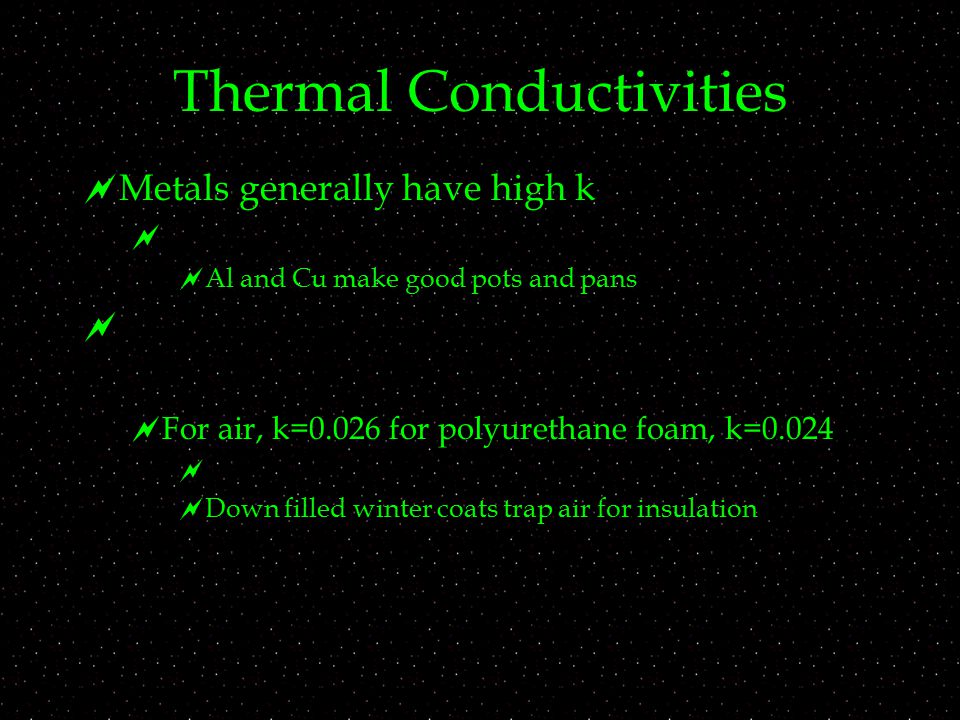

Thermal Conductivities Metals generally have high k Al and Cu make good pots and pans For air, k=0.026 for polyurethane foam, k=0.024 Down filled winter coats trap air for insulation

8
Composite Slabs H = Q/t = A (T H - T C )/ (L/k) Where (L/k) is the sum of the ratios of the thickness and thermal conductivity of each layer of the slab

9
Conduction Through Multiple Layers

10

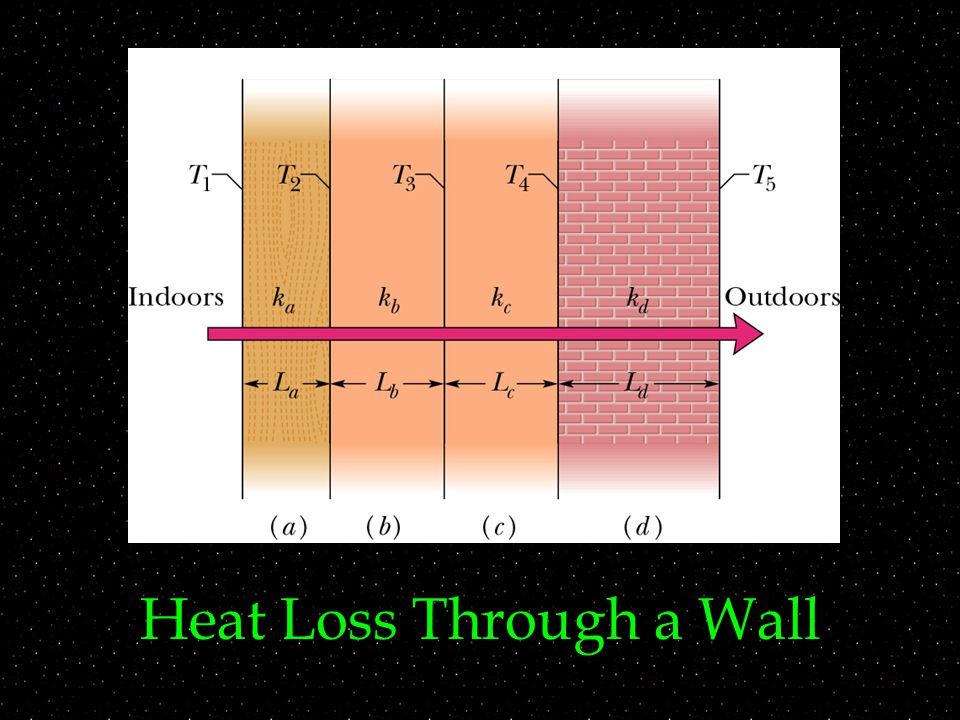

Heat Loss Through a Wall

11
The Surface of the Sun

12

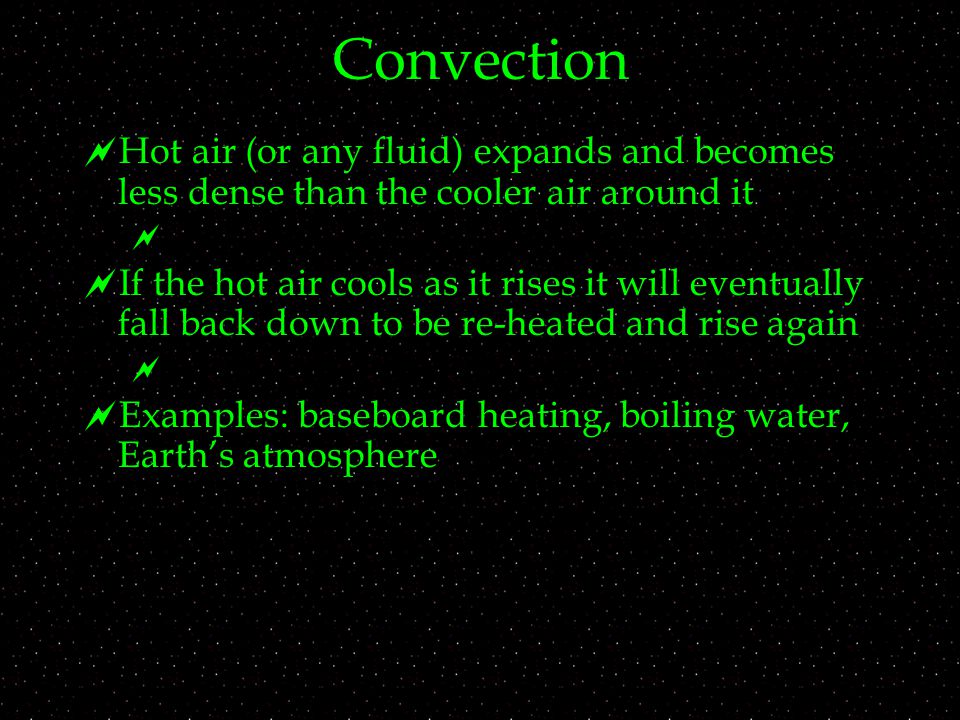

Convection Hot air (or any fluid) expands and becomes less dense than the cooler air around it If the hot air cools as it rises it will eventually fall back down to be re-heated and rise again Examples: baseboard heating, boiling water, Earth’s atmosphere

13

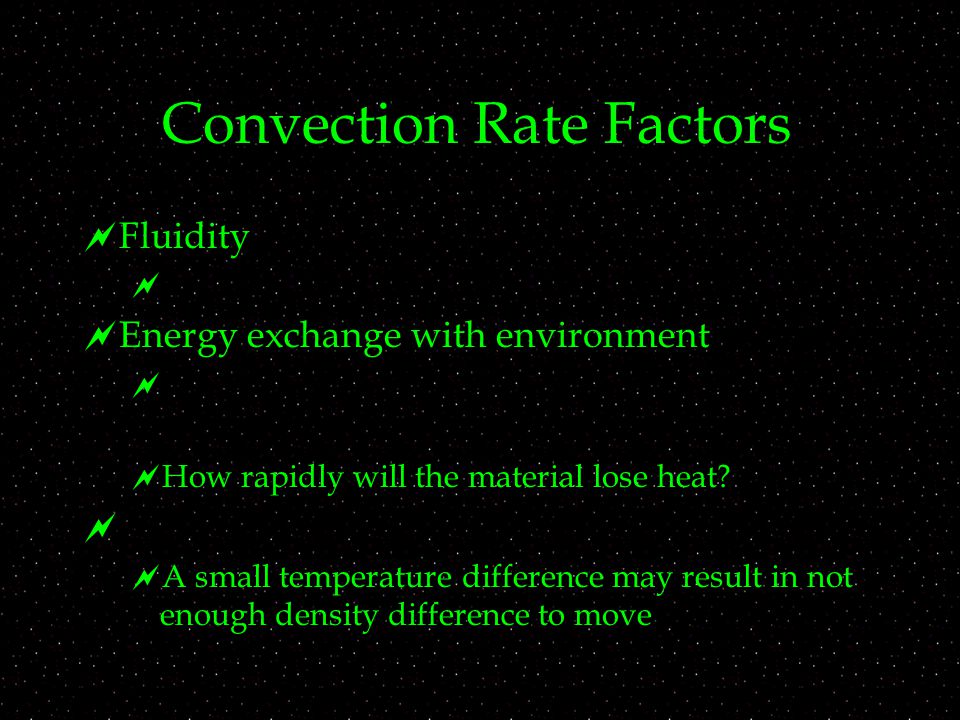

Convection Rate Factors Fluidity Energy exchange with environment How rapidly will the material lose heat? A small temperature difference may result in not enough density difference to move

14

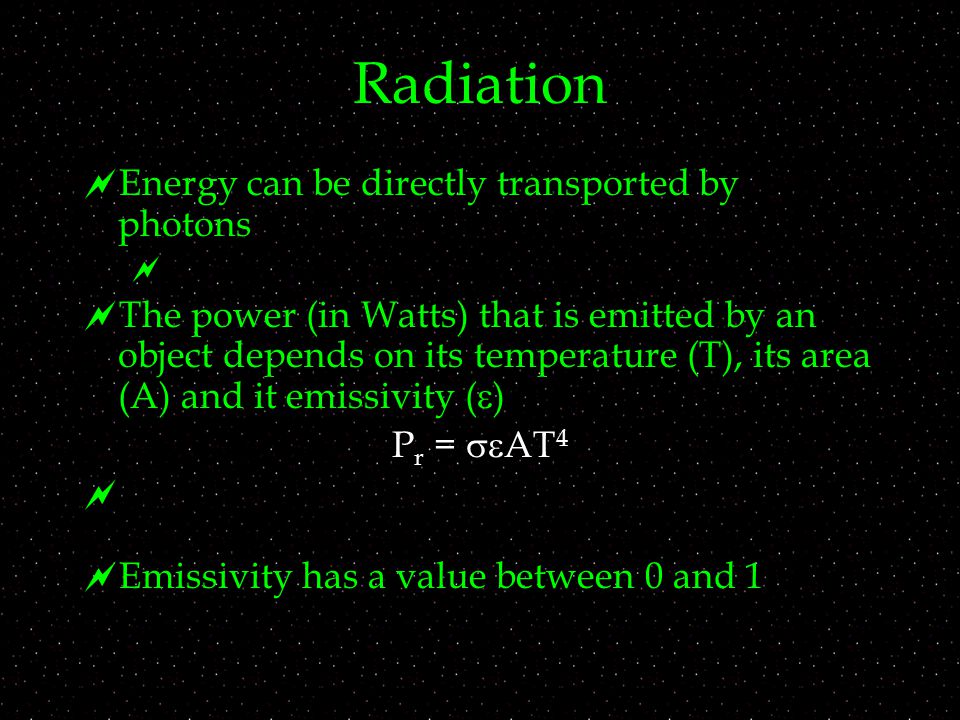

Radiation Energy can be directly transported by photons The power (in Watts) that is emitted by an object depends on its temperature (T), its area (A) and it emissivity ( ) P r = AT 4 Emissivity has a value between 0 and 1

15

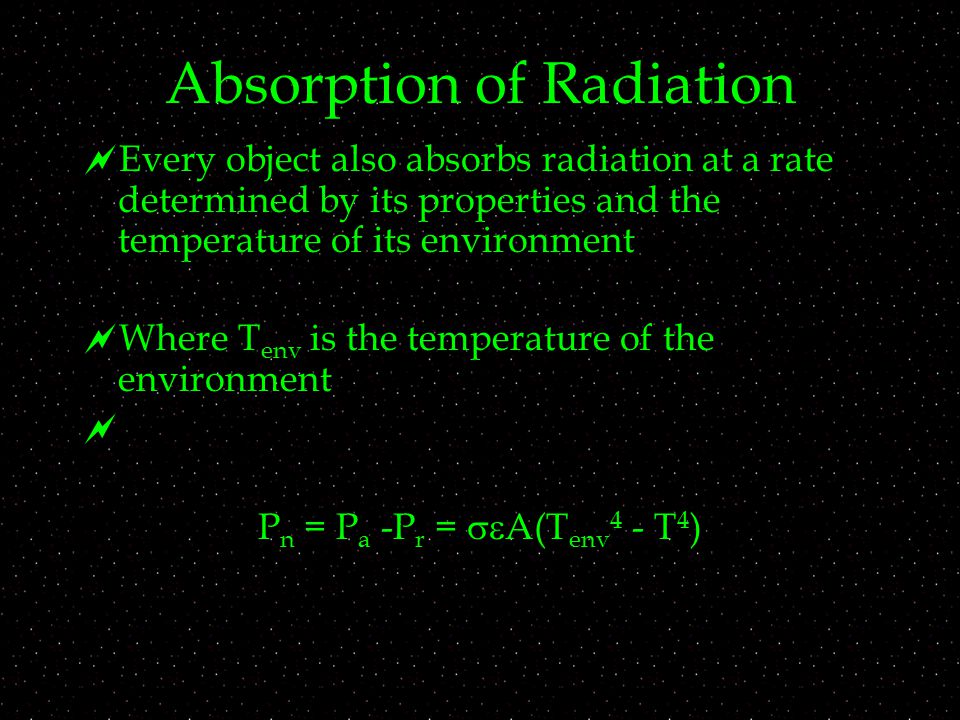

Absorption of Radiation Every object also absorbs radiation at a rate determined by its properties and the temperature of its environment Where T env is the temperature of the environment P n = P a -P r = A(T env 4 - T 4 )

16

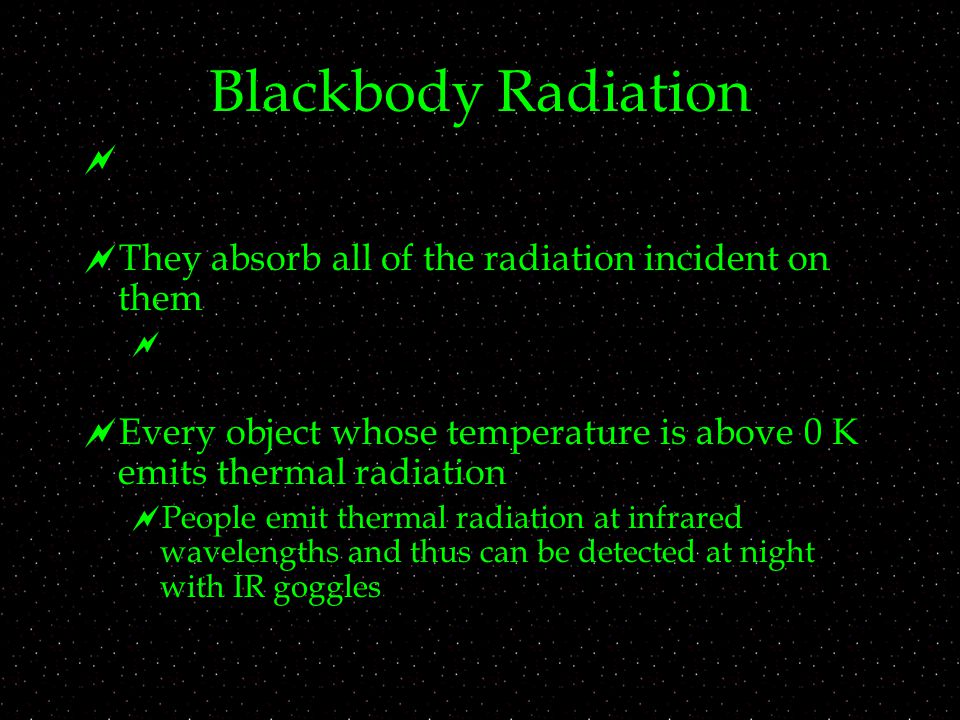

Blackbody Radiation They absorb all of the radiation incident on them Every object whose temperature is above 0 K emits thermal radiation People emit thermal radiation at infrared wavelengths and thus can be detected at night with IR goggles

17

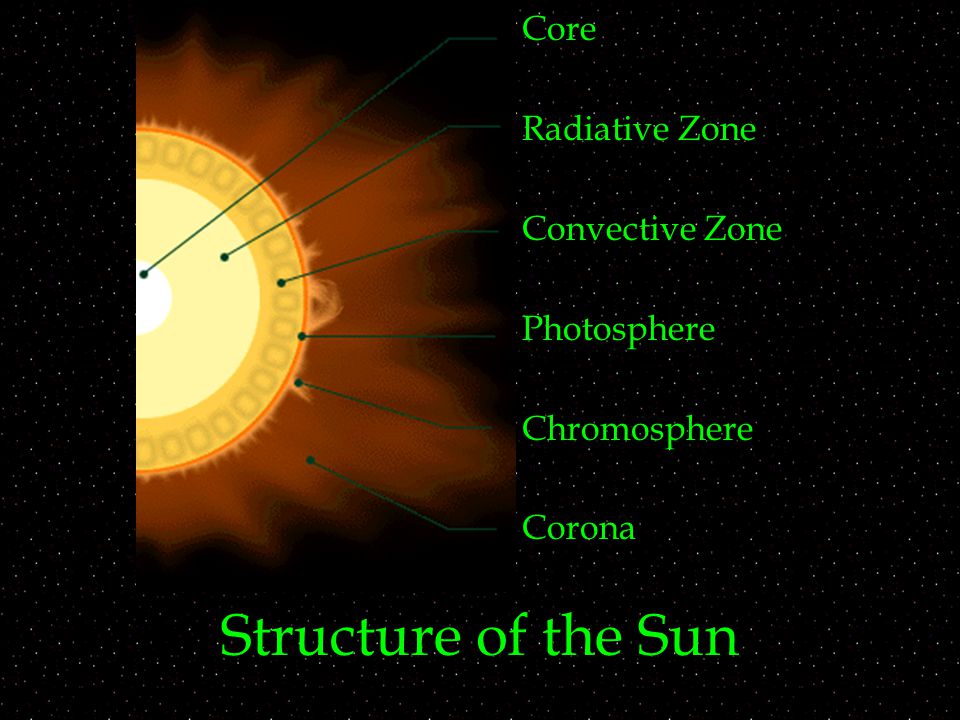

Structure of the Sun Core Radiative Zone Convective Zone Photosphere Chromosphere Corona

18
Heat Transfer in The Sun Near the core (where the energy is produced via hydrogen fusion) energy is transported by radiation About 75% of the way out, the opacity increases to a level where convection becomes dominant Convection transports the energy to the surface where it radiates away into space
