1. More xml chpt 6 DTD Document Type Definition

2. DTD: document type definition A DTD is defined using EBNF (extended BNF) and can be used to specify allowable elements and attributes for an XML document. There is a move away from DTD currently, toward Schema. Schema documents have XML (not BNF) syntax. Some parsers can check an XML document against its DTD and determine if it is valid. These are called validating parsers. A document which is syntactically correct but does not correspond to its DTD is well-formed. Non-validating parsers can’t check documents against their DTD and can thus only determine if the document is well- formed.

3. Document Type Declaration in an XML document prolog is used to specify DTD appearing within or outside the document. These are referred to as the internal or external subset. <DOCTYPE thingy [ ]> Declares a dtd called thingy with one element in the internal subset. PCDATA refers to “parseable character data” meaning reserved characters and & within the PCDATA will be treated as markup. The parentheses contain the content specification for the element.

4. MS XML validator We can check an xml document for adherence to an external DTD using MS XML validator. Here’s the xml: Welcome to XML! And here’s the DTD:

5. MS Validating parser can validate against schema or dtd

6. Invalid xml In the next slide we use the MS XML validator to check an xml (appearing below) like intro.xml but missing the message element:

7. If xml doc does not match dtd/schema

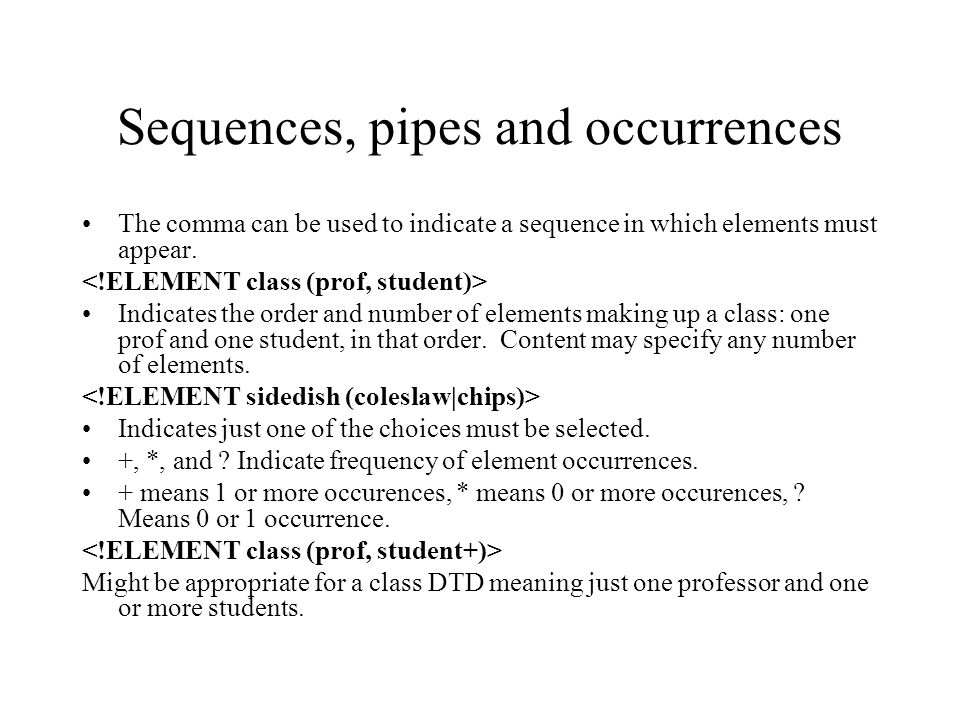

8. Sequences, pipes and occurrences The comma can be used to indicate a sequence in which elements must appear. Indicates the order and number of elements making up a class: one prof and one student, in that order. Content may specify any number of elements. Indicates just one of the choices must be selected. +, *, and ? Indicate frequency of element occurrences. + means 1 or more occurences, * means 0 or more occurences, ? Means 0 or 1 occurrence. Might be appropriate for a class DTD meaning just one professor and one or more students.

9. example Specifies donuts consists of 0 or 1 jelly, 0 or more lemon, 1 or more of crème or sugar, or a glazed. A legal markup for this would be grape sour real sour chocolate

10. The dtd and xml Pastry.dtd: Pastry.xml grape sour real sour chocolate

11. In validator: files are in myexamples directory

12. Pastry.xml in xml validator

13. content specification An element may contain one or more child elements as content. Content specification types describe non-element content. Theses consist of ANY, EMPTY and mixed content. Empty elements do not contain character data or child elements. An empty element specification like could be marked up as. Recall the shorthand /> may be used for an empty element closetag., + and * can’t be used with mixed content elements containing only PCDATA. If mixed content may contain PCDATA, then this must be listed first. An element of type ANY may contain any content including PCDATA, or combinations of elements and PCDATA. They may also be empty.

14. Mixed content Declares mymessage to have mixed content. PCDATA must be listed first in mixed content. * means mymessage may contain nothing or any number of occurences of PCDATA and message elements. This would be legal markup: here is an example of the dtd above this is a message and another

15. Internal dtd An xml document is standalone if it does not reference an external subset. <!DOCTYPE format [ ]> This is a simple formatted sentence. I have tried bold. I have tried italic. Now what?

16. In ms xml validator

17. Element group Above, a courselist contains a single department followed by any number of coursenumber, coursedescription pairs. What does the following mean?

18. Attribute specification An attribute specification specifies an attribute list for an element via ATTLIST declaration: Here, y is a required attribute of element x. y may contain any char data (except, ‘, “ and &). CDATA in an attribute declaration has different meaning than a CDATA section in an XML document where ]]> (end tag) may not appear.

19. Using attributes <!DOCTYPE myMessage [ ]> Welcome to XML!

20. Document with attributes in MS validator

21. Attribute defaults Page authors can specify default values for attributes. The keywords are #IMPLIED, #REQUIRED and #FIXED. –An implied attribute, if missing, can be replaced by any value the application using the document wishes. –A required attribute must appear or the document is not valid. –A fixed attribute must have the specific value provided. number does not conform to specifies that zip can only have value “13820” and an application processing an XML document with address element missing attribute zip would be passed this default zip value.

22. Attributes Attribute types may be CDATA (Strings), tokenized or enumerated. Strings have no constraints beyond prohibiting,&,’,and “. Entity references must be used for these. Tokenization imposes constraints on attribute values such as which characters are permitted in an attribute name. An enumerated attribute has a restricted value range: It can only take on one of the values listed in the attribute declaration.

23. tokenized attribute 4 tokenized types exist: –ID –IDREF –ENTITY –NMTOKEN ID uniquely identifies an element. IDREF attributes point to elements with ID attribute. A validating parser verifies that each ID attribute type referenced by an IDREF is in the document. Using the same value for multiple ID attributes is an error. Declaring attributes of type ID to be #FIXED is an error.

24. Using ID and IDREF attributes <!DOCTYPE bookstore [ ]> 2 to 4 days 1 day Java How to Program 3rd edition. C How to Program 3rd edition. C++ How to Program 3rd edition.

25. In MS Validator Use URL: http://employees.oneonta.edu/higgindm/internet% 20programming/validate_js.htm http://employees.oneonta.edu/higgindm/internet% 20programming/validate_js.htm with file examples\ch06\IDExample.xml

26. ID example

27. id example: internal subset <!DOCTYPE bookstore [ ]>

28. Idexample.xml continued 2 to 4 days 1 day Java How to Program 3rd edition. C How to Program 3rd edition. C++ How to Program 3rd edition.

29. remarks It is an error not to begin a type attribute ID’s value with a letter, underscore or colon. Providing more than one ID attribute type for an element is an error. Referencing a value as an ID is not defined is an error.

30. IDExample2.xml (note s3 shippedBy value) 2 to 4 days 1 day Java How to Program 3rd edition. C How to Program 3rd edition. C++ How to Program 3rd edition.

31. IDExample2.xml in Validator

32. Entities As we saw in chapter 5 entity references in an xml document are replaced by the entity values found in the dtd. We saw this for lang.xml and lang.dtd where assoc and text entities were replaced with Arabic script. Here is another example. Entity city is replaced.

33. entityexample.xml <!DOCTYPE database [ ]> Deitel & Associates, Inc.

34. entityexample.xml

35. Here line 7 <NOTATIO… indicates that an application may wish to run IE and load tour.html to handle unparsed entities. line 8 declares an entity named city which refers to the external document tour.html. NDATA in this line indicates that the content of this entity is not xml and supplies the name of the notation (html) for this entity.

36. ENTITIES ENTITIES keyword can be used in a dtd to indicate that an attribute has mutliple entities for its value. Specifies that file must contain multiple entities. Conforming markup is animations, graphics and tables are entities declared in a dtd. NMTOKEN type is more restrictive, containing letters, digits, periods, underscores, hyphens and colons. might have conforming markup does not conform because spaces are not allowed. NMTOKENS attribute type would allow multiple string tokens separated by blanks.

37. Enumerated attribute types Enumerated attribute type declares a list of possible values. Attributes must be assigned a value from this list in order to conform to the dtd. Enumerated values are separated with pipe (|) allows a person to have gender M or F with default “F”. does not supply a default and would permit an application to process a person with no gender in whatever way it liked.

38. Enumerated attribute types NOTATION is also an enumerated attribute type. Specifies that language must be assigned a value, Java or C with C as the default. The notation for C might be specified as http://....html

39. conditional.xml Conditional sections provide the flexibility of including or excluding declarations. These enable us to check xml documents against different sets of dtd requirements. Keywords INCLUDE and IGNORE specify included and excluded declarations: <![INCLUDE[ ]]> Directs the parser to include the declaration of element name. Conditionals may also be used with entities.

40. Conditional.dtd <![ %accept; [ ]]> <![ %reject; [ ]]>

41. Conditional.xml Chairman

42. discussion Entities %accept and %reject have values “IGNORE” and “INCLUDE”. The percent symbol indicates that they are parameter entities and may only be used inside the dtd in which they are declared. They may only appear in the external subset. Thus the author may create entities specific to the dtd – not xml – document.

43. conditional.xml

44. Chairman conditional.xml

45. conditional.dtd <![ %accept; [ ]]> <![ %reject; [ ]]>

46. Whitespace Whitespace is preserved or normalized depending on the context in which it appears. A text example (whitespace.xml) uses a java program (Tree.java from chapt 9) to demonstrate when whitespace is preserved or normalized. File can be got from classdir\examples\ch09\tree.java

47. running Tree.java on whitespace.xml... java src in notes C:\Java\j2sdk1.4.1_01\bin>java Tree yes whitespace.xml URL: file:C:/Java/j2sdk1.4.1_01/bin/whitespace.xml [ document root ] +-[ element : whitespace ] +-[ ignorable ] +-[ element : hasCDATA ] +-[ attribute : cdata ] " simple cdata " +-[ ignorable ] +-[ element : hasID ] +-[ attribute : id ] "i20" +-[ ignorable ] +-[ element : hasNMTOKEN ] +-[ attribute : nmtoken ] "hello" +-[ ignorable ]

48. Java tree output continued +-[ element : hasEnumeration ] +-[ attribute : enumeration ] "true" +-[ ignorable ] +-[ element : hasMixed ] +-[ text ] " " +-[ text ] " This is text." +-[ text ] " " +-[ text ] " " +-[ element : hasCDATA ] +-[ attribute : cdata ] " simple cdata" +-[ text ] " " +-[ text ] " This is some additional text." +-[ text ] " " +-[ text ] " " +-[ ignorable ] [ document end ] C:\Java\j2sdk1.4.1_01\bin>

49. whitespace.xml: dtd and content <!DOCTYPE whitespace [ <!ELEMENT whitespace ( hasCDATA, hasID, hasNMTOKEN, hasEnumeration, hasMixed )> <!ATTLIST hasEnumeration enumeration ( true | false ) #REQUIRED> ]>

50. whitespace.xml continued This is text. This is some additional text.

51. Tree.java slide 1 import java.io.*; import org.xml.sax.*; // for HandlerBase class import javax.xml.parsers.SAXParserFactory; import javax.xml.parsers.ParserConfigurationException; import javax.xml.parsers.SAXParser; public class Tree extends HandlerBase { private int indent = 0; // indentation counter // returns the spaces needed for indenting private String spacer( int count ) { String temp = ""; for ( int i = 0; i < count; i++ ) temp += " "; return temp; } // method called before parsing // it provides the document location public void setDocumentLocator( Locator loc ) { System.out.println( "URL: " + loc.getSystemId() ); }

52. Tree.java slide 2 // method called at the beginning of a document public void startDocument() throws SAXException { System.out.println( "[ document root ]" ); } // method called at the end of the document public void endDocument() throws SAXException { System.out.println( "[ document end ]" ); } // method called at the start tag of an element public void startElement( String name, AttributeList attributes ) throws SAXException { System.out.println( spacer( indent++ ) + "+-[ element : " + name + " ]"); if ( attributes != null ) for ( int i = 0; i < attributes.getLength(); i++ ) System.out.println( spacer( indent ) + "+-[ attribute : " + attributes.getName( i ) + " ] \"" + attributes.getValue( i ) + "\"" ); }

53. Tree.java slide 3 // method called at the end tag of an element public void endElement( String name ) throws SAXException { indent--; } // method called when a processing instruction is found public void processingInstruction( String target, String value ) throws SAXException { System.out.println( spacer( indent ) + "+-[ proc-inst : " + target + " ] \"" + value + "\"" ); } // method called when characters are found public void characters( char buffer[], int offset, int length ) throws SAXException { if ( length > 0 ) { String temp = new String( buffer, offset, length ); System.out.println( spacer( indent ) + "+-[ text ] \"" + temp + "\"" ); } } // method called when ignorable whitespace is found public void ignorableWhitespace( char buffer[], int offset, int length ) { if ( length > 0 ) { System.out.println( spacer( indent ) + "+-[ ignorable ]" ); } }

54. Tree slide 4 // method called on a non-fatal (validation) error public void error( SAXParseException spe ) throws SAXParseException { // treat non-fatal errors as fatal errors throw spe; } // method called on a parsing warning public void warning( SAXParseException spe ) throws SAXParseException { System.err.println( "Warning: " + spe.getMessage() ); }

55. Tree.java slide 5 // main method public static void main( String args[] ) { boolean validate = false; if ( args.length != 2 ) { System.err.println( "Usage: java Tree [validate] " + "[filename]\n" ); System.err.println( "Options:" ); System.err.println( " validate [yes|no] : " + "DTD validation" ); System.exit( 1 ); } if ( args[ 0 ].equals( "yes" ) ) validate = true; SAXParserFactory saxFactory = SAXParserFactory.newInstance(); saxFactory.setValidating( validate ); try { SAXParser saxParser = saxFactory.newSAXParser(); saxParser.parse( new File( args[ 1 ] ), new Tree() ); } catch ( SAXParseException spe ) { System.err.println( "Parse Error: " + spe.getMessage() ); } catch ( SAXException se ) { se.printStackTrace(); } catch ( ParserConfigurationException pce ) { pce.printStackTrace(); } catch ( IOException ioe ) { ioe.printStackTrace(); } System.exit( 0 ); }}

56. Day planner example continued

57. planner.xml Doctor's appointment Physics class at BH291C Independence Day General Meeting in room 32-A Party at Joe's Financial Meeting in room 14-C

58. planner.dtd

59. HW this section 1.Make a dtd and a conforming xml file. Make your example non-trivial but feel free to copy and modify examples given in class or your text. Check your work in the MS Validator. That means, elements should have attributes, etc. 2.You may also need to download the Xerces parser (you’ll need it at some point this semester) and install it as per the documentation that accompanies it. 3.Save tree.java to your java directory. Make sure it compiles and runs. See step 4 below. 4.For step 3, you will need to download JAXP from http://java.sun.com/xml/download.html http://java.sun.com/xml/download.html
