1. Titanium 1 CS264, K. Yelick Compiling for Parallel Machines CS264 Kathy Yelick

2. Titanium 2 CS264, K. Yelick Two General Research Goals Correctness: help programmers eliminate bugs –Analysis to detect bugs statically (and conservatively) –Tools such as debuggers to help detect bugs dynamically Performance: help make programs run faster –Static compiler optimizations »May use analyses similar to above to ensure compiler is correctly transforming code »In many areas, the open problem is determining which transformations should be applied when –Link or load-time optimizations, including object code translation –Feedback-directed optimization –Runtime optimization For parallel machines, if you can’t get good performance, what’s the point?

3. Titanium 3 CS264, K. Yelick A Little History Most research on compiling for parallel machines is –automatic parallelization of serial code –loop-level parallelization (usually Fortran) Most parallel programs are written using explicit parallelism, either –Message passing with a single processor multiple data (SPMD) model A) usually MPI with either Fortran or mixed C++ and Fortran for scientific applications B) shared memory with a thread and synchronization library in C or Java for non-scientific applications –Option B is easier to program, but requires hardware support that is still unproven for more than 200 processors

4. Titanium 4 CS264, K. Yelick Titanium Overview Give programmers a global address space –Useful for building large complex data structures that are spread over the machine –But, don’t pretend it will have uniform access time (I.e., not quite shared memory) Use an explicit parallelism model –SPMD for simplicity Extend a “standard” language with data structures for specific problem domain, grid-based scientific applications –Small amount of syntax added for ease of programming –General idea: build domain-specific features into the language and optimization framework

5. Titanium 5 CS264, K. Yelick Titanium Goals Performance –close to C/FORTRAN + MPI or better Portability –develop on uniprocessor, then SMP, then MPP/Cluster Safety –as safe as Java, extended to parallel framework Expressiveness –close to usability of threads –add minimal set of features Compatibility, interoperability, etc. –no gratuitous departures from Java standard

6. Titanium 6 CS264, K. Yelick Titanium Goals Performance –close to C/FORTRAN + MPI or better Safety –as safe as Java, extended to parallel framework Expressiveness –close to usability of threads –add minimal set of features Compatibility, interoperability, etc. –no gratuitous departures from Java standard

7. Titanium 7 CS264, K. Yelick Titanium Take the best features of threads and MPI –global address space like threads (ease programming) –SPMD parallelism like MPI (for performance) –local/global distinction, i.e., layout matters (for performance) Based on Java, a cleaner C++ –classes, memory management Language is extensible through classes –domain-specific language extensions –current support for grid-based computations, including AMR Optimizing compiler –communication and memory optimizations –synchronization analysis –cache and other uniprocessor optimizations

8. Titanium 8 CS264, K. Yelick New Language Features Scalable parallelism –SPMD model of execution with global address space Multidimensional arrays –points and index sets as first-class values to simplify programs –iterators for performance Checked Synchronization –single-valued variables and globally executed methods Global Communication Library Immutable classes –user-definable non-reference types for performance Operator overloading –by demand from our user community Semi-automated zone-based memory management –as safe as a garbage-collected language –better parallel performance and scalability

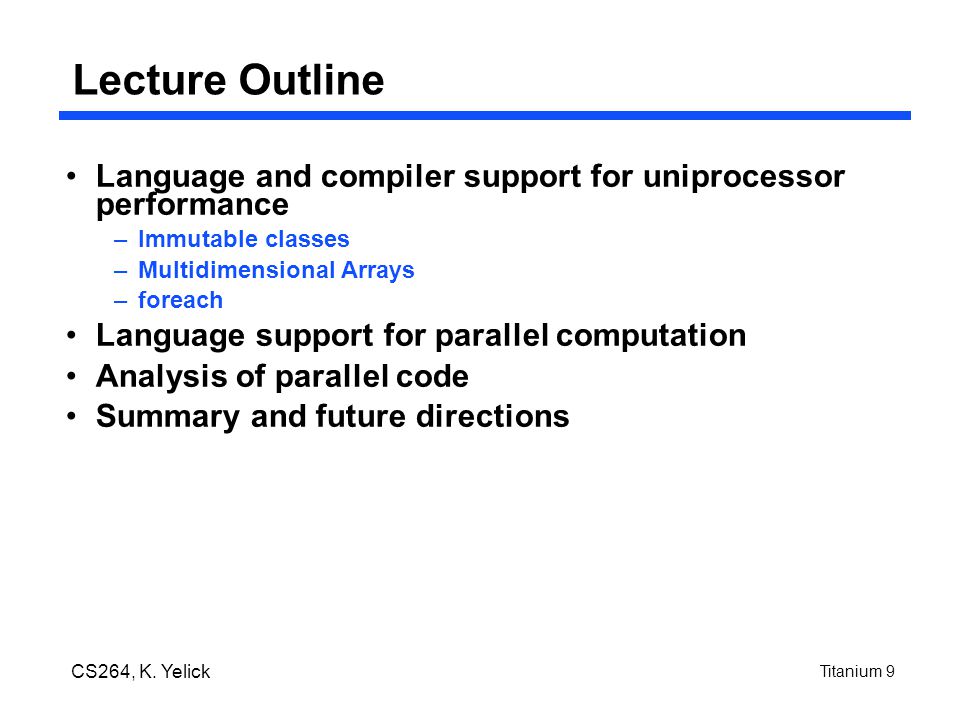

9. Titanium 9 CS264, K. Yelick Lecture Outline Language and compiler support for uniprocessor performance –Immutable classes –Multidimensional Arrays –foreach Language support for parallel computation Analysis of parallel code Summary and future directions

10. Titanium 10 CS264, K. Yelick Java: A Cleaner C++ Java is an object-oriented language –classes (no standalone functions) with methods –inheritance between classes; multiple interface inheritance only Documentation on web at java.sun.com Syntax similar to C++ class Hello { public static void main (String [] argv) { System.out.println(“Hello, world!”); } Safe –Strongly typed: checked at compile time, no unsafe casts –Automatic memory management Titanium is (almost) strict superset

11. Titanium 11 CS264, K. Yelick Java Objects Primitive scalar types: boolean, double, int, etc. –implementations will store these on the program stack –access is fast -- comparable to other languages Objects: user-defined and from the standard library –passed by pointer value (object sharing) into functions –has level of indirection (pointer to) implicit –simple model, but inefficient for small objects 2.6 3 true r: 7.1 i: 4.3

12. Titanium 12 CS264, K. Yelick Java Object Example class Complex { private double real; private double imag; public Complex(double r, double i) { real = r; imag = i; } public Complex add(Complex c) { return new Complex(c.real + real, c.imag + imag); public double getReal {return real; } public double getImag {return imag;} } Complex c = new Complex(7.1, 4.3); c = c.add(c); class VisComplex extends Complex {... }

13. Titanium 13 CS264, K. Yelick Immutable Classes in Titanium For small objects, would sometimes prefer –to avoid level of indirection –pass by value (copying of entire object) –especially when objects are immutable -- fields are unchangeable »extends the idea of primitive values (1, 4.2, etc.) to user- defined values Titanium introduces immutable classes –all fields are final (implicitly) –cannot inherit from (extend) or be inherited by other classes –needs to have 0-argument constructor, e.g., Complex () immutable class Complex {... } Complex c = new Complex(7.1, 4.3);

14. Titanium 14 CS264, K. Yelick Arrays in Java Arrays in Java are objects Only 1D arrays are directly supported Array bounds are checked Multidimensional arrays as arrays-of-arrays are slow

15. Titanium 15 CS264, K. Yelick Multidimensional Arrays in Titanium New kind of multidimensional array added –Two arrays may overlap (unlike Java arrays) –Indexed by Points (tuple of ints) –Constructed over a set of Points, called Domains –RectDomains are special case of domains –Points, Domains and RectDomains are built-in immutable classes Support for adaptive meshes and other mesh/grid operations RectDomain d = [0:n,0:n]; Point p = [1, 2]; double [2d] a = new double [d]; a[0,0] = a[9,9];

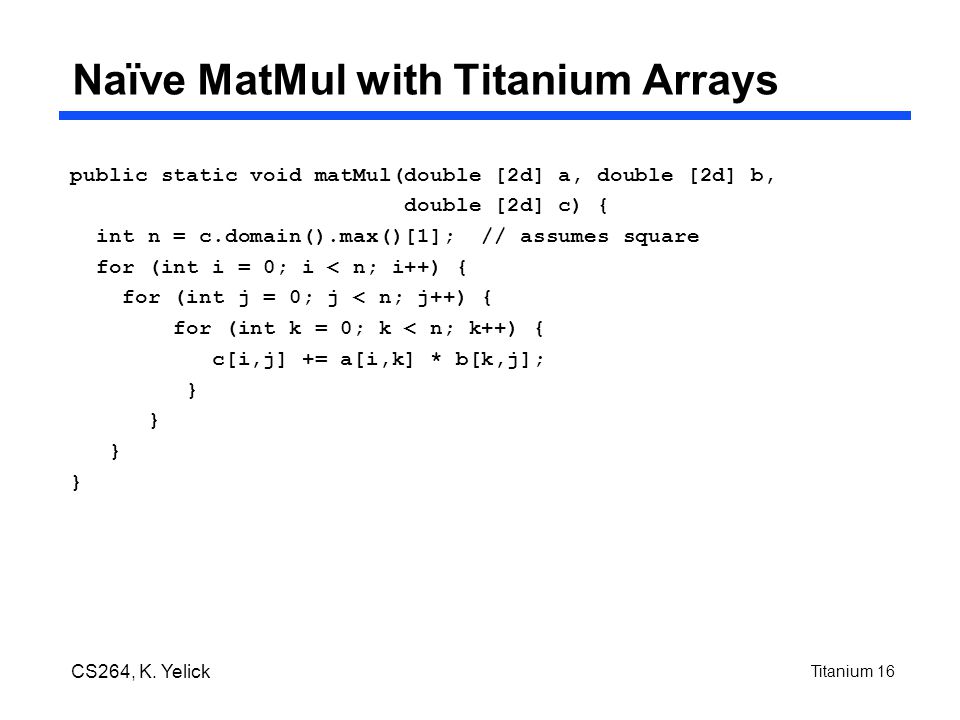

16. Titanium 16 CS264, K. Yelick Naïve MatMul with Titanium Arrays public static void matMul(double [2d] a, double [2d] b, double [2d] c) { int n = c.domain().max()[1]; // assumes square for (int i = 0; i < n; i++) { for (int j = 0; j < n; j++) { for (int k = 0; k < n; k++) { c[i,j] += a[i,k] * b[k,j]; }

17. Titanium 17 CS264, K. Yelick Two Performance Issues In any language, uniprocessor performance is often dominated by memory hierarchy costs –algorithms that are “blocked” for the memory hierarchy (caches and registers) can be much faster In Titanium, the representation of arrays is fast, but the access methods are expensive –need optimizations on Titanium arrays »common subexpression elimination »eliminate (or hoist) bounds checking »strength reduce: e.g., naïve code has 1 divide per dimension for each array access See Geoff Pike’s work –goal: competitive with C/Fortran performance or better

18. Titanium 18 CS264, K. Yelick Matrix Multiply (blocked, or tiled) Consider A,B,C to be N by N matrices of b by b subblocks where b=n/N is called the blocksize for i = 1 to N for j = 1 to N {read block C(i,j) into fast memory} for k = 1 to N {read block A(i,k) into fast memory} {read block B(k,j) into fast memory} C(i,j) = C(i,j) + A(i,k) * B(k,j) {do a matrix multiply on blocks} {write block C(i,j) back to slow memory} =+* C(i,j) A(i,k) B(k,j)

19. Titanium 19 CS264, K. Yelick Memory Hierarchy Optimizations: MatMul Speed of n-by-n matrix multiply on Sun Ultra-1/170, peak = 330 MFlops

20. Titanium 20 CS264, K. Yelick Unordered iteration Often useful to reorder iterations for caches Compilers can do this for simple operations, e.g., matrix multiply, but hard in general Titanium adds unordered iteration on rectangular domains foreach (p within r) { ….. } –p is a Point new point, scoped only within the foreach body –r is a previously-declared RectDomain Foreach simplifies bounds checking as well Additional operations on domains and arrays to subset and transform

21. Titanium 21 CS264, K. Yelick Better MatMul with Titanium Arrays public static void matMul(double [2d] a, double [2d] b, double [2d] c) { foreach (ij within c.domain()) { double [1d] aRowi = a.slice(1, ij[1]); double [1d] bColj = b.slice(2, ij[2]); foreach (k within aRowi.domain()) { c[ij] += aRowi[k] * bColj[k]; } Current compiler eliminates array overhead, making it comparable to C performance for 3 nested loops Automatic tiling still TBD

22. Titanium 22 CS264, K. Yelick Sequential Performance C/C++/ FORTRAN Java Arrays Titanium Arrays Overhead DAXPY 3D multigrid 2D multigrid EM3D 1.4s 12s 5.4s 0.7s1.8s1.0s42% 15% 83% 7% 6.2s 22s 1.5s6.8s Ultrasparc: C/C++/ FORTRAN Java Arrays Titanium Arrays Overhead DAXPY 3D multigrid 2D multigrid EM3D 1.8s 23.0s 7.3s 1.0s1.6s60% -25% -13% 27% 5.5s 20.0s 2.3s Pentium II: Performance results from 98; new IR and optimization framework almost complete.

23. Titanium 23 CS264, K. Yelick Lecture Outline Language and compiler support for uniprocessor performance Language support for parallel computation –SPMD execution –Global and local references –Communication –Barriers and single –Synchronized methods and blocks (as in Java) Analysis of parallel code Summary and future directions

24. Titanium 24 CS264, K. Yelick SPMD Execution Model Java programs can be run as Titanium, but the result will be that all processors do all the work E.g., parallel hello world class HelloWorld { public static void main (String [] argv) { System.out.println(“Hello from proc ” Ti.thisProc()); } Any non-trivial program will have communication and synchronization between processors

25. Titanium 25 CS264, K. Yelick SPMD Execution Model A common style is compute/communicate E.g., in each timestep within fish simulation with gravitation attraction read all fish and compute forces on mine Ti.barrier(); write to my fish using new forces Ti.barrier();

26. Titanium 26 CS264, K. Yelick SPMD Model All processor start together and execute same code, but not in lock-step Sometimes they take different branches if (Ti.thisProc() == 0) { … do setup … } for(all data I own) { … compute on data … } Common source of bugs is barriers or other global operations inside branches or loops barrier, broadcast, reduction, exchange A “single” method is one called by all procs public single static void allStep(…) A “single” variable has the same value on all procs int single timestep = 0;

27. Titanium 27 CS264, K. Yelick SPMD Execution Model Barriers and single in FishSimulation (n-body) class FishSim { public static void main (String [] argv) { int allTimestep = 0; int allEndTime = 100; for (; allTimestep < allEndTime; allTimestep++){ read all fish and compute forces on mine Ti.barrier(); write to my fish using new forces Ti.barrier(); } Single methods inferred; see David Gay’s work single

28. Titanium 28 CS264, K. Yelick Global Address Space Processes allocate locally References can be passed to other processes Class C { int val;….. } C gv; // global pointer C local lv; // local pointer if (thisProc() == 0) { lv = new C(); } gv = broadcast lv from 0; gv.val = …; // full … = gv.val; // functionality Process 0 Other processes lv gv lv gv lv gv lv gv lv gv lv gv LOCAL HEAP

29. Titanium 29 CS264, K. Yelick Use of Global / Local Default is global –easier to port shared-memory programs –performance bugs common: global pointers are more expensive –harder to use sequential kernels Use local declarations in critical sections Compiler can infer many instances of “local” See Liblit’s work on LQI (Local Qualification Inference)

30. Titanium 30 CS264, K. Yelick Local Pointer Analysis [Liblit, Aiken] Global references simplify programming, but incur overhead, even when data is local –Split-C therefore requires global pointers be declared explicitly –Titanium pointers global by default: easier, better portability Automatic “local qualification” inference

31. Titanium 31 CS264, K. Yelick Parallel performance Speedup on Ultrasparc SMP AMR largely limited by –current algorithm –problem size –2 levels, with top one serial Not yet optimized with “local” for distributed memory

32. Titanium 32 CS264, K. Yelick Lecture Outline Language and compiler support for uniprocessor performance Language support for parallel computation Analysis and Optimization of parallel code –Tolerate network latency: Split-C experience –Hardware trends and reordering –Semantics: sequential consistency –Cycle detection: parallel dependence analysis –Synchronization analysis: parallel flow analysis Summary and future directions

33. Titanium 33 CS264, K. Yelick Split-C Experience: Latency Overlap Titanium borrowed ideas from Split-C –global address space –SPMD parallelism But, Split-C had non-blocking accesses built in to tolerate network latency on remote read/write Also one-way communication Conclusion: useful, but complicated int *global p; x := *p; /* get */ *p := 3; /* put */ sync; /* wait for my puts/gets */ *p :- x; /* store */ all_store_sync; /* wait globally */

34. Titanium 34 CS264, K. Yelick Other sources of Overlap Would like compiler to introduce put/get/store. Hardware also reorders –out-of-order execution –write buffered with read by-pass –non-FIFO write buffers –weak memory models in general Software already reorders too –register allocation –any code motion System provides enforcement primitives –e.g., memory fence, volatile, etc. –tend to be heavy wait and with unpredictable performance Can the compiler hide all this?

35. Titanium 35 CS264, K. Yelick Semantics: Sequential Consistency When compiling sequential programs: Valid if y not in expr1 and x not in expr2 (roughly) When compiling parallel code, not sufficient test. y = expr2; x = expr1; y = expr2; Initially flag = data = 0 Proc A Proc B data = 1; while (flag==1); flag = 1; ….. = …..data…..;

36. Titanium 36 CS264, K. Yelick Cycle Detection: Dependence Analog Processors define a “program order” on accesses from the same thread P is the union of these total orders Memory system define an “access order” on accesses to the same variable A is access order (read/write & write/write pairs) A violation of sequential consistency is cycle in P U A. Intuition: time cannot flow backwards. write data read flag write flag read data

37. Titanium 37 CS264, K. Yelick Cycle Detection Generalizes to arbitrary numbers of variables and processors Cycles may be arbitrarily long, but it is sufficient to consider only cycles with 1 or 2 consecutive stops per processor [Sasha & Snir] write x write y read y read y write x

38. Titanium 38 CS264, K. Yelick Static Analysis for Cycle Detection Approximate P by the control flow graph Approximate A by undirected “dependence” edges Let the “delay set” D be all edges from P that are part of a minimal cycle The execution order of D edge must be preserved; other P edges may be reordered (modulo usual rules about serial code) Synchronization analsysis also critical [Krishnamurthy] write z read x read y write z write y read x

39. Titanium 39 CS264, K. Yelick Automatic Communication Optimization Implemented in subset of C with limited pointers [Krishnamurthy, Yelick] Experiments on the NOW; 3 synchronization styles Future: pointer analysis and optimizations for AMR [Jeh, Yelick] Time (normalized)

40. Titanium 40 CS264, K. Yelick Other Language Extensions Java extensions for expressiveness & performance Operator overloading Zone-based memory management Foreign function interface The following is not yet implemented in the compiler Parameterized types (aka templates)

41. Titanium 41 CS264, K. Yelick Implementation Strategy –compile Titanium into C –Solaris or Posix threads for SMPs –Active Messages (Split-C library) for communication Status –runs on SUN Enterprise 8-way SMP –runs on Berkeley NOW –runs on the Tera (not fully tested) –T3E port partially working –SP2 port under way

42. Titanium 42 CS264, K. Yelick Titanium Status Titanium language definition complete. Titanium compiler running. Compiles for uniprocessors, NOW, Tera, t3e, SMPs, SP2 (under way). Application developments ongoing. Lots of research opportunities.

43. Titanium 43 CS264, K. Yelick Future Directions Super optimizers for targeted kernels –e.g., Phipack, Sparsity, FFTW, and Atlas –include feedback and some runtime information New application domains –unstructured grids (aka graphs and sparse matrices) –I/O-intensive applications such as information retrieval Optimizing I/O as well as communication –uniform treatment of memory hierarchy optimizations Performance heterogeneity from the hardware –related to dynamic load balancing in software Reasoning about parallel code –correctness analysis: race condition and synchronization analysis –better analysis: aliases and threads –Java memory model and hiding the hardware model

44. Titanium 44 CS264, K. Yelick Backup Slides

45. Titanium 45 CS264, K. Yelick Point, RectDomain, Arrays in General Point lb = [1, 1]; Point ub = [10, 20]; RectDomain R = [lb : ub : [2, 2]]; double [2d] A = new double[r];... foreach (p in A.domain()) { A[p] = B[2 * p + [1, 1]]; } Points specified by a tuple of ints RectDomains given by: –lower bound point –upper bound point –stride point Array given by RectDomain and element type

46. Titanium 46 CS264, K. Yelick AMR Poisson Poisson Solver [Semenzato, Pike, Colella] –3D AMR –finite domain –variable coefficients –multigrid across levels Performance of Titanium implementation –Sequential multigrid performance +/- 20% of Fortran –On fixed, well-balanced problem of 8 patches, 72 3 parallel speedups of 5.5 on 8 processors

47. Titanium 47 CS264, K. Yelick Distributed Data Structures Build distributed data structures: –broadcast or exchange RectDomain single allProcs = [0:Ti.numProcs-1]; RectDomain myFishDomain = [0:myFishCount-1]; Fish [1d] single [1d] allFish = new Fish [allProcs][1d]; Fish [1d] myFish = new Fish [myFishDomain]; allFish.exchage(myFish); Now each processor has an array of global pointers, one to each processors chunk of fish

48. Titanium 48 CS264, K. Yelick Consistency Model Titanium adopts the Java memory consistency model Roughly: Access to shared variables that are not synchronized have undefined behavior. Use synchronization to control access to shared variables. –barriers –synchronized methods and blocks

49. Titanium 49 CS264, K. Yelick Example: Domain Point lb = [0, 0]; Point ub = [6, 4]; RectDomain r = [lb : ub : [2, 2]]; … Domain red = r + (r + [1, 1]); foreach (p in red) {... } (0, 0) (6, 4) r (1, 1) (7, 5) r + [1, 1] (0, 0) (7, 5) red Domains in general are not rectangular Built using set operations –union, + –intersection, * –difference, - Example is red-black algorithm

50. Titanium 50 CS264, K. Yelick Example using Domains and foreach Gauss-Seidel red-black computation in multigrid void gsrb() { boundary (phi); for (domain d = res; d != null; d = (d == red ? black : null)) { foreach (q in d) res[q] = ((phi[n(q)] + phi[s(q)] + phi[e(q)] + phi[w(q)])*4 + (phi[ne(q) + phi[nw(q)] + phi[se(q)] + phi[sw(q)]) - 20.0*phi[q] - k*rhs[q]) * 0.05; foreach (q in d) phi[q] += res[q]; } unordered iteration

51. Titanium 51 CS264, K. Yelick Applications Three-D AMR Poisson Solver (AMR3D) –block-structured grids –2000 line program –algorithm not yet fully implemented in other languages –tests performance and effectiveness of language features Other 2D Poisson Solvers (under development) –infinite domains –based on method of local corrections Three-D Electromagnetic Waves (EM3D) –unstructured grids Several smaller benchmarks
