1. Neural Networks in Electrical Engineering Prof. Howard Silver School of Computer Sciences and Engineering Fairleigh Dickinson University Teaneck, New Jersey

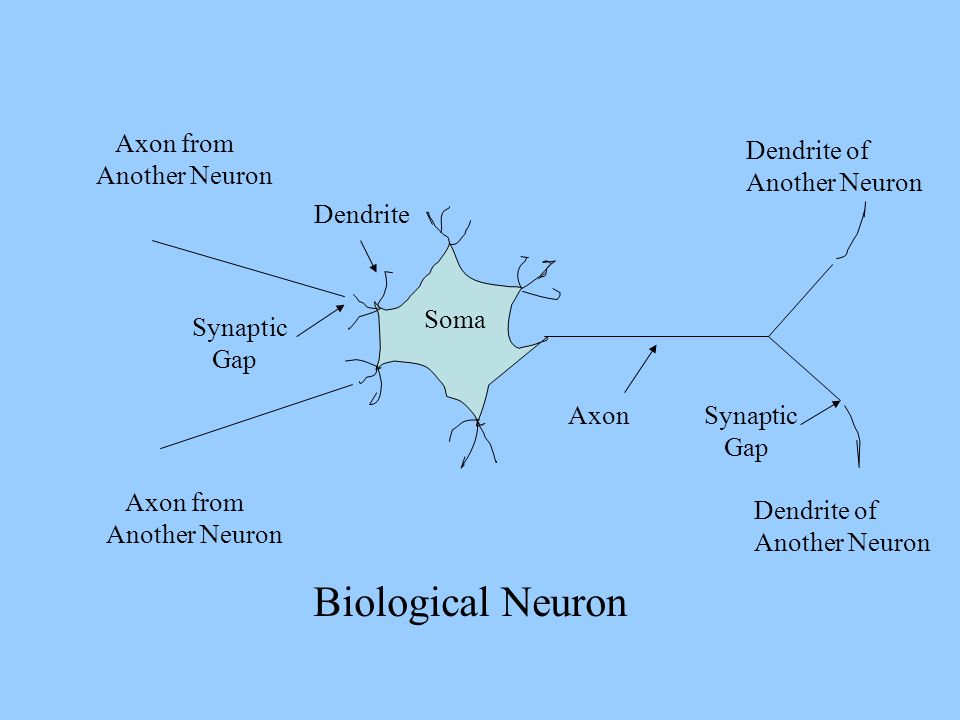

2. Axon from Another Neuron Axon from Another Neuron Synaptic Gap Synaptic Gap Soma Axon Dendrite Dendrite of Another Neuron Dendrite of Another Neuron Biological Neuron

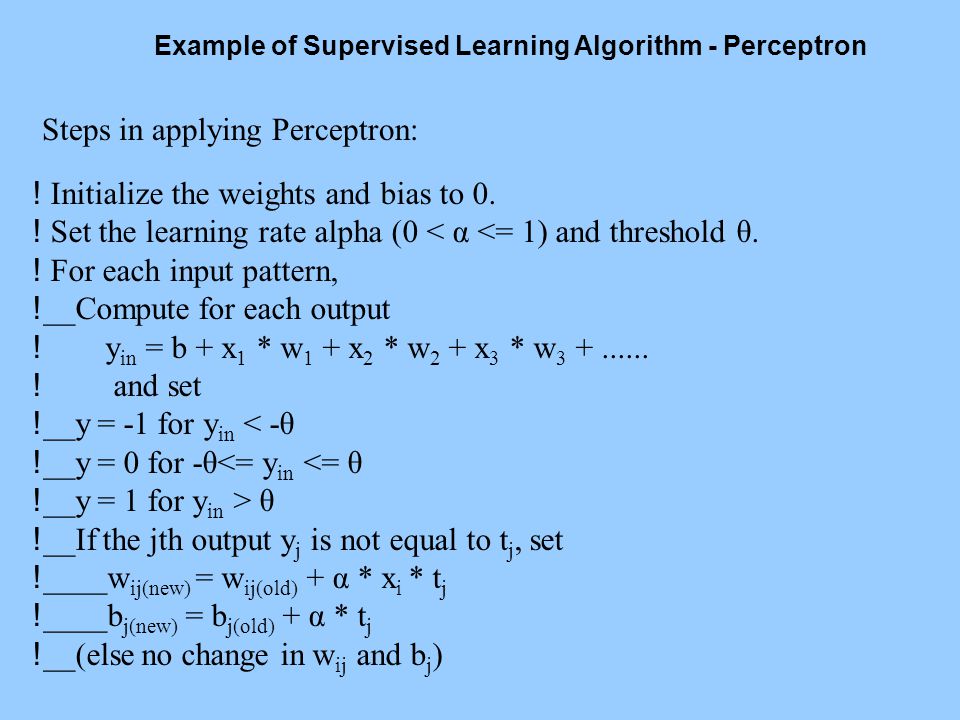

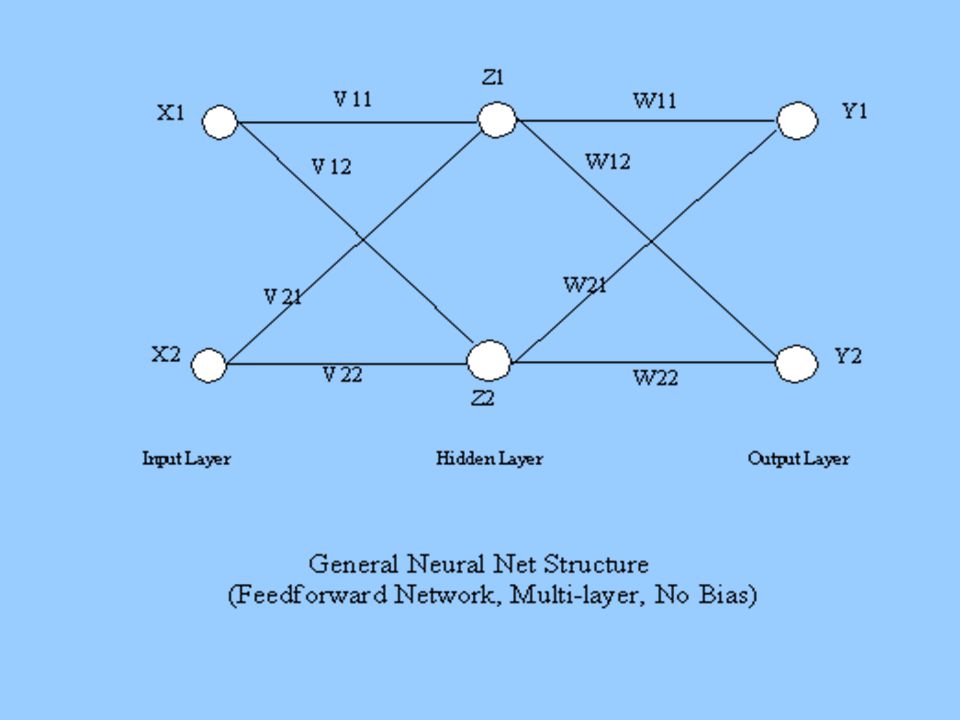

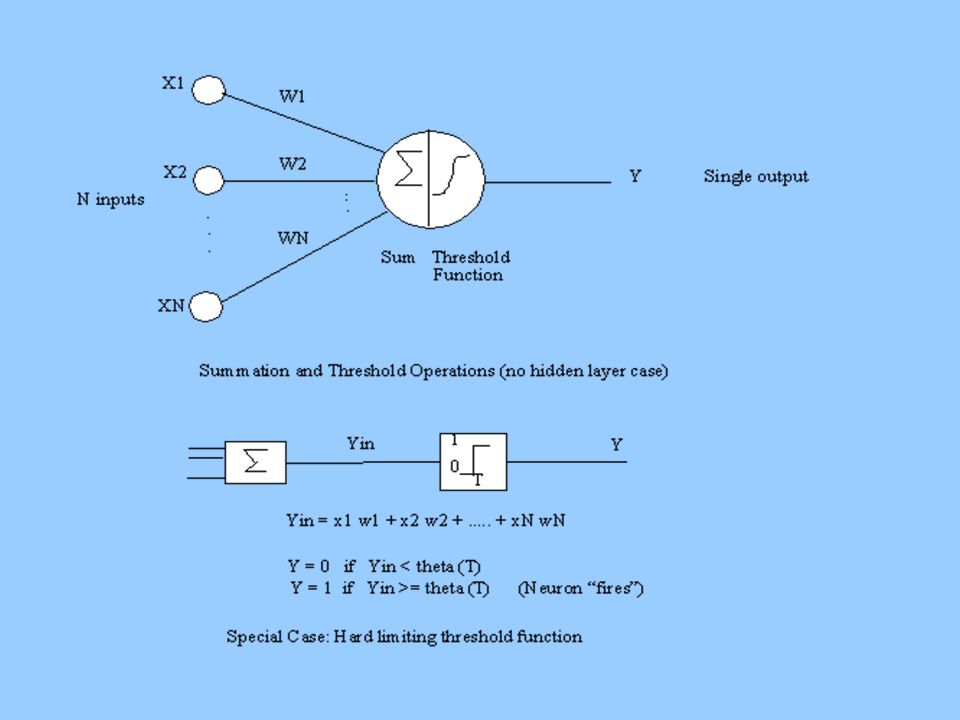

6. Steps in applying Perceptron: ! Initialize the weights and bias to 0. ! Set the learning rate alpha (0 < α <= 1) and threshold θ. ! For each input pattern, ! __Compute for each output ! y in = b + x 1 * w 1 + x 2 * w 2 + x 3 * w 3 +...... ! and set ! __y = ‑ 1 for y in < ‑ θ ! __y = 0 for -θ<= y in <= θ ! __y = 1 for y in > θ ! __If the jth output y j is not equal to t j, set ! ____w ij(new) = w ij(old) + α * x i * t j ! ____b j(new) = b j(old) + α * t j ! __(else no change in w ij and b j ) Example of Supervised Learning Algorithm - Perceptron

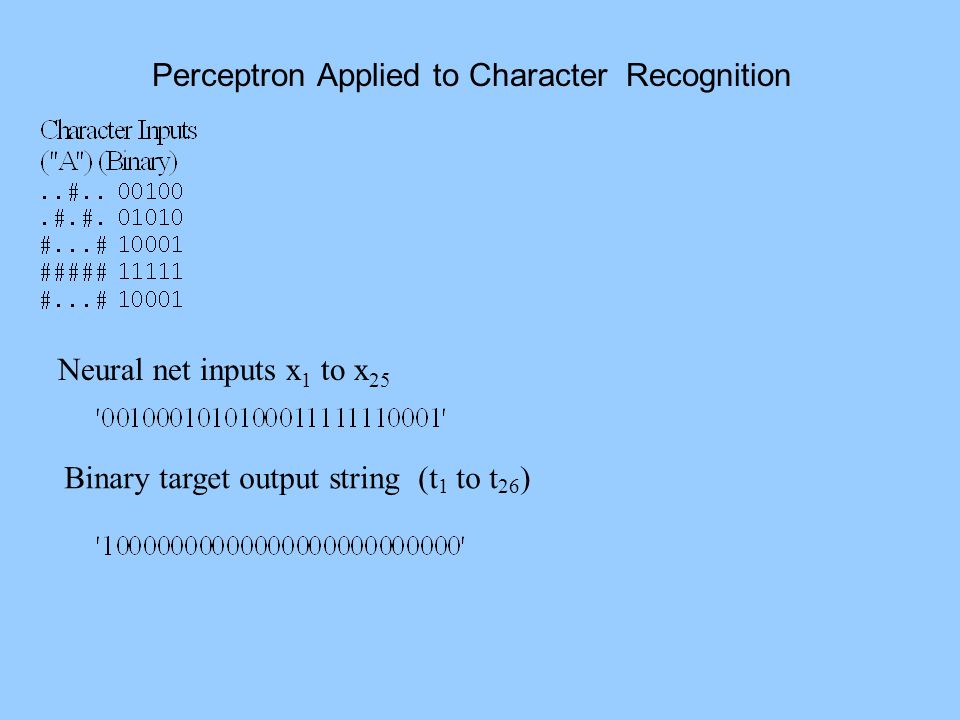

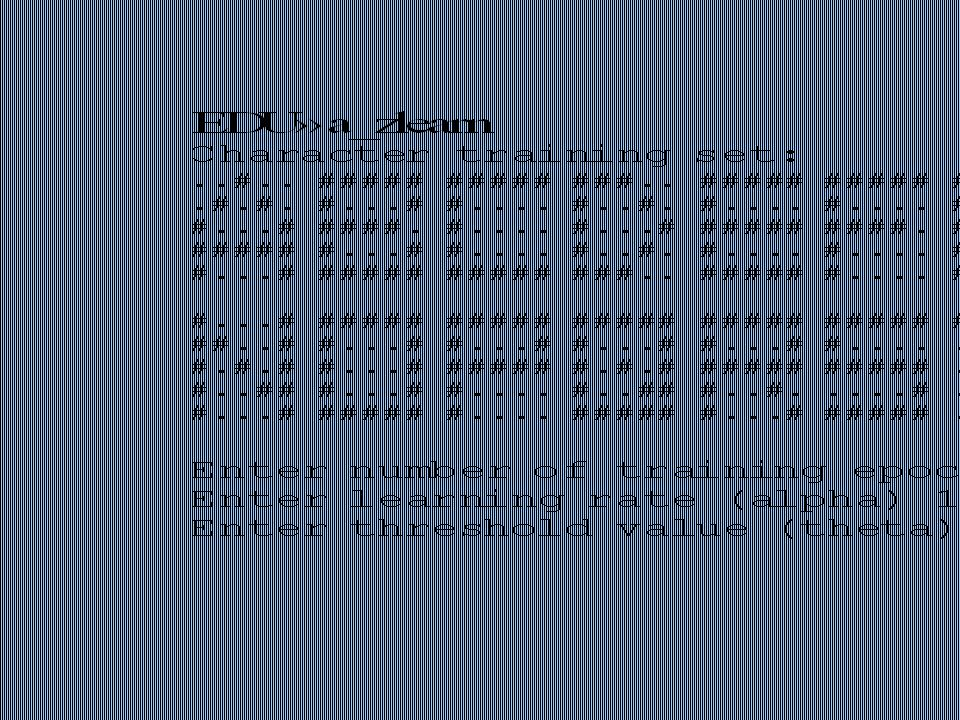

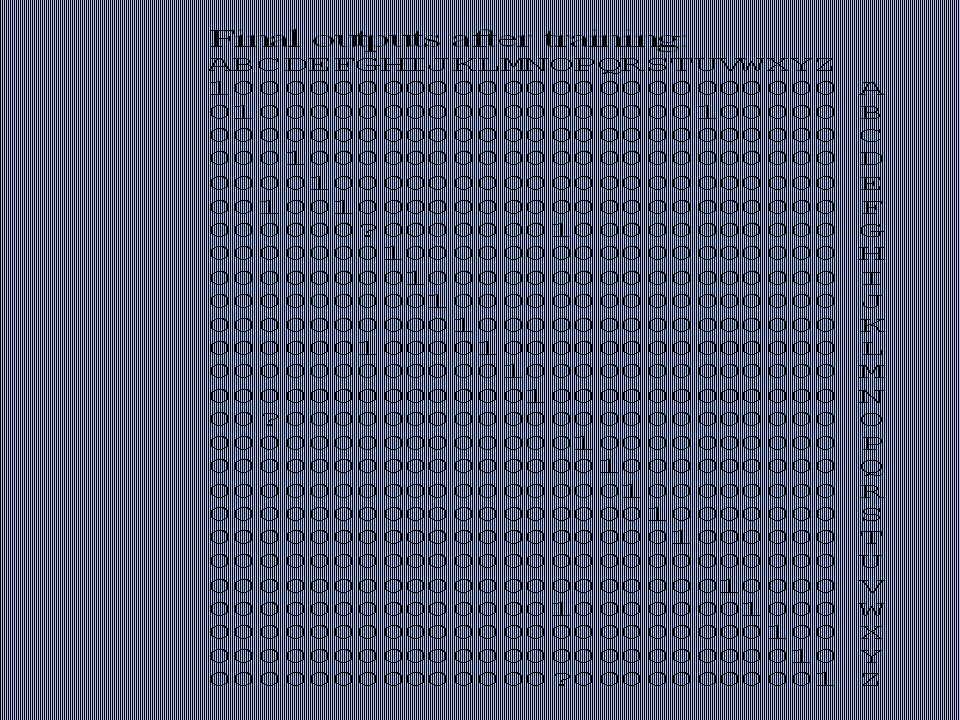

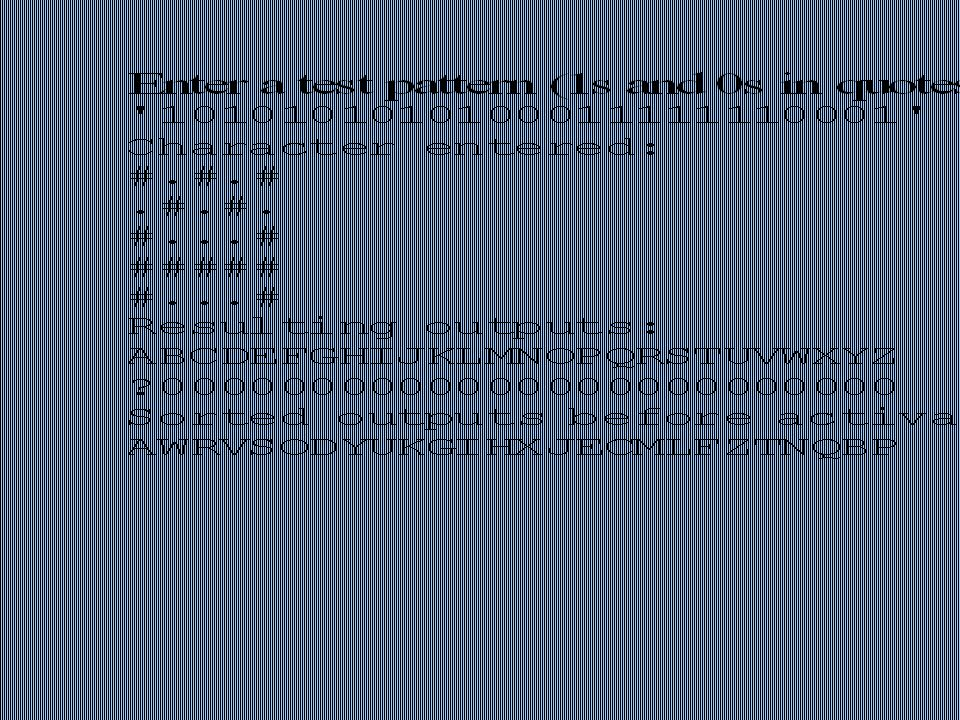

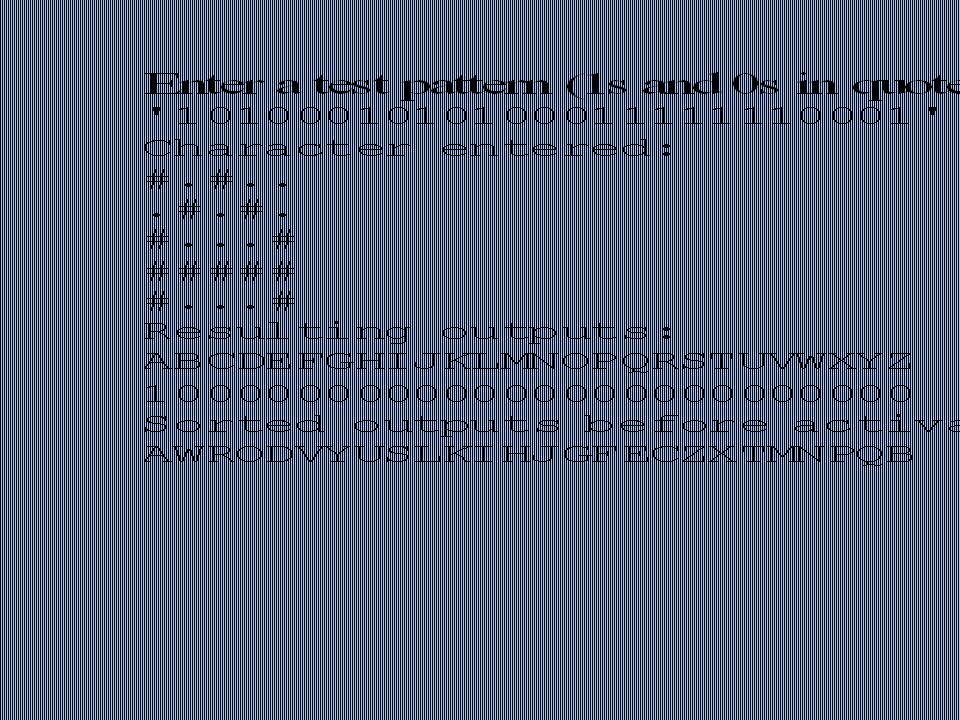

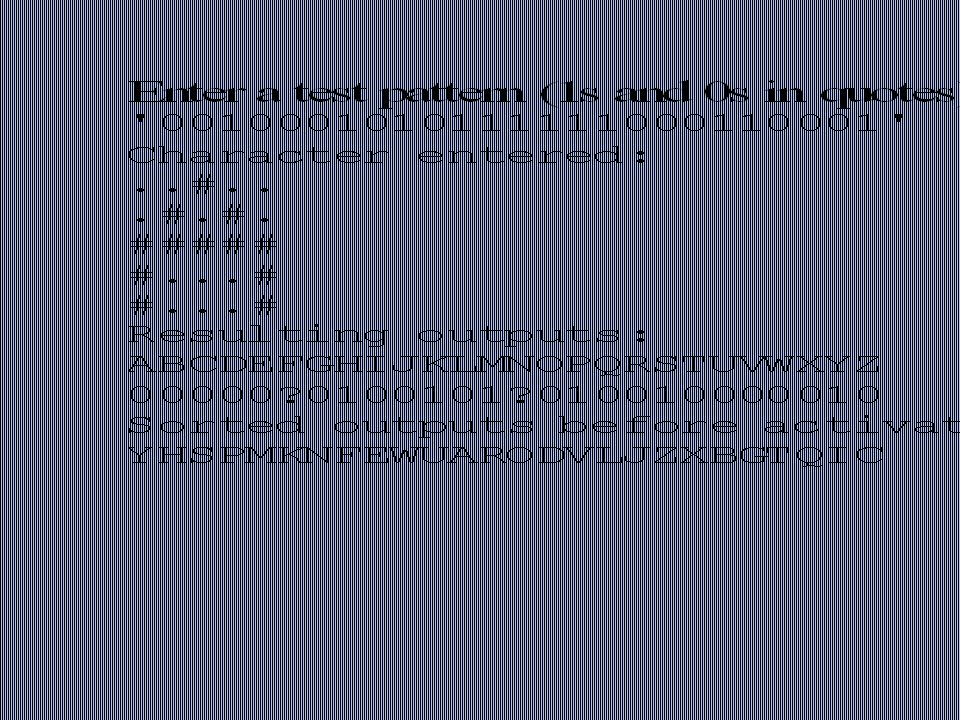

7. Perceptron Applied to Character Recognition Neural net inputs x 1 to x 25 Binary target output string (t 1 to t 26 )

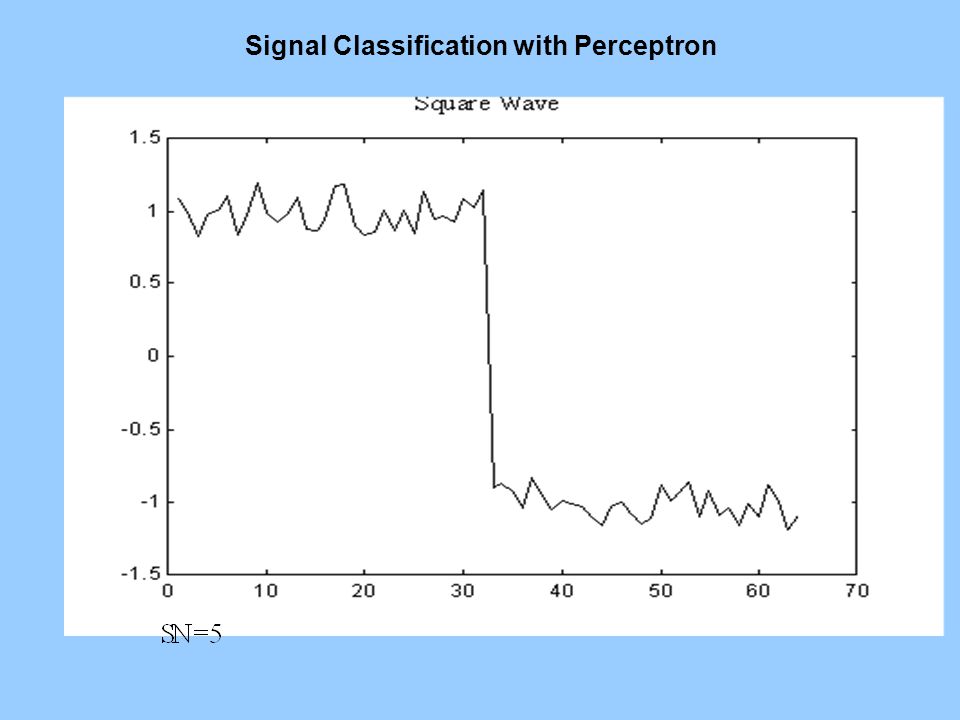

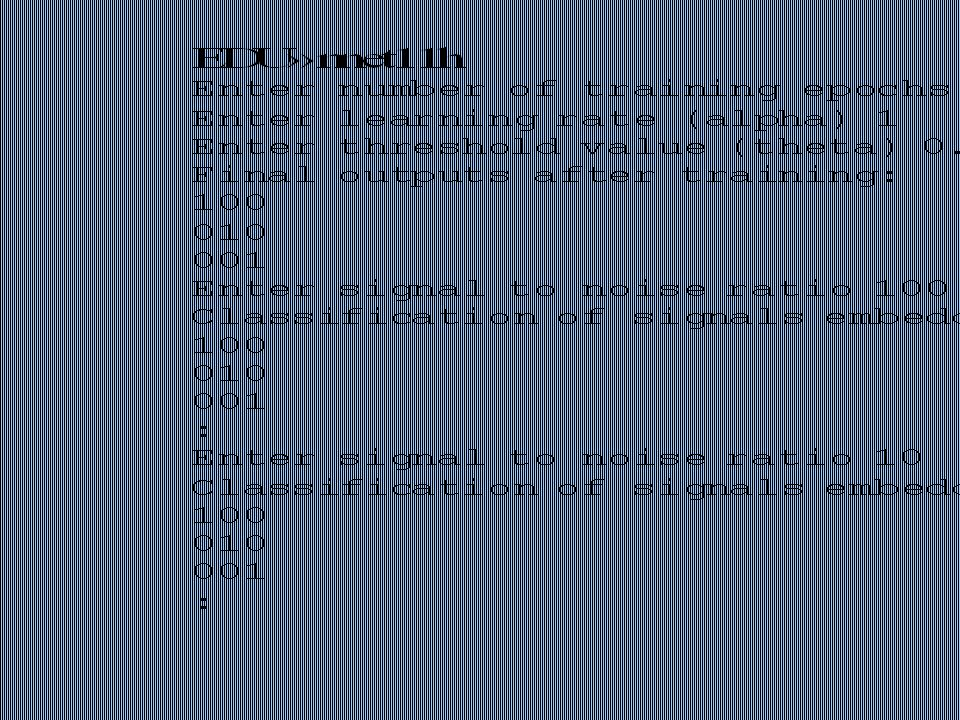

13. Signal Classification with Perceptron

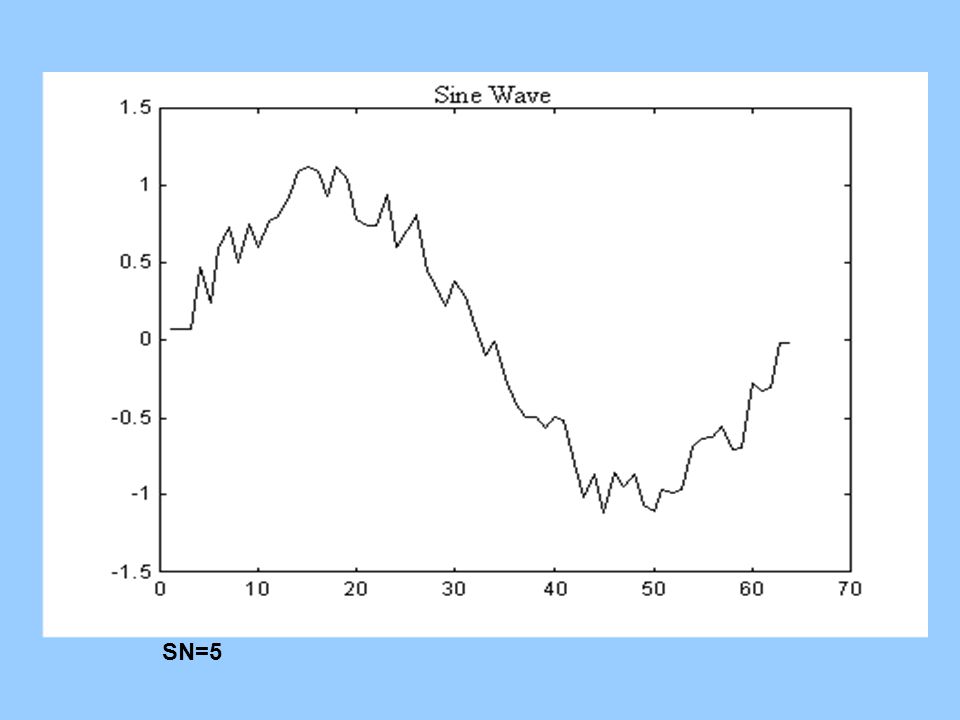

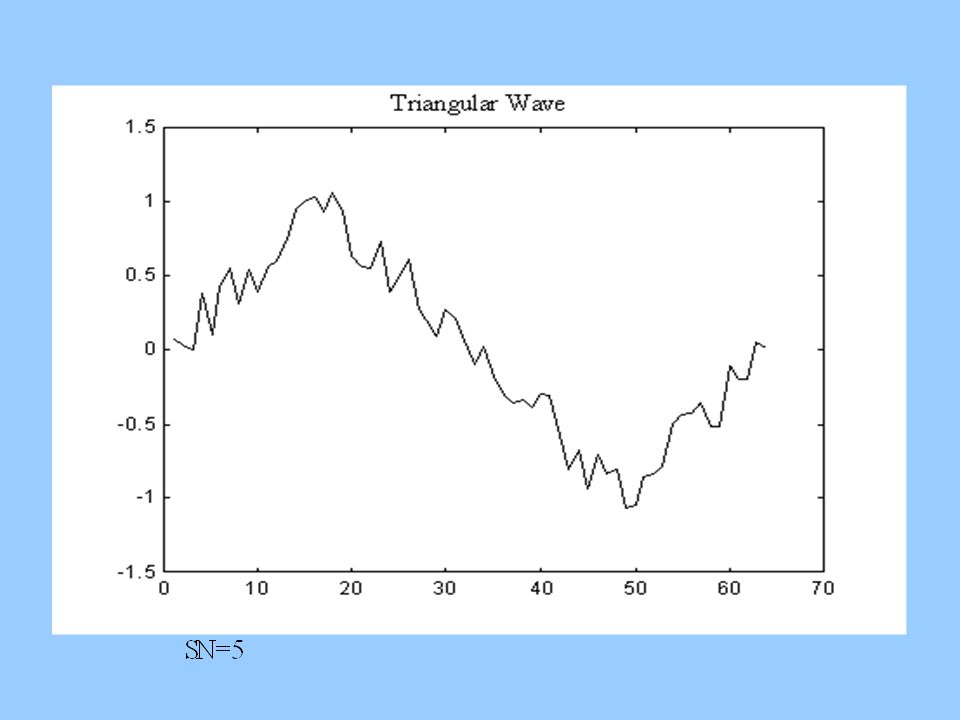

15. SN=5

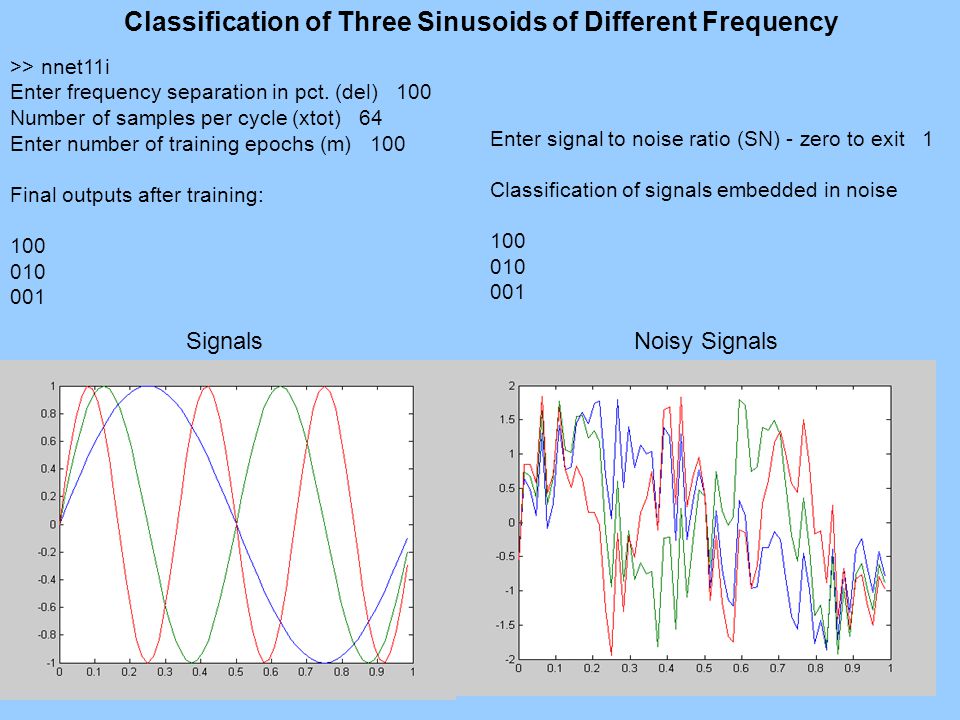

19. >> nnet11i Enter frequency separation in pct. (del) 100 Number of samples per cycle (xtot) 64 Enter number of training epochs (m) 100 Final outputs after training: 100 010 001 Enter signal to noise ratio (SN) - zero to exit 1 Classification of signals embedded in noise 100 010 001 Classification of Three Sinusoids of Different Frequency SignalsNoisy Signals

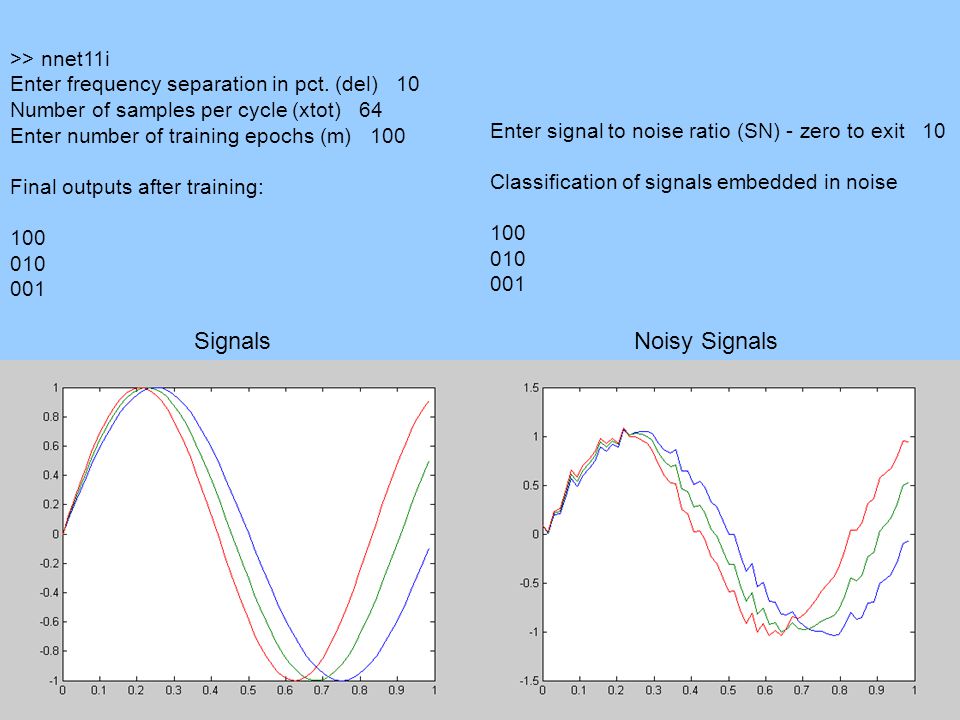

20. >> nnet11i Enter frequency separation in pct. (del) 10 Number of samples per cycle (xtot) 64 Enter number of training epochs (m) 100 Final outputs after training: 100 010 001 Enter signal to noise ratio (SN) - zero to exit 10 Classification of signals embedded in noise 100 010 001 SignalsNoisy Signals

21. SignalsNoisy Signals Enter signal to noise ratio (SN) - zero to exit 10 Classification of signals embedded in noise 0?0 010 001 >> nnet11i Enter frequency separation in pct. (del) 5 Number of samples per cycle (xtot) 64 Enter number of training epochs (m) 500 Final outputs after training: 100 010 001

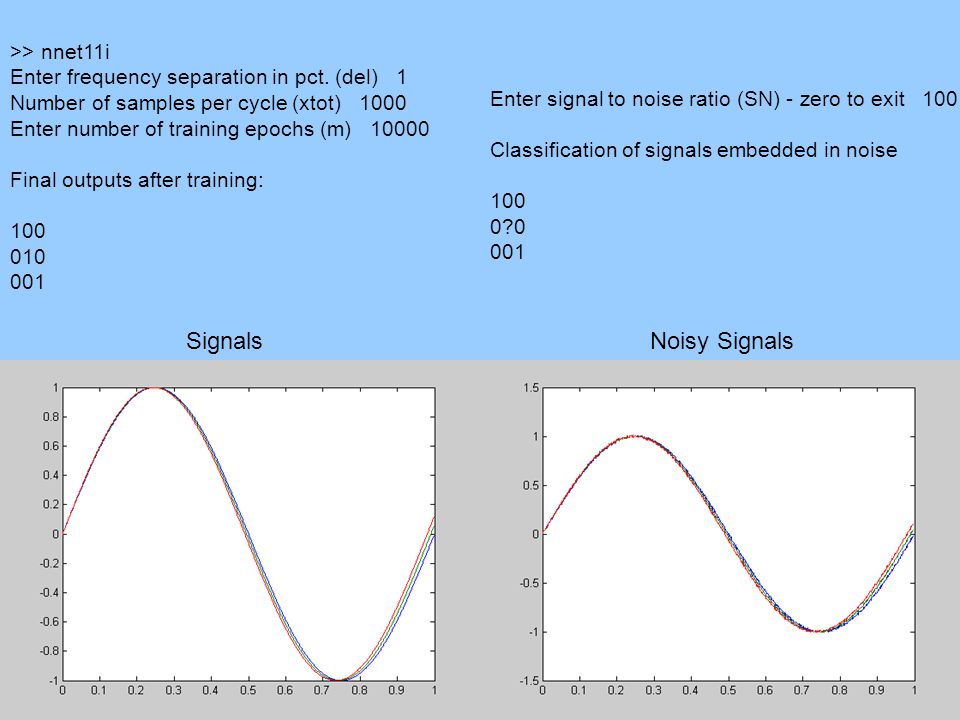

22. SignalsNoisy Signals >> nnet11i Enter frequency separation in pct. (del) 1 Number of samples per cycle (xtot) 1000 Enter number of training epochs (m) 10000 Final outputs after training: 100 010 001 Enter signal to noise ratio (SN) - zero to exit 100 Classification of signals embedded in noise 100 0?0 001

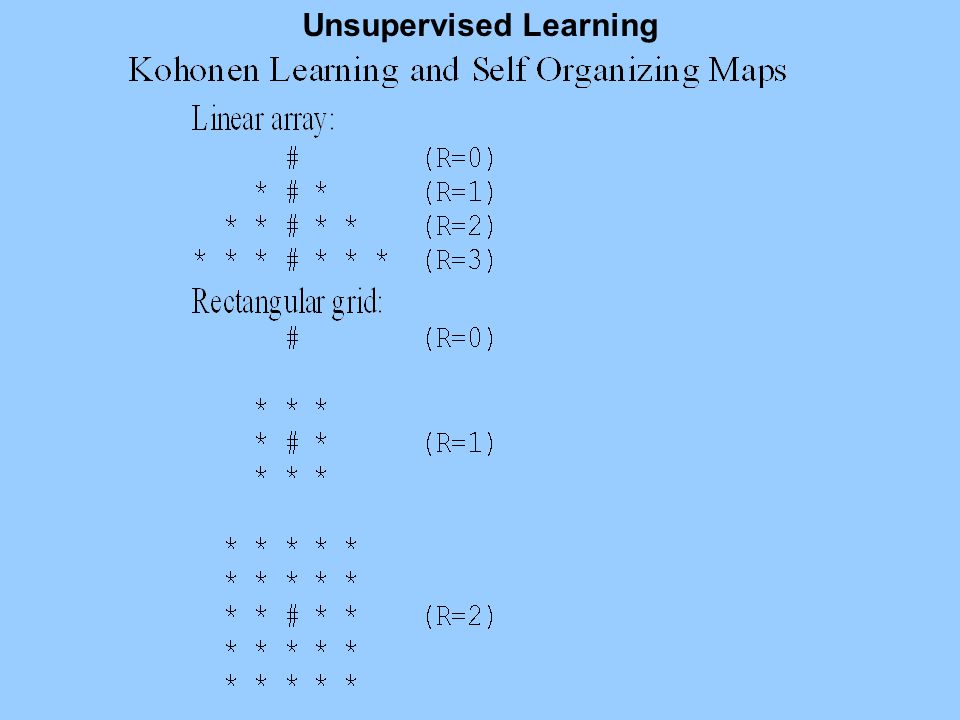

23. Unsupervised Learning

24. Initialize the weights (e.g. random values). Set the neighborhood radius (R) and a learning rate (α). Repeat the steps below until convergence or a maximum number of epochs is reached. For each input pattern X = [x 1 x 2 x 3......] Compute a "distance" D(j) = (w 1j ‑ x 1 ) 2 + (w 2j ‑ x 2 ) 2 + (w 3j ‑ x 3 ) 2 +...... for each cluster (i.e. all j), and find jmin, the value of j corresponding to the minimum D(j). If j is "in the neighborhood of" jmin, w ij (new) = w ij (old) + α [x i ‑ w ij (old)] for all i. Decrease α (linearly or geometrically) and reduce R (at a specified rate) if R > 0. Kohonen Learning Steps

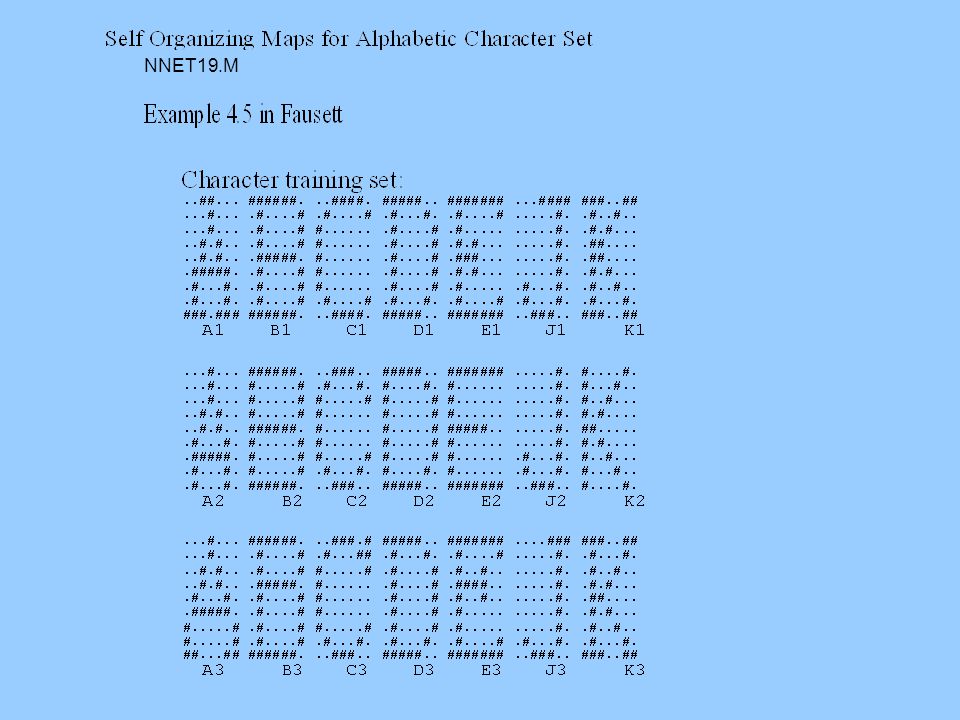

25. NNET19.M

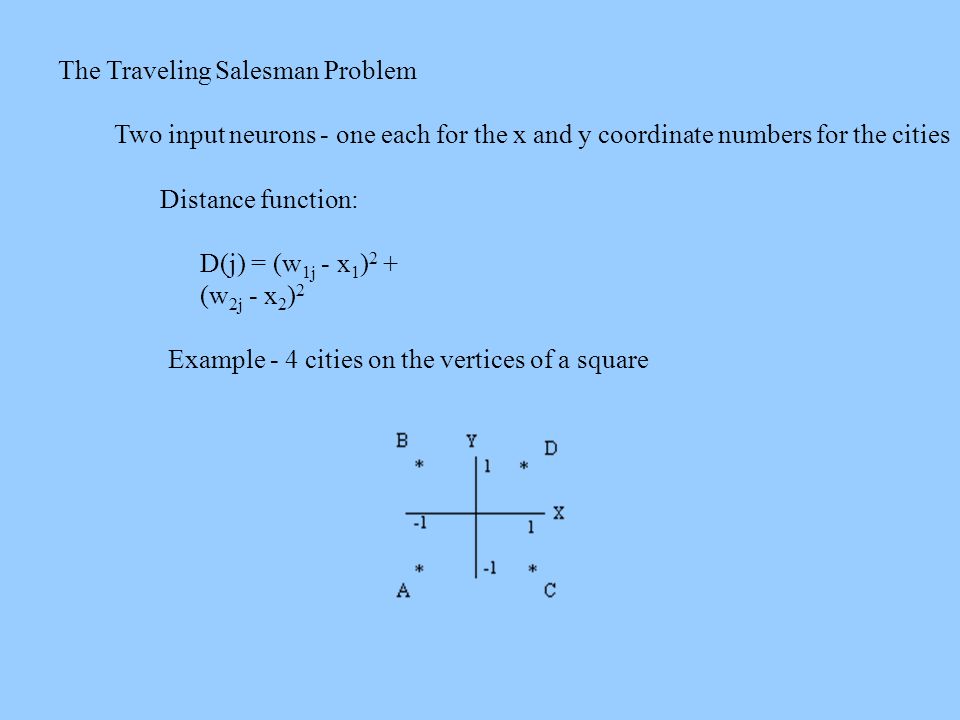

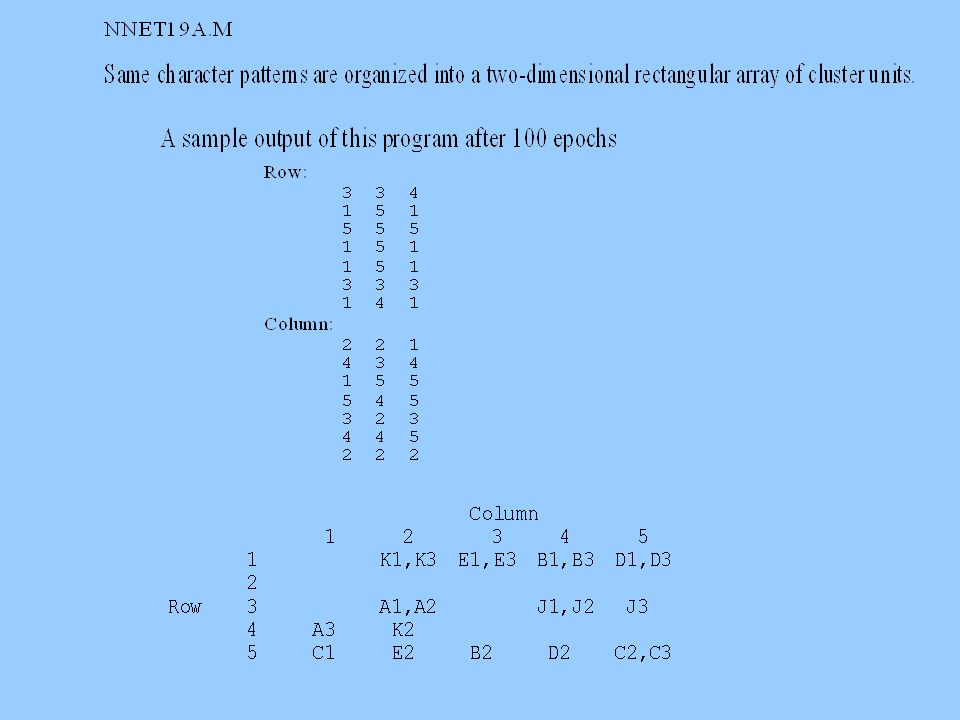

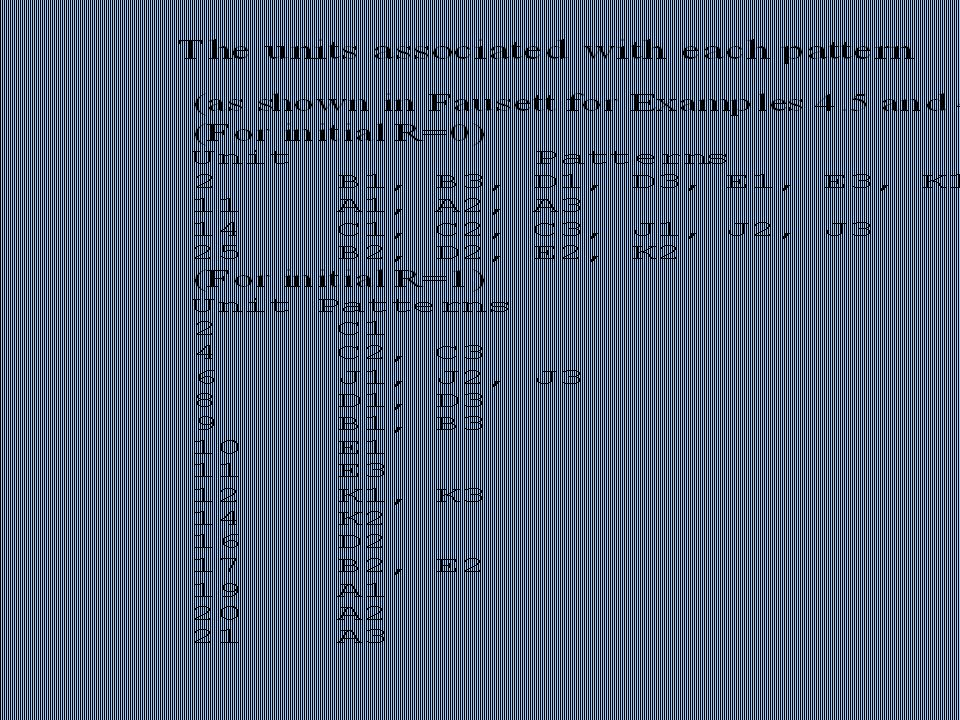

28. Two input neurons ‑ one each for the x and y coordinate numbers for the cities The Traveling Salesman Problem Distance function: D(j) = (w 1j ‑ x 1 ) 2 + (w 2j ‑ x 2 ) 2 Example - 4 cities on the vertices of a square

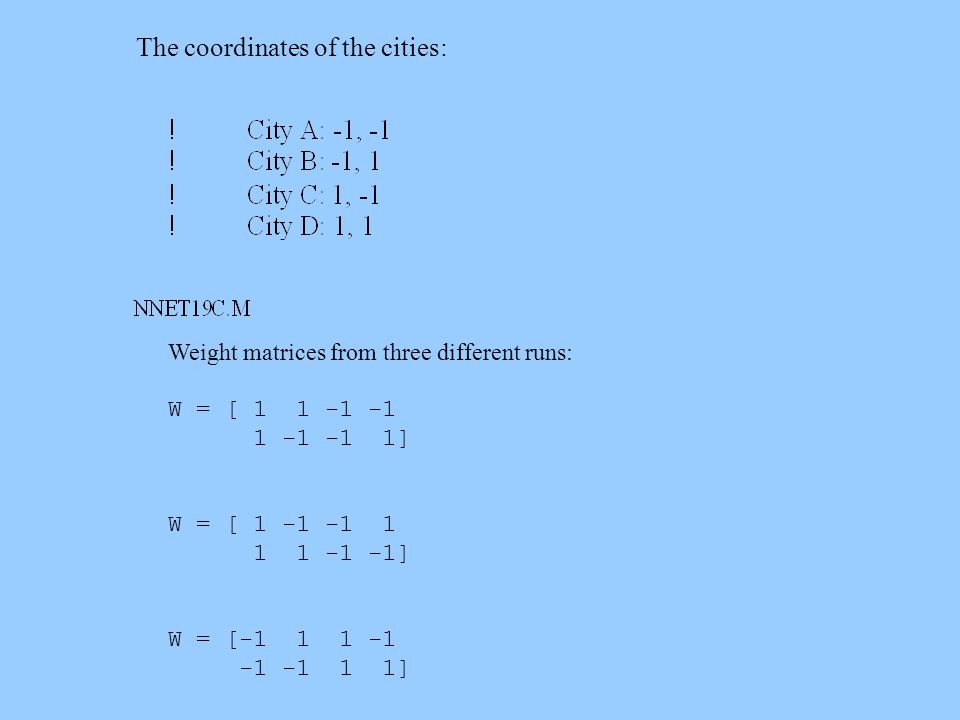

29. The coordinates of the cities: Weight matrices from three different runs: W = [ 1 1 ‑ 1 ‑ 1 1 ‑ 1 ‑ 1 1] W = [ 1 ‑ 1 ‑ 1 1 1 1 ‑ 1 ‑ 1] W = [ ‑ 1 1 1 ‑ 1 ‑ 1 ‑ 1 1 1]

30. 100 “Randomly” Located Cities 0.1 < α < 0.25, 100 epochs, Initial R = 2
