1 Injection Molding Chapter 6.2

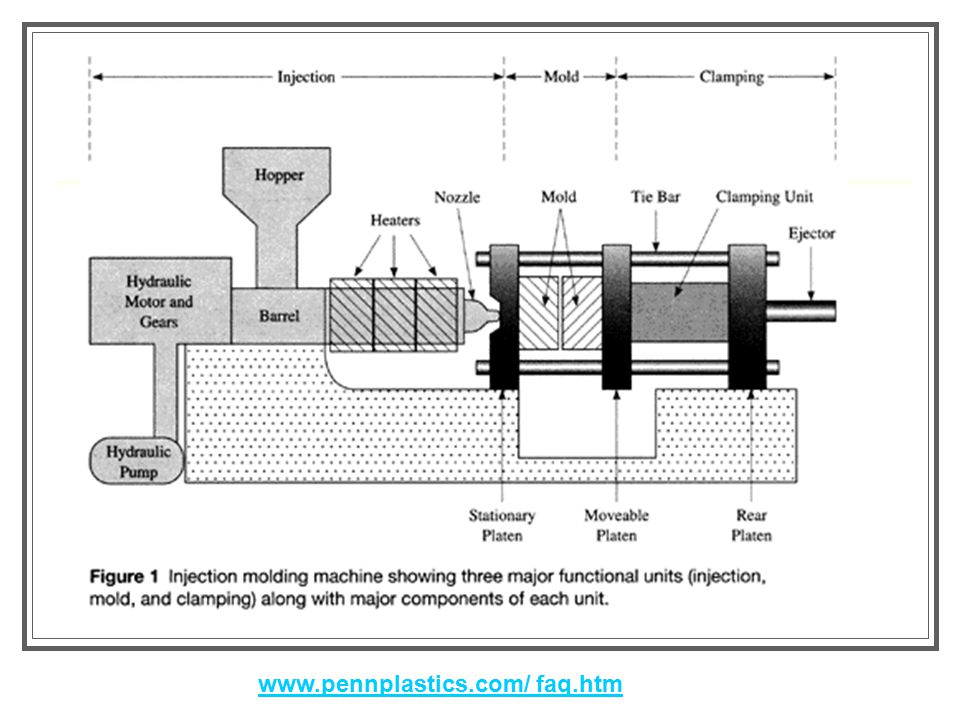

2 www.pennplastics.com/ faq.htm

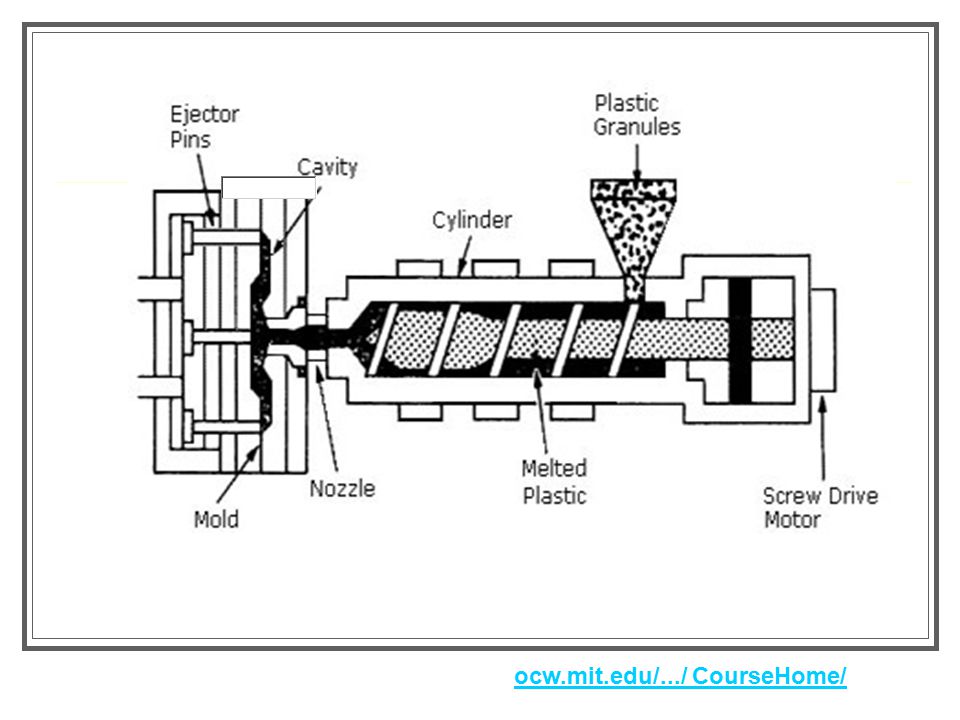

3 ocw.mit.edu/.../ CourseHome/

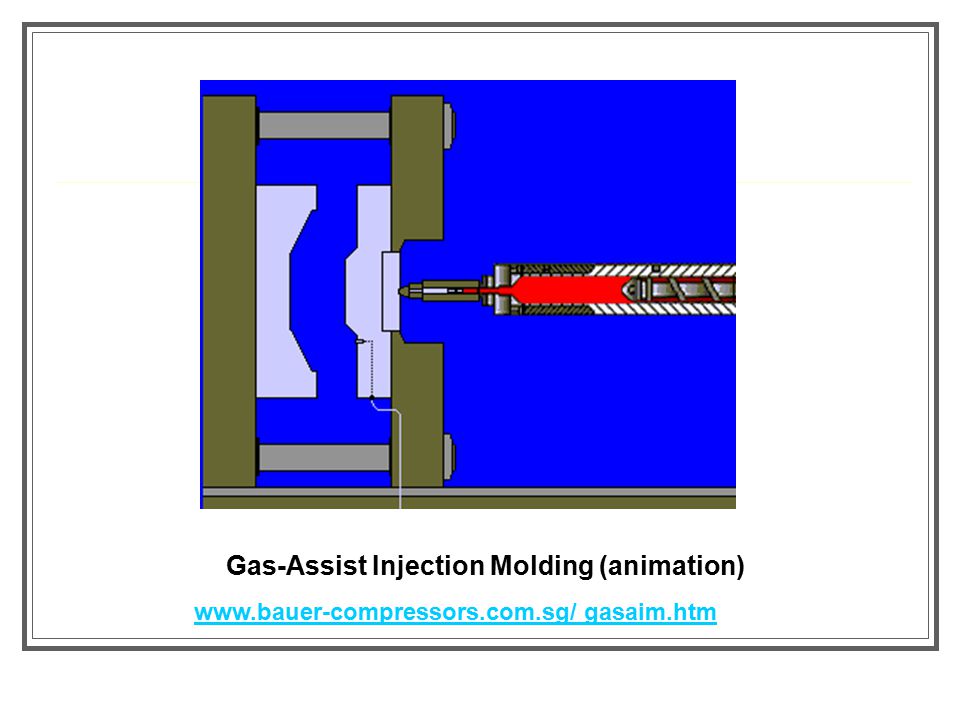

4 www.bauer-compressors.com.sg/ gasaim.htm Gas-Assist Injection Molding (animation)

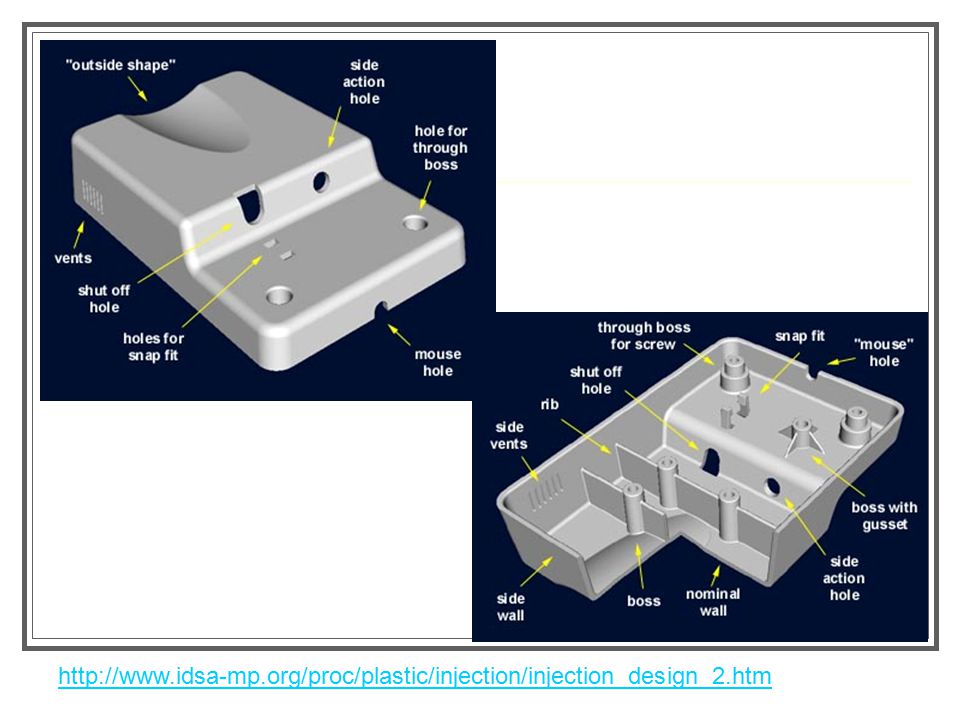

5 http://www.idsa-mp.org/proc/plastic/injection/injection_design_2.htm

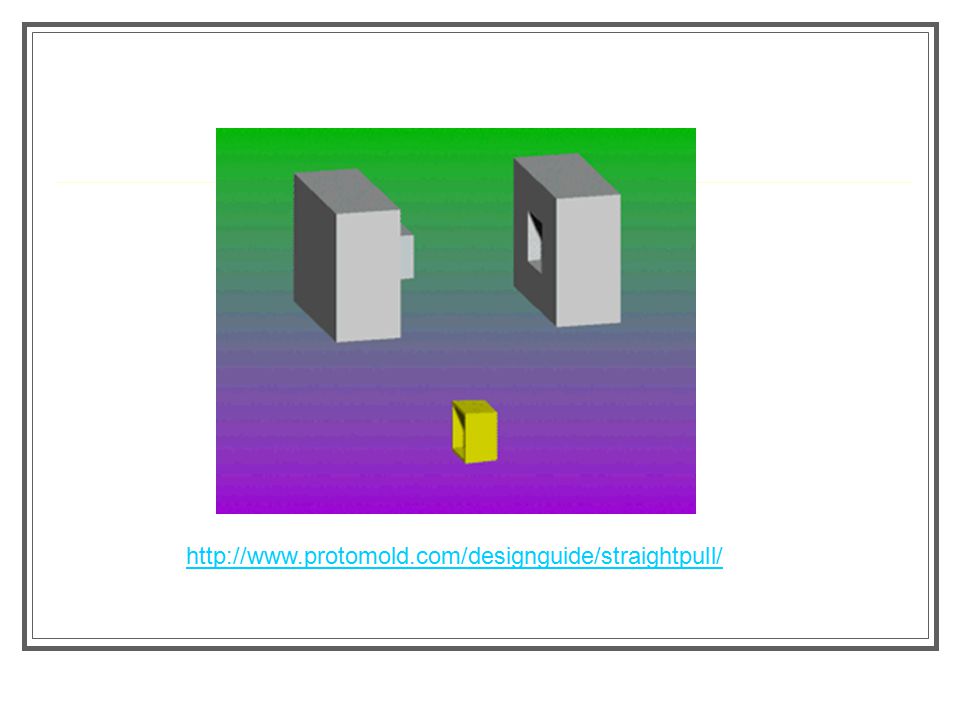

6 http://www.protomold.com/designguide/straightpull/

7 http://www.protomold.com/designguide/sideactions/

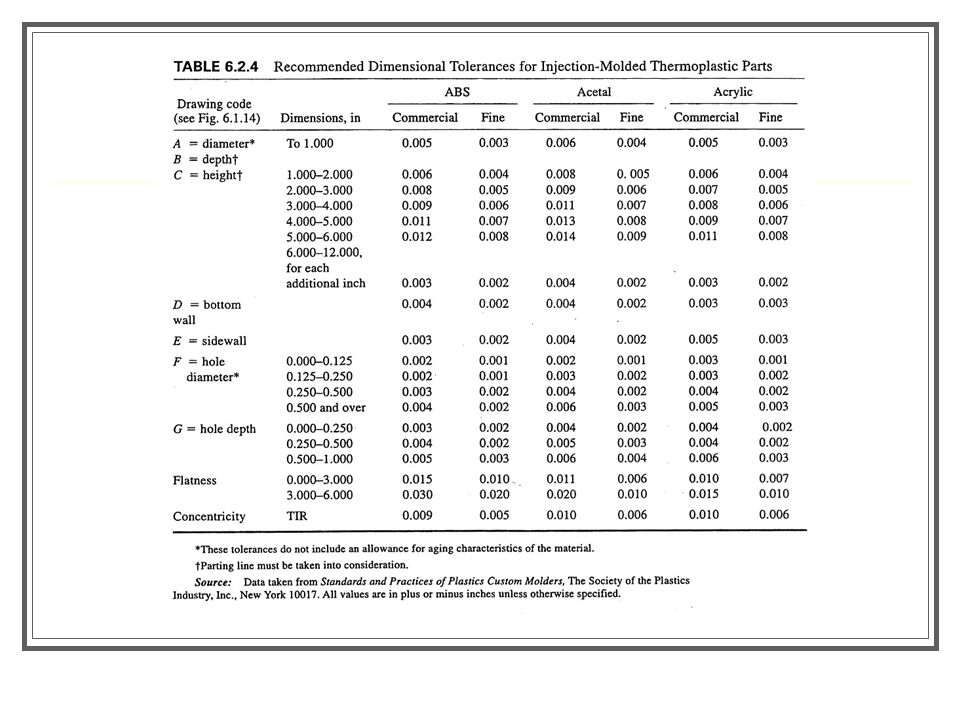

8

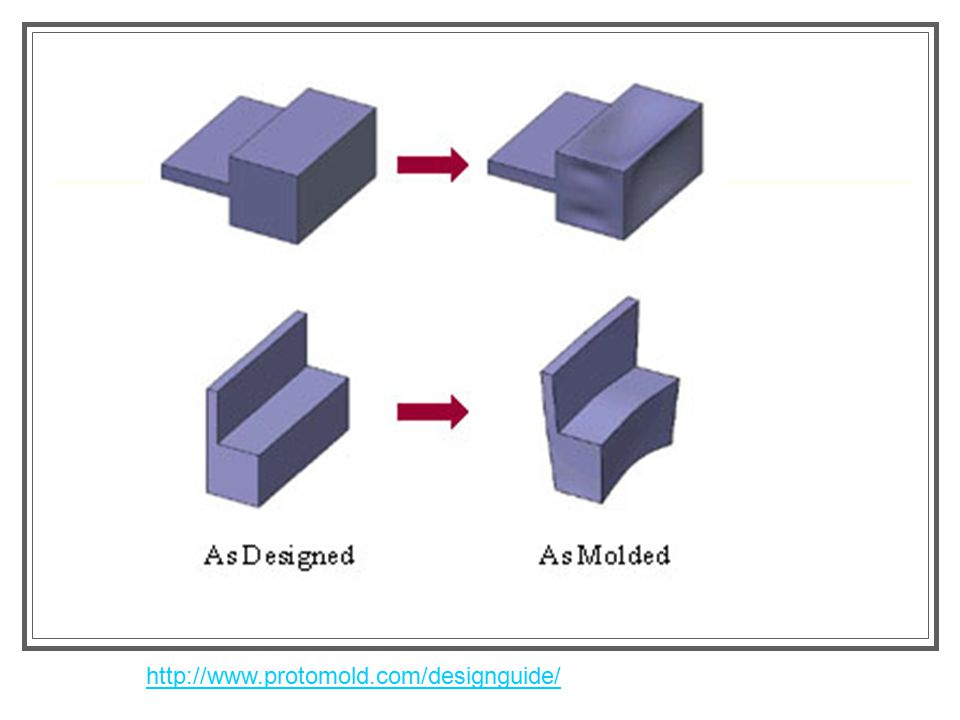

9 http://www.protomold.com/designguide/

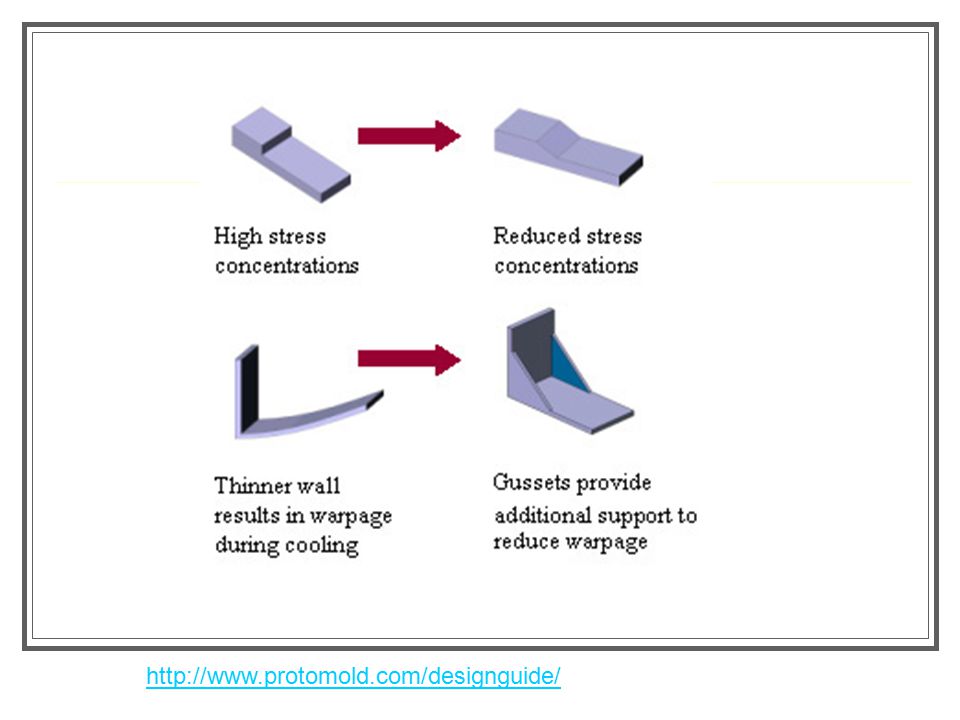

10

11

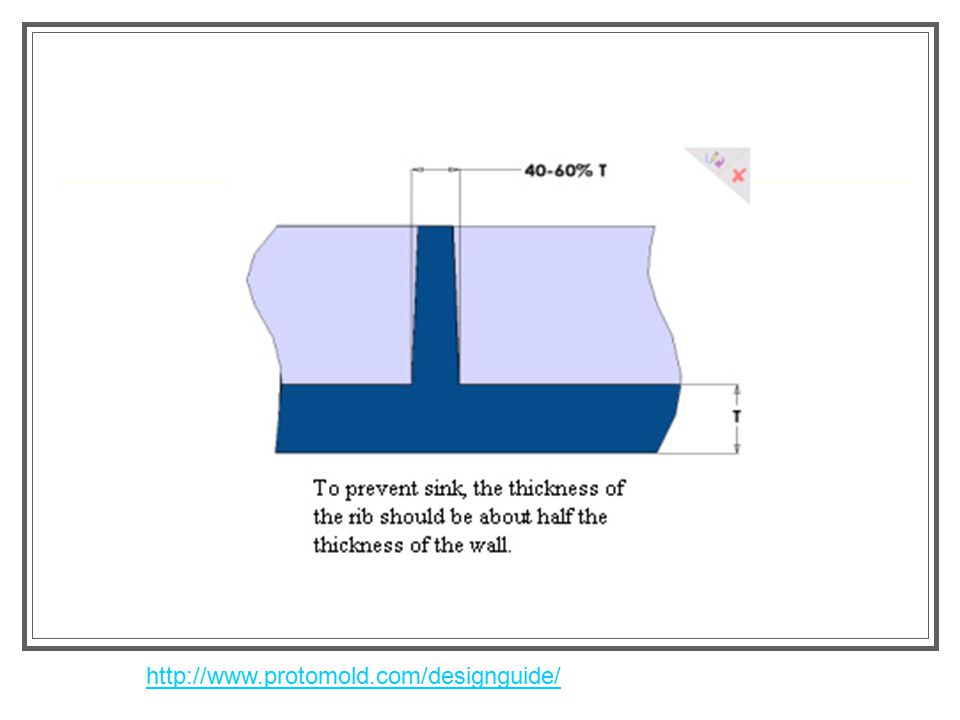

12

13

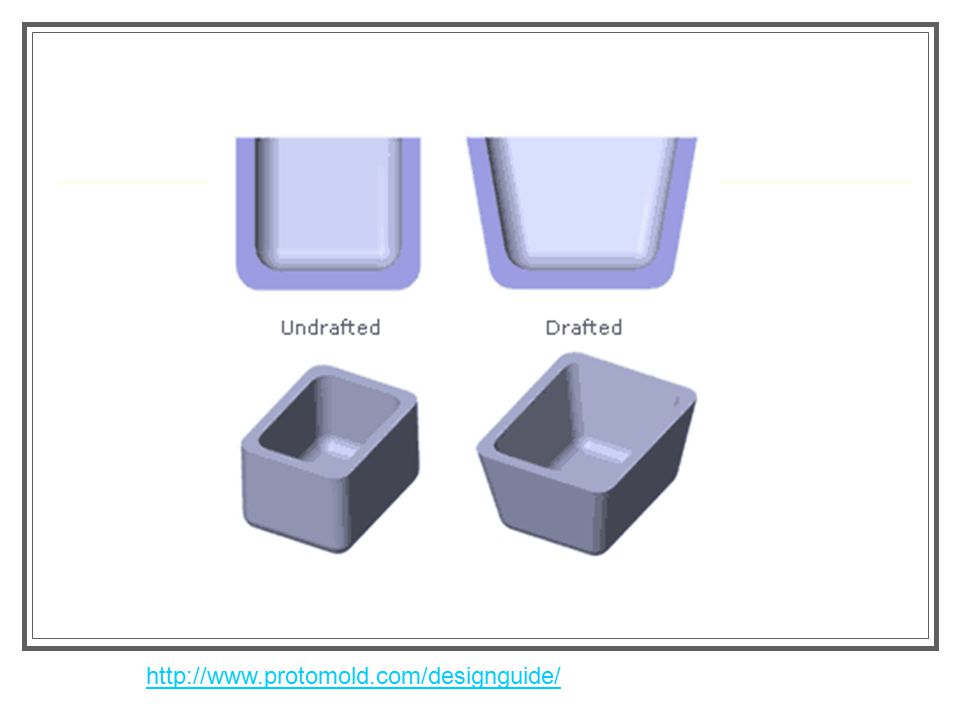

14

15

16

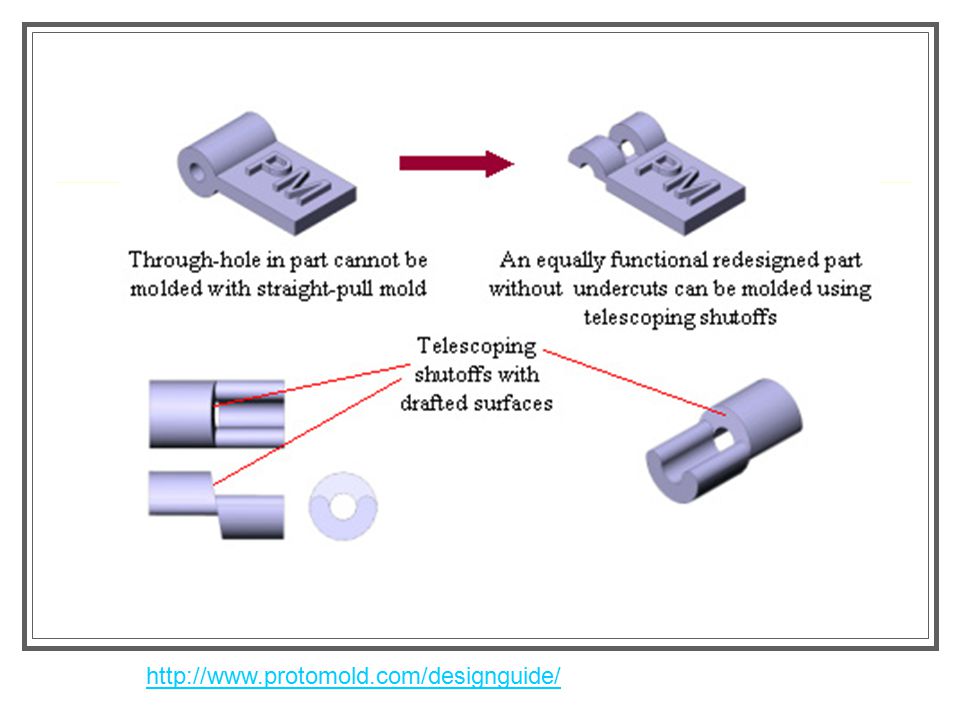

17

18

19

20 http://www.me.gatech.edu/jonathan.colton/me4210/weldlineanim.gif Formation of Weld Lines

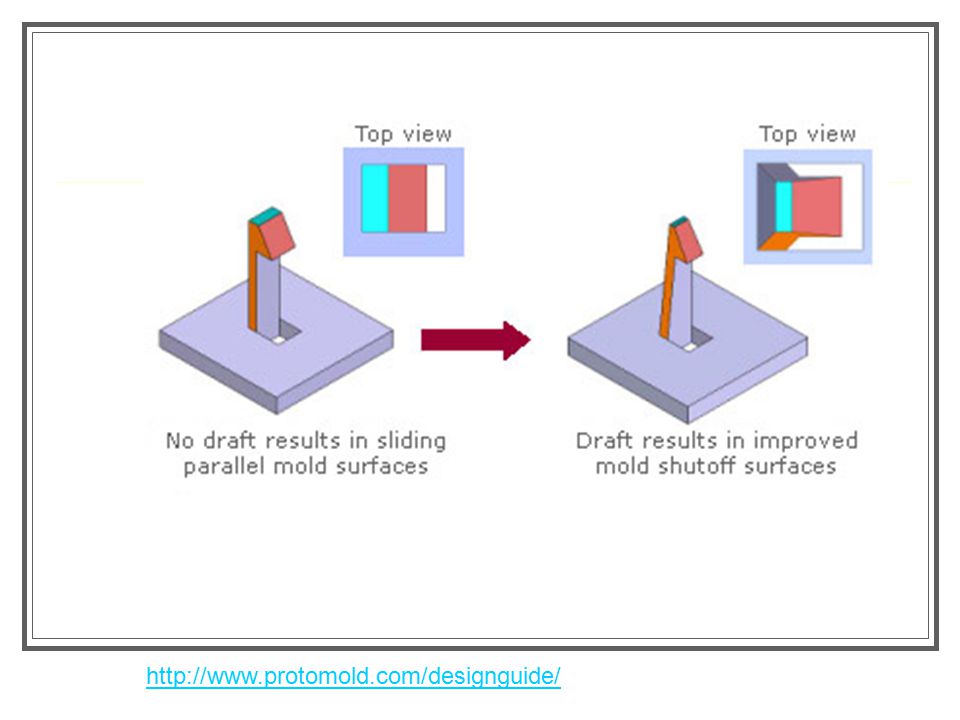

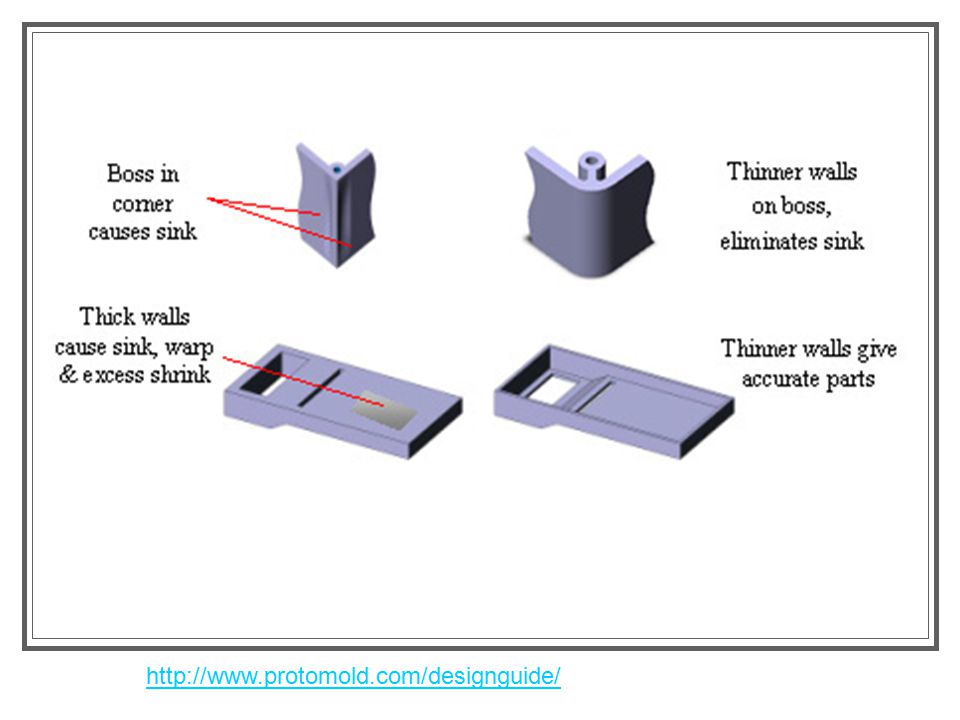

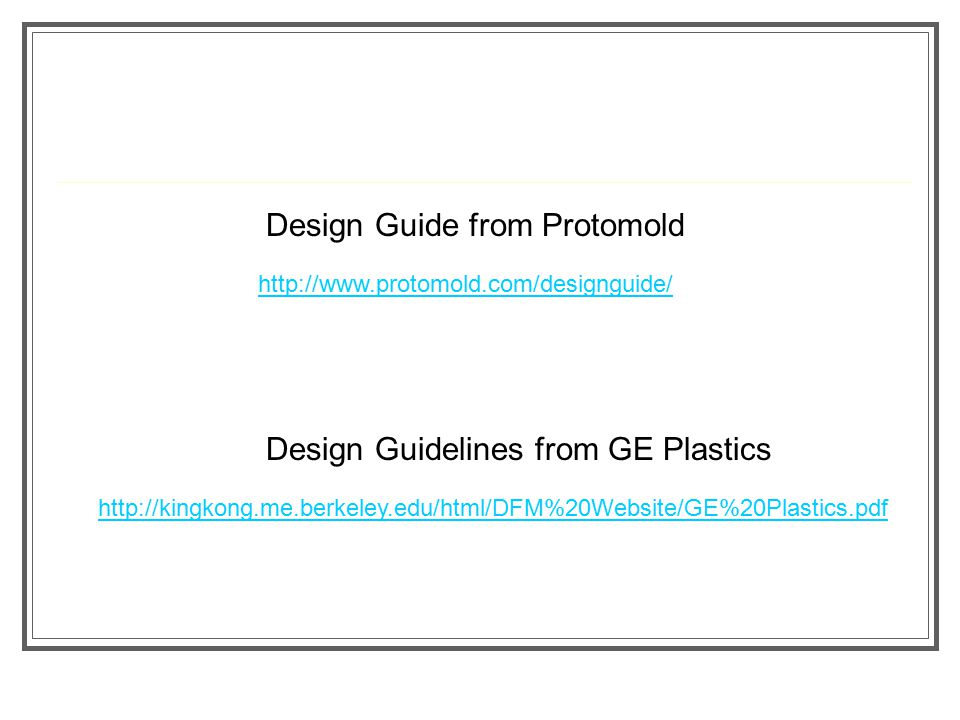

21 http://www.protomold.com/designguide/ Design Guide from Protomold http://kingkong.me.berkeley.edu/html/DFM%20Website/GE%20Plastics.pdf Design Guidelines from GE Plastics
