1.  Data creation and destruction  Inserting into a table  Deleting from a table  Modifying values in a table  Other commonly used features  Views  Transactions and triggers  Summary Outline

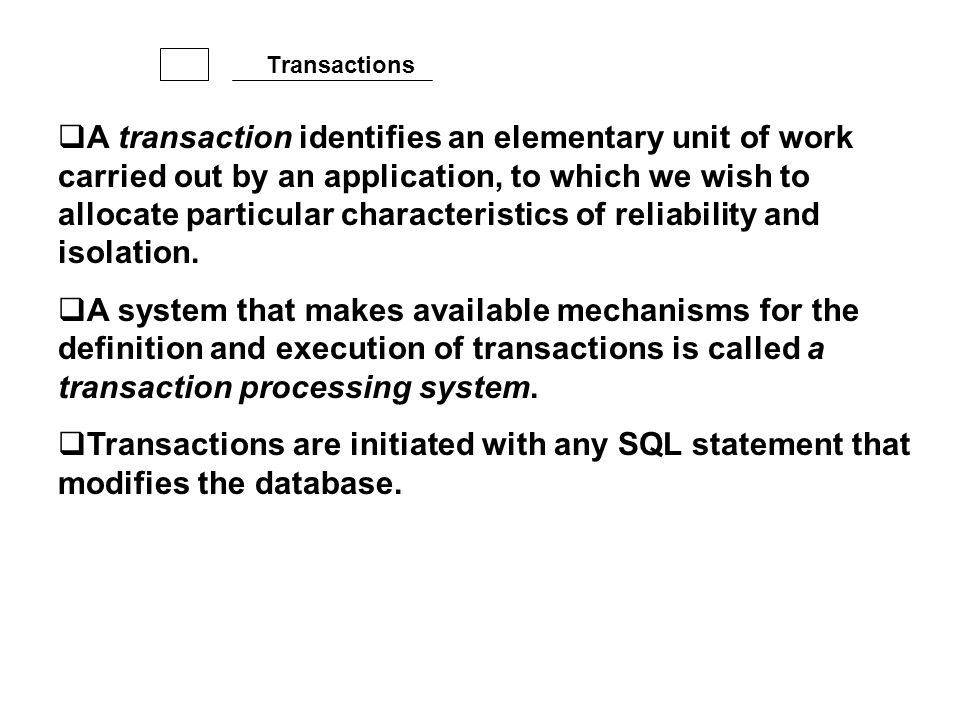

2.  A transaction identifies an elementary unit of work carried out by an application, to which we wish to allocate particular characteristics of reliability and isolation.  A system that makes available mechanisms for the definition and execution of transactions is called a transaction processing system.  Transactions are initiated with any SQL statement that modifies the database. Transactions

3.  A transaction can be defined syntactically: each transaction, irrespective of the language in which it is written, is enclosed whthin two commands: begin transaction end transaction Within the transaction code, two particular instructions can appear commit work rollback work Transactions

4. An example of transaction is given in the following code: begin transaction X := x – 10; Y := y + 10; Commit work; end transaction Transaction example

5. Active databases  An active database system is a DBMS that supports an integrated subsystem for the definition and management of production rules.  The rules follow the event – condition – action paradigm: each rule reacts to some events, evaluates a condition and, based on the truth value of the condition, might carry out an action.  The execution of the rules happens under the control of an autonomous subsystem, known as the rule engine, which keeps track of the events that have occurred and schedules the rules for execution.  One of the active rules called triggers.

6. Triggers (on tables)  The creation of triggers is part of the DDL.  Maintain data integrity  Associated with a table  Event-condition-action  Wait for a table event  On event, evaluate condition  If condition is true, execute action  Table-level vs. row-level X before after insertion deletion update

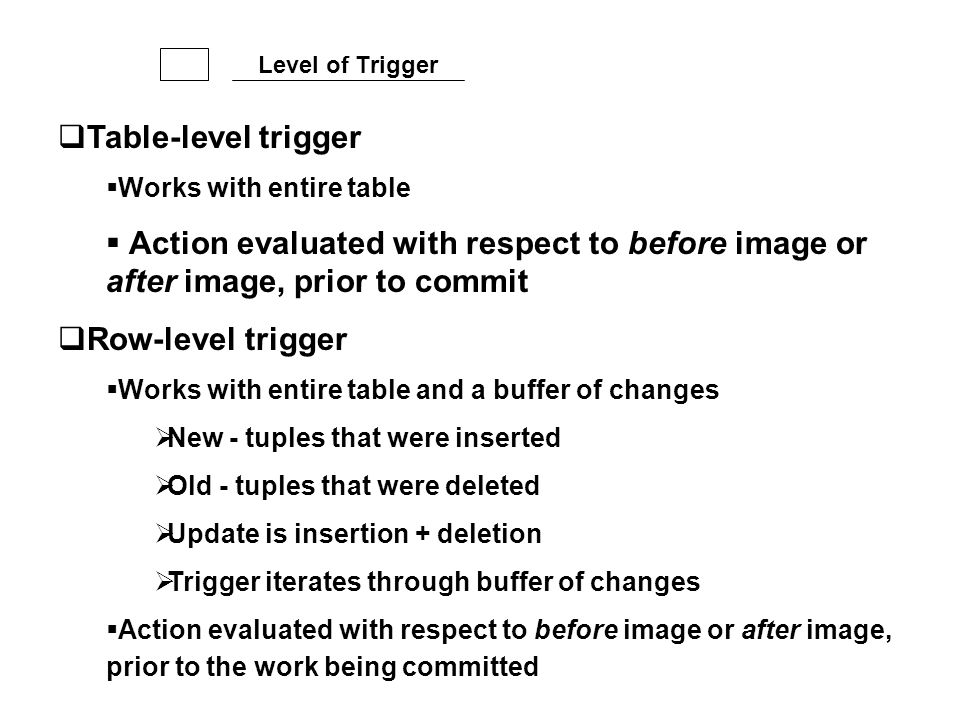

7.  Table-level trigger  Works with entire table  Action evaluated with respect to before image or after image, prior to commit  Row-level trigger  Works with entire table and a buffer of changes  New - tuples that were inserted  Old - tuples that were deleted  Update is insertion + deletion  Trigger iterates through buffer of changes  Action evaluated with respect to before image or after image, prior to the work being committed Level of Trigger

8.  The Person table associates Names and Cities. INSERT INTO Person(Name, City) VALUES (Jill, Cork)  Before insertion, SELECT COUNT(*) will result in 3  After insertion, SELECT COUNT(*) will result in 4 Table-level Insertion Event Joe Susan Dublin Cork Juan Name City Joe Susan Dublin Cork Juan Name City JillCork BeforeAfter

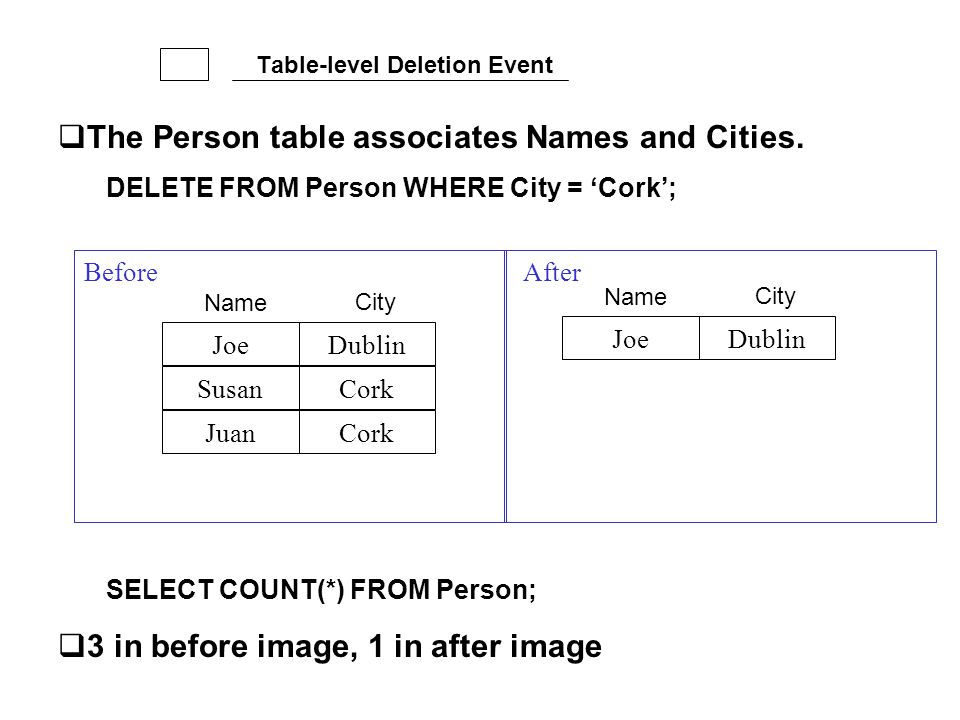

9.  The Person table associates Names and Cities. DELETE FROM Person WHERE City = ‘Cork’; SELECT COUNT(*) FROM Person;  3 in before image, 1 in after image Table-level Deletion Event Joe Susan Dublin Cork Juan Name City JoeDublin Name City BeforeAfter

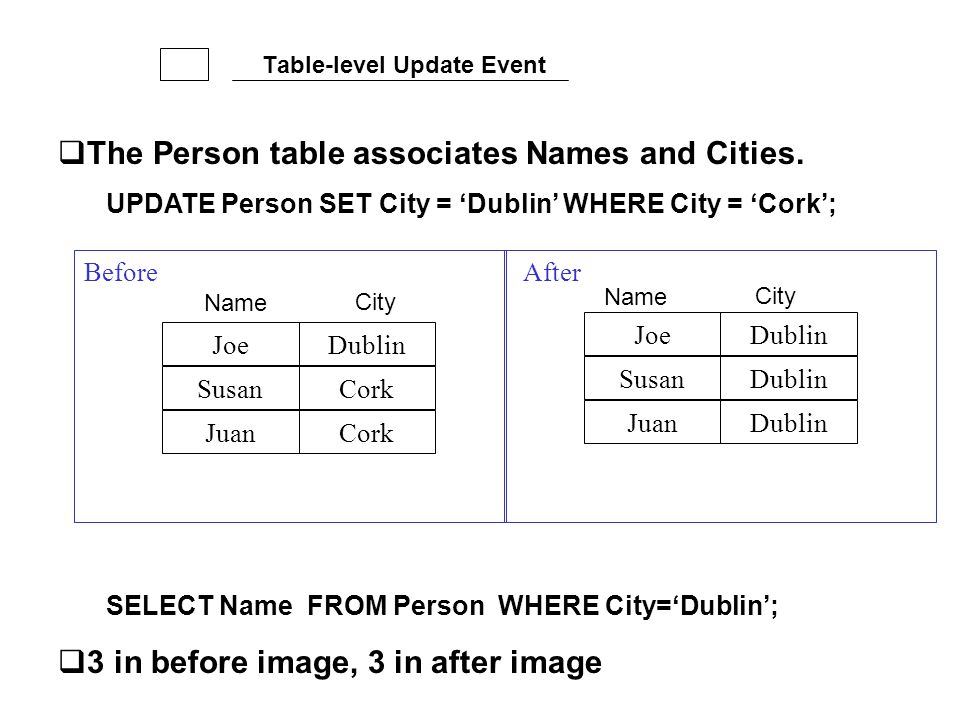

10.  The Person table associates Names and Cities. UPDATE Person SET City = ‘Dublin’ WHERE City = ‘Cork’; SELECT Name FROM Person WHERE City=‘Dublin’;  3 in before image, 3 in after image Table-level Update Event Joe Susan Dublin Cork Juan Name City Name City BeforeAfter Joe Susan Dublin Juan

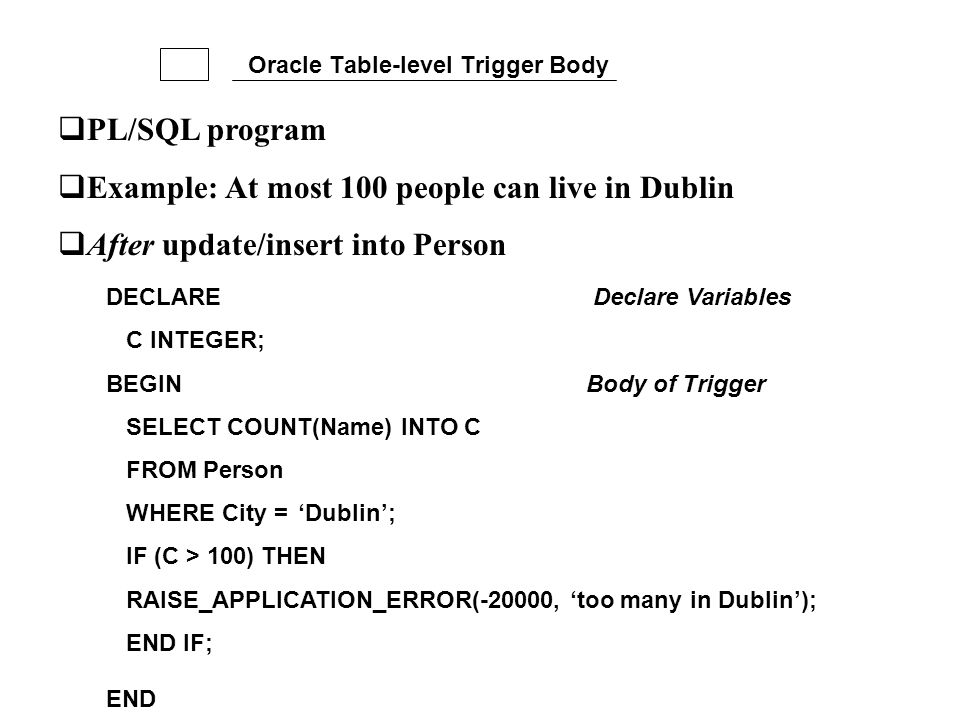

11.  PL/SQL program  Example: At most 100 people can live in Dublin  After update/insert into Person DECLARE Declare Variables C INTEGER; BEGIN Body of Trigger SELECT COUNT(Name) INTO C FROM Person WHERE City = ‘Dublin’; IF (C > 100) THEN RAISE_APPLICATION_ERROR(-20000, ‘too many in Dublin’); END IF; END Oracle Table-level Trigger Body

12.  The Person table associates Names and Cities. INSERT INTO Person(Name, City) VALUES (Jill, Cork) Row-level Insertion Event Joe Susan Dublin Cork Juan Name City JillCork Name City Buffer OldNew Joe Susan Dublin Cork Juan Name City JillCork BeforeAfter

13.  The Person table associates Names and Cities. DELETE FROM Person WHERE City = ‘Cork’; Row-level Deletion Event Joe Susan Dublin Cork Juan Name City Name City Buffer OldNew JoeDublin Name City BeforeAfter SusanCork Juan

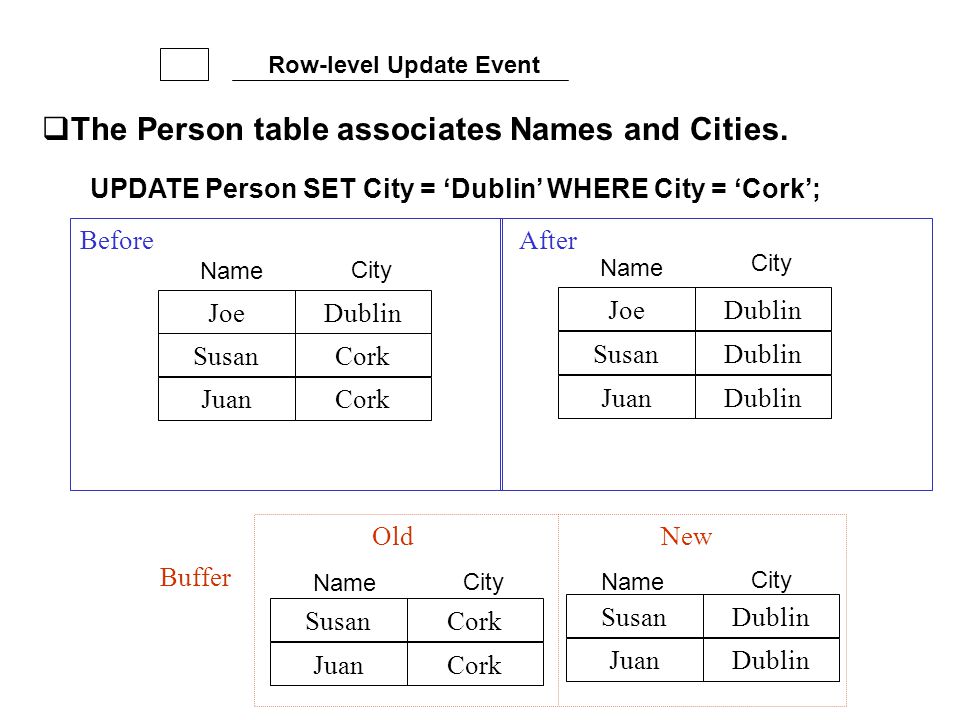

14.  The Person table associates Names and Cities. UPDATE Person SET City = ‘Dublin’ WHERE City = ‘Cork’; Row-level Update Event Joe Susan Dublin Cork Juan Name City Name City Name City Buffer OldNew Joe Susan Dublin Juan Name City BeforeAfter SusanDublin Juan SusanCork Juan

15.  Notification  an active database may be used to monitor  Enforce integrity constraints  Business roles  maintenance of derived data  Maintain the derived attribute whenever individual tuples are changed Potential Applications

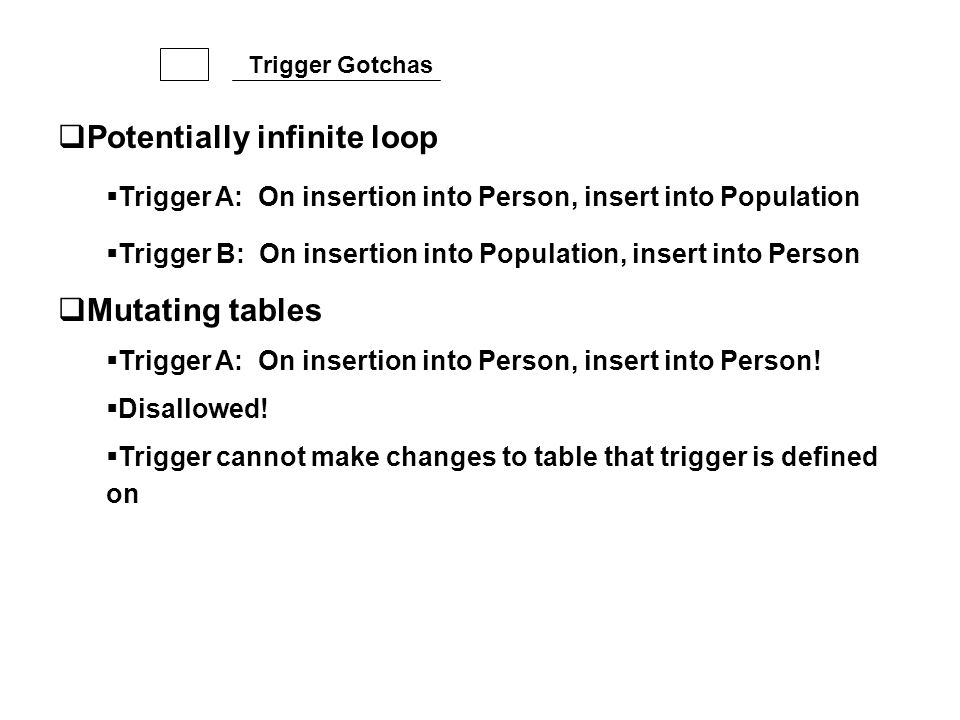

16.  Potentially infinite loop  Trigger A: On insertion into Person, insert into Population  Trigger B: On insertion into Population, insert into Person  Mutating tables  Trigger A: On insertion into Person, insert into Person!  Disallowed!  Trigger cannot make changes to table that trigger is defined on Trigger Gotchas

17.  Schema definition  CREATE TABLE  CREATE VIEW  ALTER  DROP  Queries  SELECT Summary

18.  Modifications  INSERT  DELETE  UPDATE  Transaction Management  COMMIT  ROLLBACK  Active Database  Trigger Summary, cont.
