1. Natural Language Processing in Bioinformatics: Uncovering Semantic Relations Barbara Rosario Joint work with Marti Hearst SIMS, UC Berkeley

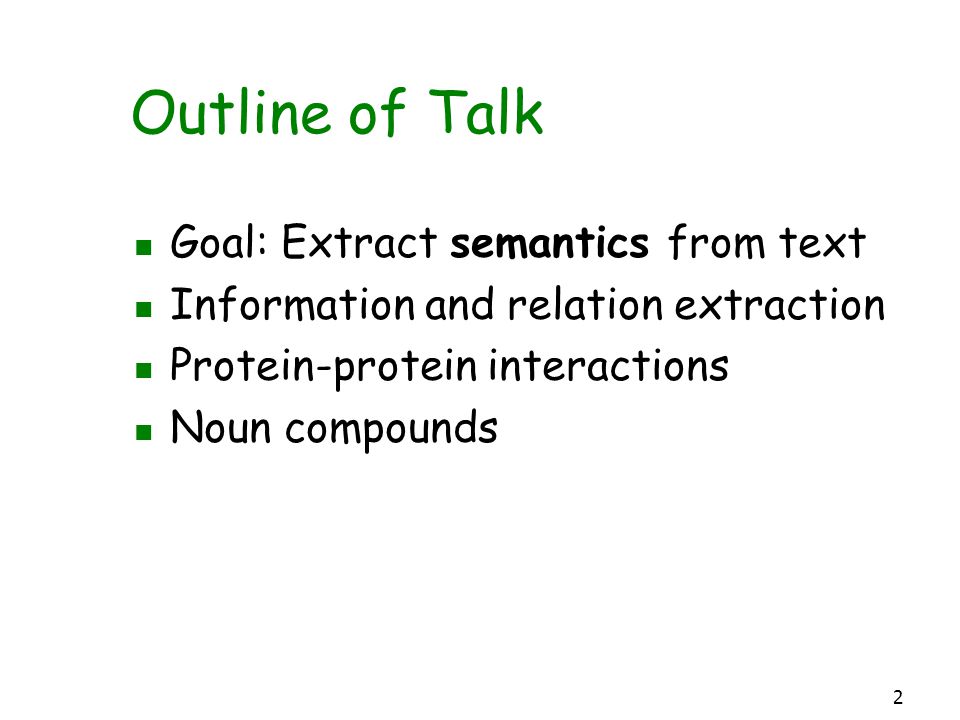

2. 2 Outline of Talk Goal: Extract semantics from text Information and relation extraction Protein-protein interactions Noun compounds

3. 3 Text Mining Text Mining is the discovery by computers of new, previously unknown information, via automatic extraction of information from text

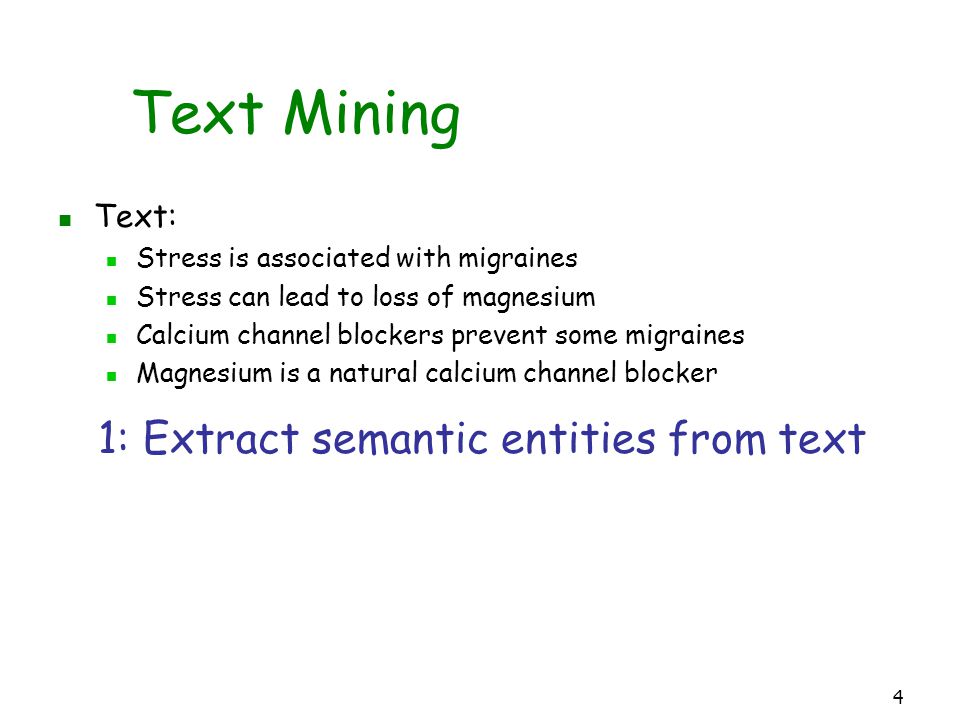

4. 4 Text Mining Text: Stress is associated with migraines Stress can lead to loss of magnesium Calcium channel blockers prevent some migraines Magnesium is a natural calcium channel blocker 1: Extract semantic entities from text

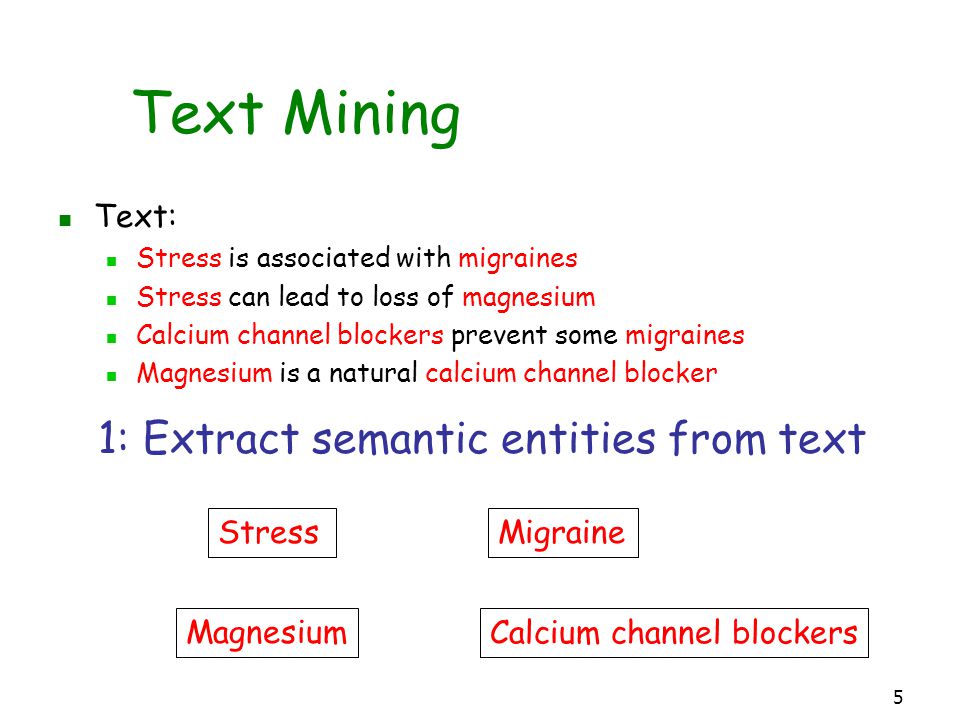

5. 5 Text Mining Text: Stress is associated with migraines Stress can lead to loss of magnesium Calcium channel blockers prevent some migraines Magnesium is a natural calcium channel blocker StressMigraine Magnesium Calcium channel blockers 1: Extract semantic entities from text

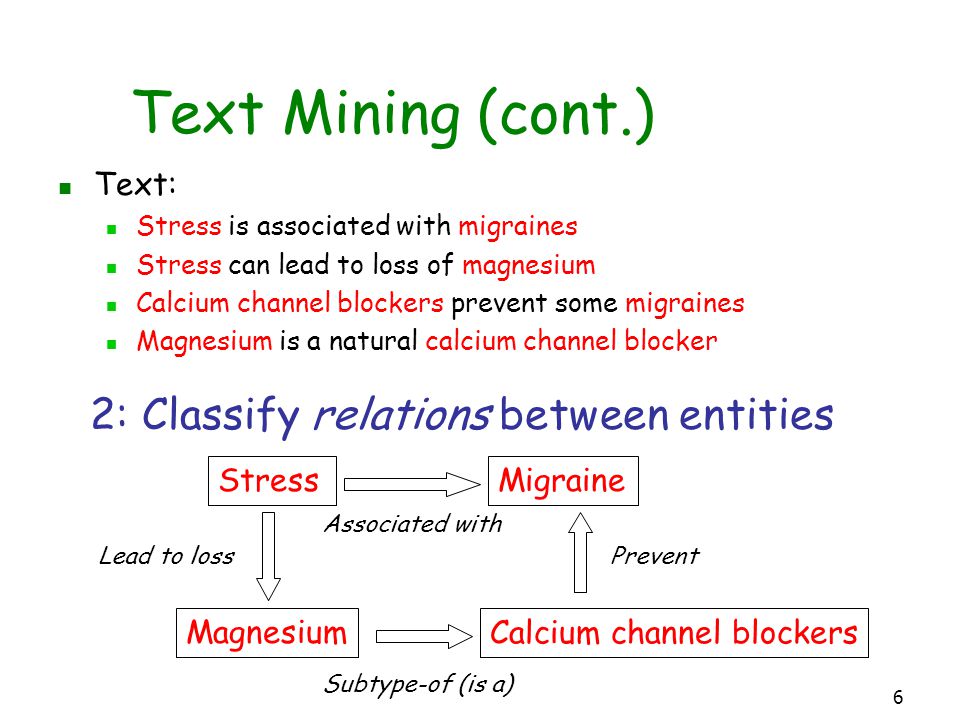

6. 6 Text Mining (cont.) Text: Stress is associated with migraines Stress can lead to loss of magnesium Calcium channel blockers prevent some migraines Magnesium is a natural calcium channel blocker StressMigraine Magnesium Calcium channel blockers 2: Classify relations between entities Associated with Lead to lossPrevent Subtype-of (is a)

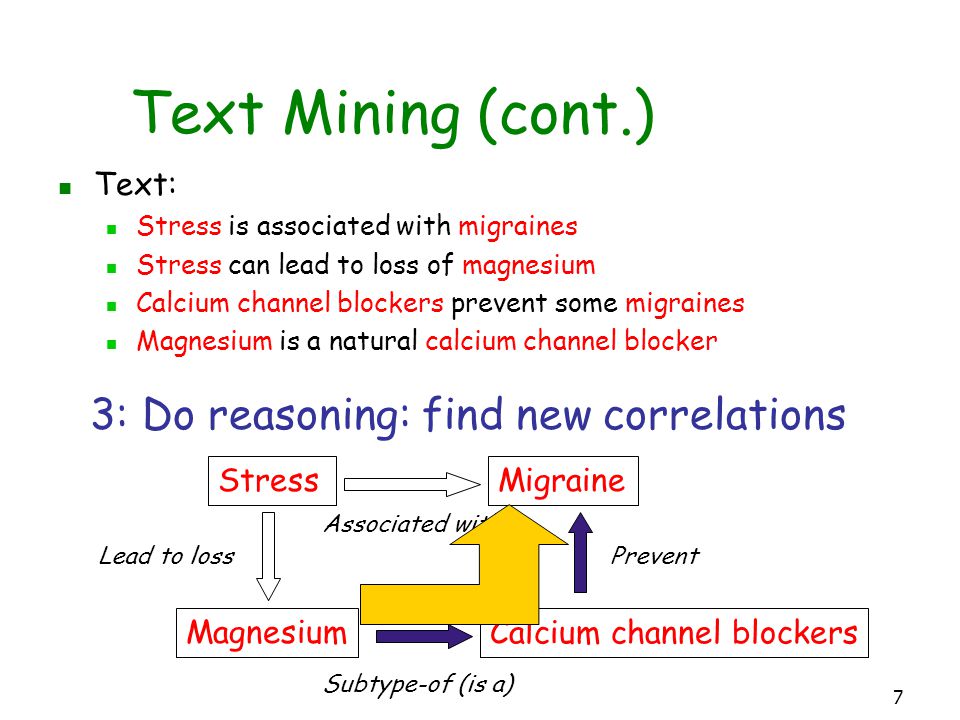

7. 7 Text Mining (cont.) Text: Stress is associated with migraines Stress can lead to loss of magnesium Calcium channel blockers prevent some migraines Magnesium is a natural calcium channel blocker StressMigraine Magnesium Calcium channel blockers 3: Do reasoning: find new correlations Associated with Lead to loss Prevent Subtype-of (is a)

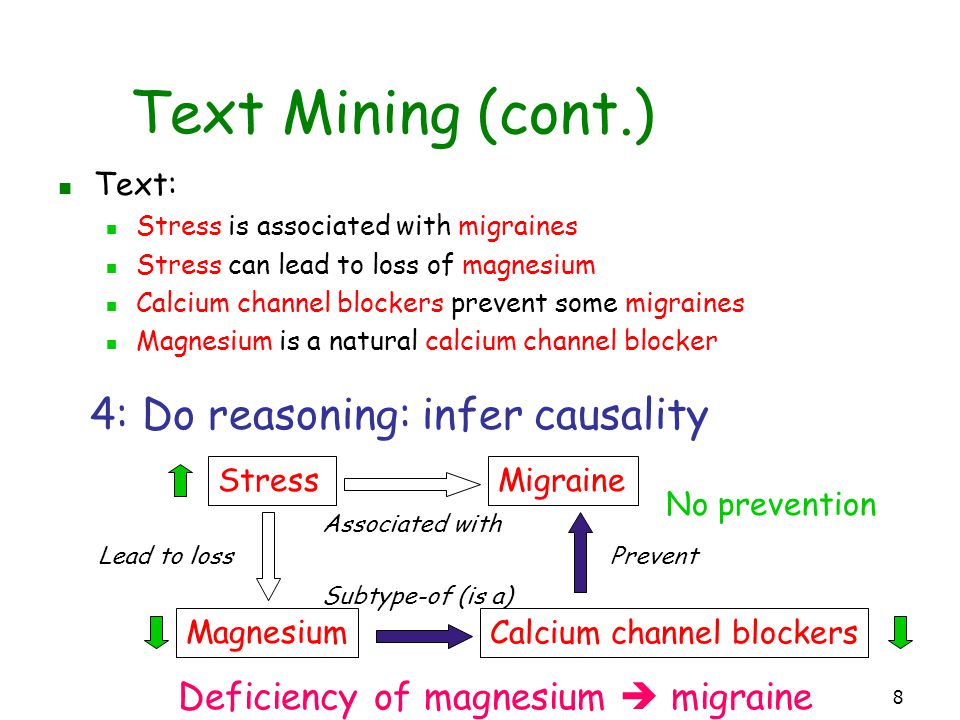

8. 8 Text Mining (cont.) Text: Stress is associated with migraines Stress can lead to loss of magnesium Calcium channel blockers prevent some migraines Magnesium is a natural calcium channel blocker StressMigraine Magnesium Calcium channel blockers 4: Do reasoning: infer causality Associated with Lead to loss Prevent Subtype-of (is a) No prevention Deficiency of magnesium  migraine

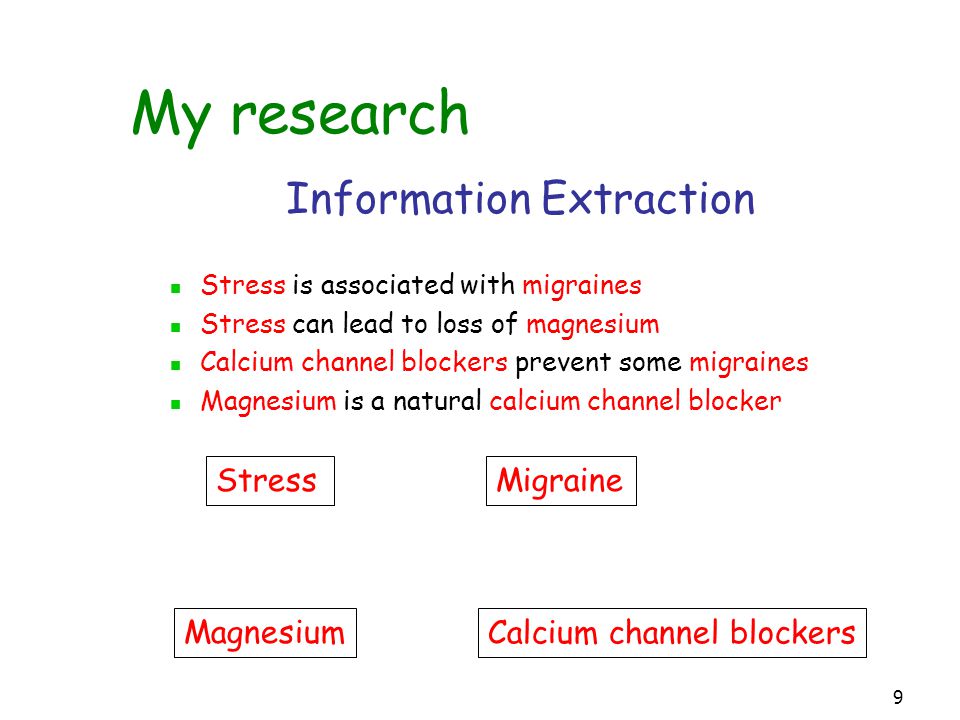

9. 9 My research StressMigraine Magnesium Calcium channel blockers Information Extraction Stress is associated with migraines Stress can lead to loss of magnesium Calcium channel blockers prevent some migraines Magnesium is a natural calcium channel blocker

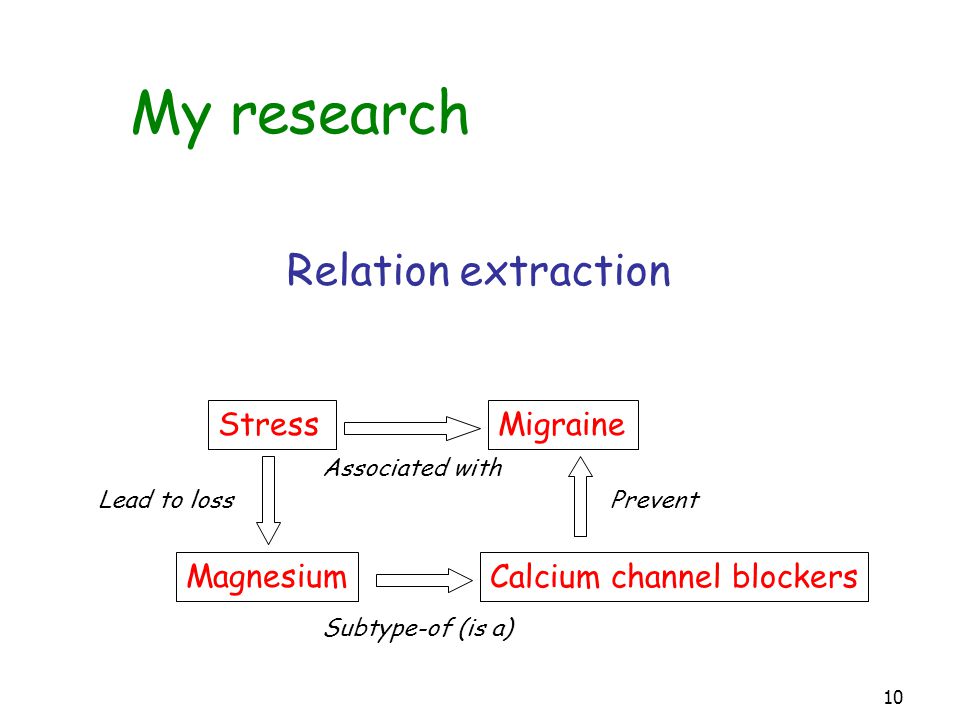

10. 10 My research Relation extraction StressMigraine Magnesium Calcium channel blockers Associated with Lead to lossPrevent Subtype-of (is a)

11. 11 Information and relation extraction Problems: Given biomedical text: Find all the treatments and all the diseases Find the relations that hold between them TreatmentDisease Cure? Prevent? Side Effect?

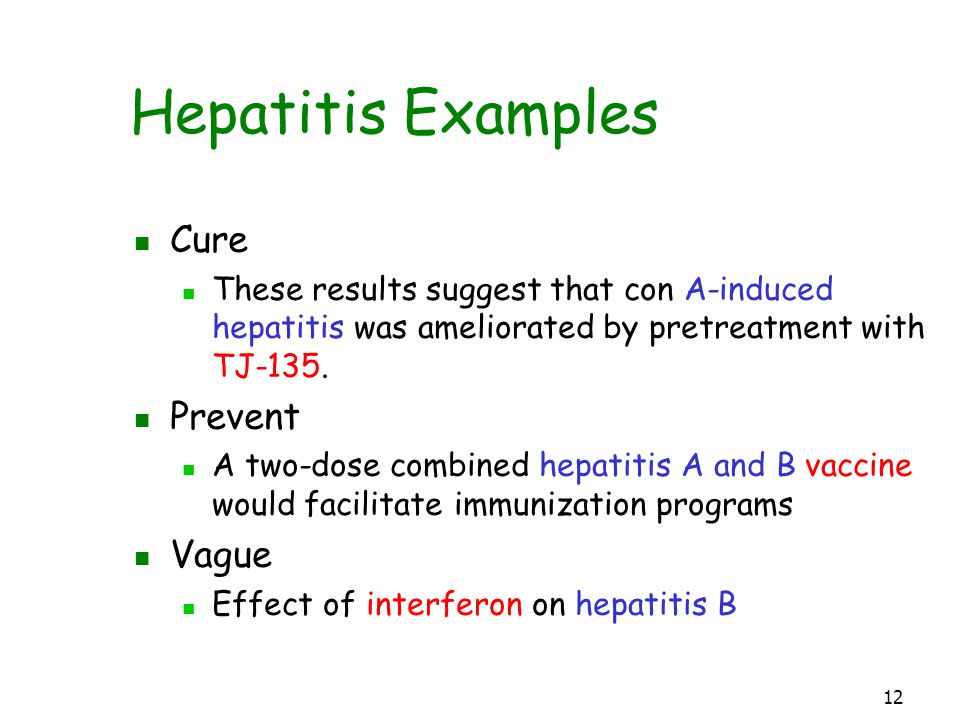

12. 12 Hepatitis Examples Cure These results suggest that con A-induced hepatitis was ameliorated by pretreatment with TJ-135. Prevent A two-dose combined hepatitis A and B vaccine would facilitate immunization programs Vague Effect of interferon on hepatitis B

13. 13 Two tasks Relationship extraction: Identify the several semantic relations that can occur between the entities disease and treatment in bioscience text Information extraction (IE): Related problem: identify such entities

14. 14 Outline of IE Data and semantic relations Quick intro to graphical models Models and results Features Conclusions

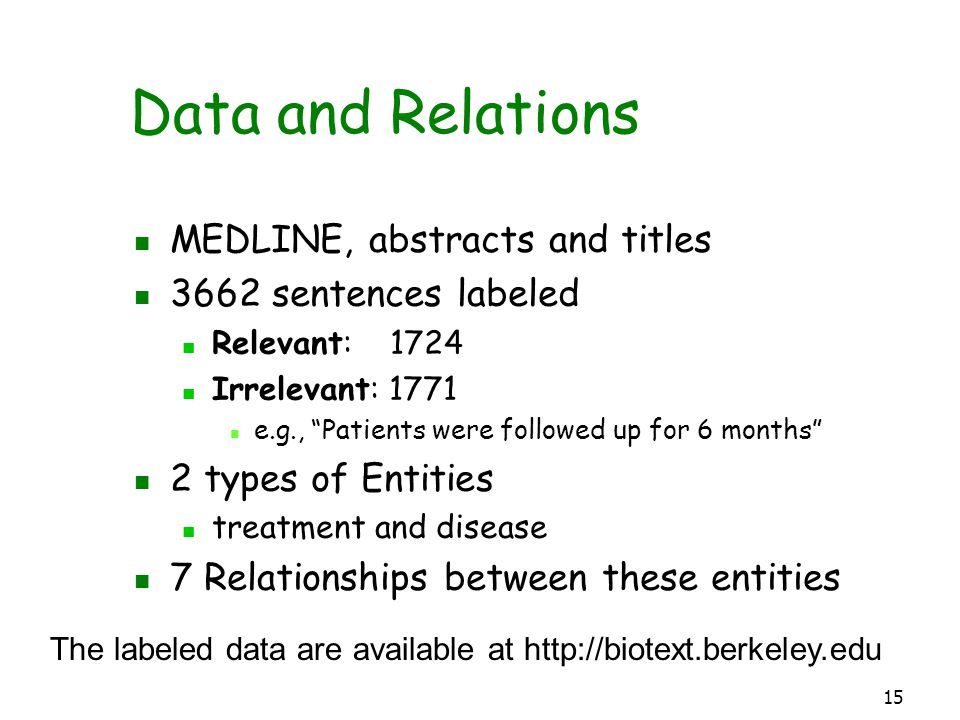

15. 15 Data and Relations MEDLINE, abstracts and titles 3662 sentences labeled Relevant: 1724 Irrelevant: 1771 e.g., “Patients were followed up for 6 months” 2 types of Entities treatment and disease 7 Relationships between these entities The labeled data are available at http://biotext.berkeley.edu

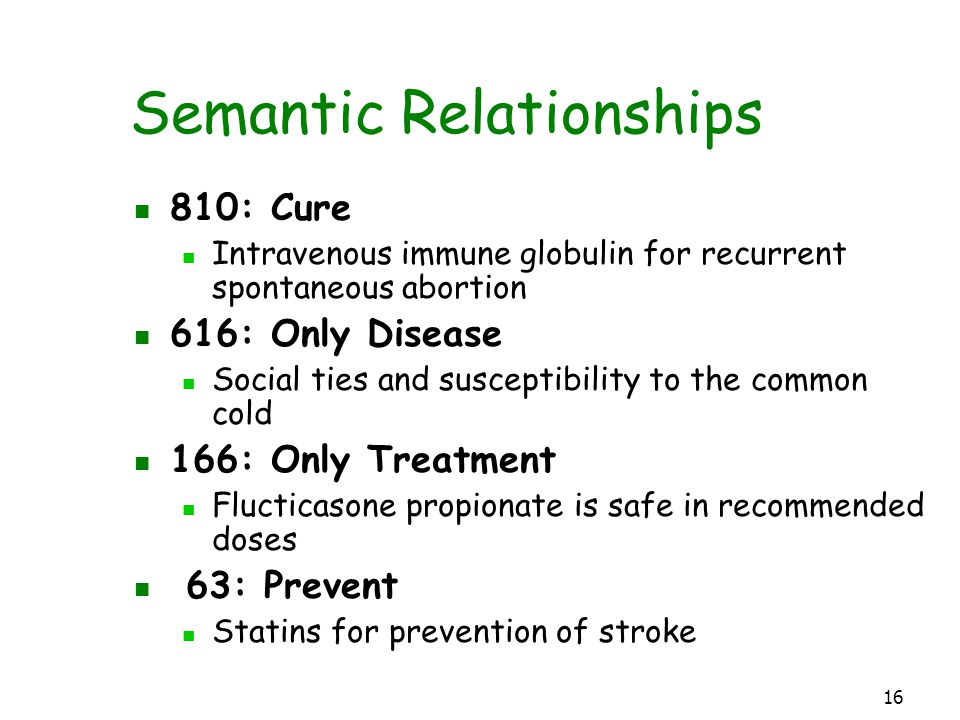

16. 16 Semantic Relationships 810: Cure Intravenous immune globulin for recurrent spontaneous abortion 616: Only Disease Social ties and susceptibility to the common cold 166: Only Treatment Flucticasone propionate is safe in recommended doses 63: Prevent Statins for prevention of stroke

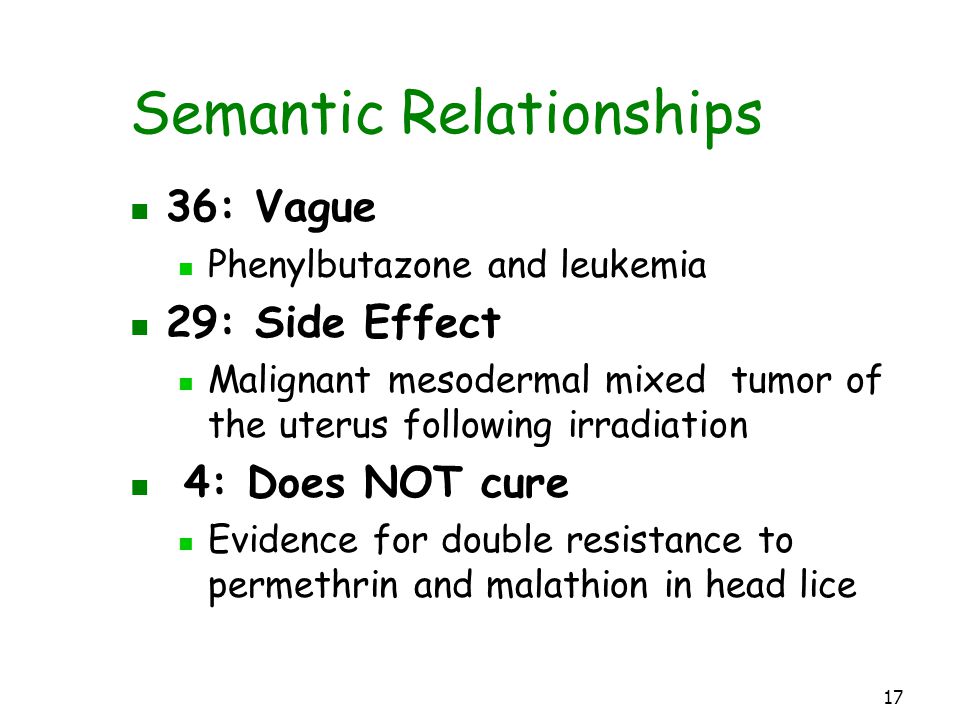

17. 17 Semantic Relationships 36: Vague Phenylbutazone and leukemia 29: Side Effect Malignant mesodermal mixed tumor of the uterus following irradiation 4: Does NOT cure Evidence for double resistance to permethrin and malathion in head lice

18. 18 Outline of IE Data and semantic relations Quick intro to graphical models Models and results Features Conclusions

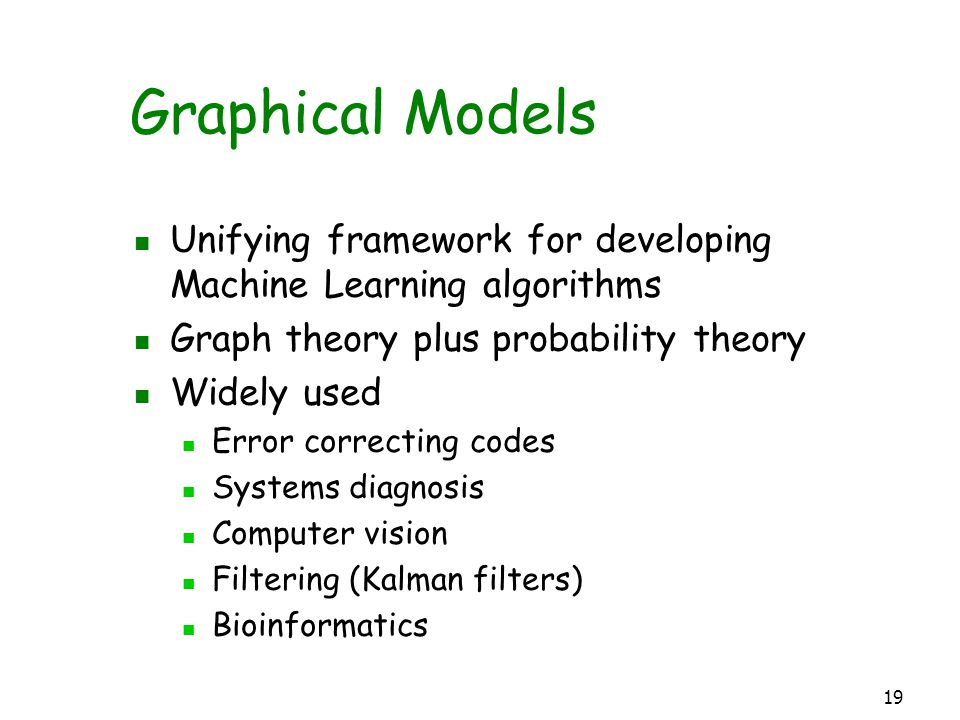

19. 19 Graphical Models Unifying framework for developing Machine Learning algorithms Graph theory plus probability theory Widely used Error correcting codes Systems diagnosis Computer vision Filtering (Kalman filters) Bioinformatics

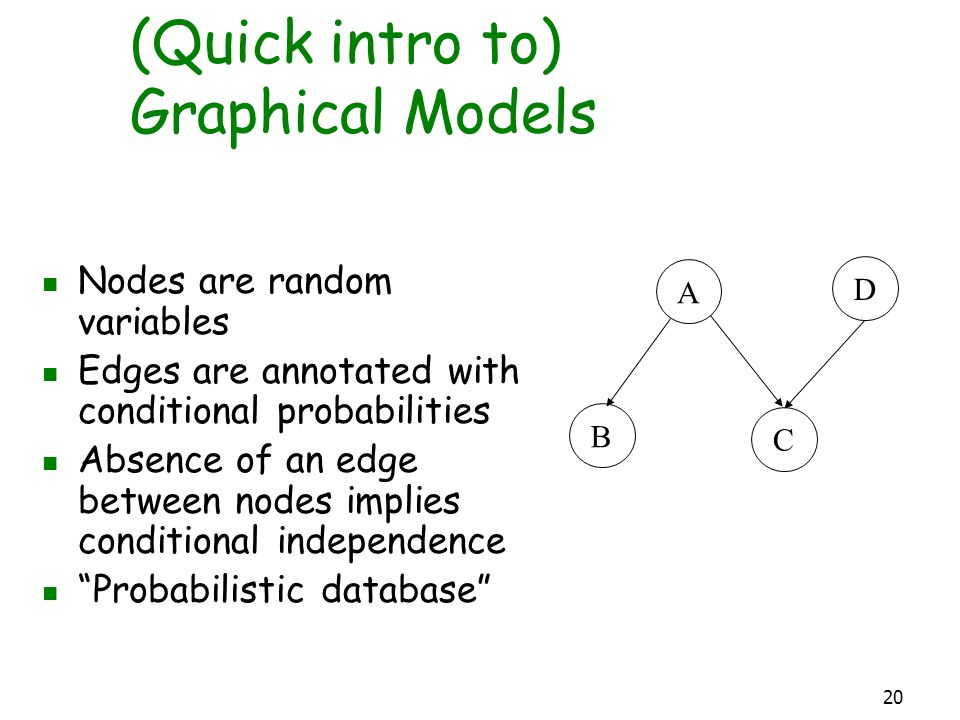

20. 20 (Quick intro to) Graphical Models Nodes are random variables Edges are annotated with conditional probabilities Absence of an edge between nodes implies conditional independence “Probabilistic database” BCD A

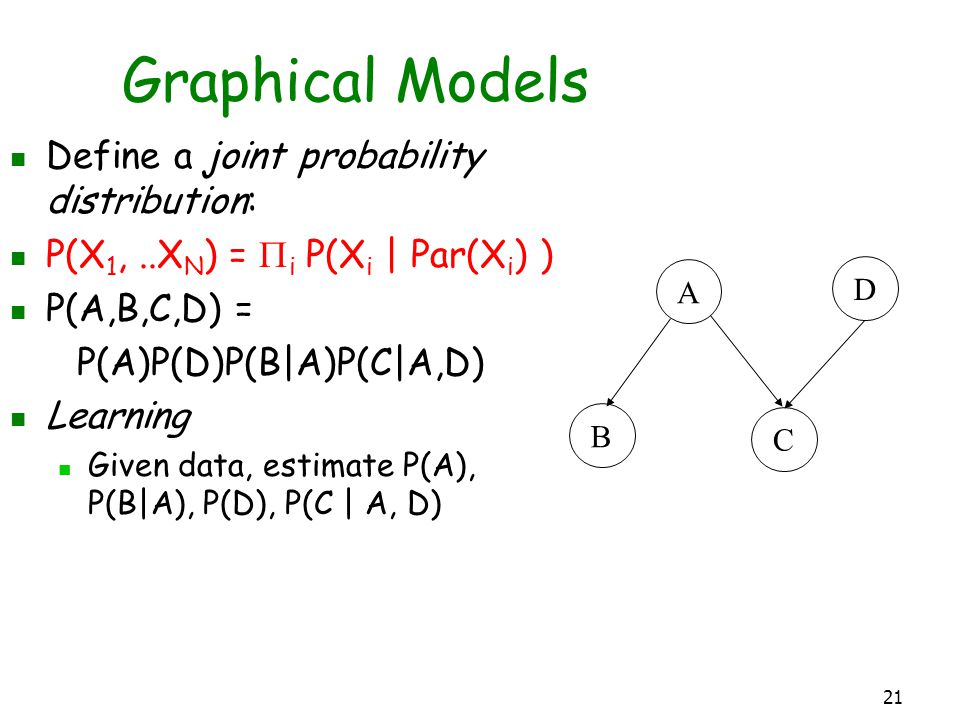

21. 21 Graphical Models A BCD Define a joint probability distribution: P(X 1,..X N ) =  i P(X i | Par(X i ) ) P(A,B,C,D) = P(A)P(D)P(B|A)P(C|A,D) Learning Given data, estimate P(A), P(B|A), P(D), P(C | A, D)

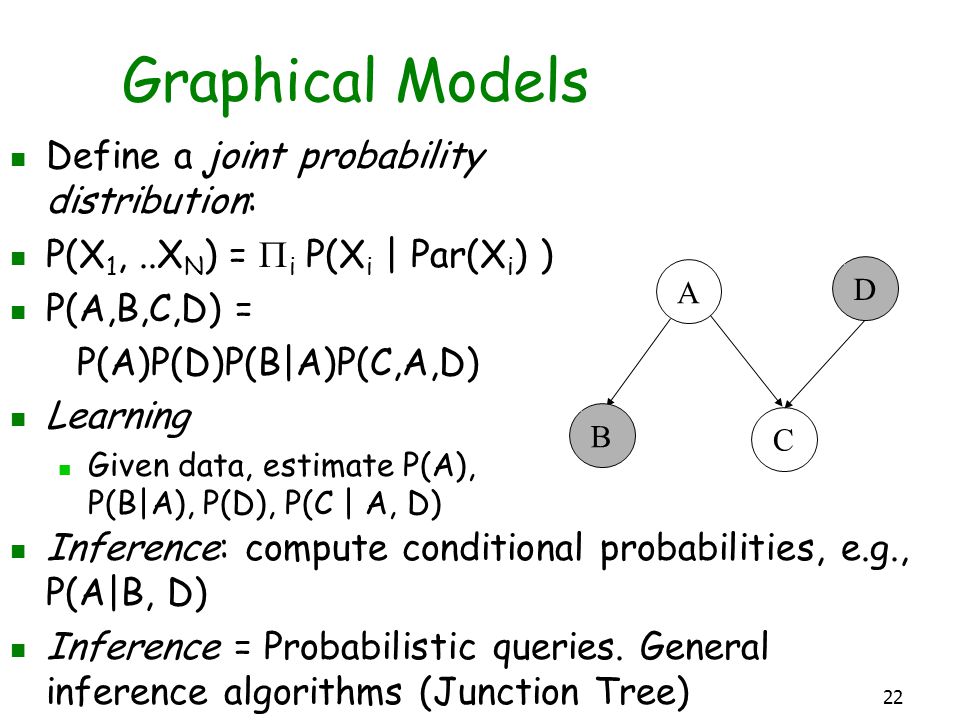

22. 22 Graphical Models A BCD Define a joint probability distribution: P(X 1,..X N ) =  i P(X i | Par(X i ) ) P(A,B,C,D) = P(A)P(D)P(B|A)P(C,A,D) Learning Given data, estimate P(A), P(B|A), P(D), P(C | A, D) Inference: compute conditional probabilities, e.g., P(A|B, D) Inference = Probabilistic queries. General inference algorithms (Junction Tree)

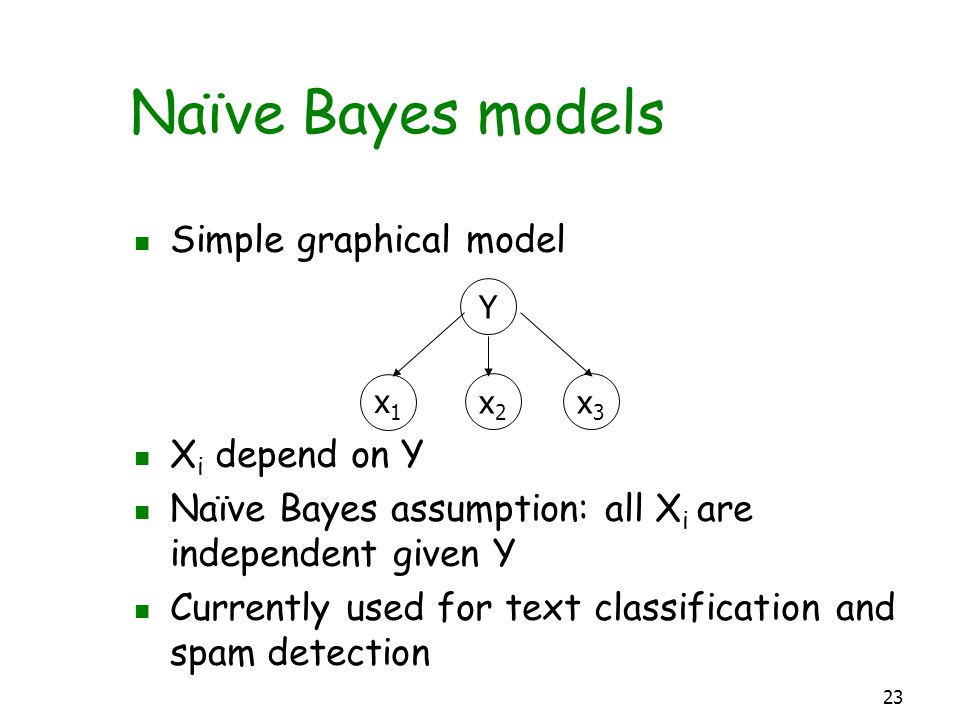

23. 23 Naïve Bayes models Simple graphical model X i depend on Y Naïve Bayes assumption: all X i are independent given Y Currently used for text classification and spam detection x1x1 x2x2 x3x3 Y

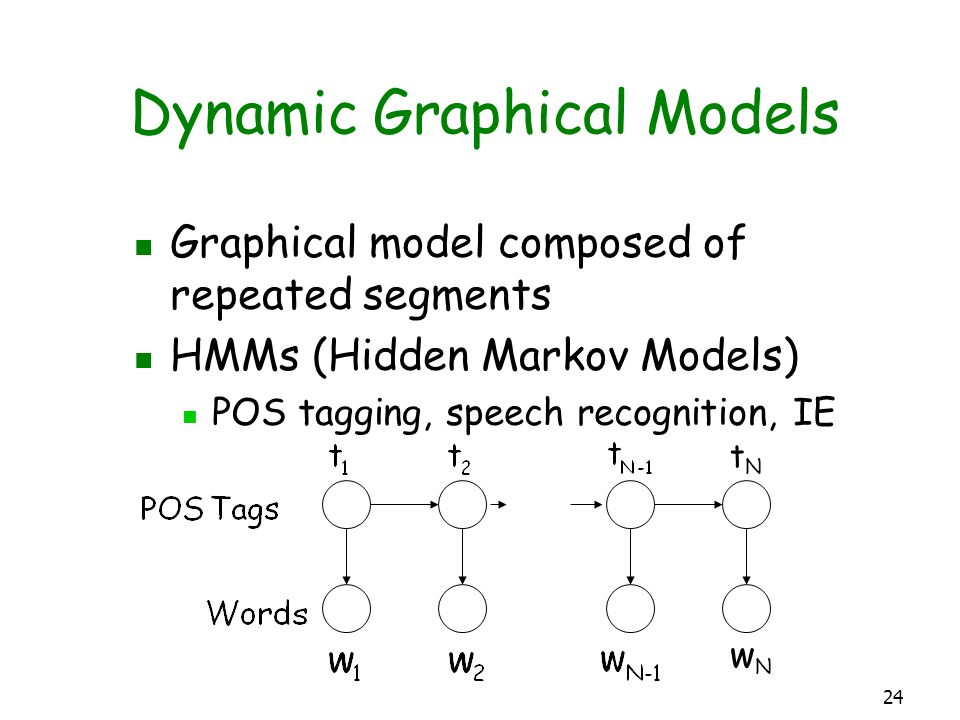

24. 24 Dynamic Graphical Models Graphical model composed of repeated segments HMMs (Hidden Markov Models) POS tagging, speech recognition, IE tNtN wNwN

25. 25 HMMs Joint probability distribution P(t 1,.., t N, w 1,.., w N) = P(t 1 )  P(t i |t i-1 )P(w i |t i ) Estimate P(t 1 ), P(t i |t i-1 ), P(w i |t i ) from labeled data tNtN wNwN

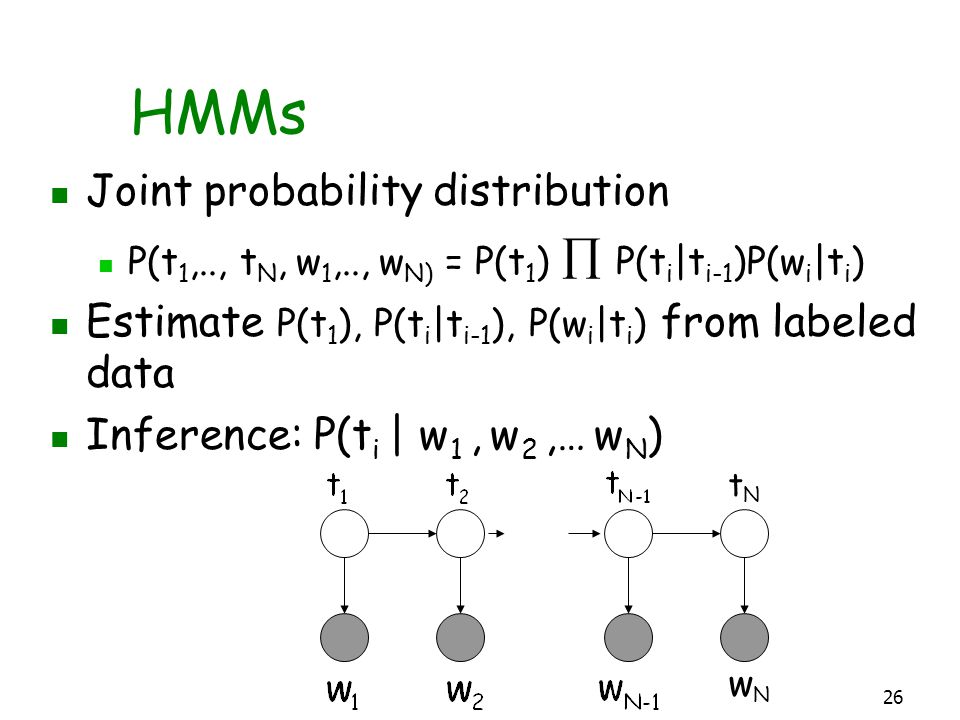

26. 26 HMMs Joint probability distribution P(t 1,.., t N, w 1,.., w N) = P(t 1 )  P(t i |t i-1 )P(w i |t i ) Estimate P(t 1 ), P(t i |t i-1 ), P(w i |t i ) from labeled data Inference: P(t i | w 1, w 2,… w N ) tNtN wNwN

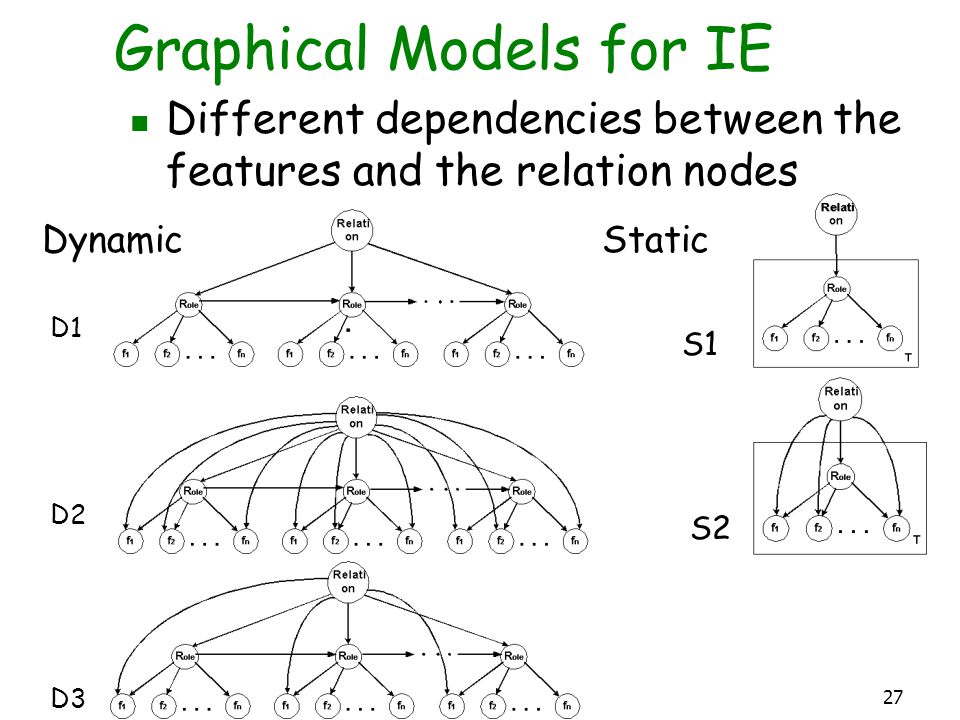

27. 27 Graphical Models for IE Different dependencies between the features and the relation nodes D3 D1 S1 D2 S2 DynamicStatic

28. 28 Graphical Model Relation node: Semantic relation (cure, prevent, none..) expressed in the sentence Relation generate the state sequence and the observations Relation

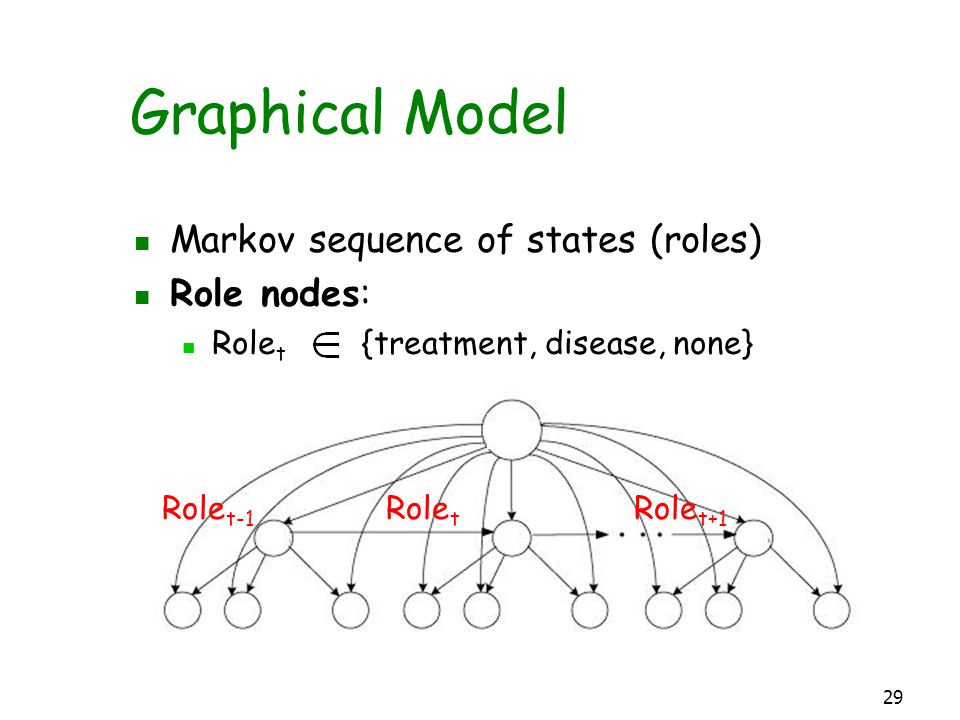

29. 29 Graphical Model Markov sequence of states (roles) Role nodes: Role t {treatment, disease, none} Role t-1 Role t Role t+1

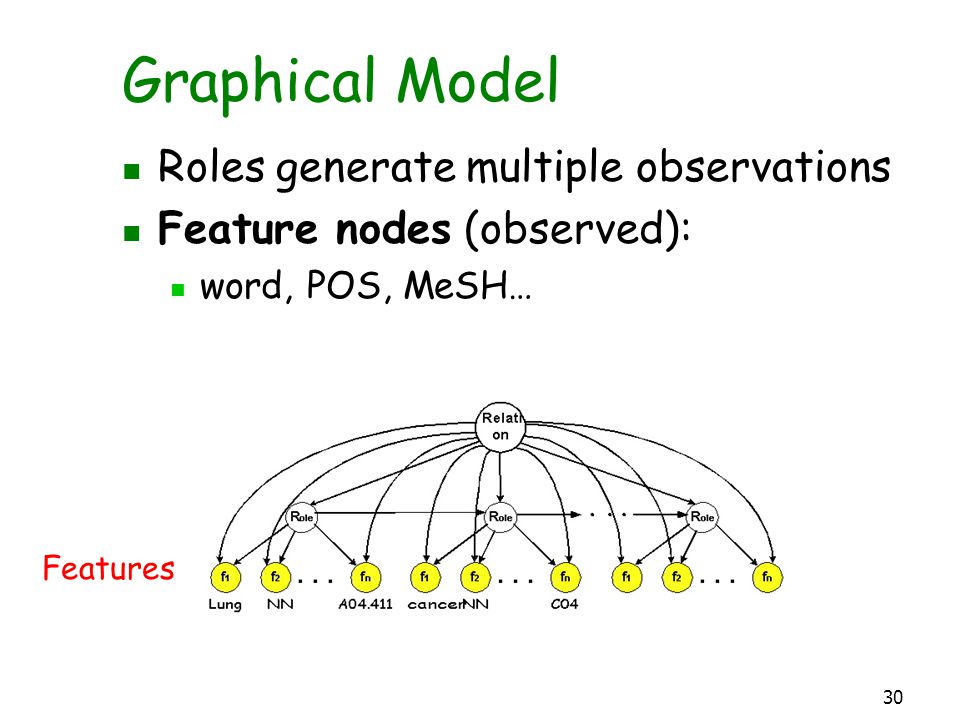

30. 30 Graphical Model Roles generate multiple observations Feature nodes (observed): word, POS, MeSH… Features

31. 31 Graphical Model Inference: Find Relation and Roles given the features observed ??? ?

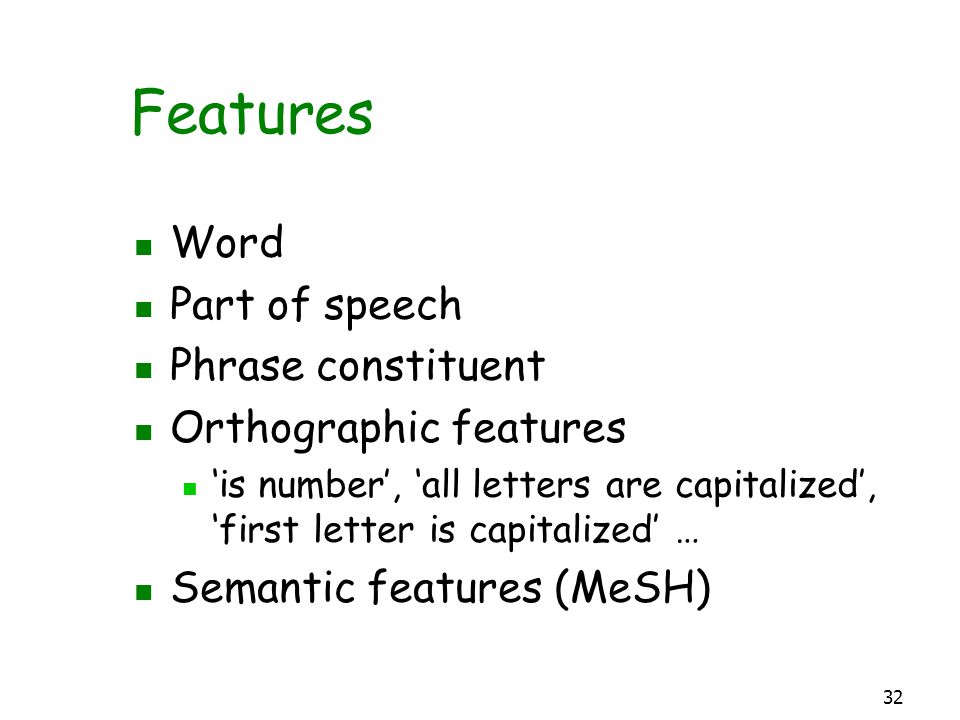

32. 32 Features Word Part of speech Phrase constituent Orthographic features ‘is number’, ‘all letters are capitalized’, ‘first letter is capitalized’ … Semantic features (MeSH)

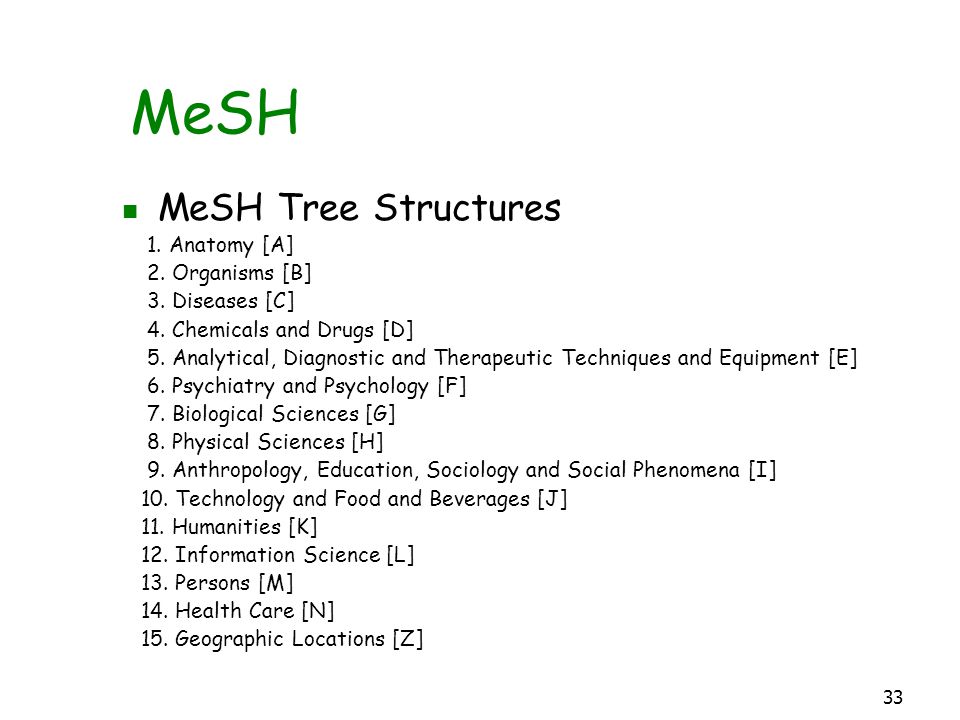

33. 33 MeSH MeSH Tree Structures 1. Anatomy [A] 2. Organisms [B] 3. Diseases [C] 4. Chemicals and Drugs [D] 5. Analytical, Diagnostic and Therapeutic Techniques and Equipment [E] 6. Psychiatry and Psychology [F] 7. Biological Sciences [G] 8. Physical Sciences [H] 9. Anthropology, Education, Sociology and Social Phenomena [I] 10. Technology and Food and Beverages [J] 11. Humanities [K] 12. Information Science [L] 13. Persons [M] 14. Health Care [N] 15. Geographic Locations [Z]

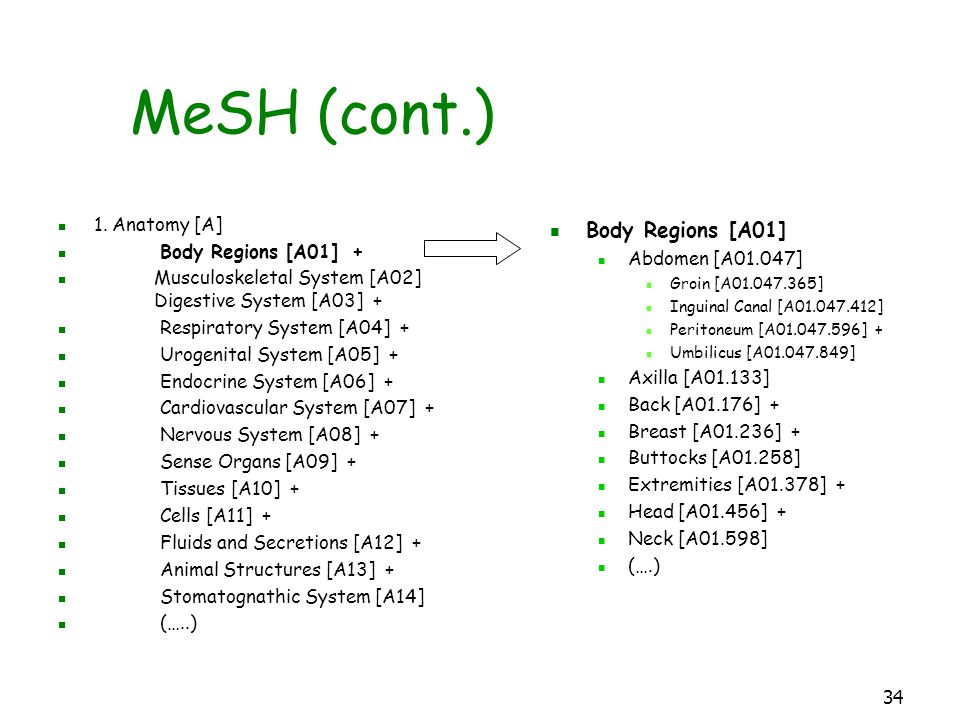

34. 34 MeSH (cont.) 1. Anatomy [A] Body Regions [A01] + Musculoskeletal System [A02] Digestive System [A03] + Respiratory System [A04] + Urogenital System [A05] + Endocrine System [A06] + Cardiovascular System [A07] + Nervous System [A08] + Sense Organs [A09] + Tissues [A10] + Cells [A11] + Fluids and Secretions [A12] + Animal Structures [A13] + Stomatognathic System [A14] (…..) Body Regions [A01] Abdomen [A01.047] Groin [A01.047.365] Inguinal Canal [A01.047.412] Peritoneum [A01.047.596] + Umbilicus [A01.047.849] Axilla [A01.133] Back [A01.176] + Breast [A01.236] + Buttocks [A01.258] Extremities [A01.378] + Head [A01.456] + Neck [A01.598] (….)

35. 35 Use of lexical Hierarchies in NLP Big problem in NLP: few words occur a lot, most of them occur very rarely (Zipf’s law) Difficult to do statistics One solution: use lexical hierarchies Another example: WordNet Statistics on classes of words instead of words

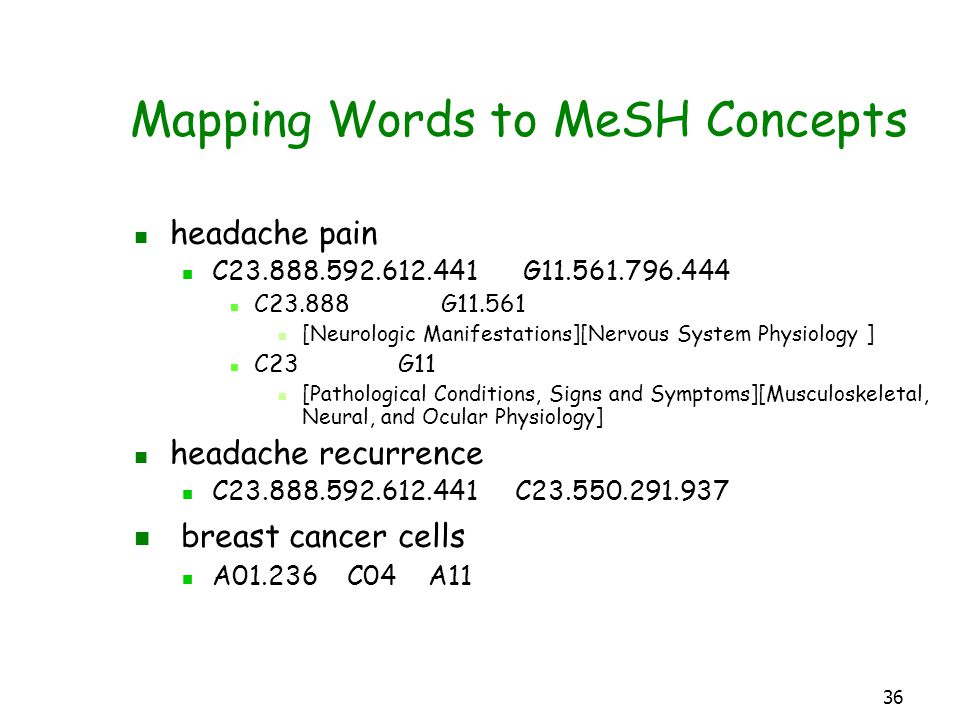

36. 36 Mapping Words to MeSH Concepts headache pain C23.888.592.612.441 G11.561.796.444 C23.888 G11.561 [Neurologic Manifestations][Nervous System Physiology ] C23 G11 [Pathological Conditions, Signs and Symptoms][Musculoskeletal, Neural, and Ocular Physiology] headache recurrence C23.888.592.612.441 C23.550.291.937 breast cancer cells A01.236 C04 A11

37. 37 Graphical Model Joint probability distribution over relation, roles and features nodes Parameters estimated with maximum likelihood and absolute discounting smoothing

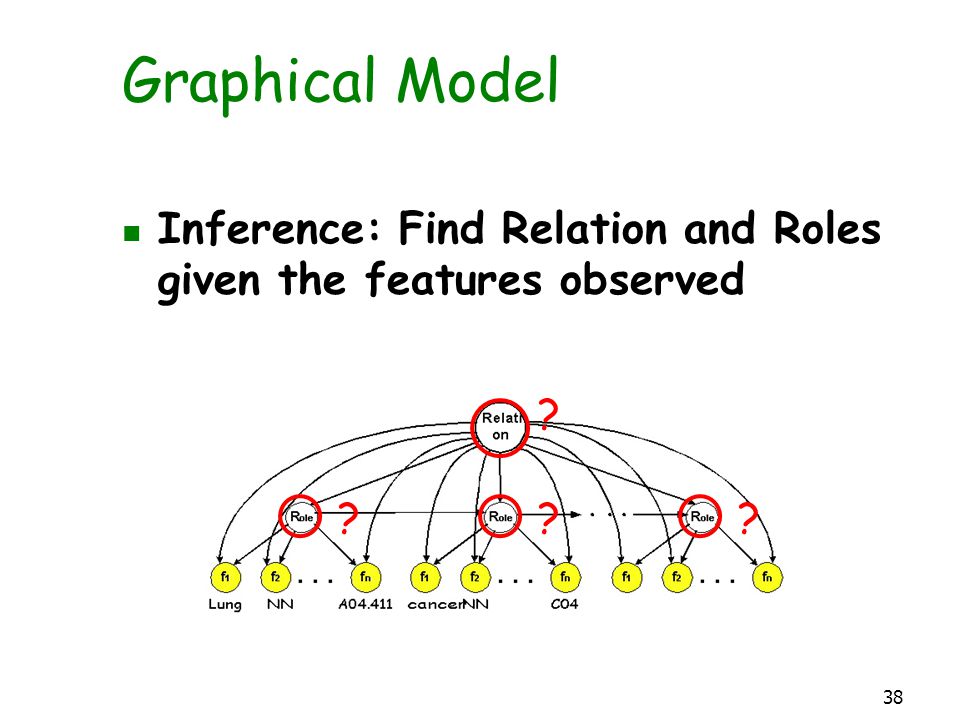

38. 38 Graphical Model Inference: Find Relation and Roles given the features observed ??? ?

39. 39 Relation extraction Results in terms of classification accuracy (with and without irrelevant sentences) 2 cases: Roles given Roles hidden (only features)

40. 40 Relation classification: Results Good results for a difficult task One of the few systems to tackle several DIFFERENT relations between the same types of entities; thus differs from the problem statement of other work on relations Accuracy SentencesInputBase.GM D2 Only rel.only feat.46.772.6 roles given76.6 Rel. + irrel.only feat.50.674.9 roles given82.0

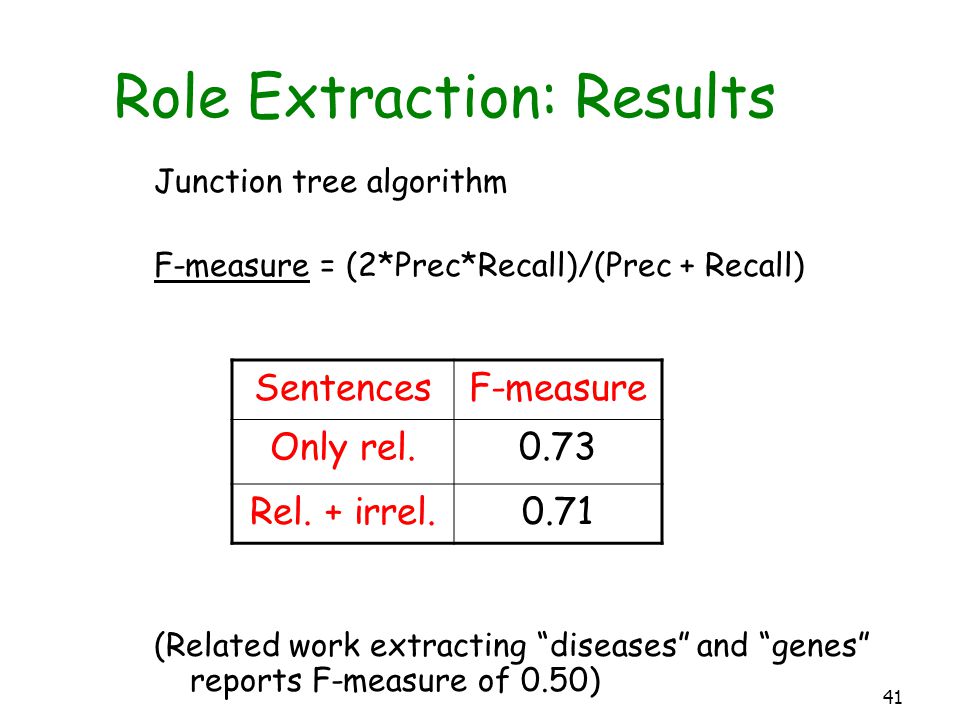

41. 41 Role Extraction: Results Junction tree algorithm F-measure = (2*Prec*Recall)/(Prec + Recall) (Related work extracting “diseases” and “genes” reports F-measure of 0.50) SentencesF-measure Only rel.0.73 Rel. + irrel.0.71

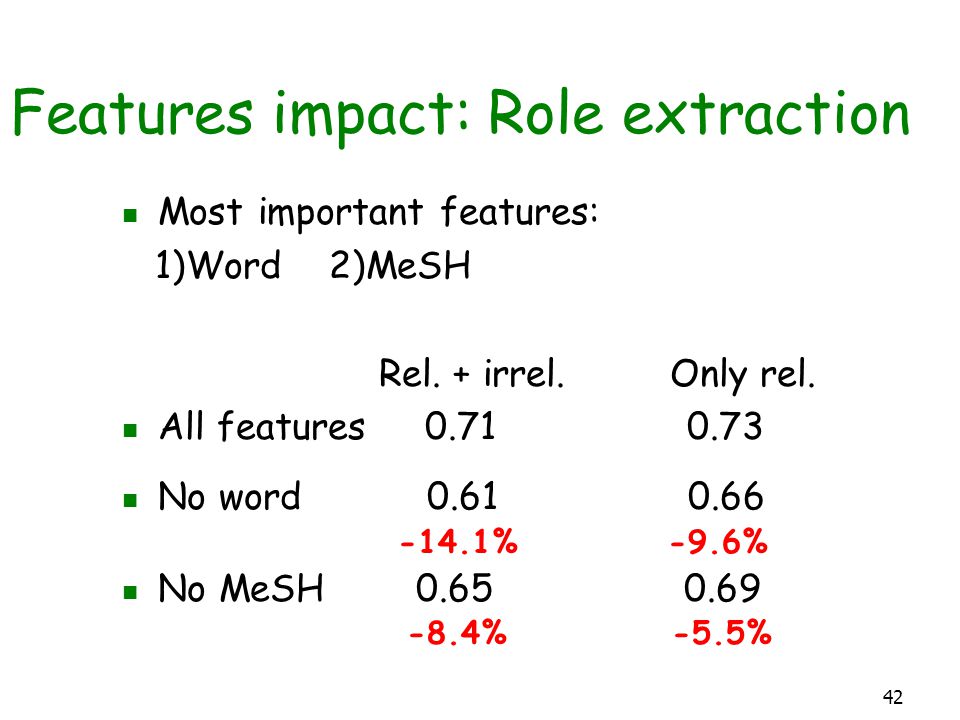

42. 42 Features impact: Role extraction Most important features: 1)Word 2)MeSH Rel. + irrel. Only rel. All features 0.71 0.73 No word 0.61 0.66 -14.1% -9.6% No MeSH 0.65 0.69 -8.4% -5.5%

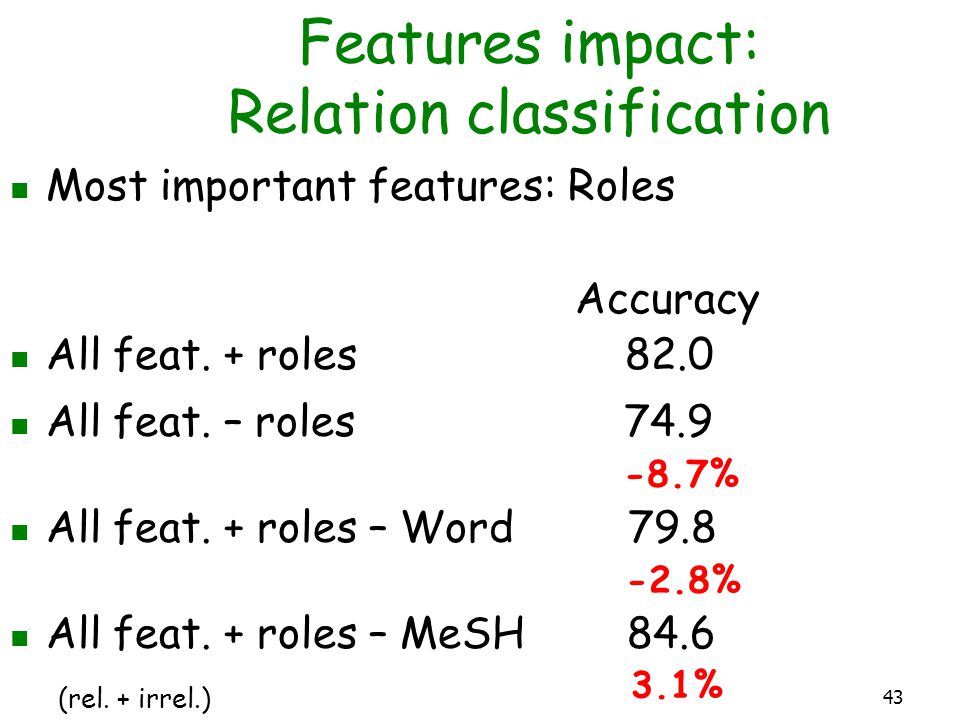

43. 43 Most important features: Roles Accuracy All feat. + roles 82.0 Features impact: Relation classification (rel. + irrel.) All feat. – roles 74.9 -8.7% All feat. + roles – Word 79.8 -2.8% All feat. + roles – MeSH 84.6 3.1%

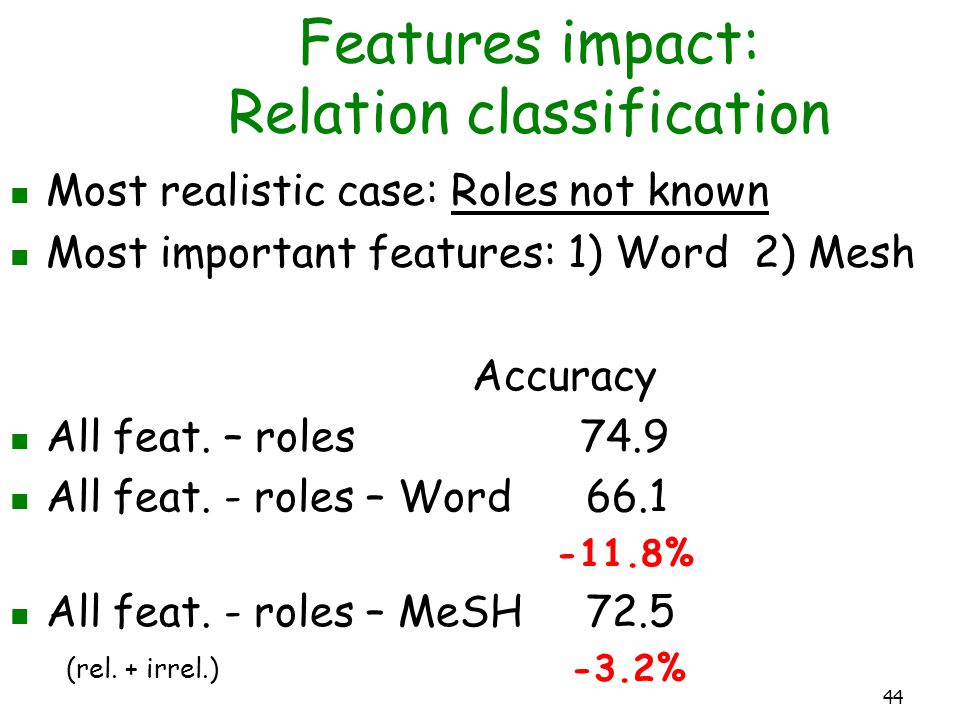

44. 44 Features impact: Relation classification Most realistic case: Roles not known Most important features: 1) Word 2) Mesh Accuracy All feat. – roles 74.9 (rel. + irrel.) All feat. - roles – Word 66.1 -11.8% All feat. - roles – MeSH 72.5 -3.2%

45. 45 Conclusions Classification of subtle semantic relations in bioscience text Graphical models for the simultaneous extraction of entities and relationships Importance of MeSH, lexical hierarchy

46. 46 Outline of Talk Goal: Extract semantics from text Information and relation extraction Protein-protein interactions; using an existing database to gather labeled data

47. 47 Protein-Protein interactions One of the most important challenges in modern genomics, with many applications throughout biology There are several protein-protein interaction databases (BIND, MINT,..), all manually curated

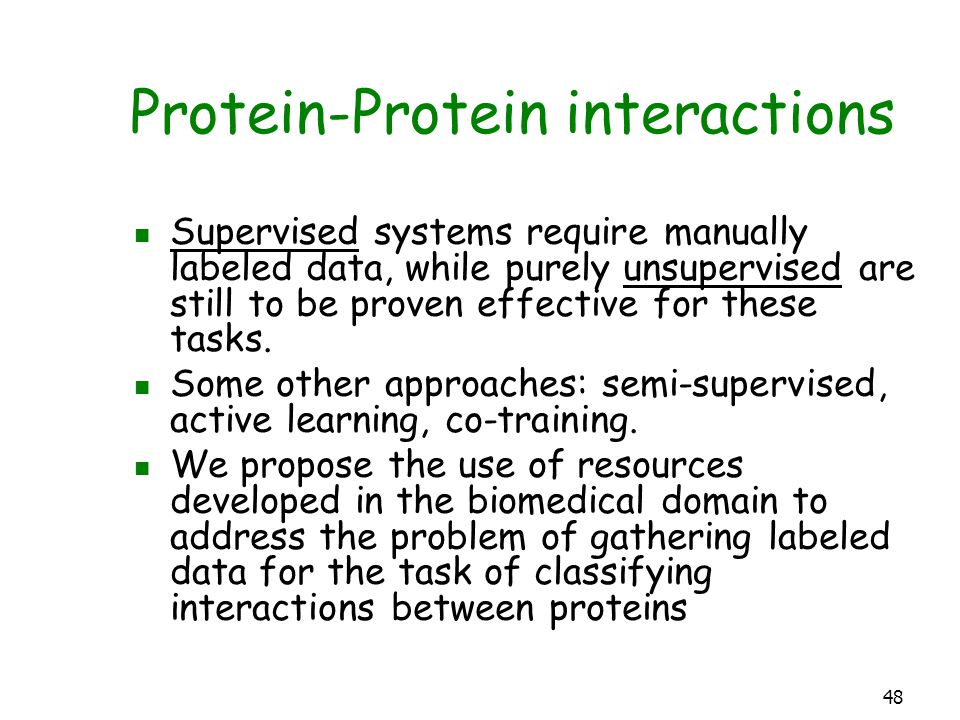

48. 48 Protein-Protein interactions Supervised systems require manually labeled data, while purely unsupervised are still to be proven effective for these tasks. Some other approaches: semi-supervised, active learning, co-training. We propose the use of resources developed in the biomedical domain to address the problem of gathering labeled data for the task of classifying interactions between proteins

49. 49 HIV-1, Protein Interaction Database Documents interactions between HIV-1 proteins and host cell proteins other HIV-1 proteins disease associated with HIV/AIDS 2224 pairs of interacting proteins, 65 types http://www.ncbi.nlm.nih.gov/RefSeq/HIVInteractions

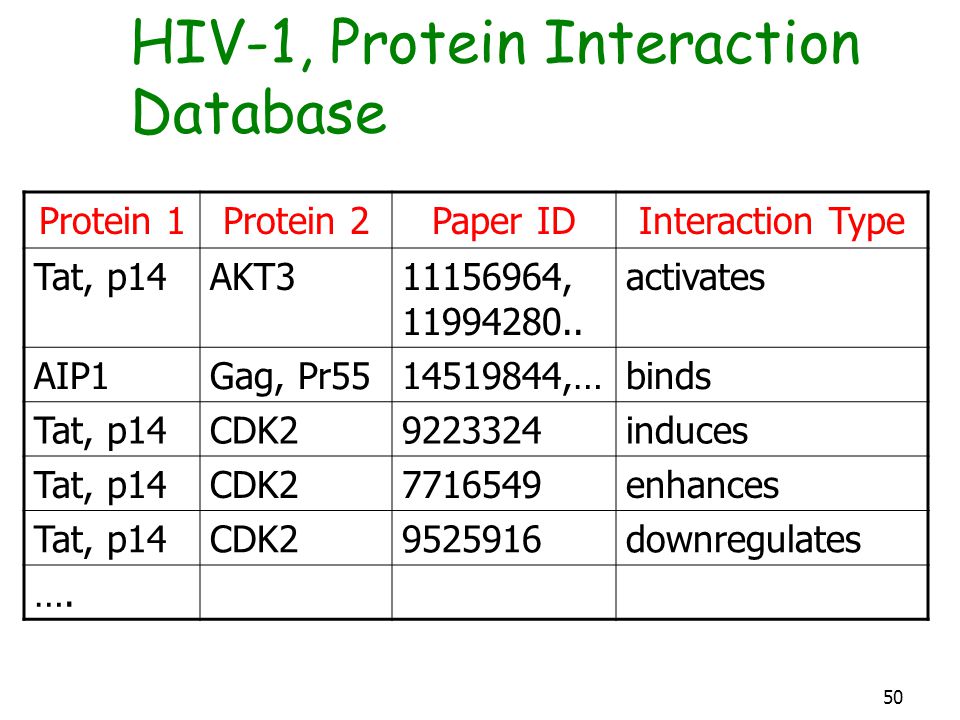

50. 50 HIV-1, Protein Interaction Database Protein 1Protein 2Paper IDInteraction Type Tat, p14AKT311156964, 11994280.. activates AIP1Gag, Pr5514519844,…binds Tat, p14CDK29223324induces Tat, p14CDK27716549enhances Tat, p14CDK29525916downregulates ….

51. 51 Most common interactions

52. 52 Protein-Protein interactions Idea: use this to “label data” Protein 1Protein 2InteractionPaper ID Tat, p14AKT3activates11156964 Extract from the paper all the sentences with Protein 1 and Protein 2 …

53. 53 Protein-Protein interactions Idea: use this to “label data” Protein 1Protein 2InteractionPaper ID Tat, p14AKT3activates11156964 Extract from the paper all the sentences with Protein 1 and Protein 2 … Label them with the interaction given in the database activates

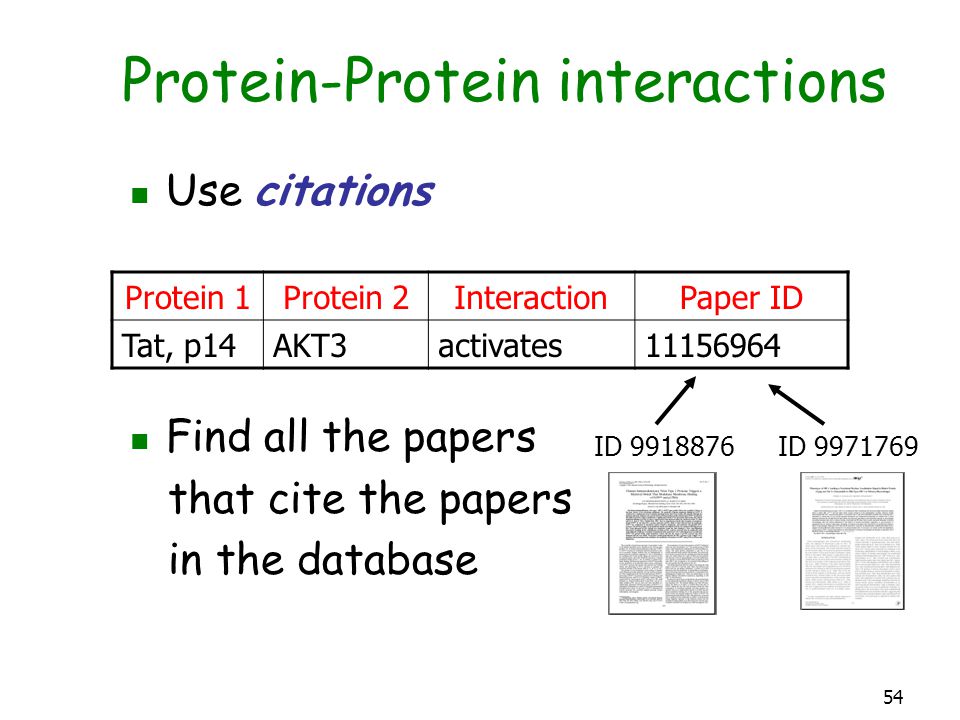

54. 54 Protein-Protein interactions Use citations Find all the papers that cite the papers in the database Protein 1Protein 2InteractionPaper ID Tat, p14AKT3activates11156964 ID 9918876ID 9971769

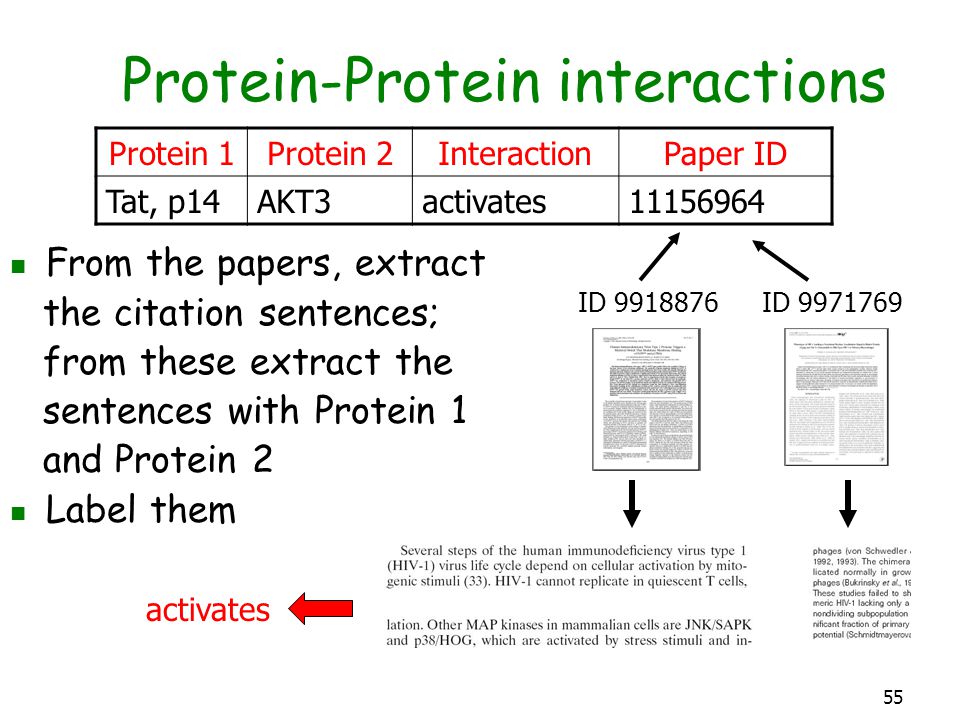

55. 55 Protein-Protein interactions From the papers, extract the citation sentences; from these extract the sentences with Protein 1 and Protein 2 Label them Protein 1Protein 2InteractionPaper ID Tat, p14AKT3activates11156964 ID 9918876ID 9971769 activates

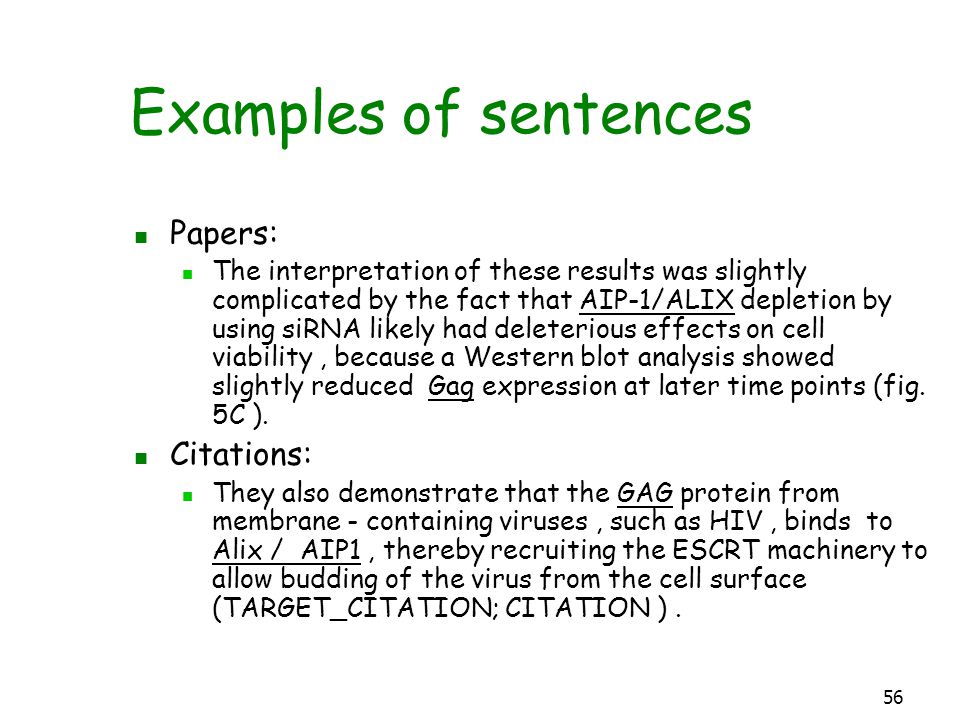

56. 56 Examples of sentences Papers: The interpretation of these results was slightly complicated by the fact that AIP-1/ALIX depletion by using siRNA likely had deleterious effects on cell viability, because a Western blot analysis showed slightly reduced Gag expression at later time points (fig. 5C ). Citations: They also demonstrate that the GAG protein from membrane - containing viruses, such as HIV, binds to Alix / AIP1, thereby recruiting the ESCRT machinery to allow budding of the virus from the cell surface (TARGET_CITATION; CITATION ).

57. 57 10 Interaction types

58. 58 Protein-Protein interactions Tasks: Given sentences from Paper ID, and/or citation sentences to ID Predict the interaction type given in the HIV database for Paper ID Extract the proteins involved 10-way classification problem

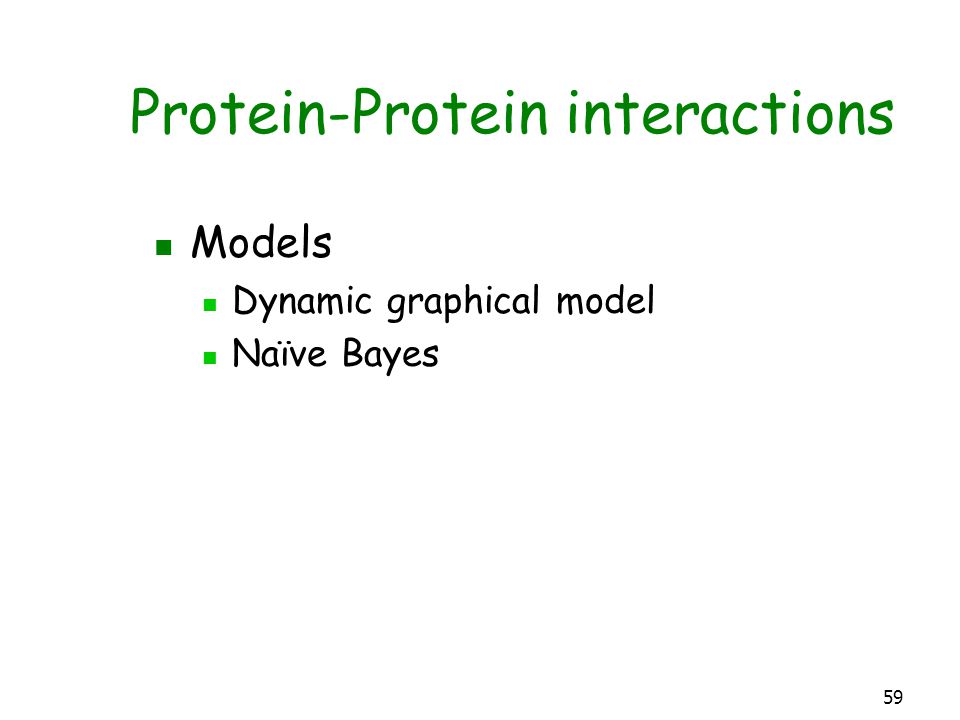

59. 59 Protein-Protein interactions Models Dynamic graphical model Naïve Bayes

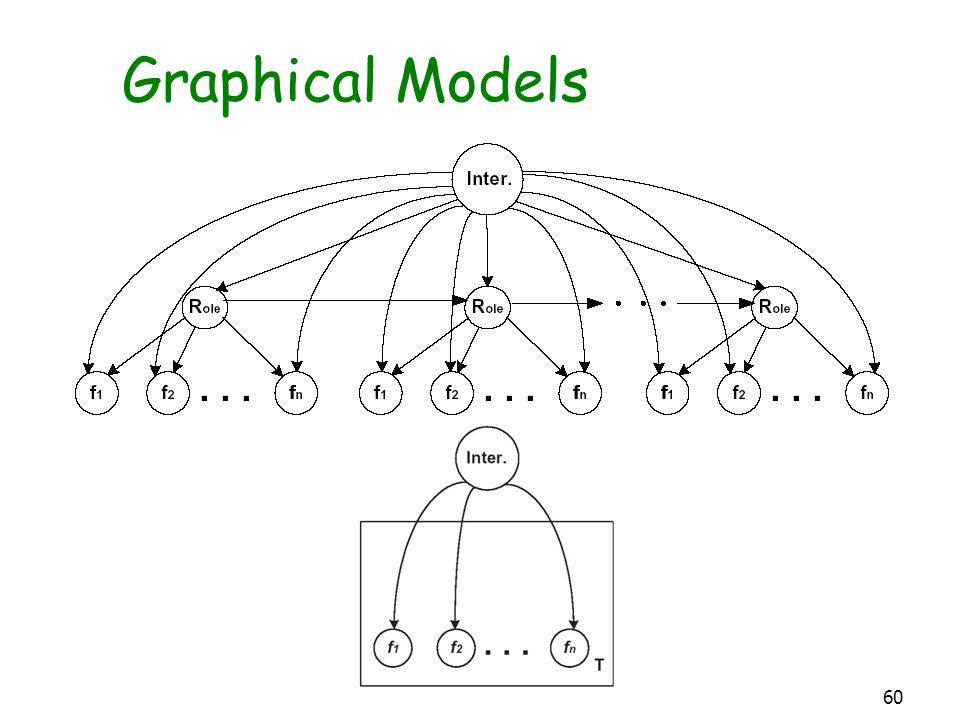

60. 60 Graphical Models

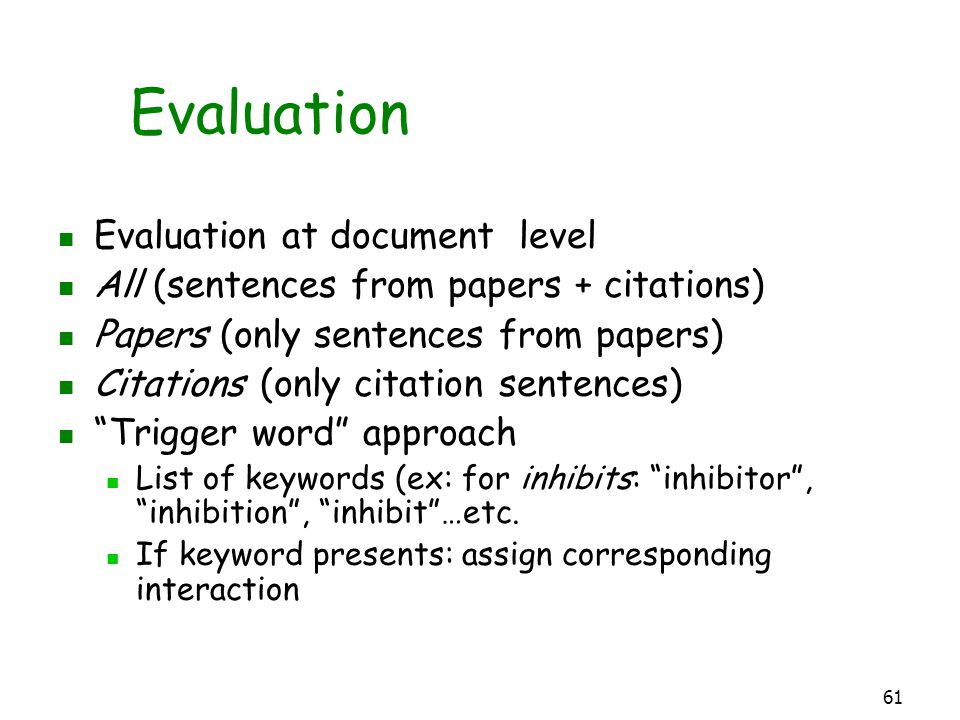

61. 61 Evaluation Evaluation at document level All (sentences from papers + citations) Papers (only sentences from papers) Citations (only citation sentences) “Trigger word” approach List of keywords (ex: for inhibits: “inhibitor”, “inhibition”, “inhibit”…etc. If keyword presents: assign corresponding interaction

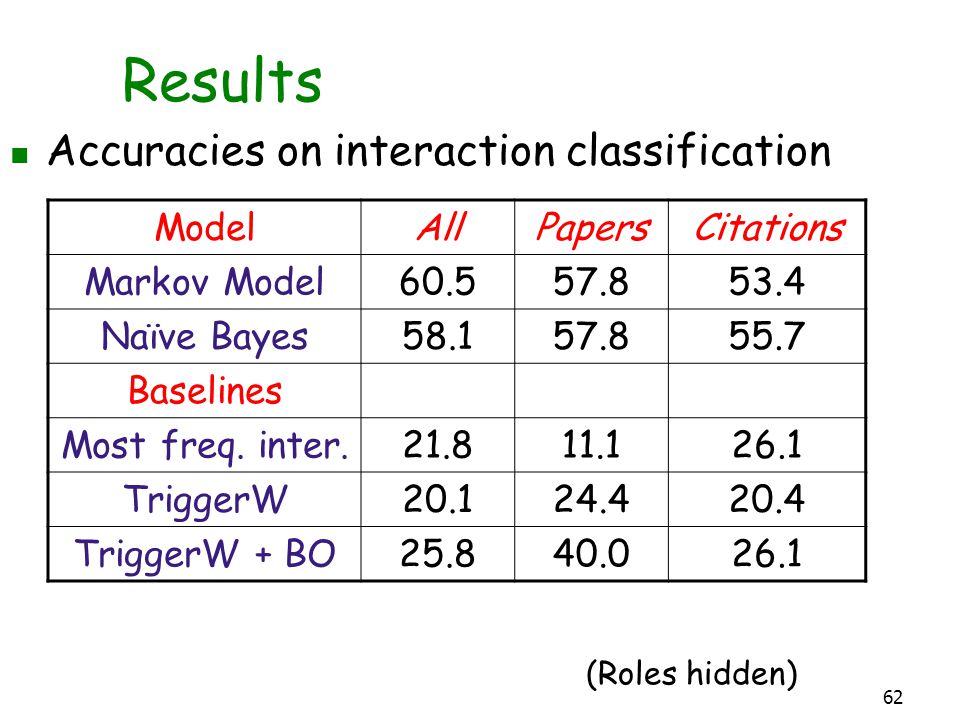

62. 62 Results Accuracies on interaction classification ModelAllPapersCitations Markov Model60.557.853.4 Naïve Bayes58.157.855.7 Baselines Most freq. inter.21.811.126.1 TriggerW20.124.420.4 TriggerW + BO25.840.026.1 (Roles hidden)

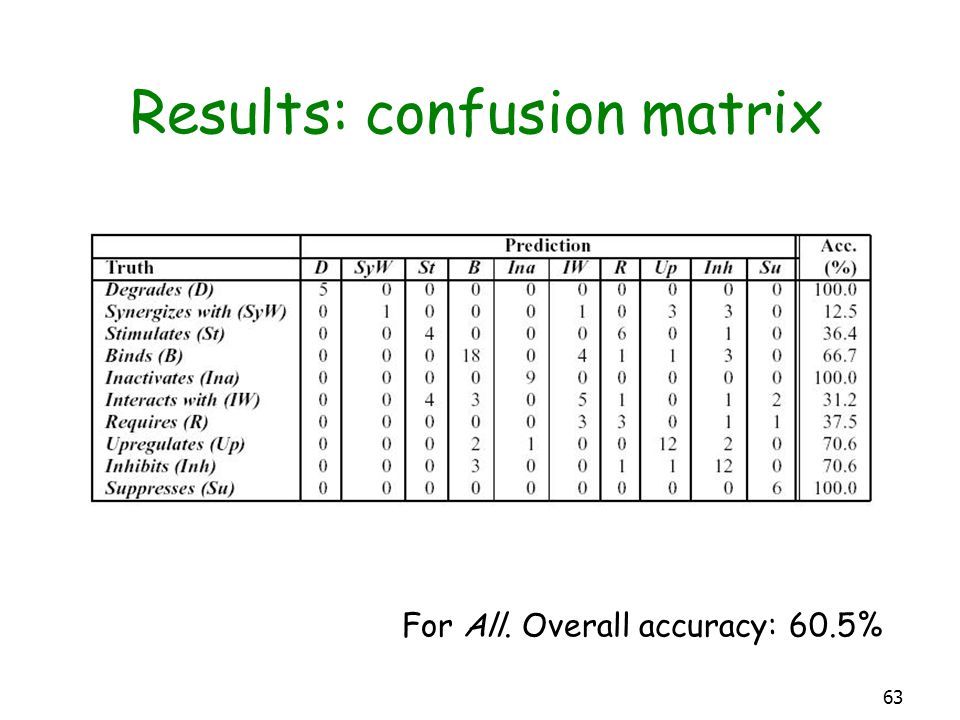

63. 63 Results: confusion matrix For All. Overall accuracy: 60.5%

64. 64 Hiding the protein names Replaced protein names with tokens PROT_NAME Selective CXCR4 antagonism by Tat Selective PROT_NAME antagonism by PROT_NAME

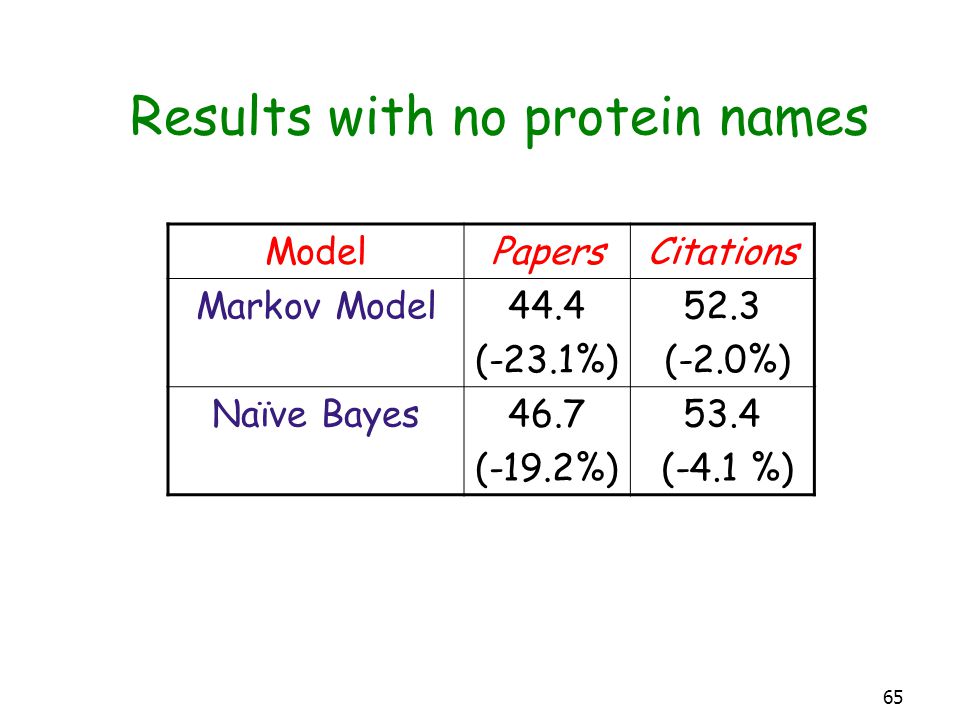

65. 65 Results with no protein names ModelPapersCitations Markov Model44.4 (-23.1%) 52.3 (-2.0%) Naïve Bayes46.7 (-19.2%) 53.4 (-4.1 %)

66. 66 Protein extraction (Protein name tagging, role extraction) The identification of all the proteins present in the sentence that are involved in the interaction These results suggest that Tat - induced phosphorylation of serine 5 by CDK9 might be important after transcription has reached the +36 position, at which time CDK7 has been released from the complex. Tat might regulate the phosphorylation of the RNA polymerase II carboxyl - terminal domain in pre - initiation complexes by activating CDK7

67. 67 Protein extraction: results RecallPrecisionF-measure All0.740.850.79 Papers0.560.830.67 Citations0.750.840.79 No dictionary used

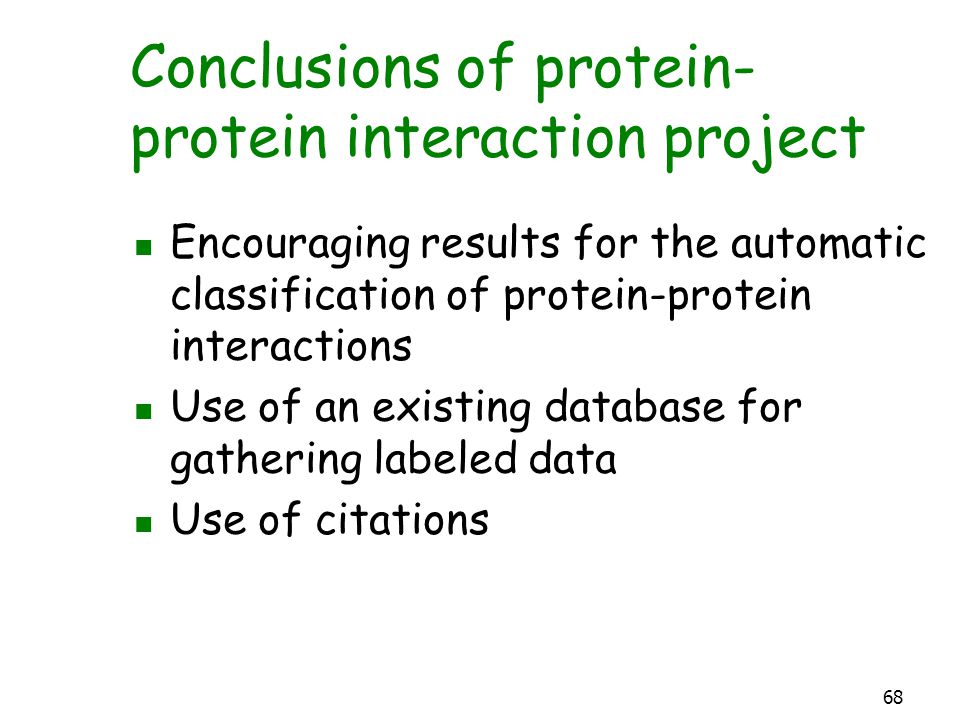

68. 68 Conclusions of protein- protein interaction project Encouraging results for the automatic classification of protein-protein interactions Use of an existing database for gathering labeled data Use of citations

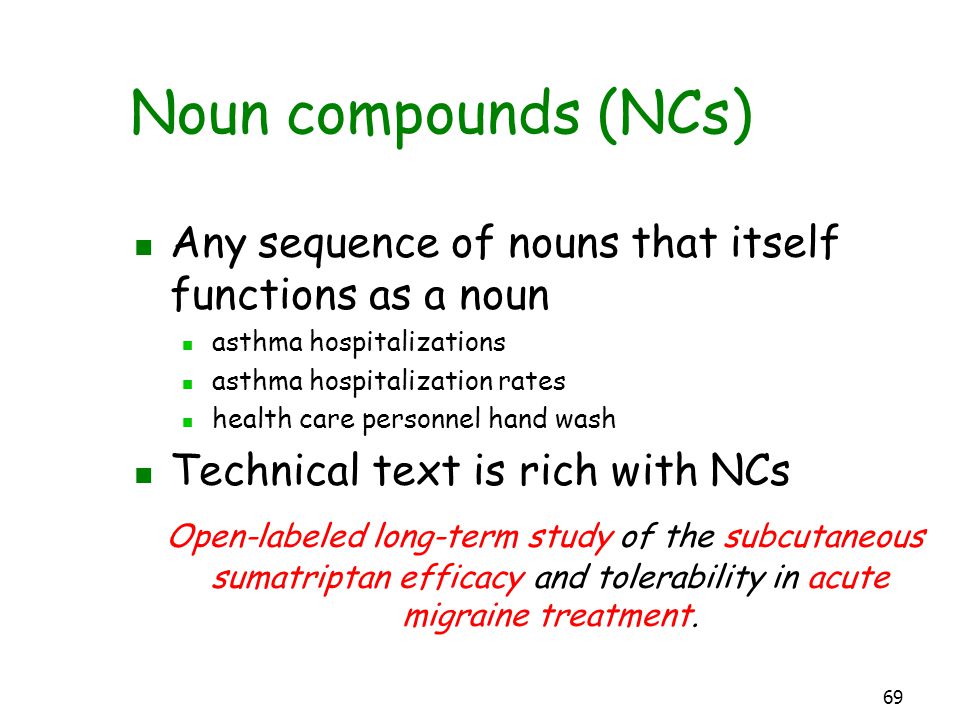

69. 69 Noun compounds (NCs) Any sequence of nouns that itself functions as a noun asthma hospitalizations asthma hospitalization rates health care personnel hand wash Technical text is rich with NCs Open-labeled long-term study of the subcutaneous sumatriptan efficacy and tolerability in acute migraine treatment.

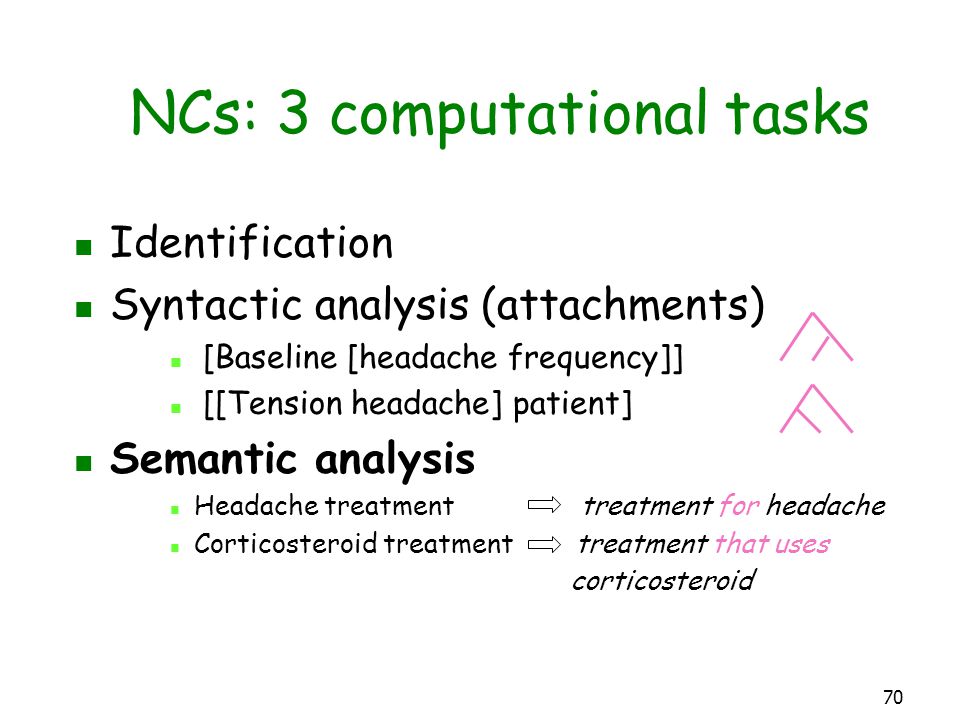

70. 70 NCs: 3 computational tasks Identification Syntactic analysis (attachments) [Baseline [headache frequency]] [[Tension headache] patient] Semantic analysis Headache treatment treatment for headache Corticosteroid treatment treatment that uses corticosteroid

71. 71 Two approaches Treat it as a classification problem (and use a machine learning algorithm) Linguistically motivated: consider the “semantics” of the nouns which will determine the relations between them

72. 72 Second approach Linguistic Motivation Head noun has argument structure Meaning of the head noun determines what kinds of things can be done to it, what it is made of, what it is a part of…

73. 73 Linguistic Motivation Material + Cutlery  Made of steel knife, plastic fork, wooden spoon Food + Cutlery  Used on meat knife, dessert spoon, salad fork Profession + Cutlery  Used by chef's knife, butcher's knife

74. 74 Linguistic Motivation Hypothesis: A particular semantic relation holds between all 2-word NCs that can be categorized by a MeSH pair. Use the classes of MeSH to identify semantic relations

75. 75 Grouping the NCs A02 C04 (Musculoskeletal System, Neoplasms) skull tumors, bone cysts, bone metastases, skull osteosarcoma… B06 B06 (Plants, Plants) eucalyptus trees, apple fruits, rice grains, potato plants A01 M01 (Body region, Person) shoulder patient, eye physician, eye donor Too different: need to be more specific: go down the hierarchy A01 M01.643 ( Body Regions, Patients) shoulder patient C04 M01.526 (Body Regions, Occupational Groups) eye physician, chest physicians

76. 76 Classification Decisions + Relations A02 C04  Location of Disease B06 B06  Kind of Plants C04 M01 C04 M01.643  Person afflicted by Disease C04 M01.526  Person who treats Disease A01 H01 A01 H01.770 A01 H01.671 A01 H01.671.538 A01 H01.671.868 A01 M01 A01 M01.643  Person afflicted by Disease A01 M01.526  Specialist of A01 M01.898  Donor of

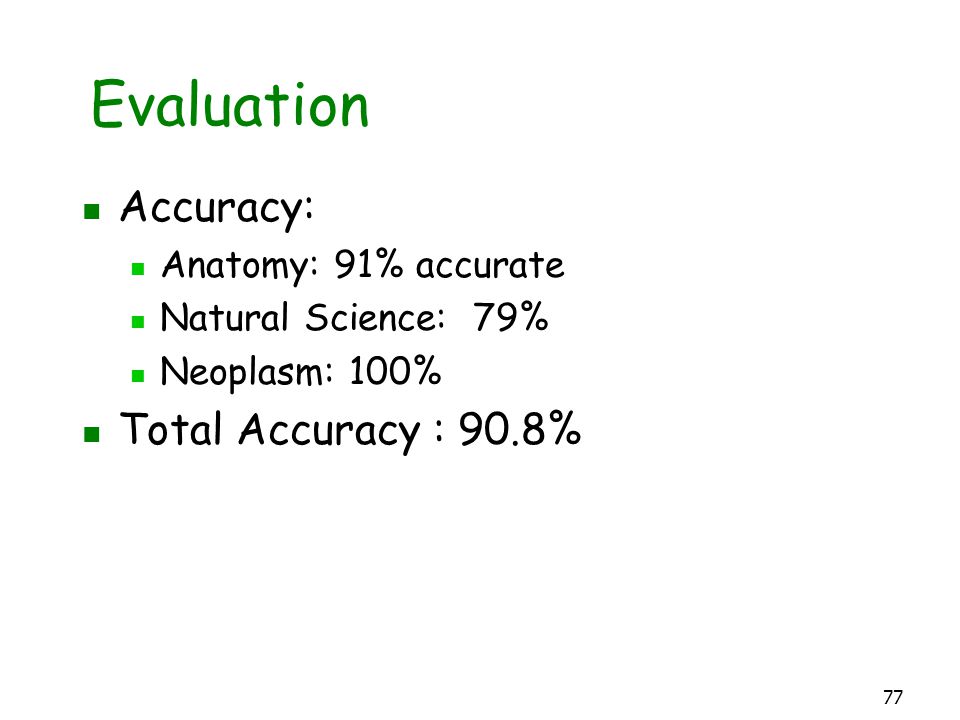

77. 77 Evaluation Accuracy: Anatomy: 91% accurate Natural Science: 79% Neoplasm: 100% Total Accuracy : 90.8%

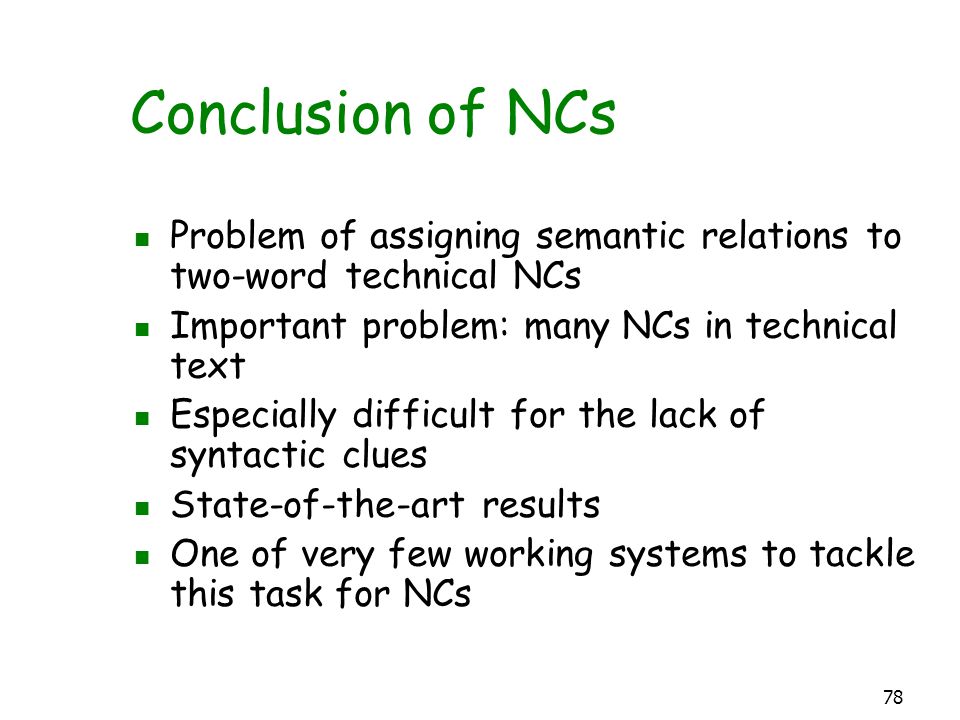

78. 78 Conclusion of NCs Problem of assigning semantic relations to two-word technical NCs Important problem: many NCs in technical text Especially difficult for the lack of syntactic clues State-of-the-art results One of very few working systems to tackle this task for NCs

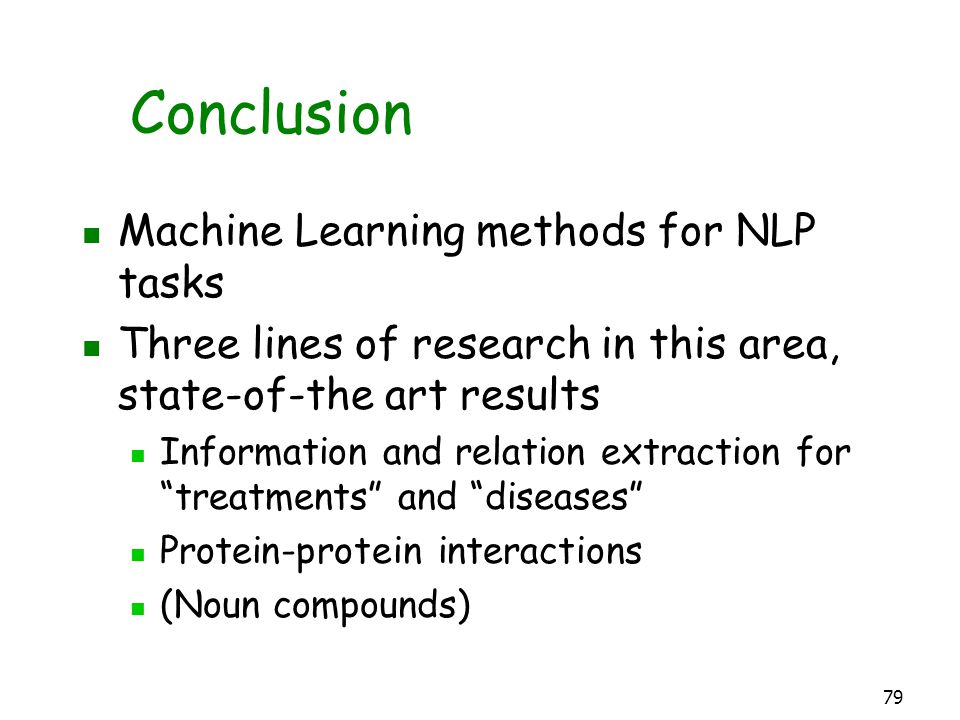

79. 79 Conclusion Machine Learning methods for NLP tasks Three lines of research in this area, state-of-the art results Information and relation extraction for “treatments” and “diseases” Protein-protein interactions (Noun compounds)

80. Thank you! Barbara Rosario SIMS, UC Berkeley rosario@sims.berkeley.edu

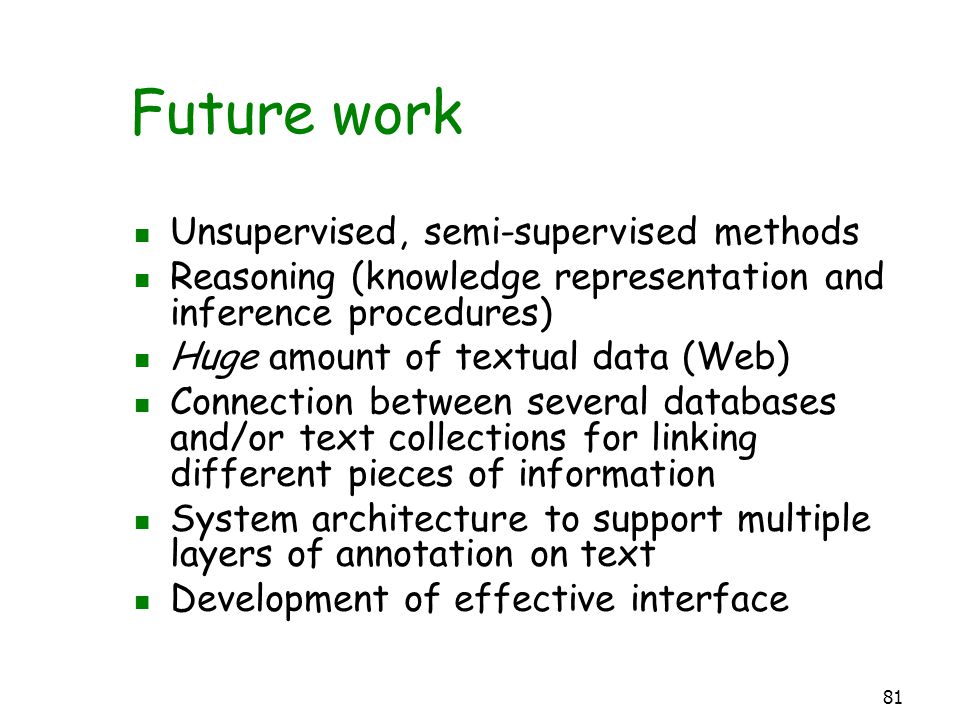

81. 81 Future work Unsupervised, semi-supervised methods Reasoning (knowledge representation and inference procedures) Huge amount of textual data (Web) Connection between several databases and/or text collections for linking different pieces of information System architecture to support multiple layers of annotation on text Development of effective interface

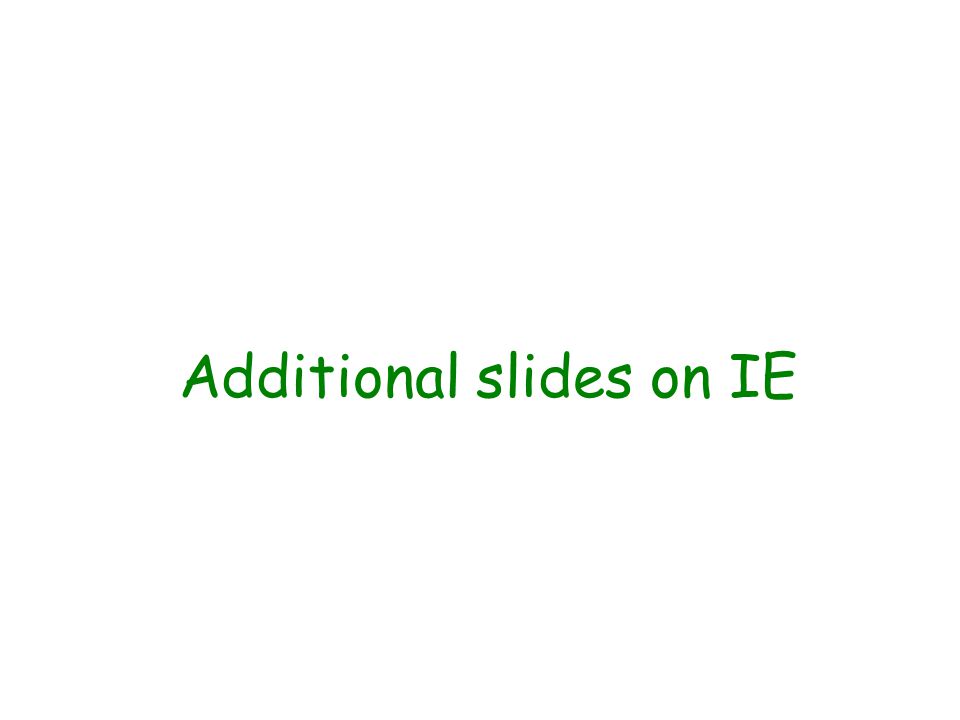

82. Additional slides on IE

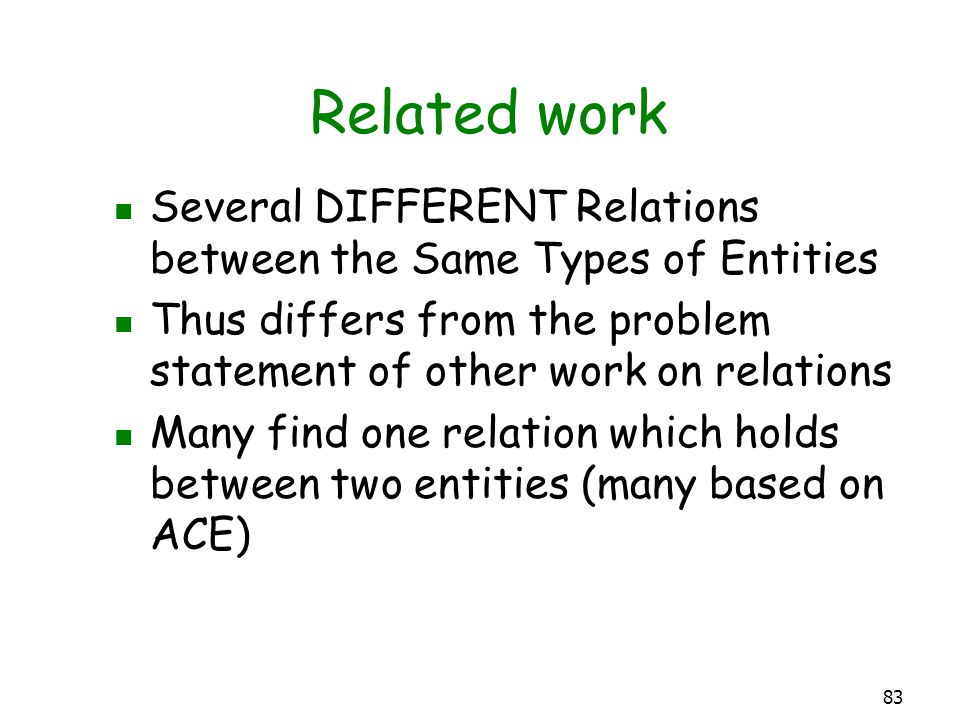

83. 83 Related work Several DIFFERENT Relations between the Same Types of Entities Thus differs from the problem statement of other work on relations Many find one relation which holds between two entities (many based on ACE)

84. 84 Related work (cont.) Agichtein and Gravano (2000), lexical patterns for location of Zelenko et al. (2002) SVM for person affiliation and organization-location Hasegawa et al. (ACL 2004) Person- Organization -> President “relation” Craven (1999, 2001) HMM for subcellular- location and disorder-association Doesn’t identify the actual relation

85. 85 Related work: Bioscience Many hand-built rules Feldman et al. (2002), Friedman et al. (2001) Pustejovsky et al. (2002) Saric et al.; (2004)

86. 86 Our D1 Thompson et al. 2003 Frame classification and role labeling for FrameNet sentences Target word must be observed More relations and roles

87. 87 Smoothing: absolute discounting Lower the probability of seen events by subtracting a constant from their count (ML estimate: ) The remaining probability is evenly divided by the unseen events

88. 88 F-measures for role extraction in function of smoothing factors

89. 89 Relation accuracies in function of smoothing factors

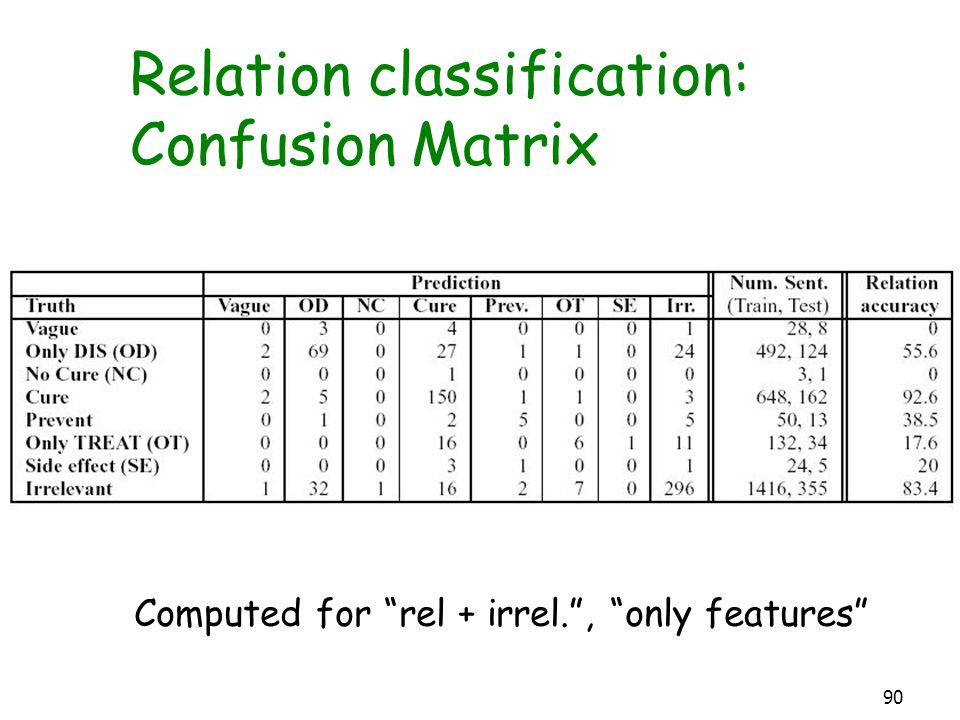

90. 90 Relation classification: Confusion Matrix Computed for “rel + irrel.”, “only features”

91. 91 Proteins: sentence-level evaluation Total accuracy: 38.9% (49.4% without interact with)

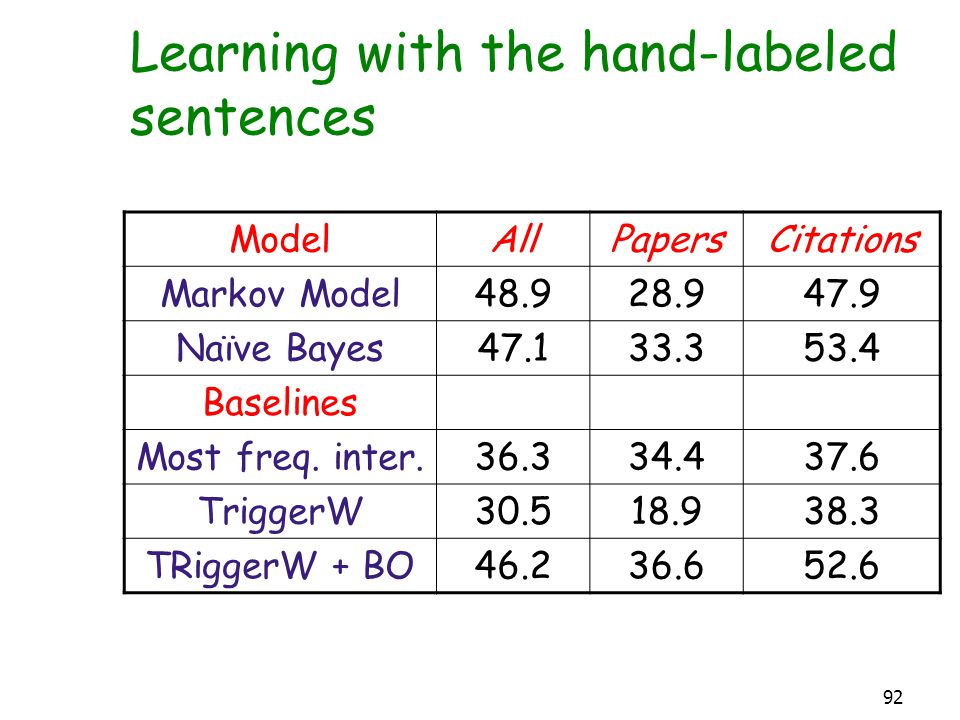

92. 92 Learning with the hand-labeled sentences ModelAllPapersCitations Markov Model48.928.947.9 Naïve Bayes47.133.353.4 Baselines Most freq. inter.36.334.437.6 TriggerW30.518.938.3 TRiggerW + BO46.236.652.6

93. 93 Learning with the hand-labeled sentences

94. 94 Q & A system Q: What are the treatments of cervical carcinoma A: Stage Ib and IIa cervical carcinoma can be cured by radical surgery or radiotherapy

95. 95 Q & A system Q: What are the methods of administration of headache treatment A: intranasal migraine treatment

96. 96 Evaluation Mj: For each triple, for each sentence of the triple, find the interaction that maximizes the posterior probability of the interaction given the features; then assign to all sentences of this triple the most frequent interaction between those predicted for the individual sentences. Mj*: Same as Mj, except that if the interaction predicted is the generic interacts with, choose instead the next most frequent interaction (retain interacts with only if it is the only interaction predicted.

97. 97 Evaluation Cf: Retain all the conditional probabilities (i.e., don't first choose an interaction per sentence), then for each triple choose the interaction that maximizes the sum over all the sentences of the triple. Cf*: Same as Cf, substituting interacts with with the next most confident interaction.
