AC Circuits Physics 102 Professor Lee Carkner Lecture 23
2

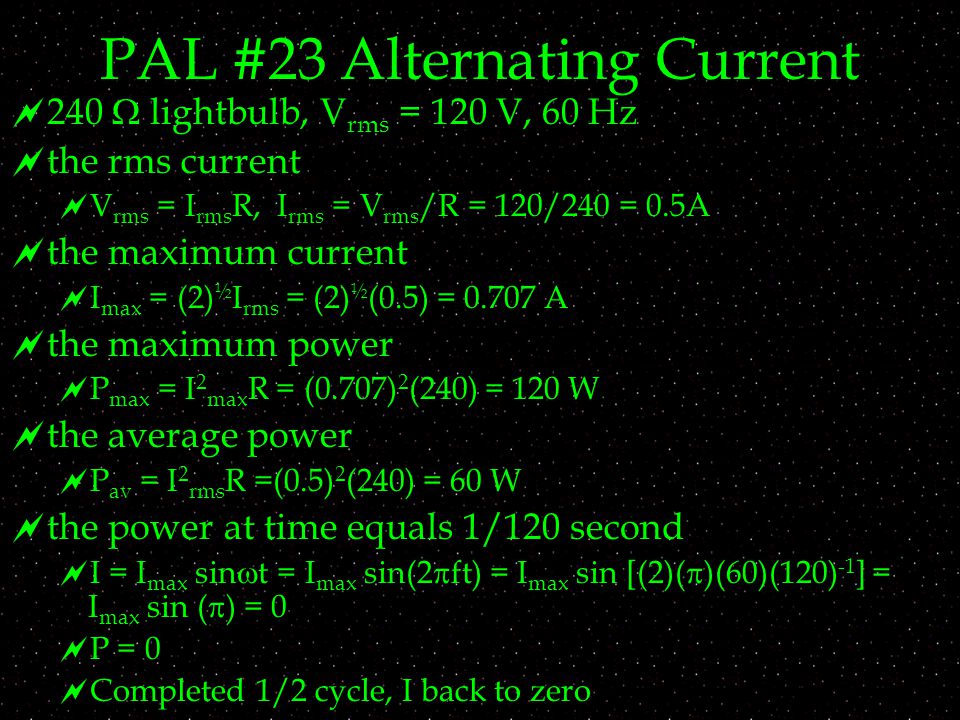

PAL #23 Alternating Current 240 lightbulb, V rms = 120 V, 60 Hz the rms current V rms = I rms R, I rms = V rms /R = 120/240 = 0.5A the maximum current I max = (2) ½ I rms = (2) ½ (0.5) = 0.707 A the maximum power P max = I 2 max R = (0.707) 2 (240) = 120 W the average power P av = I 2 rms R =(0.5) 2 (240) = 60 W the power at time equals 1/120 second I = I max sin t = I max sin(2 ft) = I max sin [(2)( )(60)(120) -1 ] = I max sin ( ) = 0 P = 0 Completed 1/2 cycle, I back to zero
3
AC Circuit Elements In an AC circuit we get resistance-like effects from three different elements: Capacitors (Reactance, X C ) We can combine them together to get the impedance (Z) We can then use Ohm’s Law to find the current For AC circuits we also define 3 different values of V and I The instantaneous (I = I max sin t) The rms (I rms = 0.707 I max )
4
AC Circuit with Resistor
5

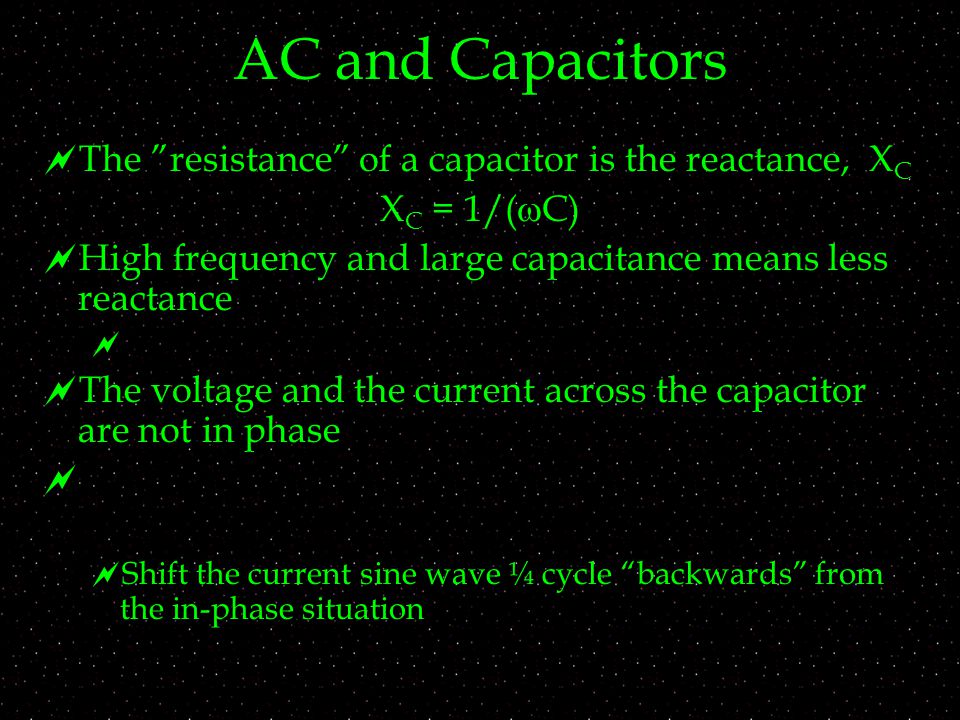

AC and Capacitors The ”resistance” of a capacitor is the reactance, X C X C = 1/( C) High frequency and large capacitance means less reactance The voltage and the current across the capacitor are not in phase Shift the current sine wave ¼ cycle “backwards” from the in-phase situation
6

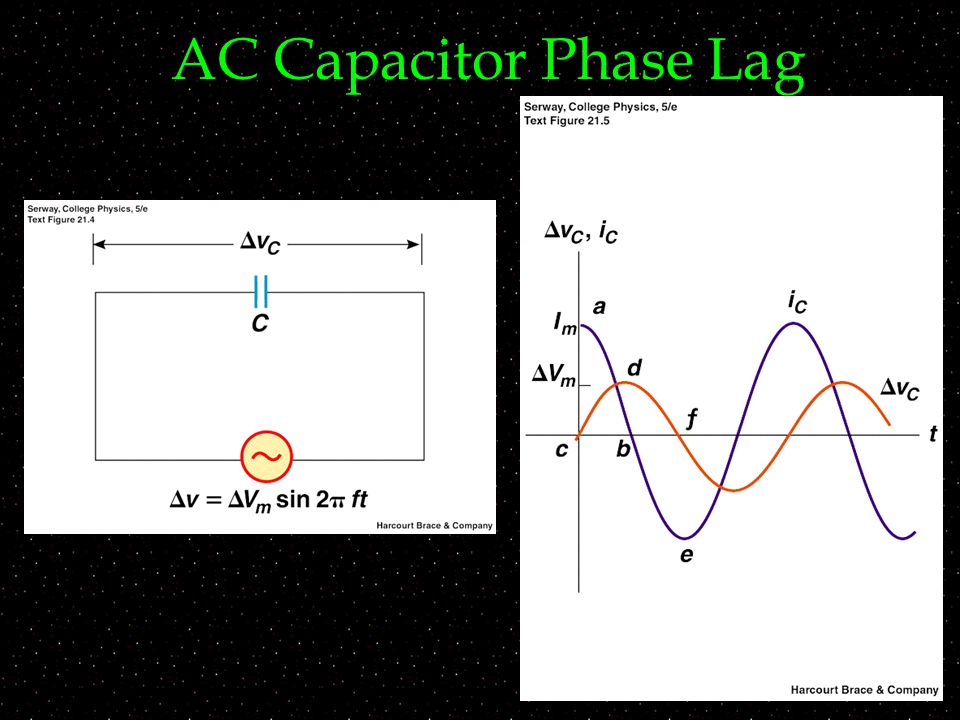

AC Capacitor Phase Lag
7

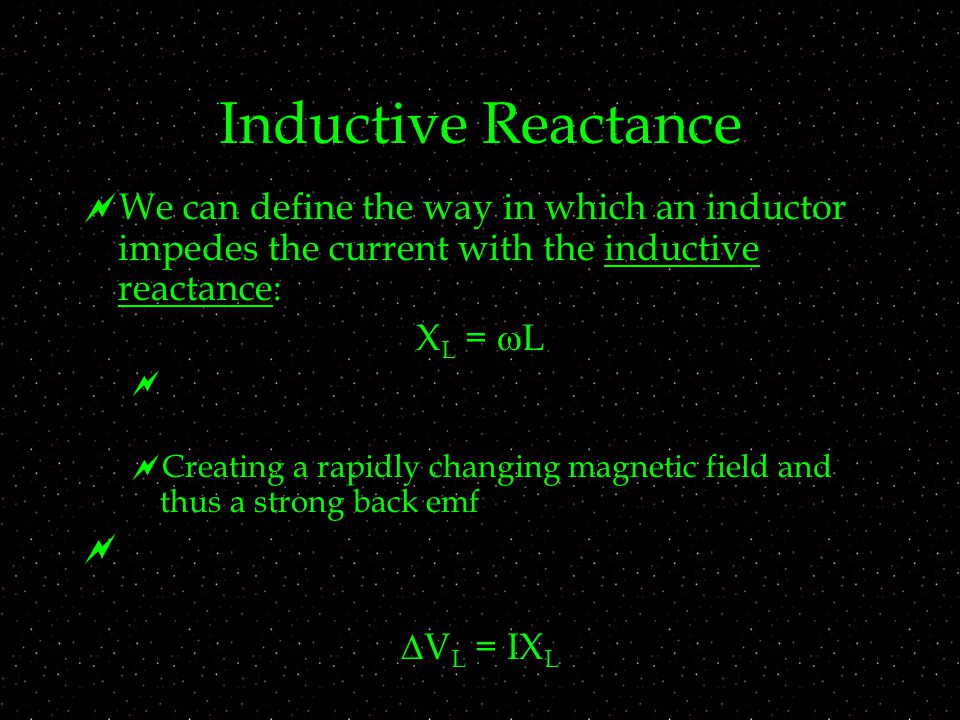

Inductive Reactance We can define the way in which an inductor impedes the current with the inductive reactance: X L = L Creating a rapidly changing magnetic field and thus a strong back emf V L = IX L
8

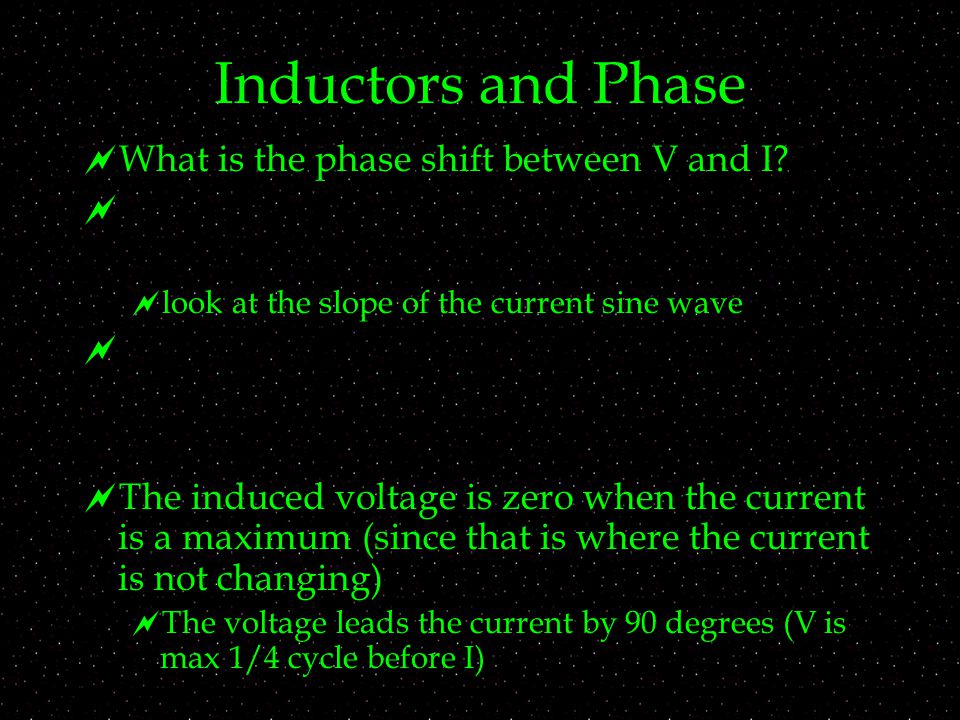

Inductors and Phase What is the phase shift between V and I? look at the slope of the current sine wave The induced voltage is zero when the current is a maximum (since that is where the current is not changing) The voltage leads the current by 90 degrees (V is max 1/4 cycle before I)
9

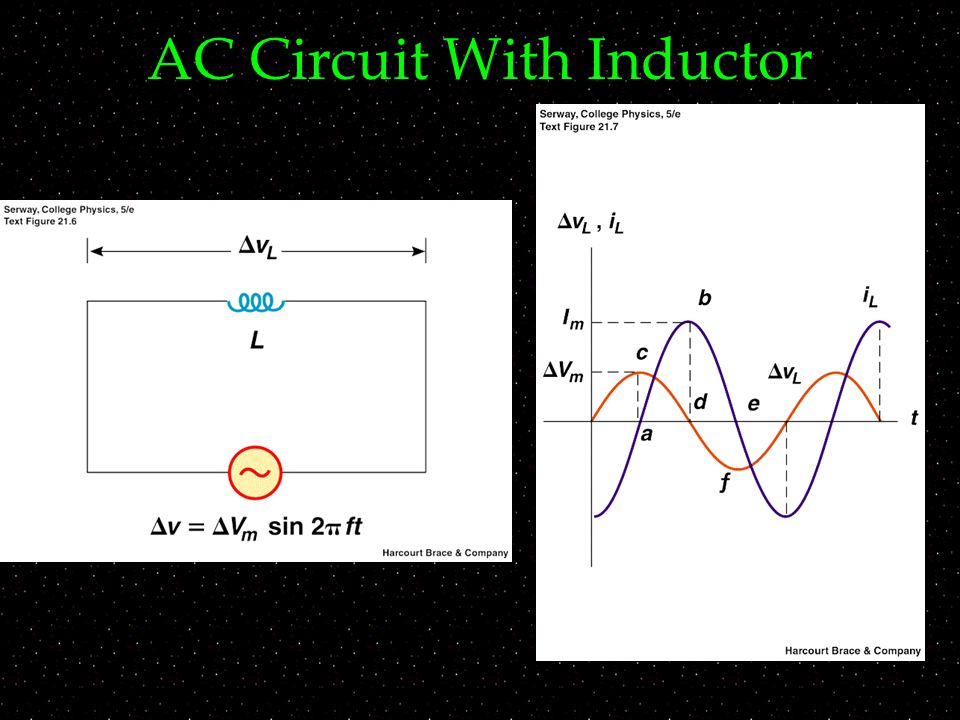

AC Circuit With Inductor
10

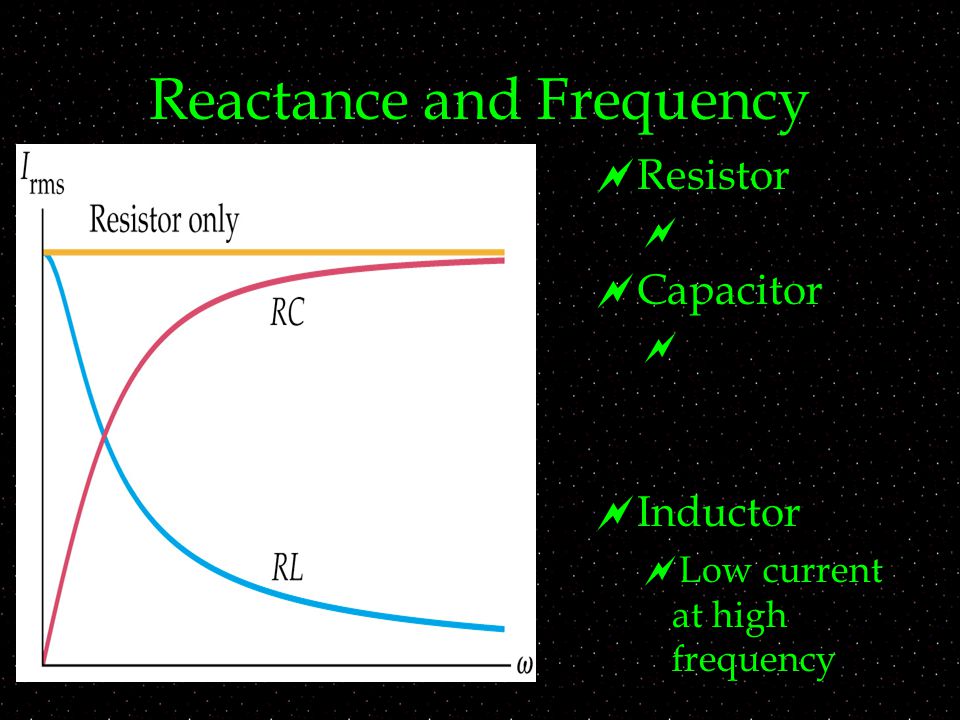

Reactance and Frequency Resistor Capacitor Inductor Low current at high frequency
11
RCL and AC Let’s combine all three elements together If you combine a resistor, capacitor and an inductor into one series circuit, they all will have the same current but all will have difference voltages at any one time Voltages are all out of phase with each other
12

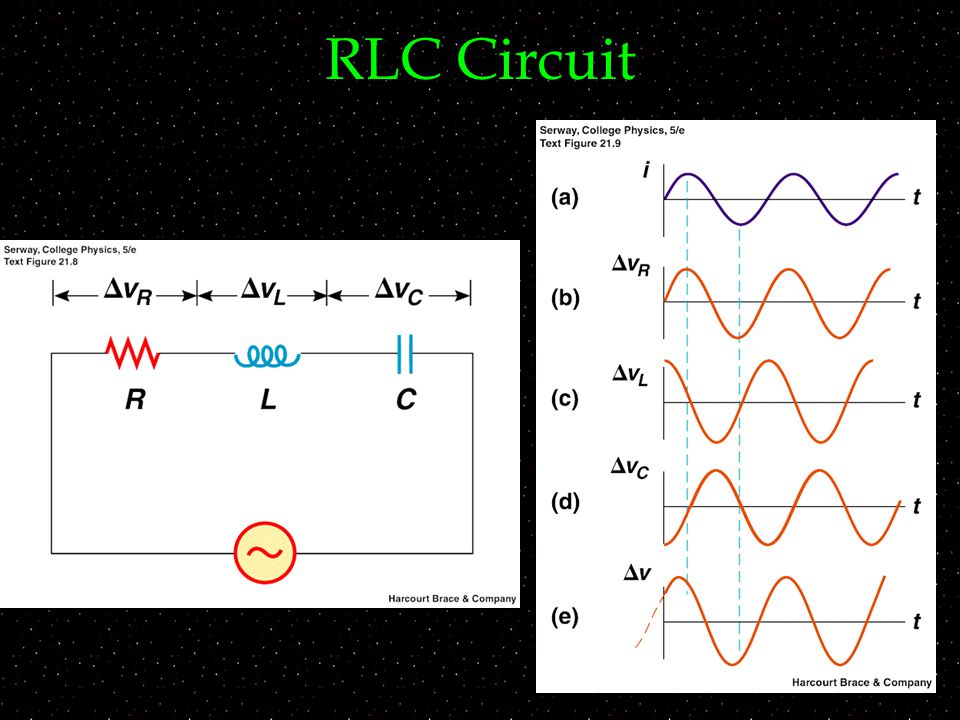

RLC Circuit
13

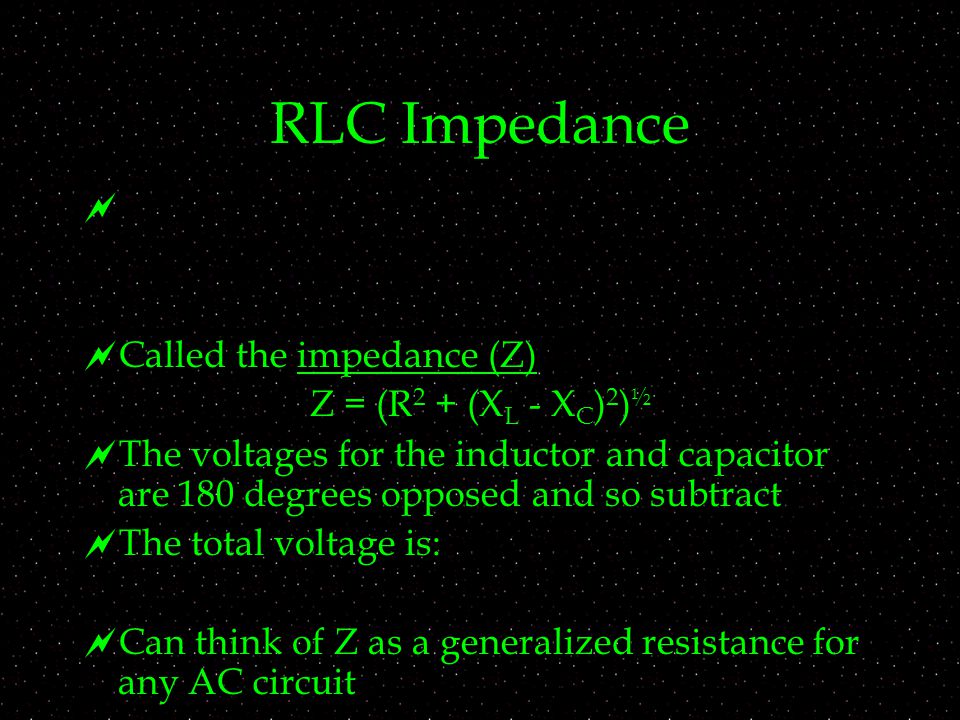

RLC Impedance Called the impedance (Z) Z = (R 2 + (X L - X C ) 2 ) ½ The voltages for the inductor and capacitor are 180 degrees opposed and so subtract The total voltage is: Can think of Z as a generalized resistance for any AC circuit
14

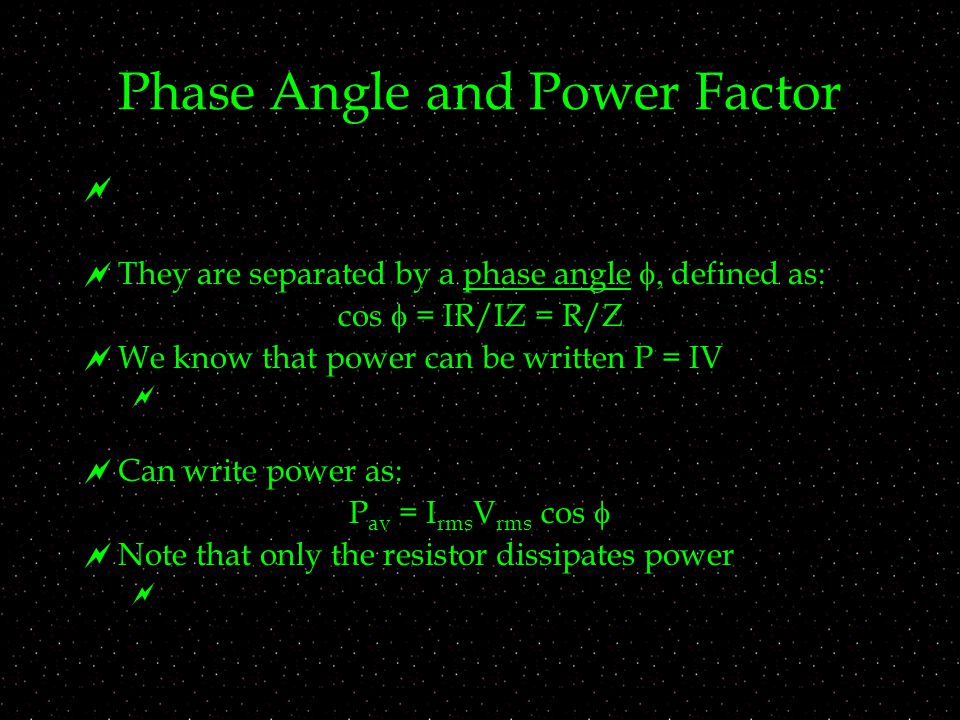

Phase Angle and Power Factor They are separated by a phase angle defined as: cos = IR/IZ = R/Z We know that power can be written P = IV Can write power as: P av = I rms V rms cos Note that only the resistor dissipates power
15

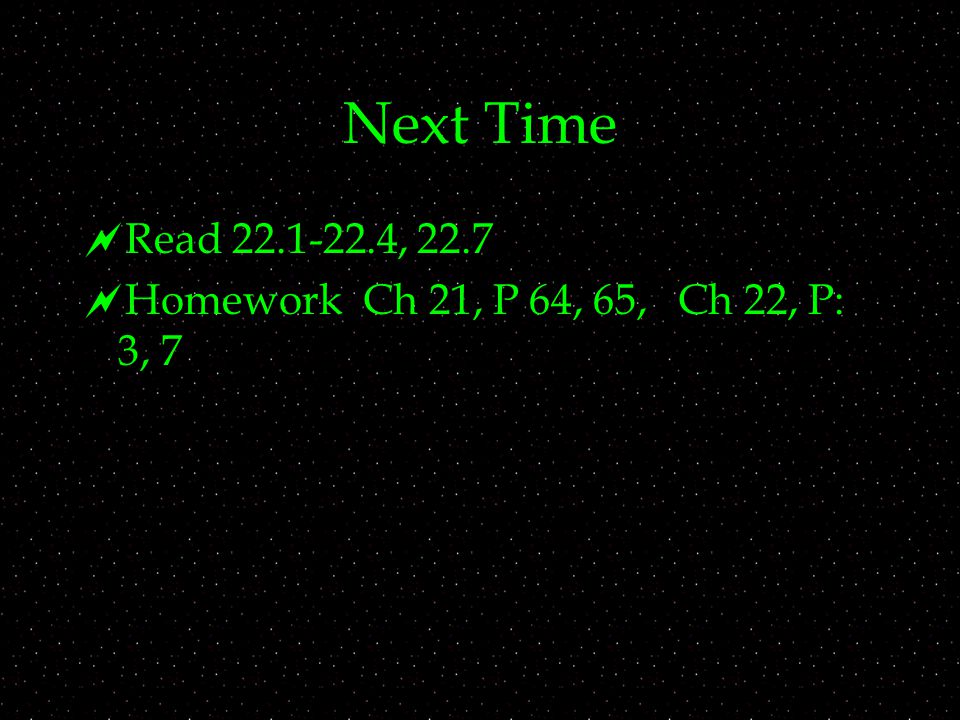

Next Time Read 22.1-22.4, 22.7 Homework Ch 21, P 64, 65, Ch 22, P: 3, 7
16

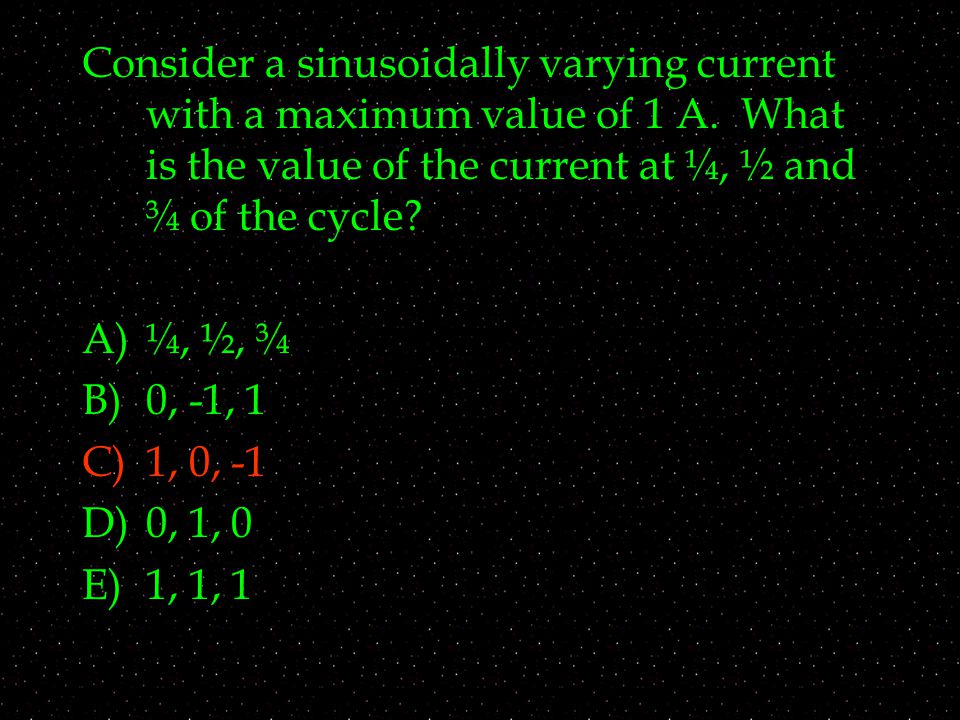

Consider a sinusoidally varying current with a maximum value of 1 A. What is the value of the current at ¼, ½ and ¾ of the cycle? A)¼, ½, ¾ B)0, -1, 1 C)1, 0, -1 D)0, 1, 0 E)1, 1, 1
17

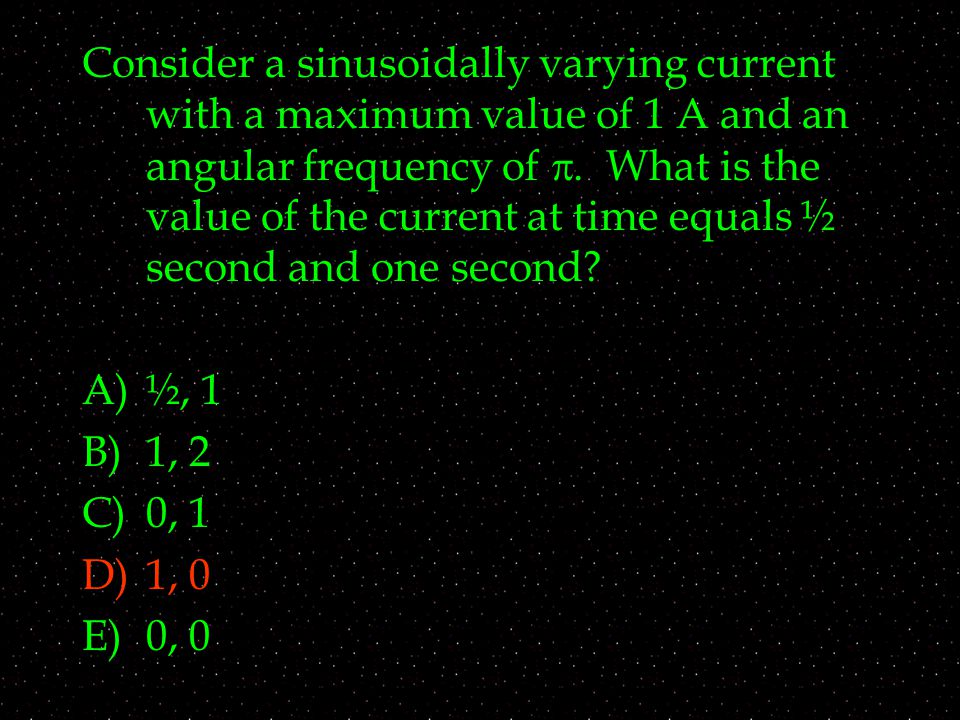

Consider a sinusoidally varying current with a maximum value of 1 A and an angular frequency of . What is the value of the current at time equals ½ second and one second? A)½, 1 B)1, 2 C)0, 1 D)1, 0 E)0, 0
18
Consider two sine waves with a phase shift of radians. When one wave is at its maximum value, the other is at, A)its minimum value B)0 C)its maximum value D)√2 times its maximum value times its maximum value
