1
Entropy Thermodynamics Professor Lee Carkner Lecture 13

2

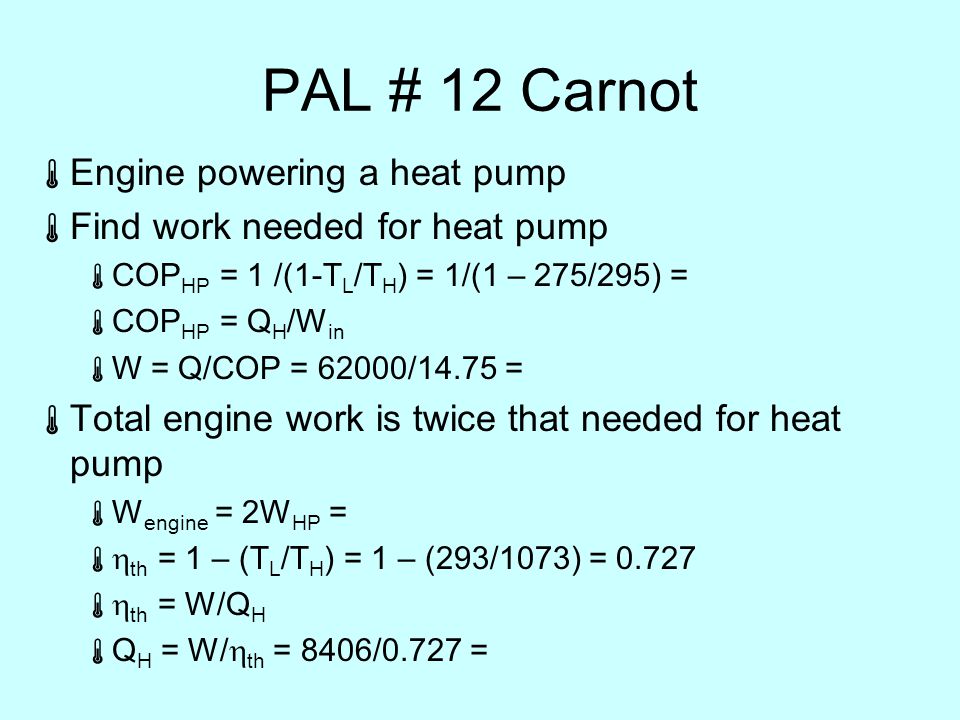

PAL # 12 Carnot Engine powering a heat pump Find work needed for heat pump COP HP = 1 /(1-T L /T H ) = 1/(1 – 275/295) = COP HP = Q H /W in W = Q/COP = 62000/14.75 = Total engine work is twice that needed for heat pump W engine = 2W HP = th = 1 – (T L /T H ) = 1 – (293/1073) = 0.727 th = W/Q H Q H = W/ th = 8406/0.727 =

3
Clausius Inequality ∫ Q/T = 0 ∫ Q/T ≤ 0 Valid for all cycles

4

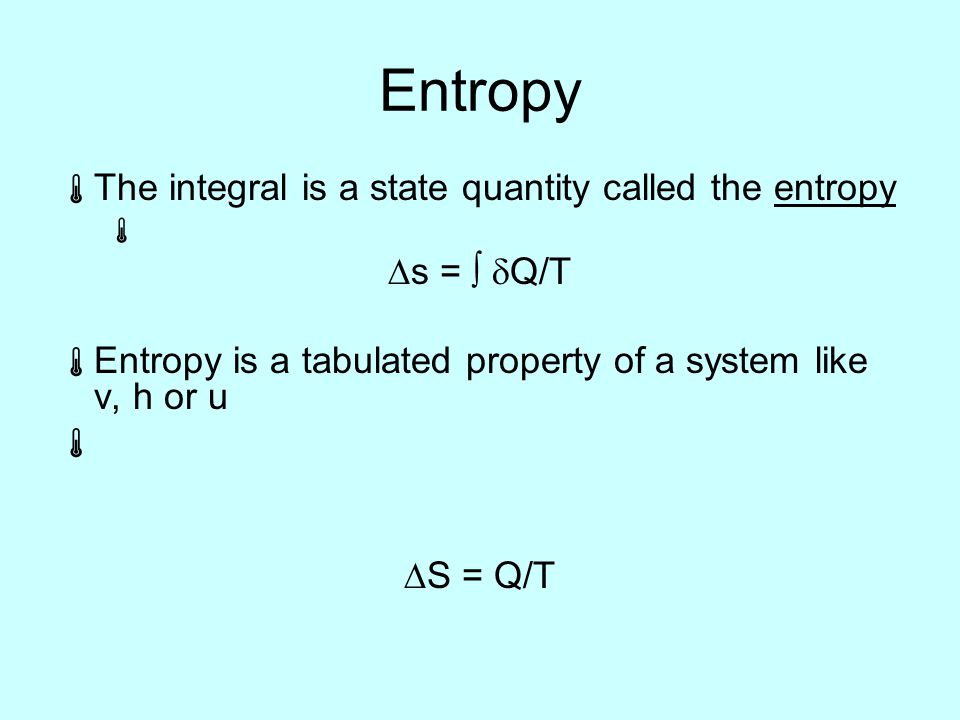

Entropy The integral is a state quantity called the entropy s = ∫ Q/T Entropy is a tabulated property of a system like v, h or u S = Q/T

5
TS Diagram Can plot a Temperature-Entropy Diagram The total heat is the integral of TdS, or the area under the process line on a TS diagram Similar to W being the area in a P v diagram

6
Area Under TS Diagram

7
Mollier Diagram The vertical (enthalpy) distance gives a measure of the work The horizontal (entropy) distance gives a measure of the irreversibilities (and thus inefficiencies)

8
Information From an hs Diagram

9

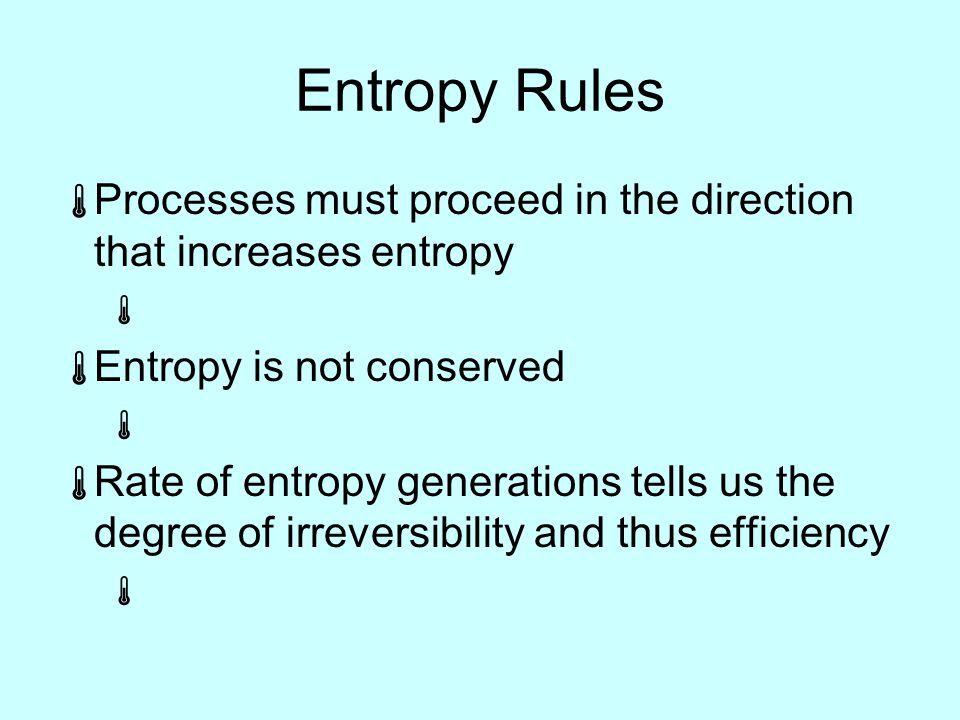

Entropy Rules Processes must proceed in the direction that increases entropy Entropy is not conserved Rate of entropy generations tells us the degree of irreversibility and thus efficiency

10

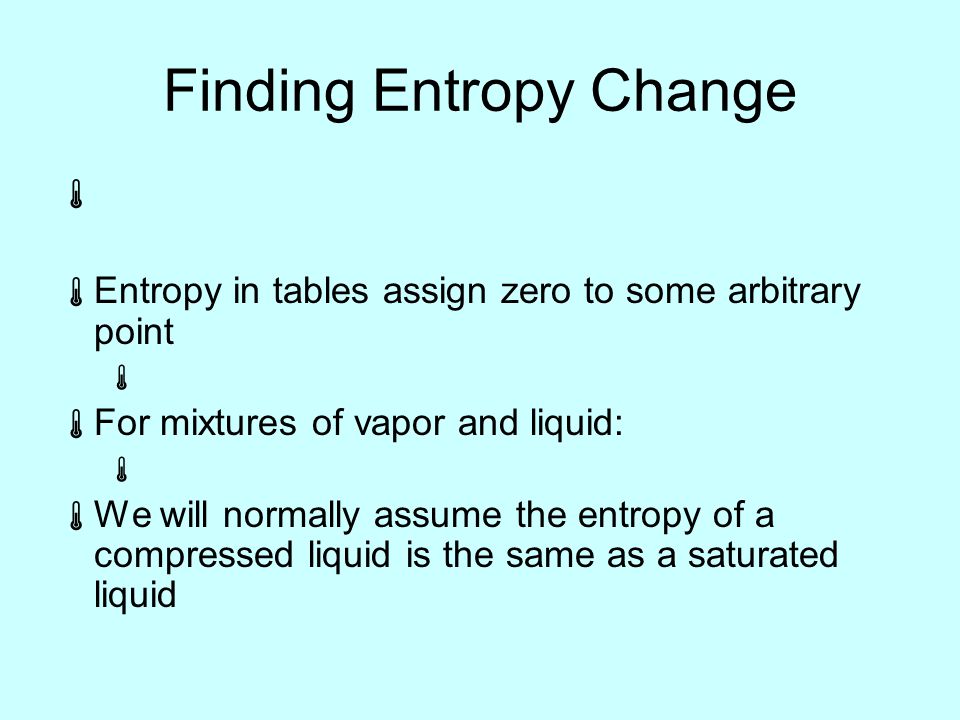

Finding Entropy Change Entropy in tables assign zero to some arbitrary point For mixtures of vapor and liquid: We will normally assume the entropy of a compressed liquid is the same as a saturated liquid

11

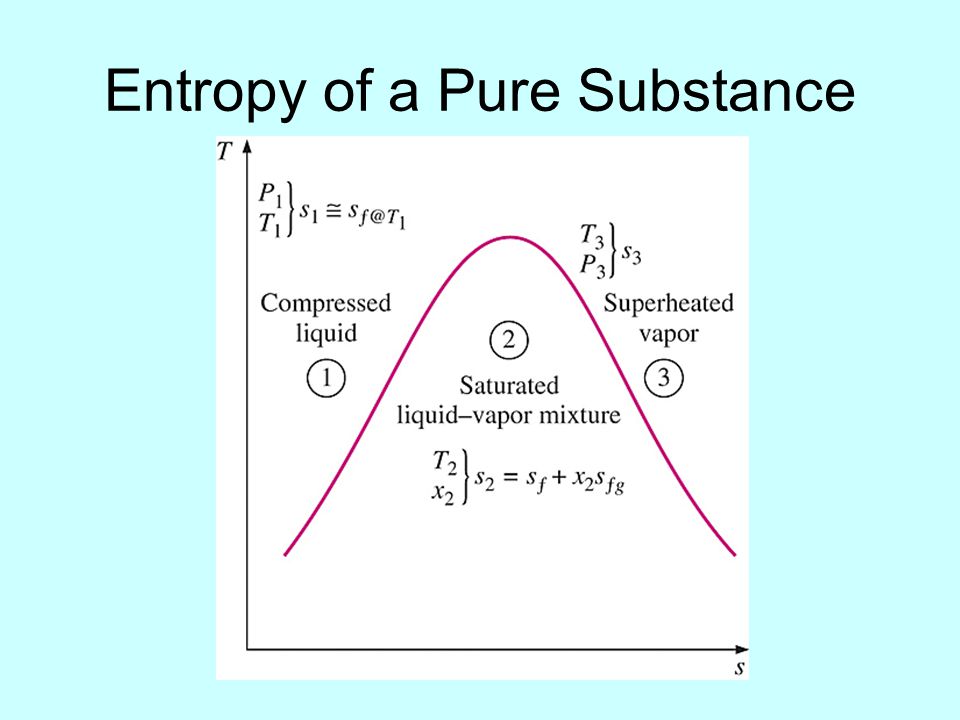

Entropy of a Pure Substance

12
Isentropic Process e.g. well-insulated and frictionless Can use to determine the properties of the initial and final states of the system Find s for state 1 and you know that state 2 must have a P and T to give the same s

13
Isentropic Diagram

14
Disorder The higher the entropy the more random the distribution of molecules High entropy → high disorder → low quality → low efficiency

15
The 3 rd Law Molecule motions decrease with decreasing temperature Only one configuration means absolute order

16
Gibbs Equation but we already have relationships for Q Solving for Tds TdS – Pd V = dU Called the Gibbs equation Substituting into the Gibbs equation: Tds = dh - v dP

17
Entropy Relations We can know write integrable equations ds = dh/T + v dP/T We still need: e.g., du = c v dT e.g., P v = RT

18
Incompressible Entropy For solids and liquids the volume does not change much d v = 0 We can integrate the entropy equation: S = ∫ c dT/T = c ln T 2 /T 1

19

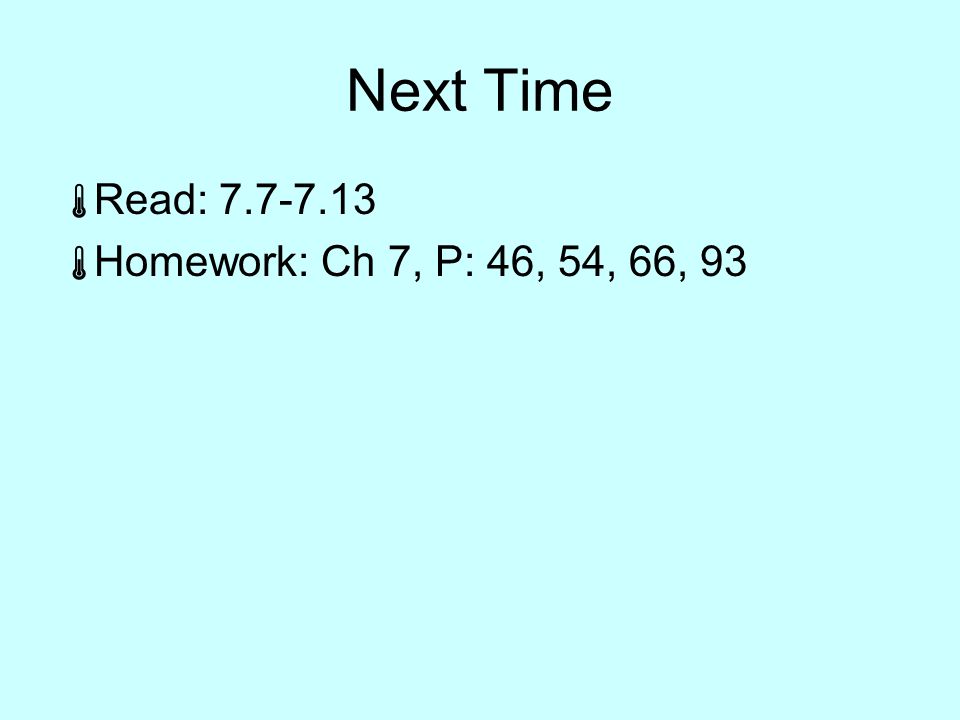

Next Time Read: 7.7-7.13 Homework: Ch 7, P: 46, 54, 66, 93
