Tutorial 2 LIU Tengfei 2/19/2009

Contents Introduction TP, FP, ROC Precision, recall Confusion matrix Other performance measures Resource

Classifier output of Weka(1)

Classifier output of Weka(2)

TP rate, FP rate(1) Consider a diagnostic test A false positive(FP): the person tests positive, but actually does not have the disease. A false negative(FN): the person tests negative, suggesting he is healthy, but he actually does have the disease. Note: True positive/negative are similar

TP rate, FP rate(2) TP rate = true positive rate FP rate = false positive rate

TP rate, FP rate(3) Definition: TP rate = TP/(TP+FN) FP rate = FP/(FP+TN) From the actual value point of view

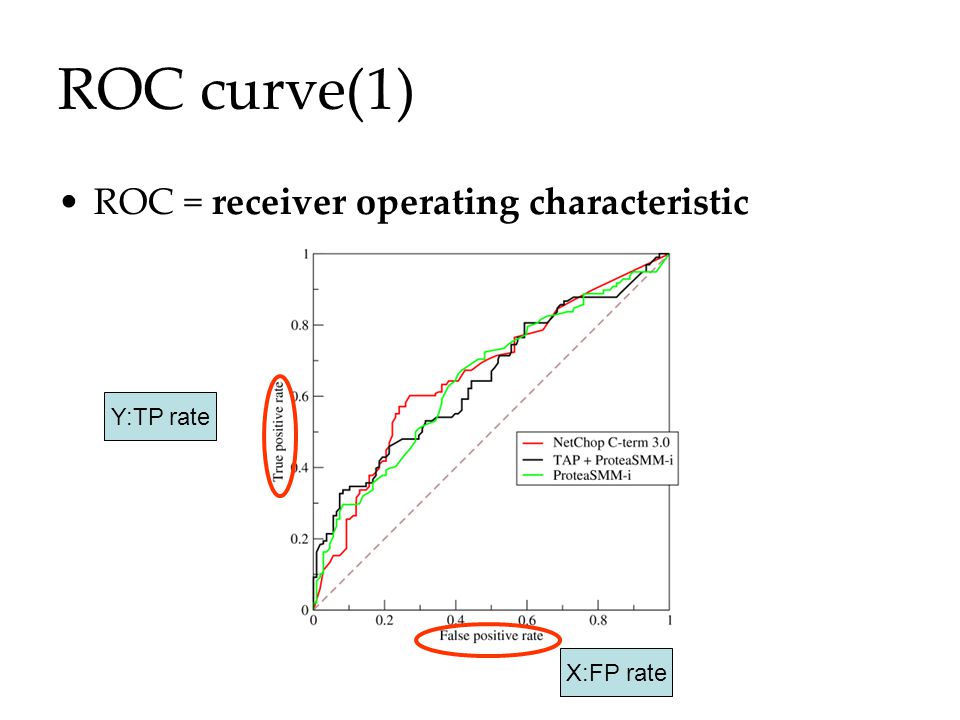

ROC curve(1) ROC = receiver operating characteristic Y:TP rate X:FP rate

ROC curve(2) Which method (A or B) is better? compute ROC area: area under ROC curve

Precision, Recall(1) Precision = TP/(TP + FP) Recall = TP/(TP + FN) Precision: is the probability that a retrieved document is relevant. Recall: is the probability that a relevant document is retrieved in a search.

Precision, Recall(2) F-measure = 2*(precision*recall)/(precision + recall) Precision, recall and F-measure come from information retrieval domain.

Confusion matrix Example: using J48 to process iris.arff

Other performance measures * p are predicted values and a are actual values

Resource 1. Wiki page for TP, FP, ROCWiki page for TP, FP, ROC 2. Wiki page for Precision and RecallWiki page for Precision and Recall 3. Ian H. Witten, Eibe Frank. Data Mining: Practical Machine Learning Tools and Techniques (Second Edition), Chapter 5

Thank you !
