1. Open Knowledge Initiative Scott Thorne (thorne@mit.edu) Jeff Kahn (jeffkahn@mit.edu)

2. Topics  Architectural Overview  Assumptions  Goals  Design  Benefits  Applying O.K.I.™

3. Assumptions  Things Change  New Services & Functions  Method of Accessing Services  More Central Software Services  Authorization, Calendaring, etc.  Evolving Systems  Definition

4. More Assumptions  All Enterprises won’t have the same Technologies  All Enterprise Systems won’t use the same Technology  The need for sharing will grow  Differing “connectedness”  Not Web only

5. Goals  Better Integration  Allow data to be exchanged  Allow software to be integrated  Predictable Evolution  Allow for changing functionality  Minimize the negative impacts  Expanding Market Possibilities

6. Possible Integration Goals  Allow enterprise systems to exchange & synchronize information  Allow different organizations to exchange & synchronize information  Allow systems to use enterprise services  Allow for modular software which plugs into a known framework  Single system responsible for information

7. Data and Functional Specification  Data standards serve two goals  Data exchange inter/intra enterprise  Both Data & Function needed for all Goals  Data duplication and propagation  data specifications can’t address all issues  Both Needed for Interoperability  And more!

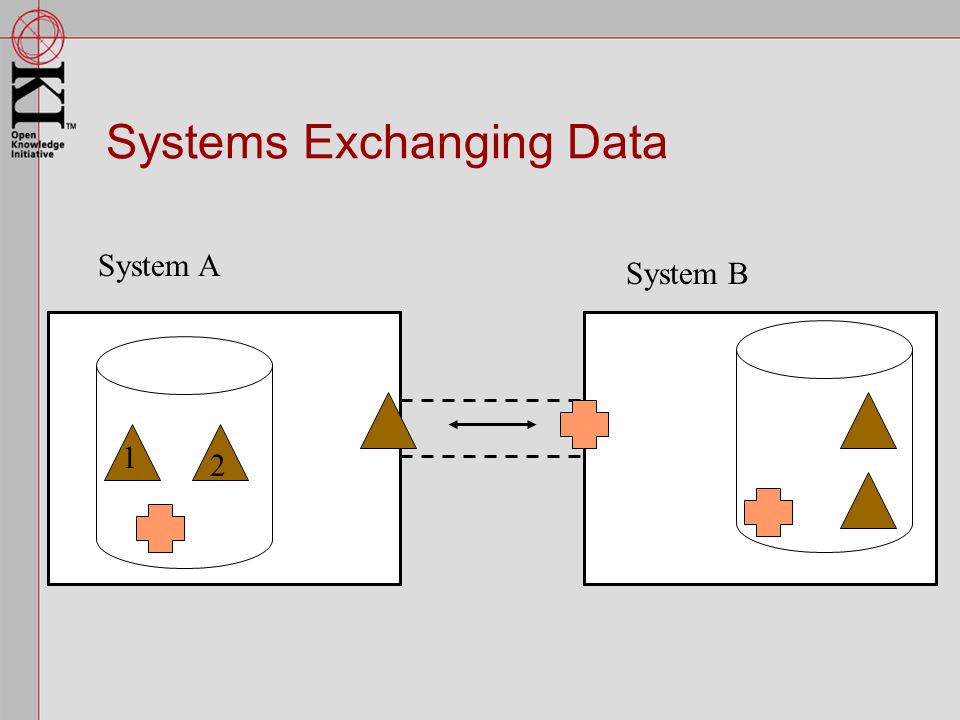

8. Systems Exchanging Data System A System B 1 2

9. Systems Integrated Functionally System ASystem B 2

10. OSIDs  Definitions Example OSID

11. OSIDs  Definitions  Implementations Service OSID Implementation Infrastructure public class Factory implements org.okip.service.APIName.api.Factory { private static final blah blah bhal private static final yada yada yada } … Example

12. Service-Based Architecture public class Factory implements org.okip.service.Example.api.Factory { private static final blah blah bhal private static final yada yada yada } … Example OSID … org.okip.service.shared.api.Thing things = myFactory.getSomething(); if (null != thingss) { for (int i = 0; things.length != i; i++) { out.println(things[i]); System.err.println(types[i]); } } … Application Implementation Infrastructure Service

13. The OSID Approach  OSID are Interfaces only, not Implementations  Code Reuse  Could Achieve Real-time Integration  Clean Separation or Boundaries  Minimizes Impacts of Changes

14. A single application with a module of functionality Group

15. An application using an OSID internally, but with no real benefit Group

16. The module is outside the application, but still local Group

17. A client-side OSID and a remote service Group Remote Machine Data Store

18. Integration of two applications with a single service Group App 1App 2

19. Introduction of a common tool for Group management Group App 1App 2Group Mgmt Tool

20. Group maintenance can be removed from applications Group App 1App 2Group Mgmt Tool

21. Common Service Level OSIDs  Allows Integration with Enterprise Services  Adapts to Multiple Standards  Allows Several Sites to Share Services  Independence from Changing Technology

22. The OSIDs “Common Services”  Agent  Authentication  Authorization  Id  Scheduling  User Messaging  Workflow  Dictionary  Filing  Hierarchy  Logging  SQL “Educational Services”  Course Management  Digital Repository  Assessment  Grading

23. Kerb5 One Application Using Multiple Implementations of One API X509 AuthN App

24. Two Back End Systems – Single Access Method CourseMgmt Enrollment App. SIS System HR System

25. Group Integration Group Function Group Service System ASystem B

26. Implementation Supporting Multiple Protocols OSID X SRMISOAP Infrastructure Service Supporting both SRMI And SOAP

27. Same Application Using Different Implementations Service 1Service 2 Application A Service 1Service 2 Application A

28. Independent or Tightly Coupled Implementations AuthNAuthZAuthNAuthZ Application A

29. “LMS” Varying Granularity of Service Exposure Assess Application Y AuthNAuthZ C.M.Etc. AuthZ Assess Application Z C.M.Etc.

30. Overall Benefits  Stable and Well-Known Integration Points  Common Factoring of Domain  Code Reuse  Reduced Risk  Matched Expectations  Shorter Development Cycle / Lower Cost

31. Benefits of OSIDs for Enterprise IT  Provides enterprise integration strategy  Define responsibilities between application developers and enterprise infrastructure  Centralize a function or service  Enforce uniform business logic  Predictable technology migration  Costs, resources, process  Structures vendor delivrables (RFP)  Integrate two applications with overlapping functions

32. Benefits of OSIDs for the Developer and Development Manager  Allows tracking of progress  Does the application call the xyz OSID?  Who is working on the xyz implementation?  Is the xyz OSID implementation done?  Provides a context for project metrics  How’s the performance of the xyz implementation?  How many OSIDs / implementations are done?

33. Benefits of OSIDs for the Vendor  Create a product that can adapt to many customers’ environments  Separate application issues from enterprise infrastructure  Create an integration point  Create means for integration with other vendor’s products

34. Applying O.K.I.™

35. Topics Covered  Organizing for Applications and Implementations  Legacy Migration  Testing  Debugging  Performance and Scalability  Configuration  Software Development Training  Release Management - When OSIDs Change  Build vs Reuse  Technical Issues  Support Resources

36. User-Facing Application Back-End Systems Integration Single Team

37. User-Facing Application Back-End Systems Integration Applications Team Implementations Team OSID

38. Legacy Migration

39. Course Management System (Single Purpose Communication) Course Catalog Authorization Authentication SQL Authenticate Authorize Course Management End User Application

40. Communication Through OSIDs Course Catalog Authorization Authentication SQL Authenticate Authorize Course Management End User Application CourseMgmt

41. Stand-Alone OSID Implementations Course Catalog Authorization Authentication SQL Authenticate Authorize Course Management End User Application CourseMgmt Course Management

42. System Migration Course Catalog Authorization Authentication SQL Authenticate Authorize Course Management End User Application New Course Management CourseMgmt

43. Series (A) Infrastructure Course Catalog Authorization Authentication SQL (A) Authentication (A) Authorization (A) Course Management End User Application CourseMgmt (A)

44. Series (A) and (B) Course Catalog Authorization Authentication SQL (B) Authentication (B) Authorization (A) Course Management End User Application CourseMgmt (A)

45. Testing  Reuse tests since OSIDs are stable  Complete test plan before development is complete  no interface feature creep  Tests with sample values can help developers  Reuse tests within and across institutions  Good tests lower risks in reusing implementation

46. Debugging  Problem determination can be a significant challenge in complex systems  New code is a source of bugs  Reuse of validate components reduces supply of bugs  OSIDs compartmentalized functionality and limit scope in search for bugs

47. Performance and Scalability  Architecture envisions relatively few implementations and relatively many applications  Reuse spreads investment in well performing, scalable implementations across more deployments  All dependant applications benefit from enhancements

48. Configuration  Selection of implementation to use  Implementation configuration  Sharable context  Adapters

49. User-Facing Application XxxManager.propertiesYyyManager.properties Xxx OSID Implementation Yyy OSID Implementation Owner Context Configuration Mechanisms

50. User-Facing Application OSID “A” Implementation Adapter Back-End Services OSID “B” ImplementationOSID “A” Implementation Configuration Using Adapters

51. Software Development Training  Keeping current is a continuing challenge  Stable abstractions and factoring across technology cycles  OSID implementations deal with back-end systems; generally the longest shelf-life  Consistent approach across OSIDs results in higher reuse of skills

52. Release Management When OSIDs Change

53. Version 1.0 Version 1.1 OSID “A” New Versions are Supersets

54. User-Facing Application Assessment OSID v1.0 (Implementation “A”) Repository OSID v1.0 (Implementation “A”) Back-End Services Typical Layered Solution

55. User-Facing Application Assessment OSID v1.0 (Implementation “A”) Repository OSID v1.0 (Implementation “B”) Back-End Services Substituting Implementations of the Same OSID Version

56. User-Facing Application Assessment OSID v1.0 (Implementation “A”) Repository OSID v1.1 (Implementation “A”) Back-End Services Impact of an Implementation of a Newer OSID Version on a Low Layer

57. User-Facing Application Repository OSID v1.0 (Implementation “A”) Assessment OSID v1.1 (Implementation “A”) Back-End Services Impact of an Implementation of a Newer OSID Version at a High Layer

58. User-Facing Application Assessment OSID v1.1 (Implementation “A”) Adapter Repository OSID v1.0 (Implementation “A”) Back-End Services Combination of a New OSID Version Implementations and an Adapter

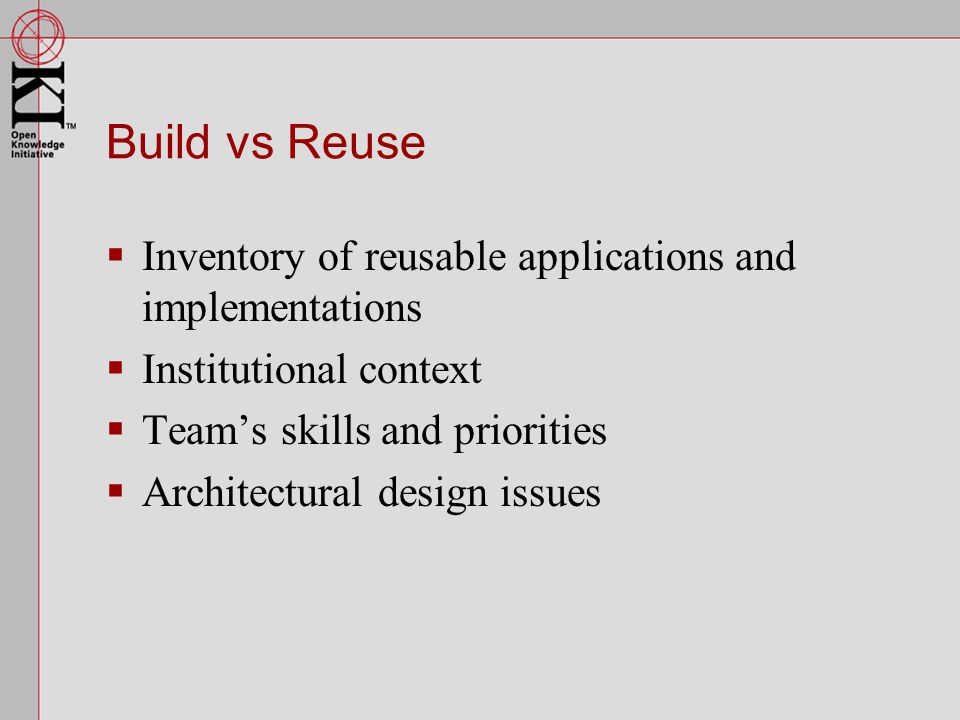

59. Build vs Reuse  Inventory of reusable applications and implementations  Institutional context  Team’s skills and priorities  Architectural design issues

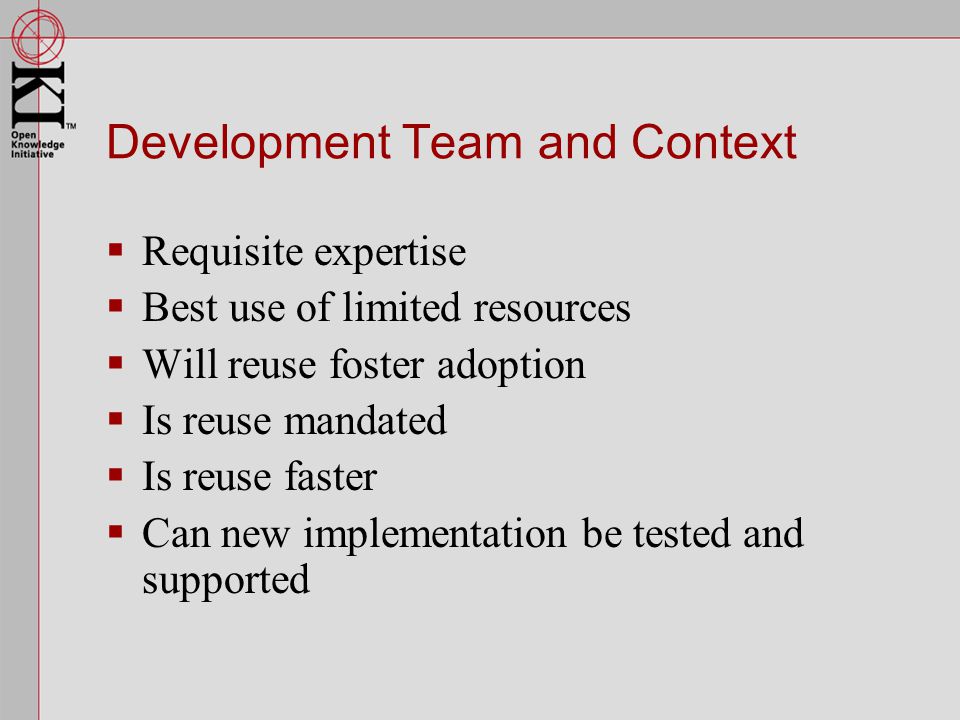

60. Development Team and Context  Requisite expertise  Best use of limited resources  Will reuse foster adoption  Is reuse mandated  Is reuse faster  Can new implementation be tested and supported

61. Design Questions  Which OSIDs and other interfaces  Which methods  Which Types  What Ids  Which language  Local implementation?  Layering

62. Technical Topics  Object Lifecycle  OsidManager, Persistence, Managing Objects, Static and Dynamic Binding  Integrating Objects and Approaches  Ids, Types, Properties, Owner Context, Out-of-Band Agreements  Iterators  Exceptions  Solution Organization and Configuration  Transactions  Serialization

63. Support Resources  http://web.mit.edu/oki http://web.mit.edu/oki  https://sourceforge.net/projects/okiproject https://sourceforge.net/projects/okiproject  OSIDs  Documentation  Implementations  Discussion  oki-info@mit.edu oki-info@mit.edu

64. Questions
