1. Lecture 17 Architecture Tradeoff Analysis Method ATAM
CSCE 742 Software Architectures
Lecture 17 Architecture Tradeoff Analysis Method ATAM
Topics
Evaluating Software Architectures
What an evaluation should tell
What can be examined, What Can’t
ATAM
Next Time: Case Study: the Nightingale System
Ref: The “Evaluating Architectures” book and Chap 11
October 22, 2003

2. Overview Last Time New: Analysis of Architectures Next time:
Why, When, Cost/Benefits
Techniques
Properties of Successful Evaluations
New: Analysis of Architectures
Next time:
References:

3. Last Time Why evaluate architectures? When do we Evaluate?
Cost / Benefits of Evaluation of SA
Non-Financial Benefits
EvaluationTechniques
Active Design Review,” SAAM (SA Analysis Method), ATAM (Architecture Tradeoff Analysis Method), CBAM (2001/SEI) – Cost Benefit Analysis Method
Planned or Unplanned Evaluations
Properties of Successful Evaluations
Results of an Evaluation
Principles behind the Agile Manifesto
Architecture Tradeoff Analysis Method (ATAM)
Conceptual Flow ATAM

4. ATAM Overview
ATAM is based upon a set of attribute-specific measures of the system
Analytic measures, based upon formal models
Performance
Availability
Qualitative measures, based upon formal inspections
Modifiability
Safety
security

5. ATAM Benefits clarified quality attribute requirements
improved architecture documentation
documented basis for architectural decisions
identified risks early in the life-cycle
increased communication among stakeholders

6. Figure taken from http://www.sei.cmu.edu/ata/ata_method.html
Conceptual Flow ATAM
Figure taken from

7. For What Qualities can we Evaluate?
From the architecture we can’t tell if the resulting system will meet all of its quality goals
Why?
Usability  largely determined by user interface
User interface is typically at lower level than SA
UMLi
ATAM concentrates on evaluating a SA based on certain quality attributes

8. ATAM Quality Attributes
Performance
Reliability
Availability
Security
Modifiability
Portability
Functionality
Variability – how well the architecture can be expanded to produce new SAs in preplanned ways ( important for product lines)
Subsetability
Conceptual integrity

9. Non-suitable Quality Attributes (for ATAM)
There are some quality attributes that are just to vague to be used as the basis for an evaluation.
Examples
“The system must be robust.”
“The system shall be highly modifiable.”
Quality attributes are evaluated in some context
A system is modifiable wrt a specific kind of change.
A system is secure wrt a specific kind of threat.

10. Outputs of an Architecture Evaluation
Prioritized statement of quality attribute requirements
“You've got to be very careful if you don't know where you're going, because you might not get there.” Yogi Berra
Yogi also said "I didn't really say everything I said."
Mapping of approaches to quality attributes
How the architectural approaches will achieve or fail to achieve quality attributes
Provides some “rationale” for the architecture
Risks and non-risks
Risks are potentially problematic architectural decisions
There are more for each specific analysis technique. We will consider ATAM soon.

11. Documenting Risks and Non-Risks
Documenting risks and non-risks consists of:
An architectural decision (that has not been made)
A specific quality attribute response being addressed by that decision
A rationale for the positive or negative effect that the decision has on satisfying the quality attribute

12. Example of a Risk*
The rules for writing business logic modules in the second tier of your three tier client-server system are not clearly articulated. (decision to be made)
This could result in replication of functionality thereby compromising modifiability of the third tier (a quality attribute response and its consequences)
Unarticulated rules for writing business logic can result in unintended and undesired coupling of components (rationale for the negative effect)
*Example from: Evaluating Software Architectures: Methods and Case Studies by Clements, Kazman and Klein

13. Example of a Non-Risk*
Assuming message arrival rates of once per second, a processing time of less than 30 milliseconds and the existence of one higher priority process (the architectural decisions)
A one-second soft deadline seems appropriate (the quality attribute response and its consequence)
Since the arrival rate is bounded and the preemptive effects of higher priority processes and known and can be accommodated (the rationale)
*Example from: Evaluating Software Architectures: Methods and Case Studies by Clements, Kazman and Klein

14. Participants in ATAM The evaluation team
Team leader –
Evaluation leader
Scenario scribe
Proceedings scribe
Timekeeper
Process observer
Process enforcer
Questioner
Project Decision makers – people empowered to speak for the development project
Architecture stakeholders –
including developers, testers, …,
users,
builders of systems interacting with this one

15. Evaluation Team Roles and Responsibilities
Team leader
Sets up evaluation (set evaluation contract)
forms team
interfaces with client
Oversees the writing of the evaluation report
Evaluation leader
Runs the evaluation
Facilitates elicitation of scenarios
Administers selection and prioritization of scenarios process
Facilitates evaluation of scenarios against architecture
Scenario scribe
Records scenarios on a flip chart
Captures (and insists on) agreed wording
Proceedings scribe

16. Evaluation Team Roles and Responsibilities
Proceedings scribe
Captures proceedings in electronic form
Raw scenarios with motivating issues
Resolution of each scenario when applied to the architecture
Generates a list of adopted scenaios
Timekeeper
Helps evaluation leader stay on schedule
Controls the time devoted to each scenario
Process observer
Keeps notes on how the evaluation process could be improved
Process enforcer – helps the evaluation leader stay “on process”
Questioner raises issues of architectural interest stakeholders may not have thought of

17. Outputs of the ATAM A Concise presentation of the architecture
Frequently there is “too much”
ATAM will force a “one hour” presentation of the architecture forcing it to be concise and clear
Articulation of Business Goals
Quality requirements in terms of collections of scenarios
Mapping of architectural decisions to quality attribute requirements
A set sensitivity and tradeoff points
Eg. A backup database positively affects reliability (sensitivity point with respect to reliability)
However it negatively affects performance (tradeoff)

18. More Outputs of the ATAM
A set of risks and non-risks
A risk is an architectural decision that may lead to undesirable consequences with respect to a stated quality attribute requirement
A non-risk is an architectural decision that, after analysis, is deemed to be safe
Identified risks can form the basis of a “architectural risk mitigation” plan
A set of risk themes
Examine the collection of risks produced looking for themes that are the result of systematic weaknesses in the architecture
Other outputs – more documentation, rationale, sense of community between stakeholders, architect, …

19. Phases of the ATAM Phase Activity Participants Duration Preparation
Preparation
Team leadership/key project decision makers
Over a few weeks 1
Evaluation
Evaluation team and project decision makers
1 day + hiatus of 2 to 3 weeks 2
Evaluation with Stakeholders
Ditto + stakeholders
2 days 3
Follow-up
Evaluation team and client
1 week

20. Steps of the Evaluation Phase(s)
Present the ATAM
Present Business drivers
Present Architecture
Identify architectural approaches
Generate quality attribute utility tree
Analyze architectural approaches
Hiatus and start of phase 2
Brainstorm and prioritize scenarios
Present results

21. Phase 0: Partnership
Client – someone who can exercise control of the project whose architecture is being evaluated
Perhaps a manger
Perhaps someone in an organization considering a purchase
Issues that must be resolved in Phase 0:
The client must understand the evaluation method and process (give them a book, make them a video)
The client should describe the system and architecture. A “go/no-go” decision is made here by the evaluation team leader.
Statement of work is negotiated
Issues of proprietary information resolved

22. Phase 0: Preparation Forming the evaluation team
Holding an evaluation kickoff meeting
Assignment of roles
Good idea to not get into ruts; try varying assignments
Roles not necessarily one-to-one
The minimum size evaluation team is 4
One person can be process observer, timekeeper and questioner
Team leader’s responsibilities are mostly “outside” the evaluation. He can double up. (Often the evaluation leader.)
Questioners should be chosen to represent the spectrum of expertise in performance, modifiability, …

23. Phase 1: Activities in Addition to the steps
Organizational meeting of evaluation team and key project personnel
Form schedule
The right people attend the meetings
They are prepared (know what is expected of them)
They have the right attitude
Besides carrying out the steps the team needs to gather as much information as possible to determine
Whether the remainder of the evaluation is feasible
Whether more architectural documentation is required
Which stakeholders should be present for phase 2

24. Step 1: Present the ATAM
Evaluation leader presents the ATAM to all participants
To explain the process
To answer questions
To set the context and expectations for the process
Using standard presentation discuss ATAM steps in brief and outputs of the evaluation

25. A Typical ATAM Agenda for Phases 1 and 2
Figure 3.9 from “Evaluating Software Architectures: Methods and Case Studies,” by Clements, Kazman and Klein

26. Step 2: Present Business Drivers
Everyone needs to understand the primary business drivers motivating/guiding the development of the system
A project decision maker presents a system overview from the business perspective
The system’s functionality
Relevant constraints: technical, managerial, economic, or political
Business goals
Major stakeholders
The architectural drivers – the quality attributes that shape the architecture

27. Step 3: Present the Architecture
The lead architect makes the presentation at the appropriate level of detail
Architecture Presentation (~20 slides; 60 minutes)
Architectural drivers and existing standrards/models/approaches for meeting (2-3 slides)
Important Architectural Information (4-8 slides)
Context diagram
Module or layer view
Component and connector view
Deployment view
Architectural approaches, patterns, or tactics employed

28. Step 3: Present the Architecture (cont)
Architectural approaches, patterns, or tactics employed
Use of COTS (commercial off the shelf) products
Trace of 1-3 most important use cases scenarios
Trace of 1-3 most important change scenarios
Architectural issues/risks with respect to meeting the driving architectural requirements
Glossary
Should have a high signal to noise ratio, don’t get bogged down too deeply in details
Should cover technical constraints such as operating system, hardware and middleware

29. Step 4: Identify Architectural Approaches
The ATAM analyzes an architecture by focusing on its architectural approaches
Captured by not analyzed (here) by the evaluation team
The evaluation team should explicitly asked the architect to name these

30. Step 5: Generate Quality Attribute Utility Tree

31. Scenarios Types of Scenarios: Use case scenarios Growth scenarios
The user wants to examine budgetary data
Growth scenarios
Change the maximum number of tracks from 150 to 200 and keep the latency of disk to screen at 200ms or less
Exploratory scenarios
Switch the OS from Unix to Windows
Improve availability from 98% to 99.99%

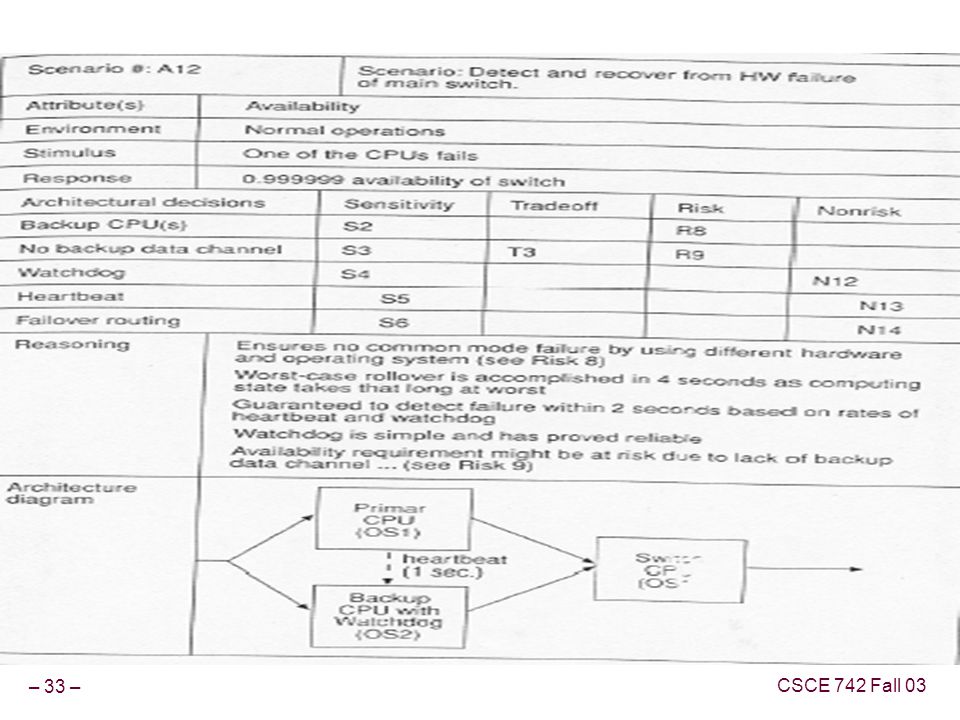

32. Step 6:Analyze Architectural Approaches
The evaluation team examines the highest priority scenarios one at a time and the architect is asked how the architecture supports each one.

34. Step 7: Brainstorm and Prioritize Scenarios
The Hiatus
Evaluation team distills what has been learned and informally contacts architecture for more information where needed
After

35. References
“Evaluating Software Architectures: Methods and Case Studies” by Clements, Kazman and Klein, published by Addison-Wesley, Part of the SEI Series in Software Engineering.
SEI Software Architecture publications
