1. http://europlanet-ri.eu JRA3 / EMDAF Kick-Off-Meeting: Interactive Catalogue of Planetary Models & Data Analysis Tools (ICPM&DAT) R. Stöckler 1 (JRA3) F. Topf 1 (JRA4) M.L. Khodachenko 1 (Coordinator) S. Miller 2 (Co-Coordinator) June, 16 th, 17 th, 18 th 2009 – Graz, Austria 1 IWF-OeAW, Graz, Austria; 2 UCL, London, UK EC Grant agreement n° 228319

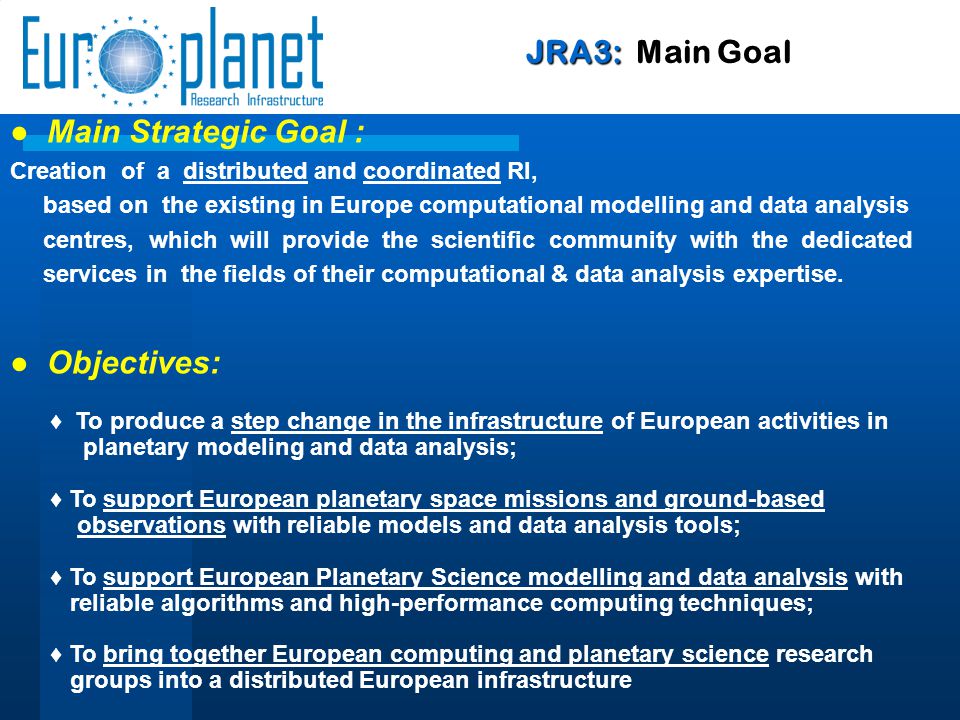

2. ● Main Strategic Goal : Creation of a distributed and coordinated RI, based on the existing in Europe computational modelling and data analysis centres, which will provide the scientific community with the dedicated services in the fields of their computational & data analysis expertise. ● Objectives: ♦ To produce a step change in the infrastructure of European activities in planetary modeling and data analysis; ♦ To support European planetary space missions and ground-based observations with reliable models and data analysis tools; ♦ To support European Planetary Science modelling and data analysis with reliable algorithms and high-performance computing techniques; ♦ To bring together European computing and planetary science research groups into a distributed European infrastructure JRA3: Main Goal JRA3: Main Goal

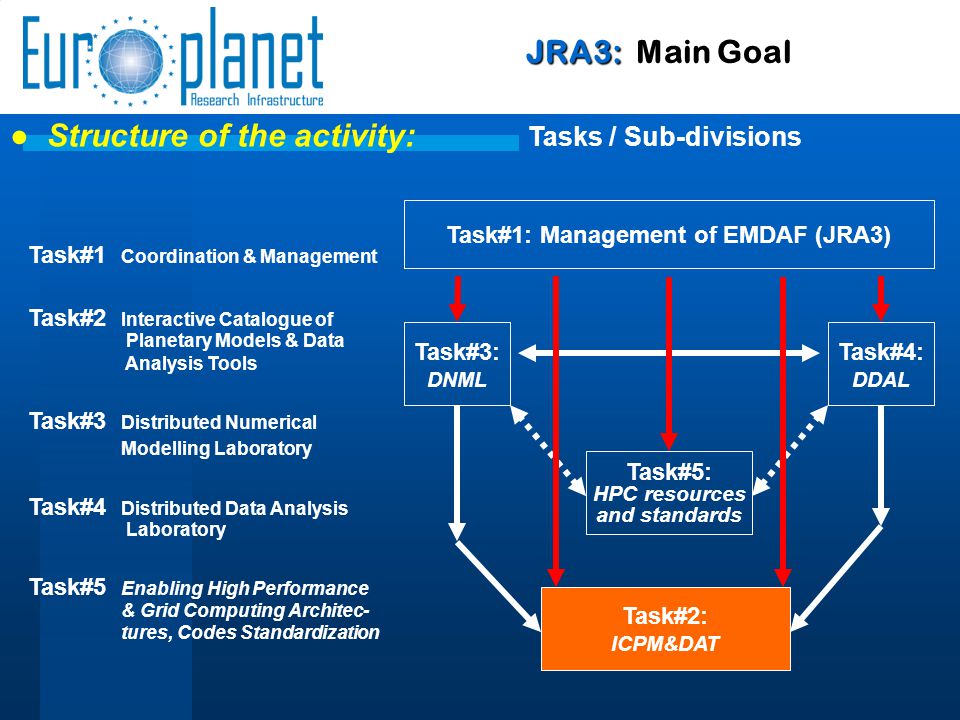

3. ● Structure of the activity: Tasks / Sub-divisions Task#2: ICPM&DAT Task#3: DNML Task#4: DDAL Task#5: HPC resources and standards Task#1: Management of EMDAF (JRA3) Task#1 Coordination & Management Task#2 Interactive Catalogue of Planetary Models & Data Analysis Tools Task#3 Distributed Numerical Modelling Laboratory Task#4 Distributed Data Analysis Laboratory Task#5 Enabling High Performance & Grid Computing Architec- tures, Codes Standardization

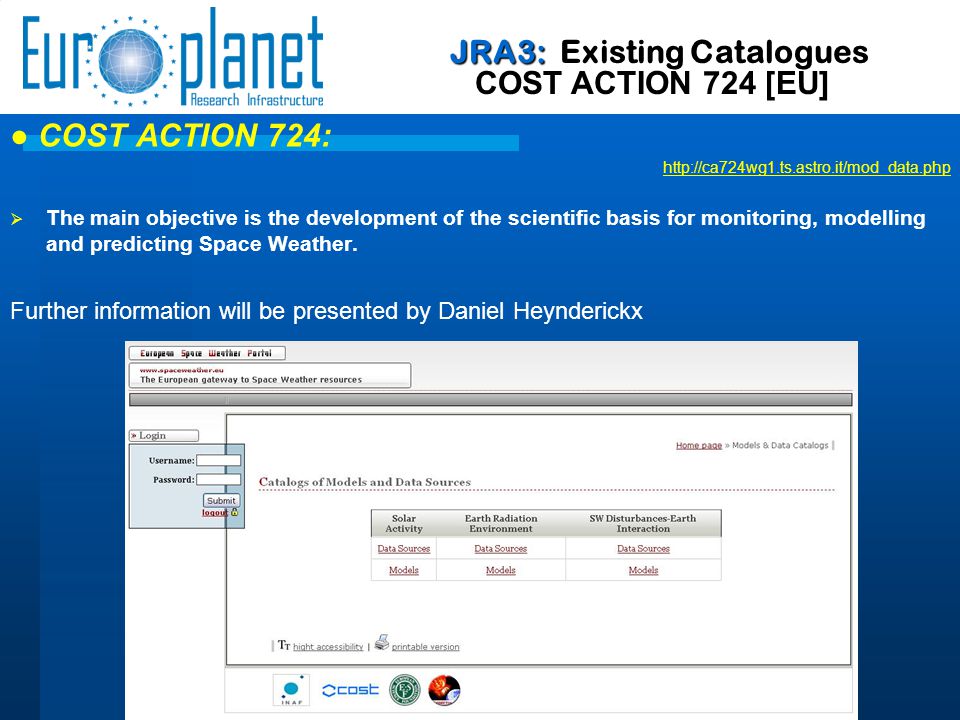

4. JRA3: Existing Catalogues JRA3: Existing Catalogues COST ACTION 724 [EU] ● COST ACTION 724: http://ca724wg1.ts.astro.it/mod_data.php  The main objective is the development of the scientific basis for monitoring, modelling and predicting Space Weather. Further information will be presented by Daniel Heynderickx

5. JRA3: Existing Catalogues JRA3: Existing Catalogues CCMC [US] ● Community Coordinated Modeling Center (CCMC): http://ccmc.gsfc.nasa.gov/models/models_at_glance.php  provides, to the international research community, access to modern space science simulations and supports the transition of modern space research models to space weather operations : through an automated request system for model runs through modern, online, visualization and analysis tools through standard data formats for simulation data downloads  tests and evaluates models: against standard metrics through event studies, and through real-time calculations in support of the needs of science users and space weather forecasters  supports Space Weather forecasters : through transitioning of research models to operations through model evaluations through the provisions of forecasting tools (Self-Definition)

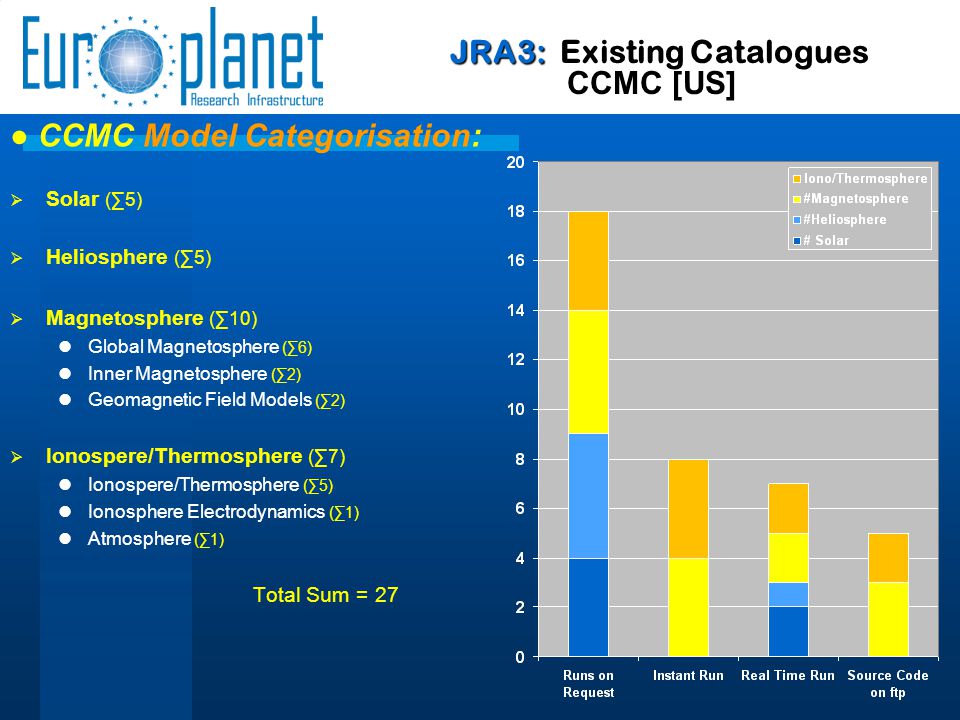

6. JRA3: Existing Catalogues JRA3: Existing Catalogues CCMC [US] ● CCMC Model Categorisation:  Solar (∑5)  Heliosphere (∑5)  Magnetosphere (∑10) Global Magnetosphere (∑6) Inner Magnetosphere (∑2) Geomagnetic Field Models (∑2)  Ionospere/Thermosphere (∑7) Ionospere/Thermosphere (∑5) Ionosphere Electrodynamics (∑1) Atmosphere (∑1) Total Sum = 27

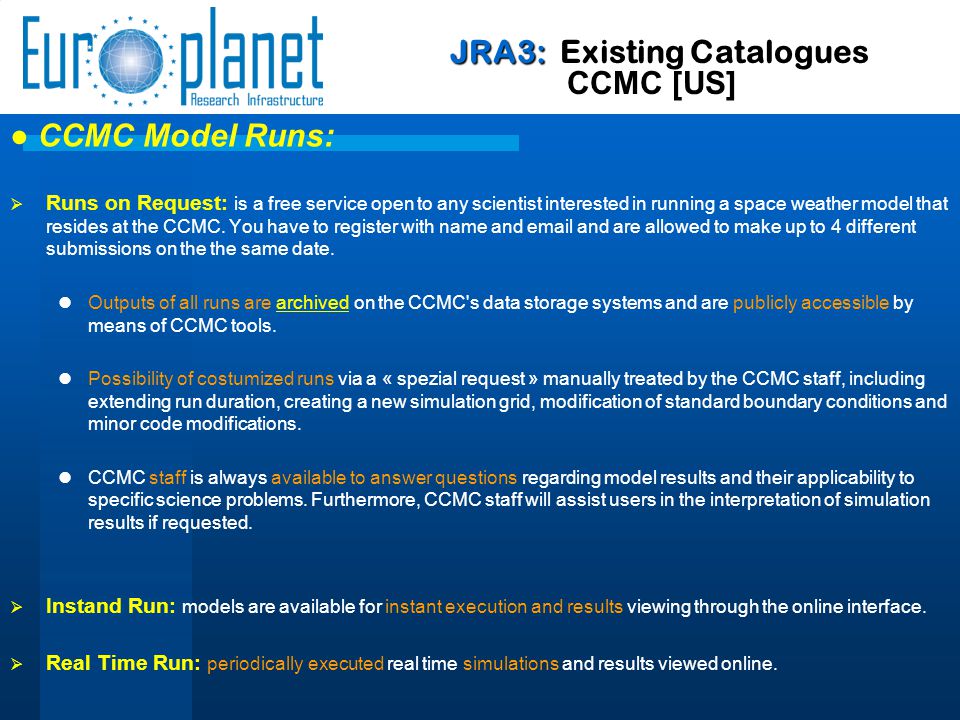

7. JRA3: Existing Catalogues JRA3: Existing Catalogues CCMC [US] ● CCMC Model Runs:  Runs on Request: is a free service open to any scientist interested in running a space weather model that resides at the CCMC. You have to register with name and email and are allowed to make up to 4 different submissions on the the same date. Outputs of all runs are archived on the CCMC's data storage systems and are publicly accessible by means of CCMC tools.archived Possibility of costumized runs via a « spezial request » manually treated by the CCMC staff, including extending run duration, creating a new simulation grid, modification of standard boundary conditions and minor code modifications. CCMC staff is always available to answer questions regarding model results and their applicability to specific science problems. Furthermore, CCMC staff will assist users in the interpretation of simulation results if requested.  Instand Run: models are available for instant execution and results viewing through the online interface.  Real Time Run: periodically executed real time simulations and results viewed online.

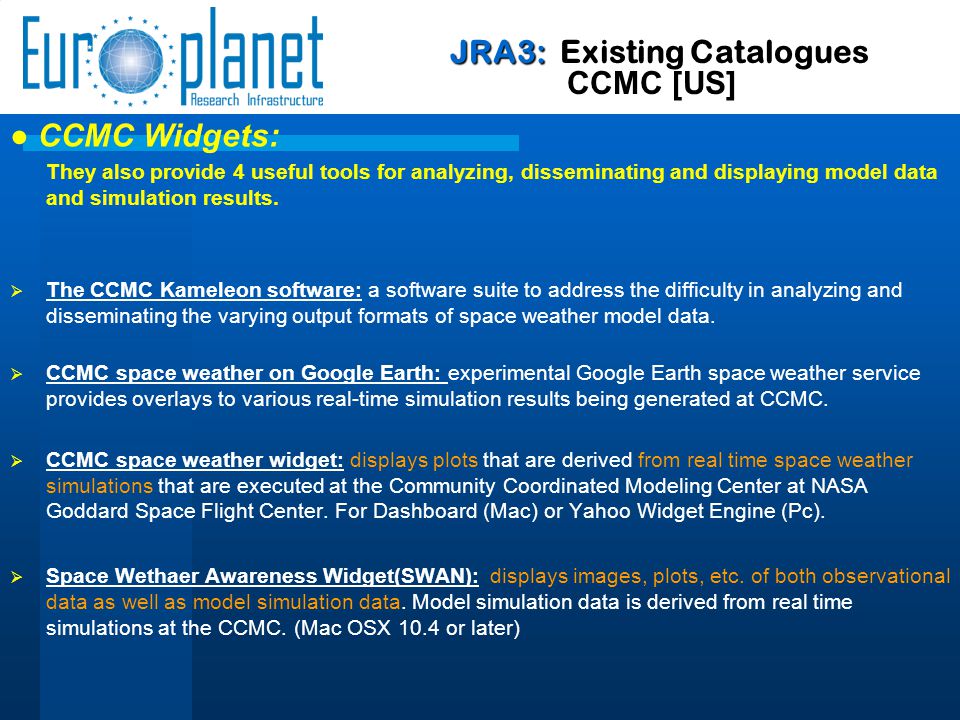

8. ● CCMC Widgets: They also provide 4 useful tools for analyzing, disseminating and displaying model data and simulation results.  The CCMC Kameleon software: a software suite to address the difficulty in analyzing and disseminating the varying output formats of space weather model data.  CCMC space weather on Google Earth: experimental Google Earth space weather service provides overlays to various real-time simulation results being generated at CCMC.  CCMC space weather widget: displays plots that are derived from real time space weather simulations that are executed at the Community Coordinated Modeling Center at NASA Goddard Space Flight Center. For Dashboard (Mac) or Yahoo Widget Engine (Pc).  Space Wethaer Awareness Widget(SWAN):displays images, plots, etc. of both observational data as well as model simulation data. Model simulation data is derived from real time simulations at the CCMC. (Mac OSX 10.4 or later) JRA3: Existing Catalogues JRA3: Existing Catalogues CCMC [US]

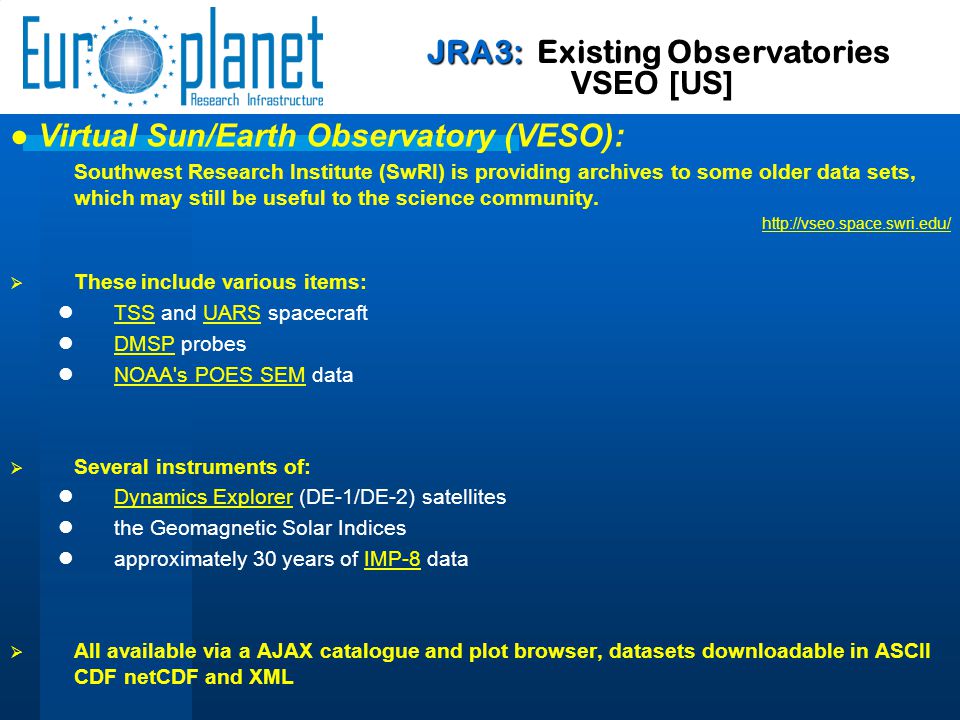

9. ● Virtual Sun/Earth Observatory (VESO): Southwest Research Institute (SwRI) is providing archives to some older data sets, which may still be useful to the science community. http://vseo.space.swri.edu/  These include various items: TSS and UARS spacecraft TSSUARS DMSP probes DMSP NOAA's POES SEM data NOAA's POES SEM  Several instruments of: Dynamics Explorer (DE-1/DE-2) satellites Dynamics Explorer the Geomagnetic Solar Indices approximately 30 years of IMP-8 dataIMP-8  All available via a AJAX catalogue and plot browser, datasets downloadable in ASCII CDF netCDF and XML JRA3: Existing Observatories JRA3: Existing Observatories VSEO [US]

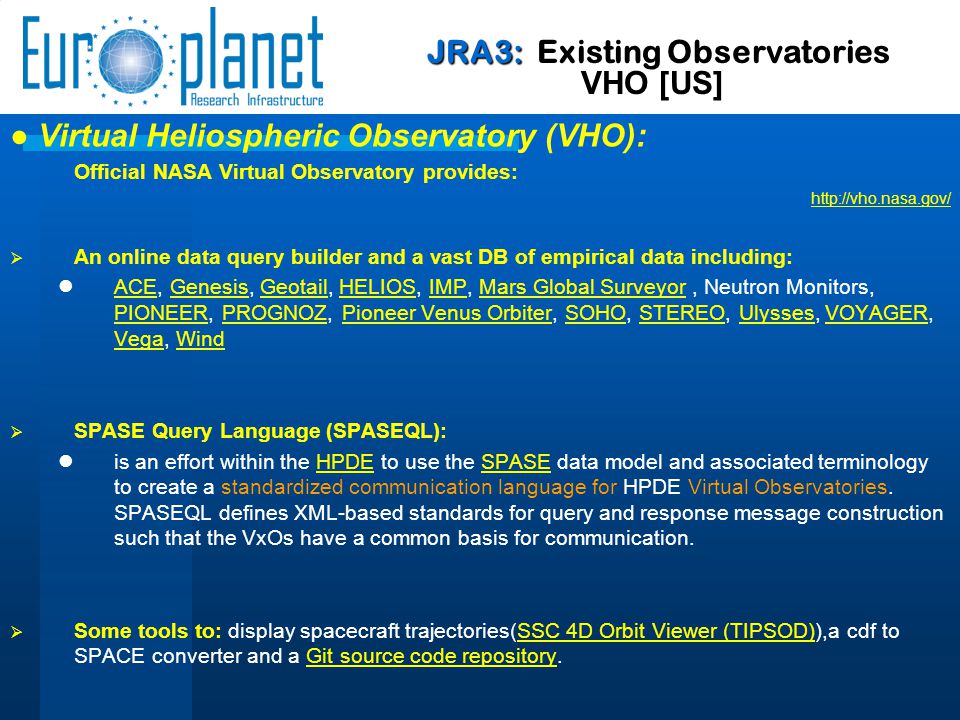

10. JRA3: Existing Observatories JRA3: Existing Observatories VHO [US] ● Virtual Heliospheric Observatory (VHO): Official NASA Virtual Observatory provides: http://vho.nasa.gov/  An online data query builder and a vast DB of empirical data including: ACE, Genesis, Geotail, HELIOS, IMP, Mars Global Surveyor, Neutron Monitors, PIONEER, PROGNOZ, Pioneer Venus Orbiter, SOHO, STEREO, Ulysses, VOYAGER, Vega, Wind ACEGenesisGeotailHELIOSIMPMars Global Surveyor PIONEERPROGNOZPioneer Venus OrbiterSOHOSTEREOUlyssesVOYAGER VegaWind  SPASE Query Language (SPASEQL): is an effort within the HPDE to use the SPASE data model and associated terminology to create a standardized communication language for HPDE Virtual Observatories. SPASEQL defines XML-based standards for query and response message construction such that the VxOs have a common basis for communication.HPDESPASE  Some tools to: display spacecraft trajectories(SSC 4D Orbit Viewer (TIPSOD)),a cdf to SPACE converter and a Git source code repository.SSC 4D Orbit Viewer (TIPSOD)Git source code repository

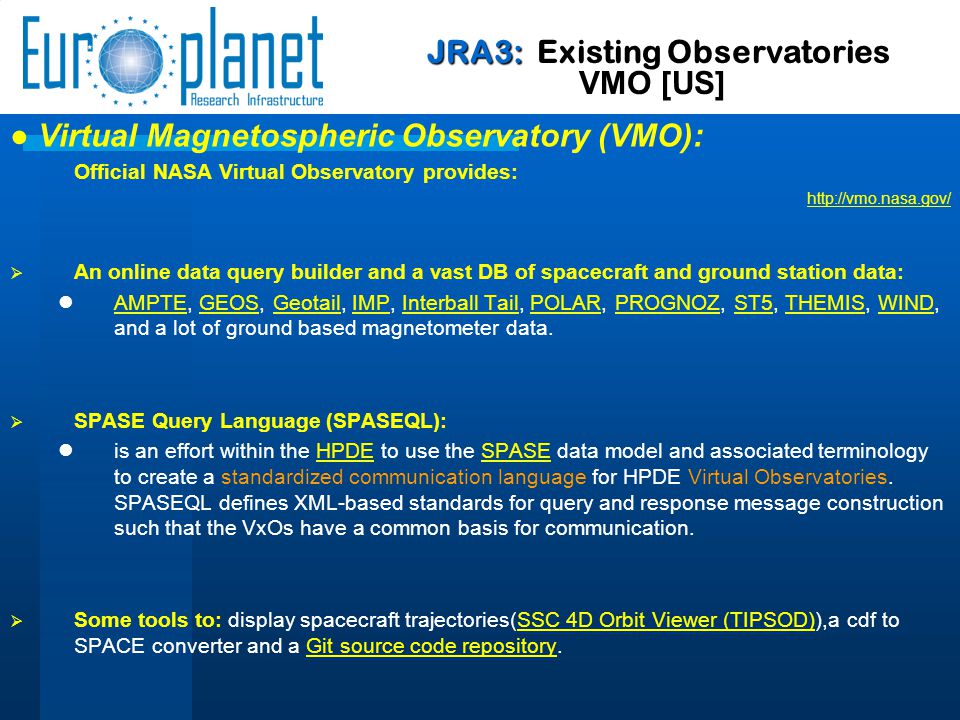

11. JRA3: Existing Observatories JRA3: Existing Observatories VMO [US] ● Virtual Magnetospheric Observatory (VMO): Official NASA Virtual Observatory provides: http://vmo.nasa.gov/  An online data query builder and a vast DB of spacecraft and ground station data: AMPTE, GEOS, Geotail, IMP, Interball Tail, POLAR, PROGNOZ, ST5, THEMIS, WIND, and a lot of ground based magnetometer data. AMPTEGEOSGeotailIMPInterball TailPOLARPROGNOZST5THEMISWIND  SPASE Query Language (SPASEQL): is an effort within the HPDE to use the SPASE data model and associated terminology to create a standardized communication language for HPDE Virtual Observatories. SPASEQL defines XML-based standards for query and response message construction such that the VxOs have a common basis for communication.HPDESPASE  Some tools to: display spacecraft trajectories(SSC 4D Orbit Viewer (TIPSOD)),a cdf to SPACE converter and a Git source code repository.SSC 4D Orbit Viewer (TIPSOD)Git source code repository

12. JRA3: Existing Tools JRA3: Existing Tools CSEM [US] ● Center for Space Environment Modeling (CSEM): provide a working prototype of the NASA-funded Space Weather Modeling Framework SWMF which was developed to provide flexible “plug and play” type simulation capabilities serving the Sun-Earth modeling community. http://butch.engin.umich.edu/swmf/  In its current form it links together nine models from the surface of the Sun to the upper atmosphere of the Earth: 1.SC – Solar Corona which includes the Eruptive Event Generator 2.IH – Inner Heliosphere 3.SP – Solar Energetic Particles 4.GM – Global Magnetosphere 5.IM – Inner Magnetosphere 6.PW – Polar Wind 7.RB – Radiation Belts 8.IE – Ionosphere Electrodynamics 9.UA – Upper Atmosphere  In the future the SWMF may be extended to include even more physics domains: Cometary Environment, Interstellar Neutrals, Outer Heliosphere, Plasmasphere, Planetary Satellites and Polar Wind. The SWMF implementation is based on the component technology and Object-Oriented Programming emulated in Fortran 90. The SWMF parallel communications are based on the MPI standard.

13. JRA3: Existing Tools JRA3: Existing Tools CISM [US] ● Center for integrated Space Weather Modelling (CISM): will integrate existing simulations of the four regions of space weather activity based on models already developed by Center members: a model of the solar corona (SAIC), a model of the solar wind developed at the University of Colorado, a Dartmouth model of the magnetosphere, and a model of the interaction between the magnetosphere and earth’s ionosphere (NCAR). http://www.bu.edu/cism/  Maybe useful due to: CISM_DX: (http://www.bu.edu/cism/cismdx/) is a community-developed suite of integrated data, models, and data and model explorers, for research and education. The data and model explorers are based on code written for OpenDX and Octave.http://www.bu.edu/cism/cismdx/ Providing some Publications, Presentations and Documents about space weather related topics.

14. ● Ceintures de RAdiation de la TERRE (CRATERRE): The goal of the project is to develop new radiation belt models allowing a better description of the space environment (electron and proton) for mission specifications. http://craterre.onecert.fr/home.html  Maybe useful for Task 3 and 4 due to: ONERA-DESP-LIB: library to compute magnetic coordinates for any location in the Earth's environment for various magnetic field models and coordinate transformations. IPSAT: Ionising Particle in Space Analysis Tool is a virtual observatory. A radiation belt data base has been developped and is being growing. Then a web interface to plot the data in many different ways and to compare them between different spacecraft on different orbits is provided. JRA3: Existing Tools JRA3: Existing Tools CRATERRE [FR]

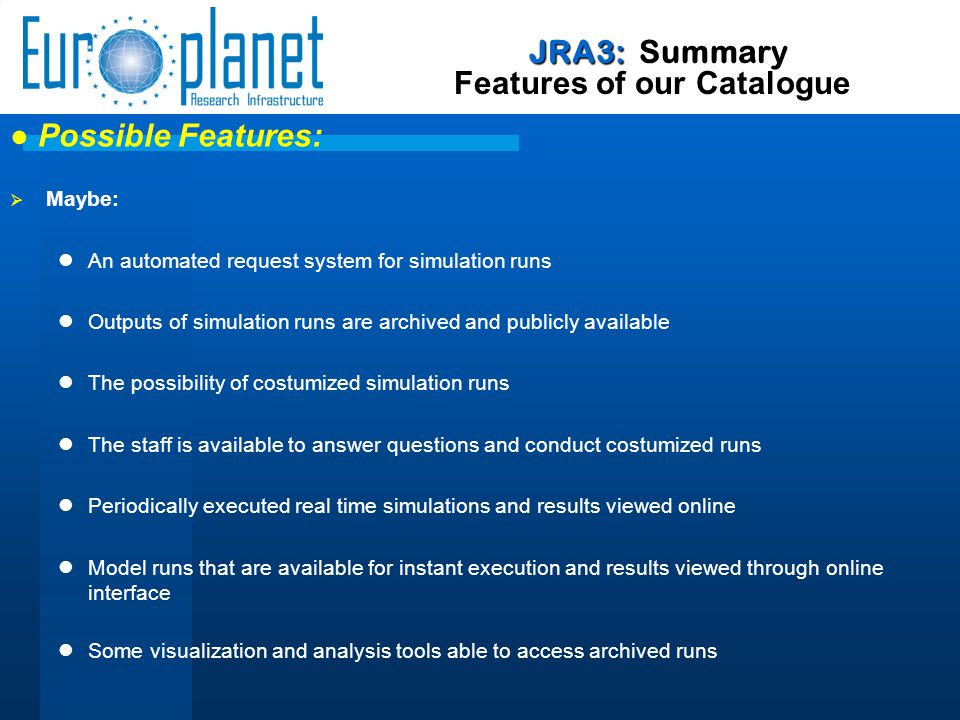

15. JRA3: Summary JRA3: Summary Features of our Catalogue ● Possible Features:  Maybe: An automated request system for simulation runs Outputs of simulation runs are archived and publicly available The possibility of costumized simulation runs The staff is available to answer questions and conduct costumized runs Periodically executed real time simulations and results viewed online Model runs that are available for instant execution and results viewed through online interface Some visualization and analysis tools able to access archived runs

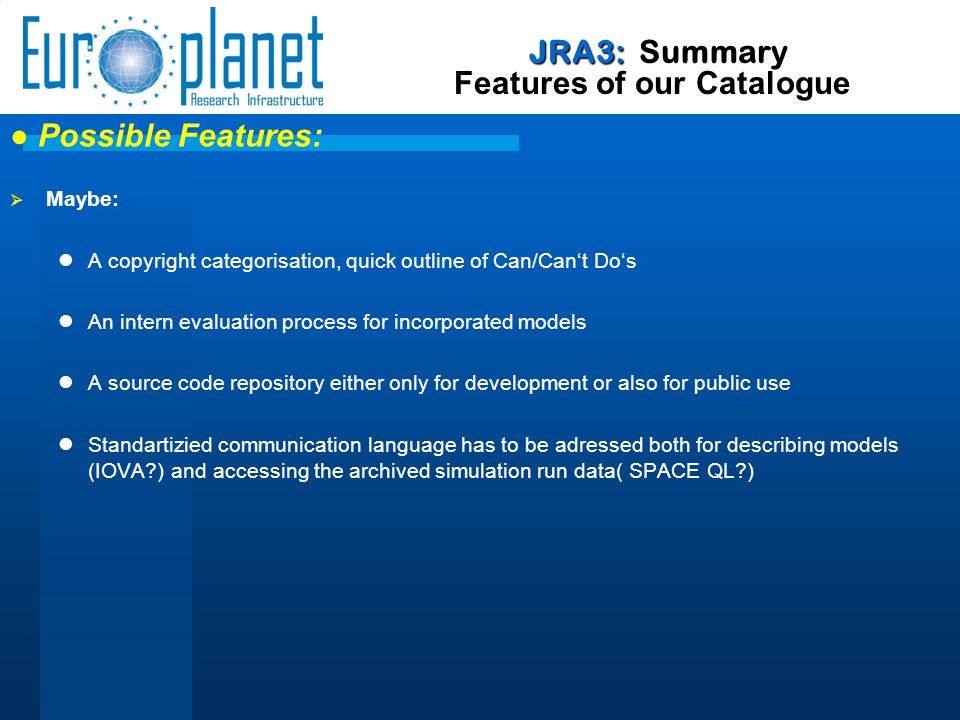

16. JRA3: Summary JRA3: Summary Features of our Catalogue ● Possible Features:  Maybe: A copyright categorisation, quick outline of Can/Can‘t Do‘s An intern evaluation process for incorporated models A source code repository either only for development or also for public use Standartizied communication language has to be adressed both for describing models (IOVA?) and accessing the archived simulation run data( SPACE QL?)

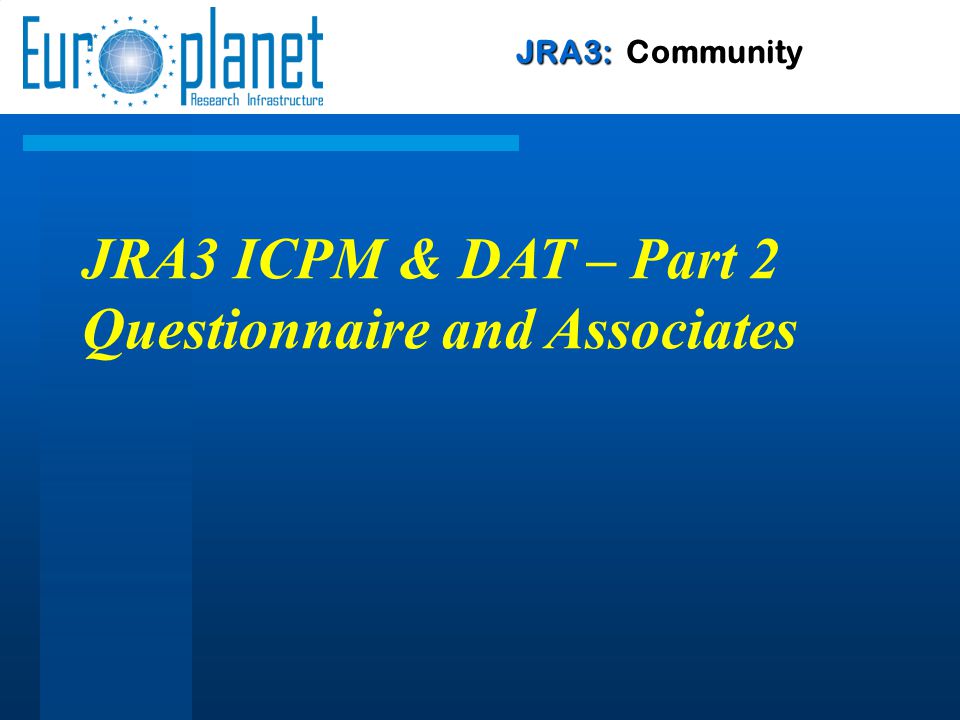

17. JRA3: Community JRA3: Community JRA3 ICPM & DAT – Part 2 Questionnaire and Associates

18. JRA3: Community JRA3: CommunityQuestionnaire ● JRA3 Questionnaire: We at IWF conducted a short circular email to many potentially interested people from former Europlanet Projects.

19. JRA3: Community JRA3: CommunityAssociates ● JRA3 Associates Matrix:  The Goal is to establish a list of reliable providers and users of our catalogue and to involve them as far as possible into the process of building it. We need them to: Find out what modles and tools the partitipants are willing to provide. Find out what are the most wanted category groups and services. Find out what’s missing???  Snapshot of the Associates Matrix:

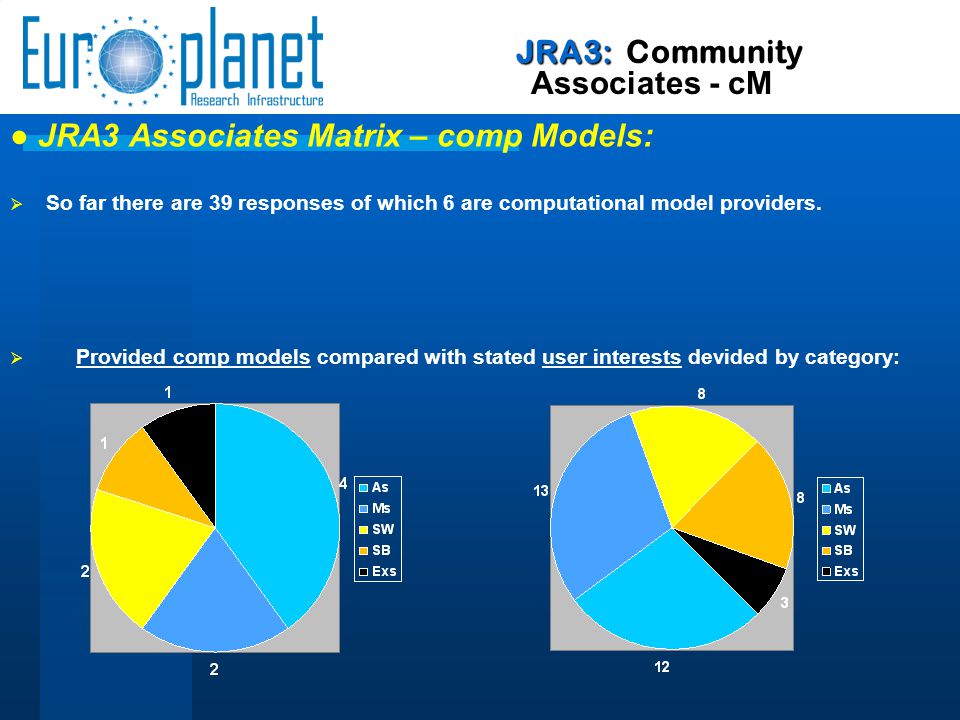

20. ● JRA3 Associates Matrix – comp Models:  So far there are 39 responses of which 6 are computational model providers.  Provided comp models compared with stated user interests devided by category: JRA3: Community JRA3: Community Associates - cM

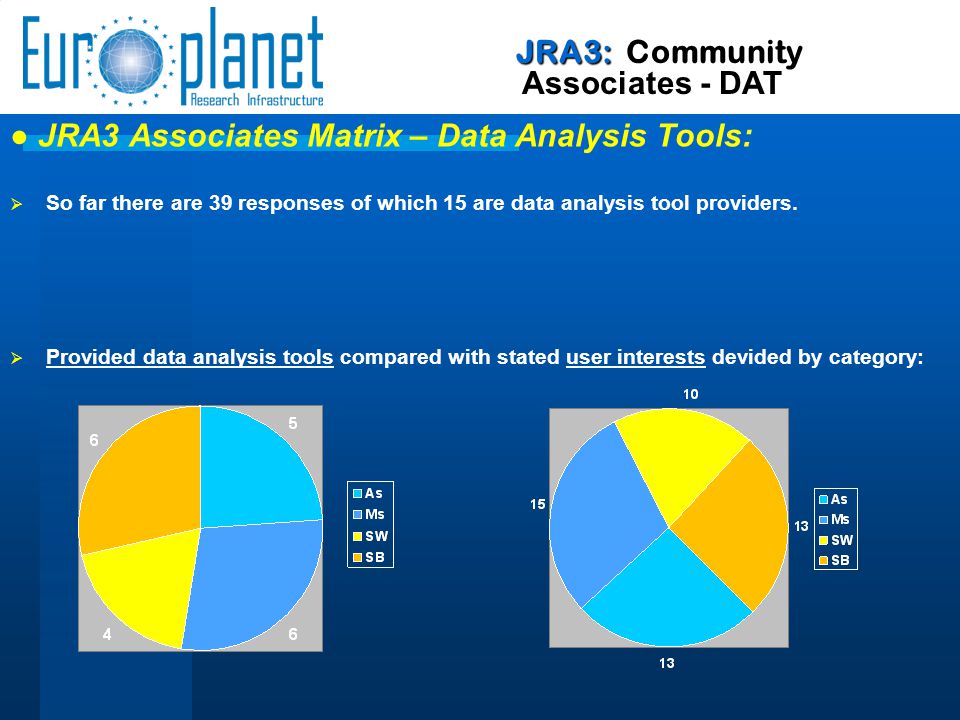

21. JRA3: Community JRA3: Community Associates - DAT ● JRA3 Associates Matrix – Data Analysis Tools:  So far there are 39 responses of which 15 are data analysis tool providers.  Provided data analysis tools compared with stated user interests devided by category:

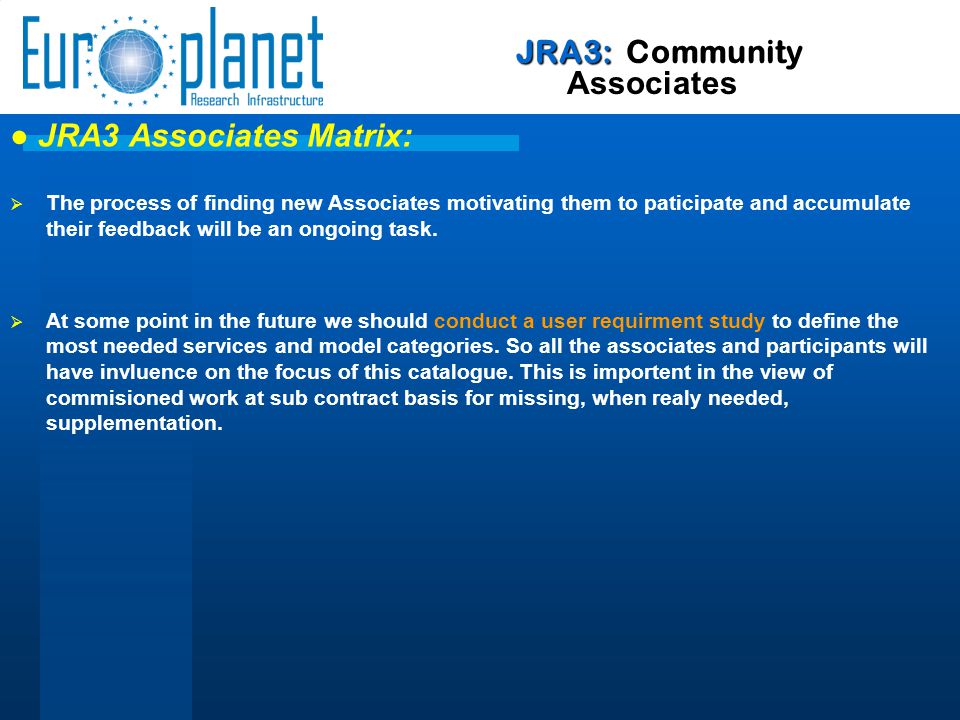

22. JRA3: Community JRA3: CommunityAssociates ● JRA3 Associates Matrix:  The process of finding new Associates motivating them to paticipate and accumulate their feedback will be an ongoing task.  At some point in the future we should conduct a user requirment study to define the most needed services and model categories. So all the associates and participants will have invluence on the focus of this catalogue. This is importent in the view of commisioned work at sub contract basis for missing, when realy needed, supplementation.
