ENGR 220 Section 6.1~6.2 BENDING

2
Internal Forces

3
Method of Sections

4
Internal Forces in 2-D

5

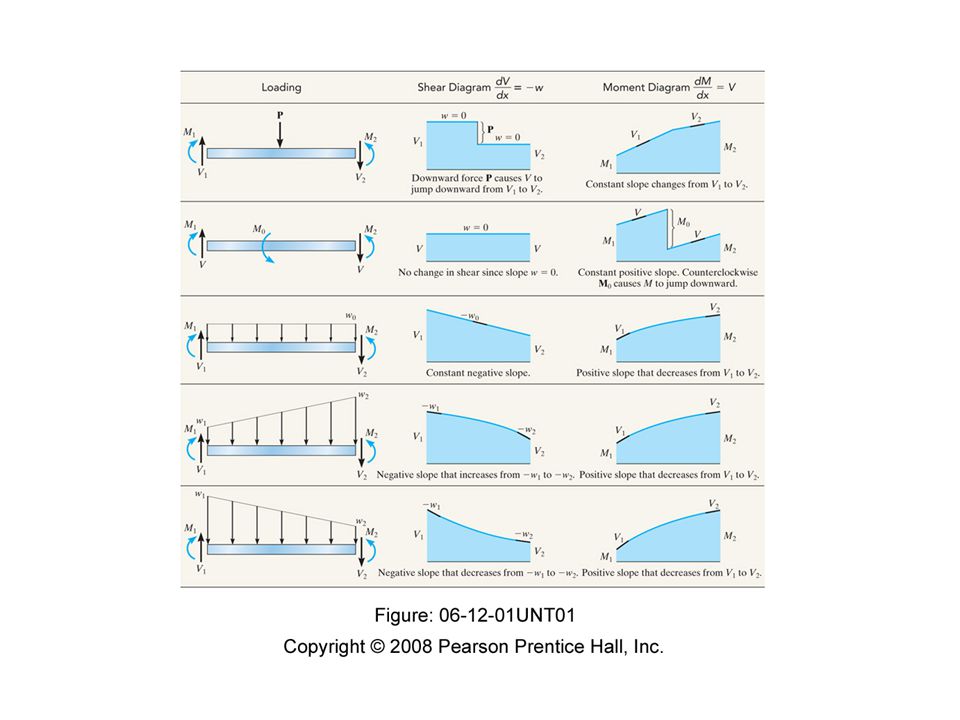

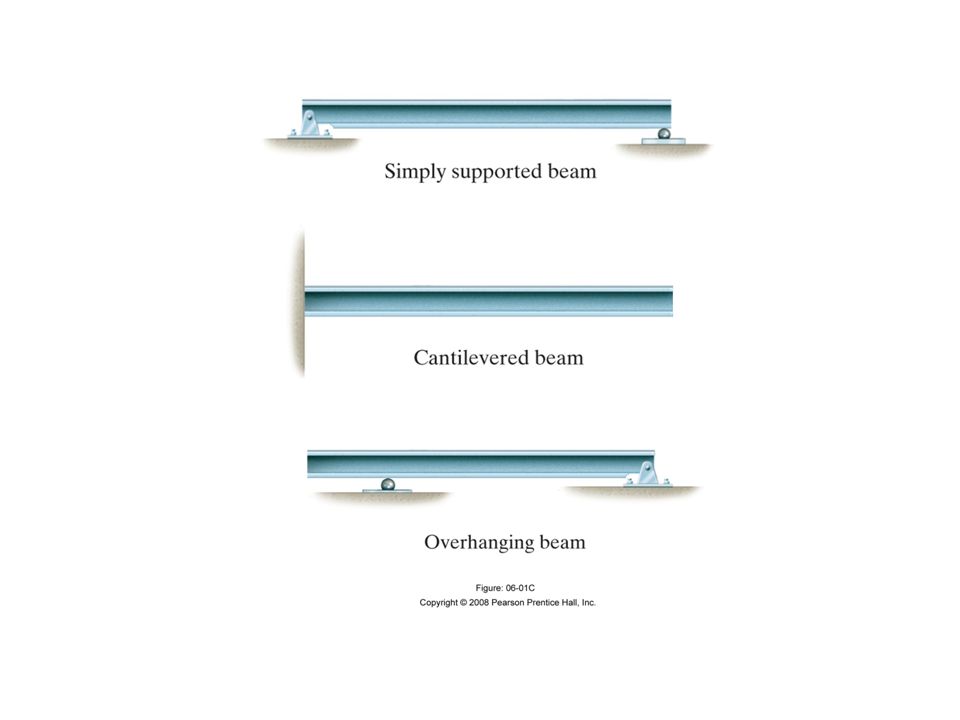

**Shear and Moment Diagrams**

For beams we can calculate the shear and moment diagrams as a function of position along the beam. Internal normal force will not be considered in that most loadings are vertical on a beam and were are primarily concerned about shear and bending failures.

10
**Graphical Method for Shear and Bending Moment Diagrams**

11
Sign Convention Shear ~ positive direction is denoted by an internal force that causes a clockwise rotation on which it acts. Moment ~ positive direction is denoted by and internal moment that causes a compression or pushing on the upper part of the member

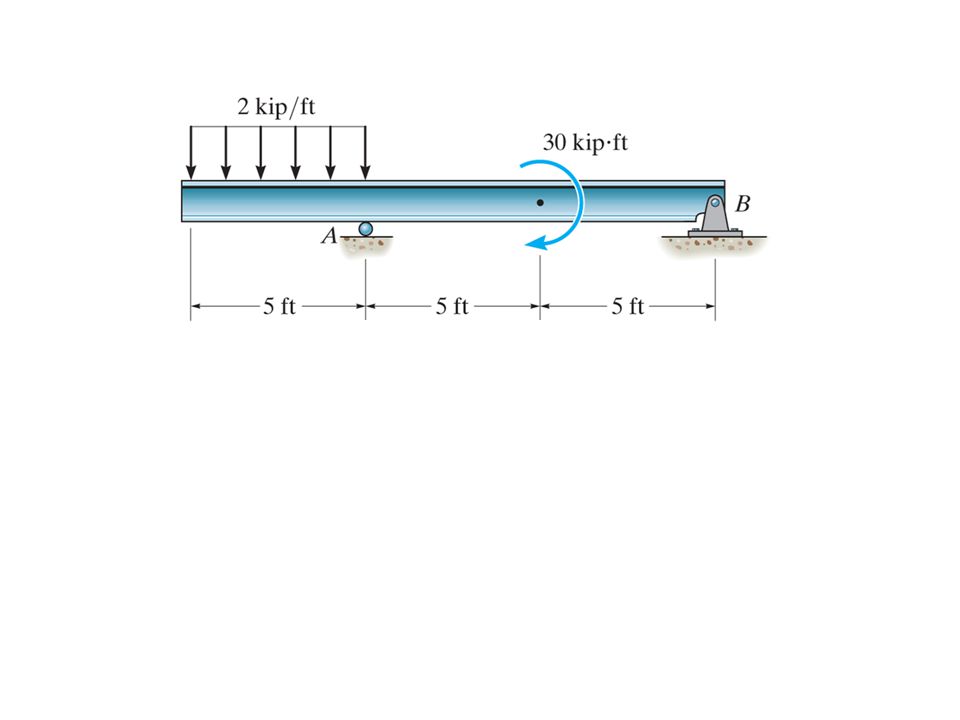

13

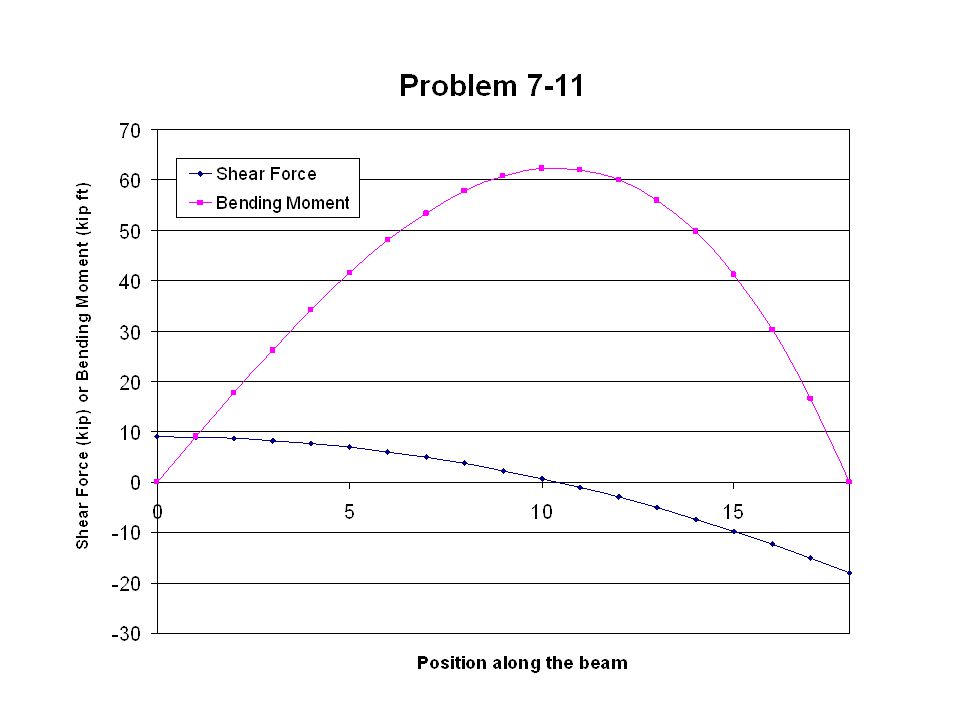

**Graph the internal forces shear force and bending moment along the axis of the beam.**

15

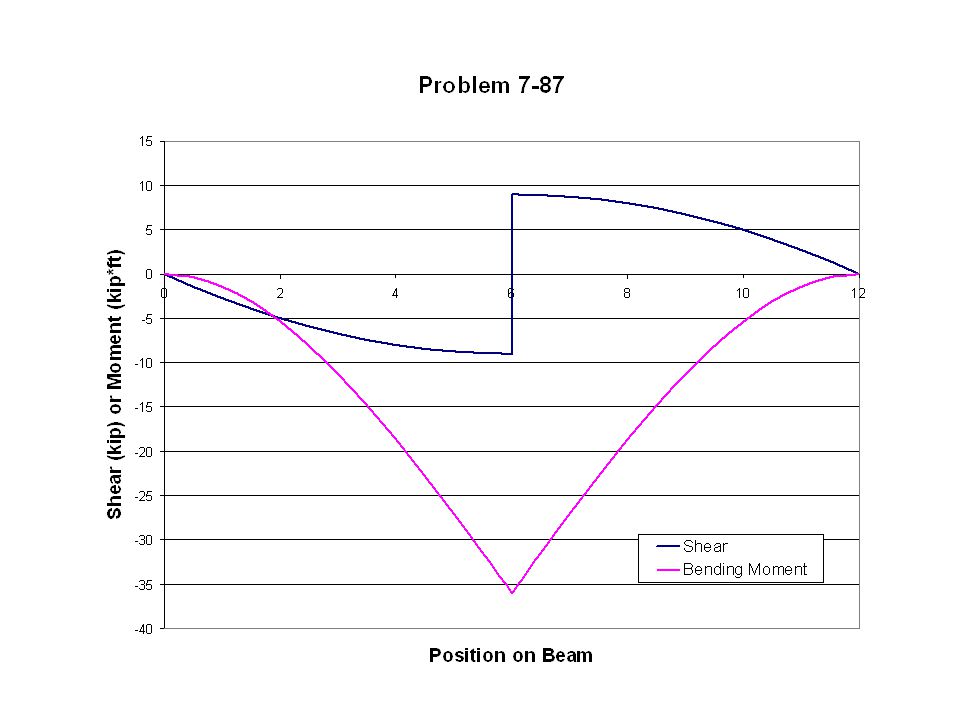

**7-87: Draw the shear and loading diagrams**
