The Fourier transform. Properties of Fourier transforms Convolution Scaling Translation.

Similar presentations

Presentation on theme: "The Fourier transform. Properties of Fourier transforms Convolution Scaling Translation."— Presentation transcript:

1 The Fourier transform

2 Properties of Fourier transforms Convolution Scaling Translation

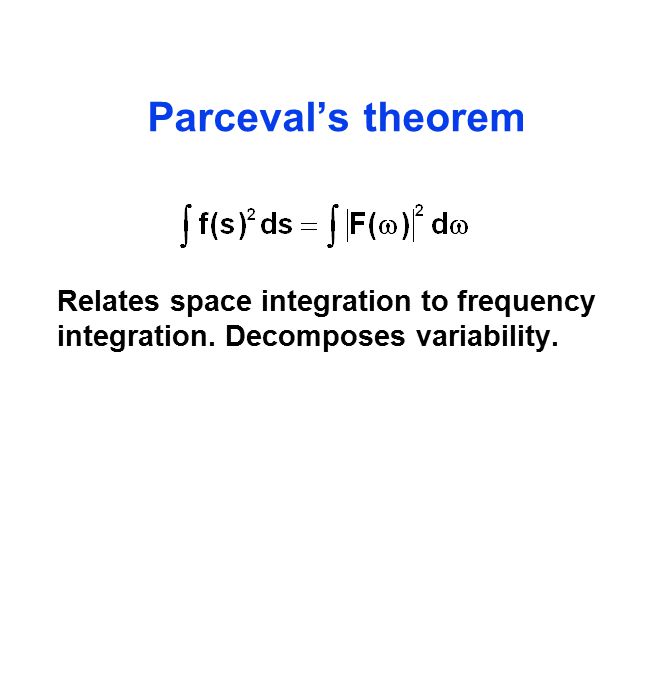

3 Parceval’s theorem Relates space integration to frequency integration. Decomposes variability.

4 Aliasing Observe field at lattice of spacing . Since the frequencies  and  ’=  +2  m/  are aliases of each other, and indistinguishable. The highest distinguishable frequency is , the Nyquist frequency.

5 Illustration of aliasing Aliasing applet

6 Spectral representation Stationary processes Spectral process Y has stationary increments If F has a density f, it is called the spectral density.

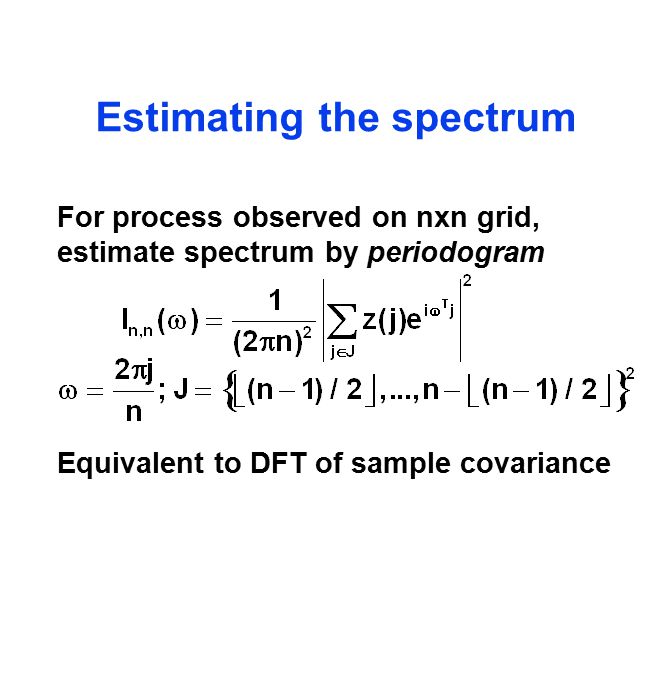

7 Estimating the spectrum For process observed on nxn grid, estimate spectrum by periodogram Equivalent to DFT of sample covariance

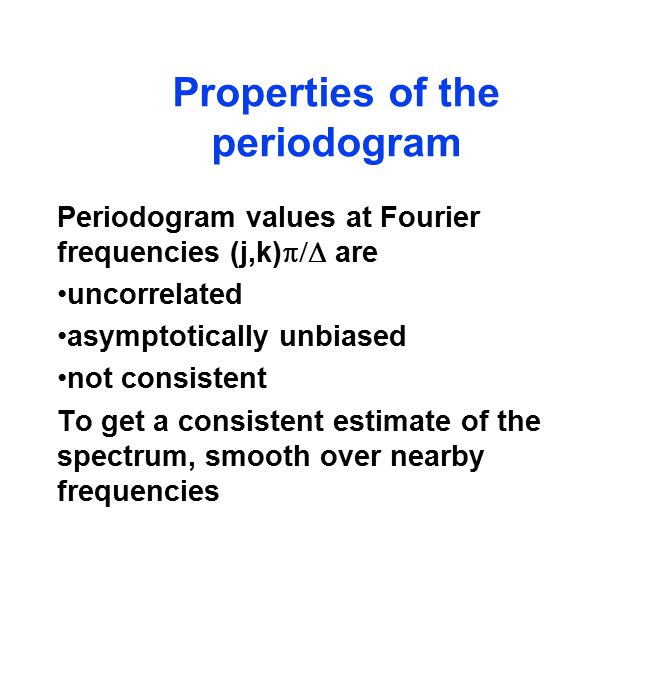

8 Properties of the periodogram Periodogram values at Fourier frequencies (j,k)  are uncorrelated asymptotically unbiased not consistent To get a consistent estimate of the spectrum, smooth over nearby frequencies

9 Some common isotropic spectra Squared exponential Matérn

10 A simulated process

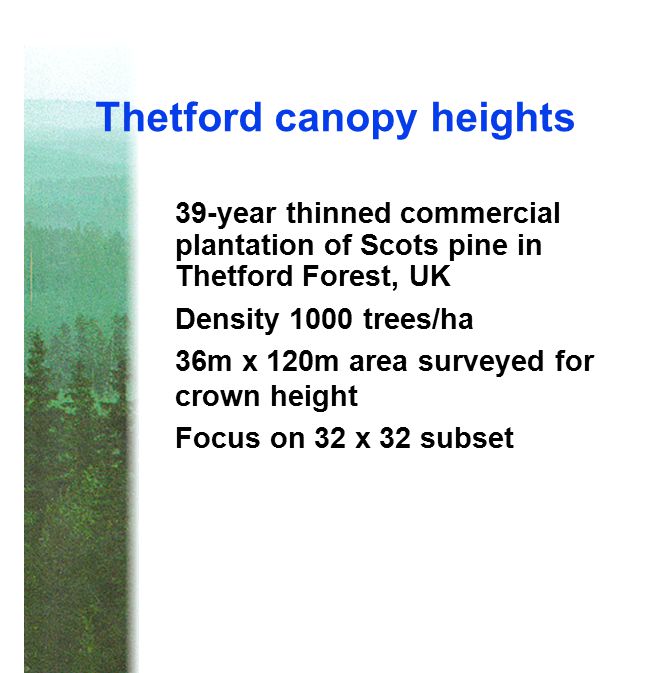

11 Thetford canopy heights 39-year thinned commercial plantation of Scots pine in Thetford Forest, UK Density 1000 trees/ha 36m x 120m area surveyed for crown height Focus on 32 x 32 subset

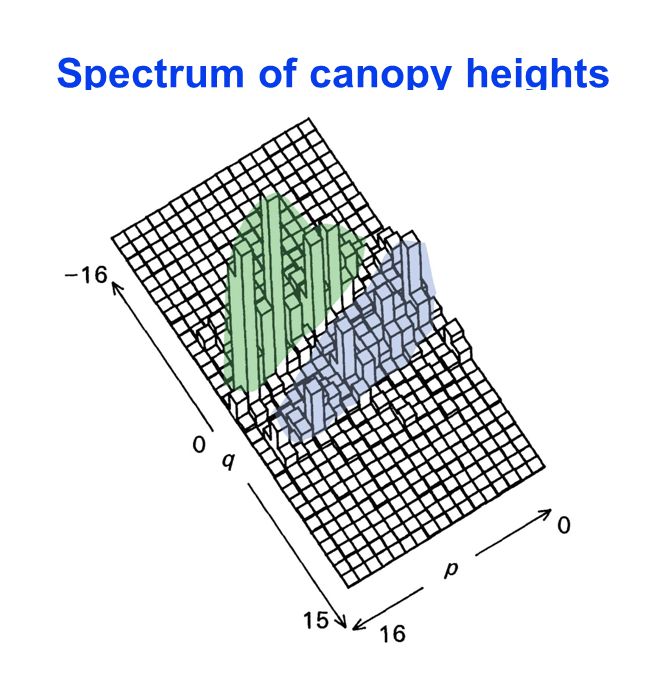

12 Spectrum of canopy heights

13 Whittle likelihood Approximation to Gaussian likelihood using periodogram: where the sum is over Fourier frequencies, avoiding 0, and f is the spectral density Takes O(N logN) operations to calculate instead of O(N 3 ).

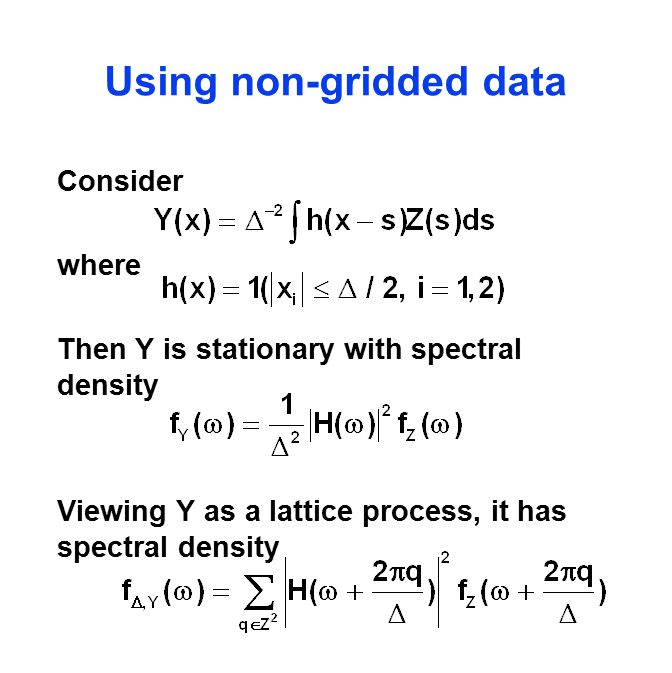

14 Using non-gridded data Consider where Then Y is stationary with spectral density Viewing Y as a lattice process, it has spectral density

15 Estimation Let where J x is the grid square with center x and n x is the number of sites in the square. Define the tapered periodogram where. The Whittle likelihood is approximately

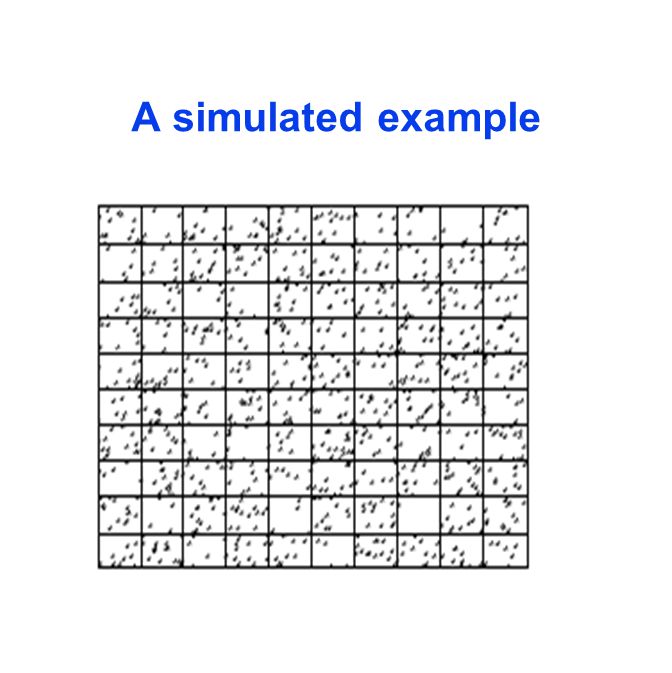

16 A simulated example

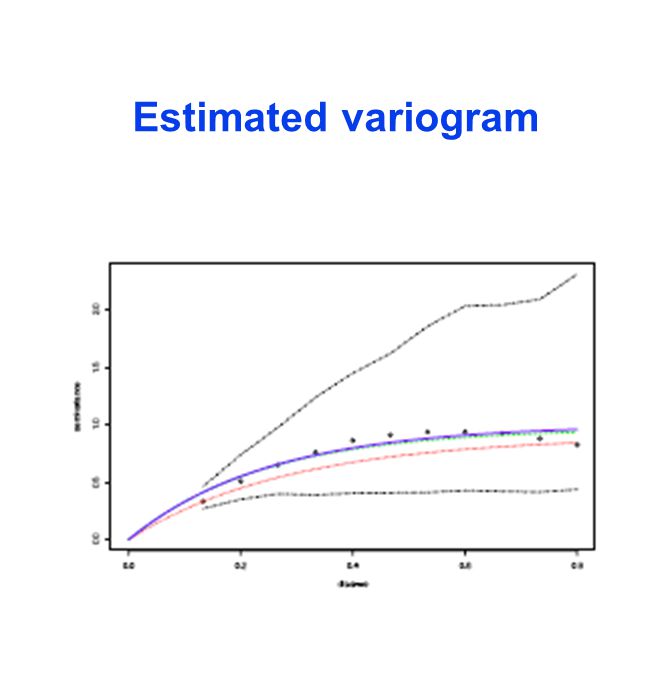

17 Estimated variogram

18 Evidence of anisotropy 15 o red 60 o green 105 o blue 150 o brown

19 Another view of anisotropy

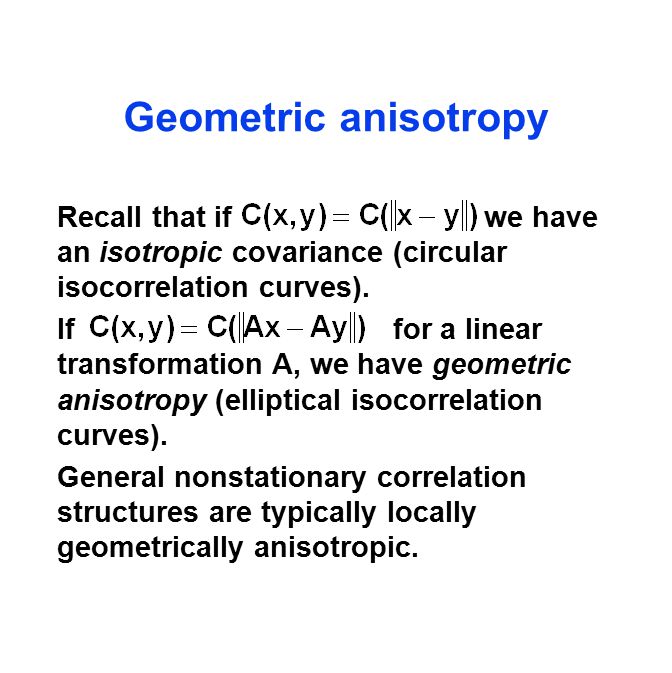

20 Geometric anisotropy Recall that if we have an isotropic covariance (circular isocorrelation curves). If for a linear transformation A, we have geometric anisotropy (elliptical isocorrelation curves). General nonstationary correlation structures are typically locally geometrically anisotropic.

21 Lindgren & Rychlik transformation
