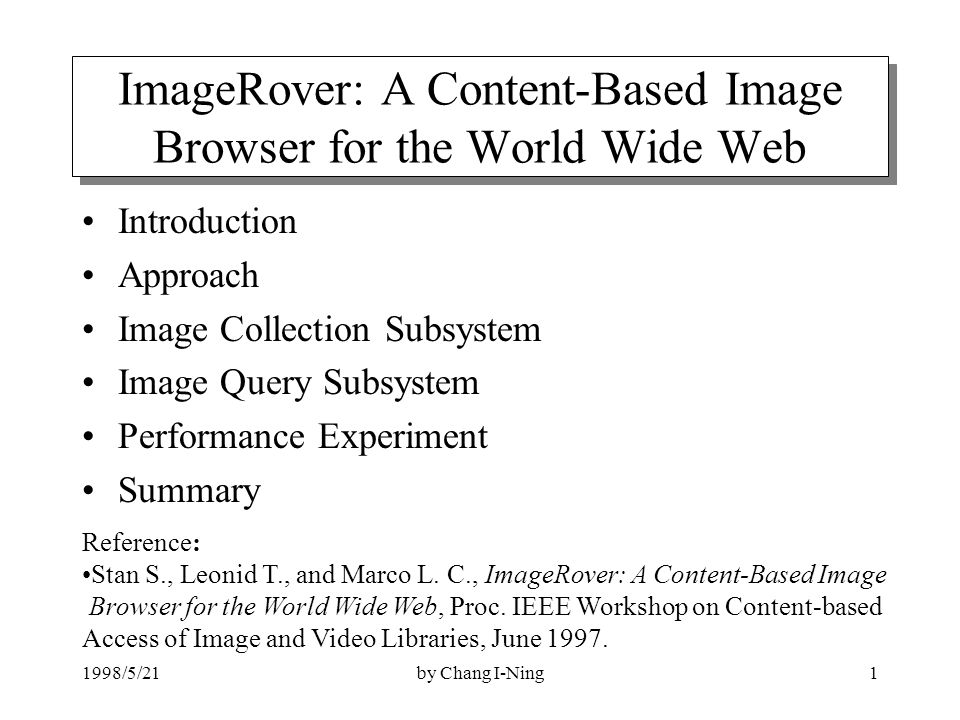

1 1998/5/21by Chang I-Ning1 ImageRover: A Content-Based Image Browser for the World Wide Web Introduction Approach Image Collection Subsystem Image Query Subsystem Performance Experiment Summary Reference: Stan S., Leonid T., and Marco L. C., ImageRover: A Content-Based Image Browser for the World Wide Web, Proc. IEEE Workshop on Content-based Access of Image and Video Libraries, June 1997.

2 1998/5/21by Chang I-Ning2 Introduction Technical challenges: –The great scale and unstructured nature of the world wide web. –The problem of developing fast and effective image indexing methods for fast image database queries. Searching images need not require solving the image understanding problem, just as useful text search tools.

3 1998/5/21by Chang I-Ning3 Approach The general approach –Provide the decompositions that can be precomputed for images: color histograms, edge orientation histograms, texture measures, shape invariants,…etc. –Resulting information is stored in vector form. –At search time, select a weighted subset of these decompositions to be used for computing image similarity measurements.

4 1998/5/21by Chang I-Ning4 Approach ImageRover system consists of two main components –Image collection subsystem Image Digestion  icon and image index vector. Image Analysis Submodules: color and orientation. –Image search subsystem Query Server: approximate k-d search algorithm. User Interface: Web browser as an HTML. Relevance Feedback: relevance feedback algorithm

5 1998/5/21by Chang I-Ning5 Image Collection Subsystem Utilizes a distributed fleet of WWW robots that can contain –collection modules. –digestion modules. –a local database. The robots are dispatched and coordinated via a separate coordination layer. –Manages updates of the image index database.

6 1998/5/21by Chang I-Ning6 Image Collection Subsystem

7 1998/5/21by Chang I-Ning7 Image Query Subsystem Query Server –The image query subsystem is based on a client-server architecture. Performs a dimensionality reduction (PCA)  builds an optimized k-d tree. Improve performance –Search accuracy= level of approximation factor –An approximate k-d search algorithm can allow the user to specify an “approximation” level for the nearest neighbors and to control the tradeoff between speed and accuracy.

8 1998/5/21by Chang I-Ning8 Image Query Subsystem

9 1998/5/21by Chang I-Ning9 User Interface –ImageRover querys by example paradigm.

10 1998/5/21by Chang I-Ning10

11 1998/5/21by Chang I-Ning11 Search Example http://www.cs.bu.edu/groups/ivc/ImageRover/

12 1998/5/21by Chang I-Ning12 Image Query Subsystem Relevance Feedback –The ImageRover system employs a novel relevance feedback algorithm that selects the Minkowski L m distance metrics appropriate for a particular query. –This mechanism allows the user to perform queries by example based on more than one sample image and to collect the images he or she finds during the search, refining the result at each iteration.

13 1998/5/21by Chang I-Ning13 Performance Experiment Tested the performance of the approximate k- nearest neighbors search on an SGI Indigo2 R10K with 128MB of main memory, for a data set of size N =500,000 and dimension k =78. In searches for 20 nearest neighbors in 1000 random trials : –  = 5.0, search averaged 1.02 CPU seconds per query. –  = 10.0, search averaged 0.11 CPU seconds per query. –Brute-force search averaged 1.82 CPU seconds per query. The approximation yield a significant speed-up : –up to 16 times faster, depending on the specified .

14 1998/5/21by Chang I-Ning14 Summary ImageRover’s distributed robot framework can enable a modest fleet of 32 single- threaded robots to collect and index over one million images monthly. ImageRover is a search by image content navigation tool that provides a powerful method for data exploration or browsing of WWW images.
