1. Electrical and Computer Engineering How to Program with JTAG ECE 353 – Computer Systems lab I Mike O’Malley Tom Stack September 20 th 2005

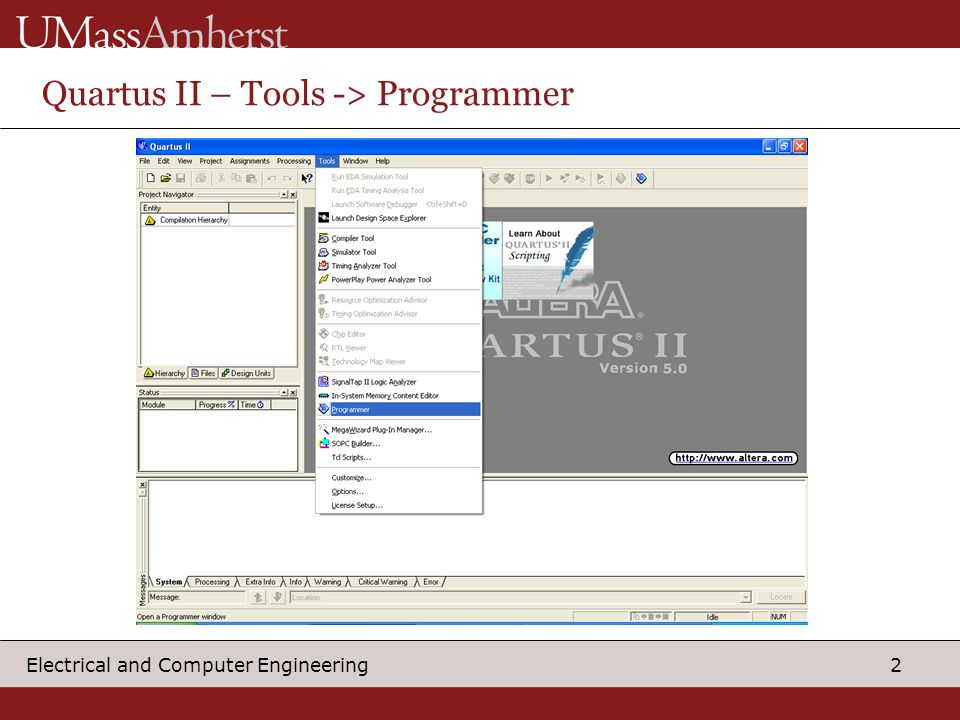

2. 2 Electrical and Computer Engineering Quartus II – Tools -> Programmer

3. 3 Electrical and Computer Engineering Click on “Hardware Setup…”

4. 4 Electrical and Computer Engineering Hardware Setup  Click “Add Hardware”  For the parallel port version select ByteBlasterMV The printer port (LPT1)  For the USB version TBD  Click “Ok”  Click “Close”

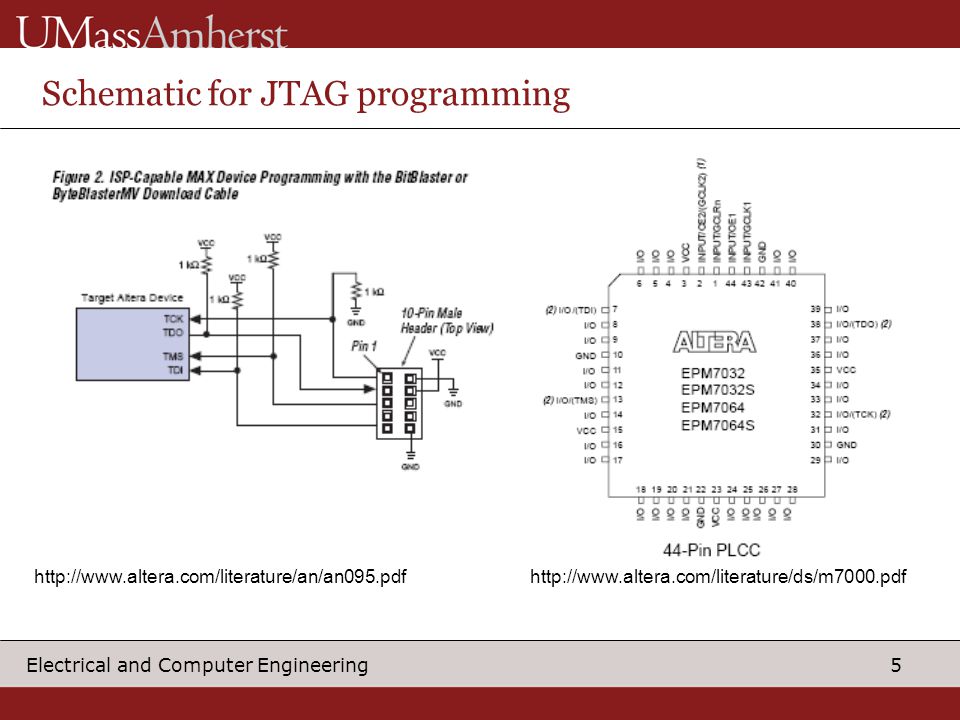

5. 5 Electrical and Computer Engineering Schematic for JTAG programming http://www.altera.com/literature/an/an095.pdfhttp://www.altera.com/literature/ds/m7000.pdf

6. 6 Electrical and Computer Engineering WARNING! DISCONNECT 4Mhz CLOCK BEFORE ATTACHING TO PROGRAMMER

7. 7 Electrical and Computer Engineering Click “Auto Detect”

8. 8 Electrical and Computer Engineering Good!

9. 9 Electrical and Computer Engineering Bad!  Quickly Check for burning chip  Unplug Power  Check connections  Is the clock unplugged?  Ask the TA for assistance

10. 10 Electrical and Computer Engineering Right Click and select “Change File…”

11. 11 Electrical and Computer Engineering Select your.pof file  Navigate to your project folder  Select the.pof file created from compilation  Click “Open”

12. 12 Electrical and Computer Engineering Check the Program / Configure box and Verify, Click Start

13. 13 Electrical and Computer Engineering Programming Complete  All Green is good Unplug power Unplug programmer Connect clock Connect Power  Red is bad Check connections Ask TA for help
