1 1 Finite Automata

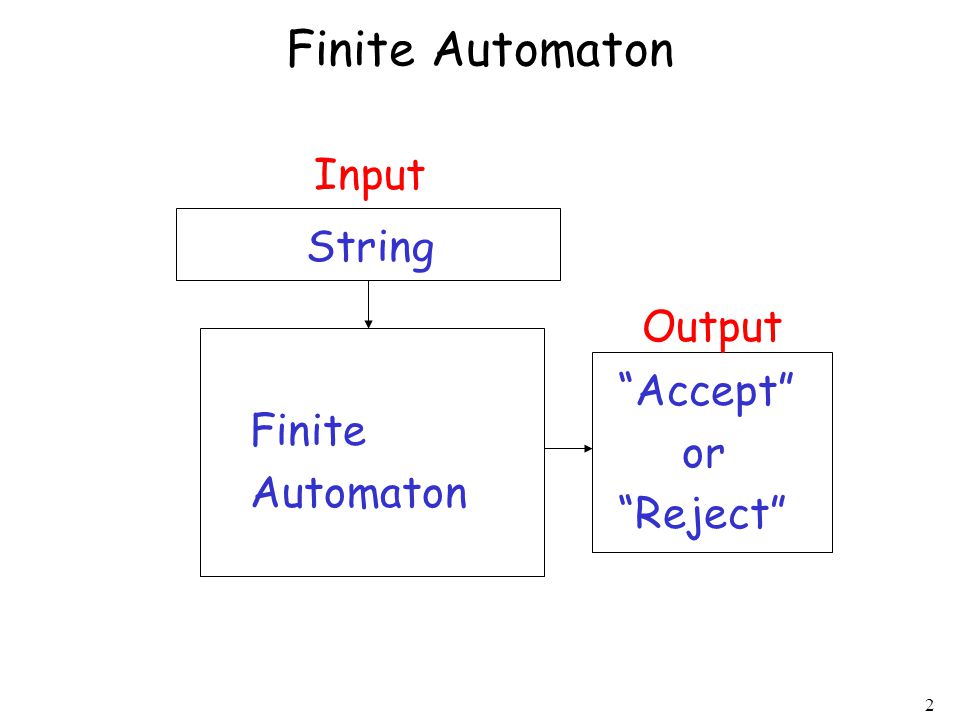

2 2 Finite Automaton Input “Accept” or “Reject” String Finite Automaton Output

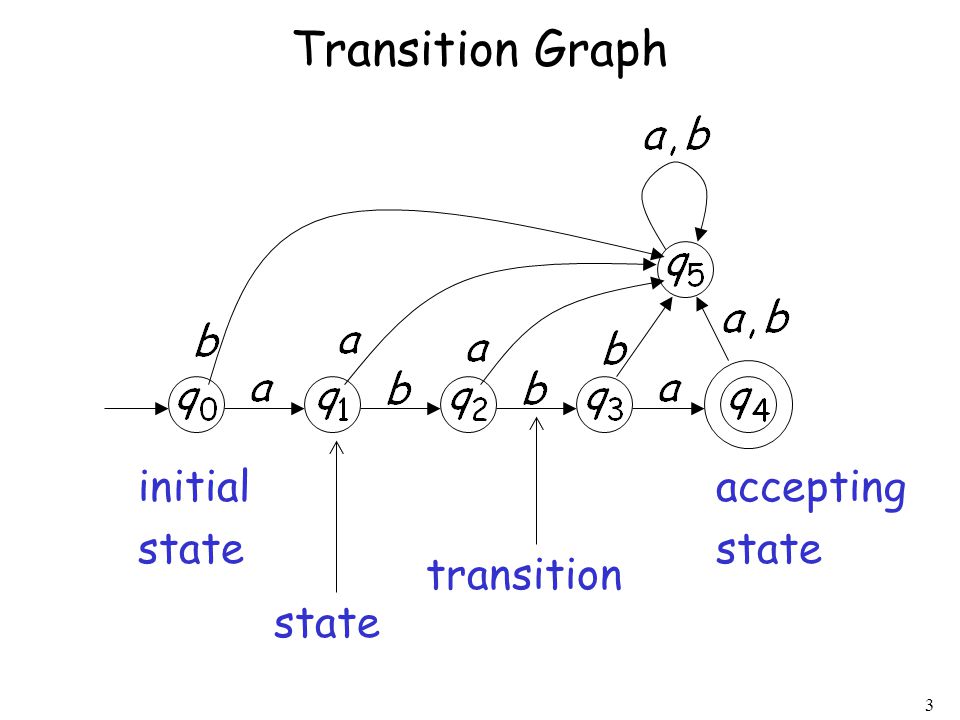

3 3 Transition Graph initial state accepting state transition

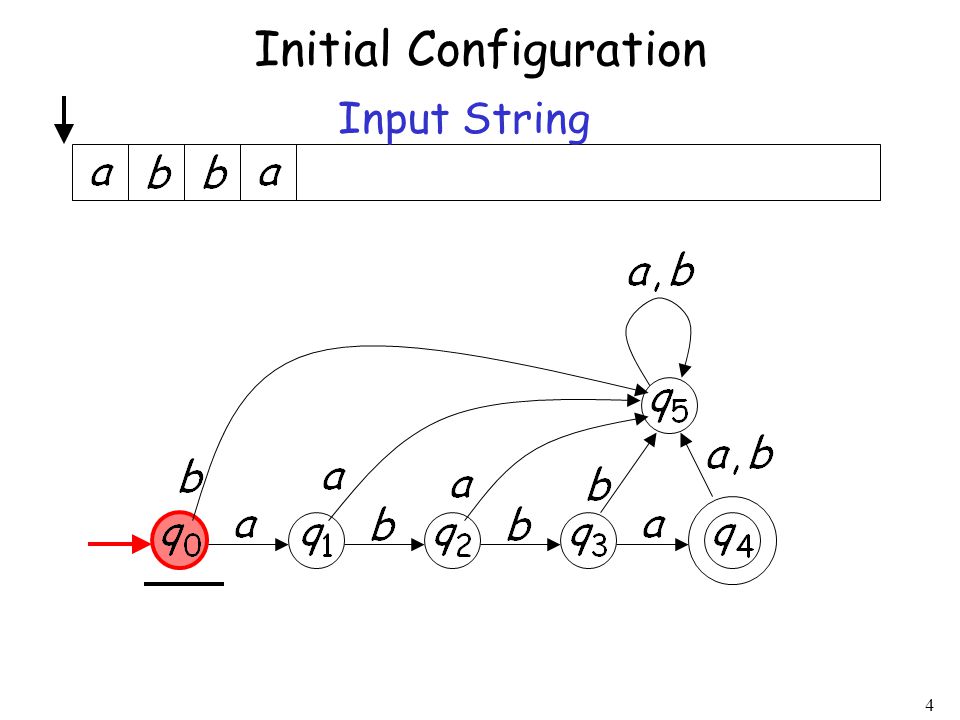

4 4 Initial Configuration Input String

5 5 Reading the Input

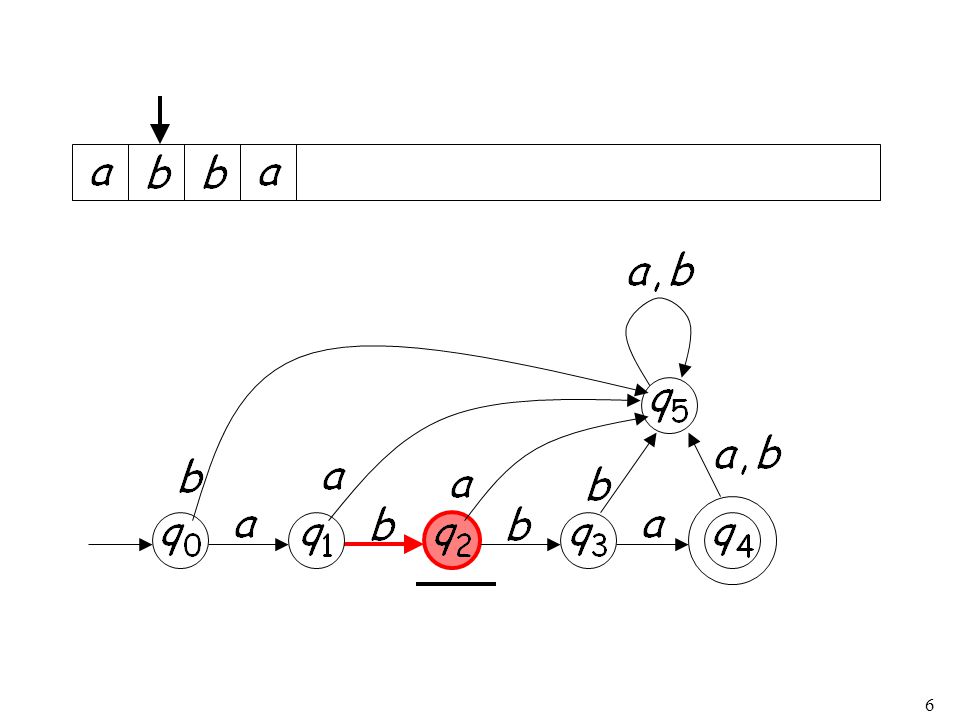

6 6

7 7

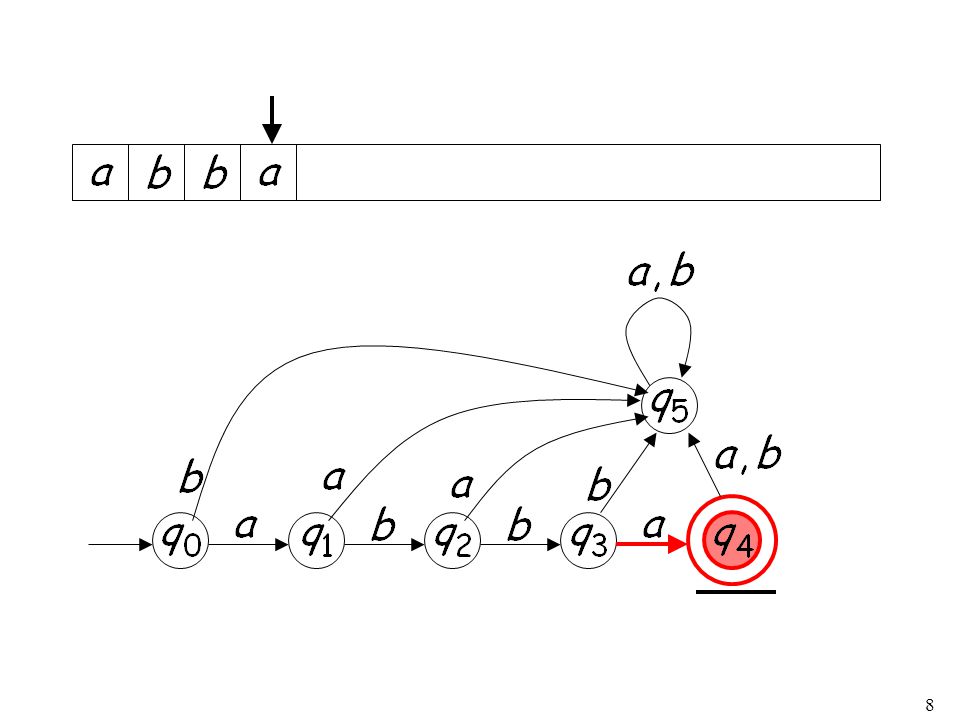

8 8

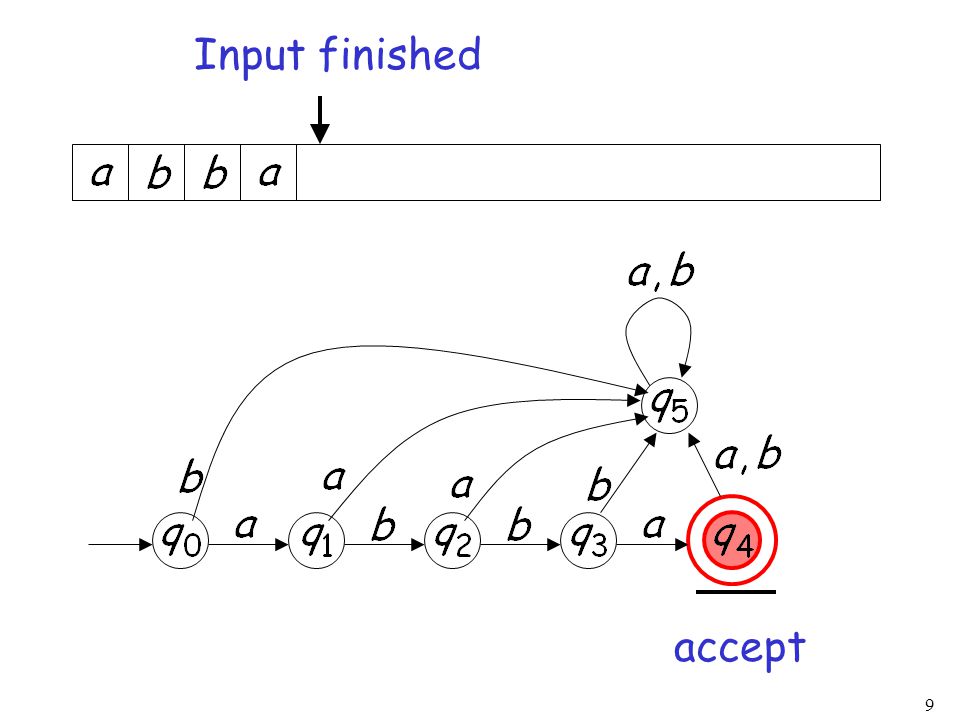

9 9 accept Input finished

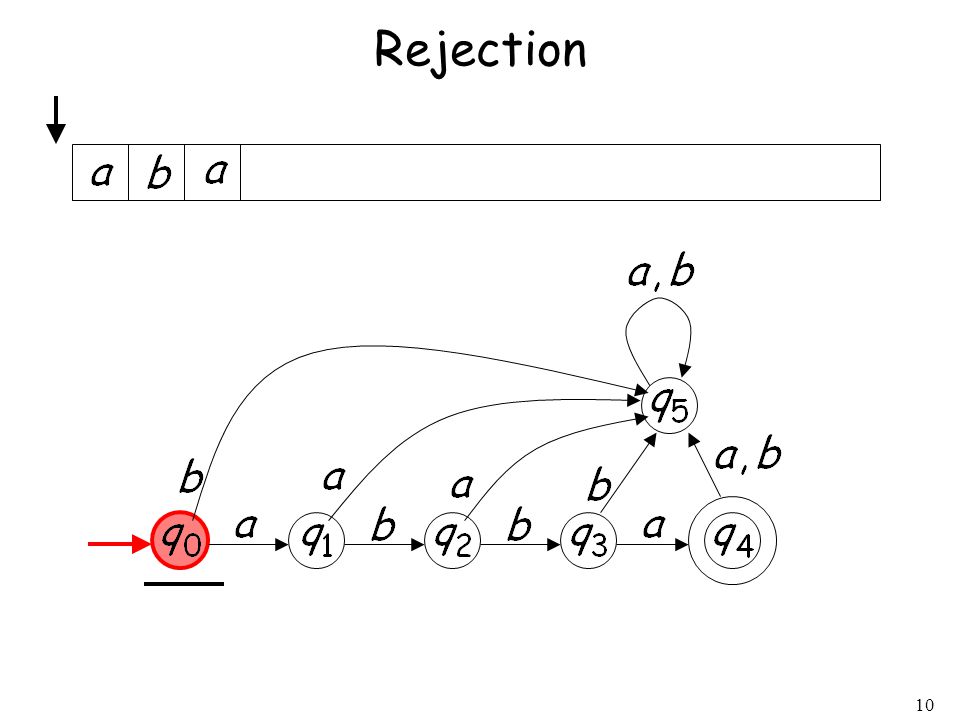

10 10 Rejection

11 11

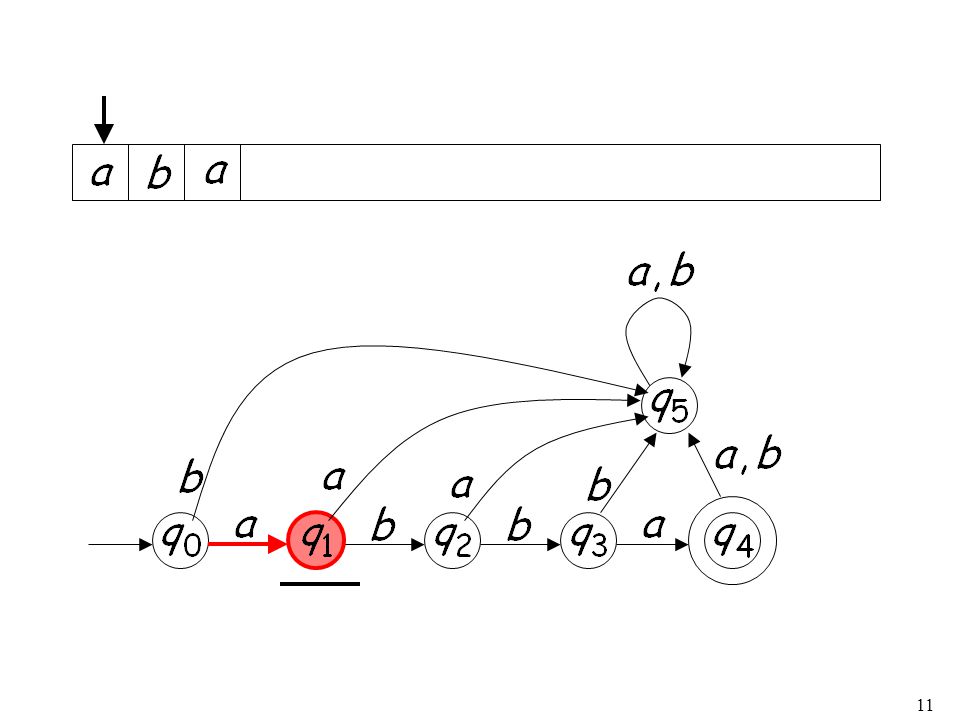

12 12

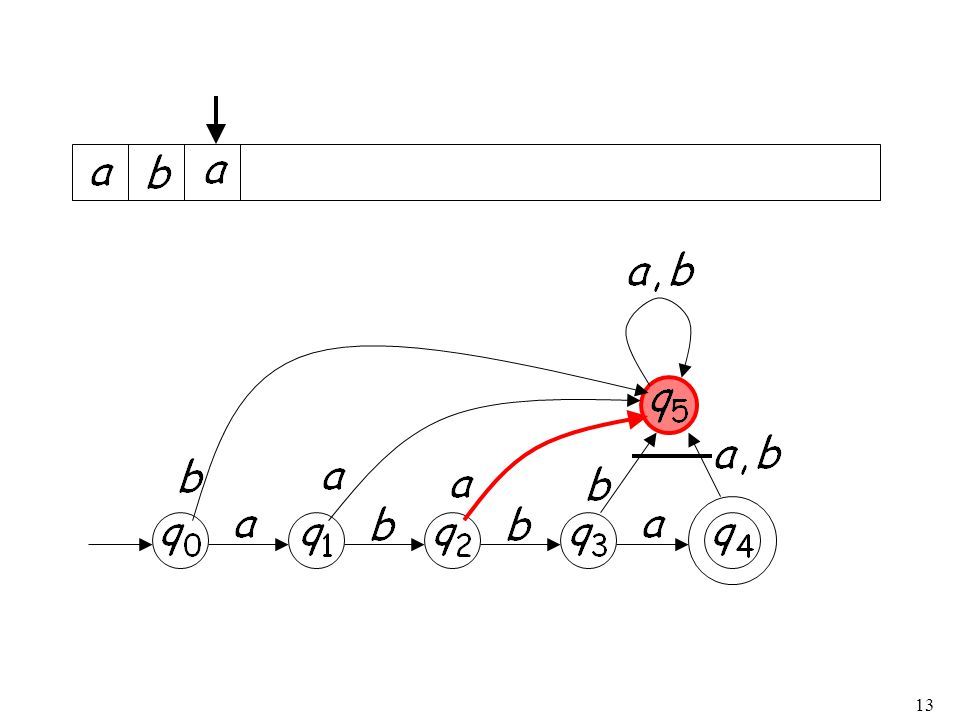

13 13

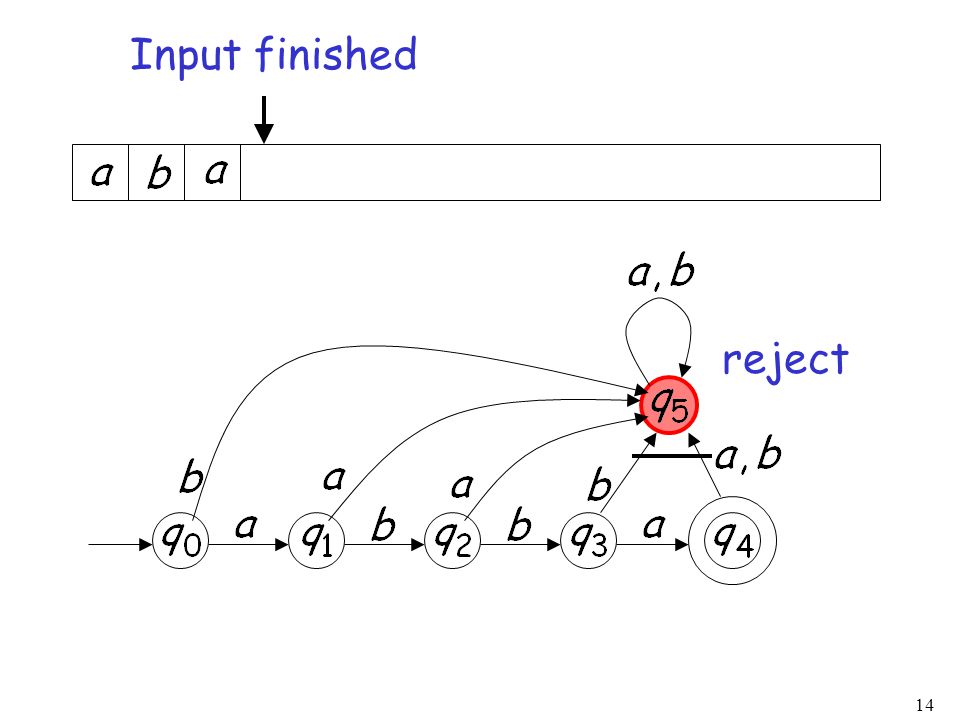

14 14 reject Input finished

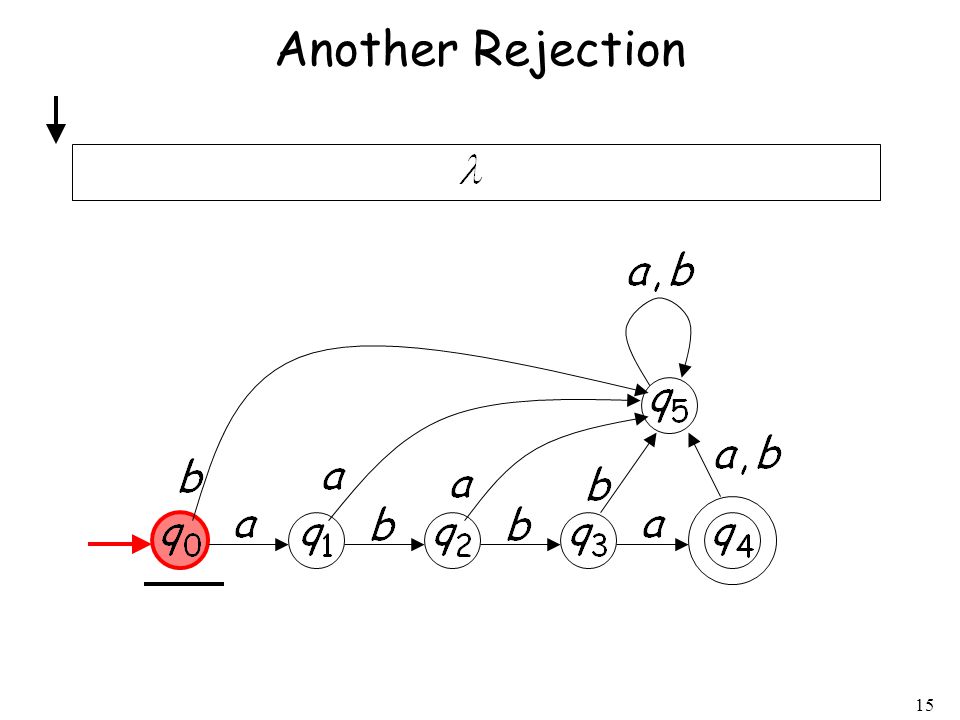

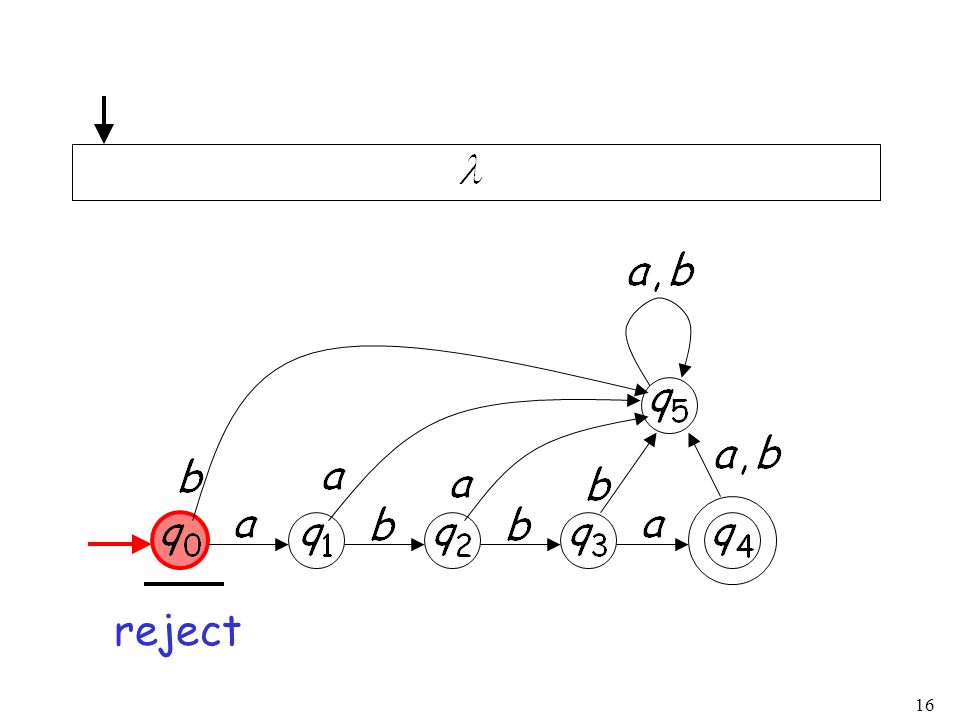

15 15 Another Rejection

16 16 reject

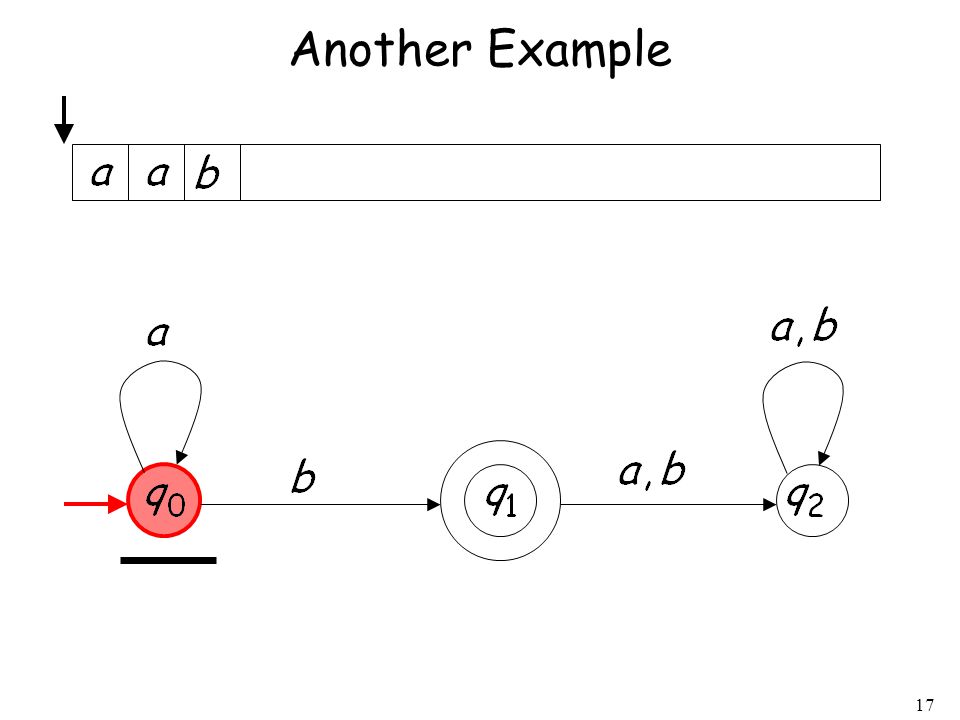

17 17 Another Example

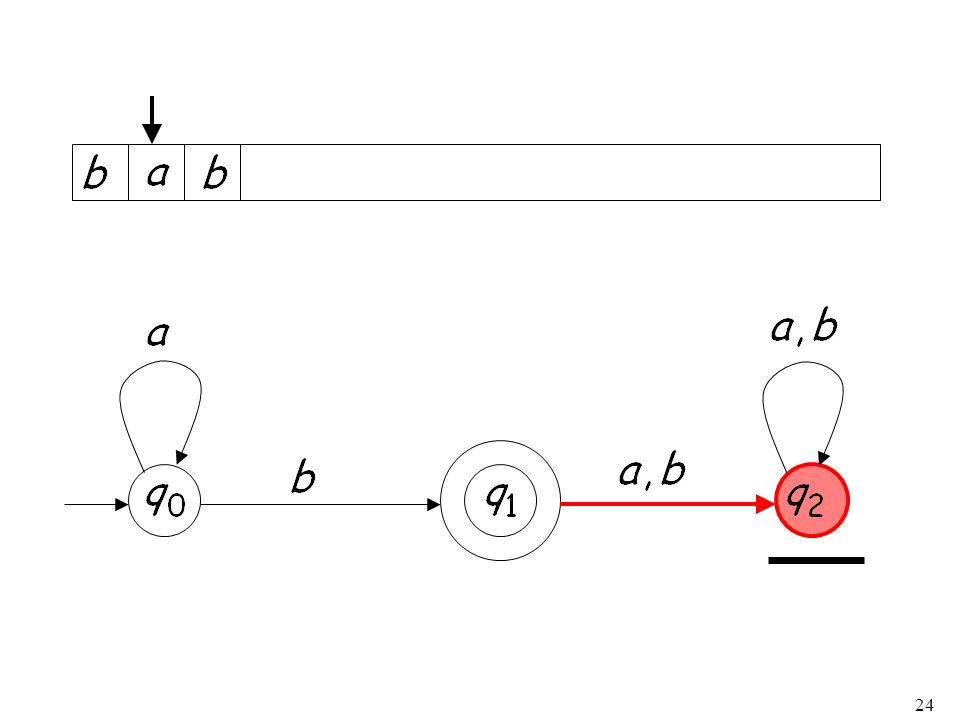

18 18

19 19

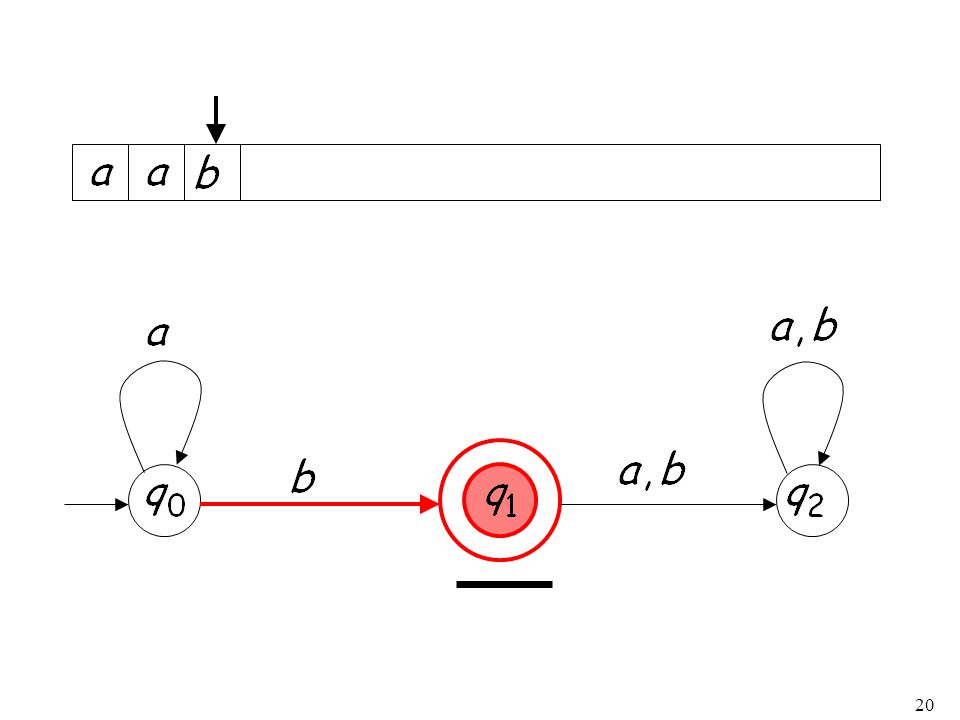

20 20

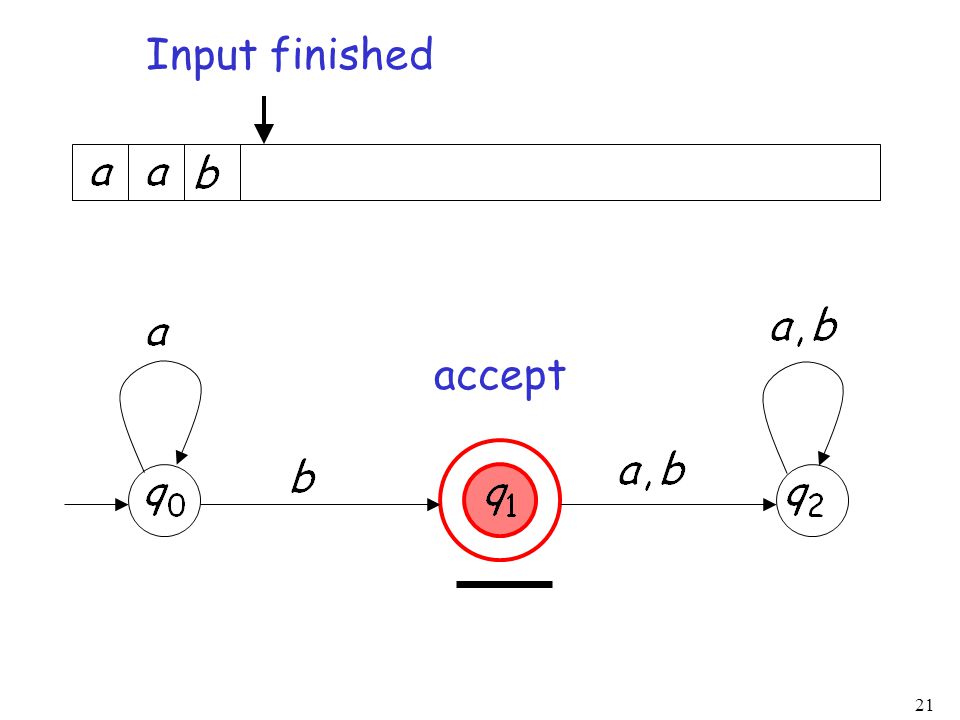

21 21 accept Input finished

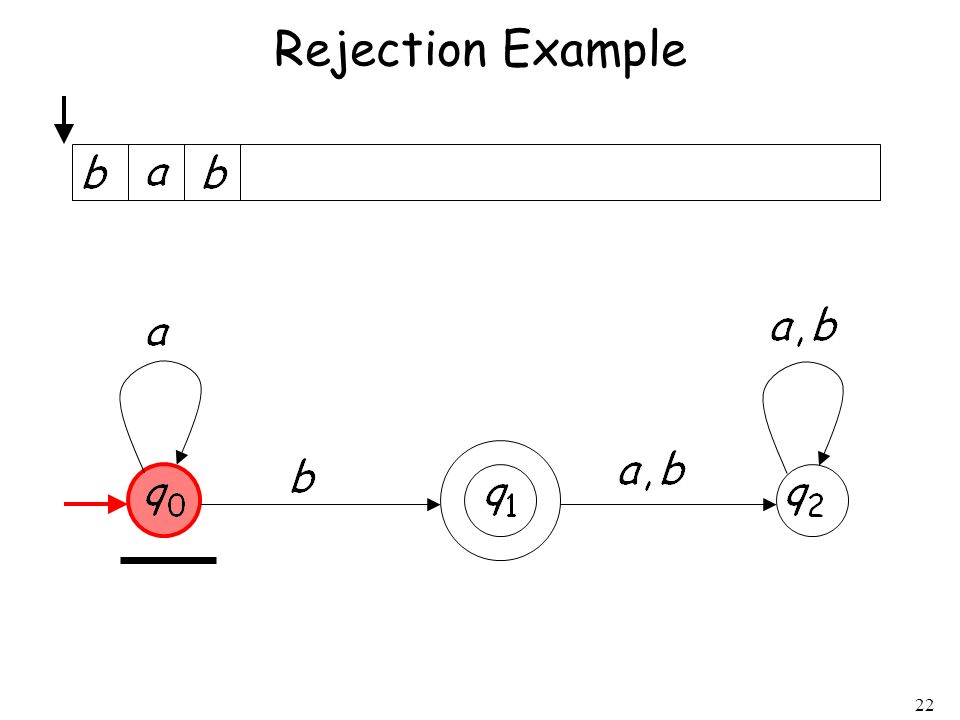

22 22 Rejection Example

23 23

24 24

25 25

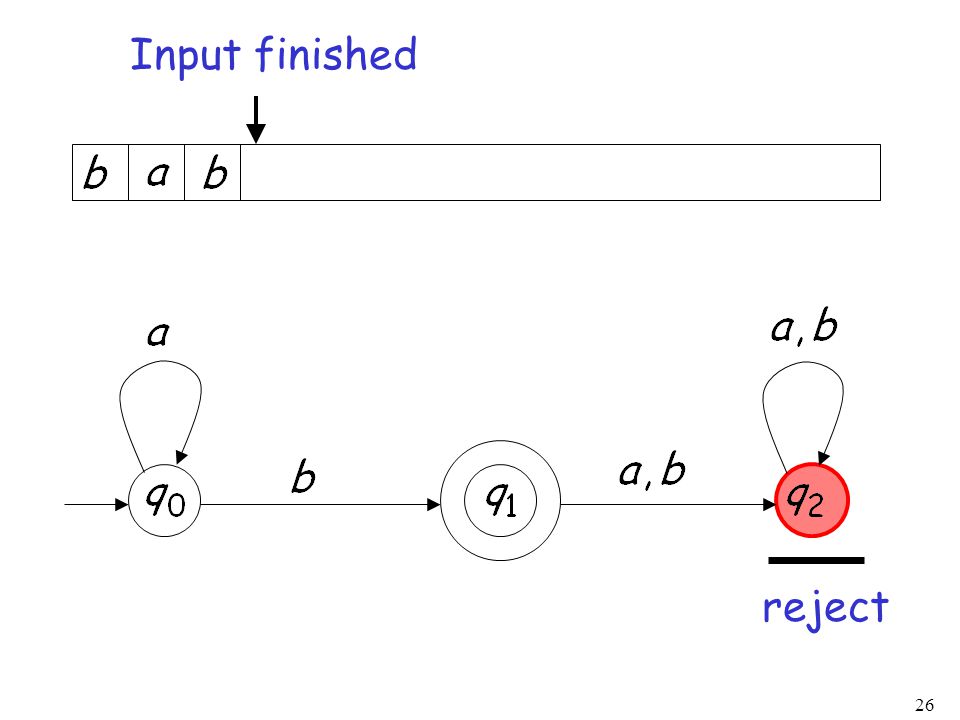

26 26 reject Input finished

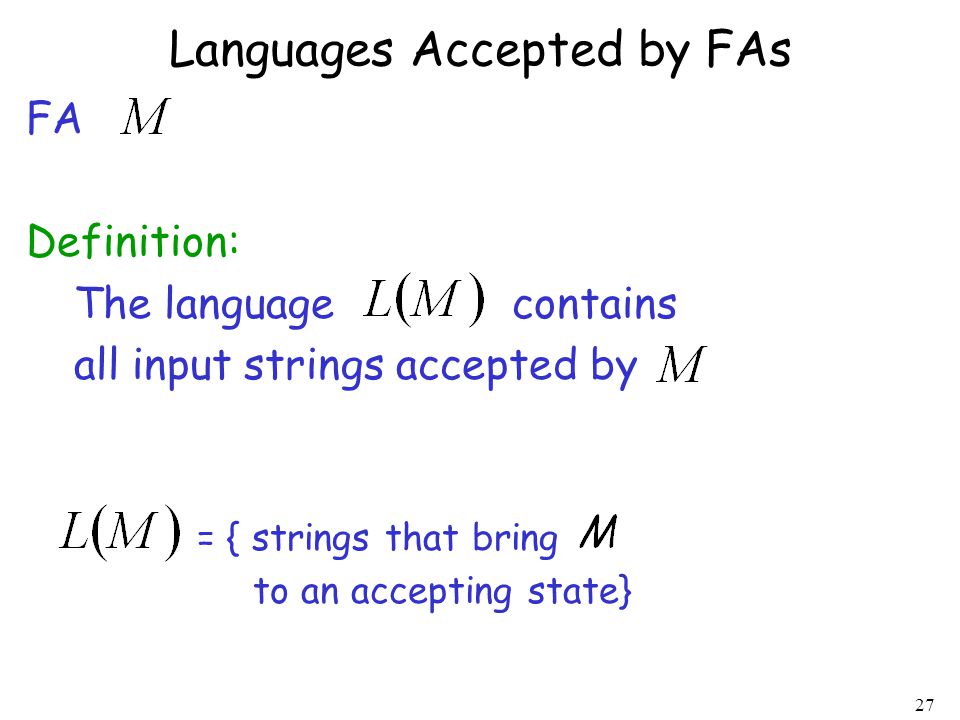

27 27 Languages Accepted by FAs FA Definition: The language contains all input strings accepted by = { strings that bring to an accepting state}

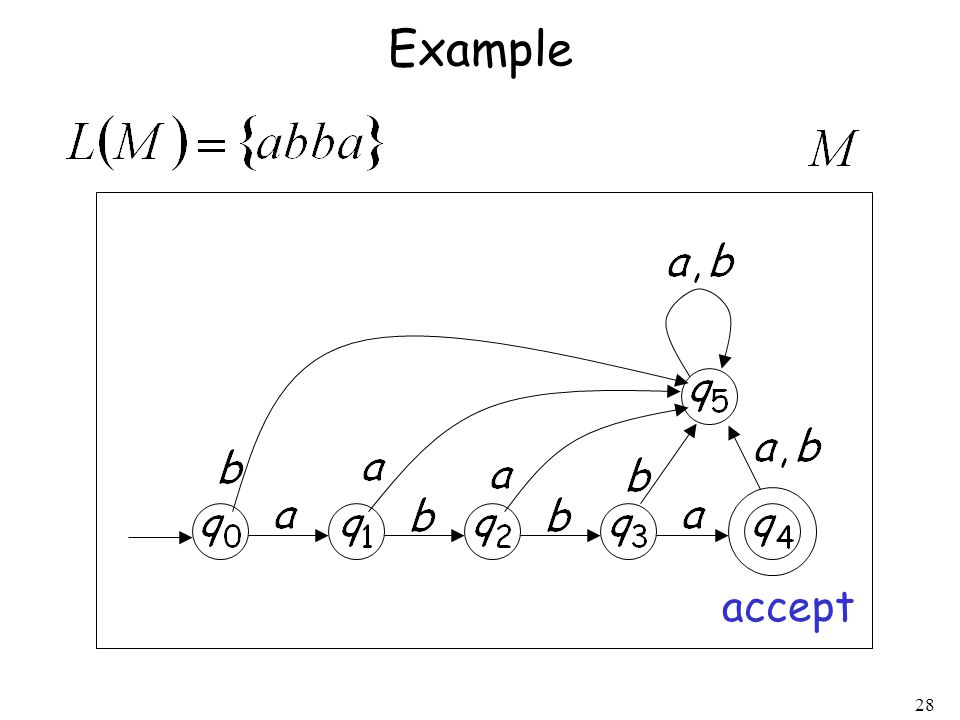

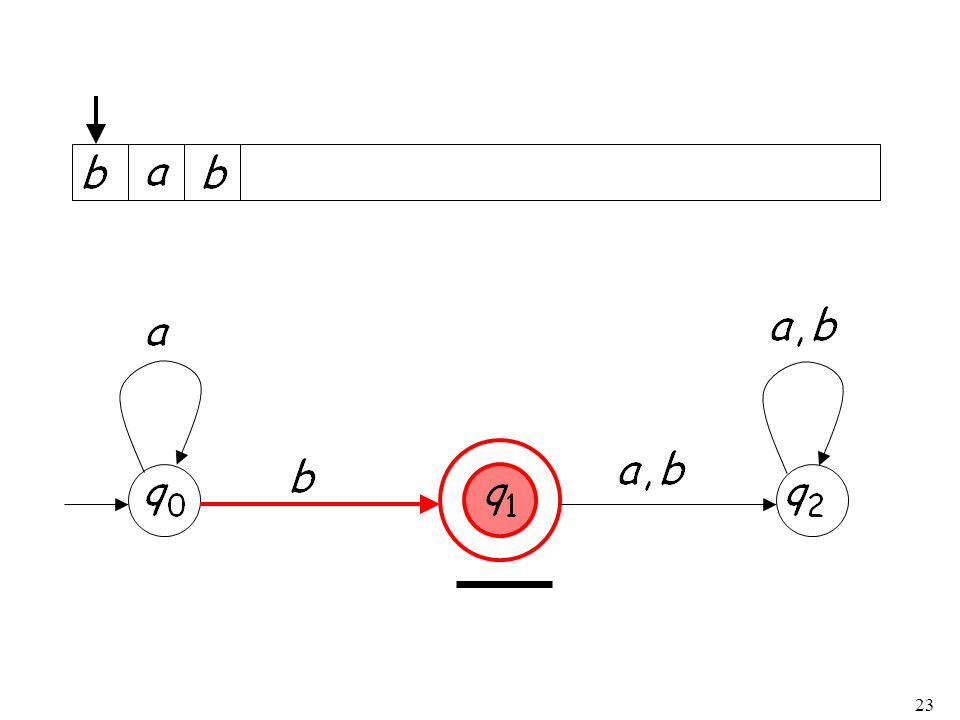

28 28 Example accept

29 29 Example accept

30 30 Example accept trap state

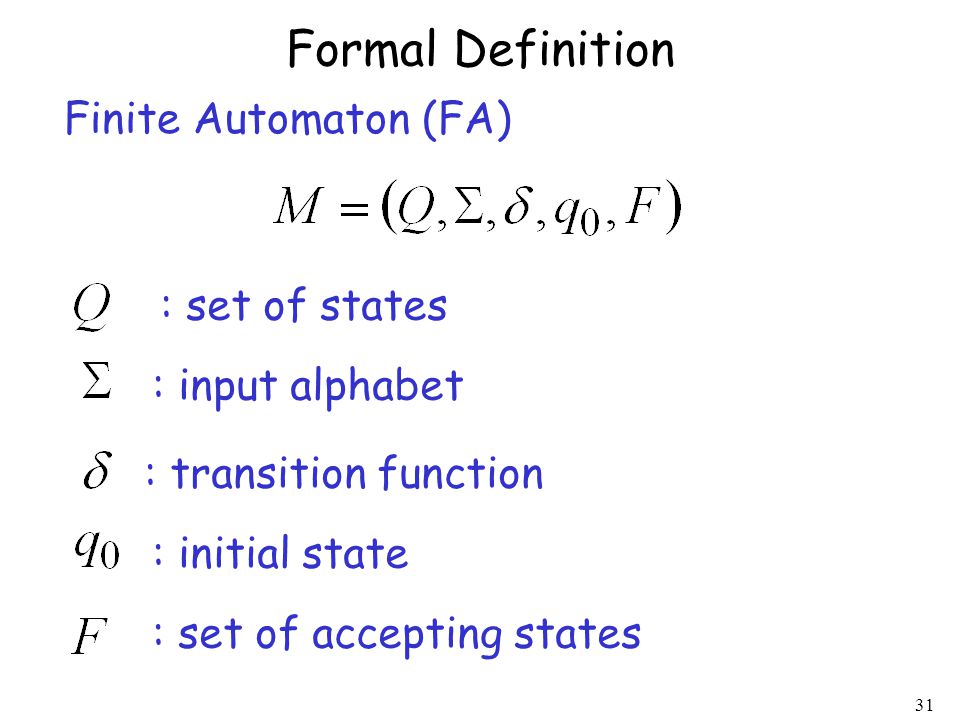

31 31 Formal Definition Finite Automaton (FA) : set of states : input alphabet : transition function : initial state : set of accepting states

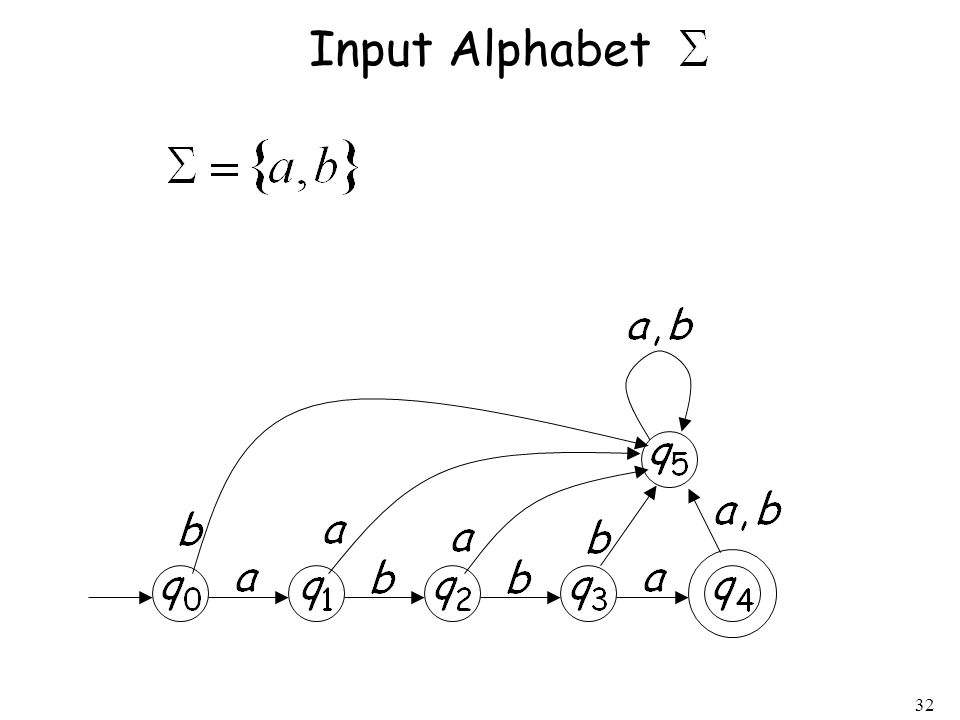

32 32 Input Alphabet

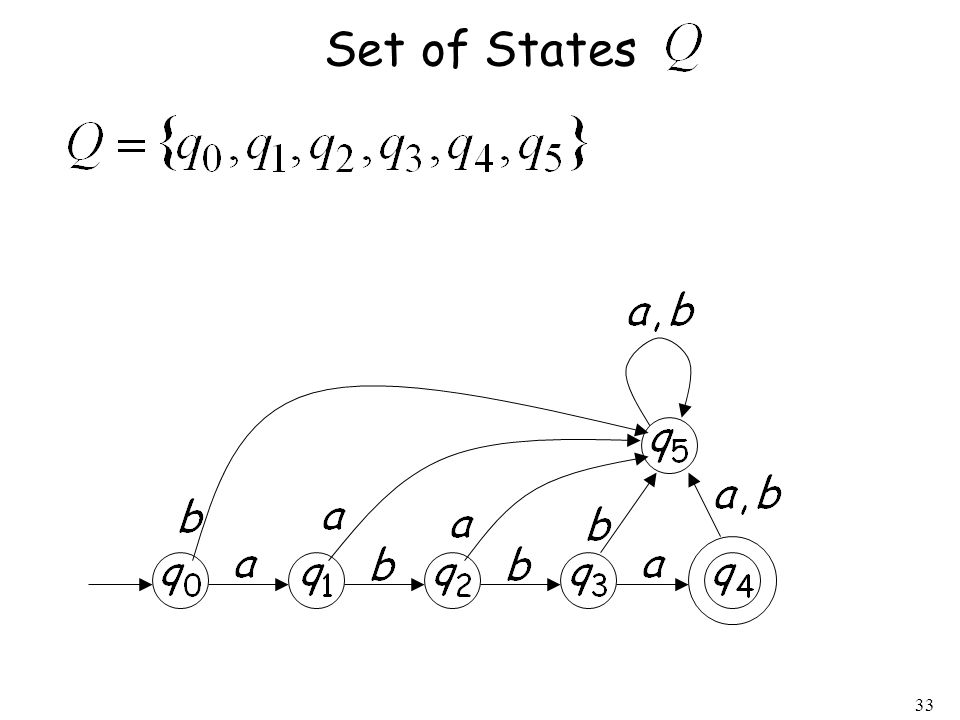

33 33 Set of States

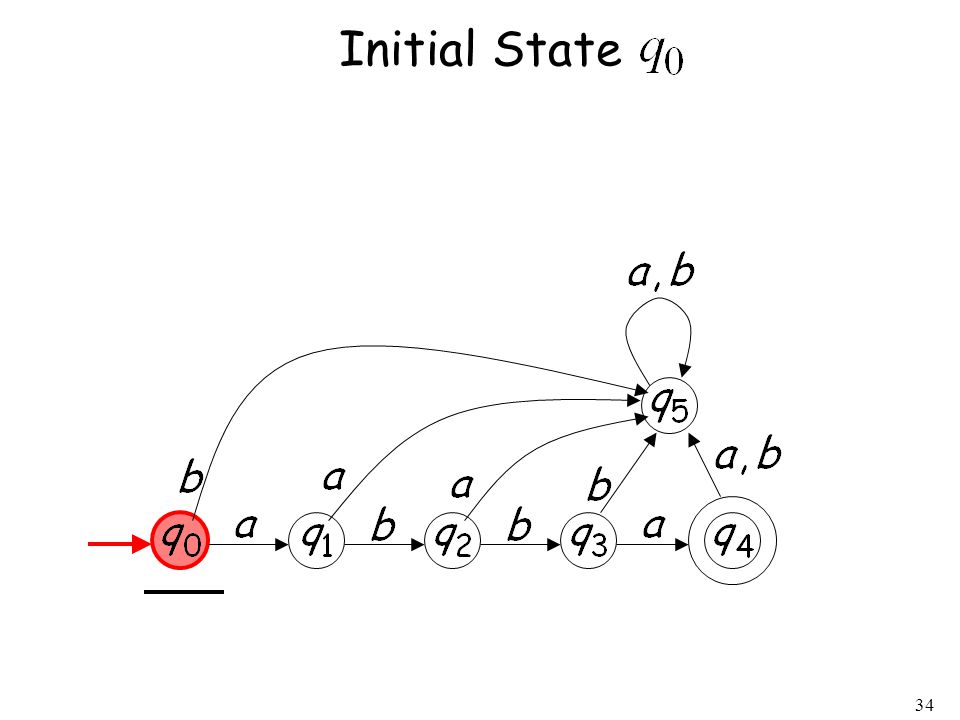

34 34 Initial State

35 35 Set of Accepting States

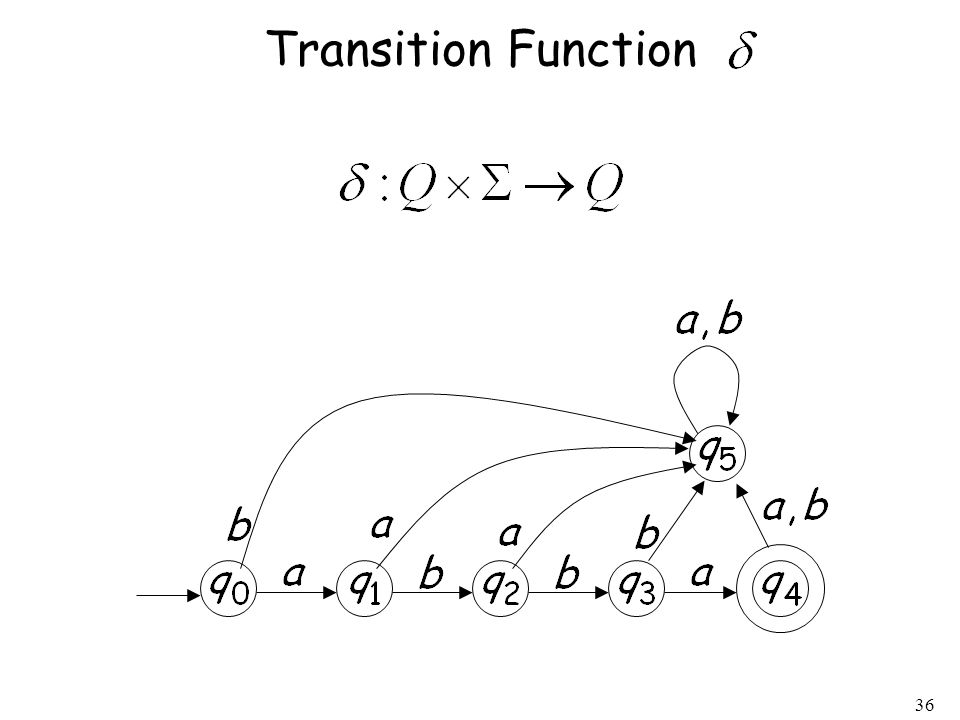

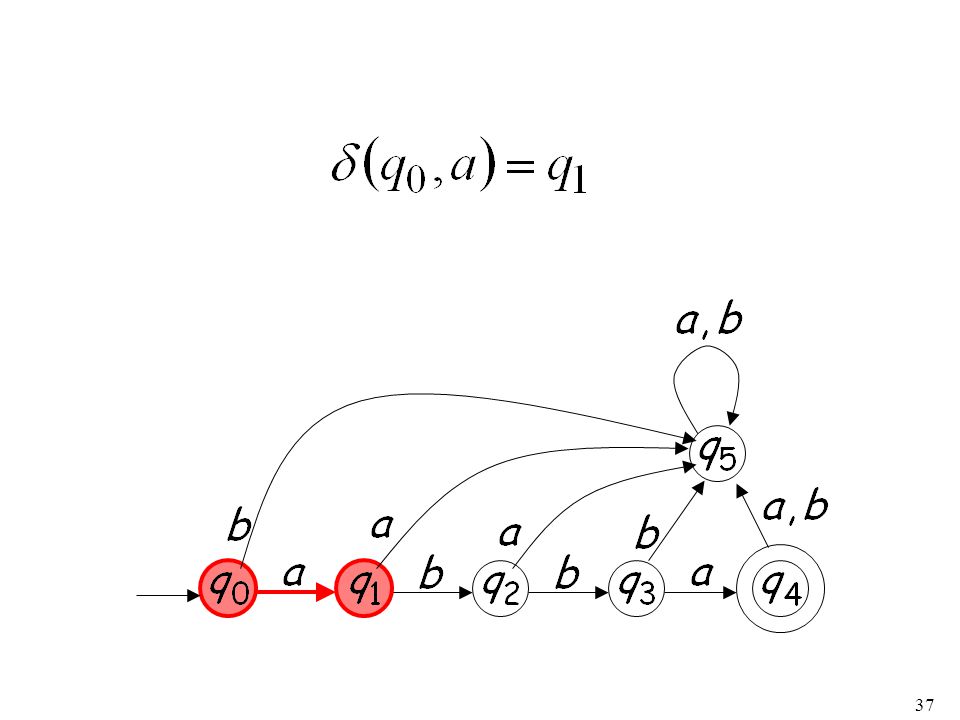

36 36 Transition Function

37 37

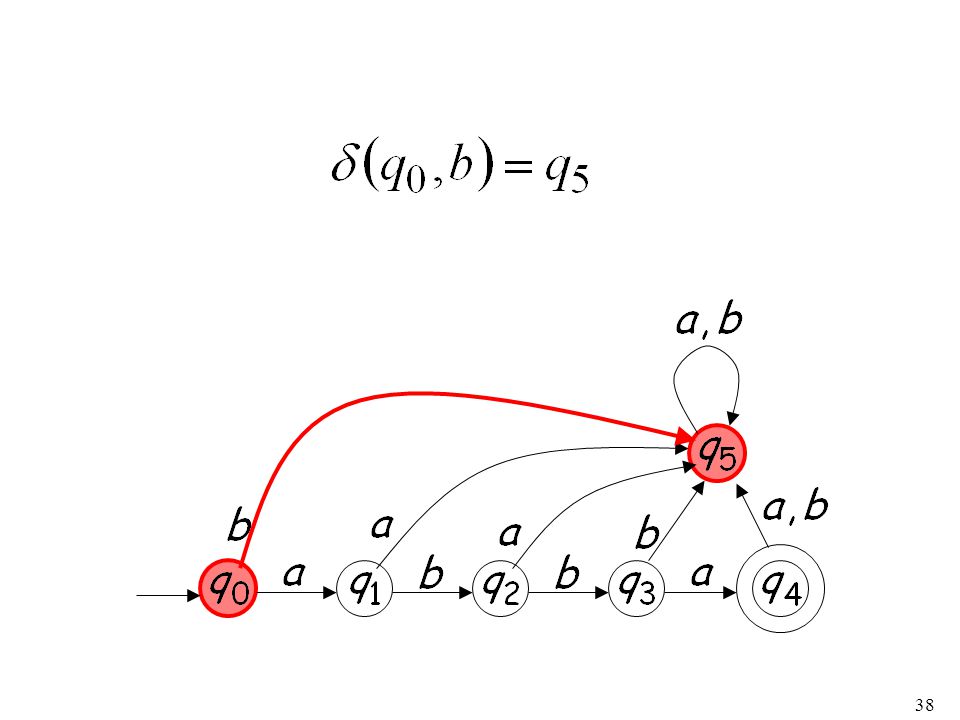

38 38

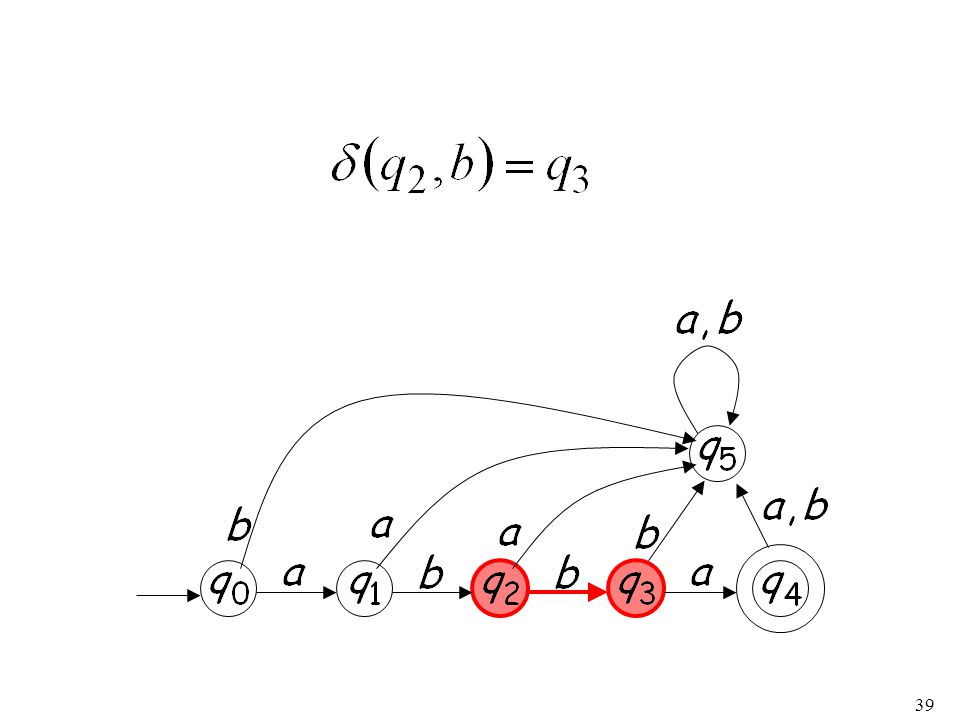

39 39

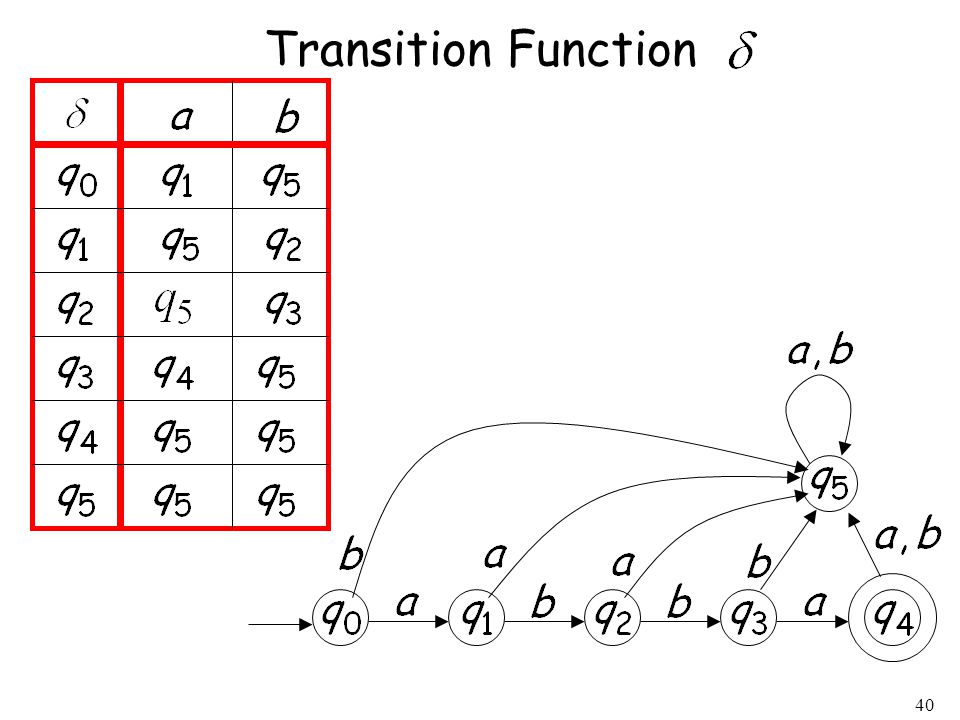

40 40 Transition Function

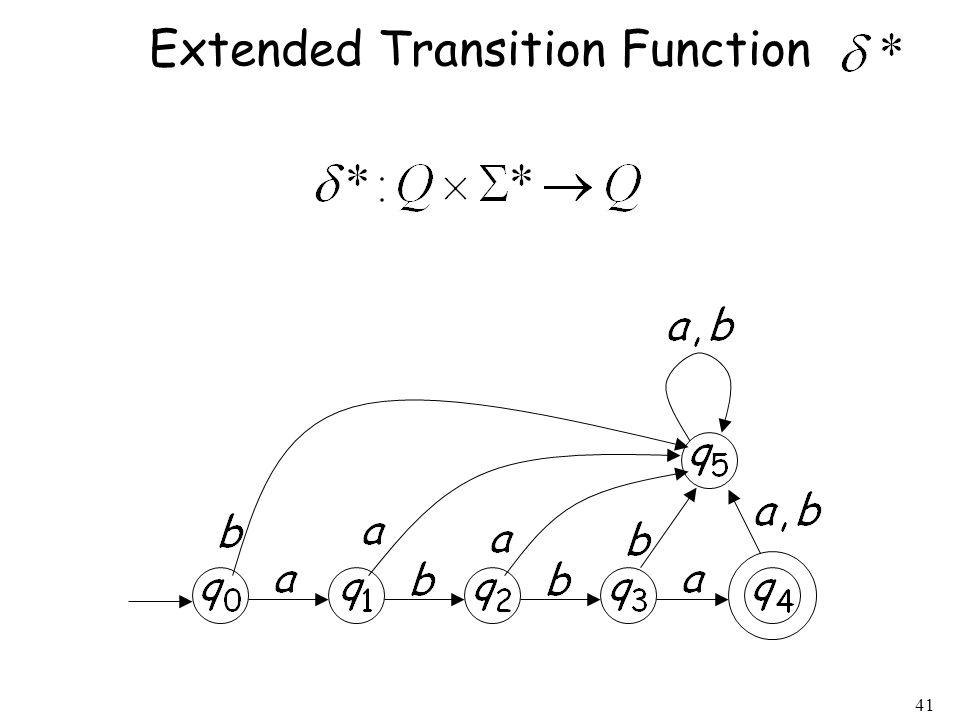

41 41 Extended Transition Function

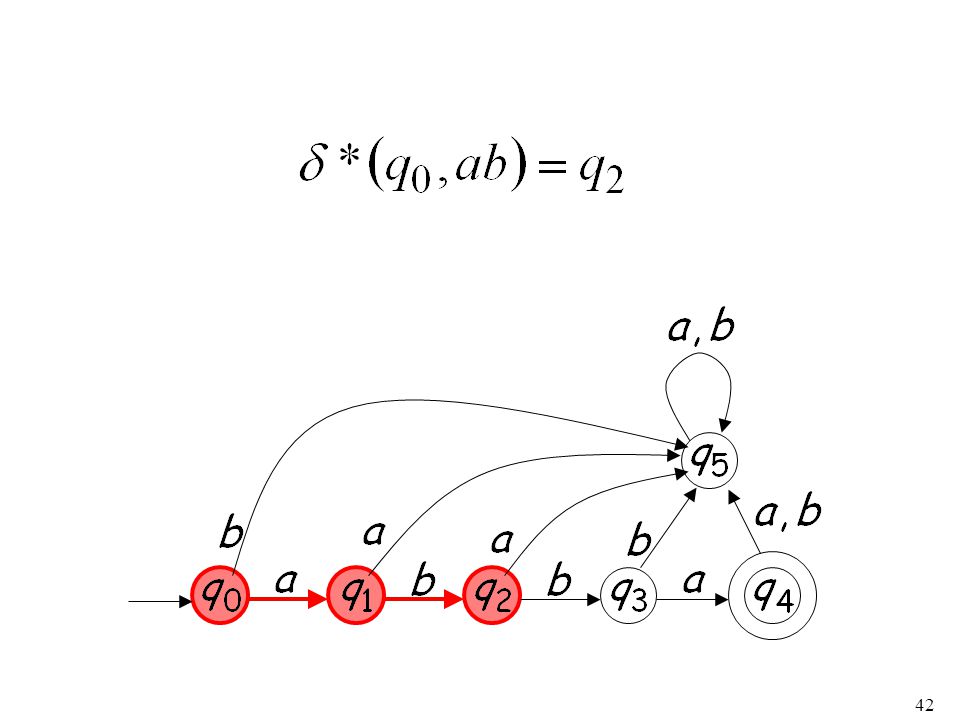

42 42

43 43

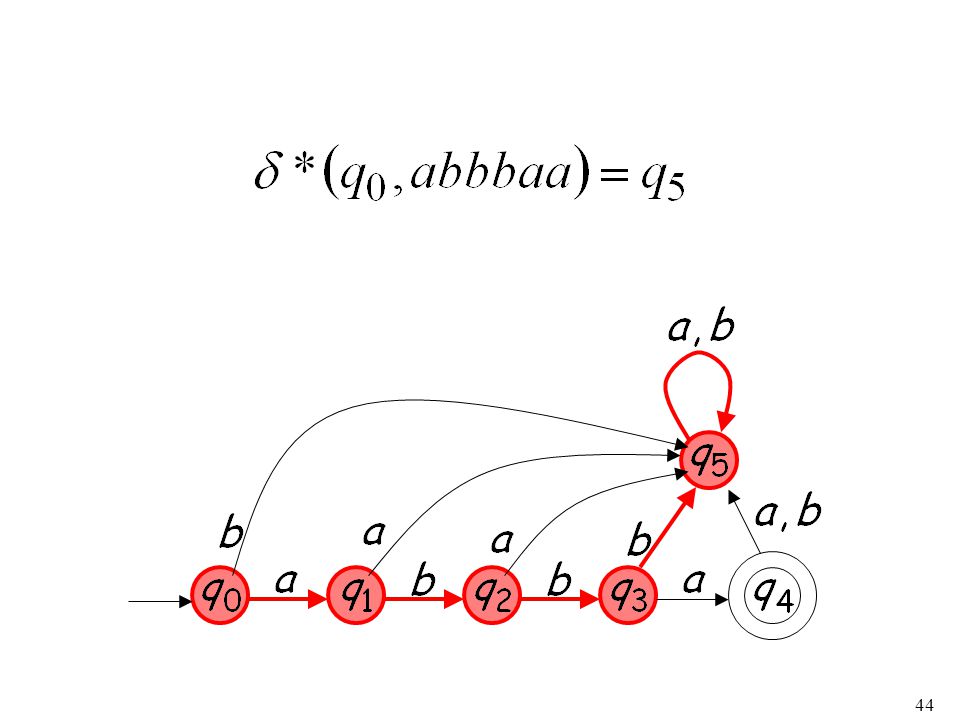

44 44

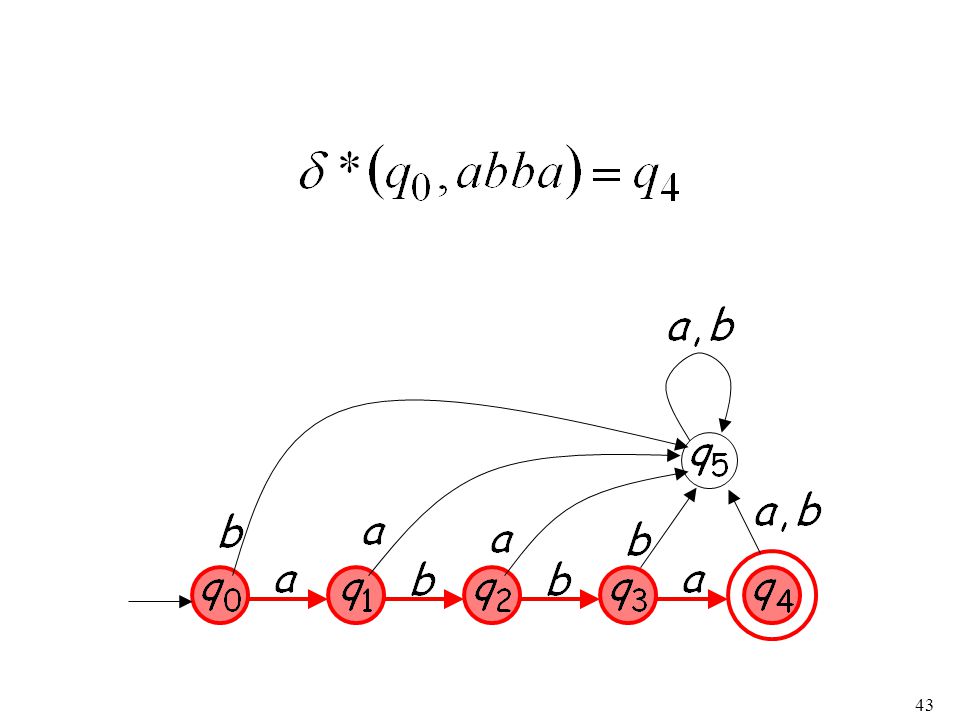

45 45 Observation: if there is a walk from to with label then

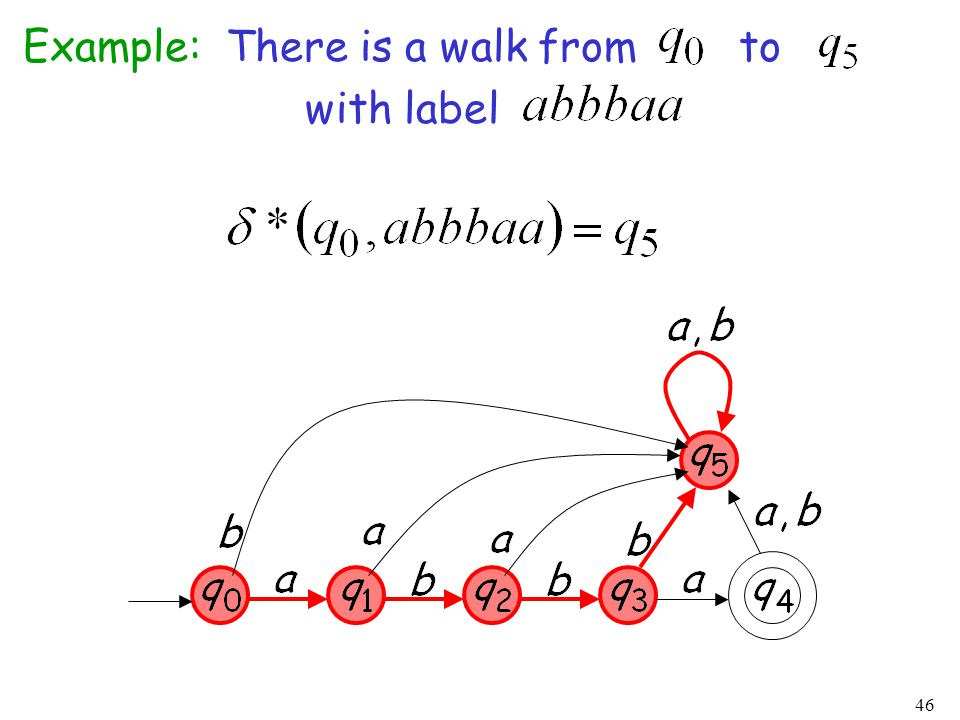

46 46 Example: There is a walk from to with label

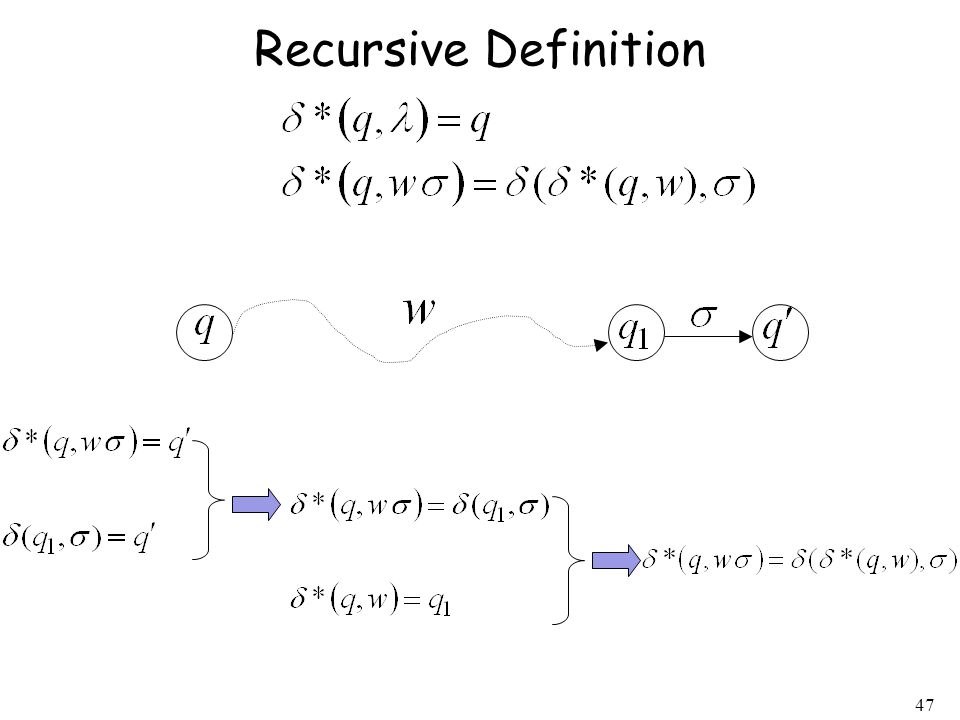

47 47 Recursive Definition

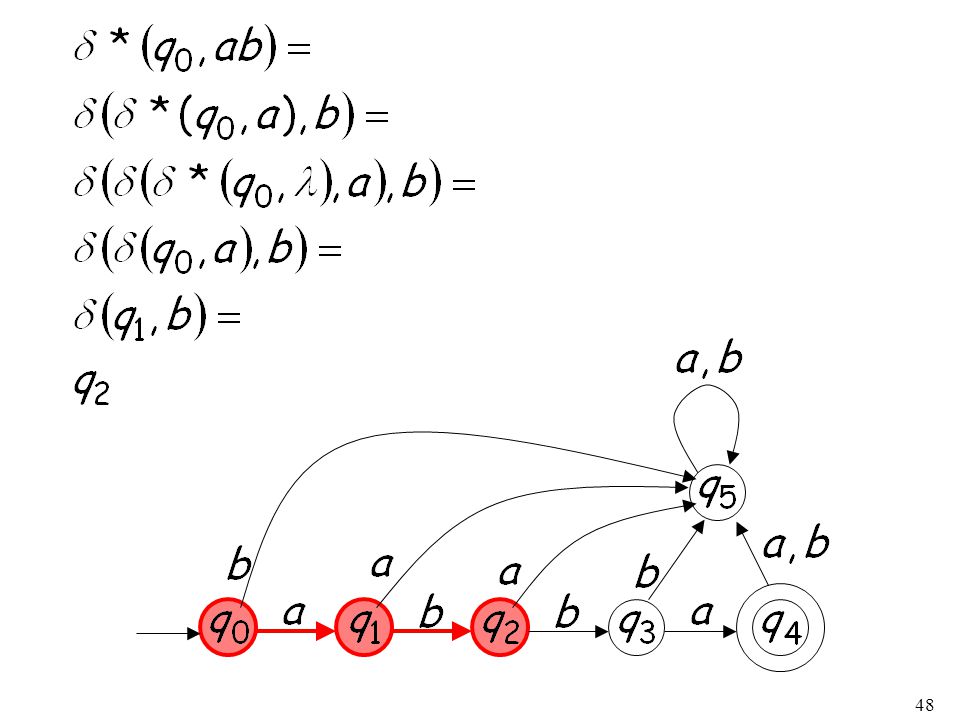

48 48

49 49 Language Accepted by FAs For a FA Language accepted by :

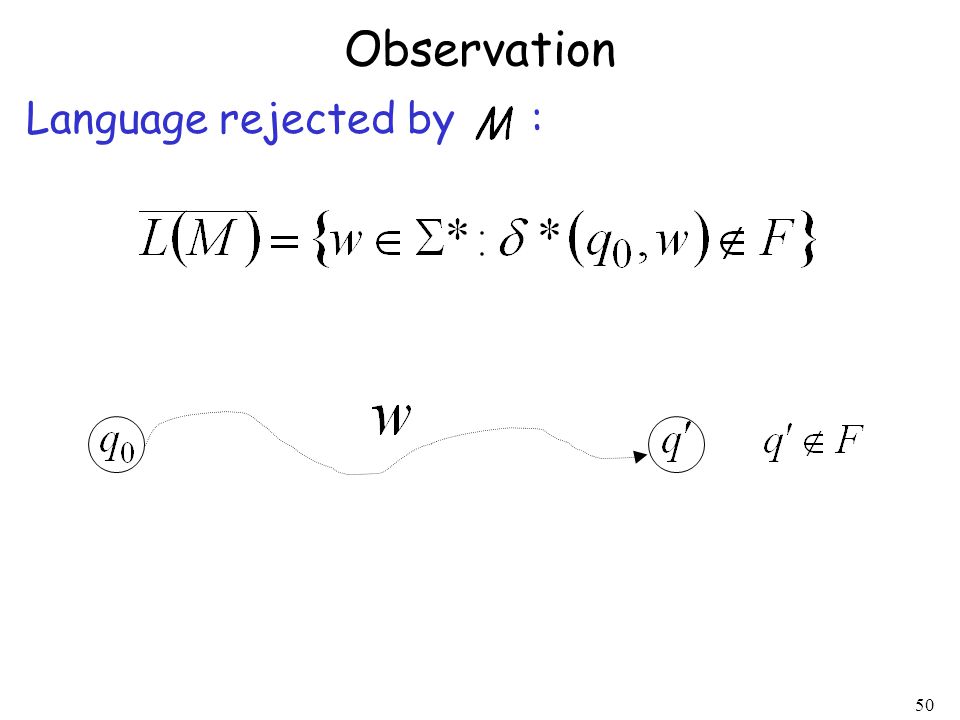

50 50 Observation Language rejected by :

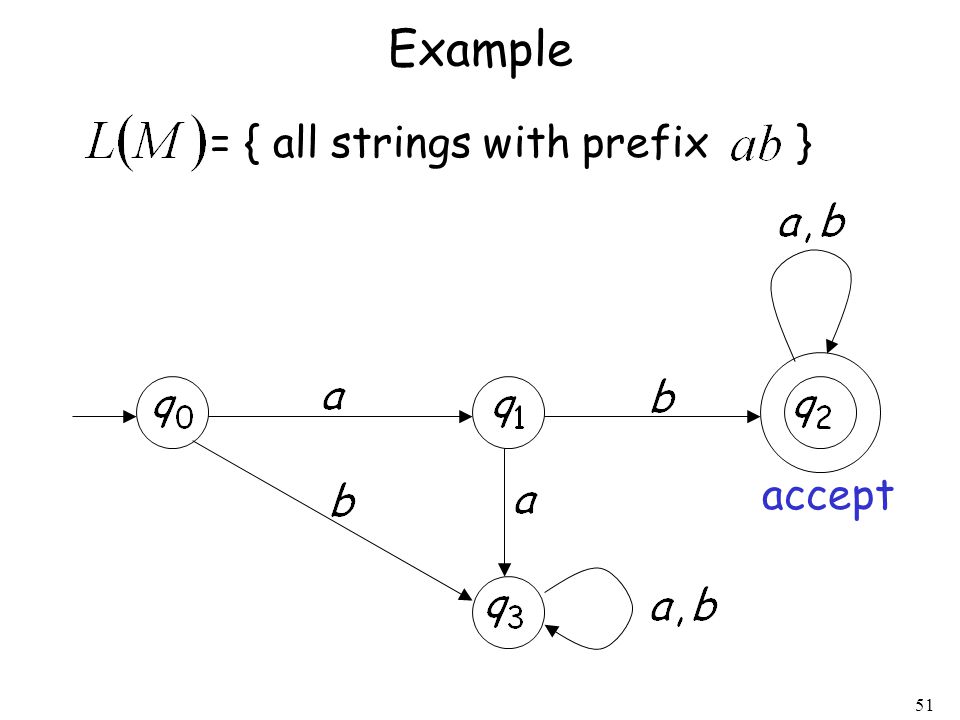

51 51 Example = { all strings with prefix } accept

52 52 Example = { all strings without substring }

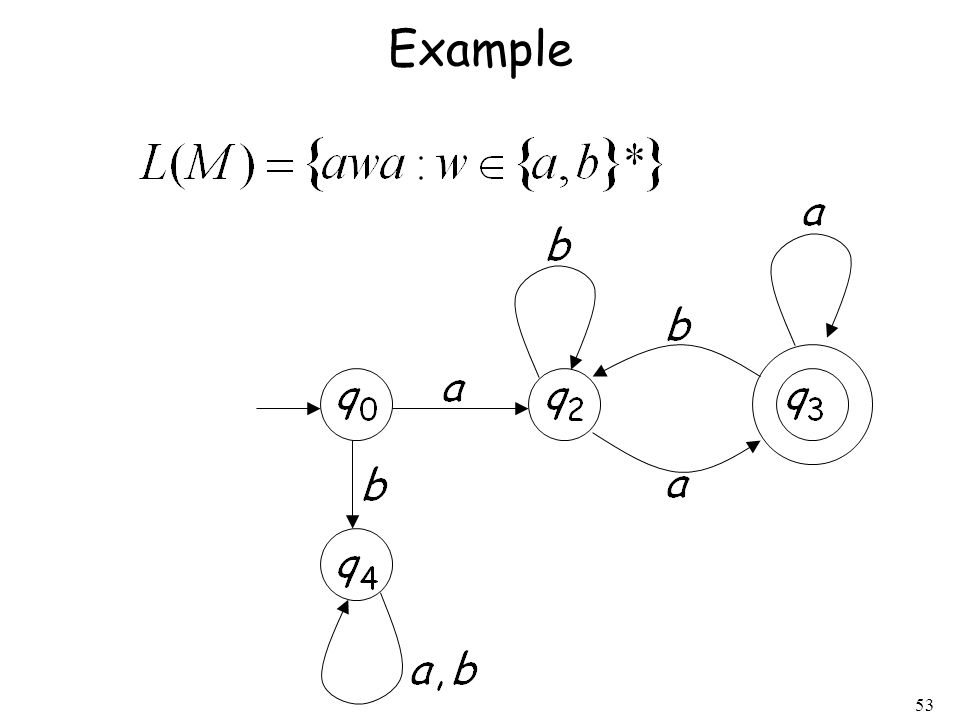

53 53 Example

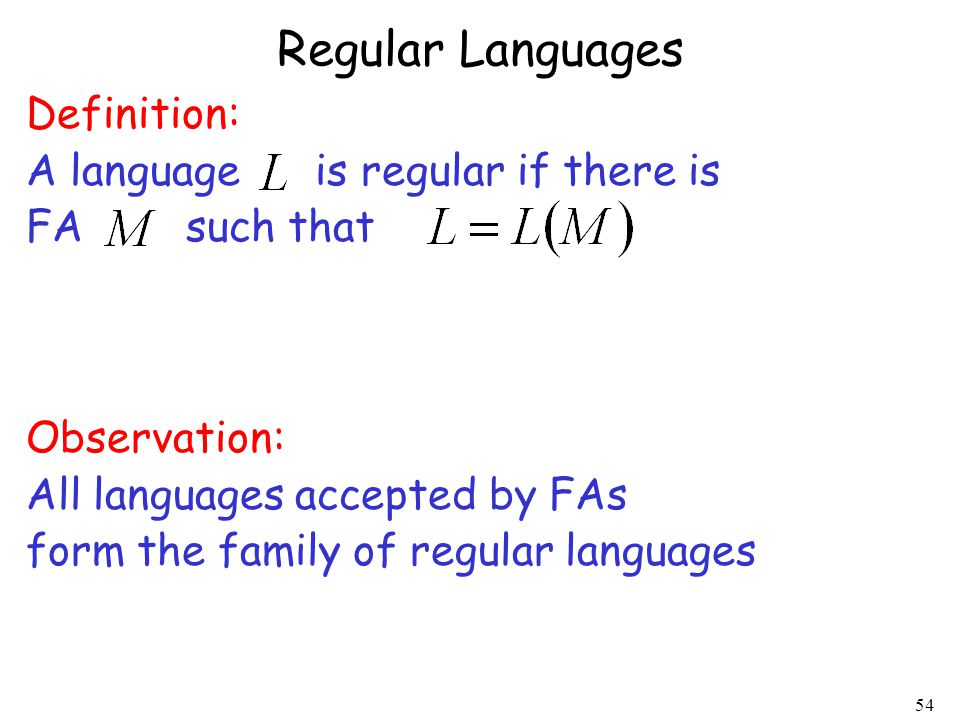

54 54 Regular Languages Definition: A language is regular if there is FA such that Observation: All languages accepted by FAs form the family of regular languages

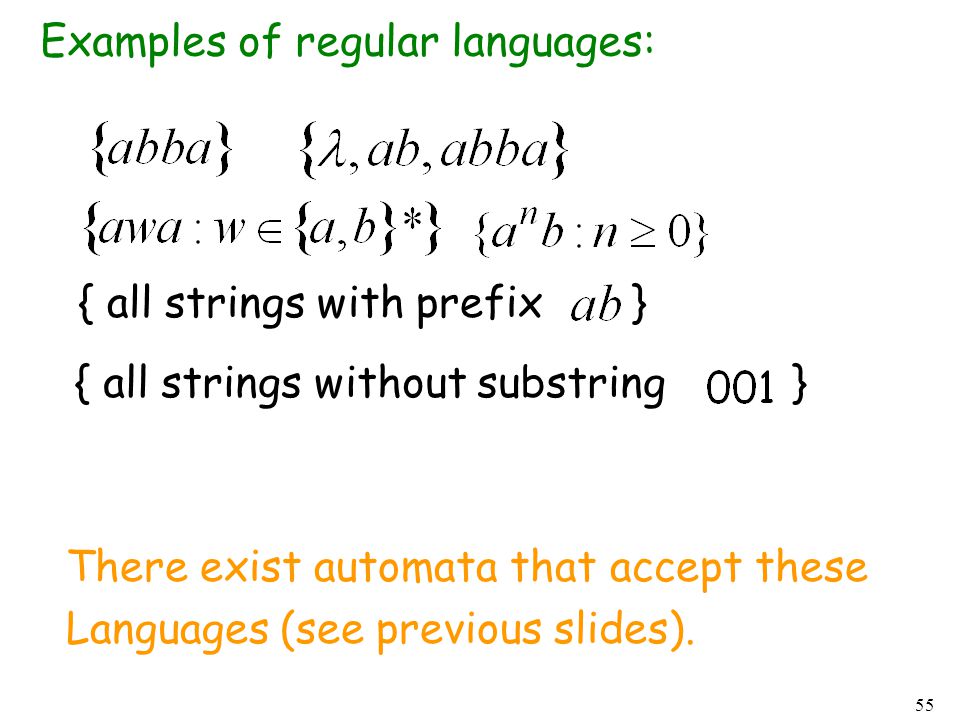

55 55 { all strings with prefix } { all strings without substring } Examples of regular languages: There exist automata that accept these Languages (see previous slides).

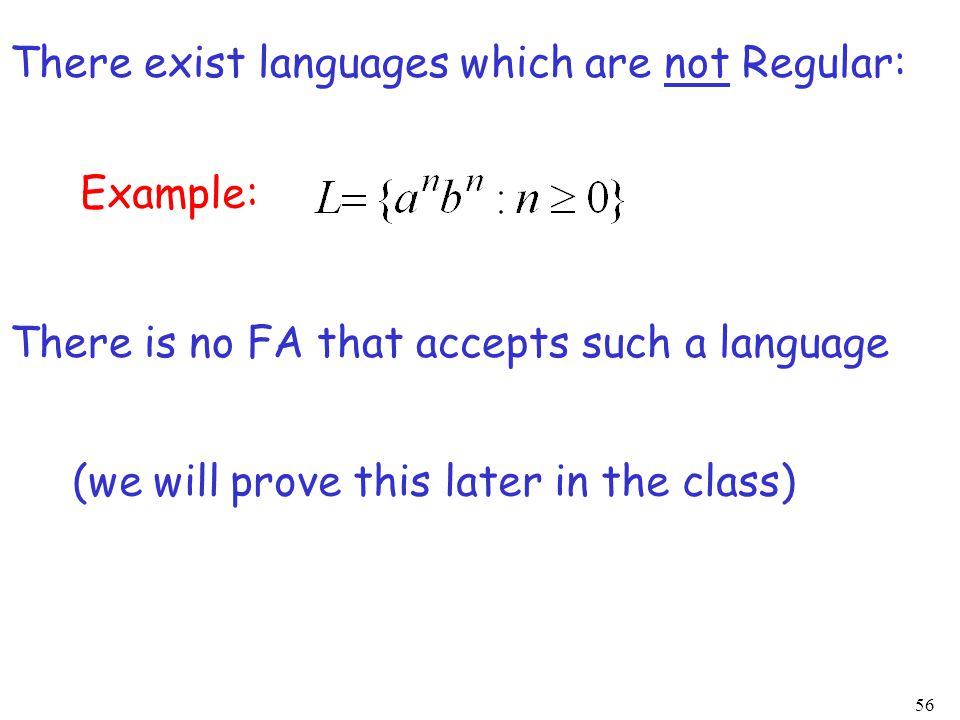

56 56 There exist languages which are not Regular: There is no FA that accepts such a language (we will prove this later in the class) Example:
