1. Concurrency Control II R &G - Chapter 17 Lecture 20 Smile, it is the key that fits the lock of everybody's heart. Anthony J. D'Angelo, The College Blue Book

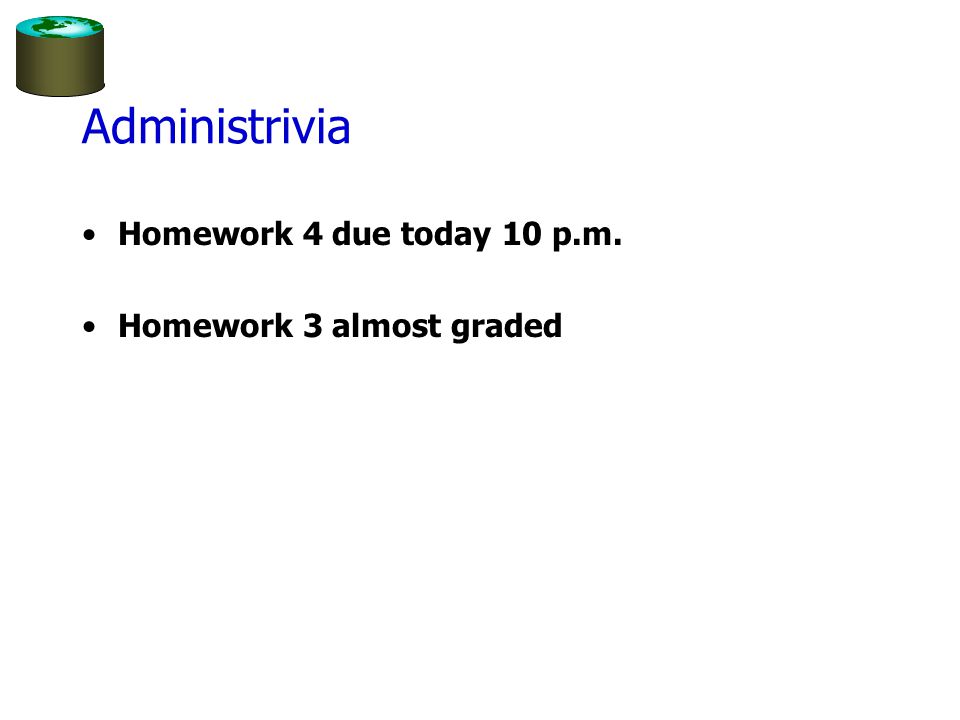

2. Administrivia Homework 4 due today 10 p.m. Homework 3 almost graded

3. Concurrent users introduce anomalies –Dirty reads (WR): T2 reads a value A that T1 wrote but didn’t commit –Unrepeatable Reads (RW): T1 reads a value A that is then written by T2 –Lost Updates (WW): T2 overwrites a write by T1 Serializable schedules: –A schedule that is equivalent to some serial execution of the transactions. Definition: Two operations conflict if: –They are by different transactions, –they are on the same object, –and at least one of them is a write. Review: Concurrency R(A) R(B) W(A) W(B) R(A)R(B)W(B) T1: T2: W(A)

4. Conflict Serializable Schedules Definition: Two schedules are conflict equivalent iff: –They involve the same actions of the same transactions, and –every pair of conflicting actions is ordered the same way Definition: Schedule S is conflict serializable if: –S is conflict equivalent to some serial schedule. Conflict serializable schedules imply that conflicting operations can be arranged as though they executed serially

5. Conflict Serializability – Intuition A schedule S is conflict serializable if: –You are able to transform S into a serial schedule by swapping consecutive non-conflicting operations of different transactions. Example: R(A)R(B) W(A) W(B) R(A) W(A) R(B) W(B) W(A) R(B) R(A) W(B) W(A) W(B) R(A) R(B) W(A) W(B) R(A) W(A) R(B) W(B) T1: T2: T1: T2:

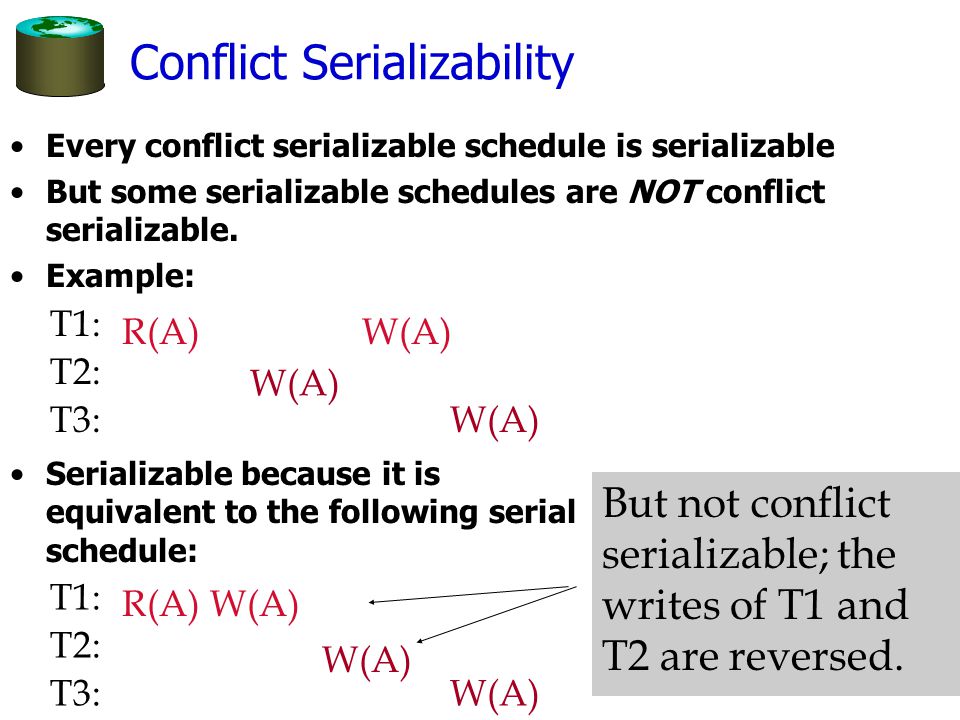

6. Conflict Serializability Every conflict serializable schedule is serializable But some serializable schedules are NOT conflict serializable. Example: R(A)W(A) T1: T2: T3: Serializable because it is equivalent to the following serial schedule: R(A)W(A) T1: T2: T3: But not conflict serializable; the writes of T1 and T2 are reversed.

7. Dependency Graph Dependency graph: –One node per Xact –Edge from Ti to Tj if: An operation Oi of Ti conflicts with an operation Oj of Tj and Oi appears earlier in the schedule than Oj. Theorem: Schedule is conflict serializable if and only if its dependency graph is acyclic. TiTj

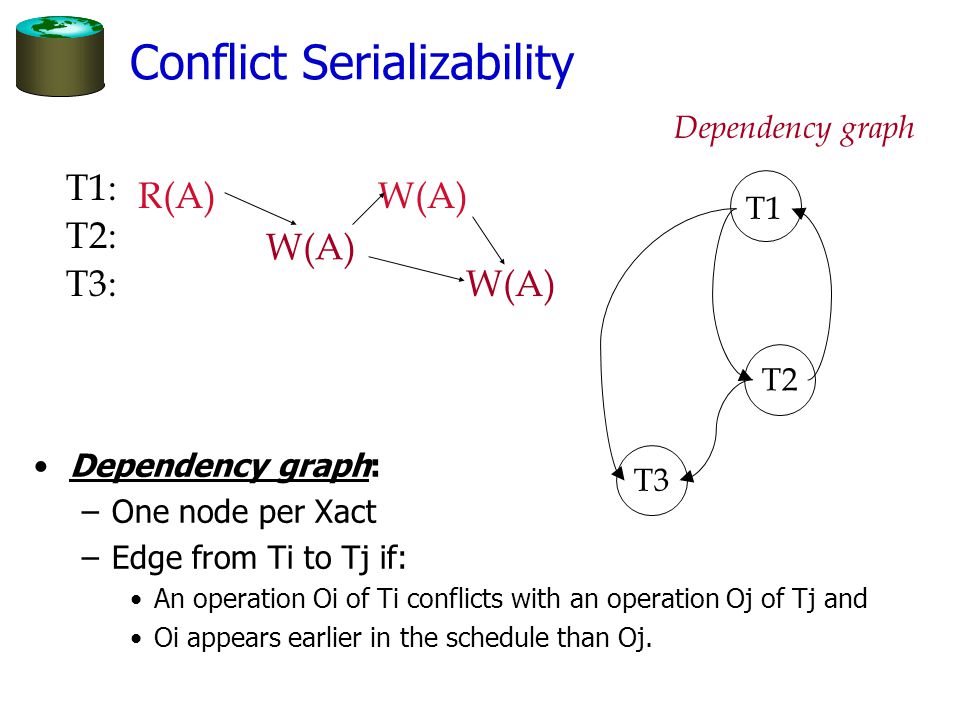

8. Conflict Serializability R(A)W(A) T1: T2: T3: T1 T2 Dependency graph Dependency graph: –One node per Xact –Edge from Ti to Tj if: An operation Oi of Ti conflicts with an operation Oj of Tj and Oi appears earlier in the schedule than Oj. T3

9. A schedule that is not conflict serializable: The cycle in the graph reveals the problem. The output of T2 depends on T1’s value of A, and the output of T1 depends on T2’s value of B. Another Example T1T2 A B Dependency graph T1: R(A), W(A), R(B), W(B) T2: T1: R(A), W(A), R(B), W(B) T2: R(A), W(A), R(B), W(B) T1: R(A), W(A), R(B), W(B) T2: R(A), W(A), R(B), W(B) T1: R(A), W(A), R(B), W(B) T2: R(A), W(A), R(B), W(B) T1: R(A), W(A), R(B), W(B) T2: R(A), W(A), R(B), W(B)

10. Alternative (weaker) notion of serializability. Schedules S1 and S2 are view equivalent if: 1. If Ti reads initial value of A in S1, then Ti also reads initial value of A in S2 2. If Ti reads value of A written by Tj in S1, then Ti also reads value of A written by Tj in S2 3. If Ti writes final value of A in S1, then Ti also writes final value of A in S2 Basically, allows all conflict serializable schedules + “blind writes” An Aside: View Serializability T1: R(A) W(A) T2: W(A) T3: W(A) T1: R(A),W(A) T2: W(A) T3: W(A) view 1 3

11. Serializability and Locking Locking approaches guarantee schedule serializability and recovery We talked about two of them before the break…what are they?

12. Review: Lock-Based Concurrency Control Two-phase Locking (2PL) Protocol: – Each Xact must obtain: a S (shared) lock on object before reading, and an X (exclusive) lock on object before writing. – If an Xact holds an X lock on an object, no other Xact can get a lock (S or X) on that object. – System can obtain these locks automatically – Two phases: acquiring locks, and releasing them No lock is ever acquired after one has been released “Growing phase” followed by “shrinking phase”. Ensures acyclic dependency graphs Allows only conflict serializable schedules

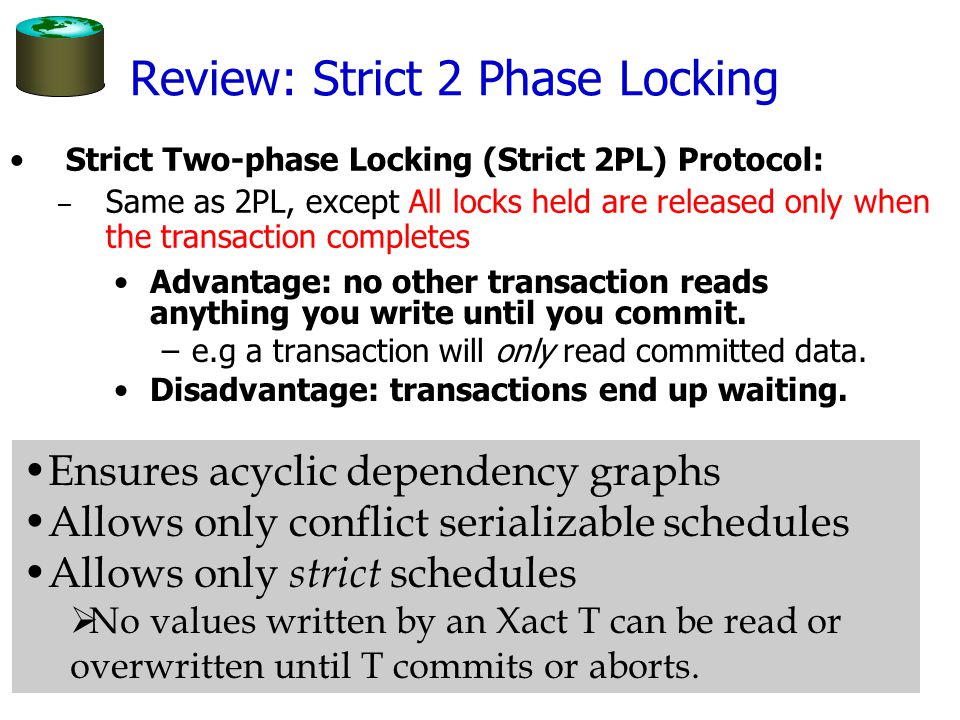

13. Review: Strict 2 Phase Locking Advantage: no other transaction reads anything you write until you commit. –e.g a transaction will only read committed data. Disadvantage: transactions end up waiting. Strict Two-phase Locking (Strict 2PL) Protocol: – Same as 2PL, except All locks held are released only when the transaction completes Ensures acyclic dependency graphs Allows only conflict serializable schedules Allows only strict schedules  No values written by an Xact T can be read or overwritten until T commits or aborts.

14. Summary: Guarantees provided by locking All Schedules View Serializable Conflict Serializable Strict recoverable avoids cascading aborts Strict 2PL 2PL Serial

15. Lock Management Lock and unlock requests are handled by the lock manager Lock table entry: – Number of transactions currently holding a lock – Type of lock held (shared or exclusive) – Pointer to queue of lock requests Locking and unlocking have to be atomic operations –requires latches (“semaphores”), which ensure that the process is not interrupted while managing lock table entries –see CS162 for implementations of semaphores Lock upgrade: transaction that holds a shared lock can be upgraded to hold an exclusive lock –Can cause deadlock problems

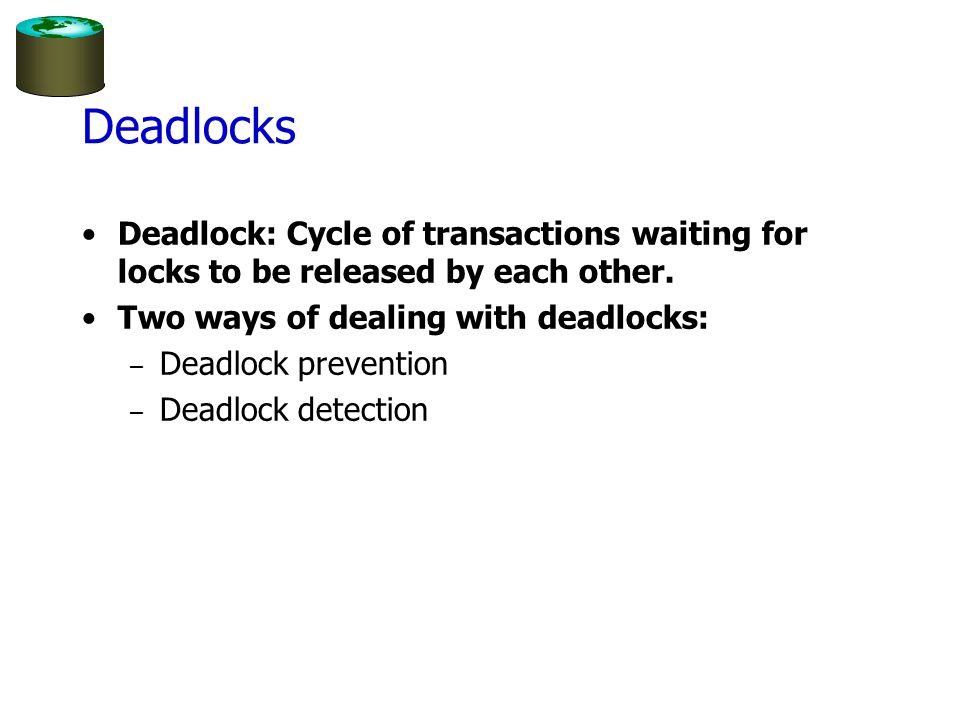

16. Deadlocks Deadlock: Cycle of transactions waiting for locks to be released by each other. Two ways of dealing with deadlocks: – Deadlock prevention – Deadlock detection

17. Deadlock Prevention Assign priorities based on timestamps. –Oldest xacts have the highest priority Assume Ti wants a lock that Tj holds. Two policies possible: – Wait-Die: new transactions aren’t allowed to wait If timestamp(Ti) < timestamp(Tj) then wait(Ti) else abort(Ti); restart(Ti) – Wound-wait: old transactions don’t have to wait If timestamp(Ti) < timestamp(Tj) then abort(Tj); restart(Tj); else wait(Ti) When transaction re-starts, it gets its original timestamp –Why?

18. Deadlock Detection Create a waits-for graph: – Nodes are transactions – There is an edge from Ti to Tj if Ti is waiting for Tj to release a lock Periodically check for cycles in the waits-for graph

19. Deadlock Detection (Continued) Example: T1: S(A), S(D), S(B) T2: X(B) X(C) T3: S(D), S(C), X(A) T4: X(B) T1T2 T4T3 S(A) S(D) X(B) S(B) S(D) S(C) X(C) X(B) X(A)

20. Deadlock Detection (cont.) In practice, most systems do detection rather than prevention –Experiments show that most waits-for cycles are length 2 or 3 –Hence few transactions need to be aborted –Implementations can vary Can construct the graph and periodically look for cycles Can do a “time-out” scheme: if you’ve been waiting on a lock for a long time, assume you’re deadlock and abort

21. Lock Management What should we lock? –We assume tuples so far, but that can be expensive! –If we do table locks, that’s too conservative –Multi-granularity locking Locking in indexes –don’t want to lock a B-tree root for a whole transaction! –actually do non-2PL “latches” in B-trees CC w/out locking –“optimistic” concurrency control –“timestamp” and multi-version concurrency control –locking usually better, though

22. Multiple-Granularity Locks Hard to decide what granularity to lock (tuples vs. pages vs. tables). Shouldn’t have to make same decision for all transactions! Data “containers” are nested: Tuples Tables Pages Database contains

23. Multiple-Granularity Locks (cont) Idea: –need locks of different granularity, sometimes need to lock >1 table. –if transaction wants to rewrite entire DBMS, get X lock on DBMS. –if transaction wants to rewrite entire Table, get X lock on Table –if transaction wants to read entire Table, get S lock on Table –etc. –but, how to ensure that one transaction doesn’t lock DBMS while another locks a tuple? Tuples Tables Pages Database contains

24. Solution: New Lock Modes, Protocol Allow Xacts to lock at each level, but with a special protocol using new “intention” locks. Still need S and X locks, but before locking an item, Xact must have proper intension locks on all its ancestors in the granularity hierarchy. v Before locking an item, Xact must set “intention locks” on all its ancestors. v For unlock, go from specific to general (i.e., bottom-up). -- ISIX -- IS IX      SX   S X       Lock compability

25. Multiple Granularity Lock Protocol Each Xact starts from the root of the hierarchy. Special SIX lock used when reading many records, and updating a few. –SIX lock conflicts are all S and IX conflicts (e.g. only compatible with IS locks). To get S or IS lock on a node, must hold IS or IX on parent node. To get X or IX or SIX on a node, must hold IX or SIX on parent node. Must release locks in bottom-up order.

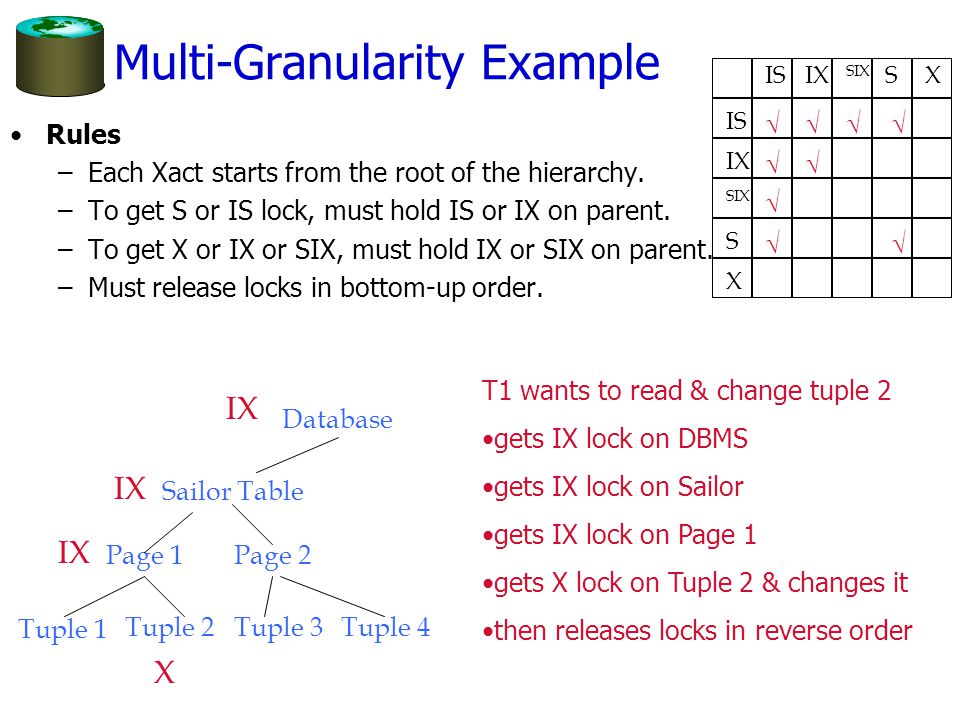

26. Multi-Granularity Example Rules –Each Xact starts from the root of the hierarchy. –To get S or IS lock, must hold IS or IX on parent. –To get X or IX or SIX, must hold IX or SIX on parent. –Must release locks in bottom-up order. Tuple 1 Sailor Table Page 1 Database Page 2 Tuple 2Tuple 4Tuple 3 T1 wants to read & change tuple 2 gets IX lock on DBMS gets IX lock on Sailor gets IX lock on Page 1 gets X lock on Tuple 2 & changes it then releases locks in reverse order IS IX SIX IS IX SIX      SX  S X   IX X

27. Multi-Granularity Example 2 Rules –Each Xact starts from the root of the hierarchy. –To get S or IS lock, must hold IS or IX on parent. –To get X or IX or SIX, must hold IX or SIX on parent. –Must release locks in bottom-up order. Tuple 1 Sailor Table Page 1 Database Page 2 Tuple 2Tuple 4Tuple 3 T1 wants to read & change tuple 2 T2 wants to read & change tuple 3 T1 gets IX lock on DBMS, Sailor, Page 1 T1 gets X lock on Tuple 2 & changes it T2 gets IX lock on DBMS, Sailor, Page 2 T2 gets X lock on Tuple 3 & changes it No problem! IS IX SIX IS IX SIX      SX  S X   T1:IX T1:X T2:IX T2:X

28. Multi-Granularity Example 3 Rules –Each Xact starts from the root of the hierarchy. –To get S or IS lock, must hold IS or IX on parent. –To get X or IX or SIX, must hold IX or SIX on parent. –Must release locks in bottom-up order. Tuple 1 Sailor Table Page 1 Database Page 2 Tuple 2Tuple 4Tuple 3 T1 wants to read & change tuple 2 T2 wants to read all of Page 1 T1 gets IX lock on DBMS, Sailor, Page 1 T1 gets X lock on Tuple 2 & changes it T2 gets IS lock on DBMS, Sailor T2 tries to get S lock on Page 1, but S conflicts with IX lock. T2 blocks. What if T2 had started first? IS IX SIX IS IX SIX      SX  S X   T1:IX T1:X T2:IS T2:wait

29. Multi-Granularity Example 3 Rules –Each Xact starts from the root of the hierarchy. –To get S or IS lock, must hold IS or IX on parent. –To get X or IX or SIX, must hold IX or SIX on parent. –Must release locks in bottom-up order. Tuple 1 Sailor Table Page 1 Database Page 2 Tuple 2Tuple 4Tuple 3 T1 wants to read & change tuple 2 T2 wants to read all of Page 1 T2 gets IS lock on DBMS, Sailor T2 gets S lock on Page 1 T1 gets IX lock on DBMS, Sailor T1 tries to get IX lock on Page 1, waits IS IX SIX IS IX SIX      SX  S X   T1:IX T1:waits T2:IS T2:S

30. Multi-Granularity Example 4 Rules –Each Xact starts from the root of the hierarchy. –To get S or IS lock, must hold IS or IX on parent. –To get X or IX or SIX, must hold IX or SIX on parent. –Must release locks in bottom-up order. Tuple 1 Sailor Table Page 1 Database Page 2 Tuple 2Tuple 4Tuple 3 T1 wants to read all tuples, change tuple 1 and Tuple 3 T2 wants to read Tuple 4 T1 gets IX lock on DBMS T1 gets SIX lock on Sailor, Pages T1 gets X lock Tuple 1 & 3 T2 gets IS lock on DBMS, Sailor, Page 2 T2 gets S lock on Tuple 4. If T1 had gotten an X lock on Tuple 4, T2 would have to wait. IS IX SIX IS IX SIX      SX  S X   T2:IST1:IX T1:SIX T1:X T1:SIX T2:IS T2:S

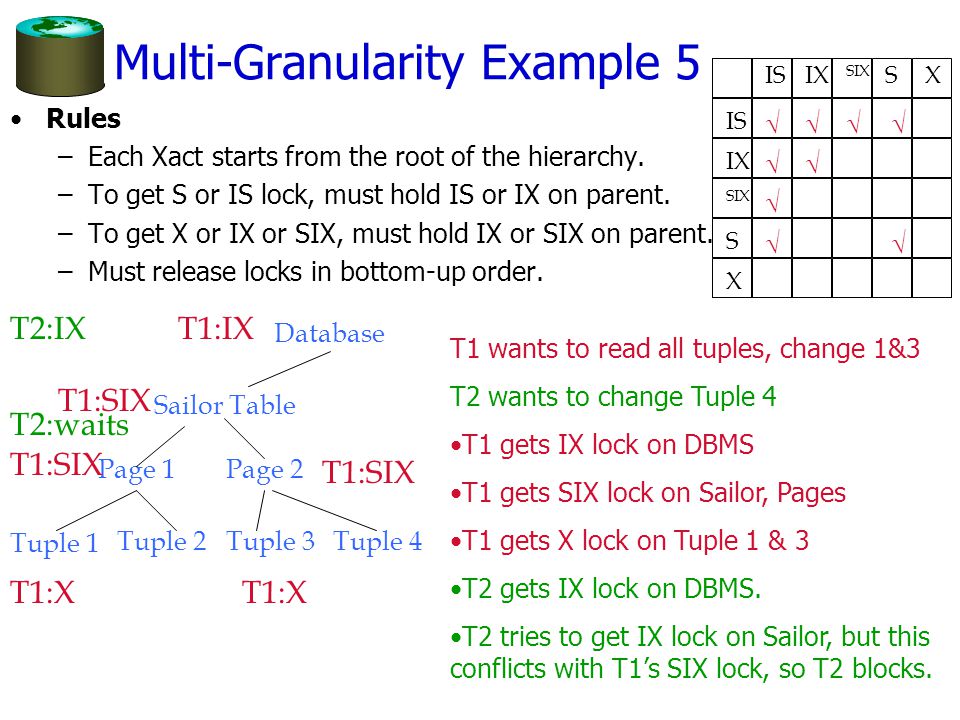

31. Multi-Granularity Example 5 Rules –Each Xact starts from the root of the hierarchy. –To get S or IS lock, must hold IS or IX on parent. –To get X or IX or SIX, must hold IX or SIX on parent. –Must release locks in bottom-up order. Tuple 1 Sailor Table Page 1 Database Page 2 Tuple 2Tuple 4Tuple 3 T1 wants to read all tuples, change 1&3 T2 wants to change Tuple 4 T1 gets IX lock on DBMS T1 gets SIX lock on Sailor, Pages T1 gets X lock on Tuple 1 & 3 T2 gets IX lock on DBMS. T2 tries to get IX lock on Sailor, but this conflicts with T1’s SIX lock, so T2 blocks. IS IX SIX IS IX SIX      SX  S X   T1:IXT2:IX T1:SIX T1:X T2:waits

32. Locking in B+ Trees What about concurrency control for indexes? Simplistic solution: Ignore the tree structure, just lock pages while traversing the tree, following 2PL. 20  Leads to lock contention at top of the tree –Root nodes become bottlenecks because every tree access begins at the root. 1024 3 511 1421 2330 33 T1 wants to read 11,23 T2 wants to read 3 T3 wants to update 33 T1:S T2: waits T2:S

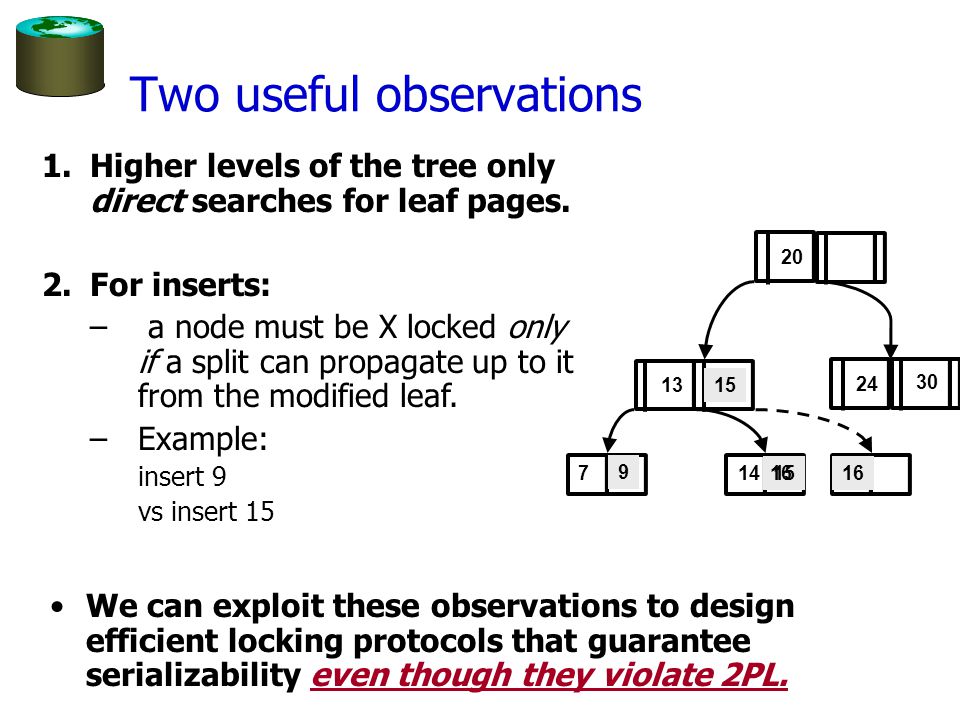

33. Two useful observations 24 30 7 9 1415 13 20 1.Higher levels of the tree only direct searches for leaf pages. 2.For inserts: – a node must be X locked only if a split can propagate up to it from the modified leaf. –Example: insert 9 vs insert 15 16 15 16 We can exploit these observations to design efficient locking protocols that guarantee serializability even though they violate 2PL.

34. A Simple Tree Locking Algorithm Search: Start at root and go down; –S lock node. –Unlock its parent. Insert/Delete: Start at root and go down, –X lock node. –If node is safe, release all locks on ancestors. Safe node: Node such that changes will not propagate up beyond this node. –Inserts: Node is not full. –Deletes: Node is not half-empty.

35. Example ROOT A B C DE F G H I 20 35 20* 3844 22*23*24*35*36*38*41*44* T1: Search 38 T2: Insert 45 T3: Insert 25 23 T1:S T2:X Search: –S lock node. –Unlock its parent. Insert/Delete: –X lock node. –If node is safe, release all locks on ancestors. T3:X

36. A Better Tree Locking Algorithm (See Bayer-Schkolnick paper) Search: As before. Insert/Delete: –Set locks as if for search, get to leaf, and set X lock on leaf. –If leaf is not safe, release all locks, and restart Xact using previous Insert/Delete protocol. Gambles that only leaf node will be modified; if not, S locks set on the first pass to leaf are wasteful. In practice, better than previous alg.

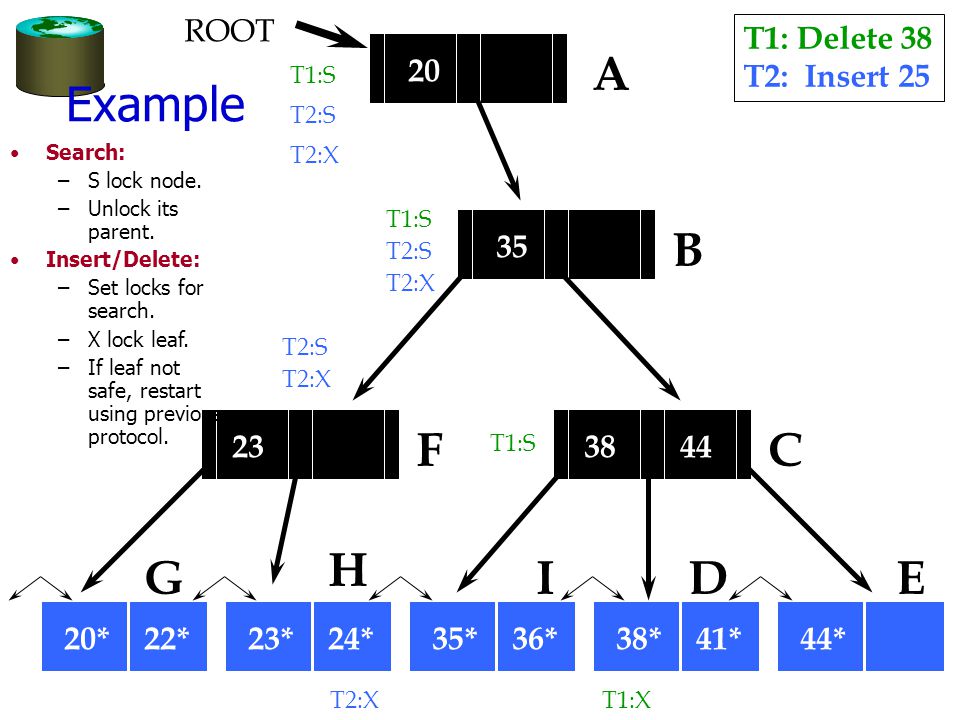

37. Example ROOT A B C DE F G H I 20 35 20* 3844 22*23*24*35*36*38*41*44* 23 Search: –S lock node. –Unlock its parent. Insert/Delete: –Set locks for search. –X lock leaf. –If leaf not safe, restart using previous protocol. T1: Delete 38 T2: Insert 25 T1:S T2:S T1:S T1:X T2:S T2:X

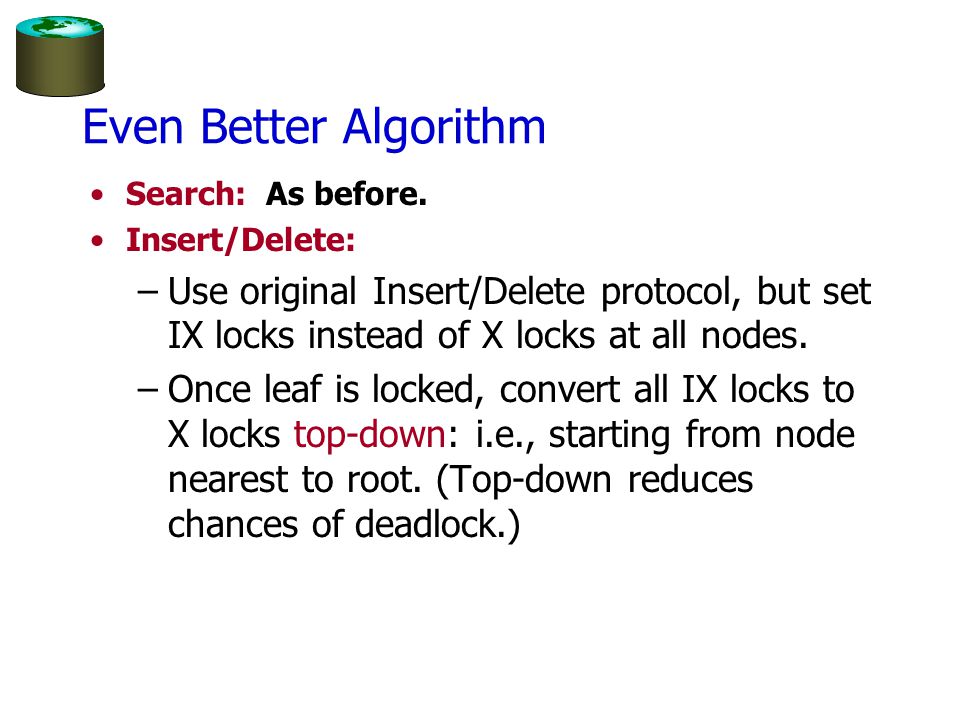

38. Even Better Algorithm Search: As before. Insert/Delete: –Use original Insert/Delete protocol, but set IX locks instead of X locks at all nodes. –Once leaf is locked, convert all IX locks to X locks top-down: i.e., starting from node nearest to root. (Top-down reduces chances of deadlock.)

39. Hybrid Algorithm The likelihood that we really need an X lock decreases as we move up the tree. Hybrid approach: Set S locks Set SIX locks Set X locks
