Standard Temperature and Pressure (STP) 1 atm pressure 0 ºC or 273 K.

Similar presentations


Presentation on theme: "Standard Temperature and Pressure (STP) 1 atm pressure 0 ºC or 273 K."— Presentation transcript:

1

2 Standard Temperature and Pressure (STP) 1 atm pressure 0 ºC or 273 K

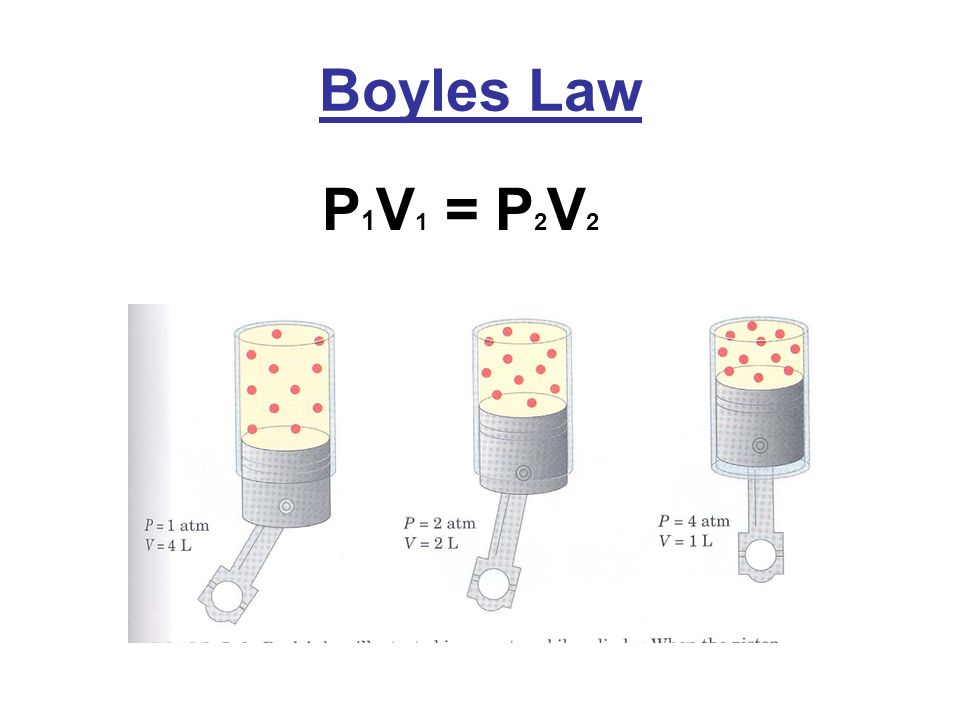

3 Boyles Law P 1 V 1 = P 2 V 2

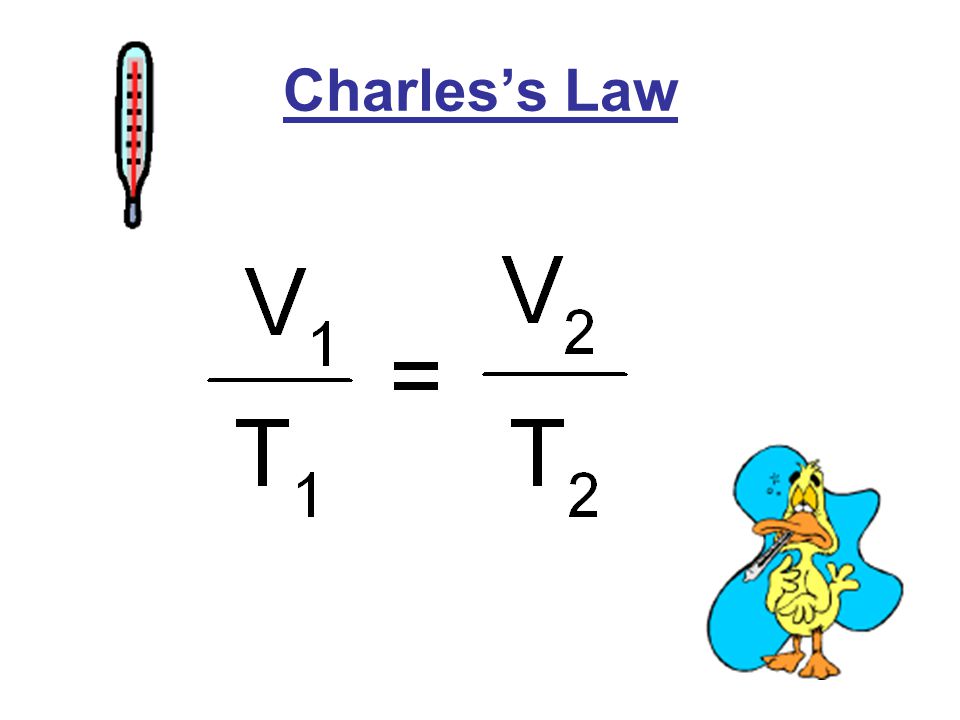

4 Charles’s Law

5 Gay-Lussac’s Law

6 Conflux Pictures taken from web site: http://www.aqd.nps.gov/grd/parks/cany/

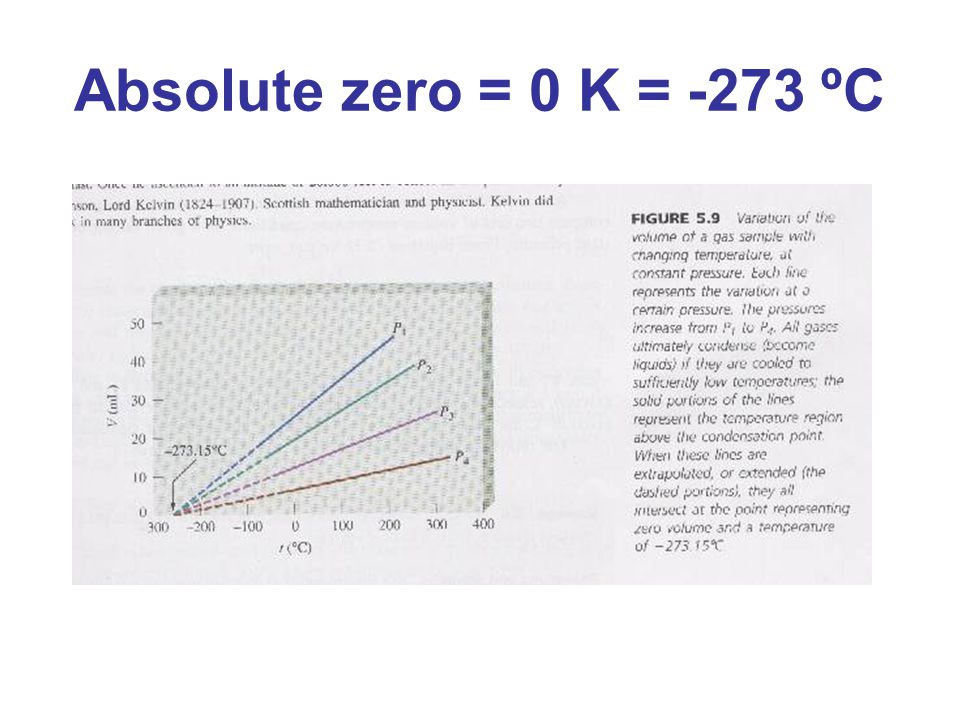

7 Absolute zero = 0 K = -273 ºC

8 Combined Gas Law

9 Problems Practice - page 162 Practice - page 165 Practice - page 169

10 Ideal Gas Law PV = nRT P = pressure V = volume n = number of moles of gas R = Gas constant (0.0821 L·Atm / Mol·K) T = Temperature in Kelvin

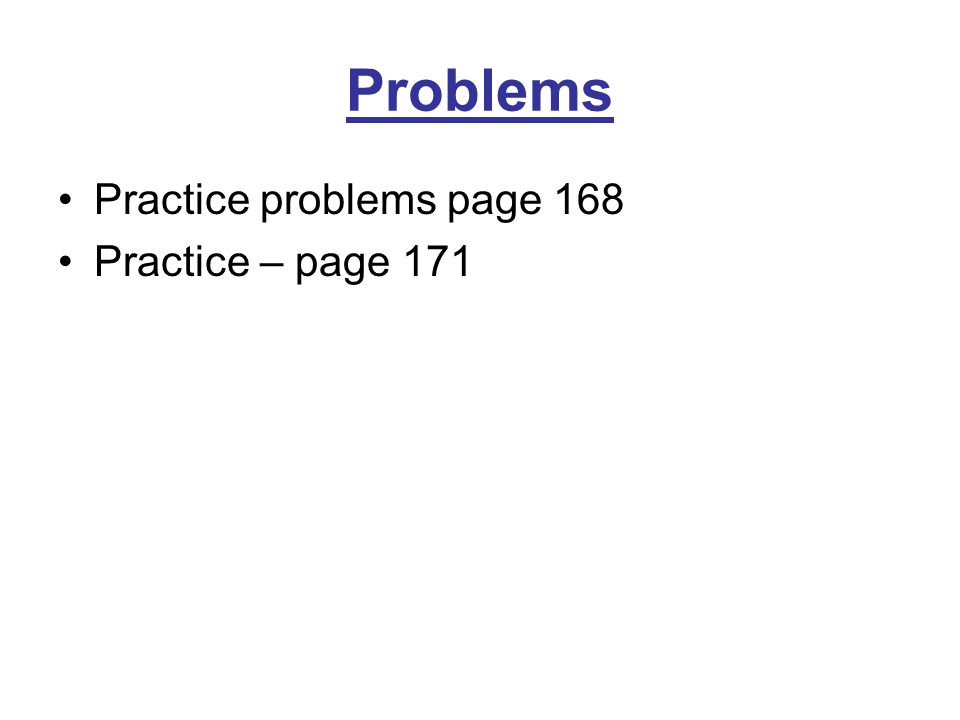

11 Problems Practice problems page 168 Practice – page 171

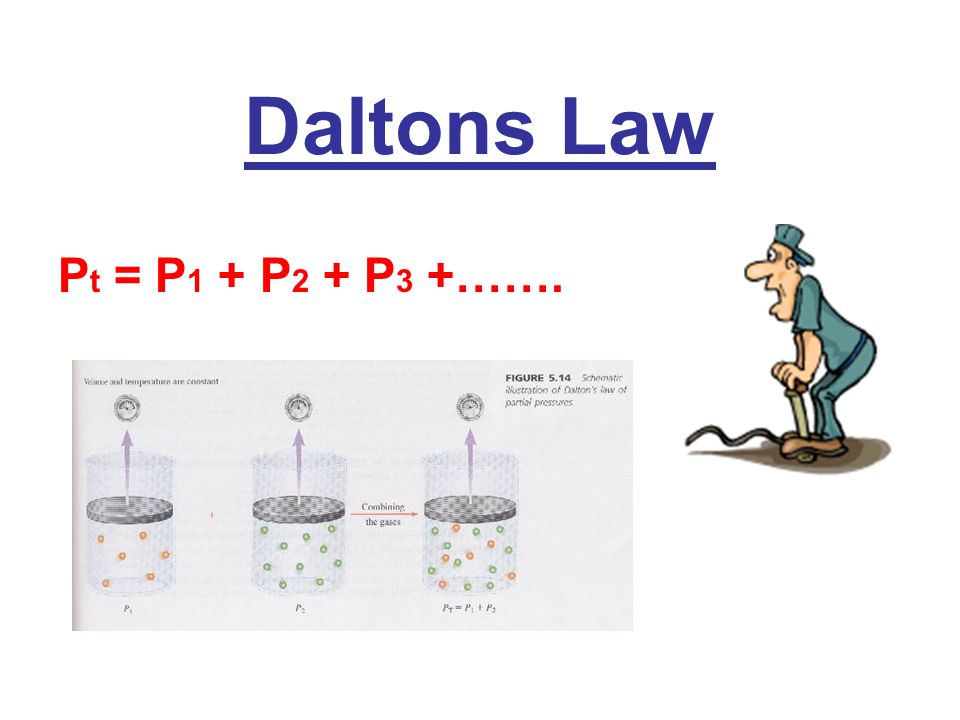

12 Daltons Law P t = P 1 + P 2 + P 3 +…….

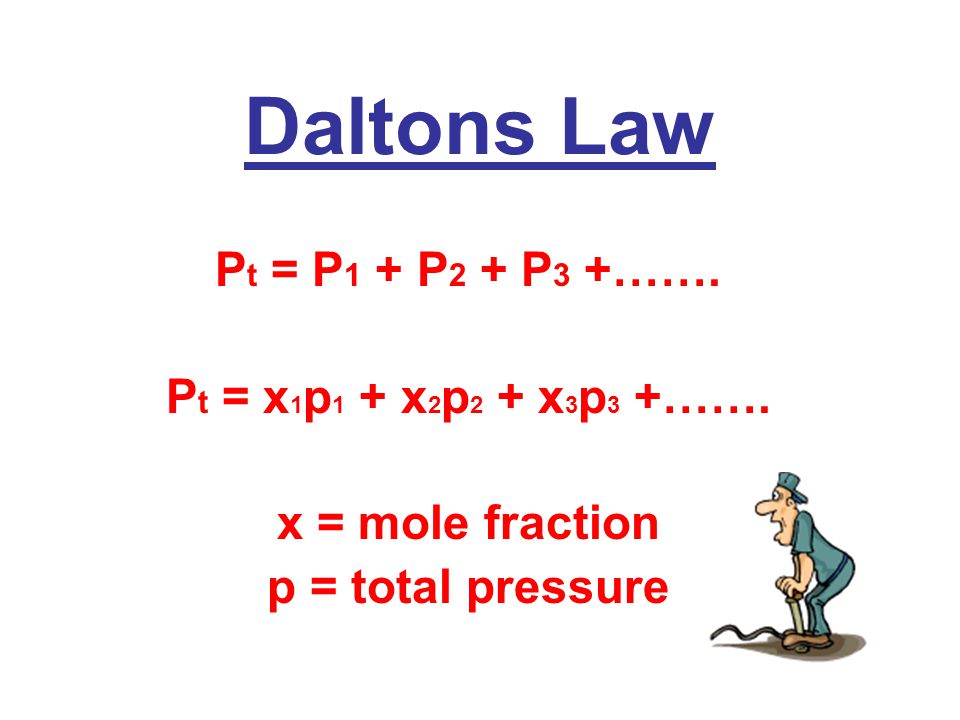

13 Daltons Law P t = P 1 + P 2 + P 3 +……. P t = x 1 p 1 + x 2 p 2 + x 3 p 3 +……. x = mole fraction p = total pressure

14 Practice – page 177 A sample of natural gas contains 8.24 moles of methane (CH 4 ) 0.421 moles of ethane (C 2 H 6 ) and 0.116 mole of propane (C 3 H 8 ). If the total pressure of the gases is 1.37 atm, what are the partial pressures of the gases
