June 1, 2001 Enterprise Directory Service at College Park David Henry Office of Information Technology University of Maryland College Park

Similar presentations


Presentation on theme: "June 1, 2001 Enterprise Directory Service at College Park David Henry Office of Information Technology University of Maryland College Park"— Presentation transcript:

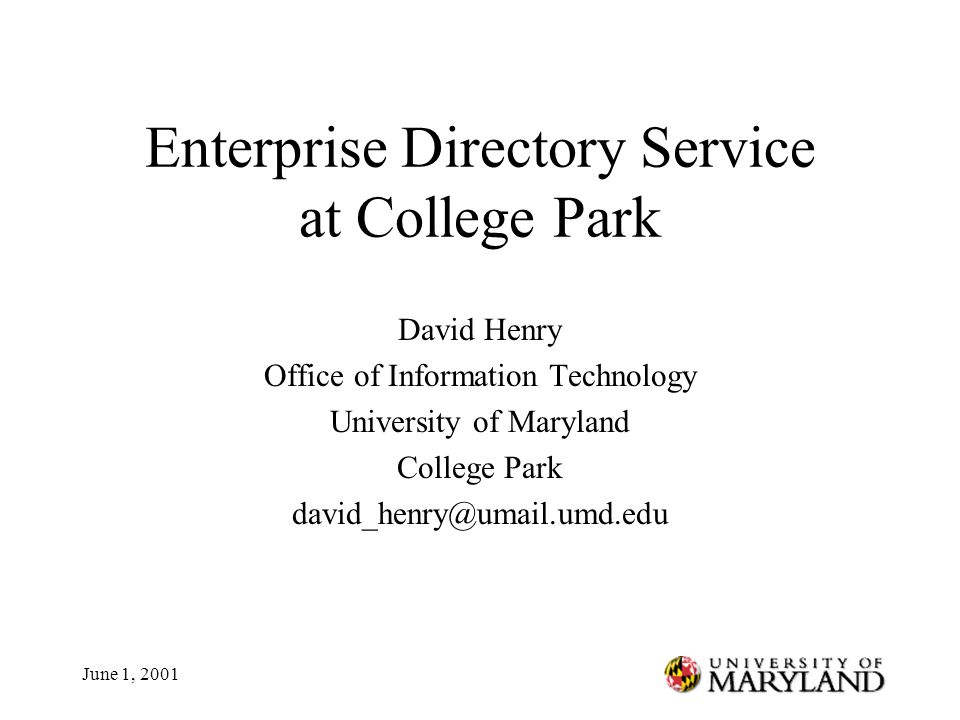

1 June 1, 2001 Enterprise Directory Service at College Park David Henry Office of Information Technology University of Maryland College Park david_henry@umail.umd.edu

2 June 1, 2001 History Umail directory – 1990 faculty/staff only Gopher/CSO directory – 1993 f/s only –Added web page access – short time later –University wide effort to build combined directory X.500 considered, but wasn’t ready Decided on gopher with single search page (umbc) First LDAP – 1995 f/s only Current LDAP – 1999 f/s/students/affiliates

3 June 1, 2001 Content People –Prospective students –Students –Faculty (current and Emeritus) –Staff –Affiliates ( Visiting faculty, Golden ID, etc.) –Alumni Other things too

4 June 1, 2001 Where we are now Running IBM Secureway LDAP server Contains faculty, staff, students, affiliates –Does not contain alumni –Access to student data is limited (for now) LDAP is not the primary source of most data Data feeds required –HR, SIS, ARS, affiliates, etc. –Data warehouse simplifies Weekly updates

5 June 1, 2001 Current work On-the-fly updates of certain data elements –Privacy flags (Buckley) –Email address Ultimately want to update each data element as appropriate –Instant (e.g., email, privacy flags) –Daily (e.g. registration/course info) –Weekly (e.g. address, phone, etc.)

6 June 1, 2001 Who is involved? LDAP Steering committee –OIT staff only –Involving Administrative and Academic IT support units Team effort Data Warehouse/DBA’s Programming staff –Construct data feeds –Process/consolidate data –Web based tools

7 June 1, 2001 Why do all this? Single sign-on Common and consistent (standards-based) mechanism for authentication and authorization 24X7 services Can use freely available access tools Don’t need special client tools (e.g. Oracle) Many COTS packages contain hooks for LDAP already

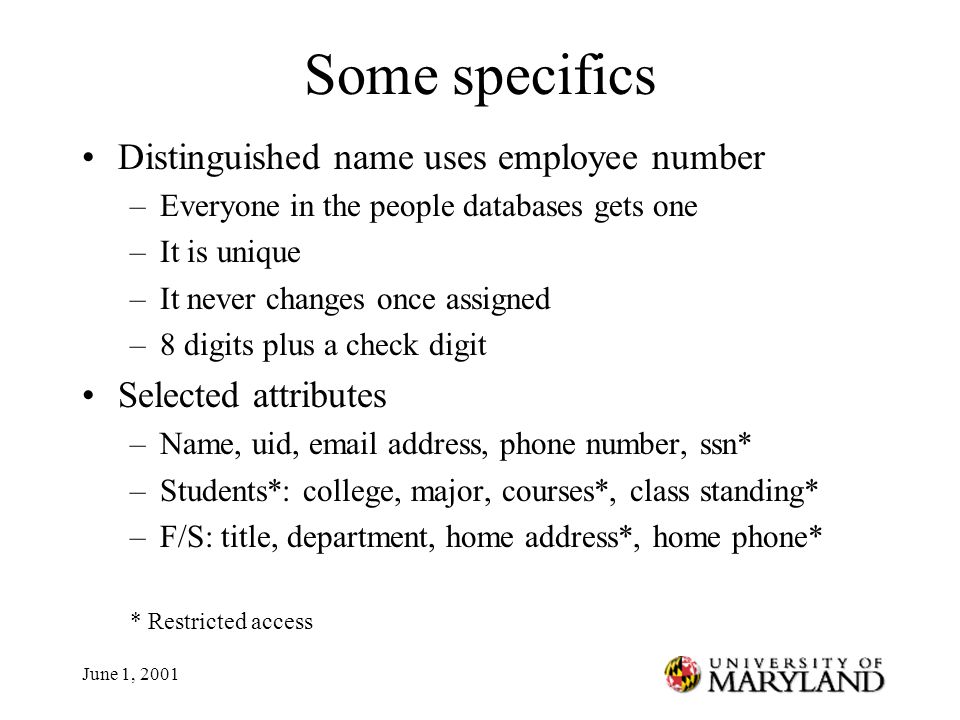

8 June 1, 2001 Some specifics Distinguished name uses employee number –Everyone in the people databases gets one –It is unique –It never changes once assigned –8 digits plus a check digit Selected attributes –Name, uid, email address, phone number, ssn* –Students*: college, major, courses*, class standing* –F/S: title, department, home address*, home phone* * Restricted access

9 June 1, 2001 A Critical Resource As the directory becomes a critical part of the enterprise infrastructure, it becomes critical to have stable, always available services. –Systems should have redundant components –Should run replicated servers Located on different parts of the network With battery backup –3 replicas Any two should be able to handle load

10 June 1, 2001 Directory Enabling Applications Permissions required for each application Buckley entries won’t appear otherwise Certain attributes are protected –Ssn, registration info –Optionally home address, phone, etc. Each app should have its own authn id/pwd Authorization to each attribute controlled by the data steward for that attribute

11 June 1, 2001 Some Directory Enabled Apps Email –Directory search (email addresses) –http://www.oit.umd.edu/staff/http://www.oit.umd.edu/staff/ –https://cgi.umd.edu/ldap_searchhttps://cgi.umd.edu/ldap_search –Central forwarding agent (name@umd.edu)name@umd.edu CorporateTime scheduling software –Authorization/authentication –Bunch of attributes –http://calendar.umd.edu/http://calendar.umd.edu/ Web sites –Authorization/authentication –http://www.agnr.umd.edu/AGNRWebAdmin/index.cfmhttp://www.agnr.umd.edu/AGNRWebAdmin/index.cfm

12 June 1, 2001 Some Potential Directory Enabled Apps Unique ID Portal authorization/authentication Dial-up/DHCP access Card key access Roles based authorization Single sign-on Dynamic email lists (e.g., class, department membership) More…

13 June 1, 2001 Examples Directory Search –Netscape Addressbook –Staff listing – www.oit.umd.edu/staffwww.oit.umd.edu/staff Authn/Authz –Corporatetime –Webpage access www.agnr.umd.edu/internalwww.agnr.umd.edu/internal –Affiliates DB updates

14 June 1, 2001 Issues Establishing primary source for each data element Password changes need to be centralized Establishing policies –Who is in –Who isn’t –What types of information to include

15 June 1, 2001 Security Services PKI requires a directory for publication of the public key –See www.inform.umd.edu/About/Staff/dave/PKI www.inform.umd.edu/About/Staff/dave/PKI Encryption Signed documents Secured access to web server –Note secure server does not mean the data is secure on the server, just getting between client and server

16 June 1, 2001 Conclusion A directory provides the basis for a common set of services needed to support the network/web based applications becoming so commonplace at each of our institutions Significant planning is needed to do it right Resources are available to help Use the available resources

17 June 1, 2001 That’s IT David Henry OIT University of Maryland
