1 IIS v7.0 Martin Parry Developer & Platform Group Microsoft Limited

2 Agenda IIS architecture The request pipeline Configuration Building managed modules Diagnostics features Delegated administration

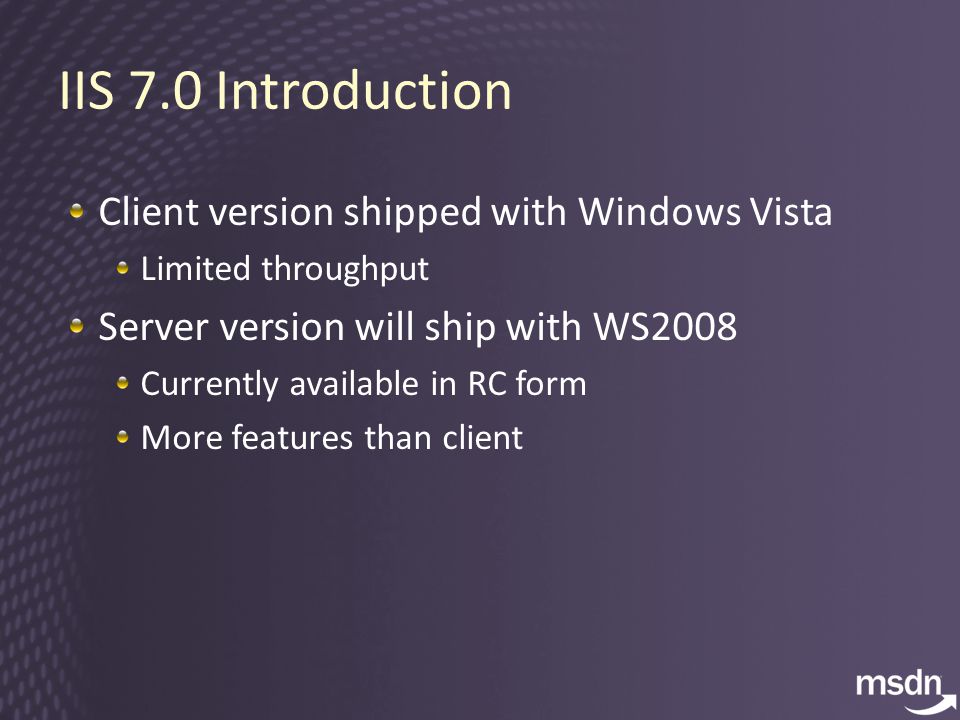

3 IIS 7.0 Introduction Client version shipped with Windows Vista Limited throughput Server version will ship with WS2008 Currently available in RC form More features than client

4 IIS 6.0 Architecture

5 IIS 7.0 Architecture

6 Windows Process Activation Service Manages configuration What used to be the metabase Responsible for starting worker processes... w3wp.exe...and routing incoming requests to the appropriate worker process Also hosts the new listener adapter interface You can build your own listeners for WAS

7 IIS 6.0 Request Pipeline

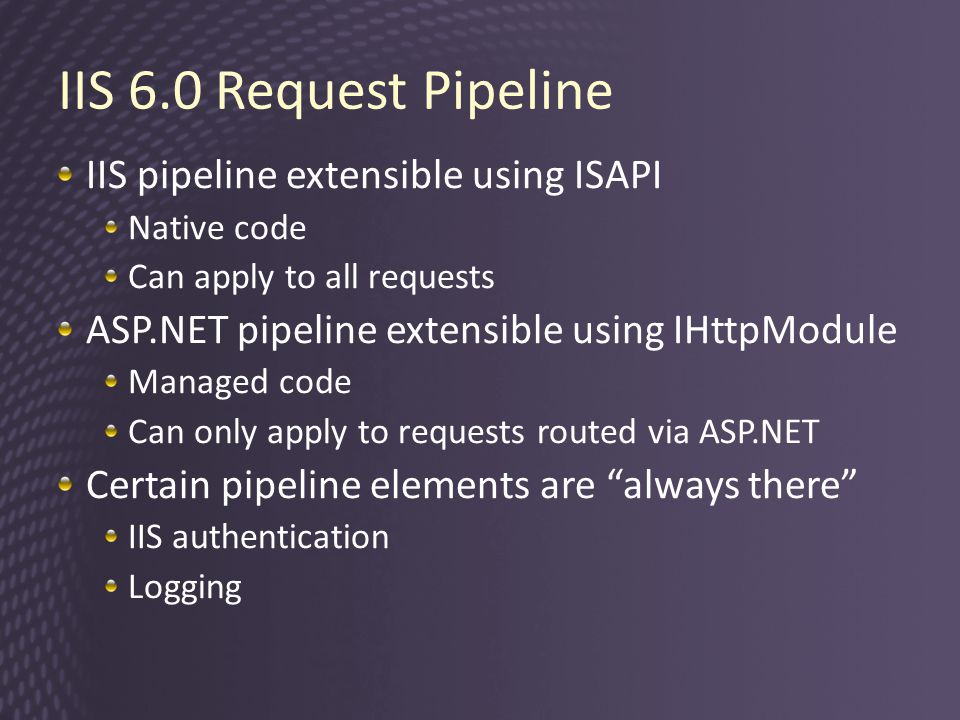

8 IIS pipeline extensible using ISAPI Native code Can apply to all requests ASP.NET pipeline extensible using IHttpModule Managed code Can only apply to requests routed via ASP.NET Certain pipeline elements are “always there” IIS authentication Logging

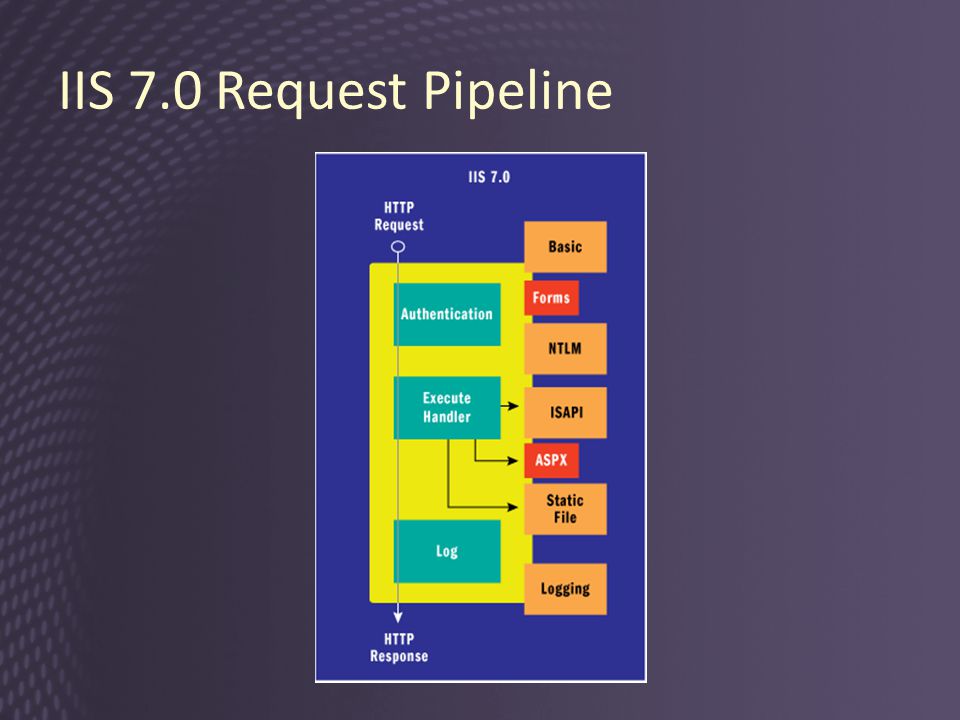

9 IIS 7.0 Request Pipeline

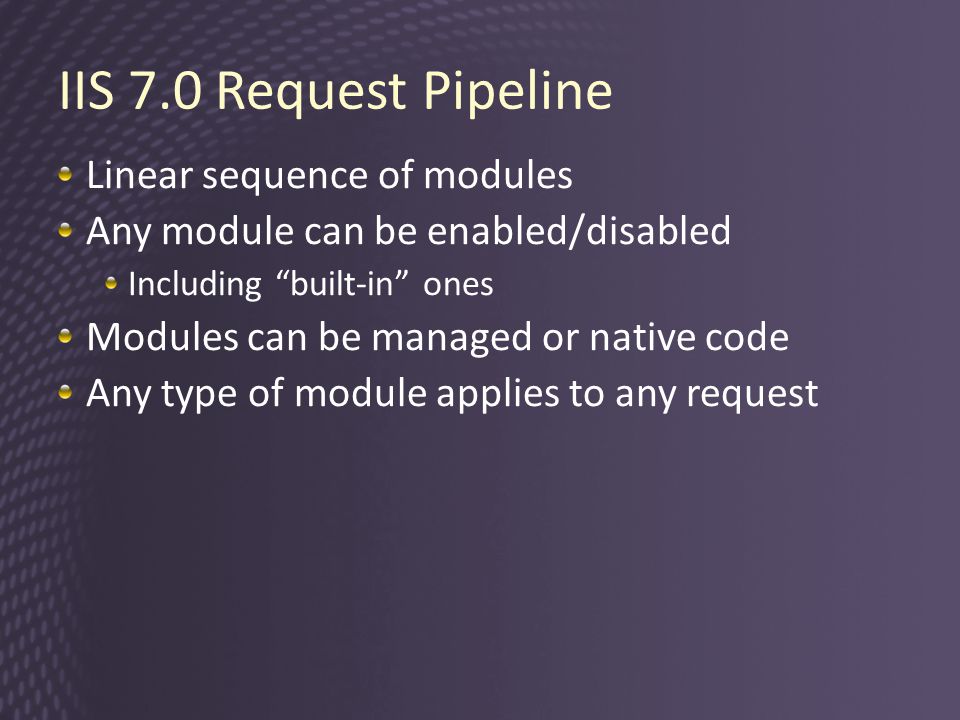

10 Linear sequence of modules Any module can be enabled/disabled Including “built-in” ones Modules can be managed or native code Any type of module applies to any request

11 IIS7 Modules

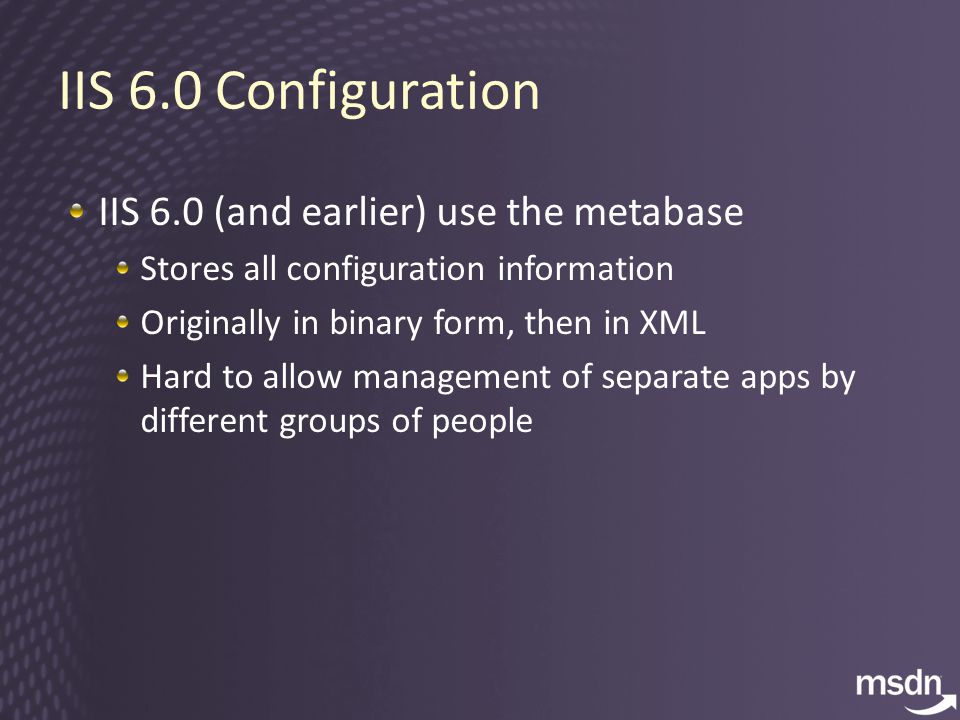

12 IIS 6.0 Configuration IIS 6.0 (and earlier) use the metabase Stores all configuration information Originally in binary form, then in XML Hard to allow management of separate apps by different groups of people

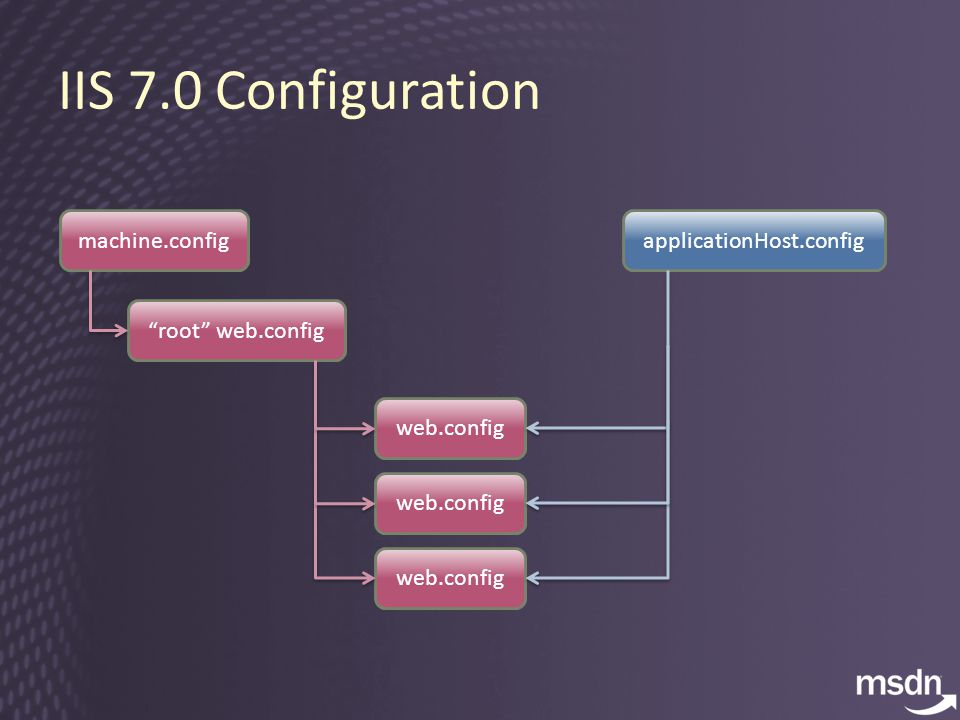

13 IIS 7.0 Configuration machine.config “root” web.config web.config applicationHost.config

14 IIS7 Configuration

15 Building Native Modules Export a RegisterModule function from DLL Define one or more other functions To process request or response Inside RegisterModule... Hook up your other functions(s) at specific points in the pipeline E.g. Begin, AuthN, AuthZ, ExecuteHandler, End

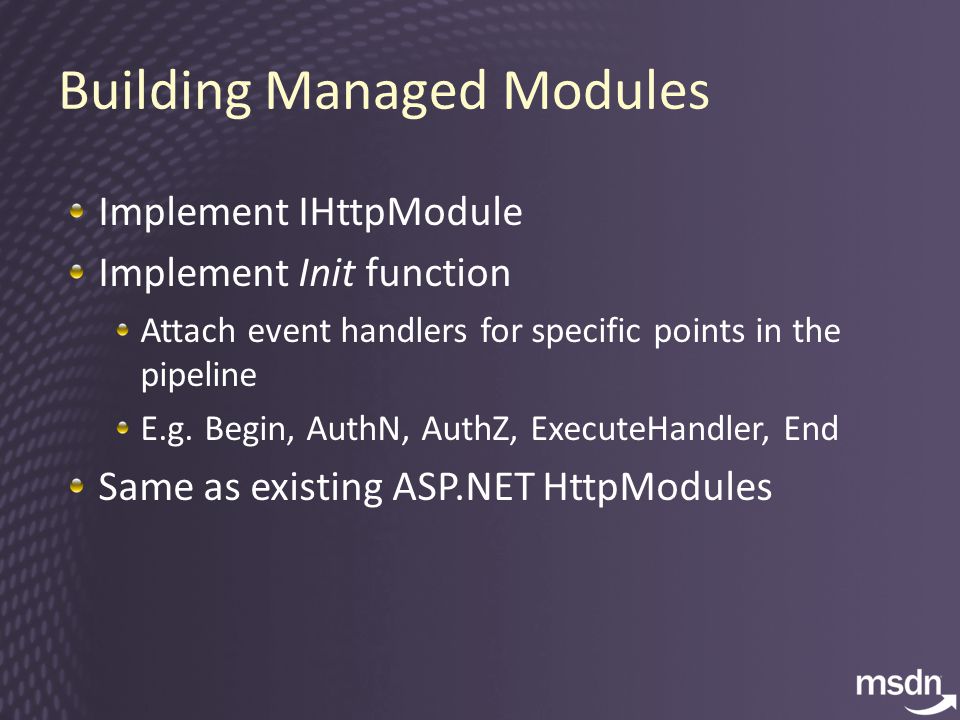

16 Building Managed Modules Implement IHttpModule Implement Init function Attach event handlers for specific points in the pipeline E.g. Begin, AuthN, AuthZ, ExecuteHandler, End Same as existing ASP.NET HttpModules

17 IIS7 Managed Module

18 IIS7 Diagnostics - RSCA Runtime Status and Control API Shows currently executing: - Application Pools Requests Exposed via IIS admin tool Programmatically via WMI and Managed OM

19 IIS7 Current Requests

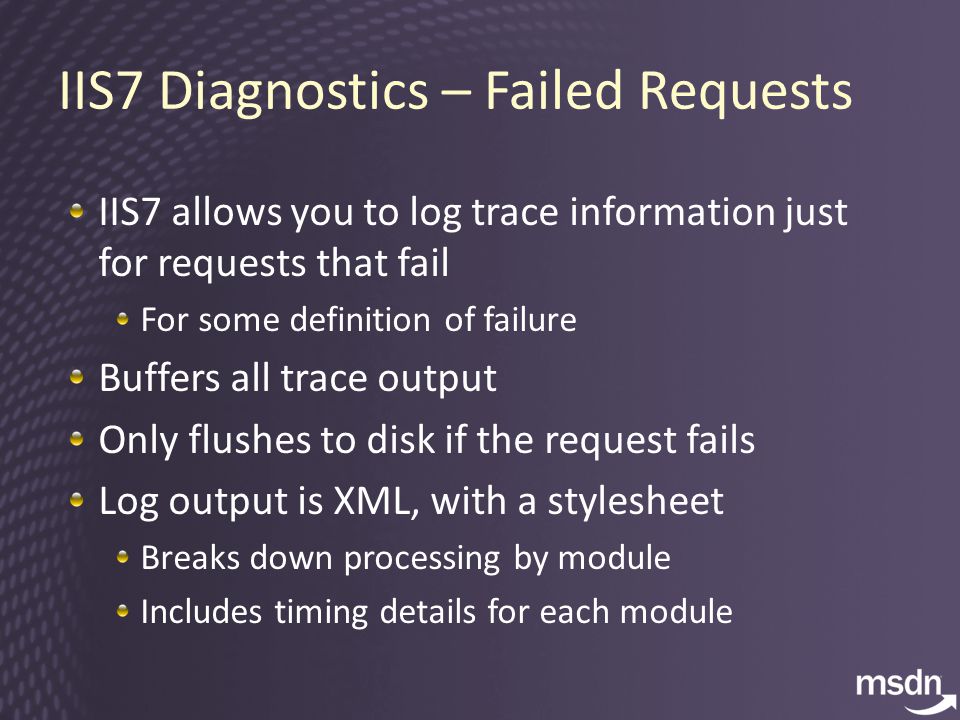

20 IIS7 Diagnostics – Failed Requests IIS7 allows you to log trace information just for requests that fail For some definition of failure Buffers all trace output Only flushes to disk if the request fails Log output is XML, with a stylesheet Breaks down processing by module Includes timing details for each module

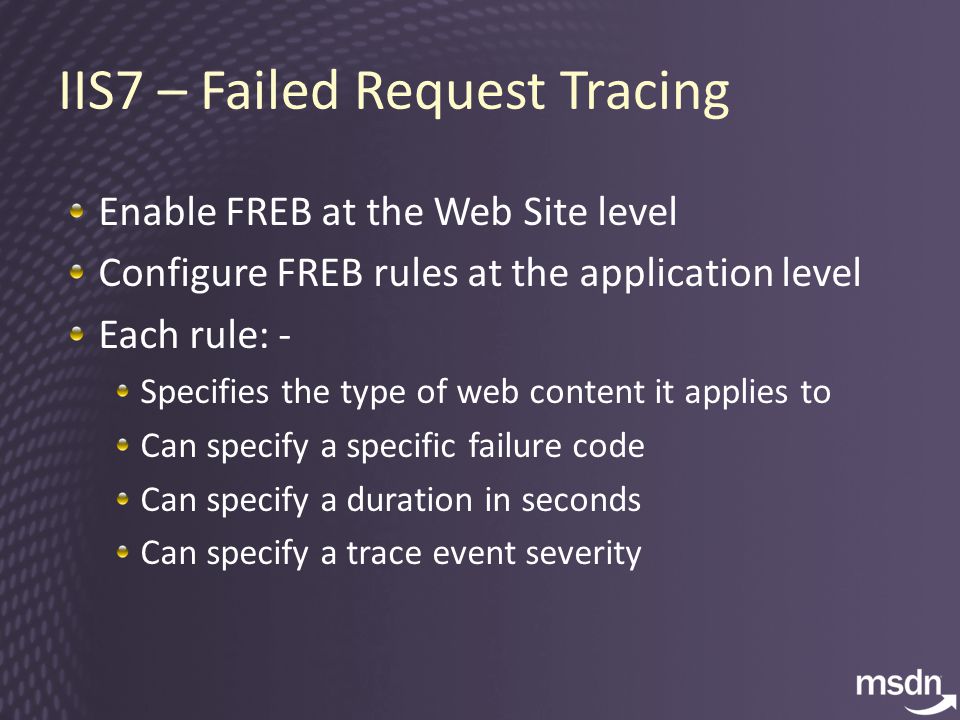

21 IIS7 – Failed Request Tracing Enable FREB at the Web Site level Configure FREB rules at the application level Each rule: - Specifies the type of web content it applies to Can specify a specific failure code Can specify a duration in seconds Can specify a trace event severity

22 IIS7 Failed Request Tracing

23 IIS7 Delegated Administration Can connect MMC to remote web server Uses HTTPS, hopefully few firewall implications Can delegate some or all admin activities To any user: admin/non-admin/non-windows Each activity can be: - Not delegated, read-only, read/write User’s view is trimmed according to permissions Admin controls who sees what

24 IIS7 Delegated Administration

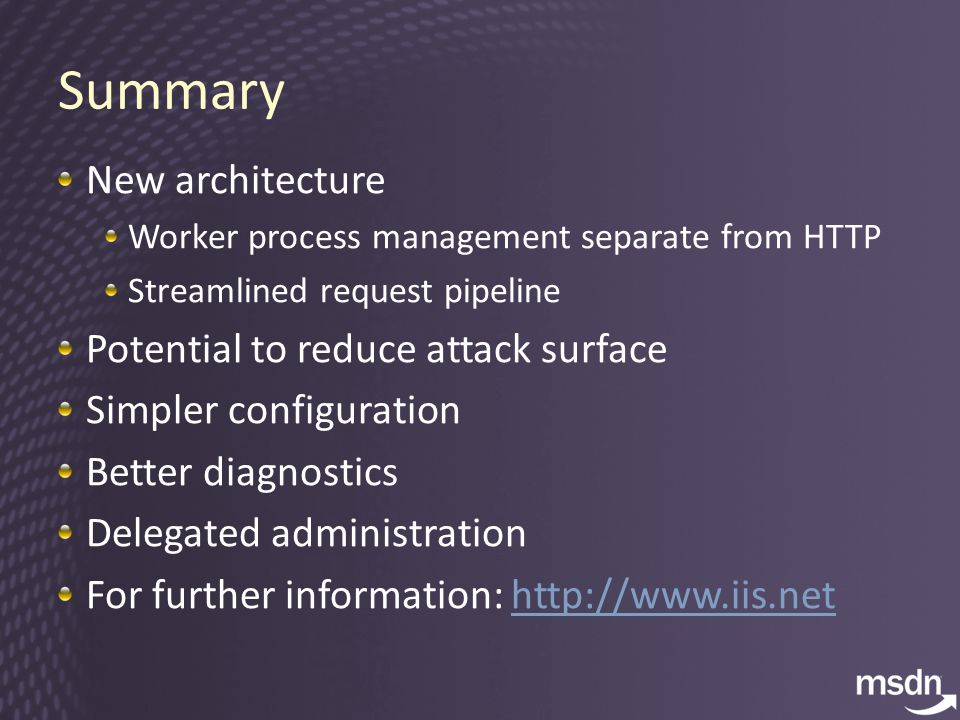

25 Summary New architecture Worker process management separate from HTTP Streamlined request pipeline Potential to reduce attack surface Simpler configuration Better diagnostics Delegated administration For further information: http://www.iis.net
