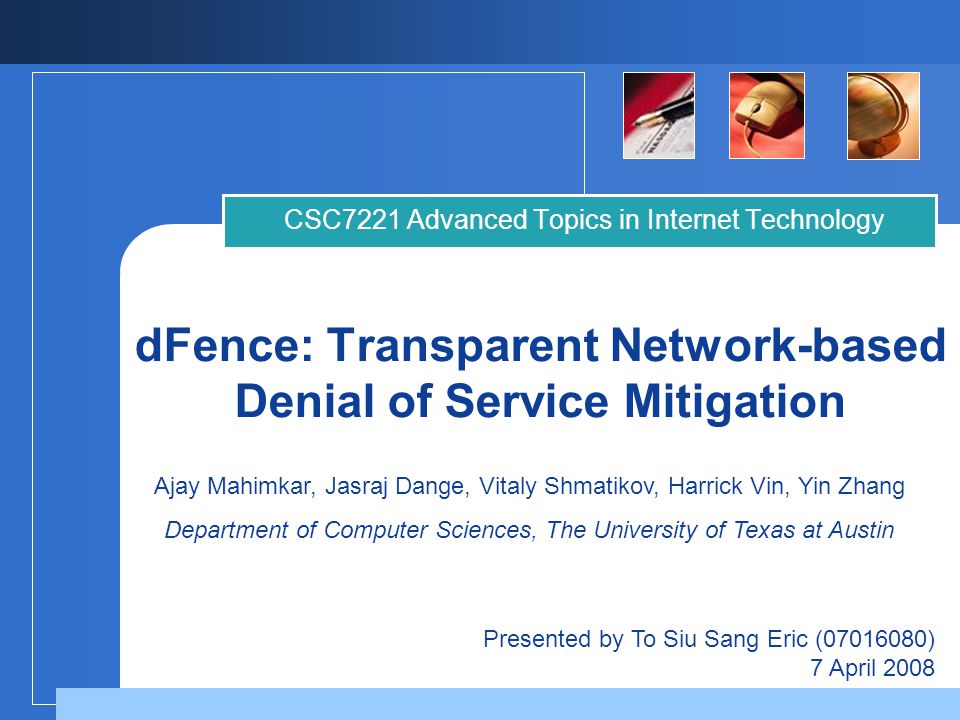

1 dFence: Transparent Network-based Denial of Service Mitigation CSC7221 Advanced Topics in Internet Technology Presented by To Siu Sang Eric (07016080) 7 April 2008 Ajay Mahimkar, Jasraj Dange, Vitaly Shmatikov, Harrick Vin, Yin Zhang Department of Computer Sciences, The University of Texas at Austin

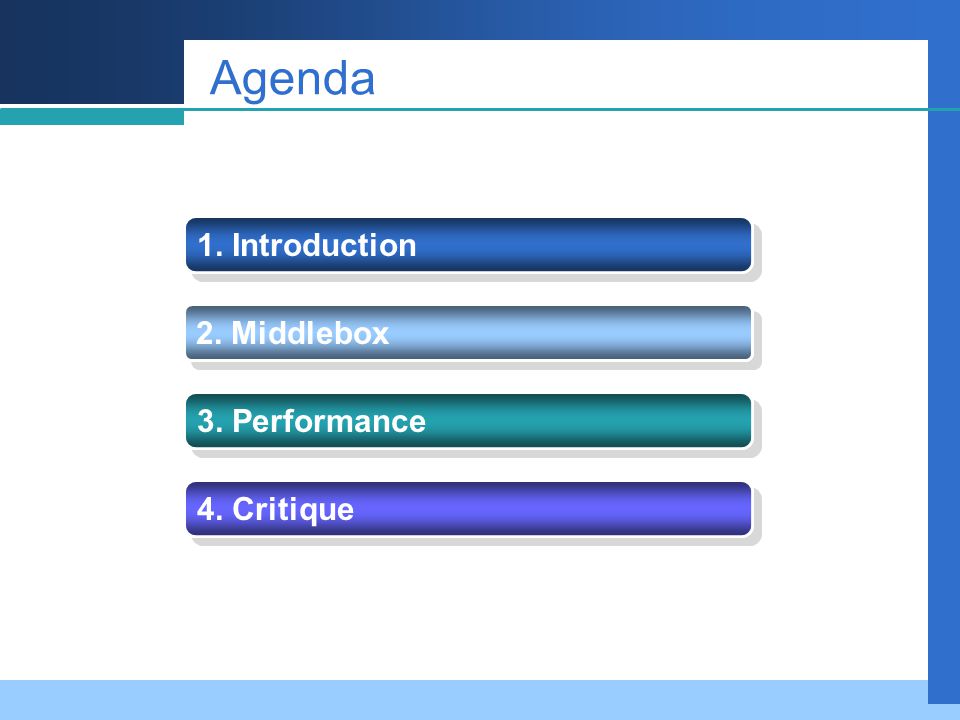

2 Agenda 1. Introduction 2. Middlebox 3. Performance 4. Critique

3 Introduction  DoS Attack  Unspoofed data floods  The attacker can launch a data flood from a legitimate address by completing the TCP handshake and then flooding the bandwidth with data traffic  Too many unspoofed connections  The zombie completes the TCP handshake, conforms to congestion control measures, and then overwhelms the server with a large number of requests  NAPTHA attacks  the attacker opens a legitimate connection, immediately closes it without sending FIN/RST, and opens another connection from a different zombie machine  Botnet attacks  the attacker commands a large number of compromised computers to bombard the victim with HTTP or other requests.

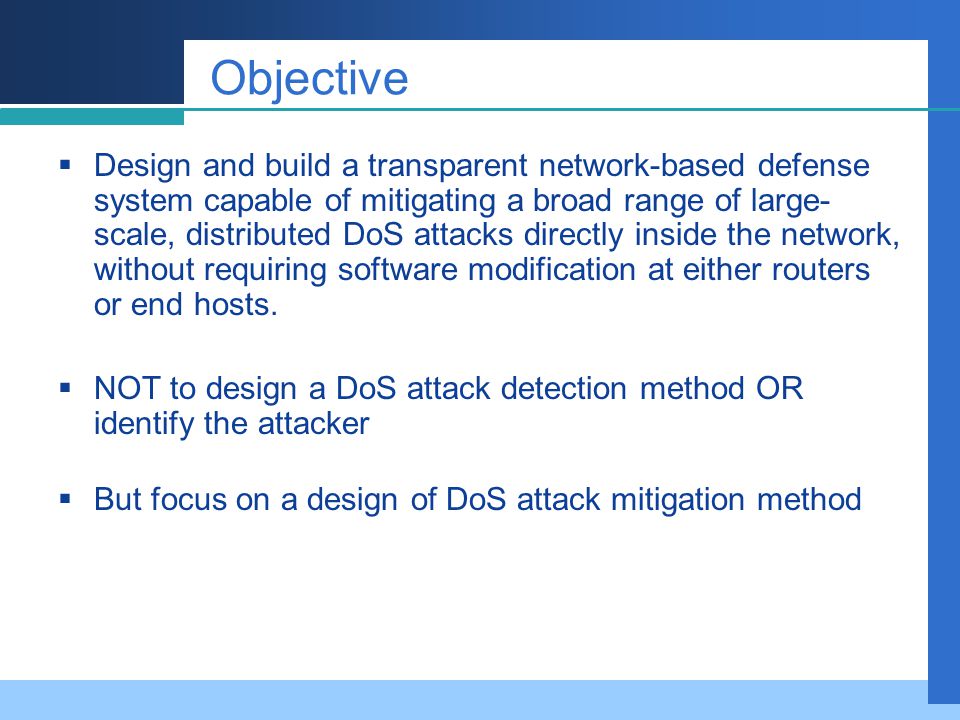

4 Objective  Design and build a transparent network-based defense system capable of mitigating a broad range of large- scale, distributed DoS attacks directly inside the network, without requiring software modification at either routers or end hosts.  NOT to design a DoS attack detection method OR identify the attacker  But focus on a design of DoS attack mitigation method

5 Main Features  Transparency  No modifications of client or server software requires  Middlebox is introduced  Compatibility with existing routing infrastructure  Employs standard intra-domain routing and tunneling mechanisms  On-demand invocation  Dynamically introduced into the data path when customer is being attacked  Insert a middlebox when DoS attack is detected  Remove a middlebox when DoS attack is no longer exists

6 Main Features  Scalability  Allows ISPs to multiplex the same defense infrastructure to protect many customers  Minimal impact on legitimate connections  Low latency cost for the legitimate flows  Versatility  Can apply stateful mitigation policies to defend against the entire spectrum of Dos attacks

7 Middlebox  Design for ISP to deploy and serve for their customers  When an attack is detected by customer, they request ISP to insert middleboxes to mitigate DoS attack  The routing updates are sent to redirect all of a victim’s incoming and outgoing traffic through middleboxes

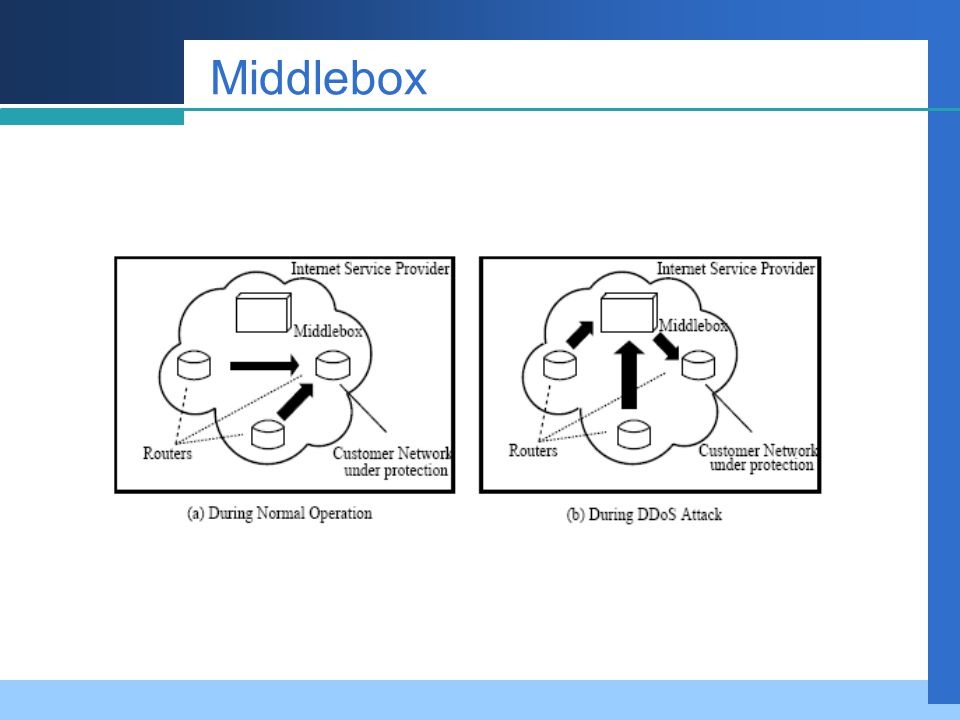

8 Middlebox

9 Connections Table  Maintain two tables for connections management  Src-Dest Table  Connection Hash Table

10 Src-Dest table  A hash table indexed by SrcIP–DestIP pair  It keeps counting currently open connections for each pair  To prevent the attacker from filling the connection table with a large number of connections entries, a threshold is maintain for each entry  If the threshold is exceeded, no new connections can be established for that entry

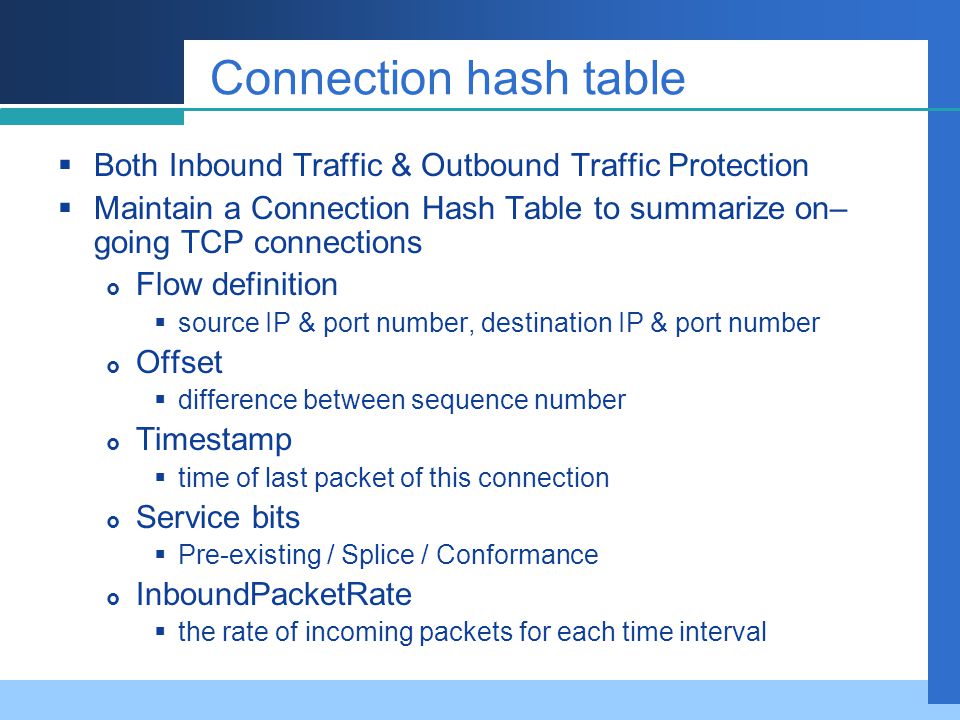

11 Connection hash table  Both Inbound Traffic & Outbound Traffic Protection  Maintain a Connection Hash Table to summarize on– going TCP connections  Flow definition  source IP & port number, destination IP & port number  Offset  difference between sequence number  Timestamp  time of last packet of this connection  Service bits  Pre-existing / Splice / Conformance  InboundPacketRate  the rate of incoming packets for each time interval

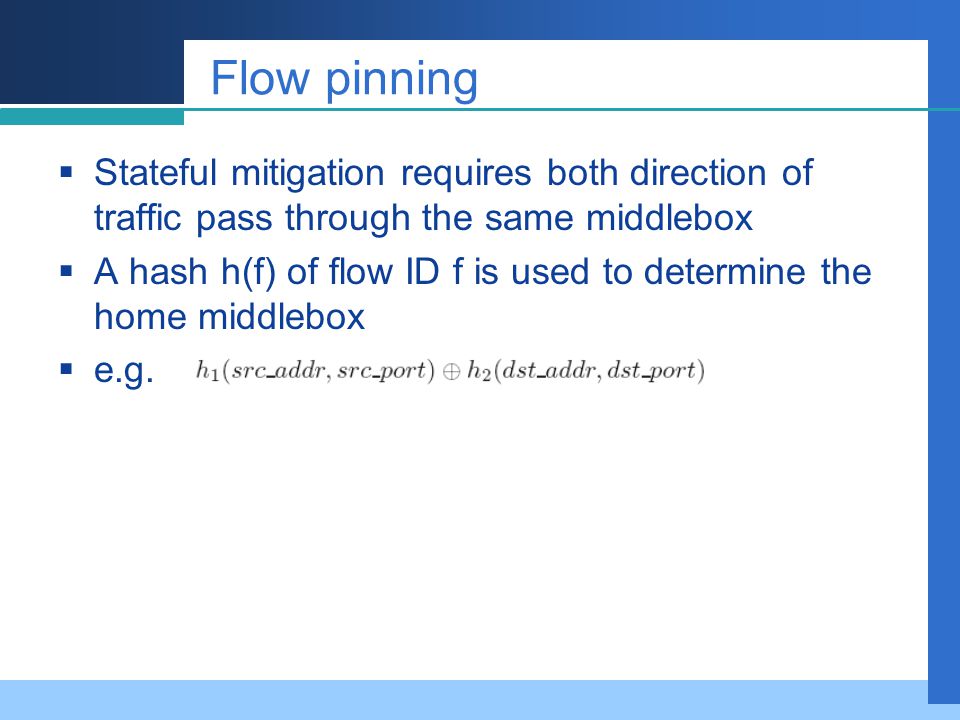

12 Flow pinning  Stateful mitigation requires both direction of traffic pass through the same middlebox  A hash h(f) of flow ID f is used to determine the home middlebox  e.g.

13 Inbound Traffic Interception

14 Outbound Traffic Interception

15 State bootstrapping  Dynamic state management Q: How to handle existing connections when the middlebox is inserted? A: State bootstrapping  An interval to establish a Connection Table for the existing legitimate connections  An existing connection is considered as legitimate if both inbound and outbound traffic exists  According to the research, Bootstrap interval can be set to 5 to 10 seconds  Other connections need to re-connect to the server

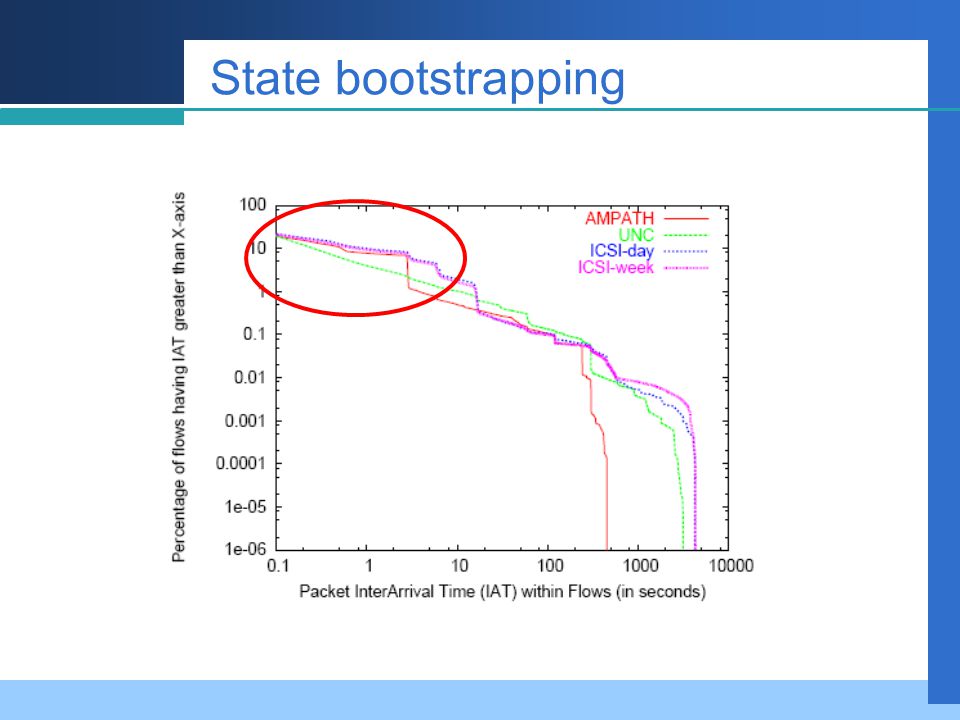

16 State bootstrapping

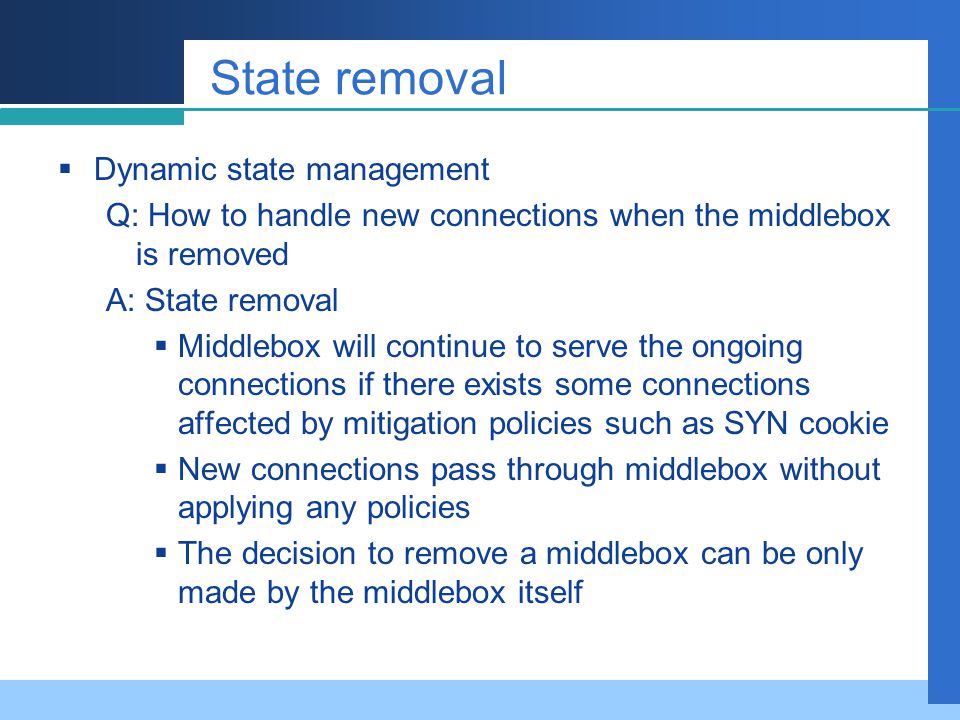

17 State removal  Dynamic state management Q: How to handle new connections when the middlebox is removed A: State removal  Middlebox will continue to serve the ongoing connections if there exists some connections affected by mitigation policies such as SYN cookie  New connections pass through middlebox without applying any policies  The decision to remove a middlebox can be only made by the middlebox itself

18 Middlebox failure recovery  Solution for the middlebox failure due to software or hardware errors or traffic overload  All middleboxes will agree on a global home middlebox table  Each middlebox is responsible for a subset of the entries  Clockwise next-hop neighbor of a middlebox M i will perform a backup an take over the flows if M i is failed or over loaded

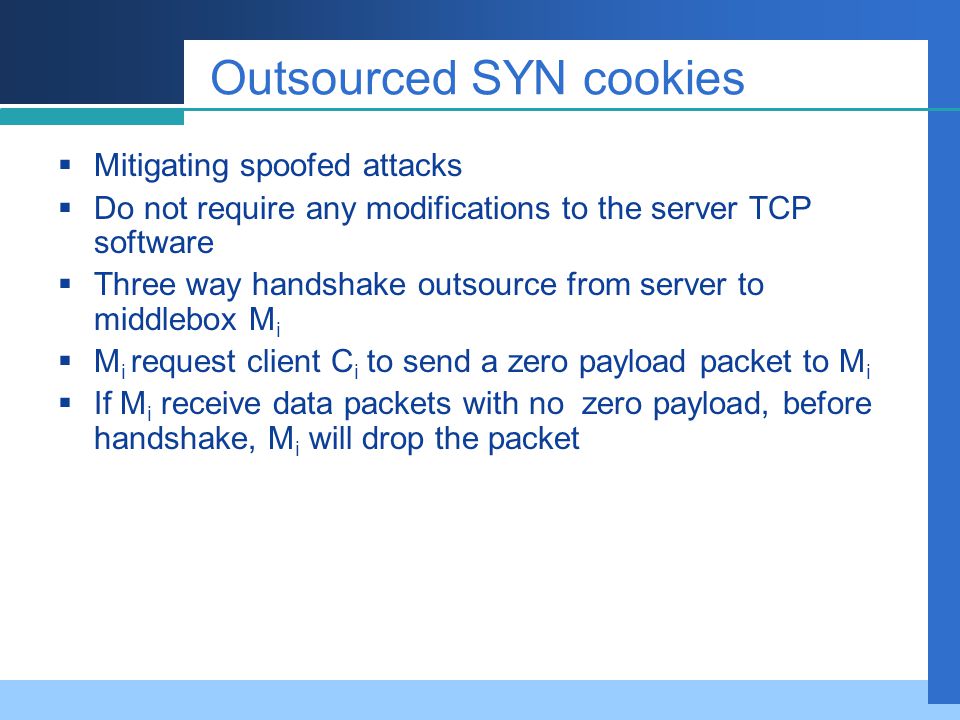

19 Outsourced SYN cookies  Mitigating spoofed attacks  Do not require any modifications to the server TCP software  Three way handshake outsource from server to middlebox M i  M i request client C i to send a zero payload packet to M i  If M i receive data packets with no zero payload, before handshake, M i will drop the packet

20 Outsourced SYN cookies

21 Policy Decision Logic

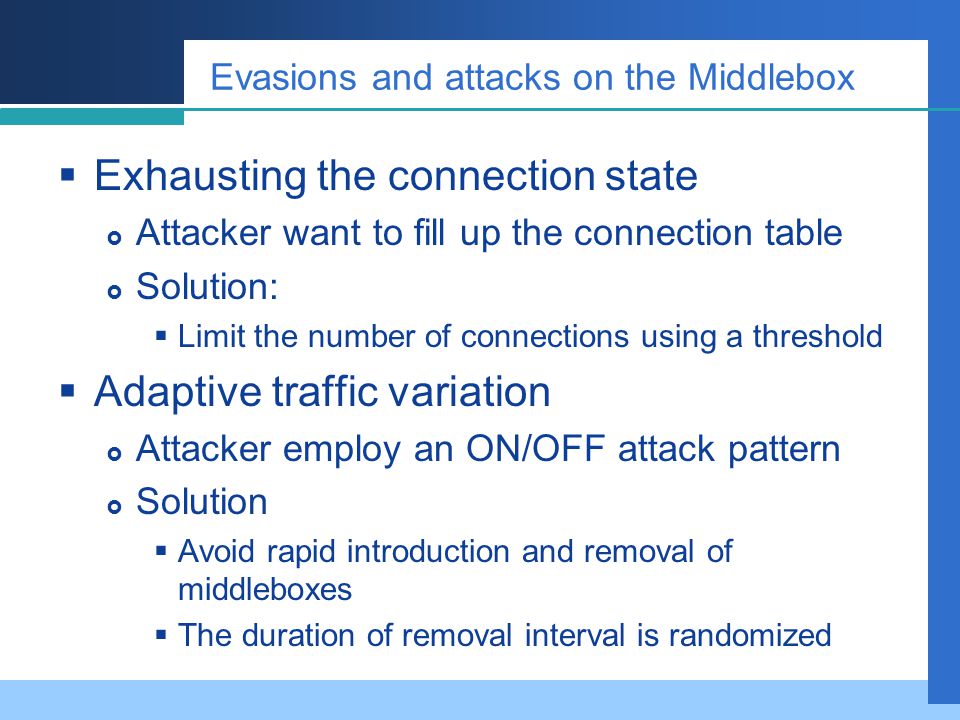

23 Evasions and attacks on the Middlebox  Exhausting the connection state  Attacker want to fill up the connection table  Solution:  Limit the number of connections using a threshold  Adaptive traffic variation  Attacker employ an ON/OFF attack pattern  Solution  Avoid rapid introduction and removal of middleboxes  The duration of removal interval is randomized

24 Evasions and attacks on the Middlebox  Werewolf attack  Attacker behave legitimately, and then start bombarding the server with attack traffic  Solution:  Periodically re-measuring traffic sending rates  Multiple attacks  Attacker try to overwhelm the dFence infrastructure by launching multiple attacks on several destination network  Solution:  Scales up the number of middleboxes

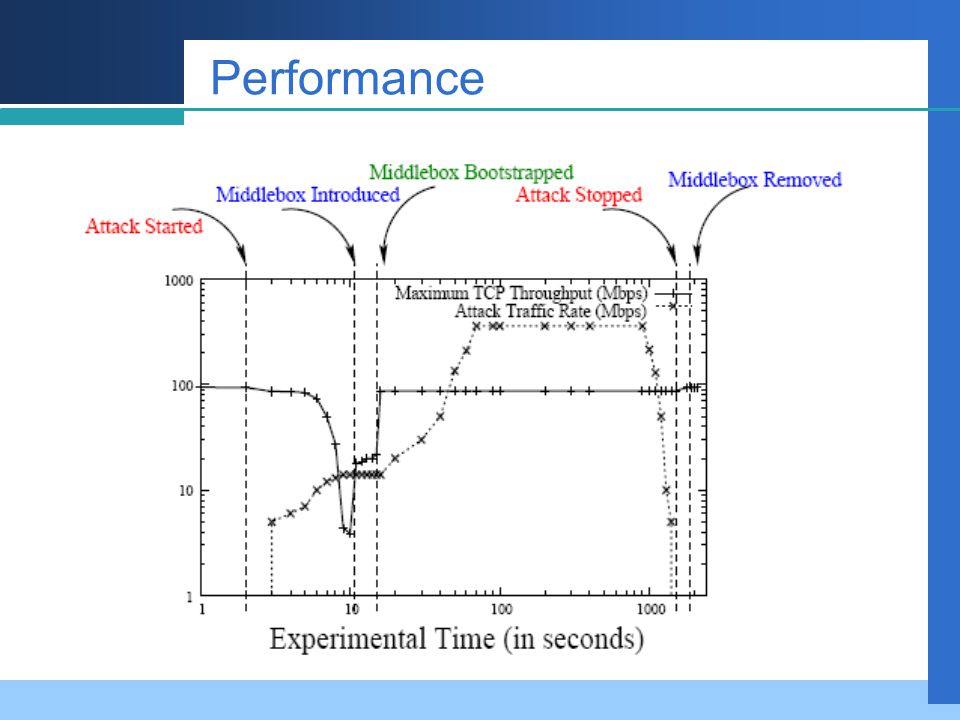

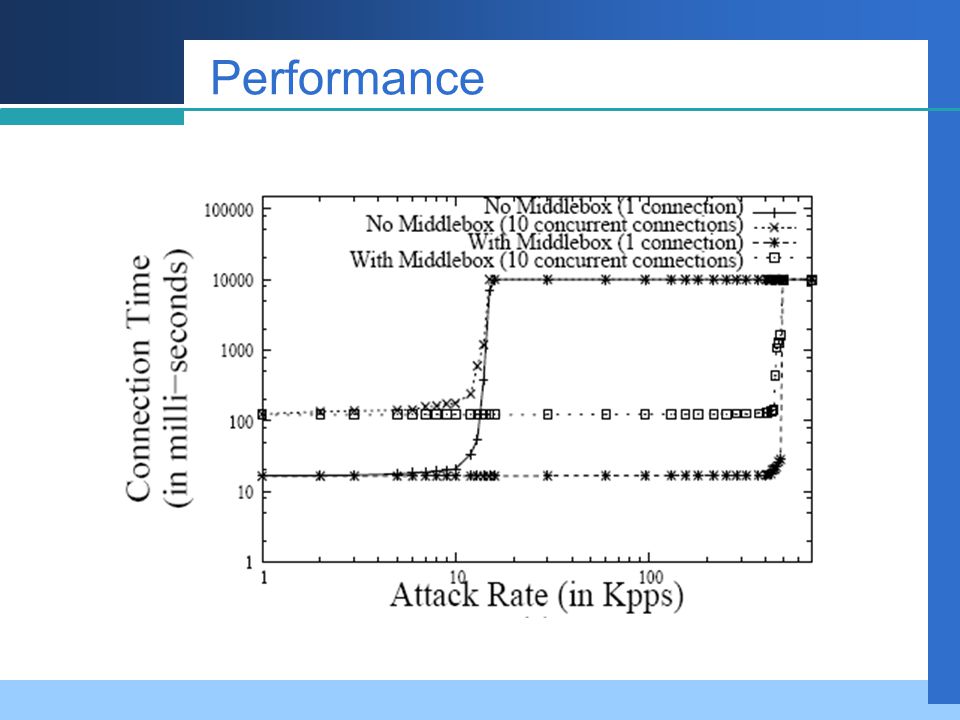

25 Performance


27 Critique  Require a large number of middleboxes must be introduce into the dFence infrastructure  A large scale of middleboxes need to be share the workload to ensure a low latency for the legitimate connections during failure recovery or load balance

28 Q & A Section  Thank you very much
