1. Ethernet Integrity Analyzer (EIA) Design Team 7 Mark Jones Ahmed Alsinan Brian Schulte Andy Christopherson Sedat Gur Advisor: Dr. Donnie Reinhard Sponsor: Jim Reinhart

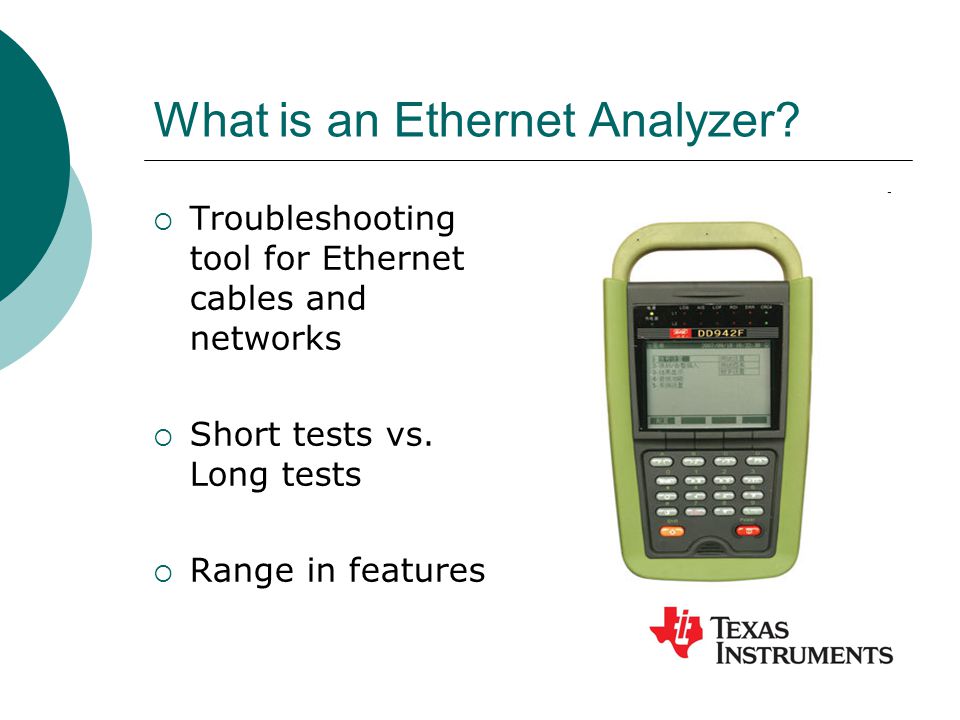

2. What is an Ethernet Analyzer?  Troubleshooting tool for Ethernet cables and networks  Short tests vs. Long tests  Range in features

3. Why an Ethernet Analyzer?  Expanding use of Ethernet technology  Need for a troubleshooting device Faults include:  Cable damage  Water ingress  Manufacturing Flaws  etc…

4. Design Specifications o Handheld o Color-touch screen o Integrity Checks o Time Domain Reflectometry (TDR) o Active Link Cable Diagnostics (ALCD) o Digital Spectrum Analyzer (DSA) o PoE Power Source Device Detect o 3-source power o Battery o Power-over-Ethernet o DC input o Active and Passive Mode

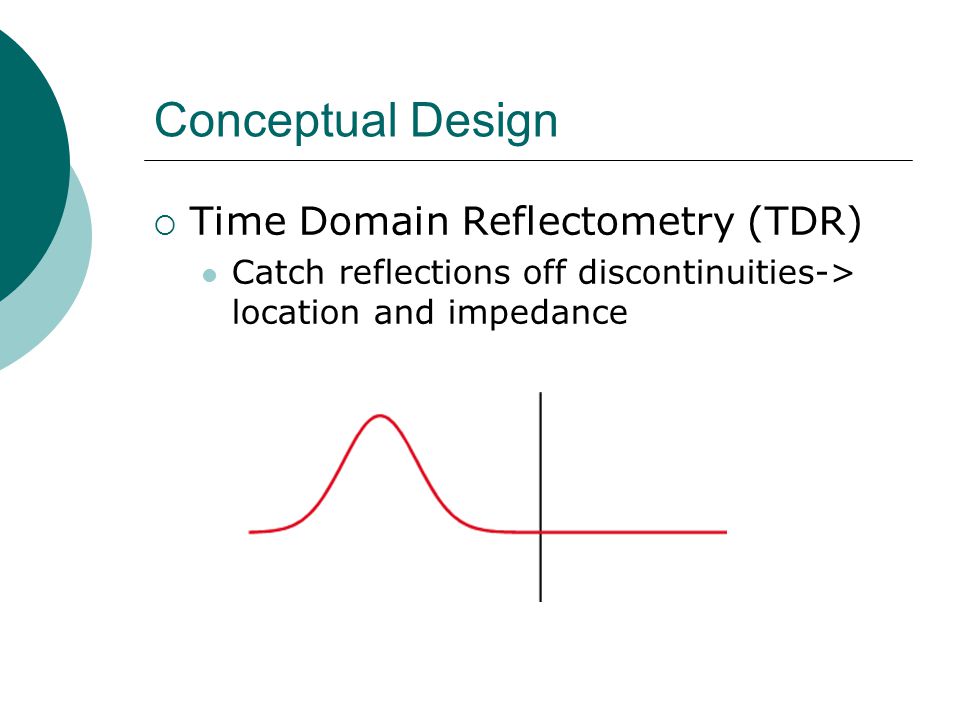

5. Conceptual Design  Time Domain Reflectometry (TDR) Catch reflections off discontinuities-> location and impedance

6. Conceptual Design Active Link Cable Diagnostics (ALCD) Passive Signal Processing->accurate cable length

7. Conceptual Design  Digital Spectrum Analyzer (DSA) Discrete Fourier Transform-> frequency spectrum

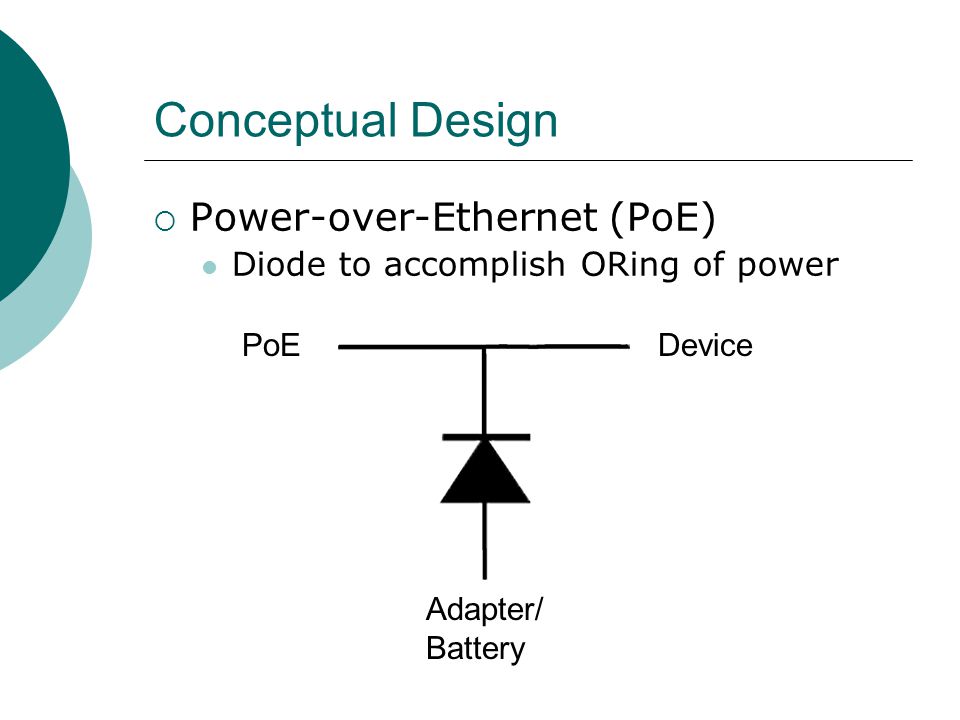

8. Conceptual Design  Power-over-Ethernet (PoE) Diode to accomplish ORing of power PoE Adapter/ Battery Device

9. Design Solutions  TLK100 PHY Layer Device Integrity Checks  TDR  ALCD  DSA

10. Design Solutions  Development Board Provides MAC Layer Microcontroller Color touch-screen Powers TLK100

11. Design Solutions  Software IAR workbench  Program MCU  Touch-screen display StellarisWare  Program TLK100

12. Power-over-Ethernet (PoE)  Growing technology  IEEE standard IEEE 802.3af IEEE 802.3at  Advantages

13. Design Solutions  Power-over-Ethernet Priority ~44V-57V  DC Input Power Adapter  Rechargeable Battery Option 3.7V Li-Ion

14. Design Solutions (Overview)
