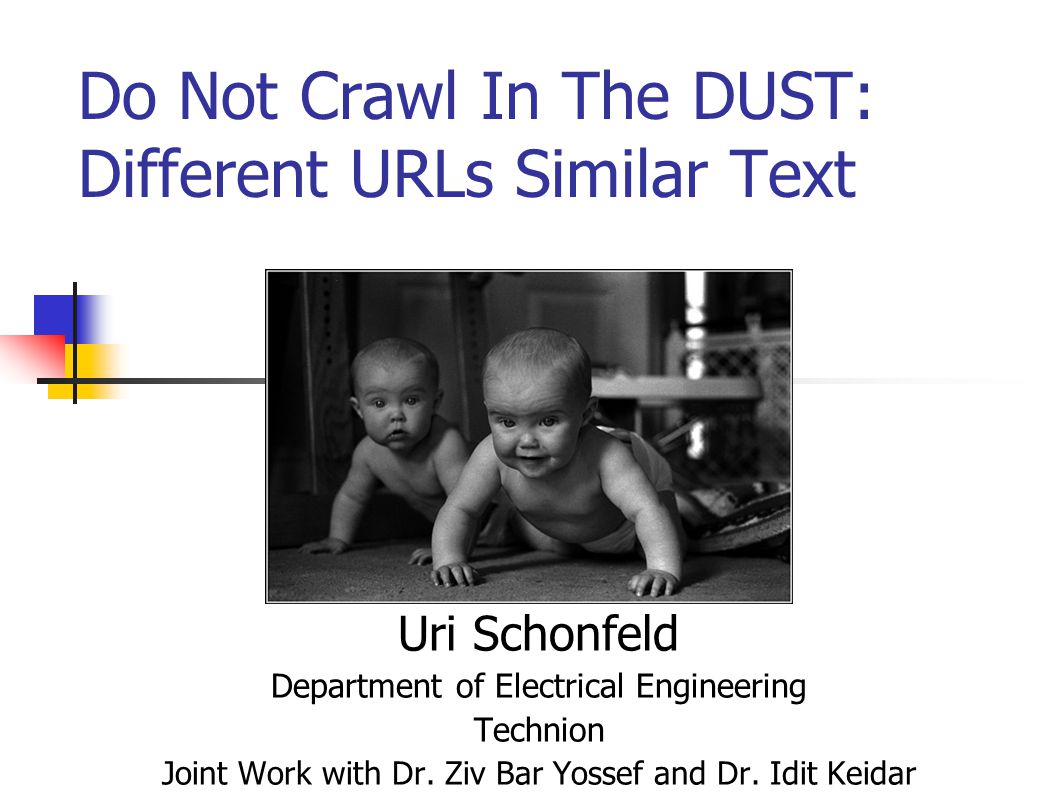

1. Do Not Crawl In The DUST: Different URLs Similar Text Uri Schonfeld Department of Electrical Engineering Technion Joint Work with Dr. Ziv Bar Yossef and Dr. Idit Keidar

2. Problem statement and motivation Related work Our contribution The DustBuster algorithm Experimental results Concluding remarks Talk Outline

3. DUST – Different URLs Similar Text Examples: Standard Canonization: “ http://domain.name/index.html ”  “ http://domain.name ” Domain names and virtual hosts “ http://news.google.com ”  “ http://google.com/news ” Aliases and symbolic links: “ http://domain.name/~shuri ”  “ http://domain.name/people/shuri ” Parameters with little affect on content Print=1 URL transformations: “ http://domain.name/story_ ”  “ http://domain.name/story?id= ” Even the WWW Gets Dusty

4. Dust rule: Transforms one URL to another Example: “ index.html ”  “” Valid DUST rule: r is a valid DUST rule w.r.t. site S if for every URL u  S, r(u) is a valid URL r(u) and u have “ similar ” contents Why similar and not identical? Comments, news, text ads, counters DUST Rules!

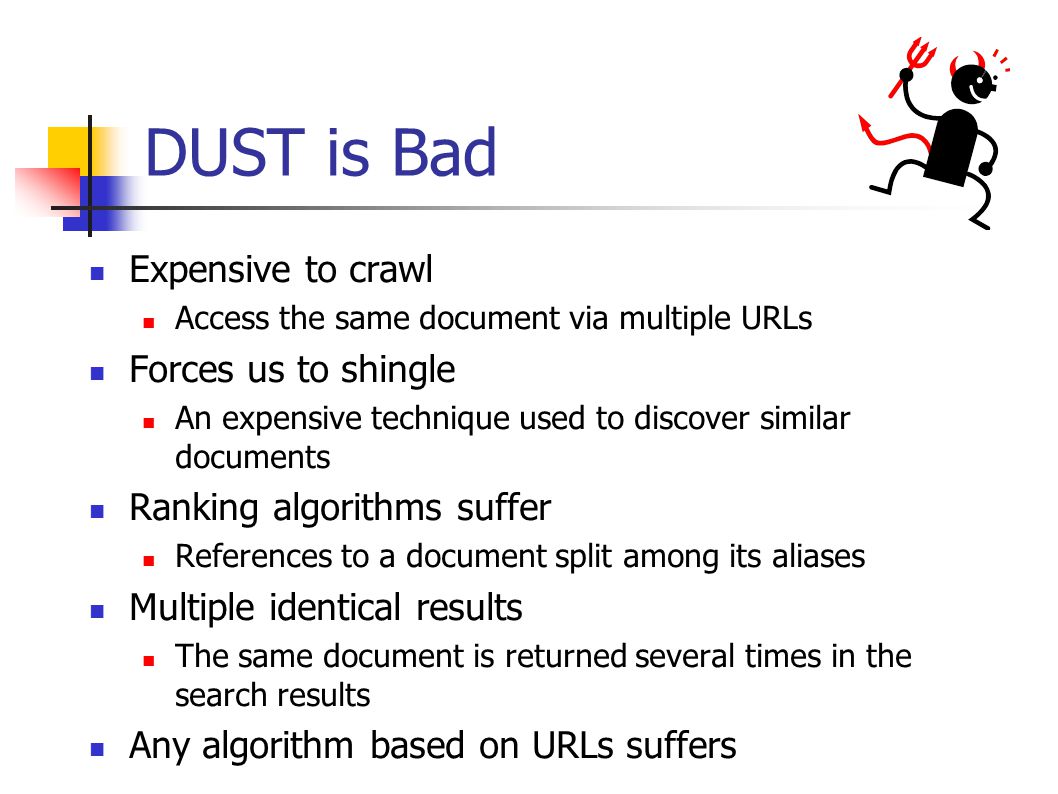

5. Expensive to crawl Access the same document via multiple URLs Forces us to shingle An expensive technique used to discover similar documents Ranking algorithms suffer References to a document split among its aliases Multiple identical results The same document is returned several times in the search results Any algorithm based on URLs suffers DUST is Bad

6. Given: a list of URLs from a site S Crawl log Web server log Want: to find valid DUST rules w.r.t. S As many as possible Including site-specific ones Minimize number of fetches Applications: Site-specific canonization More efficient crawling We Want To

7. Domain name aliases Standard extensions Default file names: index.html, default.htm File path canonizations: “ dirname/../ ”  “”, “ // ”  “ / ” Escape sequences: “ %7E ”  “ ~ ” How do we Fight DUST Today? (1) Standard Canonization

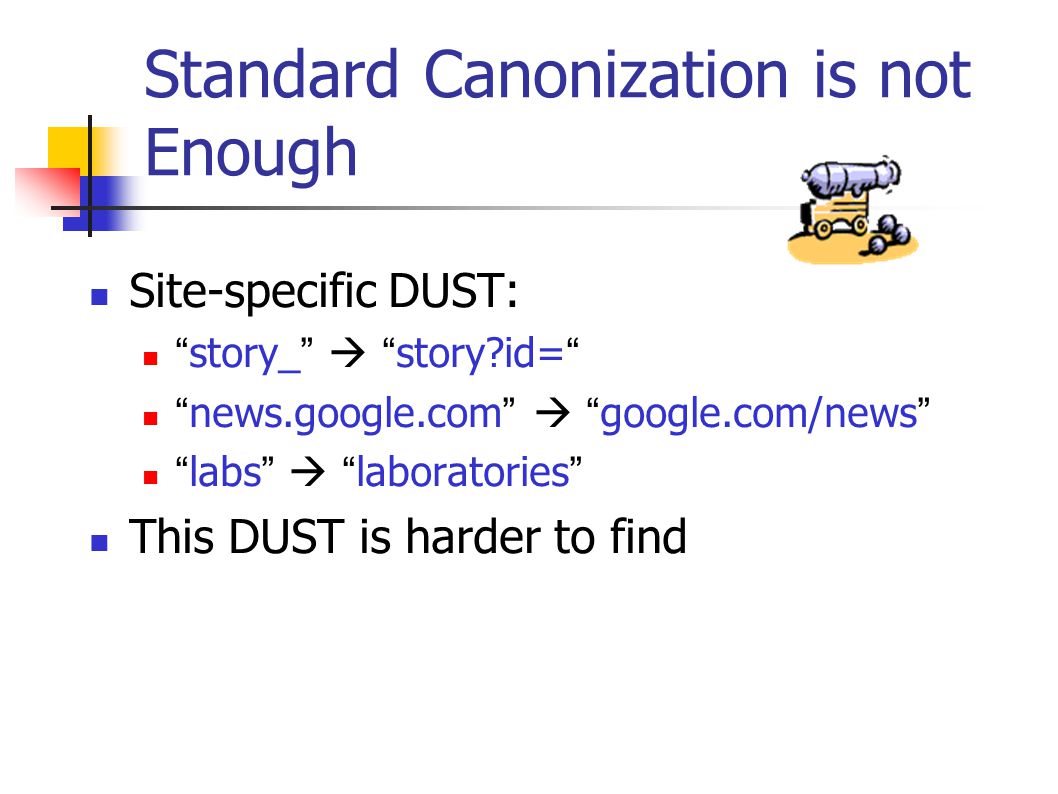

8. Site-specific DUST: “ story_ ”  “ story?id= “ “ news.google.com ”  “ google.com/news ” “ labs ”  “ laboratories ” This DUST is harder to find Standard Canonization is not Enough

9. Shingles are document sketches [Broder,Glassman,Manasse 97] Used to compare documents for similarity Pr(Shingles are equal) = Document similarity Compare documents by comparing shingles Calculate Shingle: Take all m word sequences Hash them with h i Choose the min That's your shingle How do we Fight DUST Today? (2) Shingles

10. Shingles expensive: Require fetch Parsing Hash Shingles do not find rules Therefore, not applicable to new pages Shingles are Not Perfect

11. Mirror detection [Bharat,Broder 99], [Bharat,Broder,Dean,Henzinger 00], [Cho,Shivakumar,Garcia-Molina 00], [Liang 01] Identifying plagiarized documents [Hoad,Zobel 03] Finding near-replicas [Shivakumar,Garcia-Molina 98], [Di Iorio,Diligenti,Gori,Maggini,Pucci 03] Copy detection [Brin,Davis,Garcia-Molina 95], [Garcia- Molina,Gravano,Shivakumar 96], [Shivakumar,Garcia- Molina 96] More Related Work

12. An algorithm that finds site-specific valid DUST rules requires minimum number of fetches Convincing results in experiments Benefits to crawling Our contributions

13. Alias DUST: simple substring substitutions “ story_1259 ”  “ story?id=1259 ” “ news.google.com ”  “ google.com/news ” “ /index.html ”  “” Parameter DUST: Standard URL structure: protocol://domain.name/path/name?para=val&pa=va Some parameters do not affect content: Can be removed Can changed to a default value Types of DUST

14. Input: URL list Detect likely DUST rules Eliminate redundant rules Validate DUST rules using samples: Eliminate DUST rules that are “ wrong ” Further eliminate duplicate DUST rules No Fetch Required Our Basic Framework

15. Large support principle: Likely DUST rules have lots of “ evidence ” supporting them Small buckets principle: Ignore evidence that supports many different rules How to detect likely DUST rules?

16. Large Support Principle A pair of URLs (u,v) is an instance of rule r, if: r(u) = v Support(r) = all instances (u,v) of r Large Support Principle The support of a valid DUST rule is large

17. Rule Support: An Equivalent View  : a string Ex:  = “ story_ ” u: URL that contains  as a substring Ex: u = “ http://www.sitename.com/story_2659 ” Envelope of  in u: A pair of strings (p,s) p: prefix of u preceding  s: suffix of u succeeding  Example: p = “ http://www.sitename.com/ ”, s = “ 2659 ” E( α): all envelopes of  in URLs that appear in input URL list

18. Envelopes Example

19. Rule Support: An Equivalent View    : an alias DUST rule Ex:  = “ story_ ”,  = “ story?id= “ Lemma: |Support(    )| = | E(  ) ∩ E(  )| Proof: bucket(p,s) = {  | (p,s)  E(  ) } Observation: (u,v) is an instance of    if and only if u = p  s and v = p  s for some (p,s) Hence, (u,v) is an instance of    iff (p,s)  E(  ) ∩ E(  )

20. Large Buckets Often there is a large set of substrings that are interchangeable within a given URL while not being DUST: page=1,page=2, … lecture-1.pdf, lecture-2.pdf This gives rise to large buckets:

21. Big Buckets: popular prefix suffix Often do not contain similar content Big buckets are expensive to process I am a DUCK not a DUST Small Bucket Principle Small Buckets Principle Most of the support of valid Alias DUST rules is likely to belong to small buckets

22. Scan Log and form buckets Ignore big buckets For each small Bucket: For every two substrings α, β in the bucket print (α, β) Sort by (α, β) For every pair (α, β): Count If (Count > threshold) print α  β Algorithm – Detecting Likely DUST Rules No Fetch here!

23. Size and Comments Consider only instances of rules whose size “ matches ” Use ranges of sizes Running time O(Llog(L)) Process only short substrings Tokenize URLs

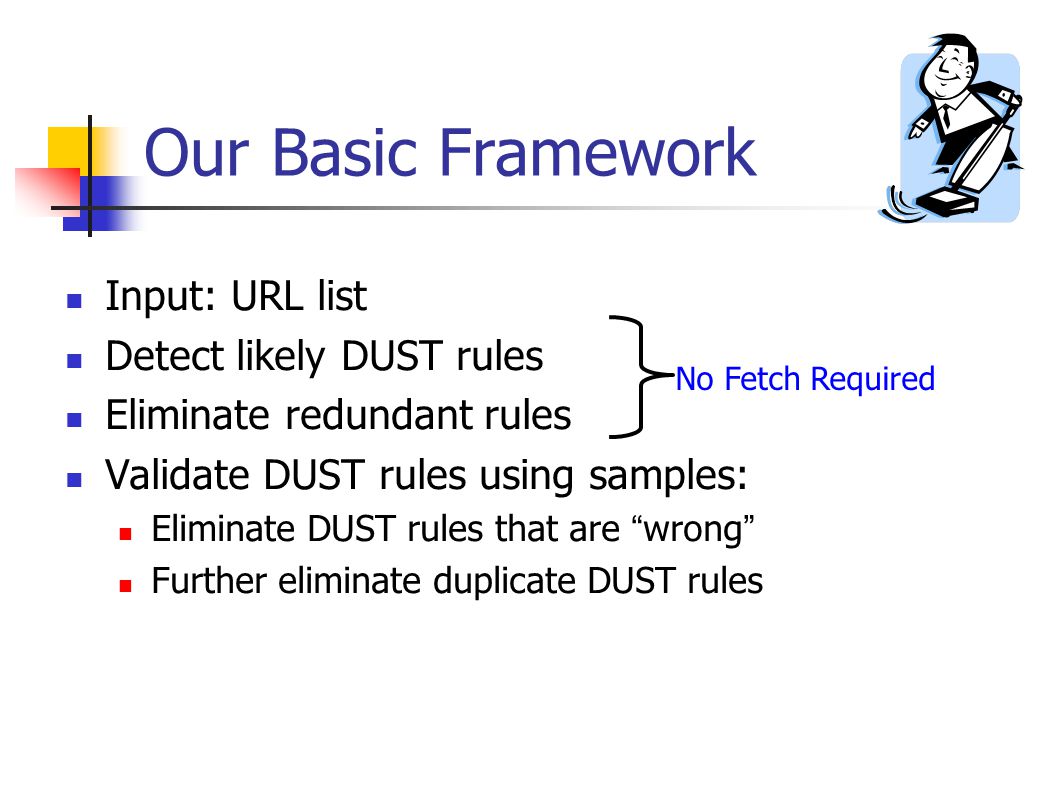

24. Input: URL list Detect likely DUST rules Eliminate redundant rules Validate DUST rules using samples: Eliminate DUST rules that are “ wrong ” Further eliminate duplicate DUST rules No Fetch Required Our Basic Framework

25. Eliminating Redundant Rules “/vlsi / ”  “/labs/vlsi/” “/vlsi”  “/labs/vlsi” Lemma: A substitution rule α’  β’ refines rule α  β if and only if there exists an envelope (γ,δ) such that α’ = γ◦α◦δ and β’=γ◦β ◦ δ Lemma helps us identify refinements easily φ refines ψ ? remove ψ if supports match Rule φ refines rule ψ if SUPPORT(φ)  SUPPORT(ψ ) No Fetch here!

26. Validating Likely Rules For each likely rule r, for both directions Find sample URLs from list to which r is applicable For each URL u in the sample: v = r(u) Fetch u and v Check if content(u) is similar to content(v) if fraction of similar pairs > threshold: Declare rule r valid

27. Assumption: if validation beyond threshold in 100 it will be the same for any validation above Why isn ’ t threshold 100%? A 95% valid rule may still be worth it Dynamic pages change often Comments About Validation

28. We experiment on logs of two web sites: Dynamic Forum Academic Site Detected from a log of about 20,000 unique URLs On each site we used four logs from different time periods Experimental Setup

29. Precision at k

30. Precision vs. Validation

31. How many of the DUST do we find? What other duplicates are there: Soft errors True copies: Last semesters course All authors of paper Frames Image galleries Recall

32. In a crawl examined 18% of the crawl was reduced. DUST Distribution 47.1 DUST 25.7% Images 7.6% Soft Errors 17.9% Exact Copy 1.8% misc

33. DustBuster is an efficient algorithm Finds DUST rules Can reduce a crawl Can benefit ranking algorithms Conclusions

34. THE END

35. = => --> all rules with “” Fix drawing urls crossing alpha not all p and all s Things to fix

36. So far, non-directional Prefer shrinking rules Prefer lexicographically lowering rules Check those directions first

37. Parameter name and possible values What rules: Remove parameter Substitute one value with another Substitute all values with a single value Rules are validated the same way the alias rules are Will not discuss further Parametric DUST

38. Unfortunately we see a lot of “ wrong ” rules Substitute 1 with 2 Just wrong: One domain name with another with similar software False rules examples: /YoninaEldar/ != /DavidMalah/ /labs/vlsi/oldsite != /labs/vlsi -2. != -3. False Rules

39. Filtering out False Rulese Getting rid of the big buckets Using the size field: False dust rules: May give valid URLs Content is not similar Size is probably different Size ranges used Tokenization helps

40. DustBuster – cleaning up the rules Go over list with a window If Rule a refines rule b Their support size is close Leave only rule a

41. DustBuster – Validation Validation per rule Get sample URLs URLs that the rule can be applied Apply URL => applied URL Get content Compare using shingles

42. DustBuster - Validation Stop fetching when: #failures > 100 * (1-threshold) Page that doesn't exist is not similar to anything else Why use threshold < 100%? Shingles not perfect Dynamic pages may change a lot fast

43. Detect Alias DUST – take 2 Tokenize of course Form buckets Ignore big buckets Count support only if size matches Don't count Long substrings Results are cleaner

44. Eliminate Redundancies 1: EliminateRedundancies(pairs_list R) 2: for i = 1 to |R| do 3: if (already eliminated R[i]) continue 4: to_eliminate_current := false /* Go over a window */ 5: for j = 1 to min(MW, |R| - i) do /* Support not close? Stop checking */ 6: if (R[i].size - R[i+j].size > max(MRD*R[i].size, MAD)) break /* a refines b? remove b */ 7: if (R[i] refines R[i+j]) 8: eliminate R[i+j] 9: else if (R[i+j] refines R[i]) then 10: to_eliminate_current := true 11: break 12: if (to_eliminate_current) 13: eliminate R[i] 14: return R No Fetch here!

45. Validate a Single Rule 1:ValidateRule(R, L) 2: positive := 0 3: negative := 0 /* Stop When You Are sure you either succeeded or failed */ 4: while (positive < (1 - ε) N AND (negative < εN) do 5: u := a random URL from L to which R is applicable 6: v := outcome of application of R to u 7: fetch u and v 8: if (fetch u failed) continue /* Something went wrong, negative sample */ 9: if (fetch v failed) OR (shingling(u)  shingling(v)) 10 negative := negative + 1 /* Another positive sample */ 11: else 12: positive := positive + 1 13: if (negative  ε N ) 14: retrun FALSE 15: return TRUE

46. Validate Rules 1:Validate(rules_list R, test_log L) 2 create list of rules LR 3: for i = 1 to |R| do /* Go over rules that survived = valid rules */ 4: for j = 1 to i - 1 do 5: if (R[j] was not eliminated AND R[i] refines R[j]) 6: eliminate R[i] from the list 7: break 8: if (R[i] was eliminated) 9: continue /* Test one direction */ 10: if (ValidateRule(R[i].alpha  R[i].beta, L)) 11: add R[i].alpha  R[i].beta to LR /* Test other direction only if first direction failed*/ 12: else if (ValidateRule(R[i].beta  R[i].alpha, L)) 13: add R[i].alpha  R[i].beta to LR 14: else 15: eliminate R[i] from the list 16: return LR
