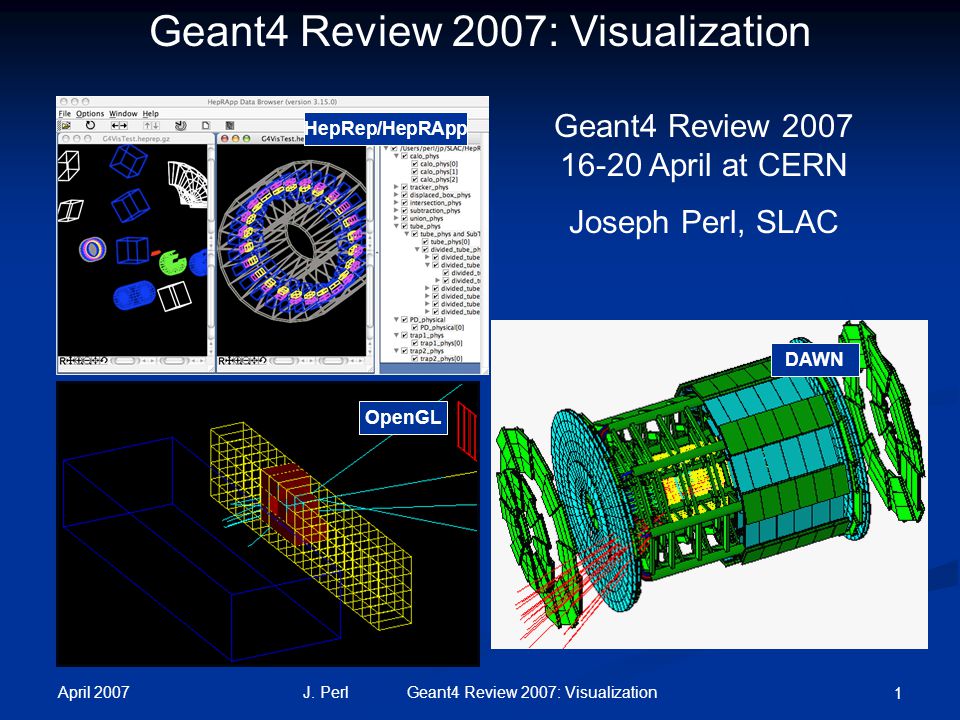

1. April 2007 J. Perl Geant4 Review 2007: Visualization 1 HepRep/HepRApp DAWN OpenGL Geant4 Review 2007: Visualization Geant4 Review 2007 16-20 April at CERN Joseph Perl, SLAC

2. April 2007 J. Perl Geant4 Review 2007: Visualization 2 DAWN HepRep/FRED OpenInventor RayTracer Sorry, Vis Talks always need two pages of Cover Graphics

3. April 2007 3J. Perl Geant4 Review 2007: VisualizationContents Introduction: Focus on Usability Introduction: Focus on Usability Status: Many Different Visualization Solutions Status: Many Different Visualization Solutions New Features: Enhanced Trajectory Drawing New Features: Enhanced Trajectory Drawing New Features: Trajectory and Hit Filtering New Features: Trajectory and Hit Filtering New Features: Smooth and Rich Trajectories New Features: Smooth and Rich Trajectories New Features: Event Keeping New Features: Event Keeping New Features: Movies New Features: Movies Coming by End of 2007: Visualization of Fields Coming by End of 2007: Visualization of Fields Additional Focus for this Year: Tools for Visualization of Voxel Data Additional Focus for this Year: Tools for Visualization of Voxel Data Additional Planned Developments: What else is In the Pipeline Additional Planned Developments: What else is In the Pipeline Help and Documentation: How we Keep our Users Informed Help and Documentation: How we Keep our Users Informed Extra Slides: Details on the Seven Visualization Drivers Extra Slides: Details on the Seven Visualization Drivers

4. April 2007 4J. Perl Geant4 Review 2007: Visualization Focus on Usability From the very beginning, Geant4 visualization has been very flexible. The experienced programmer could exploit the full flexibility of C++ and a well-designed series of abstract interfaces to code any desired visualizations. The work of the Geant4 Visualization group over the last few years has been to identify those features that users want most, and make them easily achievable from simple interactive commands. So, in the last year or so we have added: Trajectory Modeling commands Trajectory and Hit Filtering commands Smooth and Rich Trajectory commands Event Keeping Time-Development Animation, etc. More great new features will be coming, such as: Visualization of Fields

5. April 2007 5J. Perl Geant4 Review 2007: Visualization Status: Many Different Visualization Solutions

6. April 2007 6J. Perl Geant4 Review 2007: Visualization Design by Interfaces The first thing you may notice about Geant4 visualization is that there are a large number of different visualization systems. This is a natural result of Geant4 being a toolkit and not a single application. To support user communities who incorporate Geant4 into their own pre- existing software frameworks, Geant4 visualization is built around a set of well defined interfaces. These interfaces make it straightforward to connect Geant4's core visualization tools to any visualization system able to drive advanced systems that can natively display complex solids such as Geant4’s cut cylinders able to drive more basic systems that do not understand such solids (system can ask Geant4 visualization to deconstruct complex solids into simpler polygons) For those users who want a ready-made visualization solution from Geant4, these same interfaces have made it straightforward for us to provide a variety of solutions, each with particular areas of strength. Interfaces discussed in detail in paper just finished this month and currently awaiting publication.

7. April 2007 7J. Perl Geant4 Review 2007: Visualization Geant4 Ships with Seven Visualization Drivers Geant4 comes with Seven visualization drivers: OpenGL OpenInventor HepRep (using HepRApp, WIRED4 or FRED) DAWN VRML RayTracer ASCIITree The set of available drivers may seem like overkill, but the design of Geant4 visualization has been such that many drivers have required very little maintenance over the last few years while still filling unique niches for our users (examples are DAWN and VRML) The multiplicity of drivers does not place much burden on users since the set of commands the user sees are consistent regardless of the driver, and the user only links those drivers that they need. The drivers are discussed in detail in the extra slides at the end of this talk. For now, I'll just point out a few of the competing demands on Geant4 visualization, and how different visualization drivers meet different demands.

8. April 2007 8J. Perl Geant4 Review 2007: Visualization Quick response with flexible camera control to study geometries, trajectories and hits OpenGL and OpenInventor Widely available world standards for fast, photo-realistic rendering.

9. April 2007 9J. Perl Geant4 Review 2007: Visualization High-quality Output for Publications DAWN DAWN Developed specifically for Geant4. Not fast, but the highest quality rendering available anywhere. Excellent for publications.

10. April 2007 10J. Perl Geant4 Review 2007: Visualization Interactive Picking to Get More Information on Visualized Objects HepRep HepRep Reuses interactive HepRep browser applications already developed for other user communities (BaBar and GLAST). Explore hierarchies, pick to show attributes, apply cuts and labels.

11. April 2007 11J. Perl Geant4 Review 2007: Visualization Understand Complex Boolean Solids and Transparent or Reflective Surfaces RayTracer Reuses Geant4’s own tracking to shoot photons through the geometry

12. April 2007 12J. Perl Geant4 Review 2007: Visualization 3D Format Suitable for Web Distribution VRML Many VRML browsers available, some as web plug-ins

13. April 2007 13J. Perl Geant4 Review 2007: Visualization Tools to Understand Geometry Hierarchies ASCIITree, HepRep /vis/ASCIITree/Verbose 4 /vis/ASCIITree/Verbose 4 /vis/viewer/flush /vis/viewer/flush "HadCalorimeterPhysical":0 / "HadCalorimeterLogical" / "HadCalorimeterBox"(G4Box), 1.8 m3, 11.35 g/cm3 "HadCalorimeterPhysical":0 / "HadCalorimeterLogical" / "HadCalorimeterBox"(G4Box), 1.8 m3, 11.35 g/cm3 "HadCalColumnPhysical":-1 (10 replicas) / "HadCalColumnLogical" / "HadCalColumnBox"(G4Box), 180000 cm3, 11.35 g/cm3 "HadCalColumnPhysical":-1 (10 replicas) / "HadCalColumnLogical" / "HadCalColumnBox"(G4Box), 180000 cm3, 11.35 g/cm3 "HadCalCellPhysical":-1 (2 replicas) / "HadCalCellLogical" / "HadCalCellBox"(G4Box), 90000 cm3, 11.35 g/cm3 "HadCalCellPhysical":-1 (2 replicas) / "HadCalCellLogical" / "HadCalCellBox"(G4Box), 90000 cm3, 11.35 g/cm3 "HadCalLayerPhysical":-1 (20 replicas) / "HadCalLayerLogical" / "HadCalLayerBox"(G4Box), 4500 cm3, 11.35 g/cm3 "HadCalLayerPhysical":-1 (20 replicas) / "HadCalLayerLogical" / "HadCalLayerBox"(G4Box), 4500 cm3, 11.35 g/cm3 "HadCalScintiPhysical":0 / "HadCalScintiLogical" / "HadCalScintiBox"(G4Box), 900 cm3, 1.032 g/cm3 "HadCalScintiPhysical":0 / "HadCalScintiLogical" / "HadCalScintiBox"(G4Box), 900 cm3, 1.032 g/cm3

14. April 2007 14J. Perl Geant4 Review 2007: Visualization Seven Visualization Drivers  No Single Visualization Solution Can Meet all of Our Demands  Quick response with flexible camera control  High-quality Output for Publications  Interactive Picking to Get More Information  Complex Boolean Solids and Transparent or Reflective Surfaces  3D Format Suitable for Web Distribution  Tools to Understand Geometry Hierarchies  By exploiting the same interface design that we need anyway to support visualization systems of existing frameworks  we are able to take advantage of the best features of several different visualization drivers  with a common set of user commands  and minimal maintenance for many of the drivers  We take advantage of the best features of many pre-existing visualization systems without having to reinvent those systems.  Many more details on the drivers in the extra slides section at the end of this presentation

15. April 2007 15J. Perl Geant4 Review 2007: Visualization New Features: Enhanced Trajectory Drawing

16. April 2007 16J. Perl Geant4 Review 2007: Visualization Enhanced Trajectory Drawing Ability to change trajectory drawing model through interactive commands Ability to change trajectory drawing model through interactive commands Lets you, for example, Lets you, for example, declare that trajectories should be color-coded by charge, declare that trajectories should be color-coded by charge, then change to have them color-coded by particle type then change to have them color-coded by particle type Eliminates the most common reason users had to code their own trajectory classes Eliminates the most common reason users had to code their own trajectory classes Project Lead: Jane Tinslay Project Lead: Jane Tinslay

17. April 2007 17J. Perl Geant4 Review 2007: Visualization Creator Process — muIoni — Decay — annihil — eIoni — brem Momentum (MeV) — 0-1 — 1-10 — 10-20 — 20-30 — 30-50 — 50+ Charge — +1 — 0 — -1 Example A01, five events, drawBy various models

18. April 2007 18J. Perl Geant4 Review 2007: Visualization Sample Commands: generic trajectory model # Create a generic model (will get default name of generic-0) # From here we can set overall defaults for things like line color, # whether to show step points or just the trajectory line, etc. /vis/modeling/trajectories/create/generic # Configure the generic model to colour all trajectories cyan and to show step points /vis/modeling/trajectories/generic-0/default/setDrawStepPts true /vis/modeling/trajectories/generic-0/default/setStepPtsSize 16 /vis/modeling/trajectories/generic-0/default/setLineColour cyan /vis/modeling/trajectories/generic-0/default/setStepPtsColour red

19. April 2007 19J. Perl Geant4 Review 2007: Visualization Sample Commands: drawByCharge model # Create a drawByCharge model (will get default name of drawCharge-0) /vis/modeling/trajectories/create/drawByCharge # Create another drawByCharge model with an explicit name of testChargeModel /vis/modeling/trajectories/create/drawByCharge testChargeModel # We can now go on to configure these two different drawByCharge models and then # can choose to visualize using either one of them at any time # Configure drawByCharge-0 model /vis/modeling/trajectories/drawByCharge-0/set 1 red /vis/modeling/trajectories/drawByCharge-0/set -1 red /vis/modeling/trajectories/drawByCharge-0/set 0 white # Configure testCharge model through G4Colour components /vis/modeling/trajectories/testChargeModel/setRGBA 1 0 1 1 1 /vis/modeling/trajectories/testChargeModel/setRGBA -1 0.5 0.5 0.5 1 /vis/modeling/trajectories/testChargeModel/setRGBA 0 1 1 0 1 # List available models /vis/modeling/trajectories/list # select drawByCharge-0 to be current /vis/modeling/trajectories/select drawByCharge-0

20. April 2007 20J. Perl Geant4 Review 2007: Visualization Sample Commands: drawByParticleID model # Create a drawByParticleID model named drawByParticleID-0 /vis/modeling/trajectories/create/drawByParticleID # Configure drawByParticleID-0 model /vis/modeling/trajectories/drawByParticleID-0/set gamma red /vis/modeling/trajectories/drawByParticleID-0/set proton yellow /vis/modeling/trajectories/drawByParticleID-0/setRGBA e+ 1 0 1 1

21. April 2007 21J. Perl Geant4 Review 2007: Visualization Creator Process — muIoni — Decay — annihil — eIoni — brem Momentum (MeV) — 0-1 — 1-10 — 10-20 — 20-30 — 30-50 — 50+ Example A01, five events, drawByAttribute models

22. April 2007 22J. Perl Geant4 Review 2007: Visualization Sample Commands: drawByAttribute /vis/modeling/trajectories/create/drawByAttribute /vis/modeling/trajectories/drawByCharge-0/verbose true /vis/modeling/trajectories/drawByCharge-0/setAttribute CPN /vis/modeling/trajectories/drawByAttribute-0/addValue brem_key eBrem /vis/modeling/trajectories/drawByAttribute-0/addValue annihil_key annihil /vis/modeling/trajectories/drawByAttribute-0/addValue decay_key Decay /vis/modeling/trajectories/drawByAttribute-0/addValue muIon_key muIoni /vis/modeling/trajectories/drawByAttribute-0/addValue eIon_key eIoni /vis/modeling/trajectories/drawByAttribute-0/brem_key/setLineColour red /vis/modeling/trajectories/drawByAttribute-0/annihil_key/setLineColour green /vis/modeling/trajectories/drawByAttribute-0/decay_key/setLineColour cyan /vis/modeling/trajectories/drawByAttribute-0/eIon_key/setLineColour yellow /vis/modeling/trajectories/drawByAttribute-0/muIon_key/setLineColour magenta Creator process name attribute Configure visualisation parameters Select relevant attribute values

23. April 2007 23J. Perl Geant4 Review 2007: Visualization Enhanced Trajectory Drawing: Releases Since Release 8.0: Since Release 8.0: Color by Charge Color by Charge Color by Particle Type Color by Particle Type Since Release 8.1 Since Release 8.1 Color by Origin Volume Color by Origin Volume Control over more than just color, including Control over more than just color, including whether to show just trajectory line, or just trajectory points, or both whether to show just trajectory line, or just trajectory points, or both width of trajectory lines, type of marker to use for points, point size, etc. width of trajectory lines, type of marker to use for points, point size, etc. Since Release 8.2 Since Release 8.2 Color by Any of the HepRep-Style Attributes, such as: Color by Any of the HepRep-Style Attributes, such as: Initial volume name Initial volume name Magnitude of momentum Magnitude of momentum Number of trajectory points Number of trajectory points User defined attributes User defined attributes Creator process name & type (if using Rich Trajectory) Creator process name & type (if using Rich Trajectory) Next volume name (if using Rich Trajectory) Next volume name (if using Rich Trajectory)

24. April 2007 24J. Perl Geant4 Review 2007: Visualization New Features: Trajectory and Hit Filtering

25. April 2007 25J. Perl Geant4 Review 2007: Visualization Trajectory and Hit Filtering Display user-defined subset of trajectories Display user-defined subset of trajectories Solves problems with large graphics files, busy events Solves problems with large graphics files, busy events Two modes of operation Two modes of operation Rejected trajectories not drawn at all Rejected trajectories not drawn at all Rejected trajectories drawn but marked invisible Rejected trajectories drawn but marked invisible Useful in interactive graphics browsers such as HepRApp or OpenInventor, where you have the option to toggle visibility later from the browser. Useful in interactive graphics browsers such as HepRApp or OpenInventor, where you have the option to toggle visibility later from the browser. Drawback is that the files remain large, since all of the data is still in the file. Drawback is that the files remain large, since all of the data is still in the file. Similar structure to enhanced trajectory drawing Similar structure to enhanced trajectory drawing Set of simple filter models Set of simple filter models Similar Interactive creation/configuration structure Similar Interactive creation/configuration structure You can chain multiple filters You can chain multiple filters Project Lead: Jane Tinslay Project Lead: Jane Tinslay

26. April 2007 26J. Perl Geant4 Review 2007: Visualization Momentum (MeV) — 0-2.5 — 2.5-5 — 5-7.5 — 7.5-10 — 10-10.25 — 12.5+ HandsOn5, McGill tutorial, 1000 events, Attribute Filter IMag > 2.5 MeV IMag > 2.5 MeV, particle = gamma

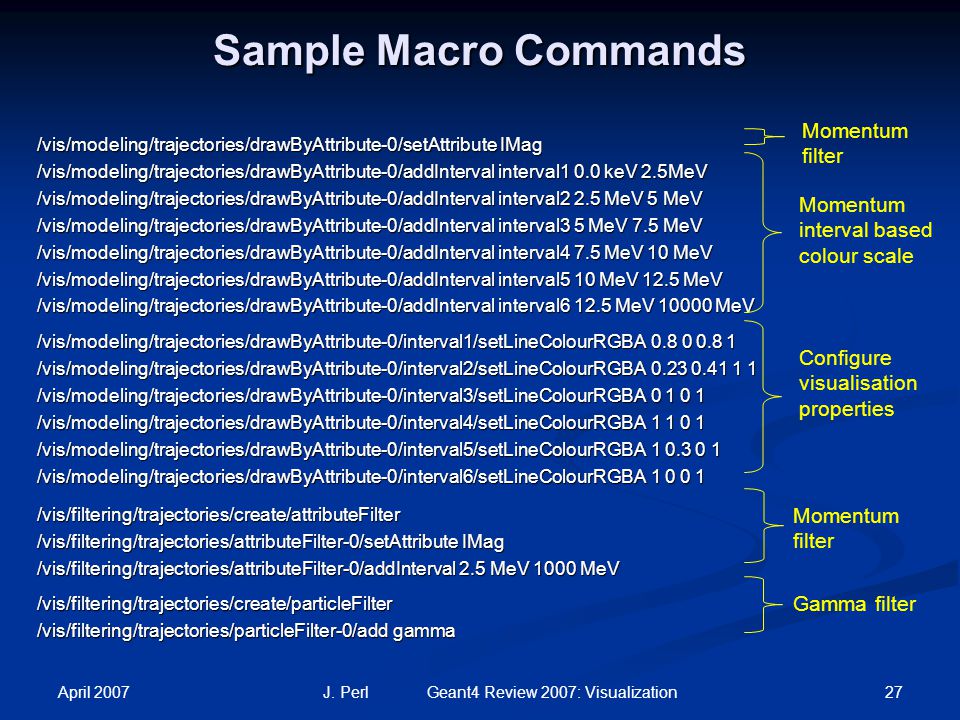

27. April 2007 27J. Perl Geant4 Review 2007: Visualization Sample Macro Commands /vis/modeling/trajectories/drawByAttribute-0/setAttribute IMag /vis/modeling/trajectories/drawByAttribute-0/addInterval interval1 0.0 keV 2.5MeV /vis/modeling/trajectories/drawByAttribute-0/addInterval interval2 2.5 MeV 5 MeV /vis/modeling/trajectories/drawByAttribute-0/addInterval interval3 5 MeV 7.5 MeV /vis/modeling/trajectories/drawByAttribute-0/addInterval interval4 7.5 MeV 10 MeV /vis/modeling/trajectories/drawByAttribute-0/addInterval interval5 10 MeV 12.5 MeV /vis/modeling/trajectories/drawByAttribute-0/addInterval interval6 12.5 MeV 10000 MeV /vis/modeling/trajectories/drawByAttribute-0/interval1/setLineColourRGBA 0.8 0 0.8 1 /vis/modeling/trajectories/drawByAttribute-0/interval2/setLineColourRGBA 0.23 0.41 1 1 /vis/modeling/trajectories/drawByAttribute-0/interval3/setLineColourRGBA 0 1 0 1 /vis/modeling/trajectories/drawByAttribute-0/interval4/setLineColourRGBA 1 1 0 1 /vis/modeling/trajectories/drawByAttribute-0/interval5/setLineColourRGBA 1 0.3 0 1 /vis/modeling/trajectories/drawByAttribute-0/interval6/setLineColourRGBA 1 0 0 1 /vis/filtering/trajectories/create/attributeFilter /vis/filtering/trajectories/attributeFilter-0/setAttribute IMag /vis/filtering/trajectories/attributeFilter-0/addInterval 2.5 MeV 1000 MeV /vis/filtering/trajectories/create/particleFilter /vis/filtering/trajectories/particleFilter-0/add gamma Momentum interval based colour scale Momentum filter Gamma filter Configure visualisation properties Momentum filter

28. April 2007 28J. Perl Geant4 Review 2007: Visualization Hit Filtering The Attribute-Based filtering discussed above for Trajectories was implemented generically so that it can a pply to any class which implements the Geant4 generic attributes method: The Attribute-Based filtering discussed above for Trajectories was implemented generically so that it can a pply to any class which implements the Geant4 generic attributes method: Whatever your Hit class, you can basically get interactive hit filtering for free Whatever your Hit class, you can basically get interactive hit filtering for free To activate, add a filter call to G4VVisManager in Draw method of hit class To activate, add a filter call to G4VVisManager in Draw method of hit class const std::map * GetAttDefs() const; std::vector * CreateAttValues() const; const std::map * GetAttDefs() const; std::vector * CreateAttValues() const; void MyHit::Draw() { … if (! pVVisManager->FilterHit(*this)) return; … void MyHit::Draw() { … if (! pVVisManager->FilterHit(*this)) return; …

29. April 2007 29J. Perl Geant4 Review 2007: Visualization Trajectory and Hit Filtering: Releases Since Release 8.1 Since Release 8.1 Filter by Charge Filter by Charge Filter by Particle Type Filter by Particle Type Filter by Origin Volume Filter by Origin Volume Since Release 8.2 Since Release 8.2 Filter by Any of the HepRep-Style Attributes, such as: Filter by Any of the HepRep-Style Attributes, such as: Initial volume name Initial volume name Magnitude of momentum Magnitude of momentum Number of trajectory points Number of trajectory points User defined attributes User defined attributes Creator process name & type (if using Rich Trajectory) Creator process name & type (if using Rich Trajectory) Next volume name (if using Rich Trajectory) Next volume name (if using Rich Trajectory) Future Releases Future Releases Filter by creation time of particle Filter by creation time of particle more more

30. April 2007 30J. Perl Geant4 Review 2007: Visualization New Features: Smooth and Rich Trajectories

31. April 2007 31J. Perl Geant4 Review 2007: Visualization G4SmoothTrajectory and G4RichTrajectory Most users use the standard G4Trajectory. But two other trajectory classes have been available in Geant4 tracking for some time. Smooth Trajectory adds auxiliary points to allow smoother line in visualization (not Geant4 Steps, no physics at auxiliary points) Useful when trajectories are highly curved due to magnetic fields Rich Trajectory encodes additional information at every step point Project Lead: John Allison, Joseph Perl

32. April 2007 32J. Perl Geant4 Review 2007: Visualization Regular versus Smooth Trajectory Regular Trajectory is a polyline made up of only the actual steps used by Geant4 Smooth Trajectory includes additional points to make the polyline appear smoother. These additional points are not Geant4 steps. They are only used by visualization.

33. April 2007 33J. Perl Geant4 Review 2007: Visualization Smooth Trajectory for Vis in Magnetic Fields Yellow dots are the actual step points used by Geant4 Magenta dots are auxiliary points added just for purposes of visualization

34. April 2007 34J. Perl Geant4 Review 2007: Visualization Rich Trajectory

35. April 2007 35J. Perl Geant4 Review 2007: Visualization Smooth and Rich Trajectories Now Easier to Use Up to Release 8.1, users who wanted to use these trajectories have had to write their own tracking action and explicitly instantiate one of these special kinds of trajectory Release 8.2 made this possible from an interactive command: /vis/scene/add/trajectories /vis/scene/add/trajectories smooth /vis/scene/add/trajectories rich /vis/scene/add/trajectories smooth rich Remember that if you actually want to display the trajectory points, you need to issue the appropriate trajectory modeling commands, such as: /vis/modeling/trajectories/create/generic /vis/modeling/trajectories/generic-0/default/setDrawStepPts true /vis/modeling/trajectories/generic-0/default/setStepPtsSize 16 /vis/modeling/trajectories/generic-0/default/setStepPtsColour red

36. April 2007 36J. Perl Geant4 Review 2007: Visualization New Features: Event Keeping

37. April 2007 37J. Perl Geant4 Review 2007: Visualization Keep Event at end of Run Before Geant4 release 8.2, event data was discarded at the end of the run. Implications for visualization were that one could not go back and adjust the visualization after the run. Transient data was written during end of run. Transient data was unavailable for subsequent drawings. Prompted by this visualization issue, Geant4 changed how the event pointer is maintained. After the run one can now: Change visualization drivers and redraw the same event to the new driver Change trajectory modeling or filtering and redraw the event If run was for more than one event, review events in visualization one by one User can implement code to keep only those events that match some specific topology (specific hit or trigger pattern). Makes it easy to do a large run and then recall for visualization only those events that are of interest.

38. April 2007 38J. Perl Geant4 Review 2007: Visualization New Features: Movies

39. April 2007 39J. Perl Geant4 Review 2007: Visualization Movies that Just Involve Changing Camera Position Making movies with just changes to camera position has been possible for years using macros. Conversion to mpeg somewhat complicated documented since release 8.2 or see http://geant4.slac.stanford.edu/Presentations/vis/HowToMakeAMovie.ppt (and.pdf)

40. April 2007 40J. Perl Geant4 Review 2007: Visualization Movies: Stitched Together from Multiple Stills http://www.hep.man.ac.uk/u/johna/pub/Geant4/Movies/g4RayTracer.mpg

41. April 2007 41J. Perl Geant4 Review 2007: Visualization New Technique: Time Development of the Event New features since release 8.2 allow you to do a new kind of Geant4 movie. You can make movies that show Time Development of an event I.e., a shower in slow motion Based on technique of “time-slicing”, breaking trajectories into individual slices, each with a time attribute. requires newer visualization features, rich trajectory and some extensions to the OpenGL driver you can run these animations Directly from Geant4, does NOT involve stitching together a movie by hand A collection of example movies has been prepared by John Allison: http://www.hep.man.ac.uk/u/johna/pub/Geant4/Movies/ A collection of example movies has been prepared by John Allison: http://www.hep.man.ac.uk/u/johna/pub/Geant4/Movies/ http://www.hep.man.ac.uk/u/johna/pub/Geant4/Movies/ http://geant4.slac.stanford.edu/Presentations/vis/HowToMakeAMovie.ppt http://geant4.slac.stanford.edu/Presentations/vis/HowToMakeAMovie.pdf How-To Presentation: http://geant4.slac.stanford.edu/Presentations/vis/HowToMakeAMovie.ppt http://geant4.slac.stanford.edu/Presentations/vis/HowToMakeAMovie.pdf http://geant4.slac.stanford.edu/Presentations/vis/HowToMakeAMovie.ppt http://geant4.slac.stanford.edu/Presentations/vis/HowToMakeAMovie.pdf http://geant4.slac.stanford.edu/Presentations/vis/HowToMakeAMovie.ppt http://geant4.slac.stanford.edu/Presentations/vis/HowToMakeAMovie.pdf Project Lead: John Allison

42. April 2007 42J. Perl Geant4 Review 2007: Visualization Movies: Live from Geant4 OpenGL

43. April 2007 43J. Perl Geant4 Review 2007: Visualization What was in the Previous Movie http://www.hep.man.ac.uk/u/johna/pub/Geant4/Movies/ pi-10Gevpi+neutronZoom.mp4 10 GeV/c pi- on lead (in a lead-liquid-argon calorimeter, exampleN03 with QGSP physics) A plethora of slow pions, protons and neutrons Three fast pi- and one fast pi+ that subsequently interacts again Neutrons (yellow) hang around for several ns Green circle is the light front Careful viewer will notice that near the end of the event, some particles appear to cross the light front. This was a bug in the way the light front sphere was rendered in perspective view, fixed in release 8.2

44. April 2007 44J. Perl Geant4 Review 2007: Visualization Coming by end of 2007: Visualization of Fields

45. April 2007 45J. Perl Geant4 Review 2007: Visualization Project Lead: Jane Tinslay

46. April 2007 46J. Perl Geant4 Review 2007: Visualization Additional Focus for This Year: Tools for Visualization of Voxel Data

47. April 2007 47J. Perl Geant4 Review 2007: VisualizationgMocren Geant4 has been interfaced to a commercial tool for visualization of voxel data. Free to all Geant4 users. Does not actually function as integral part of the Geant4 visualization system. Implemented as a G4 example, outputs data in form appropriate for gMocren Ayumi Saitoh, Akinori Kimura, Satoshi Takana

48. April 2007 48J. Perl Geant4 Review 2007: Visualization Other Voxel Visualization Tools Improve how voxel data is handled by the rest of the visualization system. Important as we move from primarily a HEP user base to a base that includes Medical and Shielding studies. Requires features such as ability to interactively slice the visualization. Do not attempt to reproduce the full functionality of already existing systems such as gMocren, but rather support and enhance the interfaces to such systems.

49. April 2007 49J. Perl Geant4 Review 2007: Visualization Additional Planned Developments (1 of 2) Additional trajectory models and filters Additional trajectory models and filters show random subset of trajectories. show random subset of trajectories. filter by fraction of primary energy filter by fraction of primary energy filter by how many generations from primary filter by how many generations from primary model by what interaction type created particle model by what interaction type created particle model hue by particle type and at same time model intensity by momentum. model hue by particle type and at same time model intensity by momentum. Additional ways of using attributes beyond HepRep driver: Additional ways of using attributes beyond HepRep driver: Support "pick to show attributes" in OpenGL Support "pick to show attributes" in OpenGL Filtering of geometry according to attributes Filtering of geometry according to attributes Commands to Label trajectories or hits (as can currently only be one in HepRep browsers) Commands to Label trajectories or hits (as can currently only be one in HepRep browsers)

50. April 2007 50J. Perl Geant4 Review 2007: Visualization Additional Planned Developments (2 of 2) Extend functionality current in only some drivers to other drivers: 2D and 3D text Asymmetric scaling Background color Window location Smooth shading Control of auxiliary edges Store camera information from one driver to use in another Other improvements: Develop Web-based DAWN rendering service Explore dynamic loading of visualization drivers Area of concern: Complex Boolean shapes not all visualizable beyond RayTracer.

51. April 2007 51J. Perl Geant4 Review 2007: Visualization Help and Documentation

52. April 2007 52J. Perl Geant4 Review 2007: Visualization Well Integrated, Focused set of Communications Tools Over the past two years, we have refined our set of tools to communicate with users. Improved interactive command guidance: /help/vis is now the single source for all up to date guidance Completed updated and revised visualization sections of: User Guide for Application Developers User Guide for Toolkit Developers Developed a set of introductory presentations: Introduction to Geant4 Visualization Geant4 Visualization Commands Geant4 Advance Visualization Developed a set of Step by Step Tutorials: OpenGL DAWN HepRep/HepRApp Removed other documents to avoid potential for conflicting information: Readmes and Howtos A technical paper documenting the overall design of the Geant4 Visualization System is in final stages of submission to Computer Physics Communications

53. April 2007 53J. Perl Geant4 Review 2007: VisualizationSummary Seven Visualization Drivers, all well supported Recent focus on adding interactive features to accomplish what users used to have to do by recoding in C++: Trajectory Modeling commands Trajectory and Hit Filtering commands Smooth and Rich Trajectory commands Time-Development Animation, etc. Major new feature coming this year: Visualization of Fields Major additional focus for this year: Improve tools for visualization of voxel geometries Additional planned developments: Continue to improve ease of use Area of concern: Complex Boolean shapes not all visualizable beyond RayTracer Help and documentation: Well integrated set of documents

54. April 2007 54J. Perl Geant4 Review 2007: Visualization References and Further Resources

55. April 2007 55J. Perl Geant4 Review 2007: Visualization Geant4 Visualization Resources Complete list of what has been done since release 8.0 and what is to do  http://geant4.slac.stanford.edu/Presentations/vis/workplans/VisToDoList_20061011d.doc (and.pdf) Geant4 Installation Guides  http://geant4.slac.stanford.edu/installation Hands on HepRApp Tutorial  http://geant4.slac.stanford.edu/Presentations/vis/G4HepRAppTutorial/G4HepRAppTutorial.html Hands on DAWN Tutorial  http://geant4.slac.stanford.edu/Presentations/vis/G4DAWNTutorial/G4DAWNTutorial.html Hands on OpenGL Tutorial  http://geant4.slac.stanford.edu/Presentations/vis/G4OpenGLTutorial/G4OpenGLTutorial.html Introduction to Geant4 Visualization  http://geant4.slac.stanford.edu/Presentations/vis/G4VisIntroduction.ppt (and.pdf) Geant4 Visualization Commands  http://geant4.slac.stanford.edu/Presentations/vis/G4VisCommands.ppt (and.pdf) Geant4 Advanced Visualization  http://geant4.slac.stanford.edu/Presentations/vis/G4VisAdvanced.ppt (and.pdf) On-line Documentation on Geant4 Visualization:  http://geant4.web.cern.ch/geant4/G4UsersDocuments/UsersGuides/ForApplicationDeveloper/ html/Visualization List of Visualization Commands:  http://geant4.web.cern.ch/geant4/UserDocumentation/UsersGuides/ForApplicationDeveloper/ html/Control/UIcommands/_vis_.html For Questions or Comments: Geant4 Visualization Online Forum:  http://geant4-hn.slac.stanford.edu:5090/HyperNews/public/get/visualization.html

56. April 2007 56J. Perl Geant4 Review 2007: Visualization References OpenScientist Home Page http://openscientist.lal.in2p3.fr OpenScientist Home Page http://openscientist.lal.in2p3.fr http://openscientist.lal.in2p3.fr HepRep: a generic interface definition for HEP event display representables http://www.slac.stanford.edu/~perl/heprep HepRep: a generic interface definition for HEP event display representables http://www.slac.stanford.edu/~perl/heprep http://www.slac.stanford.edu/~perl/heprep Fred: oh no, another event display (a HepRep client) http://www.fisica.uniud.it/~glast/FRED Fred: oh no, another event display (a HepRep client) http://www.fisica.uniud.it/~glast/FRED HepRApp HepRep Browser http://www.slac.stanford.edu/~perl/HepRApp HepRApp HepRep Browser http://www.slac.stanford.edu/~perl/HepRApp http://www.slac.stanford.edu/~perl/HepRApp WIRED4 JAS Plugin http://wired.freehep.org WIRED4 JAS Plugin http://wired.freehep.org http://wired.freehep.org DAWN Hot Information http://geant4.kek.jp/Geant4/vis DAWN Hot Information http://geant4.kek.jp/Geant4/vis http://geant4.kek.jp/Geant4/vis DAWN Home Page http://geant4.kek.jp/~tanaka/DAWN/About_DAWN.html DAWN Home Page http://geant4.kek.jp/~tanaka/DAWN/About_DAWN.html http://geant4.kek.jp/~tanaka/DAWN/About_DAWN.html DAWNCUT Home Page http://geant4.kek.jp/~tanaka/DAWN/About_DAWNCUT.html DAWNCUT Home Page http://geant4.kek.jp/~tanaka/DAWN/About_DAWNCUT.html http://geant4.kek.jp/~tanaka/DAWN/About_DAWNCUT.html DAVID Home Page http://geant4.kek.jp/~tanaka/DAWN/About_DAVID.html DAVID Home Page http://geant4.kek.jp/~tanaka/DAWN/About_DAVID.html http://geant4.kek.jp/~tanaka/DAWN/About_DAVID.html Satoshi Tanaka’s GEANT4 Ritsumeikan University Group Home Page (more information on DAWN, sample PRIM files, images, etc.) http://geant4.kek.jp/~tanaka/ Satoshi Tanaka’s GEANT4 Ritsumeikan University Group Home Page (more information on DAWN, sample PRIM files, images, etc.) http://geant4.kek.jp/~tanaka/ http://geant4.kek.jp/~tanaka/

57. April 2007 57J. Perl Geant4 Review 2007: Visualization Extra Slides: Details on the Seven Visualization Drivers

58. April 2007 58J. Perl Geant4 Review 2007: Visualization OpenGL /vis/open OGLIX Features Control directly from Geant4 Control directly from Geant4 Uses GL libraries that are already included on most Linux and Windows systems Uses GL libraries that are already included on most Linux and Windows systems Rendered, photorealistic image with some interactive features Rendered, photorealistic image with some interactive features zoom, rotate, translate zoom, rotate, translate Fast response (can usually exploit full potential of graphics hardware) Fast response (can usually exploit full potential of graphics hardware) Limited printing ability (pixel graphics, not vector graphics) Limited printing ability (pixel graphics, not vector graphics) Supported by John Allison with Guy Barrand Supported by John Allison with Guy Barrand

59. April 2007 59J. Perl Geant4 Review 2007: Visualization OpenGL with Motif Control If you don’t have Motif, all control is done from Geant4 commands: /vis/open OGLIX or OGLSWin32 /vis/viewer/set/viewpointThetaPhi 70 20 /vis/viewer/zoom 2 etc. But if you have Motif libraries, you can control Geant4 from Motif widgets: /vis/open OGLIXm

60. April 2007 60J. Perl Geant4 Review 2007: Visualization Hidden Line Removal OpenGL supports hidden line removal. OpenGL supports hidden line removal. You can control whether this removal is done and whether trajectories and hits are affected by this feature. You can control whether this removal is done and whether trajectories and hits are affected by this feature. By default, hidden line removal is disabled By default, hidden line removal is disabled To turn on hidden line removal To turn on hidden line removal /vis/viewer/set/hiddenEdge 1 /vis/viewer/set/hiddenEdge 1 This hides edges of geometry, but lets trajectories through. This hides edges of geometry, but lets trajectories through. To hide trajectories and hits as well To hide trajectories and hits as well /vis/viewer/set/hiddenMarker 1 /vis/viewer/set/hiddenMarker 1

61. April 2007 61J. Perl Geant4 Review 2007: Visualization OpenInventor /vis/open OIX or /vis/open IOWin32 Features Control from the OpenInventor GUI Requires addition of OpenInventor libraries (freely available for most Linux systems and Windows). Requires addition of OpenInventor libraries (freely available for most Linux systems and Windows). Rendered, photorealistic image Rendered, photorealistic image Many interactive features Many interactive features zoom, rotate, translate zoom, rotate, translate click to “see inside” opaque volumes click to “see inside” opaque volumes click to show attributes (momentum, etc., dumps to standard output) click to show attributes (momentum, etc., dumps to standard output) Fast response (can usually exploit full potential of graphics hardware) Fast response (can usually exploit full potential of graphics hardware) Expanded printing ability (vector and pixel graphics) Expanded printing ability (vector and pixel graphics) Supported by Guy Barrand Supported by Guy Barrand

62. April 2007 62J. Perl Geant4 Review 2007: Visualization OpenInventor: Start from Geant4 With OpenInventor, start from Geant4, but then some control from OpenInventor GUI With OpenInventor, start from Geant4, but then some control from OpenInventor GUI

63. April 2007 63J. Perl Geant4 Review 2007: Visualization OpenInventor: More GUI Control You can also choose to control the Geant4 run from OpenInventor. You can also choose to control the Geant4 run from OpenInventor.

64. April 2007 64J. Perl Geant4 Review 2007: Visualization HepRep /vis/open HepRepFile Features Create a file to view in the Create a file to view in the HepRApp HepRep Browser HepRApp HepRep Browser WIRED4 JAS Plugin WIRED4 JAS Plugin or FRED Event Display or FRED Event Display Wireframe or simple area fills (not photorealistic) Wireframe or simple area fills (not photorealistic) Many interactive features Many interactive features zoom, rotate, translate zoom, rotate, translate click to show attributes (momentum, etc.) click to show attributes (momentum, etc.) special projections (FishEye, etc.) special projections (FishEye, etc.) control visibility from hierarchical (tree) view of data control visibility from hierarchical (tree) view of data Hierarchical view of the geometry Hierarchical view of the geometry HepRApp and WIRED4 can export to many vector graphic formats (PostScript, PDF, etc.) HepRApp and WIRED4 can export to many vector graphic formats (PostScript, PDF, etc.) Supported by Joseph Perl and Mark Donszelmann

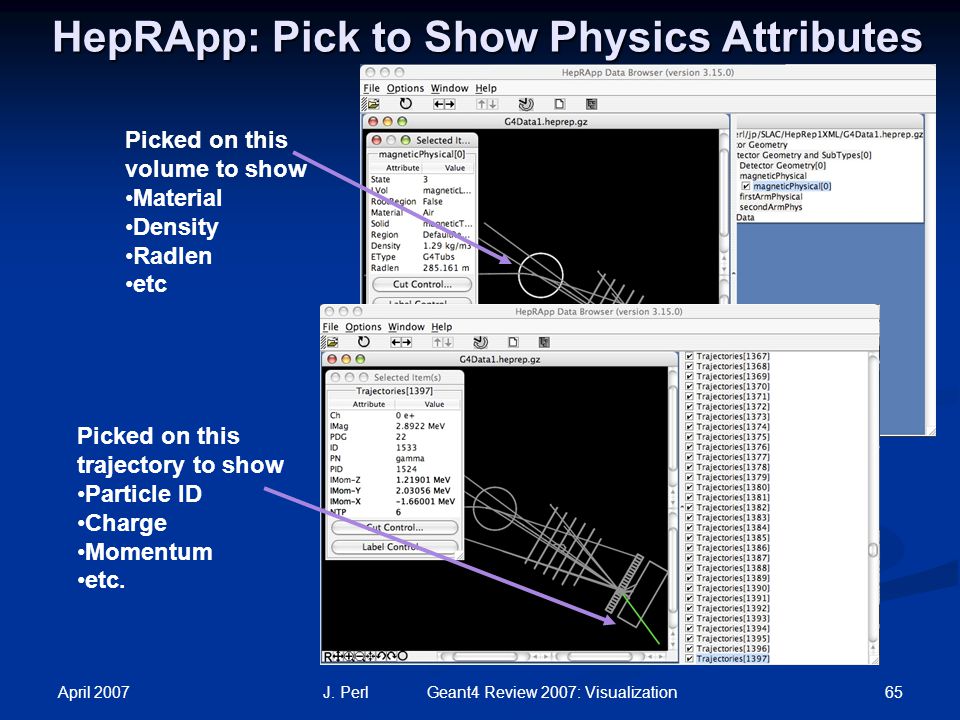

65. April 2007 65J. Perl Geant4 Review 2007: Visualization HepRApp: Pick to Show Physics Attributes Picked on this volume to show Material Density Radlen etc Picked on this trajectory to show Particle ID Charge Momentum etc.

66. April 2007 J. Perl Geant4 Review 2007: Visualization 66 HepRApp: Labeling by Any Attribute

67. April 2007 J. Perl Geant4 Review 2007: Visualization 67 HepRApp: Cut by Any Attribute

68. April 2007 J. Perl Geant4 Review 2007: Visualization 68 WIRED4: Part of JAS Install JAS (Java Analysis Studio) Then download WIRED4 Plug-in http://wired.freehep.org/index.html http://wired.freehep.org/index.html

69. April 2007 69J. Perl Geant4 Review 2007: Visualization FRED: Fox Ruby Event Display An additional HepRep-compatible browser developed by members of the GLAST space telescope collaboration. Includes the fast rotations and beautiful rendering of GL plus HepRep interactivity Allows scripting to change any attribute based on logic involving other attributes, hence things like "color by momentum" are scriptable.

70. April 2007 70J. Perl Geant4 Review 2007: Visualization DAWN /vis/open DAWNFILE Features Create a.prim file Create a.prim file Requires DAWN, available for all Linux and Windows systems Requires DAWN, available for all Linux and Windows systems DAWN creates a rendered, photorealistic PostScript image DAWN creates a rendered, photorealistic PostScript image No interactive features once at PostScript stage No interactive features once at PostScript stage Highest quality technical rendering - vector PostScript Highest quality technical rendering - vector PostScript View or print from your favorite PostScript application Supported by Satoshi Tanaka Supported by Satoshi Tanaka Recently ported DAWN, DAWNCUT and DAVID to FedoraCore 4.0 (g++ 4.0) Recently ported DAWN, DAWNCUT and DAVID to FedoraCore 4.0 (g++ 4.0)

71. April 2007 71J. Perl Geant4 Review 2007: Visualization DAWN Examples From a repository of beautiful images at From a repository of beautiful images at http://geant4.kek.jp/~tanaka/GEANT4/ATLAS_G4_GIFFIG/ http://geant4.kek.jp/~tanaka/GEANT4/ATLAS_G4_GIFFIG/ http://geant4.kek.jp/~tanaka/GEANT4/ATLAS_G4_GIFFIG/

72. April 2007 72J. Perl Geant4 Review 2007: Visualization DAWN makes True Vector PostScript So when you zoom in with your PostScript browser, the images retain high resolution So when you zoom in with your PostScript browser, the images retain high resolution

73. April 2007 73J. Perl Geant4 Review 2007: Visualization DAWNCUT and DAVID A standalone program, DAWNCUT, can perform a planar cut on a DAWN image. A standalone program, DAWNCUT, can perform a planar cut on a DAWN image. DAWNCUT takes as input a.prim file and some cut parameters. Its output is a new.prim file to which the cut has been applied. DAWNCUT takes as input a.prim file and some cut parameters. Its output is a new.prim file to which the cut has been applied. Another standalone program, DAVID, can show you any volume overlap errors in your geometry. Another standalone program, DAVID, can show you any volume overlap errors in your geometry. DAVID takes as input a.prim file and outputs a new.prim file in which overlapping volumes have been highlighted. DAVID takes as input a.prim file and outputs a new.prim file in which overlapping volumes have been highlighted. Details at http://geant4.kek.jp/~tanaka/ Details at http://geant4.kek.jp/~tanaka/

74. April 2007 74J. Perl Geant4 Review 2007: Visualization VRML /vis/open VRML1FILE or /vis/open VRML2FILE Features Features Create a file to view in any VRML browser (some as web browser plug-ins). Create a file to view in any VRML browser (some as web browser plug-ins). Requires VRML browser (many different choices for different operating systems). Requires VRML browser (many different choices for different operating systems). Rendered, photorealistic image with some interactive features Rendered, photorealistic image with some interactive features zoom, rotate, translate zoom, rotate, translate Limited printing ability (pixel graphics, not vector graphics) Limited printing ability (pixel graphics, not vector graphics) Supported by Satoshi Tanaka Supported by Satoshi Tanaka

75. April 2007 75J. Perl Geant4 Review 2007: Visualization VRML Geant4 creates VRML File /vis/open VRML1FILE or /vis/open VRML2FILE View file in a VRML Browser Many free options, for example, here is one from octaga.com

76. April 2007 76J. Perl Geant4 Review 2007: Visualization RayTracer /vis/open RayTracer Features Features Create a jpeg file Create a jpeg file Forms image by using Geant4’s own tracking to follow photons through the detector Forms image by using Geant4’s own tracking to follow photons through the detector Can show geometry but not trajectories Can show geometry but not trajectories Can render any geometry that Geant4 can handle (such as Boolean solids) - no other Vis driver can handle every case Can render any geometry that Geant4 can handle (such as Boolean solids) - no other Vis driver can handle every case Supports shadows, transparency and mirrored surfaces Supports shadows, transparency and mirrored surfaces As of release Geant4.8.0, also now RayTracerX /vis/open RayTracerX Simultaneously renders to screen and to jpeg file, so that you can watch as the rendering grows progressively smoother Supported by Makoto Asai and John Allison Supported by Makoto Asai and John Allison

77. April 2007 77J. Perl Geant4 Review 2007: Visualization RayTracer Shows Shadows

78. April 2007 78J. Perl Geant4 Review 2007: Visualization RayTracer Supports Transparency

79. April 2007 79J. Perl Geant4 Review 2007: Visualization RayTracer Handles Mirrored Surfaces Mirrored Surfaces

80. April 2007 80J. Perl Geant4 Review 2007: Visualization RayTracer Handles Boolean Solids

81. April 2007 81J. Perl Geant4 Review 2007: Visualization RayTracerX New since Geant4.8.0 In addition to /vis/open RayTracer You have the option of /vis/open RayTracerX Builds same jpeg file as RayTracer, but simultaneously renders to screen so you can watch as rendering grows progressively smoother. Means you can abort and retry the rendering with different view parameters without having to wait for the complete refinement of the image.

82. April 2007 82J. Perl Geant4 Review 2007: Visualization ASCIITree /vis/open ATree Features Features Text dump of the geometry hierarchy Text dump of the geometry hierarchy Not graphical Not graphical Control over level of detail to be dumped Control over level of detail to be dumped Can calculate mass and volume of any hierarchy of volumes Can calculate mass and volume of any hierarchy of volumes Supported by John Allison

83. April 2007 83J. Perl Geant4 Review 2007: VisualizationASCIITree ASCIITREE is a visualization driver that is not actually graphical, but that dumps the hierarchy as a simple text tree. ASCIITREE is a visualization driver that is not actually graphical, but that dumps the hierarchy as a simple text tree. /vis/open ATree /vis/open ATree /vis/viewer/flush /vis/viewer/flush "worldPhysical":0 "worldPhysical":0 "magneticPhysical":0 "magneticPhysical":0 "firstArmPhysical":0 "firstArmPhysical":0 "hodoscope1Physical":0 "hodoscope1Physical":0 "hodoscope1Physical":1 (repeated placement) "hodoscope1Physical":1 (repeated placement) "hodoscope1Physical":2 (repeated placement) "hodoscope1Physical":2 (repeated placement) "hodoscope1Physical":3 (repeated placement) "hodoscope1Physical":3 (repeated placement) "hodoscope1Physical":4 (repeated placement) "hodoscope1Physical":4 (repeated placement) Can be set to various levels of detail Can be set to various levels of detail /vis/ASCIITree/verbose /vis/ASCIITree/verbose 0: prints physical volume name. 0: prints physical volume name. 1: prints logical volume name. 1: prints logical volume name. 2: prints solid name and type. 2: prints solid name and type. 3: prints volume and density of solid. 3: prints volume and density of solid. 4: calculates and prints mass(es) of volume(s) in scene. 4: calculates and prints mass(es) of volume(s) in scene. By default, shows only daughters of first placement and not repeat replicas. By default, shows only daughters of first placement and not repeat replicas. Add 10 to the above to also show repeated placements and replicas. Add 10 to the above to also show repeated placements and replicas.

84. April 2007 84J. Perl Geant4 Review 2007: Visualization ASCIITree: Calculate Volume and Mass At verbosity level 4, ASCIITree At verbosity level 4, ASCIITree calculates the mass of the complete geometry tree taking into account daughters up to the depth specified for each physical volume. The calculation involves subtracting the mass of that part of the mother that is occupied by each daughter and then adding the mass of the daughter, and so on down the hierarchy. /vis/ASCIITree/Verbose 4 /vis/ASCIITree/Verbose 4 /vis/viewer/flush /vis/viewer/flush "HadCalorimeterPhysical":0 / "HadCalorimeterLogical" / "HadCalorimeterBox"(G4Box), 1.8 m3, 11.35 g/cm3 "HadCalorimeterPhysical":0 / "HadCalorimeterLogical" / "HadCalorimeterBox"(G4Box), 1.8 m3, 11.35 g/cm3 "HadCalColumnPhysical":-1 (10 replicas) / "HadCalColumnLogical" / "HadCalColumnBox"(G4Box), 180000 cm3, 11.35 g/cm3 "HadCalColumnPhysical":-1 (10 replicas) / "HadCalColumnLogical" / "HadCalColumnBox"(G4Box), 180000 cm3, 11.35 g/cm3 "HadCalCellPhysical":-1 (2 replicas) / "HadCalCellLogical" / "HadCalCellBox"(G4Box), 90000 cm3, 11.35 g/cm3 "HadCalCellPhysical":-1 (2 replicas) / "HadCalCellLogical" / "HadCalCellBox"(G4Box), 90000 cm3, 11.35 g/cm3 "HadCalLayerPhysical":-1 (20 replicas) / "HadCalLayerLogical" / "HadCalLayerBox"(G4Box), 4500 cm3, 11.35 g/cm3 "HadCalLayerPhysical":-1 (20 replicas) / "HadCalLayerLogical" / "HadCalLayerBox"(G4Box), 4500 cm3, 11.35 g/cm3 "HadCalScintiPhysical":0 / "HadCalScintiLogical" / "HadCalScintiBox"(G4Box), 900 cm3, 1.032 g/cm3 "HadCalScintiPhysical":0 / "HadCalScintiLogical" / "HadCalScintiBox"(G4Box), 900 cm3, 1.032 g/cm3 Calculating mass(es)... Calculating mass(es)... Overall volume of "worldPhysical":0, is 2400 m3 Overall volume of "worldPhysical":0, is 2400 m3 Mass of tree to unlimited depth is 22260.5 kg Mass of tree to unlimited depth is 22260.5 kg

85. April 2007 85J. Perl Geant4 Review 2007: Visualization We have Seven Visualization Drivers with complimentary strengths. All well supported. OpenGL OpenGL OpenInventor OpenInventor HepRep (using HepRApp, WIRED4 or FRED) HepRep (using HepRApp, WIRED4 or FRED) DAWN DAWN VRML VRML RayTracer RayTracer ASCIITree ASCIITree Summary of Visualization Drivers
