1. Classification in Microarray Experiments
Jane Fridlyand, UCSF Cancer Center
CBMB Workshop, Nov 15, 2003

2. cDNA gene expression data
Data on G genes for n samples
mRNA samples
sample1 sample2 sample3 sample4 sample5 … 3
Genes
Gene expression level of gene i in mRNA sample j =
(normalized) Log( Red intensity / Green intensity)
Any other microarray dataset (aCGH/Affy/Oligo …)
can be represented in above matrix form.

3. Outline Background on Classification Feature selection
Performance assessment
Discussion

4. Classification
Task: assign objects to classes (groups) on the basis of measurements made on the objects
Unsupervised: classes unknown, want to discover them from the data (cluster analysis)
Supervised: classes are predefined, want to use a (training or learning) set of labeled objects to form a classifier for classification of future observations

5. Supervised approach (discrimination + allocation)
Objects (e.g. arrays) are to be classified as belonging to one of a number of predefined classes {1, 2, …, K}
Each object associated with a class label (or response) Y  {1, 2, …, K} and a feature vector (vector of predictor variables) of G measurements: X = (X1, …, XG)
Aim: predict Y from X.

6. Example: Tumor Classification
Reliable and precise classification essential for successful cancer treatment
Current methods for classifying human malignancies rely on a variety of morphological, clinical and molecular variables
Uncertainties in diagnosis remain; likely that existing classes are heterogeneous
Characterize molecular variations among tumors by monitoring gene expression (microarray)
Hope: that microarrays will lead to more reliable tumor classification (and therefore more appropriate treatments and better outcomes) 4

7. Tumor Classification Using Array Data
Three main types of statistical problems associated with tumor classification:
Identification of new/unknown tumor classes using gene expression profiles (unsupervised learning – clustering)
Classification of malignancies into known classes (supervised learning – discrimination)
Identification of “marker” genes that characterize the different tumor classes (feature or variable selection).
4 relevant to other types of classification problems, not just tumors

8. Classification and Microarrays
Classification is an important question in
experiments experiments, for purposes of
classifying biological samples and and
predicting clinical and other outcomes using
array data.
Tumor class: ALL vs AML, classic vs
desmoplastic medullablastoma
Response to treatemnt, survival
Type of bacteria pathogen, etc.

9. Classification and Microarrays
Large and complex multivariate datasets generated
by microarray experiments raise new methodological
and computational challenges
Many articles have been published on classification
using gene expression data
The statistical literature on classification has been
overlooked.
Old method with catchy names
New methods with inadequate or unknown
properties
Improper performance assessment

10. Taken from
Nature Jan, 2002
Paper by L van’t Veer et al
Gene expression profiling
predicts clinical outcome of
breast cancer.
Further validated in the New
England Journal of Medicine on 295 women.

11. Classifiers
A predictor or classifier partitions the space of gene expression profiles into K disjoint subsets, A1, ..., AK, such that for a sample with expression profile X=(X1, ...,XG)  Ak the predicted class is k
Classifiers are built from a learning set (LS)
L = (X1, Y1), ..., (Xn,Yn)
Classifier C built from a learning set L:
C( . ,L): X  {1,2, ... ,K}
Predicted class for observation X:
C(X,L) = k if X is in Ak

12. Diagram of classification
Training
set
(CV) Learning
set
(CV) Test
set
Parameters, features and
Meta-parameters
Performance
assessment
Classifier
Future test
samples

13. Decision Theory (I)
Can view classification as statistical decision theory: must decide which of the classes an object belongs to
Use the observed feature vector X to aid in decision making
Denote population proportion of objects of class k as pk = p(Y = k)
Assume objects in class k have feature vectors with class conditional density pk(X) = p(X|Y = k)

14. Decision Theory (II) When (unrealistically) both and
are known, the classification problem has a
solution – Bayes rule.
This situation also gives an upper bound on
The performance of the classifiers in the more
realistic setting where these quantities are not
known – Bayes risk.

15. Decision Theory (III)
One criterion for assessing classifier quality is the misclassification rate,
p(C(X)Y)
A loss function L(i,j) quantifies the loss incurred by erroneously classifying a member of class i as class j
The risk function R(C) for a classifier is the expected (average) loss:
R(C) = E[L(Y,C(X))]

16. Decision Theory (IV) Typically L(i,i) = 0
In many cases can assume symmetric loss with L(i,j) = 1 for i  j (so that different types of errors are equivalent)
In this case, the risk is simply the misclassification probability
There are some important examples, such as in diagnosis, where the loss function is not symmetric

17. Decision Theory (V)

18. Decision Theory (VI)

19. Training set and population of interest
Beware of the relationship between your training
set and population to which your classifier will be
applied.
Unequal class representation: estimates of joint
quantities such pooled covariance matrix
Loss function: differential misclassification costs
Biased sampling of classes: adjustment of priors

20. Example: biased sampling of classes (case-control studies)
Recurrence rate among node-negative early stage
breast cancer patients is low, say, <10%. Suppose
that at the time of surgery, we want to identify
women who will recur to assign them to a more
aggressive therapy.
Case-control studies are typical in such situations.
A researcher goes back to the tumor bank and
collects a pre-defined number of tissue samples of
each type, say, among 100 samples, 50 recur and 50
don’t. Thus, learning set has 50% rate of recurrence

21. Example (ctd) Assuming equal priors and misclassification cost,
suppose the cross-validated misclassification
error is 20/100 cases: 10 recurrences and 10
non-recurrences. So, we can discriminate samples
based on their genetic data. Can this
classifier be used for allocation of future samples?
Probably not. Among 100 future cases, we expect to
see 10 recurrences. We also expect to misclassify
2 (10*(10/50)) of them as non-recurrences and
also misclassify 90*(10/50) = 18 non-recurrences as
recurrences. With equal misclassification costs
we will do better by assuming that no patients in this
clinical group will recur.

22. Lessons learnt To make your classifier applicable to future samples,
it is very important to incorporate population
parameters such as priors into the classifier as well
As to keep in mind clinically viable misclassification
costs (it may be less of an error to aggressively
treat someone who would not recur than miss
someone who will.
Always keep sampling scheme in mind.
Ultimately, it is all about minimizing the total risk which
is a function of many quantities which have to hold
in the population of interest.

23. Maximum likelihood discriminant rule
A maximum likelihood estimator (MLE) chooses the parameter value that makes the chance of the observations the highest
For known class conditional densities pk(X), the maximum likelihood (ML) discriminant rule predicts the class of an observation X by
C(X) = argmaxk pk(X)

24. Fisher Linear Discriminant Analysis
First applied in 1935 by M. Barnard at the suggestion of R. A. Fisher (1936), Fisher linear discriminant analysis (FLDA):
finds linear combinations of the gene expression profiles X=X1,...,XG with large ratios of between-groups to within-groups sums of squares - discriminant variables;
predicts the class of an observation X by the class whose mean vector is closest to X in terms of the discriminant variables

25. FLDA

26. Gaussian ML Discriminant Rules
For multivariate Gaussian (normal) class densities X|Y= k ~ N(k, k), the ML classifier is
C(X) = argmink {(X - k) k-1 (X - k)’ + log| k |}
In general, this is a quadratic rule (Quadratic discriminant analysis, or QDA)
In practice, population mean vectors k and covariance matrices k are estimated by corresponding sample quantities

27. ML discriminant rules - special cases
1. Linear discriminant analysis, LDA. When the class densities have the same covariance matrix, k  , the discriminant rule is based on the square of the Mahalanobis distance and is linear and given by
2. Diagonal linear discriminant analysis, DLDA. In this simplest case, when the class densities have the same diagonal covariance matrix = diag(s12, …, sp2)
Note. Weighted gene voting of Golub et al. (1999) is a
minor variant of DLDA for two classes (wrong variance
calculation).
C(x) = arg min k (x-)’ -1(x - )

28. Linear and Quadratic Discriminant Analysis
Simple and intuitive
Easy to implement
Good performance in practice
(bias-variance trade-off)
Why use it?
Linear/Quadratic boundaries may not be enough
Features may have mixture distributions within
classes Why not use it?
When too many features are used, performance
may degrade quickly due to over-parametrization

29. Nearest Neighbor Classification
Based on a measure of distance between observations (e.g. Euclidean distance or one minus correlation)
k-nearest neighbor rule (Fix and Hodges (1951)) classifies an observation X as follows:
find the k observations in the learning set closest to X
predict the class of X by majority vote, i.e., choose the class that is most common among those k observations.
The number of neighbors k can be chosen by cross-validation (more on this later)

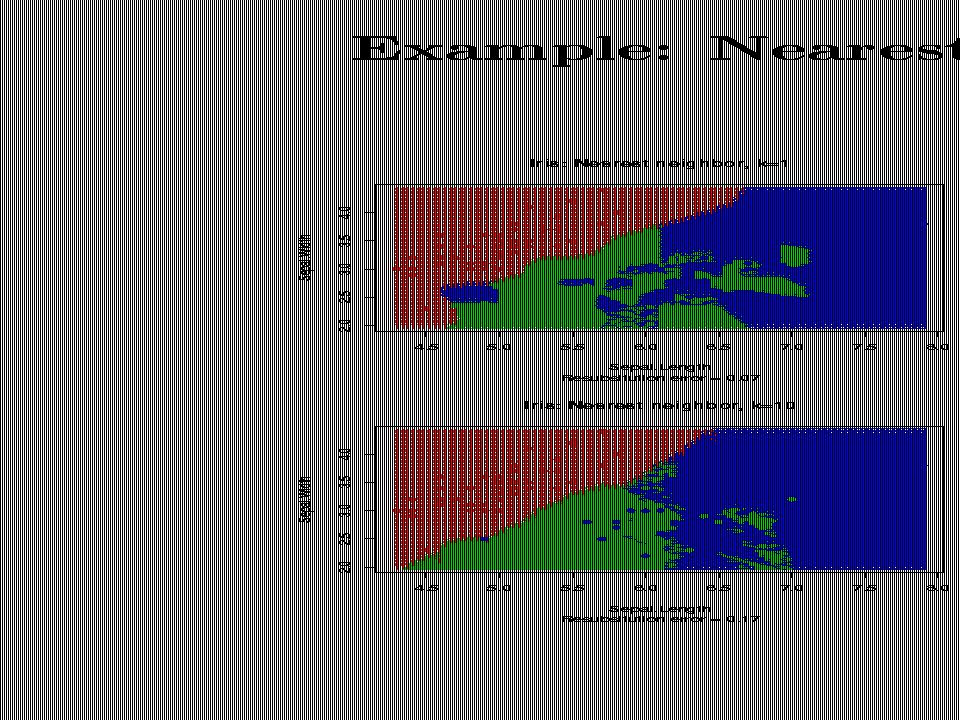

30. Nearest neighbor rule

31. Classification Trees
Partition the feature space into a set of rectangles, then fit a simple model in each one
Binary tree structured classifiers are constructed by repeated splits of subsets (nodes) of the measurement space X into two descendant subsets (starting with X itself)
Each terminal subset is assigned a class label; the resulting partition of X corresponds to the classifier

32. Classification Tree

33. Three Aspects of Tree Construction
Split Selection Rule
Split-stopping Rule
Class assignment Rule
Different approaches to these three issues (e.g. CART: Classification And Regression Trees, Breiman et al. (1984); C4.5 and C5.0, Quinlan (1993)).

34. Three Rules (CART)
Splitting: At each node, choose split maximizing decrease in impurity (e.g. Gini index, entropy, misclassification error)
Split-stopping: Grow large tree, prune to obtain a sequence of subtrees, then use cross-validation to identify the subtree with lowest misclassification rate
Class assignment: For each terminal node, choose the class minimizing the resubstitution estimate of misclassification probability, given that a case falls into this node

39. Other Classifiers Include…
Support vector machines (SVMs)
Neural networks
Logistic regression
Projection pursuit
Bayesian belief networks

40. Features Feature selection Missing data Automatic with trees
For DA, NN need preliminary selection
Need to account for selection when assessing performance
Missing data
Automatic imputation with trees
Otherwise, impute (or ignore)

41. Why select features? Leukemia, 3 class affymetrix chip
Left: no feature
selection
Right: top 100
most variables
genes
Lymphoma, 3 class
lymphochip
Left: no feature
selection
Right: top 100
most variables
genes

42. Explicit feature selection I
One-gene-at-a-time approaches. Genes are ranked
based on the value of a univariate test statistic
such as: t- or F-statistic or their non-parametric
variants (Wilcoxon/Kruskal-Wallis); p-value.
Possible meta-parameters include the number of
genes G or a p-value cut-off. A formal choice of
these parameters may be achieved by
cross-validation or bootstrap procedures.

43. Explicit feature selection II
Multivariate approaches. More refined feature
selection procedures consider the joint
distribution of the expression measures, in order
to detect genes with weak main effects but
possibly strong interaction.
Bo & Jonassen (2002): Subset selection procedures
for screening gene pairs to be used in classification
Breiman (1999): ranks genes according to
importance statistic define in terms of prediction
accuracy. Note that tree building itself does not involve
explicit feature selection.

44. Implicit feature selection
Feature selection may also be performed
implicitly by the classification rule itself.
In classification trees, features are selected
at each step based on reduction in impurity and
The number of features used (or size of the tree)
is determined by pruning th tree using
cross-validation. Thus, feature selection is
inherent part of tree-building and pruning deals
with overfitting.
Shrinkage methods and adaptive distance function
May be used for LDA and kNN.

45. Distance and Standardization
Trees. Trees are invariant under monotone
transformation of individual features
(genes), e.g. standardization. They are not invariant
to standardization of observations (normalization
in microarray context).
DA. Based on Mahalanobis distance of the
observations from the class means. Thus , the
classifiers are invariant to standardization of the
variables (genes) but not observations. (arrays)
k-NN. Related to deciding on distance function.
affected by both, features and observations
standardization.

46. Polychotomous classification
It may be advantageous to convert a K-class
classification problem (K > 2) into a series of
binary problems.
All pairwise binary classification problems.
Consider all binary classification problems: the
final predicted class is the class that is selected
often among all binary comparisons.
One-against-all binary classification problem
Application of K binary rules to a test case
yields K estimates of class probabilities. Choose
the class with the largest posterior.

47. Performance assessment
Any classifier needs to be evaluated for its
performance on the future samples. It is almost
never the case in microarray studies that a large
independent population-based collection of samples
is available at the time of intial classifier-building
phase.
One needs to estimate future performance based
on what is available: often the same set that is
used to build the classifier.

48. Diagram of performance assessment
Classifier
Training
set
(CV) Learning
set
Performance
assessment
Classifier
Training
set
(CV) Test
set
Test set
Classifier

49. Performance assessment (I)
Resubstitution estimation: error rate on the learning set
Problem: downward bias
Test set estimation: divide cases in learning set into two sets, L1 and L2; classifier built using L1, error rate computed for L2. L1 and L2 must be iid.
Problem: reduced effective sample size

50. Performance assessment (II)
V-fold cross-validation (CV) estimation: Cases in learning set randomly divided into V subsets of (nearly) equal size. Build classifiers leaving one set out; test set error rates computed on left out set and averaged.
Bias-variance tradeoff: smaller V can give larger bias but smaller variance
Computationally intensive

51. Performance assessment (III)
Leave-one-out cross validation (LOOCV).
(Special case for V=n). Works well for stable classifiers (k-NN, LOOCV)
Out-of-bag estimation: covered below

52. Performance assessment (III)
Common to do feature selection using all of the data, then CV only for model building and classification
However, usually features are unknown and the intended inference includes feature selection. Then, CV estimates as above tend to be downward biased.
Features should be selected only from the learning set used to build the model (and not the entire learning set)

53. Aggregating classifiers
Breiman (1996, 1998) found that gains in accuracy could be obtained by aggregating predictors built from perturbed versions of the learning set; the multiple versions of the predictor are aggregated by voting.
Let C(., Lb) denote the classifier built from the bth perturbed learning set Lb, and let wb denote the weight given to predictions made by this classifier. The predicted class for an observation x is given by
argmaxk ∑b wbI(C(x,Lb) = k)

54. Diagram of aggregating classifiers
Sample1
classifier2
Sample2
Training
Set:
X1 …X100
Aggregated
classifier
Test set
dot dot dot
dot dot dot
Sample499
classifier499
Sample500
classifier500

55. Bagging Bagging = Bootstrap aggregating
Non-parametric Bootstrap (standard bagging): perturbed learning sets drawn at random with replacement from the learning sets; predictors built for each perturbed dataset and aggregated by plurality voting (wb = 1)
Parametric Bootstrap: perturbed learning sets are multivariate Gaussian
Convex pseudo-data (Breiman 1996)

56. Boosting Freund and Schapire (1997), Breiman (1998).
The data are resampled adaptively so that the
weights in the resampling are increased for those
cases most often misclassified.
The aggregation of predictors is done by weighted
voting.

57. Random Forests Perturbed learning sets are drawn at random with
replacement from the learning sets
The exploratory tree is built for each perturbed
dataset in a way that at each node, the
pre-specified number of features is randomly
sub-sampled without replacement and only these
variables are used to decide the split at that node.
The resulting trees are aggregated by plurality
voting (wb = 1)

58. Aggregation By-products: Out-of-bag estimation of error rate
Out-of-bag error rate estimate: unbiased
Use the left out cases from each bootstrap sample as a test set
Classify these test set cases by aggregating relevant predictors and compare to the class labels of the learning set to get the out-of-bag estimate of the error rate

59. Aggregation By-products: Case-wise information
Class probability estimates (votes) (0,1): the proportion of votes for the “winning” class; gives a measure of prediction confidence
Vote margins (–1,1) : the proportion of votes for the true class minus the maximum of the proportion of votes for each of the other classes; can be used to detect mislabeled (learning set) cases

60. Aggregation By-products: Variable Importance Statistics
Measure of predictive power
For each tree, randomly permute the values of the j-th variable for the out-of-bag cases, use to get new classifications
Several possible importance measures

61. Aggregation By-products: Intrinsic Case Proximities
Proportion of trees for which cases i and j are in the same terminal node
“Clustering”
Outlier detection:
1/sum(squared proximities of cases in same class)

62. Boosting Freund and Schapire (1997), Breiman (1998)
Data resampled adaptively so that the weights in the resampling are increased for those cases most often misclassified
Predictor aggregation done by weighted voting

63. Comparison of classifiers
Dudoit, Fridlyand, Speed (JASA, 2002)
FLDA
DLDA
DQDA NN
CART
Bagging and boosting

64. Comparison study datasets
Leukemia – Golub et al. (1999)
n = 72 samples, G = 3,571 genes
3 classes (B-cell ALL, T-cell ALL, AML)
Lymphoma – Alizadeh et al. (2000)
n = 81 samples, G = 4,682 genes
3 classes (B-CLL, FL, DLBCL)
NCI 60 – Ross et al. (2000)
N = 64 samples, p = 5,244 genes
8 classes

65. Leukemia data, 2 classes: Test set error rates;150 LS/TS runs

66. Leukemia data, 3 classes: Test set error rates;150 LS/TS runs

67. Lymphoma data, 3 classes: Test set error rates; N=150 LS/TS runs

68. NCI 60 data :Test set error rates;150 LS/TS runs

69. Results
In the main comparison, NN and DLDA had the smallest error rates, FLDA had the highest
Aggregation improved the performance of CART classifiers, the largest gains being with boosting and bagging with convex pseudo-data
For the lymphoma and leukemia datasets, increasing the number of genes to G=200 didn't greatly affect the performance of the various classifiers; there was an improvement for the NCI 60 dataset.
More careful selection of a small number of genes (10) improved the performance of FLDA dramatically.

70. Issues in discrimination
Classifier selection
Feature selection
Standardization or transformation.
Relationship between sample on hand and population of interest
Aggregation of classifiers
Assessing performance of the classifier based on
Cross-validation.
Test set
Independent testing on future dataset

71. Comparison study – Discussion (I)
“Diagonal” LDA: ignoring correlation between genes helped here
Unlike classification trees and nearest neighbors, LDA is unable to take into account gene interactions
Although nearest neighbors are simple and intuitive classifiers, their main limitation is that they give very little insight into mechanisms underlying the class distinctions

72. Comparison study – Discussion (II)
Classification trees are capable of handling and revealing interactions between variables
Useful by-product of aggregated classifiers: prediction votes, variable importance statistics
Variable selection: A crude criterion such as F-statistic may not identify the genes that discriminate between all the classes and may not reveal interactions between genes
With larger training sets, expect improvement in performance of aggregated classifiers
Not cross-validating feature selection introduces downward bias in misclassification estimate.

73. Summary (I) Bias-variance trade-off. Simple classifiers do well
on small datasets. As the number of samples
increases, we expect to see that classifiers
capable of considering higher-order interactions
will have an edge.
Cross-validation . It is of utmost importance to
cross-validate for every parameter that has been
chosen based on the data, including
meta-parameters (what and how many features/
how many neighbors/pooled or unpooled variance/
classifier itself). If this is not done, it is possible
to wrongly declare having discrimination power when
there is none.

74. Summary (II) Generalization error rate estimation. It is
necessary to keep sampling scheme in mind.
Thousands and thousands of independent samples
from variety of sources are needed to be able
to address the true performance of the classifier.
We are not at that point yet with microarrays
studies. Rosetta/Van Veer study is probably the
only study to date with ~300 test samples.

75. Acknowledgements
Sandrine Dudoit
Yee Hwa (Jean) Yang
Terry Speed
