1. Methods to Analyse The Economic Benefits of a Pharmacogenetic (PGt) Test to Predict Response to Biologic Therapy in Rheumatoid Arthritis, and to Prioritise Further Research Alan Brennan 1, Nick Bansback 1, 1 ScHARR, University of Sheffield, England. Kip Martha 2, Marissa Peacock 2, Kenneth Huttner 2 2 Interleukin Genetics, Inc.

2. “Biologics” Anakinra ($12,697), Etanercept ($18,850), Infliximab ($24,112)* * Costs include monitoring Anakinra 100mg Etanercept 25mg eow Infliximab 3mg/kg 8 weekly

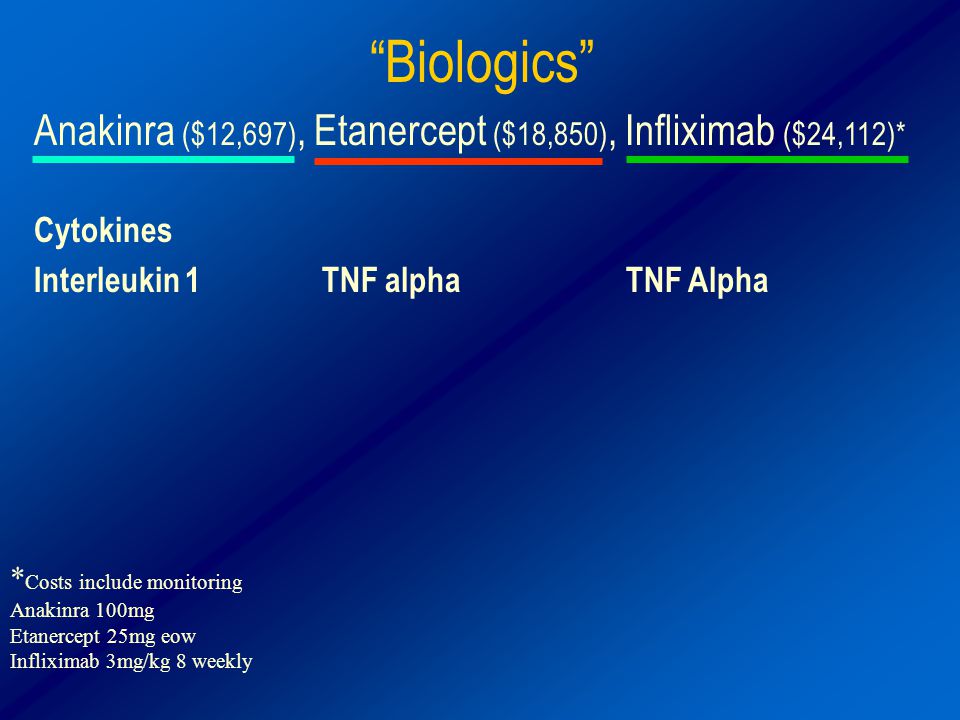

3. “Biologics” Anakinra ($12,697), Etanercept ($18,850), Infliximab ($24,112)* Cytokines Interleukin 1TNF alpha TNF Alpha * Costs include monitoring Anakinra 100mg Etanercept 25mg eow Infliximab 3mg/kg 8 weekly

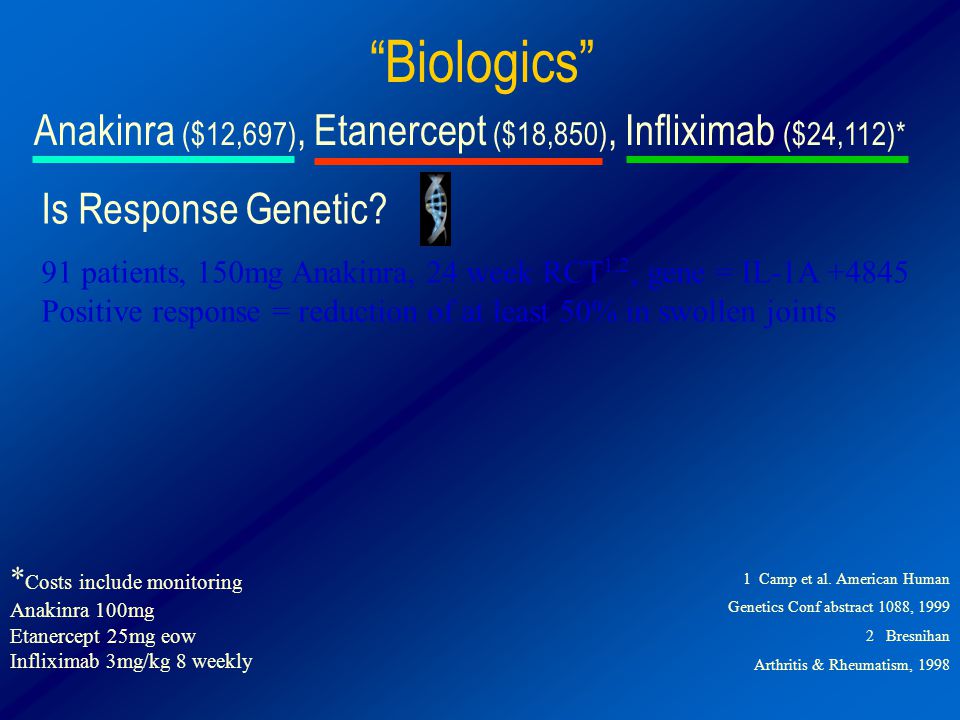

4. “Biologics” Anakinra ($12,697), Etanercept ($18,850), Infliximab ($24,112)* Is Response Genetic? 91 patients, 150mg Anakinra, 24 week RCT 1,2, gene = IL-1A +4845 Positive response = reduction of at least 50% in swollen joints 1 Camp et al. American Human Genetics Conf abstract 1088, 1999 2 Bresnihan Arthritis & Rheumatism, 1998 * Costs include monitoring Anakinra 100mg Etanercept 25mg eow Infliximab 3mg/kg 8 weekly

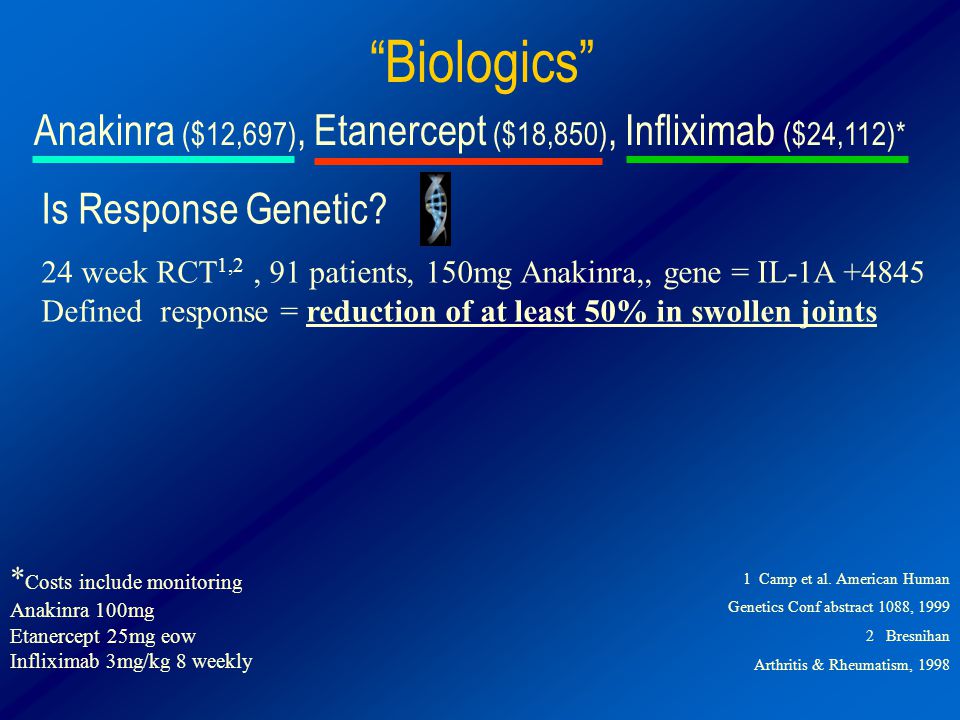

5. “Biologics” Anakinra ($12,697), Etanercept ($18,850), Infliximab ($24,112)* Is Response Genetic? 24 week RCT 1,2, 91 patients, 150mg Anakinra,, gene = IL-1A +4845 Defined response = reduction of at least 50% in swollen joints 1 Camp et al. American Human Genetics Conf abstract 1088, 1999 2 Bresnihan Arthritis & Rheumatism, 1998 * Costs include monitoring Anakinra 100mg Etanercept 25mg eow Infliximab 3mg/kg 8 weekly

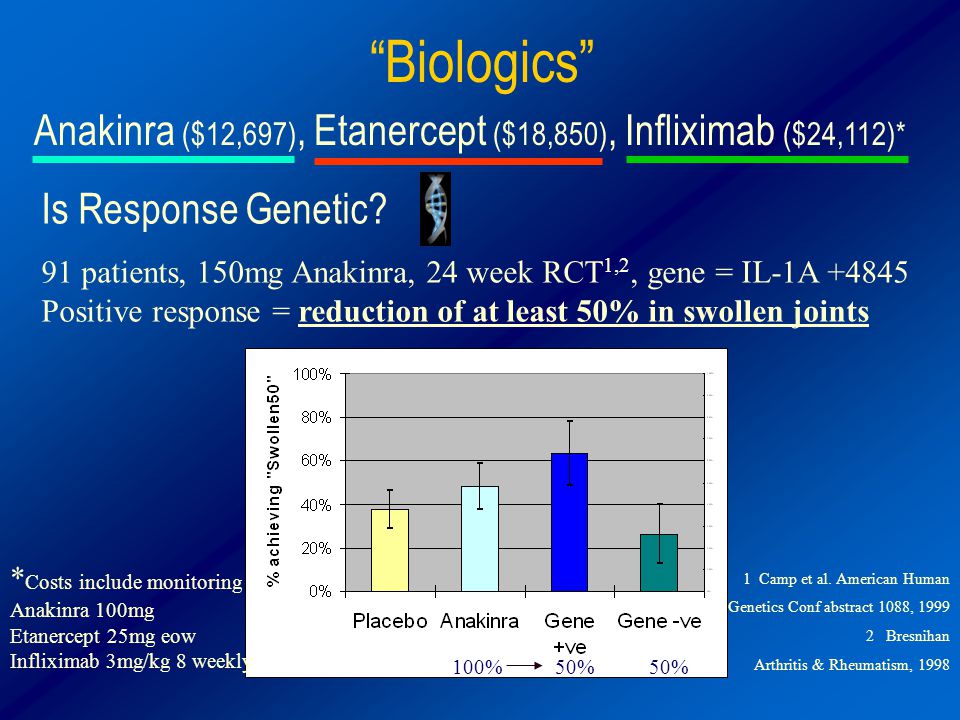

6. “Biologics” Anakinra ($12,697), Etanercept ($18,850), Infliximab ($24,112)* Is Response Genetic? 91 patients, 150mg Anakinra, 24 week RCT 1,2, gene = IL-1A +4845 Positive response = reduction of at least 50% in swollen joints 1 Camp et al. American Human Genetics Conf abstract 1088, 1999 2 Bresnihan Arthritis & Rheumatism, 1998 * Costs include monitoring Anakinra 100mg Etanercept 25mg eow Infliximab 3mg/kg 8 weekly 50% 100%

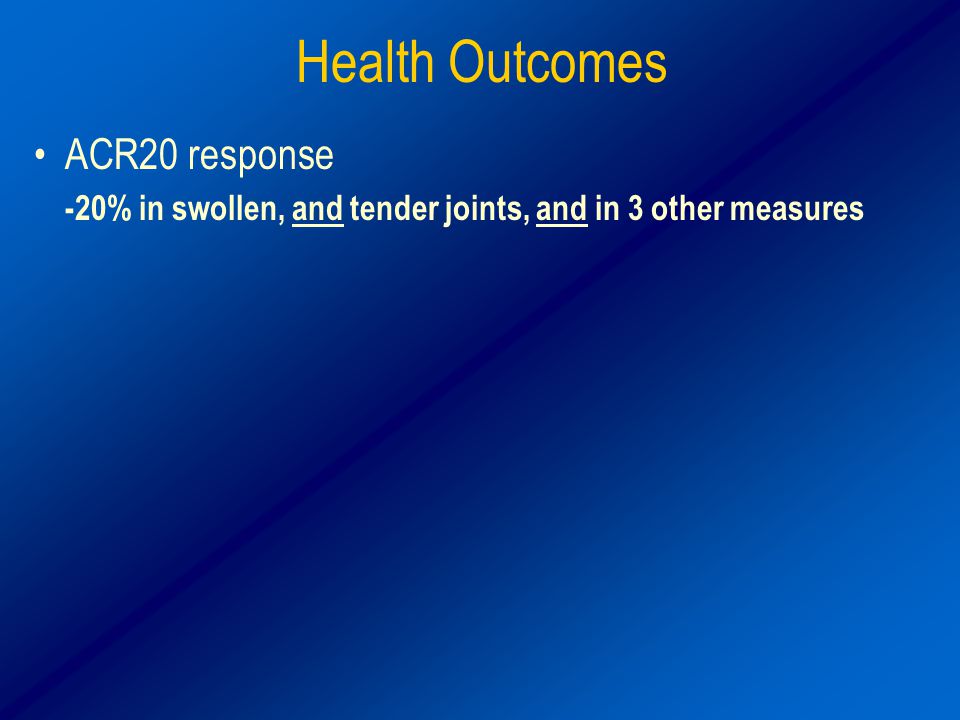

7. Health Outcomes ACR20 response -20% in swollen, and tender joints, and in 3 other measures

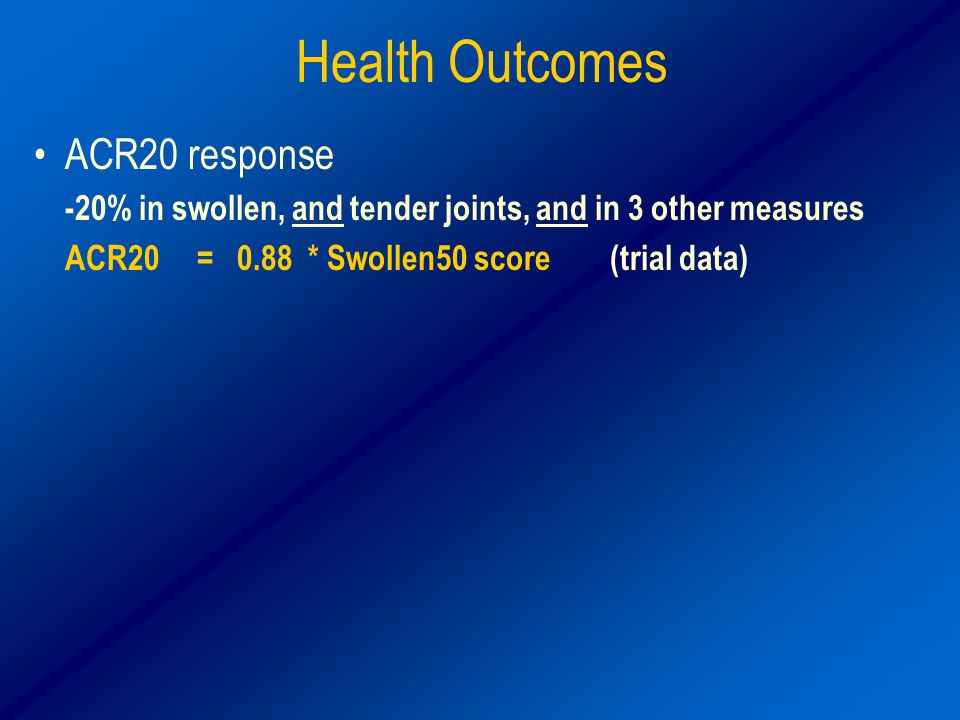

8. Health Outcomes ACR20 response -20% in swollen, and tender joints, and in 3 other measures ACR20 = 0.88 * Swollen50 score (trial data)

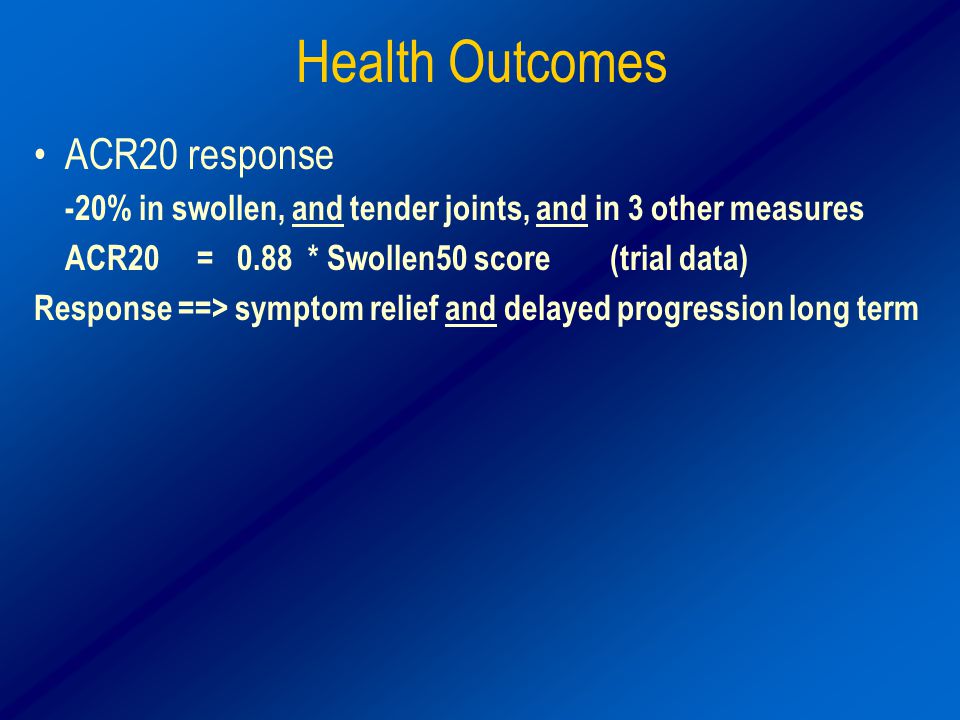

9. Health Outcomes ACR20 response -20% in swollen, and tender joints, and in 3 other measures ACR20 = 0.88 * Swollen50 score (trial data) Response ==> symptom relief and delayed progression long term

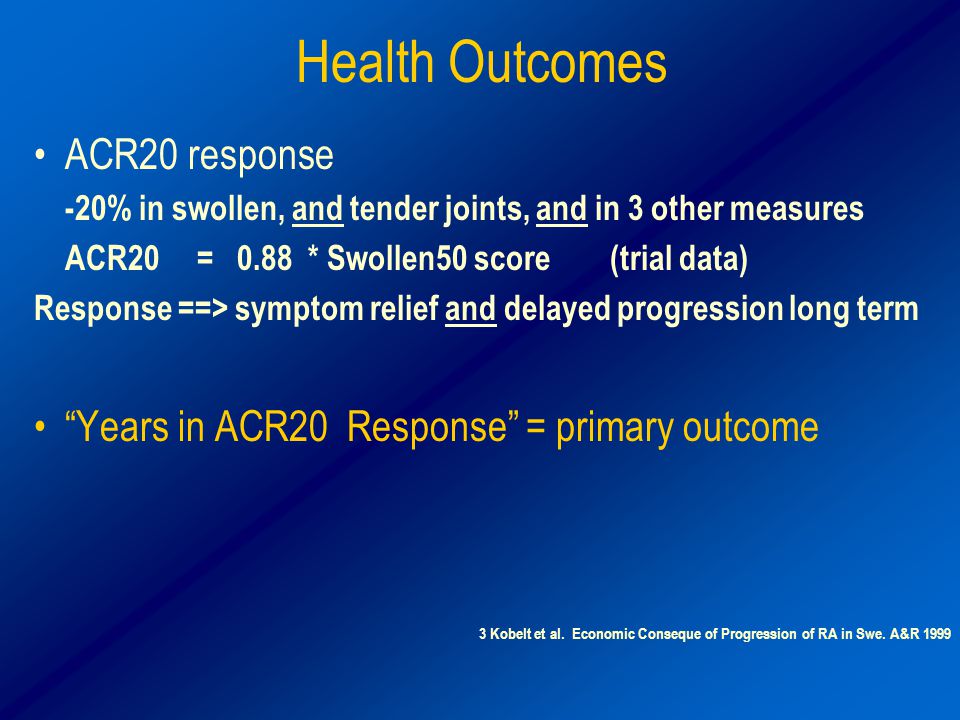

10. Health Outcomes ACR20 response -20% in swollen, and tender joints, and in 3 other measures ACR20 = 0.88 * Swollen50 score (trial data) Response ==> symptom relief and delayed progression long term “Years in ACR20 Response” = primary outcome 3 Kobelt et al. Economic Conseque of Progression of RA in Swe. A&R 1999

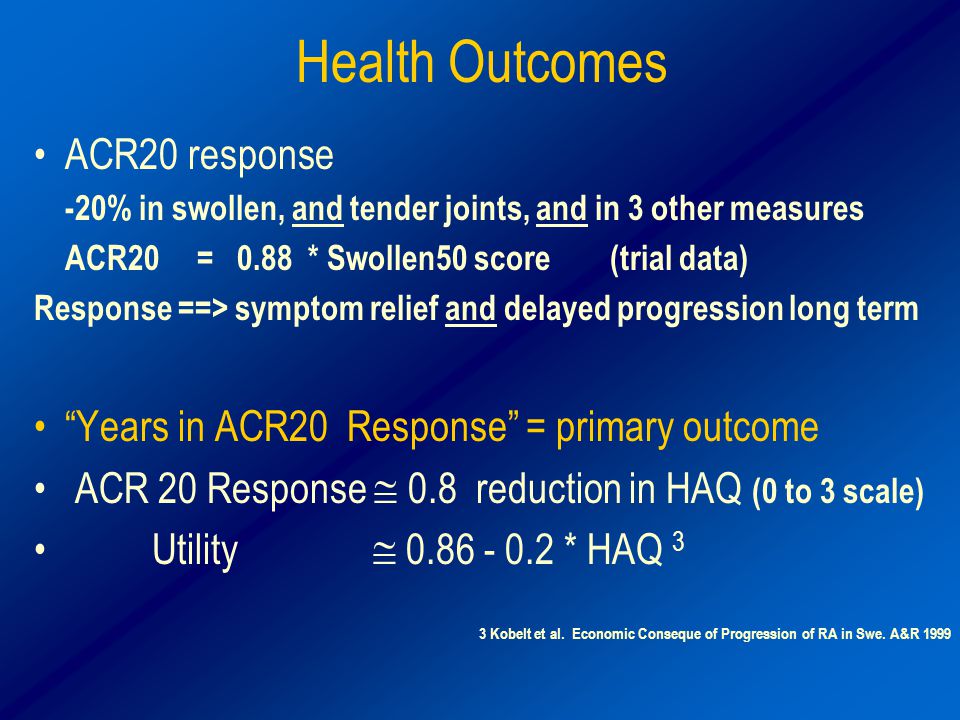

11. Health Outcomes ACR20 response -20% in swollen, and tender joints, and in 3 other measures ACR20 = 0.88 * Swollen50 score (trial data) Response ==> symptom relief and delayed progression long term “Years in ACR20 Response” = primary outcome ACR 20 Response  0.8 reduction in HAQ (0 to 3 scale) Utility  0.86 - 0.2 * HAQ 3 3 Kobelt et al. Economic Conseque of Progression of RA in Swe. A&R 1999

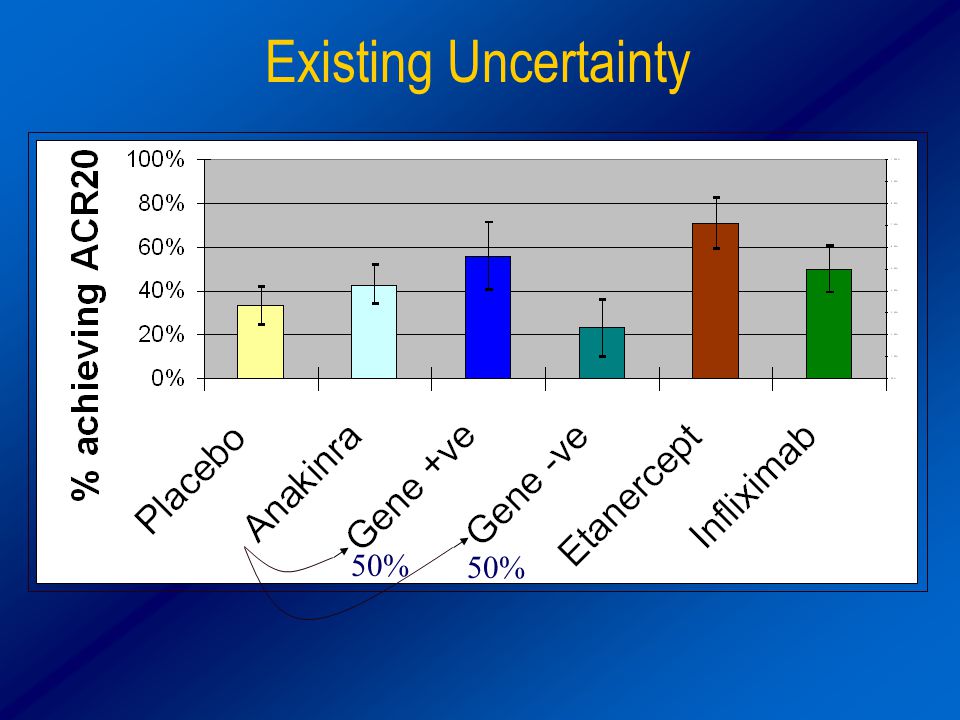

12. Existing Uncertainty 50%

13. 2 Year Treatment Sequence Pathway Initial Response Longer term discontinuation

14. A Pharmaco-Genetic Strategy Strategy 1 Strategy 2

15. Strategy Sequences to Compare A Anakinra PGtGenetic EEtanercept IInfliximab - Maintenance 12301230

16. Existing Uncertainty (2)

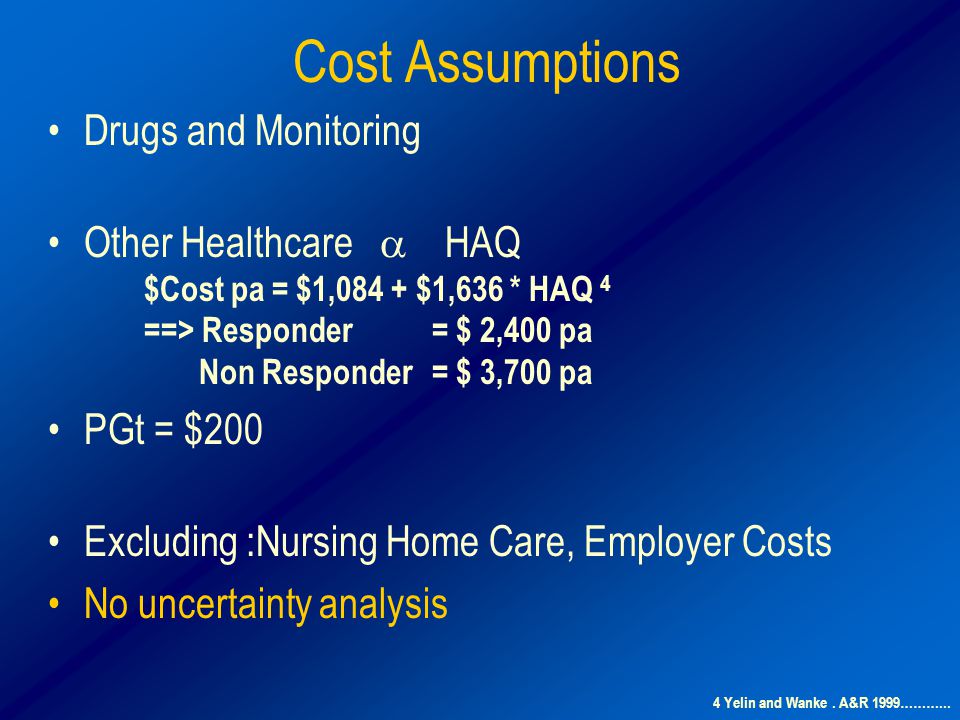

17. Cost Assumptions Drugs and Monitoring Other Healthcare  HAQ $Cost pa = $1,084 + $1,636 * HAQ 4 ==> Responder = $ 2,400 pa Non Responder = $ 3,700 pa PGt = $200 Excluding :Nursing Home Care, Employer Costs No uncertainty analysis 4 Yelin and Wanke. A&R 1999………...

18. 2 Level EVSI - Research Design 4, 5 4 Brennan et al Poster SMDM 2002 5 Brennan et al Poster SMDM 2002

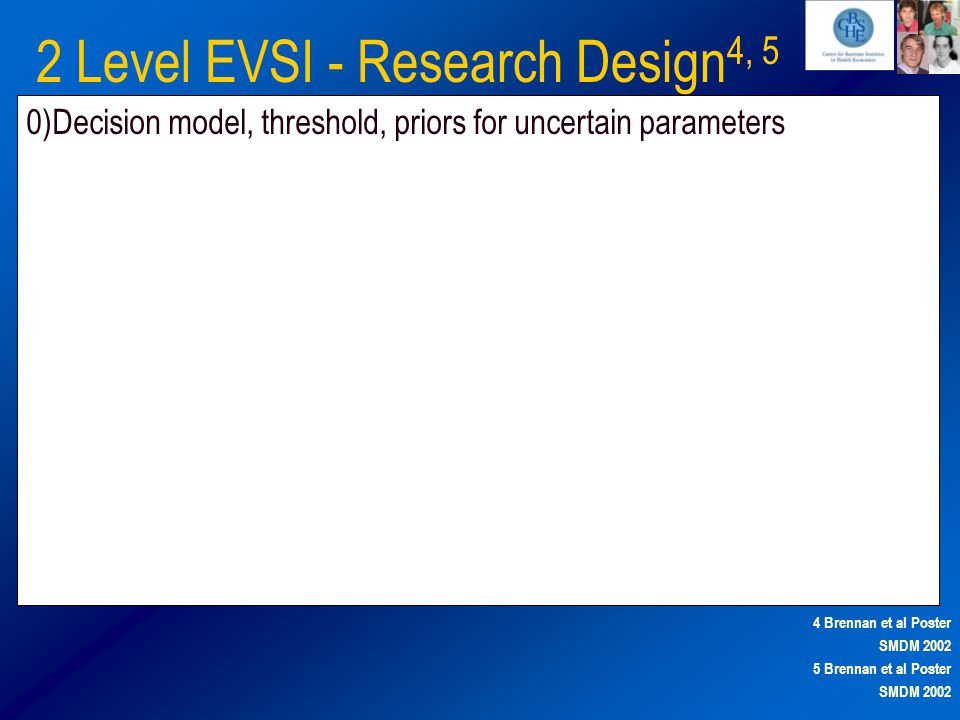

19. 2 Level EVSI - Research Design 4, 5 4 Brennan et al Poster SMDM 2002 5 Brennan et al Poster SMDM 2002 0)Decision model, threshold, priors for uncertain parameters

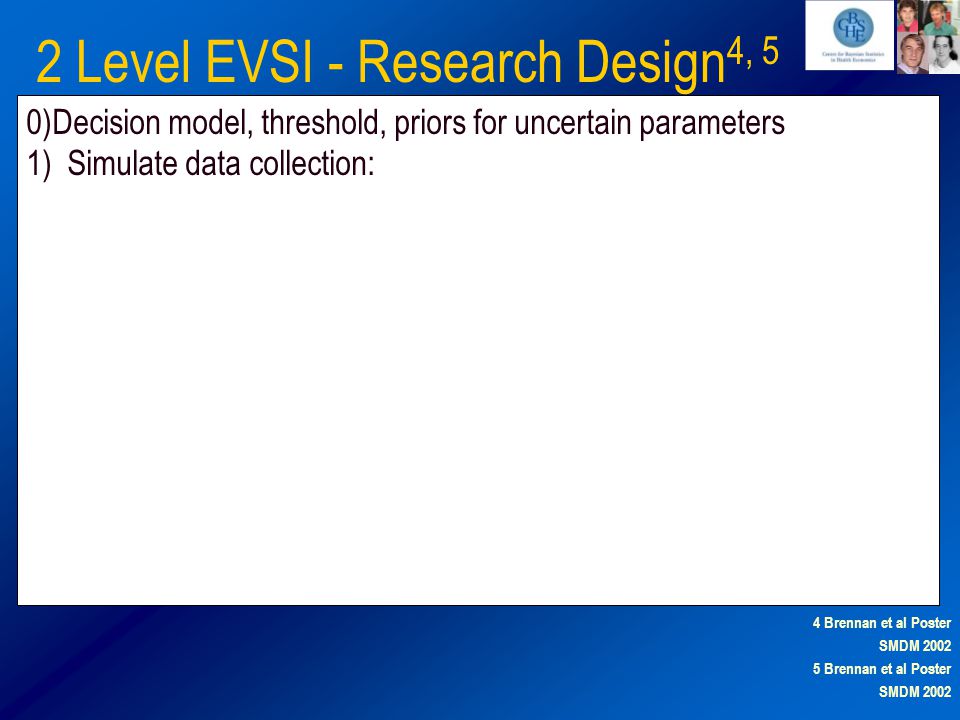

20. 2 Level EVSI - Research Design 4, 5 4 Brennan et al Poster SMDM 2002 5 Brennan et al Poster SMDM 2002 0)Decision model, threshold, priors for uncertain parameters 1) Simulate data collection:

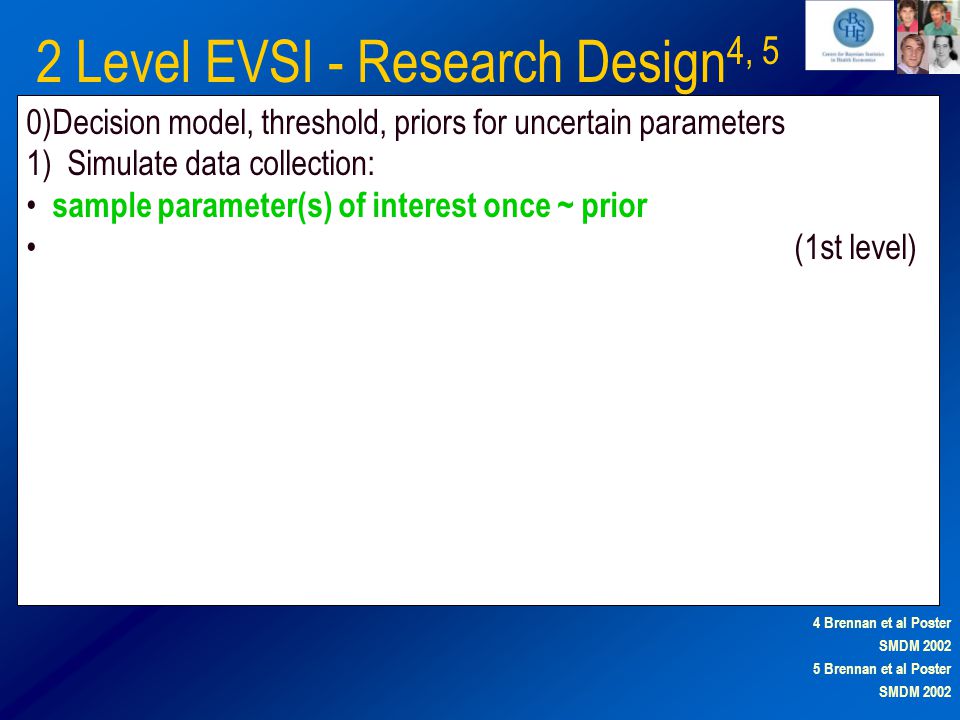

21. 2 Level EVSI - Research Design 4, 5 4 Brennan et al Poster SMDM 2002 5 Brennan et al Poster SMDM 2002 0)Decision model, threshold, priors for uncertain parameters 1) Simulate data collection: sample parameter(s) of interest once ~ prior (1st level)

22. 2 Level EVSI - Research Design 4, 5 4 Brennan et al Poster SMDM 2002 5 Brennan et al Poster SMDM 2002 0)Decision model, threshold, priors for uncertain parameters 1) Simulate data collection: sample parameter(s) of interest once ~ prior decide on sample size (n i ) (1st level)

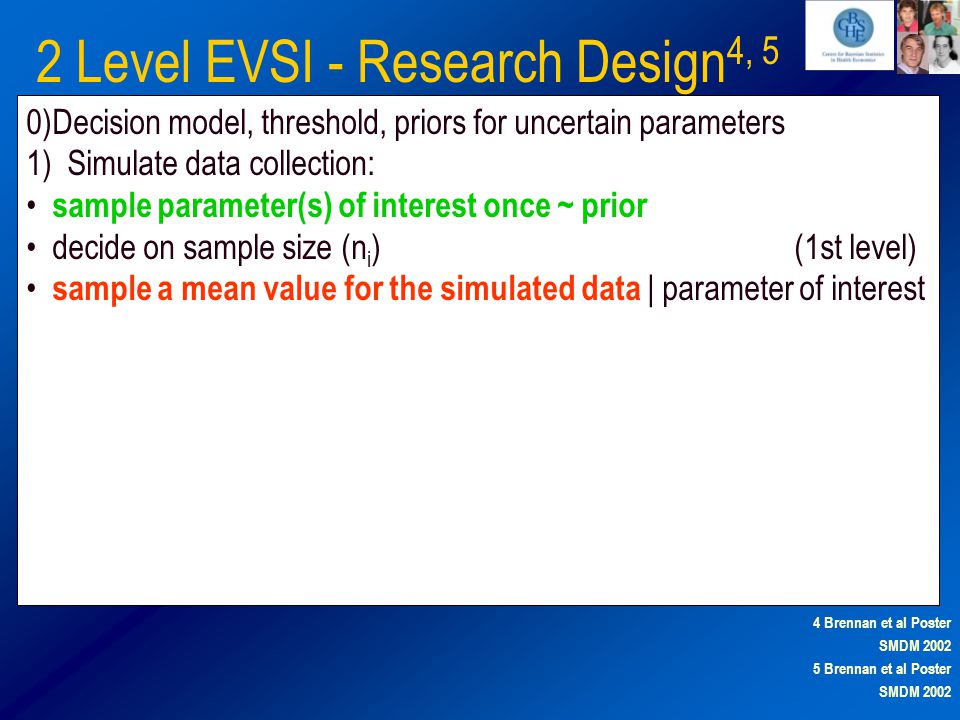

23. 2 Level EVSI - Research Design 4, 5 4 Brennan et al Poster SMDM 2002 5 Brennan et al Poster SMDM 2002 0)Decision model, threshold, priors for uncertain parameters 1) Simulate data collection: sample parameter(s) of interest once ~ prior decide on sample size (n i ) (1st level) sample a mean value for the simulated data | parameter of interest

24. 2 Level EVSI - Research Design 4, 5 4 Brennan et al Poster SMDM 2002 5 Brennan et al Poster SMDM 2002 0)Decision model, threshold, priors for uncertain parameters 1) Simulate data collection: sample parameter(s) of interest once ~ prior decide on sample size (n i ) (1st level) sample a mean value for the simulated data | parameter of interest

25. 2 Level EVSI - Research Design 4, 5 4 Brennan et al Poster SMDM 2002 5 Brennan et al Poster SMDM 2002 0)Decision model, threshold, priors for uncertain parameters 1) Simulate data collection: sample parameter(s) of interest once ~ prior decide on sample size (n i ) (1st level) sample a mean value for the simulated data | parameter of interest 2) combine prior + simulated data --> simulated posterior

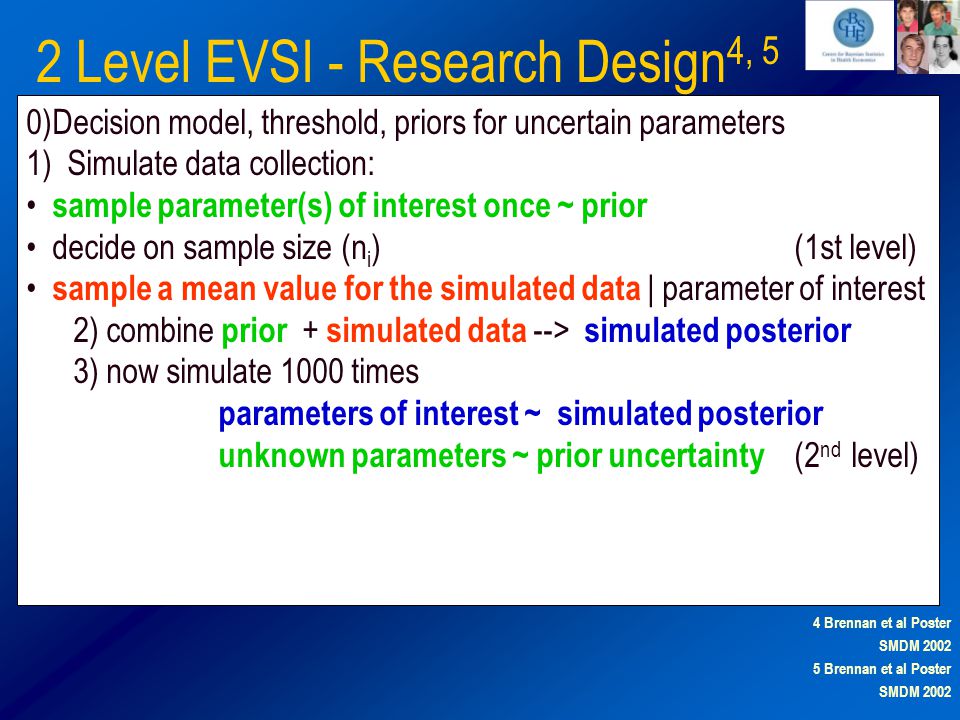

26. 2 Level EVSI - Research Design 4, 5 4 Brennan et al Poster SMDM 2002 5 Brennan et al Poster SMDM 2002 0)Decision model, threshold, priors for uncertain parameters 1) Simulate data collection: sample parameter(s) of interest once ~ prior decide on sample size (n i ) (1st level) sample a mean value for the simulated data | parameter of interest 2) combine prior + simulated data --> simulated posterior 3) now simulate 1000 times parameters of interest ~ simulated posterior unknown parameters ~ prior uncertainty (2 nd level)

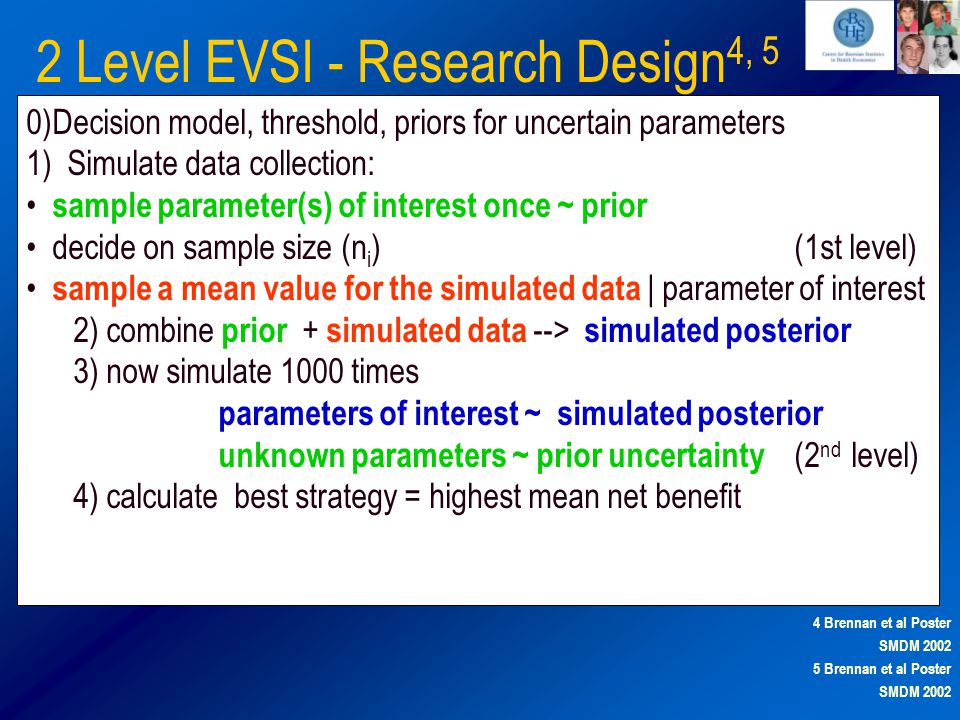

27. 2 Level EVSI - Research Design 4, 5 4 Brennan et al Poster SMDM 2002 5 Brennan et al Poster SMDM 2002 0)Decision model, threshold, priors for uncertain parameters 1) Simulate data collection: sample parameter(s) of interest once ~ prior decide on sample size (n i ) (1st level) sample a mean value for the simulated data | parameter of interest 2) combine prior + simulated data --> simulated posterior 3) now simulate 1000 times parameters of interest ~ simulated posterior unknown parameters ~ prior uncertainty (2 nd level) 4) calculate best strategy = highest mean net benefit

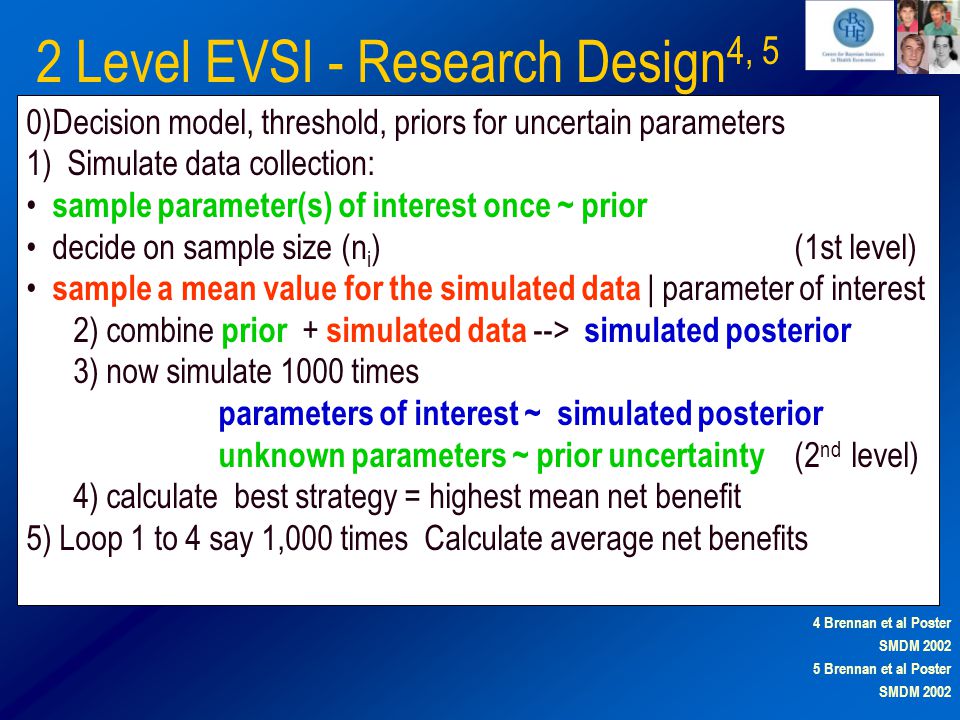

28. 2 Level EVSI - Research Design 4, 5 4 Brennan et al Poster SMDM 2002 5 Brennan et al Poster SMDM 2002 0)Decision model, threshold, priors for uncertain parameters 1) Simulate data collection: sample parameter(s) of interest once ~ prior decide on sample size (n i ) (1st level) sample a mean value for the simulated data | parameter of interest 2) combine prior + simulated data --> simulated posterior 3) now simulate 1000 times parameters of interest ~ simulated posterior unknown parameters ~ prior uncertainty (2 nd level) 4) calculate best strategy = highest mean net benefit 5) Loop 1 to 4 say 1,000 times Calculate average net benefits

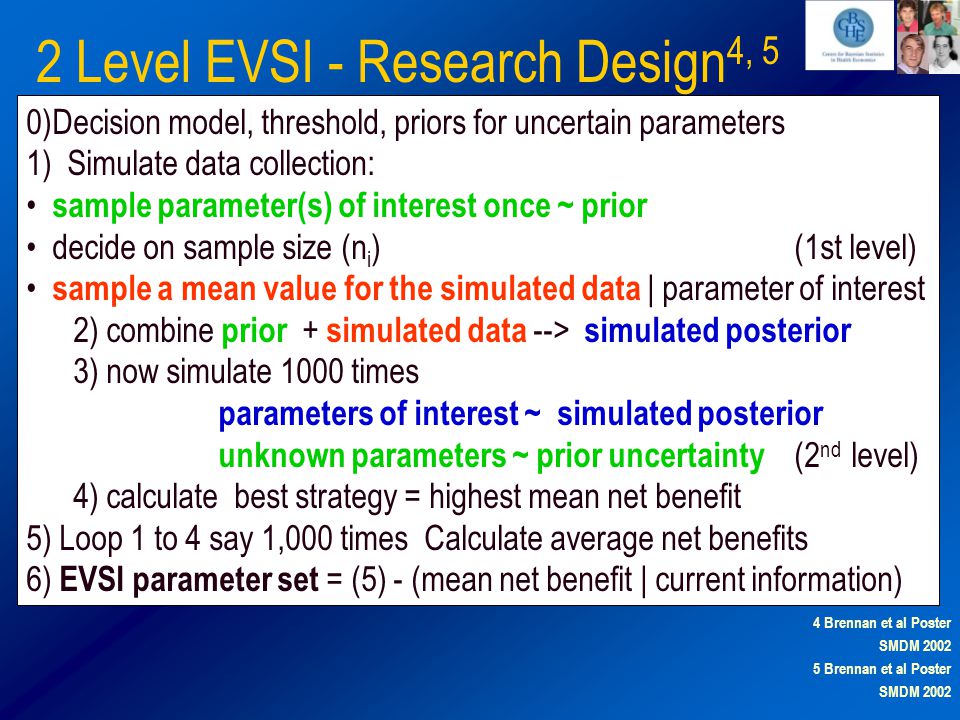

29. 2 Level EVSI - Research Design 4, 5 4 Brennan et al Poster SMDM 2002 5 Brennan et al Poster SMDM 2002 0)Decision model, threshold, priors for uncertain parameters 1) Simulate data collection: sample parameter(s) of interest once ~ prior decide on sample size (n i ) (1st level) sample a mean value for the simulated data | parameter of interest 2) combine prior + simulated data --> simulated posterior 3) now simulate 1000 times parameters of interest ~ simulated posterior unknown parameters ~ prior uncertainty (2 nd level) 4) calculate best strategy = highest mean net benefit 5) Loop 1 to 4 say 1,000 times Calculate average net benefits 6) EVSI parameter set = (5) - (mean net benefit | current information)

30. 2 Level EVSI - Research Design 4, 5 4 Brennan et al Poster SMDM 2002 5 Brennan et al Poster SMDM 2002 0)Decision model, threshold, priors for uncertain parameters 1) Simulate data collection: sample parameter(s) of interest once ~ prior decide on sample size (n i ) (1st level) sample a mean value for the simulated data | parameter of interest 2) combine prior + simulated data --> simulated posterior 3) now simulate 1000 times parameters of interest ~ simulated posterior unknown parameters ~ prior uncertainty (2 nd level) 4) calculate best strategy = highest mean net benefit 5) Loop 1 to 4 say 1,000 times Calculate average net benefits 6) EVSI parameter set = (5) - (mean net benefit | current information)

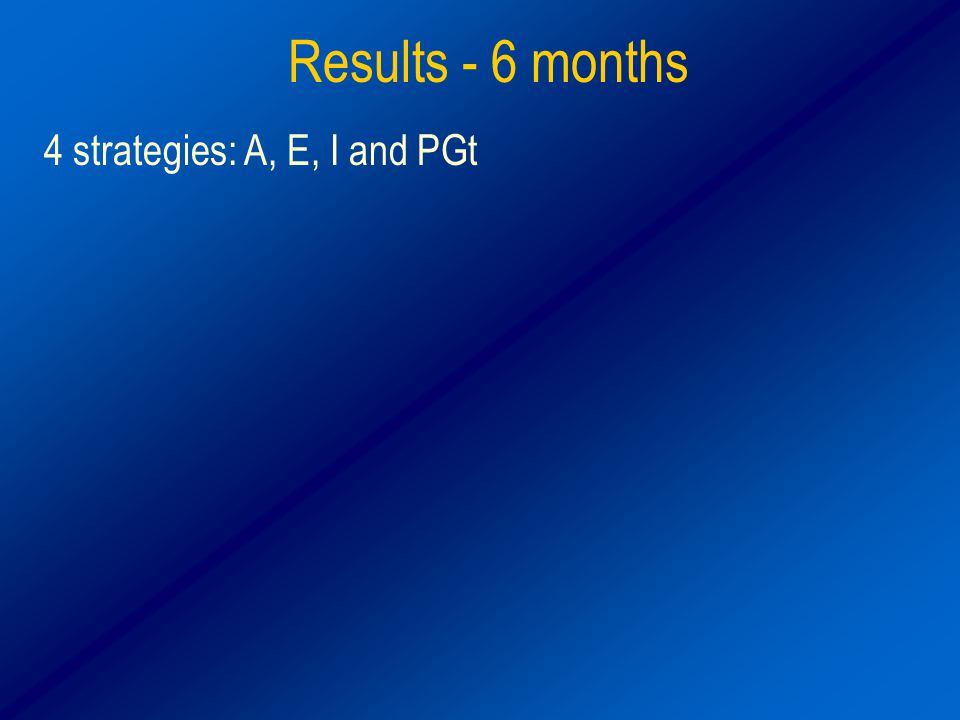

31. 4 strategies: A, E, I and PGt Results - 6 months

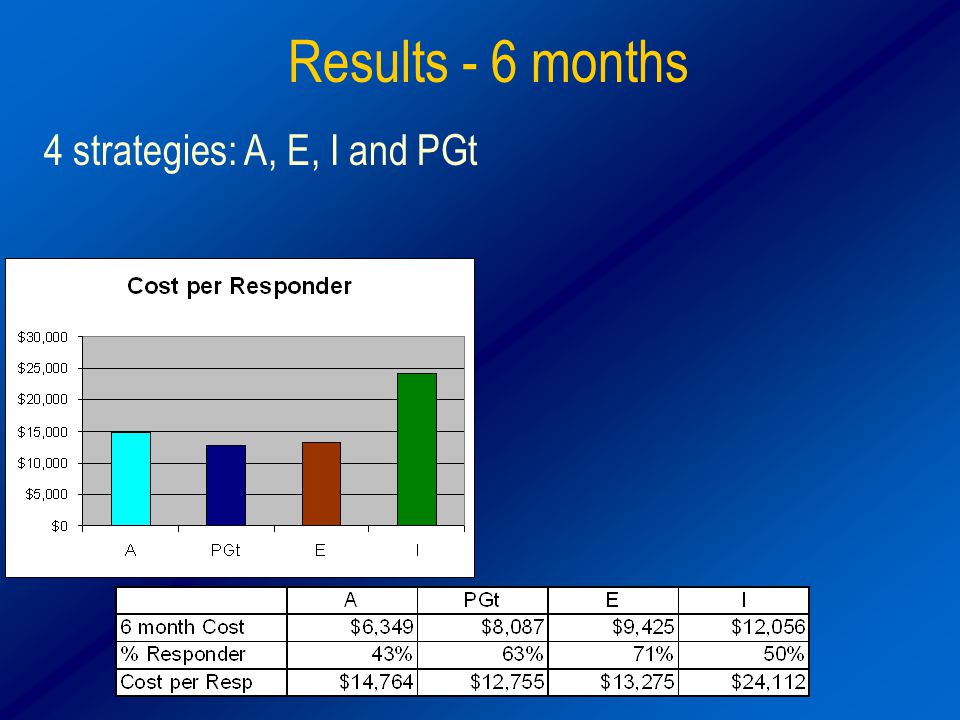

32. 4 strategies: A, E, I and PGt Results - 6 months

33. 4 strategies: A, E, I and PGt Results - 6 months

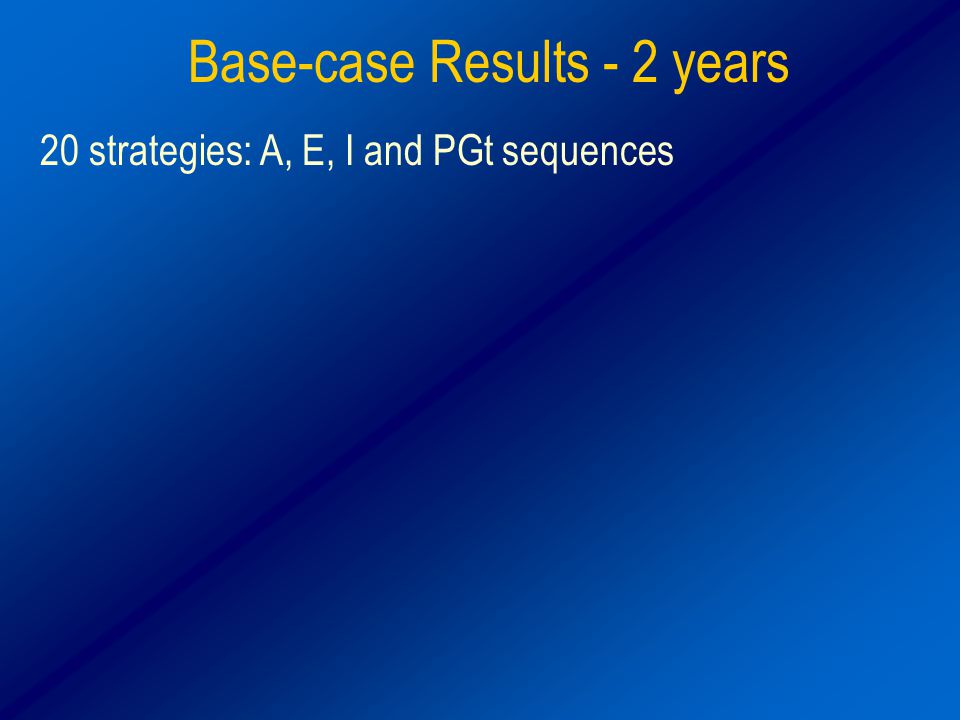

34. 20 strategies: A, E, I and PGt sequences Base-case Results - 2 years

35. 20 strategies: A, E, I and PGt sequences Optimal Strategy Depends on Threshold: $10k ==> maintenance therapy(20) $20k ==> sequence of 2 biologics(11) $25k ==> PGt + 2 biologics (9) $30k ==> PGt + 3 biologics(19) Base-case Results - 2 years

36. 20 strategies: A, E, I and PGt sequences Optimal StrategyProb Depends on Threshold: Optimal $10k ==> maintenance therapy(20)100% $20k ==> sequence of 2 biologics(11) 42% $25k ==> PGt + 2 biologics (9) 18% $30k ==> PGt + 3 biologics(19) 43% Base-case Results - 2 years

37. Incorporating Uncertainty Assuming 25,000 per annum new patients starting biologics over next 5 years

38. Partial EVPI: Key Uncertainties

40. Partial EVSI: PGt Research only Caveat: Small No.of Simulations on 1st Level

41. Interleukin Genetics Inc. TARGET RA program Conceptual modelling identified key missing data and helped prioritise further primary data collection 1. PGt test performance (increased sample size). 2. Etanercept / Infliximab performance in gene subgroups 3. Anakinra response rate in anti-TNF α failures

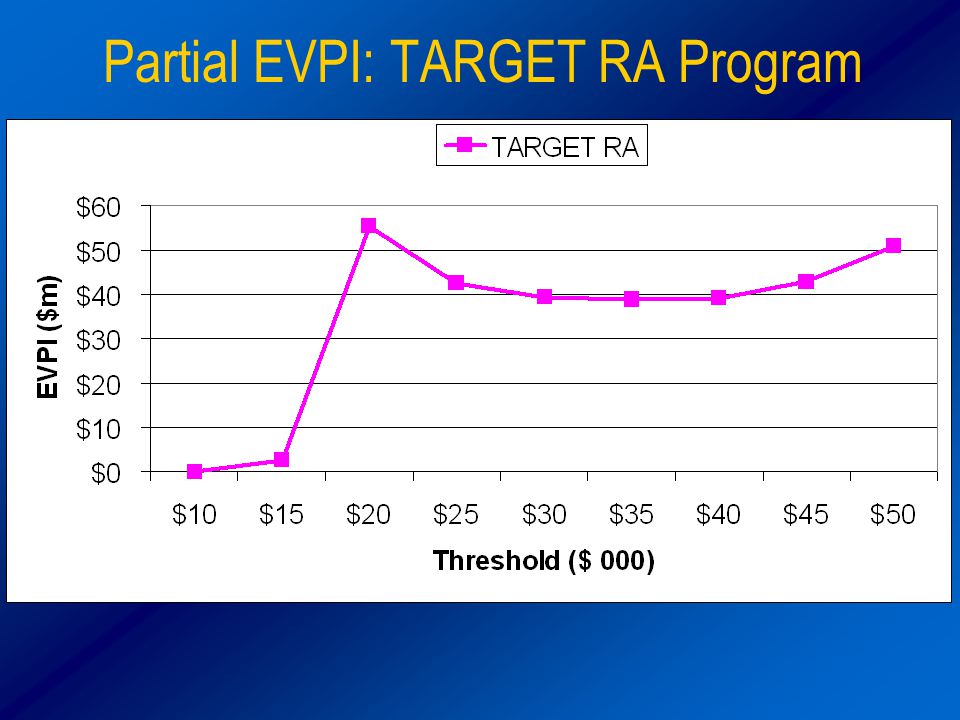

42. Partial EVPI: TARGET RA Program

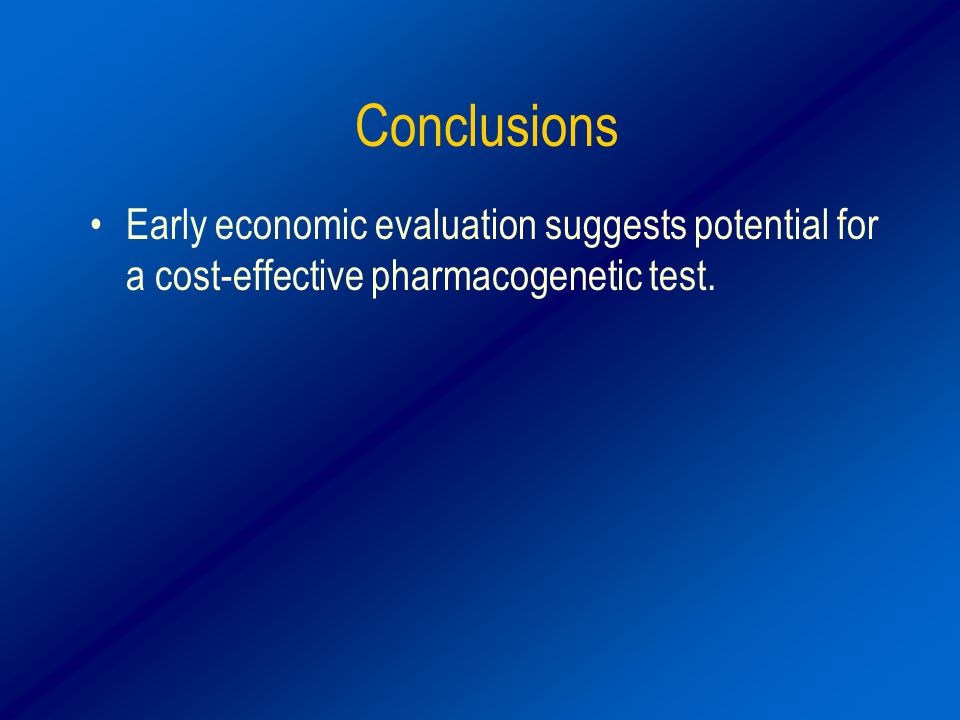

43. Conclusions Early economic evaluation suggests potential for a cost-effective pharmacogenetic test.

44. Conclusions Early economic evaluation suggests potential for a cost-effective pharmacogenetic test. Expected value of information analysis has quantified the key research priorities.

45. Conclusions Early economic evaluation suggests potential for a cost-effective pharmacogenetic test. Expected value of information analysis has quantified the key research priorities. EVSI can quantify the value of the specific research design
