1. Search Engines CS 186 Guest Lecture Prof. Marti Hearst SIMS

2. Web Search Questions How do search engines differ from DBMSs? What do people search for? How do search engines work? Interfaces Ranking Architecture

3. Web Search vs DBMS?

4. A Comparison Web Search Imprecise Ranked results “Satisficing” results Unedited content Keyword queries Mainly Read-only Inverted index DBMS Precise Usually unordered Complete results Controlled content SQL Reads and Writes B-trees

5. What Do People Search for on the Web?

6. Genealogy/Public Figure:12% Computer related:12% Business:12% Entertainment: 8% Medical: 8% Politics & Government 7% News 7% Hobbies 6% General info/surfing 6% Science 6% Travel 5% Arts/education/shopping/images 14% Something is missing… Study by Spink et al., Oct 98 Survey on Excite, 13 questions Data for 316 surveyswww.shef.ac.uk/~is/publications/infres/paper53.html

7. 4660 sex 3129 yahoo 2191 internal site admin check from kho 1520 chat 1498 porn 1315 horoscopes 1284 pokemon 1283 SiteScope test 1223 hotmail 1163 games 1151 mp3 1140 weather 1127 www.yahoo.com 1110 maps 1036 yahoo.com 983 ebay 980 recipes l 50,000 queries from Excite, 1997 l Most frequent terms: What Do People Search for on the Web?

8. Why do these differ? Self-reporting survey The nature of language Only a few ways to say certain things Many different ways to express most concepts UFO, Flying Saucer, Space Ship, Satellite How many ways are there to talk about history?

9. Intranet Queries (Aug 2000) 3351 bearfacts 3349 telebears 1909 extension 1874 schedule+of+classes 1780 bearlink 1737 bear+facts 1468 decal 1443 infobears 1227 calendar 989 career+center 974 campus+map 920 academic+calendar 840 map 773 bookstore 741 class+pass 738 housing 721 tele-bears 716 directory 667 schedule 627 recipes 602 transcripts 582 tuition 577 seti 563 registrar 550 info+bears 543 class+schedule 470 financial+aid

10. Intranet Queries Summary of sample data from 3 weeks of UCB queries 13.2% Telebears/BearFacts/InfoBears/BearLink (12297) 6.7% Schedule of classes or final exams (6222) 5.4% Summer Session (5041) 3.2% Extension (2932) 3.1% Academic Calendar (2846) 2.4% Directories (2202) 1.7% Career Center (1588) 1.7% Housing (1583) 1.5% Map (1393) Average query length over last 4 months: 1.8 words This suggests what is difficult to find from the home page

11. Different kinds of users; different kinds of data Legal and news colleciton: professional searchers paying (by the query or by the minute) Online bibliographic catalogs (melvyl) scholars searching scholarly literature Web Every type of person with every type of goal No “driving school” for searching

12. Different kinds of information needs; different kinds of queries Example: Search on “Mazda” –What does this mean on the web? –What does this mean on a news collection? Example: “Mazda transmissions” Example: “Manufacture of Mazda transmissions in the post-cold war world”

13. Web queries are SHORT ~2.4 words on average (Aug 2000) Has increased, was 1.7 (~1997) User Expectations Many say “the first item shown should be what I want to see”! This works if the user has the most popular/common notion in mind Web Queries

14. Recent statistics from Inktomi, August 2000, for one client, one week Total # queries: 1315040 Number of repeated queries: 771085 Number of queries with repeated words: 12301 Average words/ query: 2.39 Query type: All words: 0.3036; Any words: 0.6886; Some words:0.0078 Boolean: 0.0015 (0.9777 AND / 0.0252 OR / 0.0054 NOT) Phrase searches: 0.198 URL searches: 0.066 URL searches w/http: 0.000 email searches: 0.001 Wildcards: 0.0011 (0.7042 '?'s ) fraction '?' at end of query: 0.6753 interrogatives when '?' at end: 0.8456

15. How to Optimize for Short Queries? Find good starting places User still has to search at the site itself Dialogues Build upon a series of short queries Not well understood how to do this for the general case Question Answering AskJeeves – hand edited Automated approaches are under development Very simple Or domain-specific

16. How to Find Good Starting Points? Manually compiled lists Directories e.g., Yahoo, Looksmart, Open directory Page “popularity” Frequently visited pages (in general) Frequently visited pages as a result of a query Link “co-citation”, which sites are linked to by other sites? Number of pages in the site Not currently used (as far as I know)

17. Directories vs. Search Engines An IMPORTANT Distinction Directories Hand-selected sites Search over the contents of the descriptions of the pages Organized in advance into categories Search Engines All pages in all sites Search over the contents of the pages themselves Organized after the query by relevance rankings or other scores

18. Link Analysis for Starting Points Assumptions: If the pages pointing to this page are good, then this is also a good page. The words on the links pointing to this page are useful indicators of what this page is about. References: Page et al. 98, Kleinberg 98

19. Co-Citation Analysis Has been around since the 50’s. (Small, Garfield, White & McCain) Used to identify core sets of authors, journals, articles for particular fields Not for general search Main Idea: Find pairs of papers that cite third papers Look for commonalitieis A nice demonstration by Eugene Garfield at: –http://165.123.33.33/eugene_garfield/papers/mapsciworld.html

20. Link Analysis for Starting Points Why does this work? The official Toyota site will be linked to by lots of other official (or high-quality) sites The best Toyota fan-club site probably also has many links pointing to it Less high-quality sites do not have as many high- quality sites linking to them

21. Co-citation analysis (From Garfield 98)

22. Link Analysis for Starting Points Does this really work? Actually, there have been no rigorous evaluations Seems to work for the primary sites; not clear if it works for the relevant secondary sites One (small) study suggests that sites with many pages are often the same as those with good link co-citation scores. (Terveen & Hill, SIGIR 2000)

23. What is Really Being Used? Todays search engines combine these methods in various ways Integration of Directories Today most web search engines integrate categories into the results listings Lycos, MSN, Google Link analysis Google uses it; others are using it or will soon Words on the links seems to be especially useful Page popularity Many use DirectHit’s popularity rankings

24. Ranking Algorithms

25. The problem of ranking Cat cat cat Dog dog dog Fish fish fish Cat cat cat Orangutang Fish Query: cat dog fish orangutang Which is the best match?

26. Assigning Weights to Terms Binary Weights Raw term frequency tf x idf Recall the Zipf distribution Want to weight terms highly if they are frequent in relevant documents … BUT infrequent in the collection as a whole Automatically derived thesaurus terms

27. Binary Weights Only the presence (1) or absence (0) of a term is included in the vector

28. Raw Term Weights The frequency of occurrence for the term in each document is included in the vector

29. Assigning Weights Goal: give more weight to terms that are Common in THIS document Uncommon in the collection as a whole The tf x idf measure: term frequency (tf) inverse document frequency (idf)

30. Document Vectors Documents are represented as “bags of words” Represented as vectors when used computationally A vector is like an array of floating point Each vector holds a place for every term in the collection Therefore, most vectors are sparse

31. Document Vectors One location for each word. novagalaxy heath’wood filmroledietfur 10 5 3 5 10 10 8 7 9 10 5 10 10 9 10 5 7 9 6 10 2 8 7 5 1 3 ABCDEFGHIABCDEFGHI “Nova” occurs 10 times in text A “Galaxy” occurs 5 times in text A “Heat” occurs 3 times in text A (Blank means 0 occurrences.)

32. Document Vectors One location for each word. novagalaxy heath’wood filmroledietfur 10 5 3 5 10 10 8 7 9 10 5 10 10 9 10 5 7 9 6 10 2 8 7 5 1 3 ABCDEFGHIABCDEFGHI “Hollywood” occurs 7 times in text I “Film” occurs 5 times in text I “Diet” occurs 1 time in text I “Fur” occurs 3 times in text I

33. Document Vectors novagalaxy heath’wood filmroledietfur 10 5 3 5 10 10 8 7 9 10 5 10 10 9 10 5 7 9 6 10 2 8 7 5 1 3 ABCDEFGHIABCDEFGHI Document ids

34. Vector Space Model Documents are represented as vectors in term space Terms are usually stems Documents represented by binary vectors of terms Queries represented the same as documents Query and Document weights are based on length and direction of their vector A vector distance measure between the query and documents is used to rank retrieved documents

35. Documents in 3D Space Assumption: Documents that are “close together” in space are similar in meaning.

36. tf x idf

37. Computing Similarity Scores 1.0 0.8 0.6 0.8 0.4 0.60.41.00.2

38. The results of ranking Cat cat cat Dog dog dog Fish fish fish Cat cat cat Orangutang Fish Query: cat dog fish orangutang What does vector space ranking do?

39. High-Precision Ranking Proximity search can help get high- precision results if > 1 term Hearst ’96 paper: Combine Boolean and passage-level proximity Proves significant improvements when retrieving top 5, 10, 20, 30 documents Results reproduced by Mitra et al. 98 Google uses something similar

40. What is Really Being Used? Lots of variation here Pretty messy in many cases Details usually proprietary and fluctuating Combining subsets of: Term frequencies Term proximities Term position (title, top of page, etc) Term characteristics (boldface, capitalized, etc) Link analysis information Category information Popularity information

41. Web Spam Email Spam: Undesired content Web Spam: Content disguised as something it is not: Be retrieved more often than it otherwise would Be retrieved in contexts that it otherwise would not be retrieved in

42. Web Spam What are the types of Web spam? Add extra terms to get a higher ranking Repeat “cars” thousands of times Add irrelevant terms to get more hits Put a dictionary in the comments field Put extra terms in the same color as the background of the web page Add irrelevant terms to get different types of hits Put “sex” in the title field in sites that are selling cars Add irrelevant links to boost your link analysis ranking There is a constant “arms race” between web search companies and spammers

43. Inverted Index This is the primary data structure for text indexes Main Idea: Invert documents into a big index Basic steps: Make a “dictionary” of all the tokens in the collection For each token, list all the docs it occurs in. Do a few things to reduce redundancy in the data structure

44. Inverted indexes Permit fast search for individual terms For each term, you get a list consisting of: document ID frequency of term in doc (optional) position of term in doc (optional) These lists can be used to solve Boolean queries Also used for statistical ranking algorithms

45. Inverted Indexes An Inverted File is a vector file “inverted” so that rows become columns and columns become rows

46. How Are Inverted Files Created Documents are parsed to extract tokens. These are saved with the Document ID. Now is the time for all good men to come to the aid of their country Doc 1 It was a dark and stormy night in the country manor. The time was past midnight Doc 2

47. How Inverted Files are Created After all documents have been parsed the inverted file is sorted alphabetically.

48. How Inverted Files are Created Multiple term entries for a single document are merged. Within-document term frequency information is compiled.

49. How Inverted Files are Created Dictionary Postings

50. Inverted indexes Permit fast search for individual terms For each term, you get a list consisting of: document ID frequency of term in doc (optional) position of term in doc (optional) These lists can be used to solve Boolean queries: country -> d1, d2 manor -> d2 country AND manor -> d2 Also used for statistical ranking algorithms

51. How Inverted Files are Used Dictionary Postings Query on “time” AND “dark” 2 docs with “time” in dictionary -> IDs 1 and 2 from posting file 1 doc with “dark” in dictionary -> ID 2 from posting file Therefore, only doc 2 satisfied the query.

52. Web Search Architecture

53. Preprocessing Collection gathering phase Web crawling Collection indexing phase Online Query servers

54. An Example Search System: Cha-Cha A system for searching complex intranets Places retrieval results in context Important design goals: Users at any level of computer expertise Browsers at any version level Computers of any speed

59. How Cha-Cha Works Crawl the Intranet Compute the shortest hyperlink path from a certain root page to every web page Index and compute metadata for the pages

60. Cha-Cha System Architecture crawl the web store the documents

61. Cha-Cha System Architecture crawl the web store the documents create files of metadata Cheshire II

62. Cha-Cha Metadata Information about web pages Title Length Inlinks Outlinks Shortest Paths from a root home page Used to provide innovative search interface

63. Cha-Cha System Architecture crawl the web store the documents create files of metadata Cheshire II

64. Cha-Cha System Architecture crawl the web create a keyword index store the documents create files of metadata Cheshire II

65. Creating a Keyword Index For each document Tokenize the document Break it up into tokens: words, stems, punctuation There are many variations on this Record which tokens occurred in this document Called an Inverted Index Dictionary: a record of all the tokens in the collection and their overall frequency Postings File: a list recording for each token, which document it occurs in and how often it occurs

66. Responding to the User Query User searches on “pam samuelson” Search Engine looks up documents indexed with one or both terms in its inverted index Search Engine looks up titles and shortest paths in the metadata index User Interface combines the information and presents the results as HTML

67. Cha-Cha System Architecture Cheshire II user query

68. Cha-Cha System Architecture Cheshire II server accesses the databases

69. Cha-Cha System Architecture Cheshire II results shown to user

70. Standard Web Search Engine Architecture crawl the web create an inverted index Check for duplicates, store the documents Inverted index Search engine servers user query Show results To user DocIds

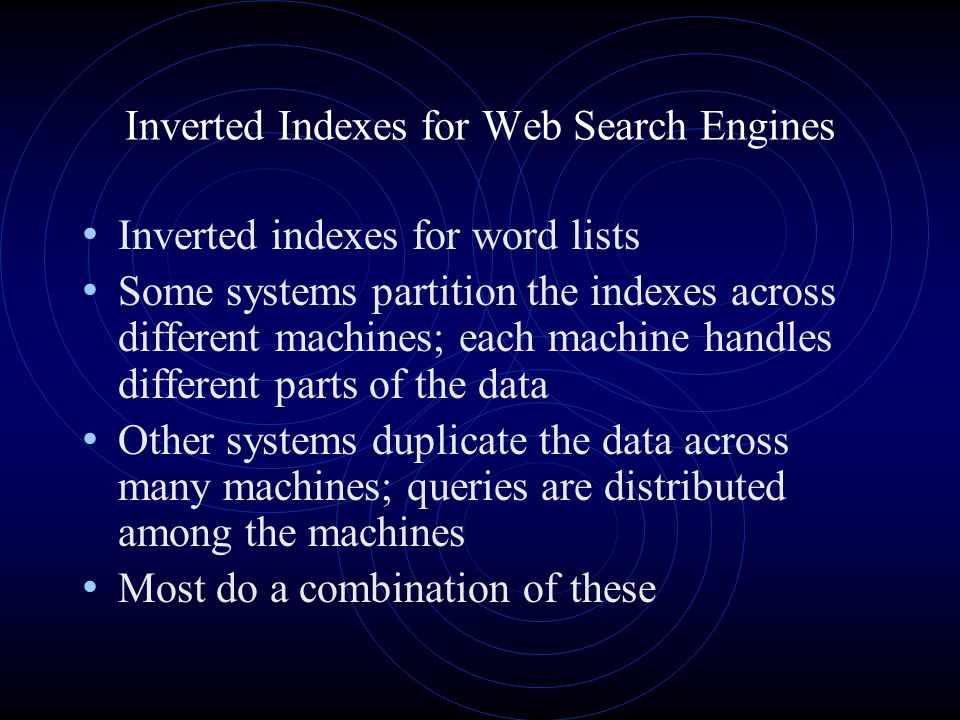

71. Inverted Indexes for Web Search Engines Inverted indexes for word lists Some systems partition the indexes across different machines; each machine handles different parts of the data Other systems duplicate the data across many machines; queries are distributed among the machines Most do a combination of these

72. From description of the FAST search engine, by Knut Risvik http://www.infonortics.com/searchengines/sh00/risvik_files/frame.htm In this example, the data for the pages is partitioned across machines. Additionally, each partition is allocated multiple machines to handle the queries. Each row can handle 120 queries per second Each column can handle 7M pages To handle more queries, add another row.

73. Cascading Allocation of CPUs A variation on this that produces a cost- savings: Put high-quality/common pages on many machines Put lower quality/less common pages on fewer machines Query goes to high quality machines first If no hits found there, go to other machines

74. Web Crawlers How do the web search engines get all of the items they index? Main idea: Start with known sites Record information for these sites Follow the links from each site Record information found at new sites Repeat

75. Web Crawlers How do the web search engines get all of the items they index? More precisely: Put a set of known sites on a queue Repeat the following until the queue is empty: Take the first page off of the queue If this page has not yet been processed: –Record the information found on this page Positions of words, links going out, etc –Add each link on the current page to the queue –Record that this page has been processed In what order should the links be followed?

76. Page Visit Order Animated examples of breadth-first vs depth-first search on trees: http://www.rci.rutgers.edu/~cfs/472_html/AI_SEARCH/ExhaustiveSearch.html Structure to be traversed

77. Page Visit Order Animated examples of breadth-first vs depth-first search on trees: http://www.rci.rutgers.edu/~cfs/472_html/AI_SEARCH/ExhaustiveSearch.html Breadth-first search (must be in presentation mode to see this animation)

78. Page Visit Order Animated examples of breadth-first vs depth-first search on trees: http://www.rci.rutgers.edu/~cfs/472_html/AI_SEARCH/ExhaustiveSearch.html Depth-first search (must be in presentation mode to see this animation)

79. Web Crawling Issues “Keep-out” signs A file called norobots.txt tells the crawler which directories are off limits Freshness Figure out which pages change often Recrawl these often Duplicates, virtual hosts, etc Convert page contents with a hash function Compare new pages to the hash table Lots of problems Server unavailable Incorrect html Missing links Infinite loops Web crawling is difficult to do robustly!

80. Commercial Issues General internet search is often commercially driven Commercial sector sometimes hides things – harder to track than research On the other hand, most CTOs for search engine companies used to be researchers, and so help us out Commercial search engine information changes monthly Sometimes motivations are commercial rather than technical

81. For More Information IS213: Information Organization and Retrieval http://www.sims.berkeley.edu/courses/is202/f00/Assignments.html Modern Information Retrieval, Baeza-Yates and Ribeiro, Addison Wesley, 1999. http://www.sims.berkeley.edu/~hearst/irbookhttp://www.sims.berkeley.edu/~hearst/irbook Sergey Brin and Lawrence Page, The Anatomy of a Large-Scale Hypertextual Web Search Engine, in the Proceedings of WWW7 / Computer Networks 30(1-7): 107-117, 1998. http://www7.scu.edu.au/programme/fullpapers/1921/com1921.htm Jurgen Koenemann and Nicholas J. Belkin, A Case for Interaction: A Study of Interactive Information Retrieval Behavior and Effectiveness, in the Proceedings of ACM/CHI, Vancouver, 1996. Marti Hearst, Improving Full-Text Precision on Short Queries using Simple Constraints, Proceedings of the Fifth Annual Symposium on Document Analysis and Information Retrieval (SDAIR), Las Vegas, NV, April 1996. http://www.sims.berkeley.edu/~hearst/publications.shtml
