1. 6/2/20071 Grid Computing Sun Grid Engine (SGE) Manoj Katwal

2. 6/2/20072 Outline Grid and Cluster Terminology What is a Cluster vs. a Grid? Types of Grids Benefits of Grid Computing Areas of concern What is Sun Grid Engine? Example N1 Grid Network Setup Do you know? Grid computing market will reach $ 12 billion by the end of 2007 (IDC)

3. 6/2/20073 Outline, Cont. Managing Jobs and Resources with a Grid Sun N1 Grid Engine Concepts in Sun Grid Engine Job Submission Queues QMON Useful commands References Do you know? Grid computing market will reach $ 12 billion by the end of 2007 (IDC)

4. 6/2/20074 Grid and Cluster Terminology A GRID is a collection of computing resources that perform tasks. A grid appears to users as a large system that provides a point(s) of access to powerful distributed resources. –Resources: Computer hardware, data, applications,networking etc. Cluster: –Tightly coupled homogenous computers, resources –Redundant interconnections that appears as single system with high availability (HB) –Not truly distributed system

5. 6/2/20075 Grid and Cluster Terminology, Cont. Grid: –Loosely coupled heterogeneous computers or resources –Resources can come and go –High scalability – dynamically resources can be added and removed –It is distributed virtually everywhere –High Performance Computing (HPC) Do you know? The current version of Sun Grid Engine is downloadable for free.

6. 6/2/20076 What is a Cluster vs. a Grid? Gentzsch, “Grid Computing: A New Technology for the Advanced Web”

7. 6/2/20077 Types of Grids

8. 6/2/20078 Benefits of Grid Computing Better utilization of resources Increased user productivity Faster time-to-solution of complex scientific, engineering, and enterprise computational tasks Do you know? You can register to http://www.network.com and get 200 CPU hours free of charge. No obligationhttp://www.network.com

9. 6/2/20079 Areas of Concern Users concern about Grid operation and Management include: Confusion about what grid is and how it works Cross-vendor interoperability CPU and application usage billing and accounting Security and user authentication Standardization Global enterprise grids across international boundaries

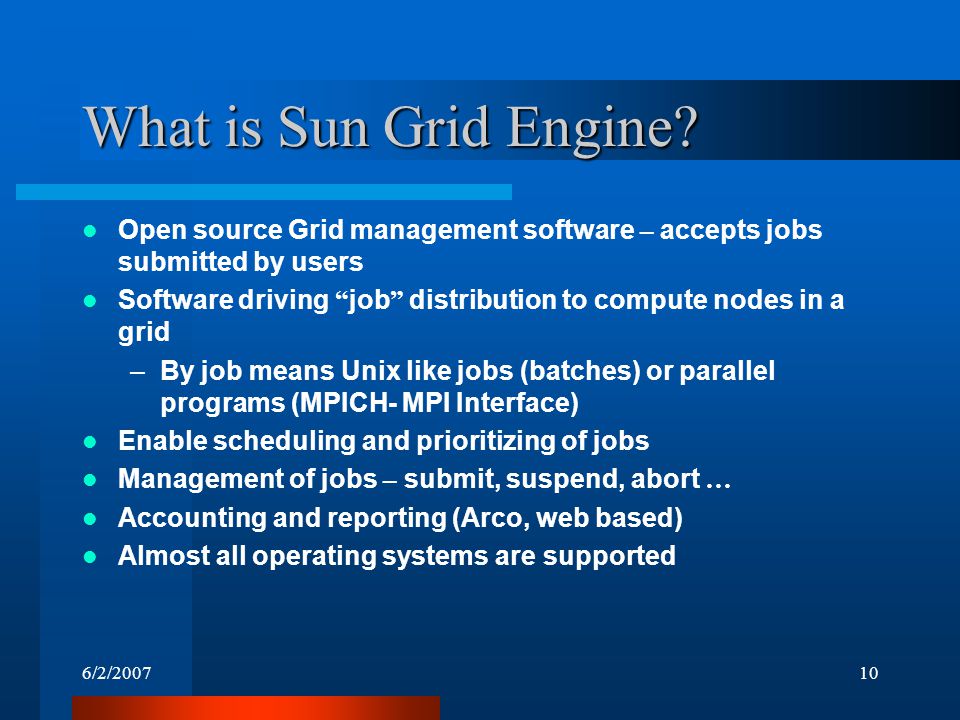

10. 6/2/200710 What is Sun Grid Engine? Open source Grid management software – accepts jobs submitted by users Software driving “ job ” distribution to compute nodes in a grid –By job means Unix like jobs (batches) or parallel programs (MPICH- MPI Interface) Enable scheduling and prioritizing of jobs Management of jobs – submit, suspend, abort … Accounting and reporting (Arco, web based) Almost all operating systems are supported

11. 6/2/200711 Example N1 Grid Network Setup 12 billions dollars …

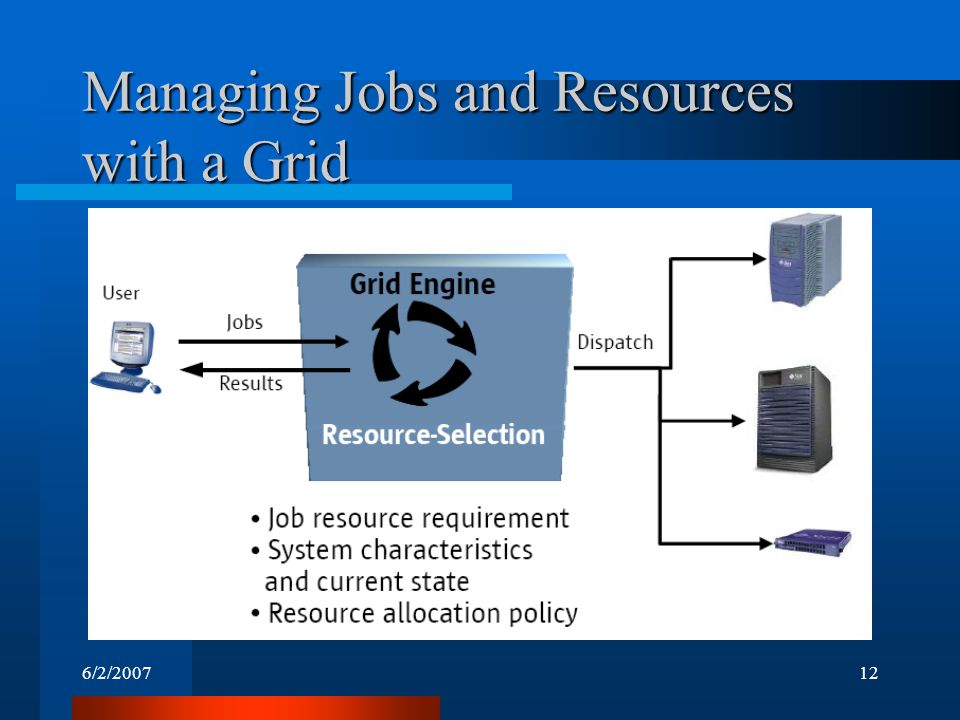

12. 6/2/200712 Managing Jobs and Resources with a Grid

13. 6/2/200713 Concepts in Sun Grid Engine Hosts – Four types –Master host, Secondary Fail over host (optional) –Execution hosts –Admin host –Submit hosts A system can act as more than one type of host.

14. 6/2/200714 Job Submission

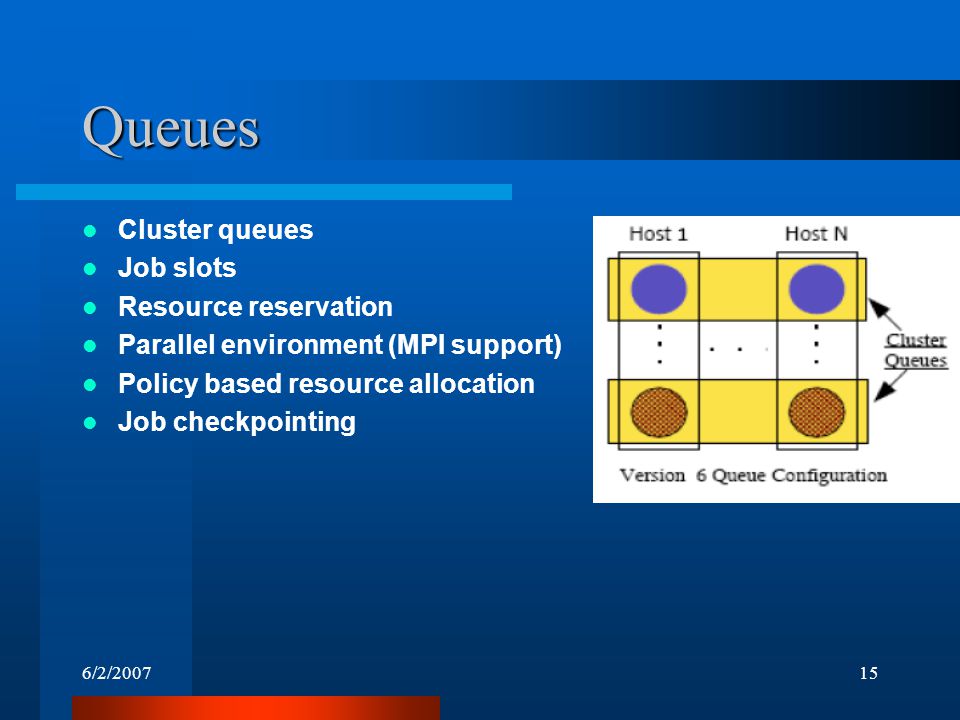

15. 6/2/200715 Queues Cluster queues Job slots Resource reservation Parallel environment (MPI support) Policy based resource allocation Job checkpointing

16. 6/2/200716 QMON

17. 6/2/200717 Useful commands Qsub – to submit job Qhost – getting an overview of available resources Qacct – job accounting information Qmod – managing queue state Qmon – graphical admin tool Qconf – configuring queues

18. 6/2/200718 References By Jan Stafford, Editor, 30 Aug 2005 | SearchOpenSource.com http://searchenterpriselinux.techtarget.com/originalContent/0,2891 42,sid39_gci1120769,00.html http://searchenterpriselinux.techtarget.com/originalContent/0,2891 42,sid39_gci1120769,00.html California State University, LA cluster (1 head node with 10 clients) http://oscar.calstatela.edu/http://oscar.calstatela.edu/ Sun Grid Compute Utility Web Portal http://www.network.com http://www.network.com
