1. The Cougar Approach to In-Network Query Processing in Sensor Networks By Yong Yao and Johannes Gehrke Cornell University Presented by Penelope Brooks

2. Overview Motivation Sensor Networks Overview Applications Sensor Data Problems in Sensor Networks Cougar –Architecture –Approach Related Projects Motivation Sensor Networks Overview Applications Sensor Data Problems in Sensor Networks Cougar –Architecture –Approach Related Projects

3. Motivation Distributed database approach to sensor networks Why? –Declarative queries are well-suited to sensor networks –Energy conservation in sensor networks is crucial Distributed database approach to sensor networks Why? –Declarative queries are well-suited to sensor networks –Energy conservation in sensor networks is crucial

4. The Big Idea Local computation is much cheaper than communication, so push computation to the network and improve energy consumption

5. Sensor Networks Overview Thousands of sensors connected through wireless communication –Multi-hop routing protocol used –Limited computation and storage –Limited energy supply Sensor nodes connected to one or more physical sensors Distributed to measure and monitor physical environment Communication and computation biggest energy drains Thousands of sensors connected through wireless communication –Multi-hop routing protocol used –Limited computation and storage –Limited energy supply Sensor nodes connected to one or more physical sensors Distributed to measure and monitor physical environment Communication and computation biggest energy drains

6. Challenges Communication Power consumption Computation Uncertainty in sensor readings Communication Power consumption Computation Uncertainty in sensor readings

7. Some Applications Besides temperature… Intelligent building management Hostile environments –Battlefield –Disaster regions/Early warning systems Tracking items in transit Automatic target recognition and tracking Besides temperature… Intelligent building management Hostile environments –Battlefield –Disaster regions/Early warning systems Tracking items in transit Automatic target recognition and tracking

8. Sensor Data Uncertainty of data values –Measurements accurate within range –Addressed by aggregation Historically - sensor networks collect data and transfer to central node for querying and analysis Uncertainty of data values –Measurements accurate within range –Addressed by aggregation Historically - sensor networks collect data and transfer to central node for querying and analysis

9. Problems in Sensor Networks Aggregation –Must complete at leader node –Data has to be delivered from source nodes –Computation approaches Send all data to leader and compute there Some computation at nodes along path Query Languages –Diverse applications, data, query classes –Look at properties of sensor data, abstract computational patterns that fit Aggregation –Must complete at leader node –Data has to be delivered from source nodes –Computation approaches Send all data to leader and compute there Some computation at nodes along path Query Languages –Diverse applications, data, query classes –Look at properties of sensor data, abstract computational patterns that fit

10. Problems in Sensor Networks (cont’d) Query Optimization –Large space of possible query plans –Cost of plan is energy consumed –Make decisions with uncertainty Catalog Management –Metadata for optimizer –Sensor position, density, connectivity, system workload, network stability Multi-Query Optimization –Share results from similar queries Query Optimization –Large space of possible query plans –Cost of plan is energy consumed –Make decisions with uncertainty Catalog Management –Metadata for optimizer –Sensor position, density, connectivity, system workload, network stability Multi-Query Optimization –Share results from similar queries

11. Cougar Architecture Loosely-coupled, distributed Supports in-network computation Query optimizer on sensor gateway –Describes data flow in network –Computation flow in each sensor Query proxies on sensor nodes –Register query –Create local operator tree –Activate relevant sensors –Return applicable results Loosely-coupled, distributed Supports in-network computation Query optimizer on sensor gateway –Describes data flow in network –Computation flow in each sensor Query proxies on sensor nodes –Register query –Create local operator tree –Activate relevant sensors –Return applicable results contribution

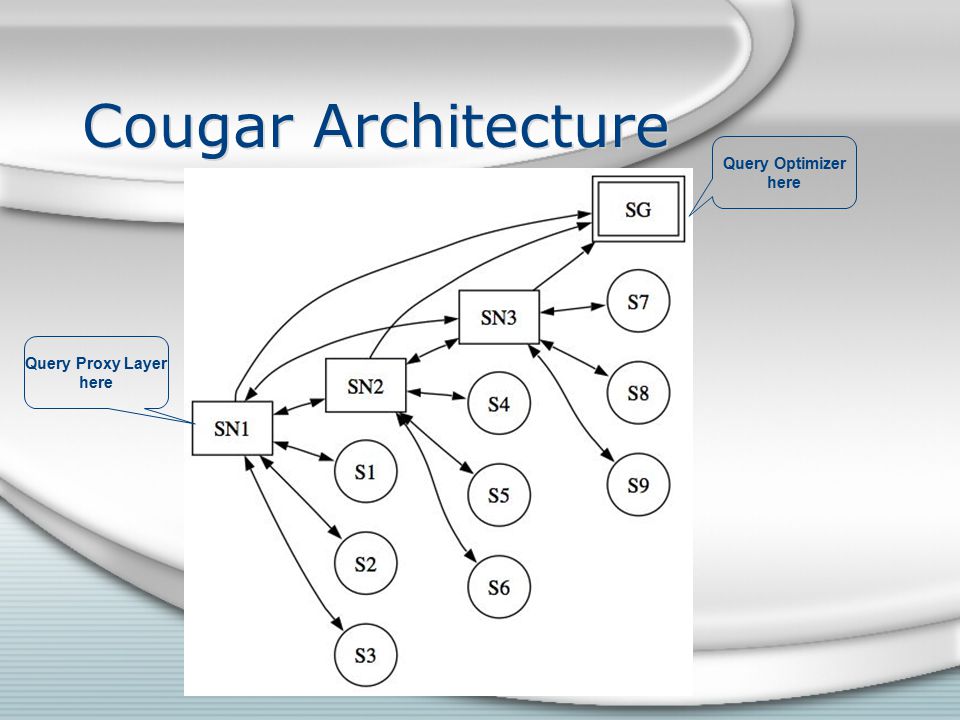

12. Cougar Architecture Query Proxy Layer here Query Optimizer here

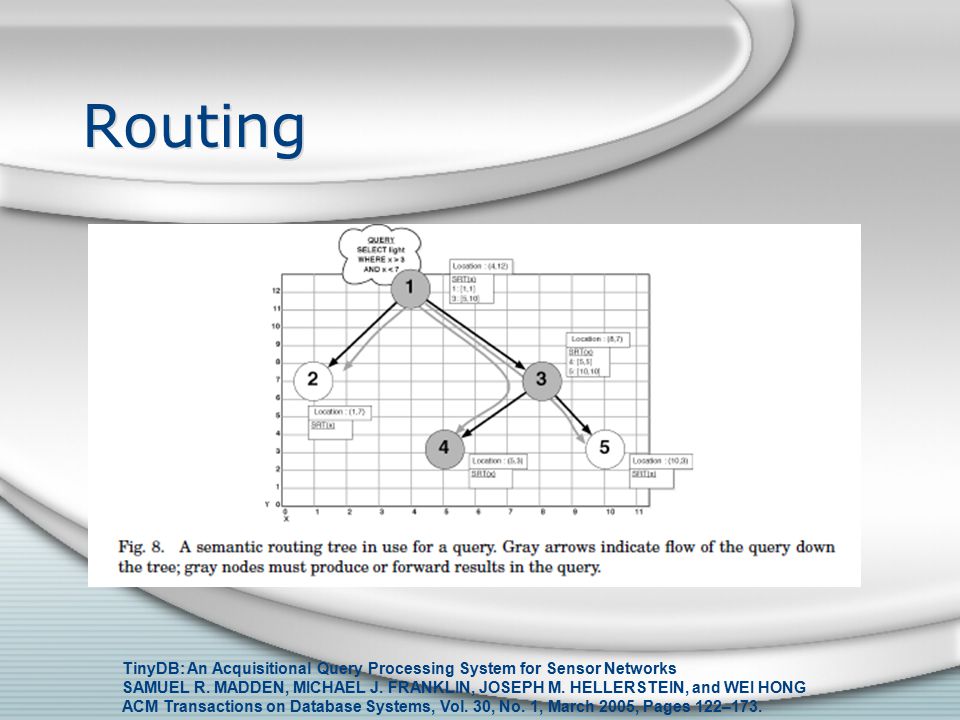

13. Routing TinyDB: An Acquisitional Query Processing System for Sensor Networks SAMUEL R. MADDEN, MICHAEL J. FRANKLIN, JOSEPH M. HELLERSTEIN, and WEI HONG ACM Transactions on Database Systems, Vol. 30, No. 1, March 2005, Pages 122–173.

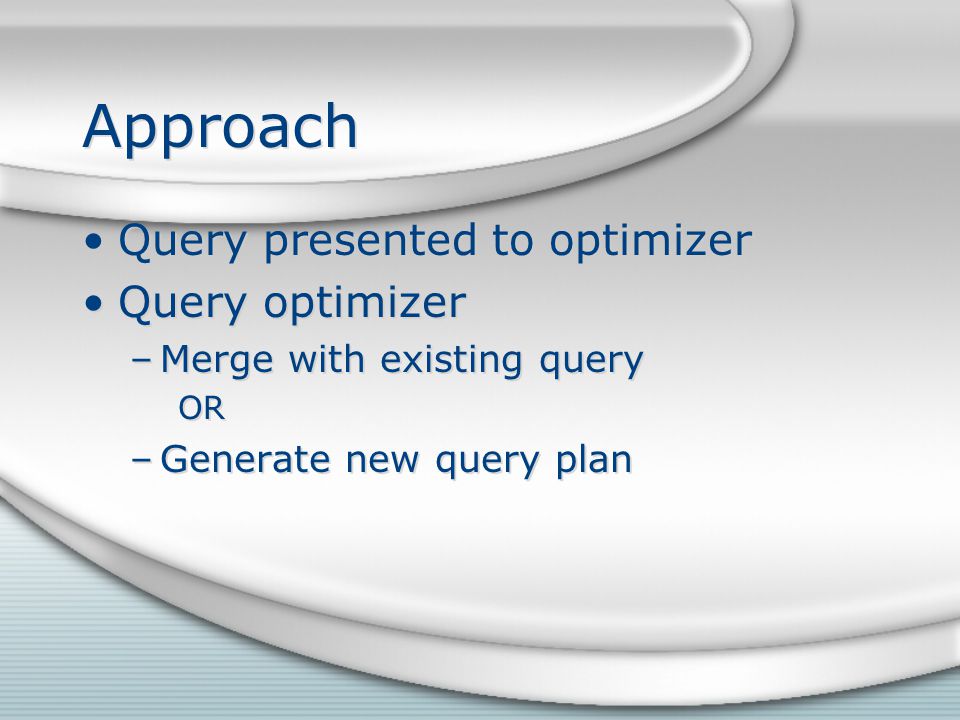

14. Approach Query presented to optimizer Query optimizer –Merge with existing query OR –Generate new query plan Query presented to optimizer Query optimizer –Merge with existing query OR –Generate new query plan

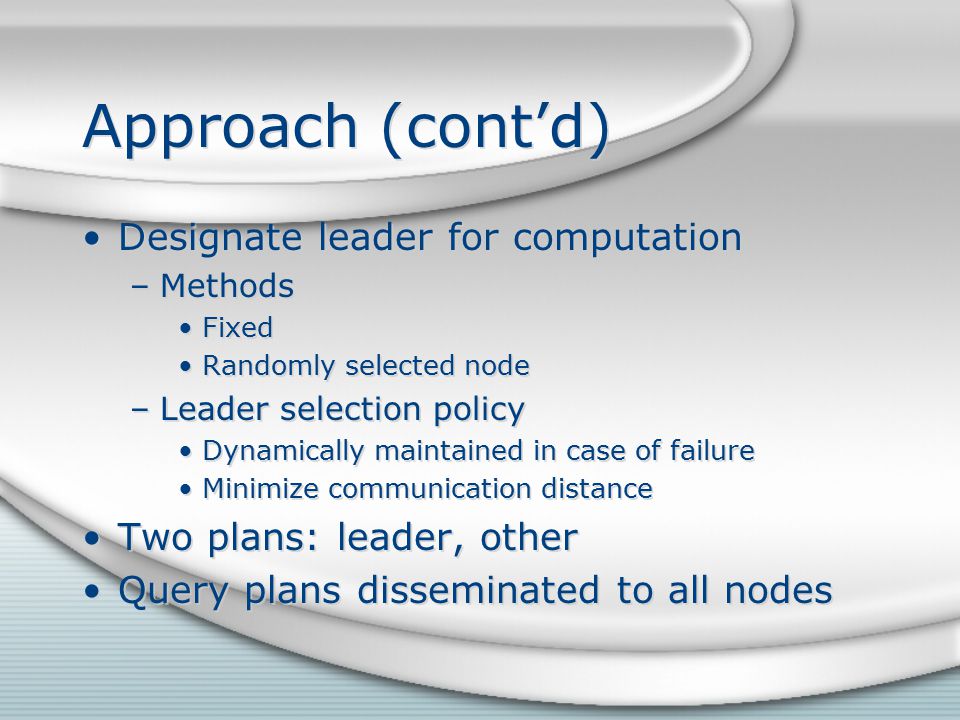

15. Approach (cont’d) Designate leader for computation –Methods Fixed Randomly selected node –Leader selection policy Dynamically maintained in case of failure Minimize communication distance Two plans: leader, other Query plans disseminated to all nodes Designate leader for computation –Methods Fixed Randomly selected node –Leader selection policy Dynamically maintained in case of failure Minimize communication distance Two plans: leader, other Query plans disseminated to all nodes

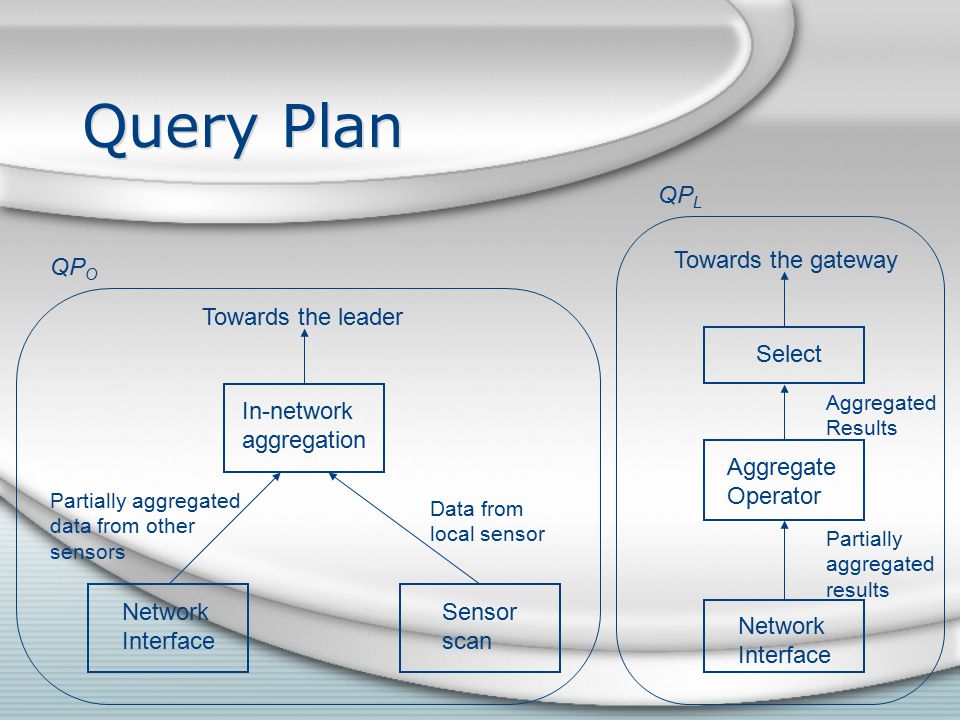

16. Query Plan In-network aggregation Network Interface Sensor scan Towards the leader Select Aggregate Operator Network Interface Towards the gateway QP O QP L Data from local sensor Partially aggregated data from other sensors Partially aggregated results Aggregated Results

17. Example Query Q: –Monitor office temperature –Generate notification to administrator when temperature over threshold Optimize query Query Plan QP generated, leader identified, computation plans generated Query plans disseminated Query proxy actions initiated Query Q: –Monitor office temperature –Generate notification to administrator when temperature over threshold Optimize query Query Plan QP generated, leader identified, computation plans generated Query plans disseminated Query proxy actions initiated

18. Example (cont’d) Sensors collect temperature Leader aggregates sensors readings, performs AVG Aggregate value compared to initial condition of query Q If AVG > threshold –Value sent to gateway –Administrator notified Otherwise, sensors continue Sensors collect temperature Leader aggregates sensors readings, performs AVG Aggregate value compared to initial condition of query Q If AVG > threshold –Value sent to gateway –Administrator notified Otherwise, sensors continue

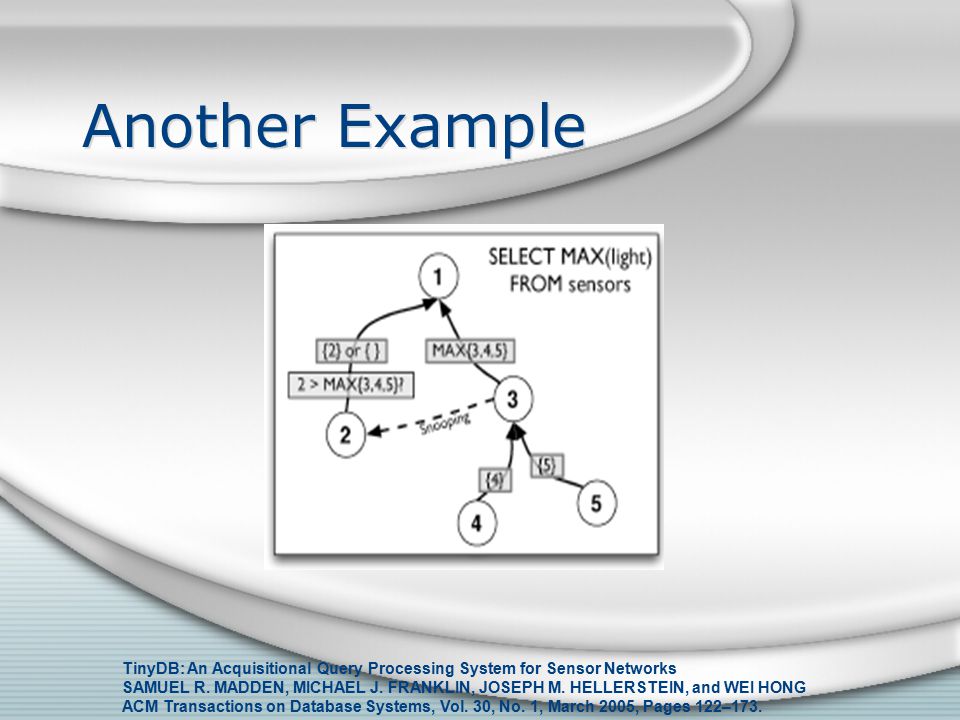

19. Another Example TinyDB: An Acquisitional Query Processing System for Sensor Networks SAMUEL R. MADDEN, MICHAEL J. FRANKLIN, JOSEPH M. HELLERSTEIN, and WEI HONG ACM Transactions on Database Systems, Vol. 30, No. 1, March 2005, Pages 122–173.

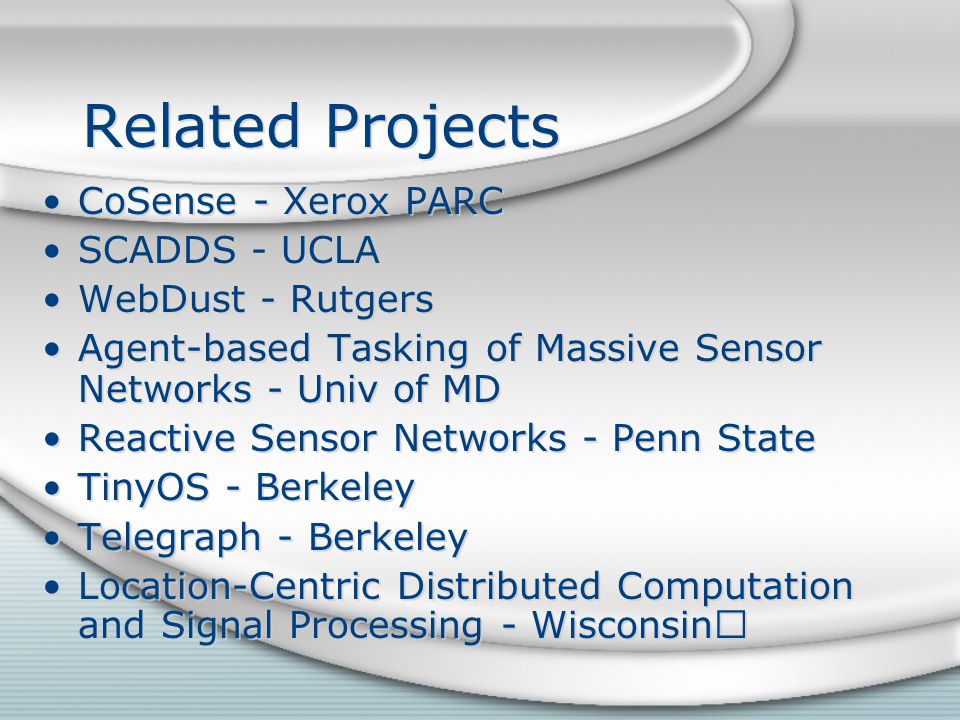

20. Related Projects CoSense - Xerox PARC SCADDS - UCLA WebDust - Rutgers Agent-based Tasking of Massive Sensor Networks - Univ of MD Reactive Sensor Networks - Penn State TinyOS - Berkeley Telegraph - Berkeley Location-Centric Distributed Computation and Signal Processing - Wisconsin CoSense - Xerox PARC SCADDS - UCLA WebDust - Rutgers Agent-based Tasking of Massive Sensor Networks - Univ of MD Reactive Sensor Networks - Penn State TinyOS - Berkeley Telegraph - Berkeley Location-Centric Distributed Computation and Signal Processing - Wisconsin

21. Wrap-Up Cougar is one possible architecture for a sensor network Performs in-network computation Decreases energy consumption One leader per query plan Attempt to merge similar queries Propagate results to system if condition met Cougar is one possible architecture for a sensor network Performs in-network computation Decreases energy consumption One leader per query plan Attempt to merge similar queries Propagate results to system if condition met

22. Questions?
