1. GoF: 2.1-2.6 Document Editor Example
A Case Study

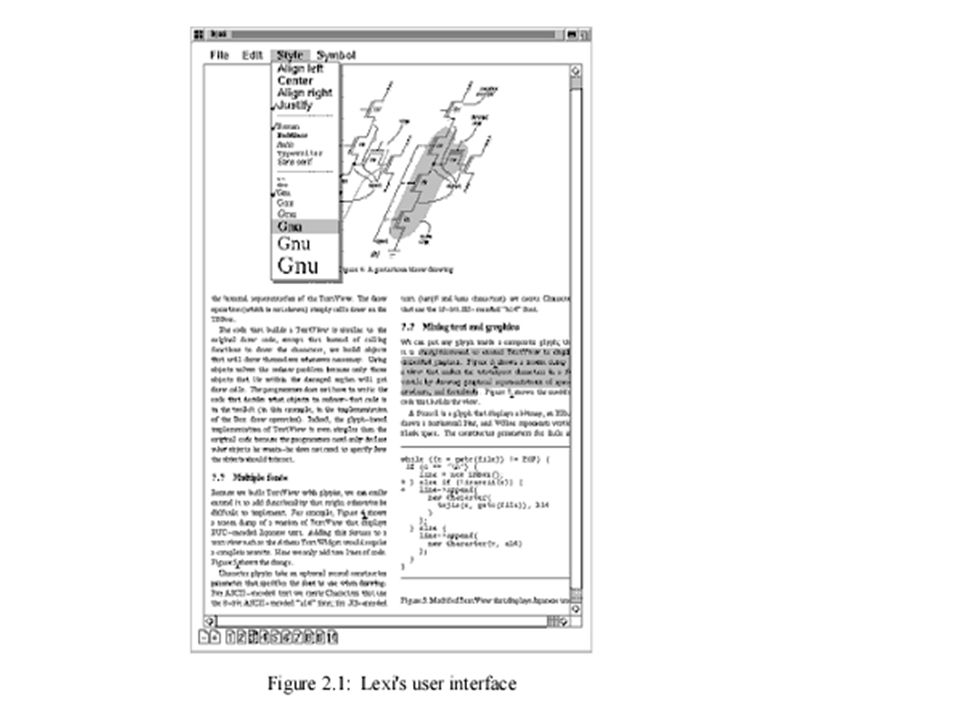

2. Designing Lexi, a WYSIWYG Document Editor
The purpose is to show how design patterns capture solutions to design problems in lexi
The document can mix text and graphics freely in a variety of formatting styles. It has pull-down menus, scroll bars and collection of page icons for navigation in the document.

4. Document Editor
What are your first thoughts about how to build a document editor?
Internal structure
Formatting
Gui
Spell Check

5. Design Problems Document Structure Formatting
Internal structure; will affect every aspect of the design of Lexi, need to traverse
Formatting
Need to arrange text and graphics into lines & columns
Which objects carry out formatting
How interact with internal representation

6. Design Problems Embellishing the user interface
Scroll bars, borders etc
Independent of the rest of the application
Embellishments likely to change as Lexi evolves
Support multiple look-and-feel (motif, java, pm,..)
Support multiple window systems (MS window, X, mac, ..)

7. Design Problems User Operations Spelling checking and hyphenation
Buttons, pull-down menus, Uniform access with undo capability
Spelling checking and hyphenation

8. Document Structure
Arrangement of graphical elements (characters, lines, polygons, etc..)
An author however views theses as document’s physical structure- lines, columns, figures, tables, and other substructures (not in graphical terms)
So, Users need to treat collection and single elements the same. For example user should be able to refer to a table as a whole not as an unstructured mass of text and graphics.

9. Document Structure Internal Representation need to support:
Maintaining document’s physical structure, that is, the arrangement of text and graphics into lines and columns, tables, etc
Generating and presenting visually
Map position on the display to the internal representation (lexi would know what s being pointed to)

10. Document structure We should treat text and graphics uniformly
We should not have to distinguish between a single element and a group of elements in the internal representation. ( e.g. the tenth element in line five of column two could be a single character or a complex diagram)
-- As long as an element can draw itself and set its dimensions, its complexity should not affect where it appears
Opposing the above is to analyze for spell checking

11. Document Structure Use Recursive Composition
A technique to represent a hierarchy of structured information
Building increasingly complex elements out of simpler ones.
e.g. we can tile a set of characters and graphics to form a line. Multiple lines can be arranged to form columns, multiple columns to form a page, etc

13. Document Structure
We can assign an object to each important element, also to invisible structural elements such as line, column, etc..

14. Two implications: 1- These Objects need corresponding classes 2- These classes must have compatible interfaces, if we want to treat them uniformly, So the classes must be related through inheritance, possibly through an abstract class.

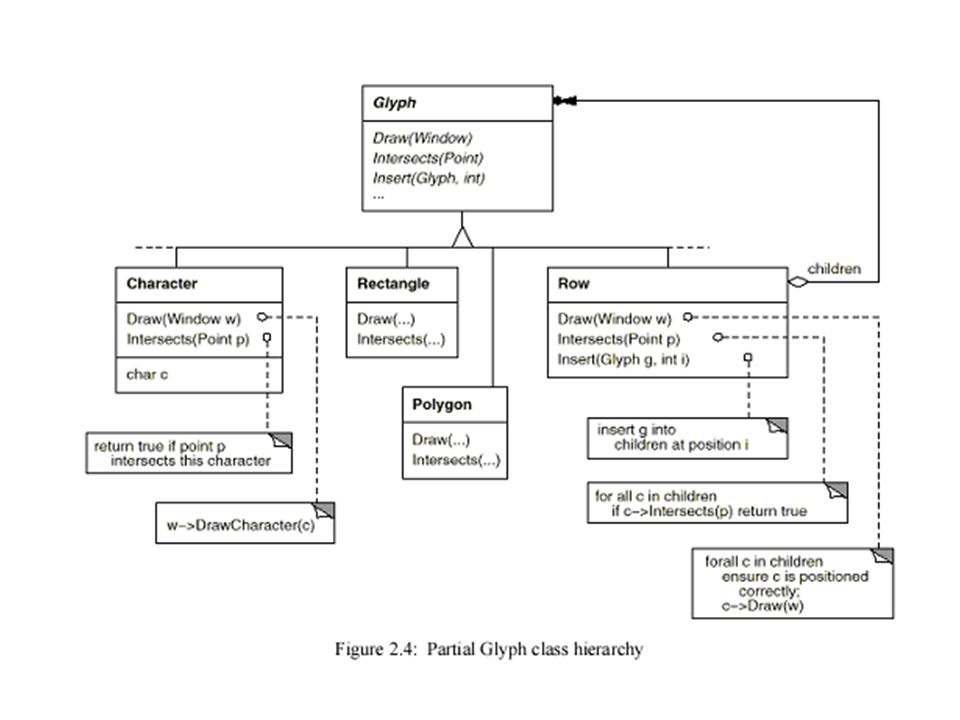

15. Document Structure Glyphs: An abstract class for
Primitive graphical elements, and
Structural elements

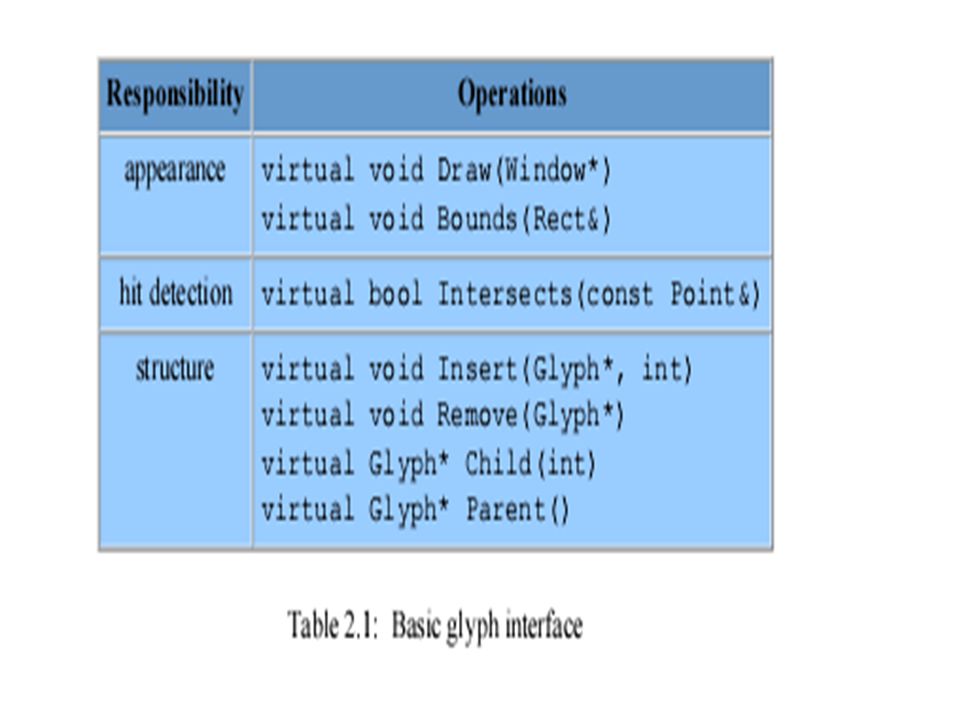

18. Document Structure Glyph Responsibilities: Draw themselves
Each know how to render itself on the screen
Where they are, how much space they occupy
A parent glyph needs to know how much space a child occupies, for example to arrange it in line
Children and parent
We need interfaces to add and remove and access children. A line’s children are the glyphs arranged into a row.

19. Glyph Subclasses redefine Draw to render themselves on the window
Void Rectangle::Draw(Window* w) {
W-> DrawRect(_x0, _y0, _x1, _y1); }

20. Document Structure Are there any problems with these Glyphs?
Strict hierarchy
Object for every character (efficiency)
Could share Glyphs
Flyweight Pattern: share objects between different contexts; operation takes extrinsic state; objects represent internal state

21. Composite Pattern
Recursive composition can be used to represent any potentially complex hierarchical structure.
Composite pattern captures the essence of recursive composition in OO terms.

22. Formatting
We have so far settled on how to represent the document’s physical structure
Next we need to decide on how to construct the document’s physical structure (Formatting)
These two are distinct

23. Formatting
Formatting: breaking collection of glyphs into lines, lines into columns, etc
For example, the user might vary margin, single or double space, indentation, etc

24. Formatting
Formatting is a complex task. There are variety of algorithms
Trade-offs: quality, speed
Many new might be invented
We need to keep formatting algorithm well contained, completely independent of document structure

25. Formatting
We should be able to add a new glyph subclass without regard to formatting algorithm, and conversely adding a new algorithm should not require changing existing glyphs

26. Formatting
So, we should design Lexi so that it’s easy to change the formatting algorithm (at compile-time, event at run-time).
To do this:
We can isolate the algorithm and make it easily replaceable by encapsulating it in an object

27. Formatting
More specifically, we’ll define a separate class hierarchy of algorithm objects.
The root will contain interfaces for a wide range of formatting algorithms, and each subclass will implement a particular algorithm.
Then we can introduce a new Glyph subclass that will structure its children automatically using a given algorithm object

28. Formatting Encapsulating Format algorithm
Compositor: class for formatting algorithm objects
What glyphs to format and when to do the formatting
Responsibility
Operation
What to format
Void SetComposition(Composition *)
When to format
Virtual void Compose()

29. Formatting

30. Formatting Composition: special glyph subclass
It formats children of a special glyph subclass called composition
A composition gets an instance of a Compositor (e.g specific line-breaking algorithm) when created and tells compositor to compose its glyphs

31. Formatting

32. Formatting
How it works: An unformatted object contains only visible glyphs, not Rows or columns. The composition is in this state just after initialized with the glyphs it should format. It then calls its compositor’s compose operation to format it’s children according to a particular algorithm.

33. Formatting
column
row
row

34. Formatting
Compositor-Composition ensures strong separation between physical representation and formatting
We can even change algorithm at run-time by adding a single SetCompositor operation to composition’s basic glyph interface

35. Formatting Strategy Pattern
Objects encapsulate algorithms and the context in which they operate
Compositors are strategies,
A Composition is the context for compositor strategy
The Key is to design interface to support range of algorithms. Shouldn’t have to change the strategy or context interface to support a new algorithm.

36. Embellishing the User Interface
Border and Scrollbar
Easily add and remove
No inheritance (run-time, lots of classes)
To easily add and remove embellishments specially at runtime we should not use inheritance. We should be able to add and remove embellishments without changing other classes.

37. Embellishing the User Interface
We could add a border to composition by sub-classing it (BorderedComposition class), or the same way for scrollbar to get ScrollableComposition
Subclass it again to get ScrollableBorderedComposition Class
Problem: we end up a class for every possible combination, an unworkable solution

38. Embellishing the User Interface
Object composition potentially more workable (embellishment is object)
Who composes whom?
Border contain Glyph?
Glyph contain Border? (need to modify glyph class to be aware of border)
First choice keeps the border-drawing code entirely in the Border class leaving other classes alone

39. Embellishing the User Interface
Borders have an appearance, so they should actually be glyphs (Border should be subclass of Glyph)
In addition clients should not care whether Glyph have borders or not. If a glyph is composed in a border, clients should not treat it differently than a plain glyph
So, we need to subclass Border from Glyph to guarantee this

40. Embellishing the User Interface
All this leads us to the concept of:
Transparent enclosure
1) single child (or single component) composition
2) compatible interfaces (clients can’t tell if they are dealing with a component or it’s enclosure.)

41. Embellishing the User Interface
Enclosure can augment component’s behavior by doing work before and/or after delegating an operation.. So we define a new subclass of Glyph, the MonoGlyph to serve as an abstract class for embellishment glyph.
MonoGlyph (subclass of glyph)
Stores reference to a component (glyph) and forwards requests to it (see the code)

42. Embellishing ..
Void MonoGlyph::Draw (window* w) {
-component->Draw(w);}
Performs embellishment before or after sending glyph the request (draw itself) Void MonoGlyph::Draw (window* w) {
-component->Draw(w);
DrawBorder(w);}

43. Embellishing the User Interface
The same way we define another Monoglyph, the scroller.
We put composition instance in the scroller instance, and the resulting composition in the Border instance.

44. Embellishment..
Question: Should border contain scroller or the reverses?
Result: Transparent enclosure keeps clients free of embellishment code.

45. Embellishing the User Interface
Decorator Pattern
Attach additional responsibilities to object dynamically
Enclose component in another component
Nest decorators recursively
Forwards requests to component
Can perform additional actions before or after

46. Supporting Multiple Look-and-Feel Standards
Portability across hardware and software platforms is a major problem in system design. Part of portability is supporting multiple user interface style guides on each platform.
Look-and-feel standards define guidelines for how applications appear and react to the user.
Lexi should support multiple existing look-and-feel standards and make it is to support future ones
Also support changing look-and-feel at runtime

47. Supporting Multiple Look-and-Feel Standards
Everything we see in Lexi is a glyph composed in some invisible glyph. look-and-feel style guides deal with “widgets”, visible glyphs such as buttons,etc
We assume we have 2 sets of widget glyph classes:
Set of abstract glyph subclass for each widget category
Set of concrete subclasses to implement different standards

48. Supporting Multiple Look-and-Feel Standards
Lexi needs to use different concrete widget glyphs for different look-and-feel, for example, MotifButton, PMButton, MacButton, etc
But How? Can Lexi create theses directly in say a constructor?
- Hard-coding the button of particular style make it impossible to select the style at run-time
( e.g scrollBar* sb= new MotifScrollBar;)
- We also have to track down and change every such constructor call to port to another platform
- Littering code with constructor calls to specific look-and-feel classes yields a maintenance nightmare

49. Supporting Multiple Look-and-Feel Standards
1- We Must avoid making explicit constructor calls
2- We must be able to replace an entire widget set easily
We can achieve both by:
abstracting the process of object creation

50. Supporting Multiple Look-and-Feel Standards
Example (C++):
Scrollbar* sb= new MotifScrollbar; (this is what we want to avoid)
But suppose we do this:
Scrollbar* sb= guiFactory->CreateScrollbar();
Where guiFactory is an instance of MotifFactory class.
For Clients the effect is the same, but there is one crucial difference: There is no mentioning of Motif by name in the code.

51. Supporting Multiple Look-and-Feel Standards
guiFactory objects abstract the process of creating scrollbars for any look-and-feel standard. And it can manufacture any widget glyph for that standard.
Figure 2-9 shows GUIFactory class heierachy for guiFactory objects.

53. Factories make product objects that are related (belong to the same look-and-feel in this case)

54. Supporting Multiple Look-and-Feel Standards
Question: Where doe GUIFactory instance come from?
Answere: Anywhere convenient, guiFactory can be a global, an static member of a well known class, or a Singleton object ( another design pattern)
The important point is to initialize before it’s used and after it’s clear which look-and-feel is desired.
(Look at the initialization code next slide)
If we change our mind, we can reinitialize guiFactory and get a new look-and-feel at runtime

55. Supporting Multiple Look-and-Feel Standards
GUIFactory* guiFactory;
const char* styleName= getenv(*LOOK_AND_FEEL*);
If (strcmp(styleName, “Motif”) == 0) {
guiFactory=new MotifFactory; }
else if (strcmp(styleName, “Presentation_Manager”) ==0) {
guiFactory = new PMFactory;
else …

56. Supporting Multiple Look-and-Feel Standards
Abstract Object Creation with Factories
One class is responsible for creating objects
Set standard and then all objects are created with that standard
Abstract Factory Pattern
Provides interface for creating families of related or dependent objects without specifying concrete classes
Swap entire families of products by replacing the concrete factory
Singleton
Ensure a class has only on instance
Provide global point of access

57. Supporting Multiple Windows Systems
Can we use an Abstract Factory?
Unlikely interface for different vendors are compatible thus don’t have common abstract product class
Remember we could only apply Abstract factory where we could define a common abstract product (e.g. Button widget) from which we could subclass concrete products (MotifButton, PMButton,MacButton)

58. Supporting Multiple Windows Systems
Things are a bit tougher since different windowing systems do not provide compatible interfaces
We need a uniform set of windowing abstractions that let us take different window system implementations and slide any one of them under a common interface

59. Supporting Multiple Windows Systems
Encapsulating Implementation Dependencies
Window Class: general actions
Draw basic geometric shapes
Iconifiy and de-iconify themselves
Resize self
Redraw contents on demand

60. Supporting Multiple Windows Systems
The Two extreme:
Intersection of functionalities?
Trouble: We loose a lot of functionalities
or union of functionality?
Trouble: the resulting interface maybe huge and incoherent. We also have to revise the code for every new vendor

61. Supporting Multiple Windows Systems
The solution falls somewhere between the two. The Window class would have interfaces that support the most popular windowing features. Table 2.3 provides a sample.

62. Supporting Multiple Windows Systems
The concrete subclasses of our Window class support different kinds (not platform) of windows such as dialogWindow, warningWindow, applicationWindow, etc

63. Supporting Multiple Windows Systems
Now where does platform-specific window come in?
One approach: Implement one version of our Window class and subclasses for each Windowing platform? Imagine the maintenance headache to keep track of multiple classes all named “Window” but each implemented for a different windowing system

64. Supporting Multiple Windows Systems
Another approach: Implementation specific subclasses of Window class?
And end up with another subclass explosion
In addition, none of these approaches give the flexibility to change the window system after compile. So we need to keep several different executables.
So, what can we do?

65. Supporting Multiple Windows Systems
Encapsulate the concept that varies (window system implementation in this case)
WindowImp class: abstract class for objects that encapsulate system-dependent code
Configure window object with instance of WindowImp subclasses

66. Supporting Multiple Windows Systems

67. Supporting Multiple Windows Systems
Bridge Pattern:
Decouple abstraction from implementation
The relationship between Window and WindowImp is an example of Bridge pattern
The intent is to allow separate class hierarchies work together even as they evolve independently.

68. Take Away You’re not a fortune teller Decoupling/Independence
Internal/external, abstraction/implementation
Use patterns appropriately:
Inheritance vs. object composition (user interface)
Abstract Factory vs. Encapsulate Dependencies (Window)
Transparency
Focus on the concept that varies
