1. CMPT 401 2008 Dr. Alexandra Fedorova Lecture XIII: Replication-II

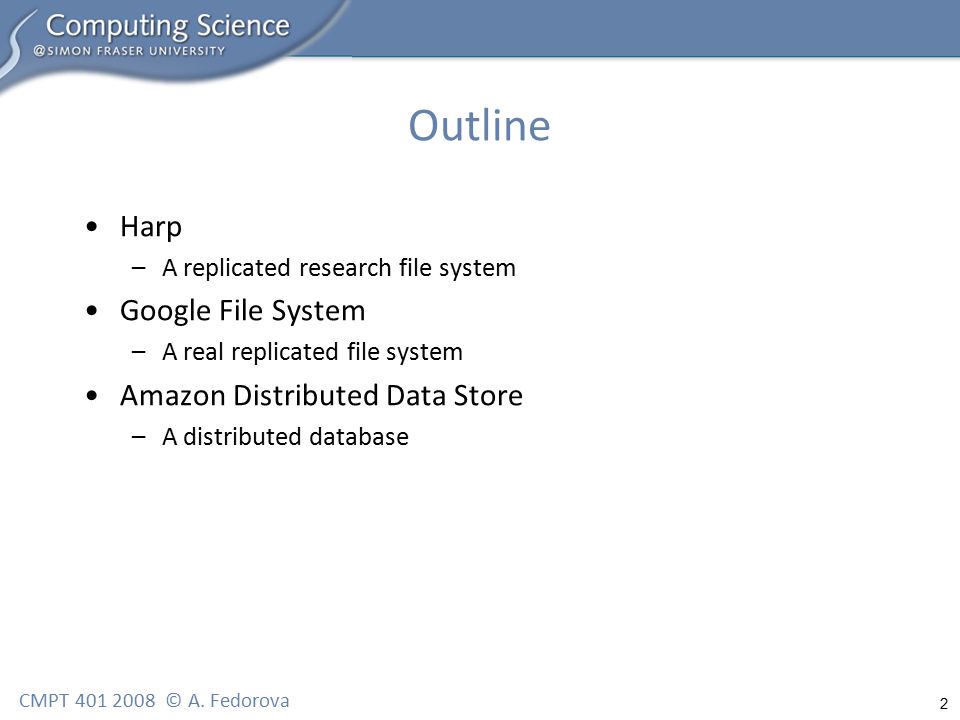

2. 2 CMPT 401 2008 © A. Fedorova Outline Harp –A replicated research file system Google File System –A real replicated file system Amazon Distributed Data Store –A distributed database

3. 3 CMPT 401 2008 © A. Fedorova Questions about Harp Does HARP use the two-phase commit protocol? If so, when and how? How does it differ from the 2PC protocol we studied in class? How many replicas that keep copies of data do we need to survive n failures? How many total participants must we have to survive n failures? Describe normal operation in Harp. Explain the following: –What the primary does –What the replica does –What the witness does How does Harp survive failures without flushing updates to disk before responding to the client?

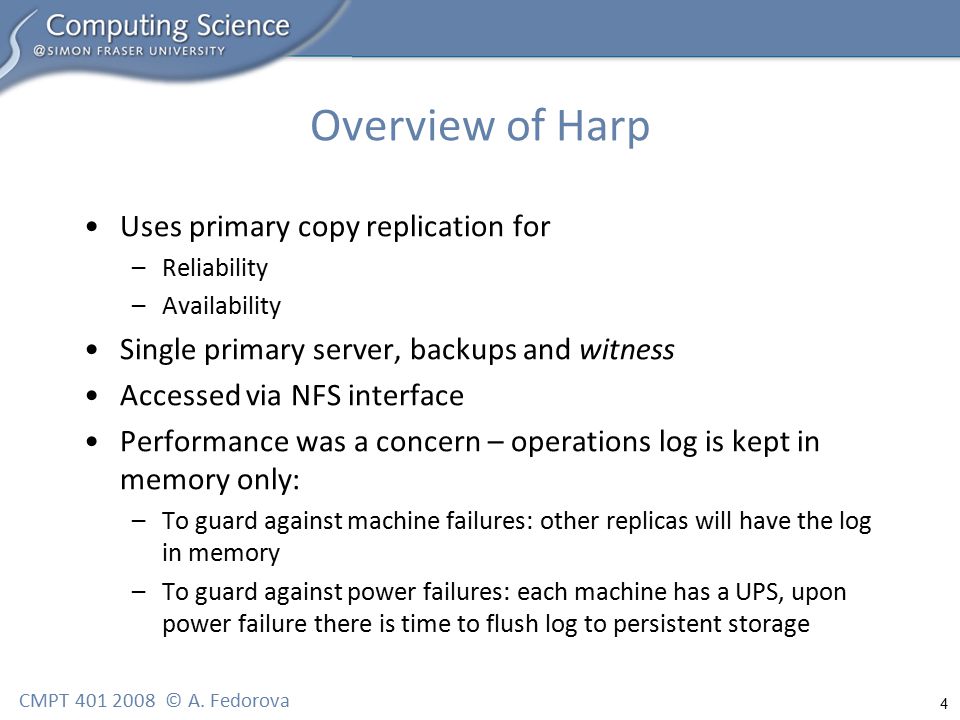

4. 4 CMPT 401 2008 © A. Fedorova Overview of Harp Uses primary copy replication for –Reliability –Availability Single primary server, backups and witness Accessed via NFS interface Performance was a concern – operations log is kept in memory only: –To guard against machine failures: other replicas will have the log in memory –To guard against power failures: each machine has a UPS, upon power failure there is time to flush log to persistent storage

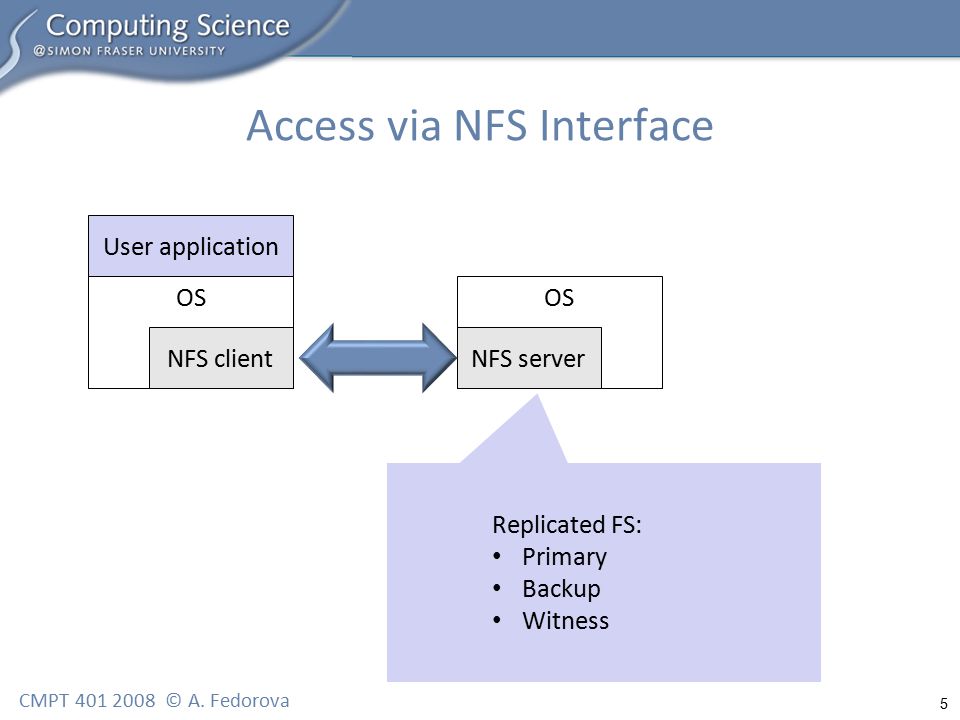

5. 5 CMPT 401 2008 © A. Fedorova Access via NFS Interface User application OS NFS client OS NFS server Replicated FS: Primary Backup Witness

6. 6 CMPT 401 2008 © A. Fedorova Failover Transparent to Clients User application OS NFS client OS NFS server OS NFS server OS NFS server Data is sent to a multicast address Reaches all potential primaries Discarded by hardware at all except the primary 192.168.51.2 primary backup witness

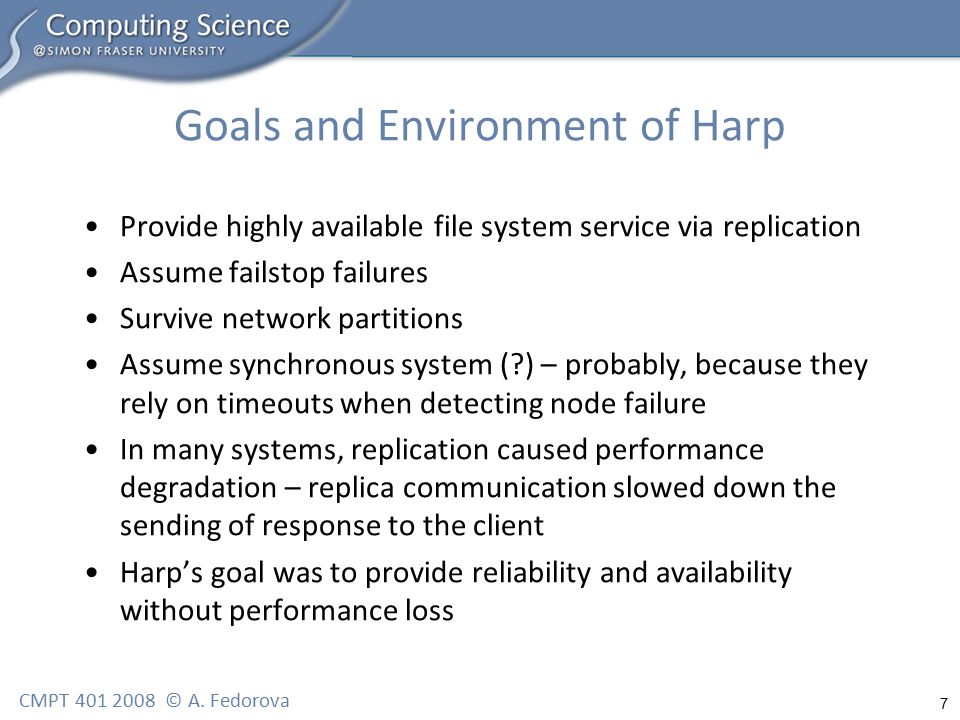

7. 7 CMPT 401 2008 © A. Fedorova Goals and Environment of Harp Provide highly available file system service via replication Assume failstop failures Survive network partitions Assume synchronous system (?) – probably, because they rely on timeouts when detecting node failure In many systems, replication caused performance degradation – replica communication slowed down the sending of response to the client Harp’s goal was to provide reliability and availability without performance loss

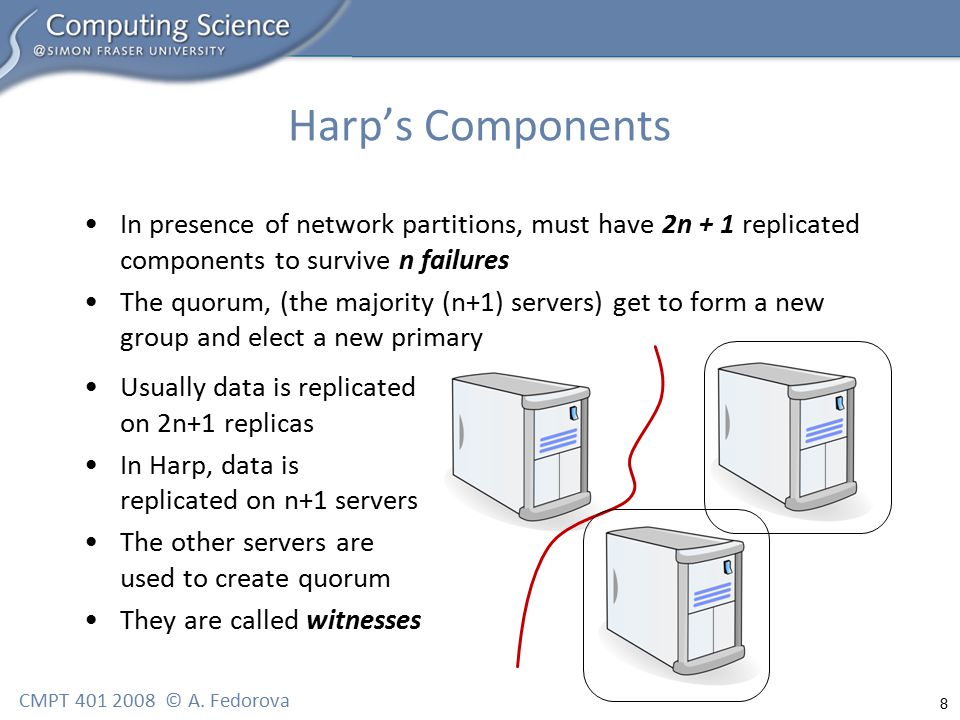

8. 8 CMPT 401 2008 © A. Fedorova Harp’s Components In presence of network partitions, must have 2n + 1 replicated components to survive n failures The quorum, (the majority (n+1) servers) get to form a new group and elect a new primary Usually data is replicated on 2n+1 replicas In Harp, data is replicated on n+1 servers The other servers are used to create quorum They are called witnesses

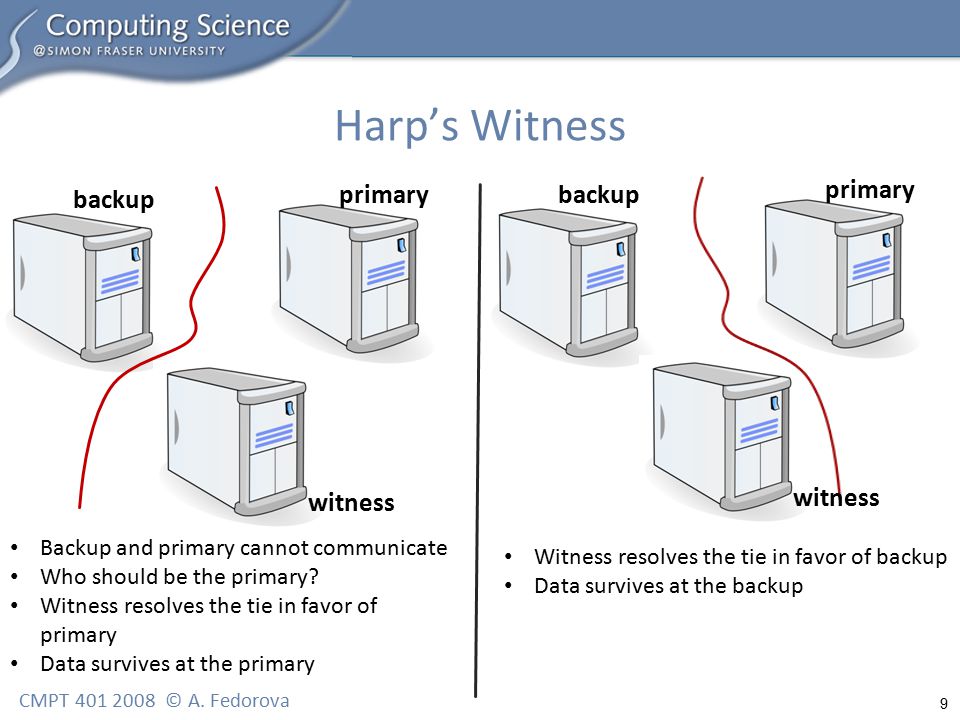

9. 9 CMPT 401 2008 © A. Fedorova Harp’s Witness primary backup witness Backup and primary cannot communicate Who should be the primary? Witness resolves the tie in favor of primary Data survives at the primary primary backup witness Witness resolves the tie in favor of backup Data survives at the backup

10. 10 CMPT 401 2008 © A. Fedorova Harp: Normal Operation primary backup witness 1. Send request to the primary 2. Record the operation in the in-memory log 3. Forward request to backup 4. Record the operation in the in-memory log 5. Respond to primary 6. “Commit” the operation – mark it as committed in memory 7. Respond to client 8. Tell the back up to commit

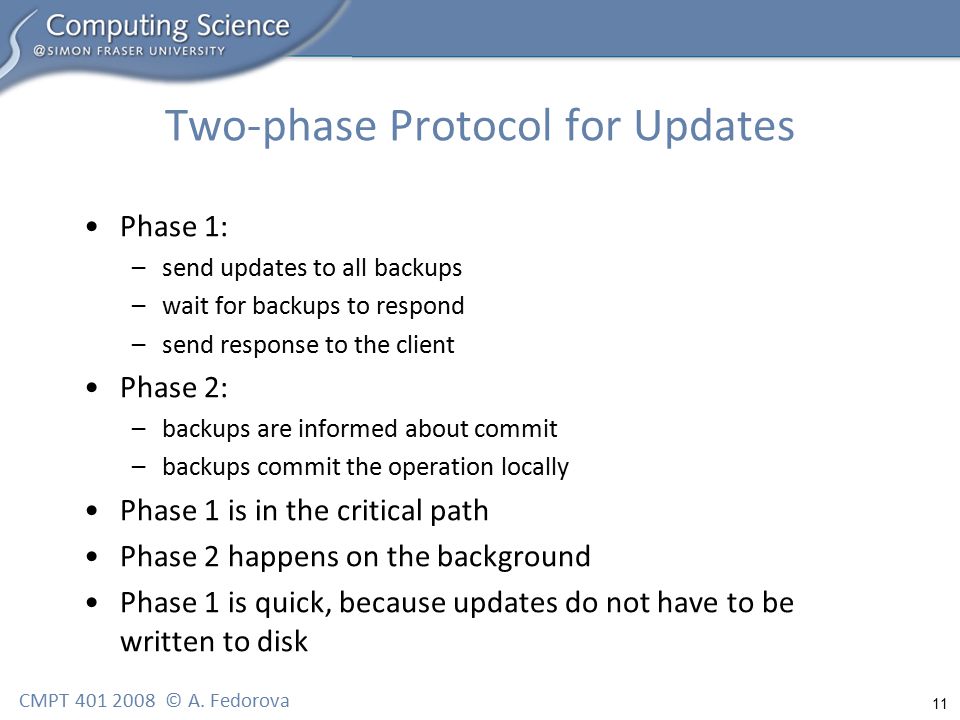

11. 11 CMPT 401 2008 © A. Fedorova Two-phase Protocol for Updates Phase 1: –send updates to all backups –wait for backups to respond –send response to the client Phase 2: –backups are informed about commit –backups commit the operation locally Phase 1 is in the critical path Phase 2 happens on the background Phase 1 is quick, because updates do not have to be written to disk

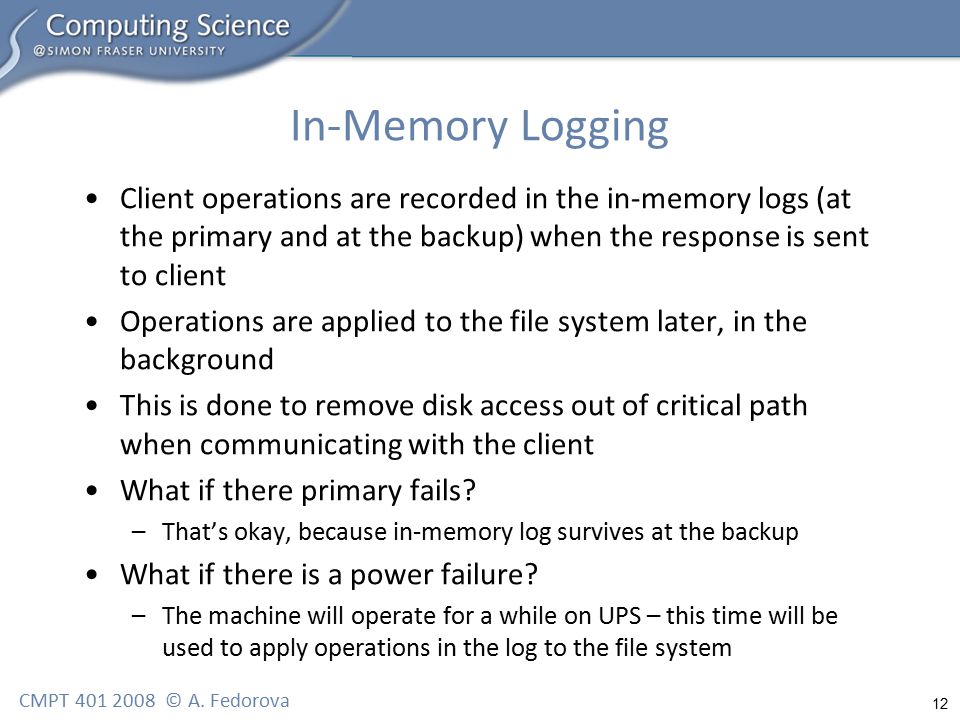

12. 12 CMPT 401 2008 © A. Fedorova In-Memory Logging Client operations are recorded in the in-memory logs (at the primary and at the backup) when the response is sent to client Operations are applied to the file system later, in the background This is done to remove disk access out of critical path when communicating with the client What if there primary fails? –That’s okay, because in-memory log survives at the backup What if there is a power failure? –The machine will operate for a while on UPS – this time will be used to apply operations in the log to the file system

13. 13 CMPT 401 2008 © A. Fedorova Write-Behind Logging CP – commit pointer – most recently committed event record Record n Record n+1 Record n+2 Record n+3 Record n+4 … AP – most recently applied event record Record n+5 LB – most recently event that has reached the local disk GLB – most recently event that has reached the local disk at primary and backup Record n+6 On failure the server restores the log and re-does all committed operations in the log

14. 14 CMPT 401 2008 © A. Fedorova Log Updates: Commit Pointer Primary receives the client request –A log record is created at the primary Primary forwards request to the backups –Backups add records to their logs Backups acknowledge receipt of records to the primary Primary commits the operation –Advances commit pointer CP –Sends the commit decision to the backup Backup advances its own CP

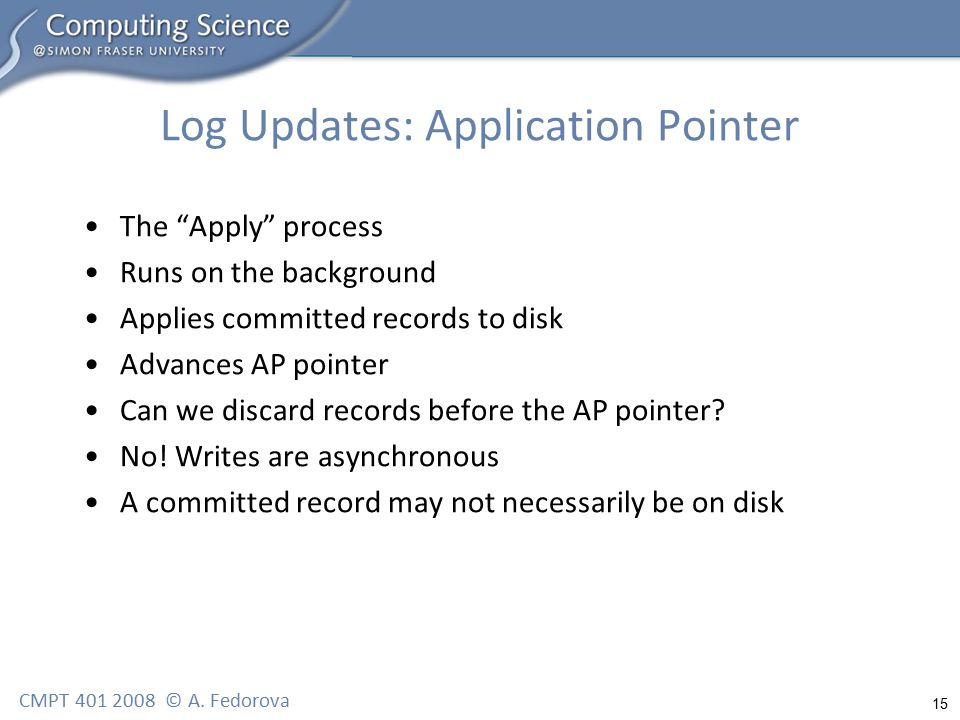

15. 15 CMPT 401 2008 © A. Fedorova Log Updates: Application Pointer The “Apply” process Runs on the background Applies committed records to disk Advances AP pointer Can we discard records before the AP pointer? No! Writes are asynchronous A committed record may not necessarily be on disk

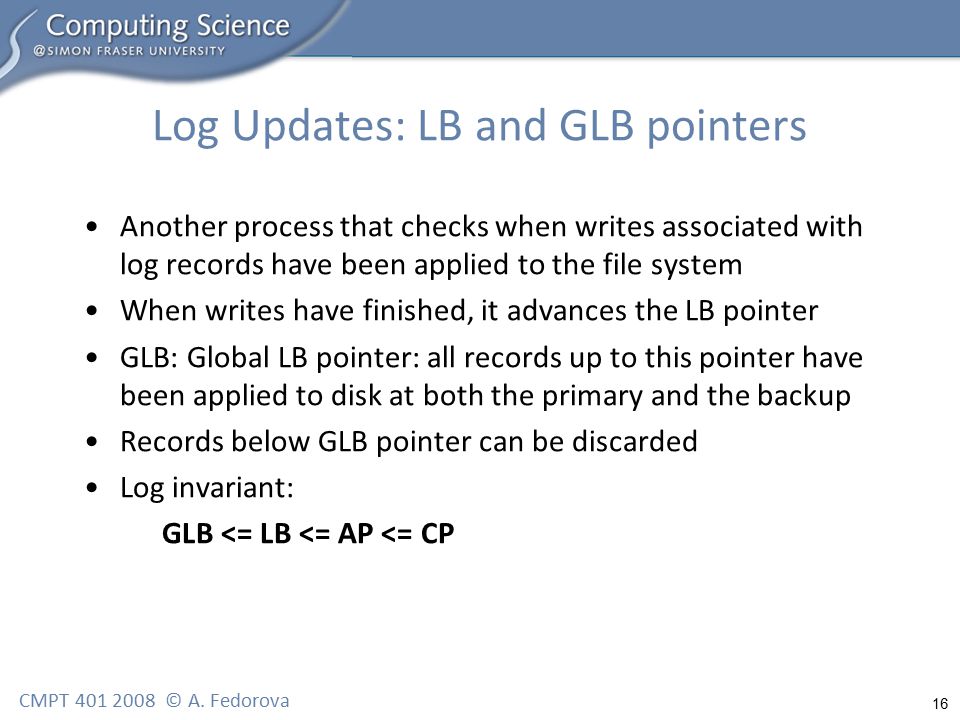

16. 16 CMPT 401 2008 © A. Fedorova Log Updates: LB and GLB pointers Another process that checks when writes associated with log records have been applied to the file system When writes have finished, it advances the LB pointer GLB: Global LB pointer: all records up to this pointer have been applied to disk at both the primary and the backup Records below GLB pointer can be discarded Log invariant: GLB <= LB <= AP <= CP

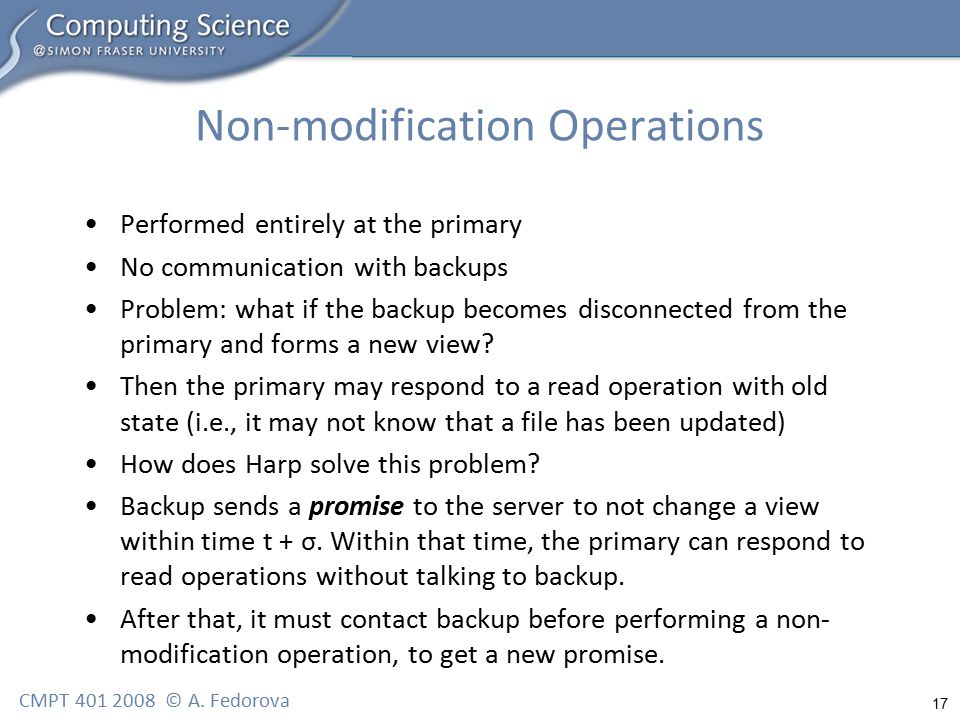

17. 17 CMPT 401 2008 © A. Fedorova Non-modification Operations Performed entirely at the primary No communication with backups Problem: what if the backup becomes disconnected from the primary and forms a new view? Then the primary may respond to a read operation with old state (i.e., it may not know that a file has been updated) How does Harp solve this problem? Backup sends a promise to the server to not change a view within time t + σ. Within that time, the primary can respond to read operations without talking to backup. After that, it must contact backup before performing a non- modification operation, to get a new promise.

18. 18 CMPT 401 2008 © A. Fedorova Handling Failures: View Changes View –a composition of the group and the roles of the members When some members fail, the view has to change A view change selects the members of the new view and makes sure that the state of the new view reflects all committed operations form previous views The designated primary and backup monitor other group members to detect changes in communication ability If they cannot communicate with some of the members, a view change is needed Either a primary or a backup can initiate a view change (not witness)

19. 19 CMPT 401 2008 © A. Fedorova View Change primary backup witness Primary cannot reach with backup, but can reach the witness Primary initiates a view change primary backup witness Backup cannot reach the primary, but it can reach the witness Backup initiates the view change

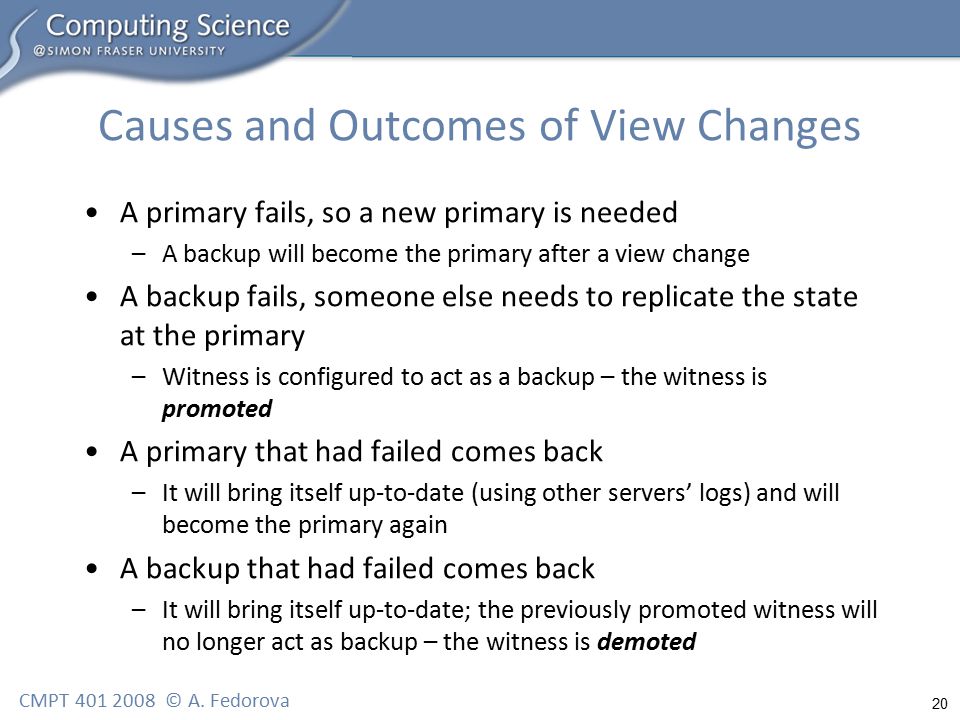

20. 20 CMPT 401 2008 © A. Fedorova Causes and Outcomes of View Changes A primary fails, so a new primary is needed –A backup will become the primary after a view change A backup fails, someone else needs to replicate the state at the primary –Witness is configured to act as a backup – the witness is promoted A primary that had failed comes back –It will bring itself up-to-date (using other servers’ logs) and will become the primary again A backup that had failed comes back –It will bring itself up-to-date; the previously promoted witness will no longer act as backup – the witness is demoted

21. 21 CMPT 401 2008 © A. Fedorova View Change: The Algorithm The node that starts the view change acts as coordinator Phase 1: –Coordinator tells others it wants to start a view change –Others stop processing any operations and send the coordinator their state, i.e., log records (that the coordinator does not already have) –The coordinator applies the log records to bring itself up-to-date

22. 22 CMPT 401 2008 © A. Fedorova View Change: The Algorithm Phase 2: –The coordinator writes the new view number to disk –Sends the view state to all participants –If both backup and witness responded, witness will be demoted –If only the witness responded, witness will be promoted –Other nodes write the view number to disk

23. 23 CMPT 401 2008 © A. Fedorova A Promoted Witness Does not have a copy of the file system state Under normal operation, does not update the file system A promoted witness begins logging filesystem state Upon promotion receives all log records that have not made it to disk (everything later than the GLB pointer) Promoted witness never discards log records When the log becomes too large, it is stored on disk or tape

24. 24 CMPT 401 2008 © A. Fedorova Simultaneous View Changes Suppose primary and backup cannot communicate with each other They both initiate a view change simultaneously One view change will be redundant – don’t want to waste time/resources on a useless view change Solution: delay the view change at the backup This way the primary is most likely to “win the race” for the view change What happens if simultaneous view changes are in place?

25. 25 CMPT 401 2008 © A. Fedorova Optimizations for Fast View Changes User operations are not processed during a view change, so view changes must be fast A view change may be slow if the server that must bring itself up-to-date must receive lots of log records from other servers Therefore, the server that must bring itself up-to-date in a new view (i.e., the primary that comes back after failure) brings itself up-to-date before initiating the view change If the server’s disk is intact it gets log records from the witness If the disk is damaged, it get FS state from the backup and then it gets log records from the witness

26. 26 CMPT 401 2008 © A. Fedorova Other Optimizations When the witness is promoted, it must receive all log entries beyond GLB The number of entries is likely to be large, so the view change may be slow To expedite the view change, the witness is kept in hot standby The primary sends all updates to the witness. The witness logs them, but does not acknowledge them. It discards the old entries from memory, does not log them to disk or tape

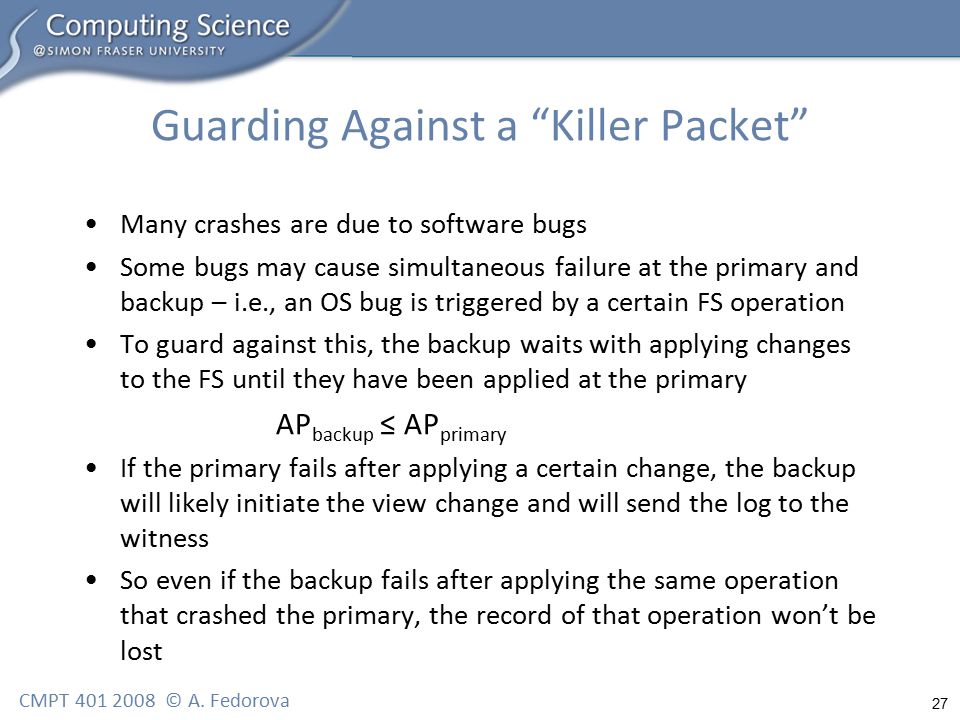

27. 27 CMPT 401 2008 © A. Fedorova Guarding Against a “Killer Packet” Many crashes are due to software bugs Some bugs may cause simultaneous failure at the primary and backup – i.e., an OS bug is triggered by a certain FS operation To guard against this, the backup waits with applying changes to the FS until they have been applied at the primary AP backup ≤ AP primary If the primary fails after applying a certain change, the backup will likely initiate the view change and will send the log to the witness So even if the backup fails after applying the same operation that crashed the primary, the record of that operation won’t be lost

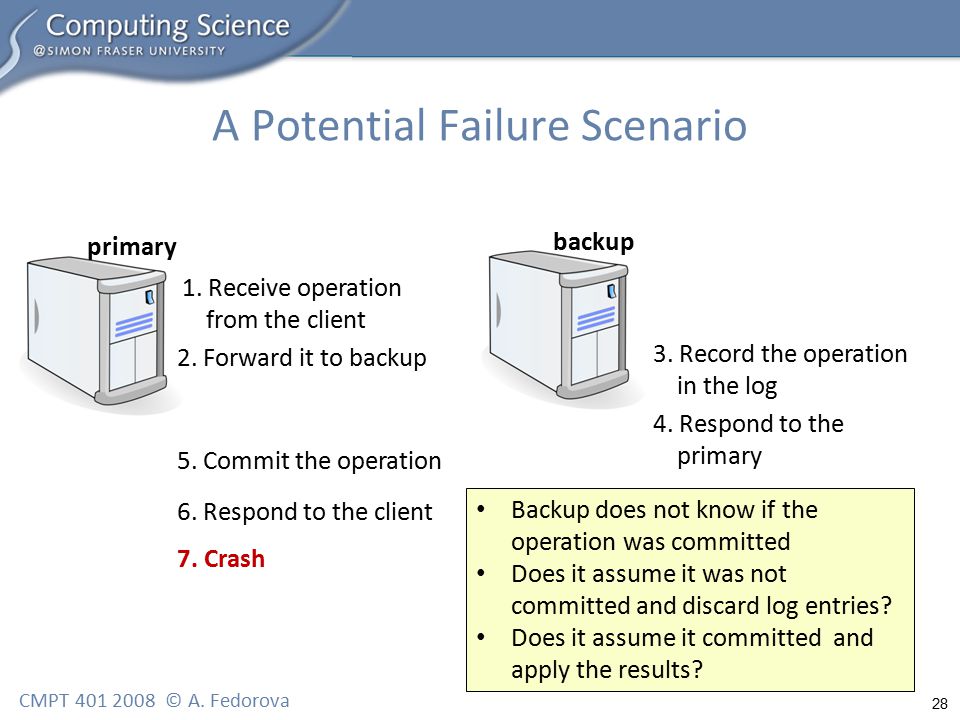

28. 28 CMPT 401 2008 © A. Fedorova A Potential Failure Scenario primary backup 1. Receive operation from the client 2. Forward it to backup 3. Record the operation in the log 4. Respond to the primary 5. Commit the operation 6. Respond to the client 7. Crash Backup does not know if the operation was committed Does it assume it was not committed and discard log entries? Does it assume it committed and apply the results?

29. 29 CMPT 401 2008 © A. Fedorova Let’s Play Harp! Let’s go over all the steps During normal operation And with failures

30. 30 CMPT 401 2008 © A. Fedorova Summary Primary-copy file system Unlike other replicated file system, provides good performance, because disk writes are not in the critical path Needs at least 2n+1 participants to handle n failures Data is replicated only on n+1 servers, to save disk space Wishing to have evidence/discussion on: –How the system works with view changes –What happens if a component crashes during a view change? –What happens with log records of uncommitted operations?

31. 31 CMPT 401 2008 © A. Fedorova Google File System A real massive distributed file system Hundreds of servers and clients –The largest cluster has >1000 storage nodes, over 300 TB of disk storage, hundreds of clients Metadata replication Data replication Design driven by application workload and technological environment Avoided many of the difficulties traditionally associated with replication by designing for a specific use case

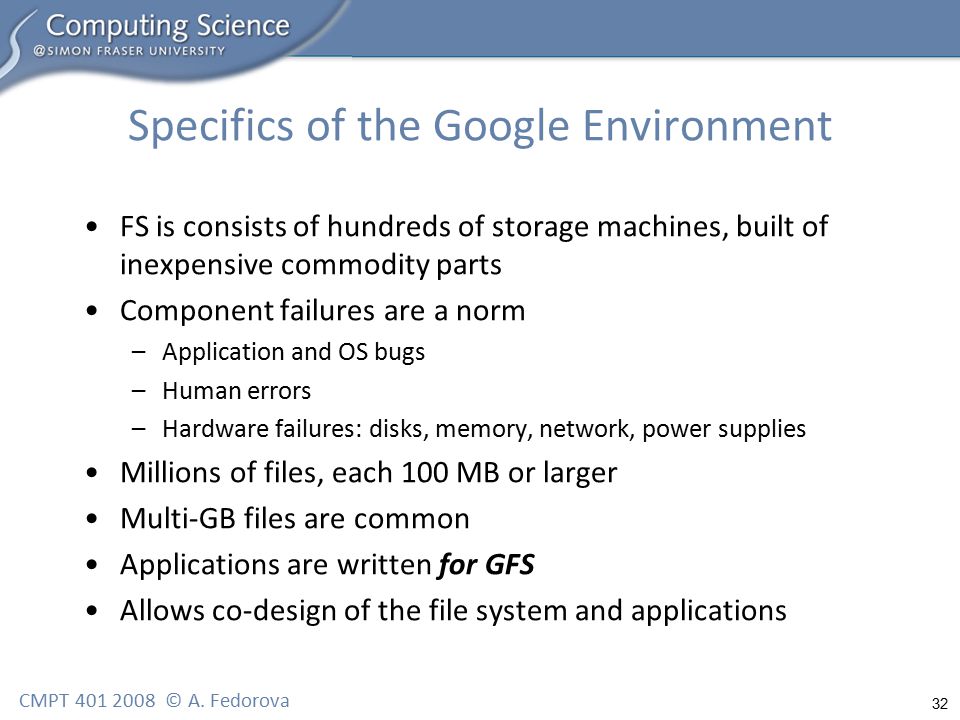

32. 32 CMPT 401 2008 © A. Fedorova Specifics of the Google Environment FS is consists of hundreds of storage machines, built of inexpensive commodity parts Component failures are a norm –Application and OS bugs –Human errors –Hardware failures: disks, memory, network, power supplies Millions of files, each 100 MB or larger Multi-GB files are common Applications are written for GFS Allows co-design of the file system and applications

33. 33 CMPT 401 2008 © A. Fedorova Specifics of the Google Workload Most files are mutated by appending new data – large sequential writes Random writes are very uncommon Files are written once, then they are only read Reads are sequential Large streaming reads and small random reads High bandwidth is more important than low latency Google applications: –Data analysis programs that scan through data repositories –Data streaming applications –Archiving –Applications producing (intermediate) search results

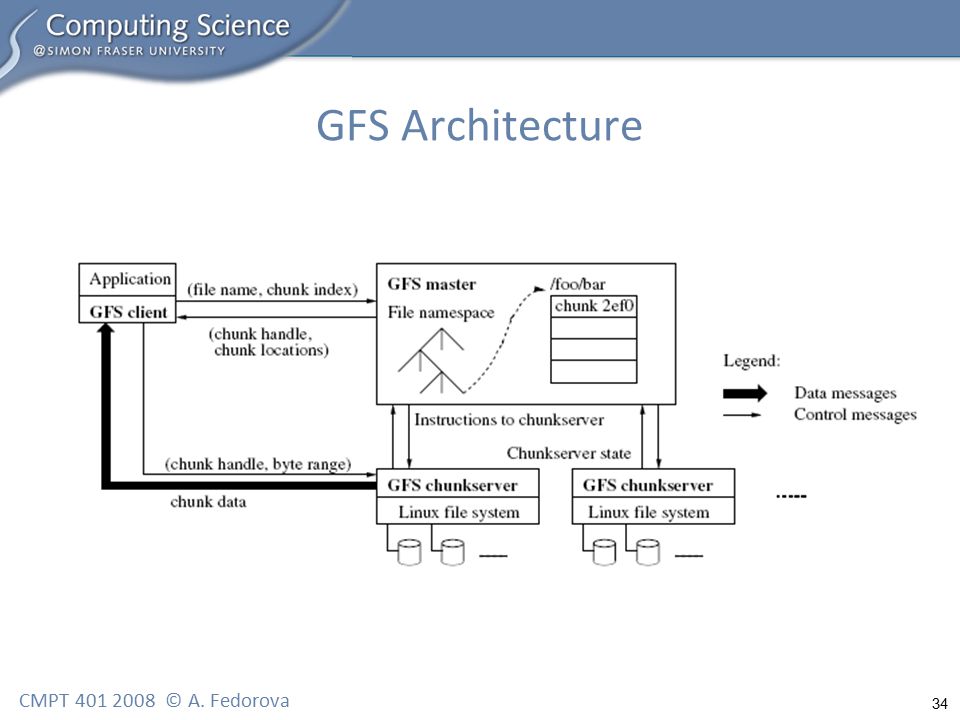

34. 34 CMPT 401 2008 © A. Fedorova GFS Architecture

35. 35 CMPT 401 2008 © A. Fedorova GFS Architecture (cont.) Single master Multiple chunk servers Multiple clients Each is a commodity Linux machine, a server is a user-level process Files are divided into chunks Each chunk has a handle (an ID assigned by the master) Each chunk is replicated (on three machines by default) Master stores metadata, manages chunks, does garbage collection, etc. Clients communicate with master for metadata operations, but with chunkservers for data operations No additional caching (besides the Linux in-memory buffer caching)

36. 36 CMPT 401 2008 © A. Fedorova Client/GFS Interaction Client: –Takes file and offset –Translates it into the chunk index within the file –Sends request to master, containing file name and chunk index Master: –Replies with the corresponding chunk handle and location of the replicas (the master must know where the replicas are) Client: –Caches this information –Contacts one of the replicas (i.e., a chunkserver) for data

37. 37 CMPT 401 2008 © A. Fedorova Master Stores metadata –The file and chunk namespaces –Mapping from files to chunks –Locations of each chunk’s replicas Interacts with clients Creates chunk replicas Orchestrates chunk modifications across multiple replicas –Ensures atomic concurrent appends –Locks concurrent operations Deletes old files (via garbage collection)

38. 38 CMPT 401 2008 © A. Fedorova Metadata On Master Metadata – data about the data: –File names –Mapping of file names to chunk IDs –Chunk locations Metadata is kept in memory File names and chunk mappings are also kept persistent in an operation log Chunk locations are kept in memory only –They will be lost during the crash –The master asks chunk servers about their chunks at startup – builds a table of chunk locations

39. 39 CMPT 401 2008 © A. Fedorova Why Keep Metadata In Memory? To keep master operations fast Master can periodically scan its internal state in the background, in order to implement: –Garbage collection –Re-replication (in case of chunk server failures) –Chunk migration (for load balancing) But the file system size is limited by the amount of memory on the master? –This has not been a problem for GFS – metadata is compact

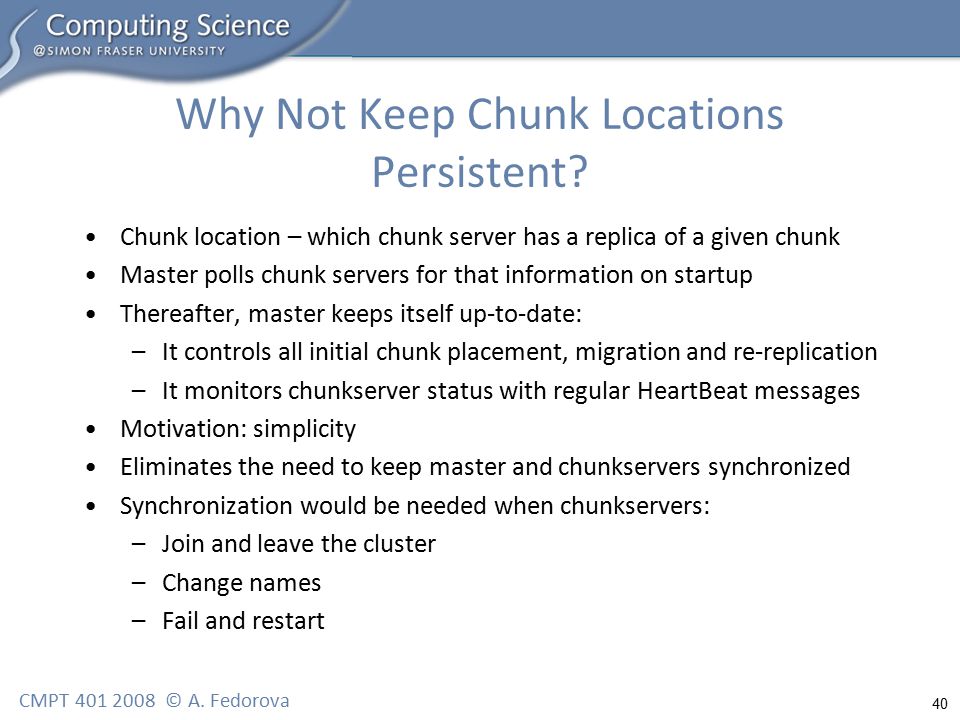

40. 40 CMPT 401 2008 © A. Fedorova Why Not Keep Chunk Locations Persistent? Chunk location – which chunk server has a replica of a given chunk Master polls chunk servers for that information on startup Thereafter, master keeps itself up-to-date: –It controls all initial chunk placement, migration and re-replication –It monitors chunkserver status with regular HeartBeat messages Motivation: simplicity Eliminates the need to keep master and chunkservers synchronized Synchronization would be needed when chunkservers: –Join and leave the cluster –Change names –Fail and restart

41. 41 CMPT 401 2008 © A. Fedorova Operation Log Historical record of metadata changes Maintains logical order of concurrent operations Log is used for recovery – the master replays it in the event of failures Master periodically checkpoints the log Checkpoint is a B-tree data structure –Can be loaded into memory –Used for namespace lookup without extra parsing Checkpoint can be done on the background

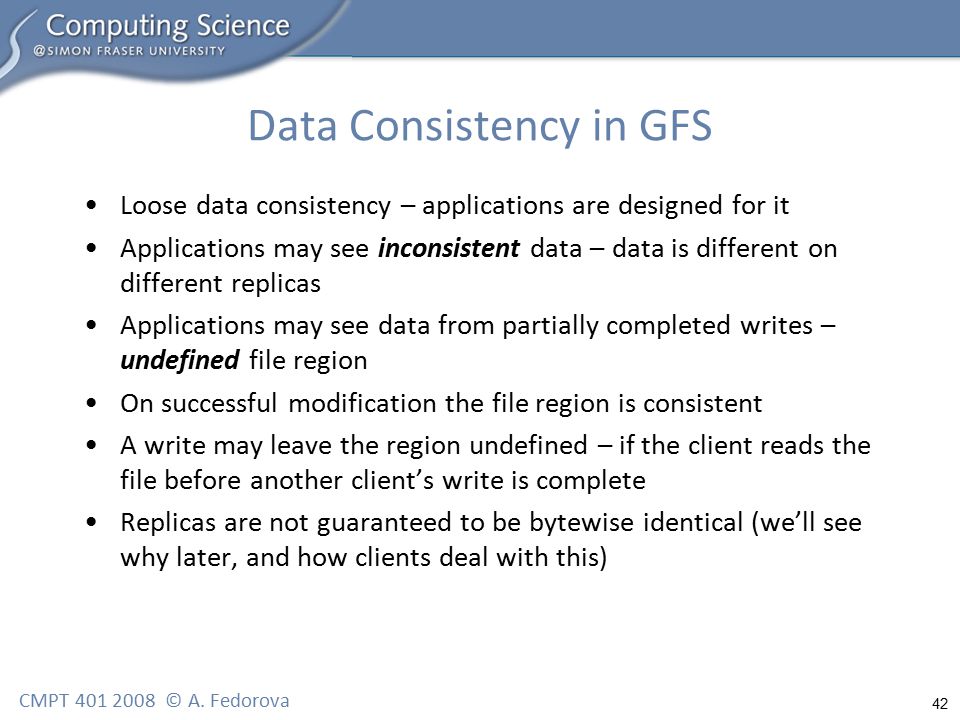

42. 42 CMPT 401 2008 © A. Fedorova Data Consistency in GFS Loose data consistency – applications are designed for it Applications may see inconsistent data – data is different on different replicas Applications may see data from partially completed writes – undefined file region On successful modification the file region is consistent A write may leave the region undefined – if the client reads the file before another client’s write is complete Replicas are not guaranteed to be bytewise identical (we’ll see why later, and how clients deal with this)

43. 43 CMPT 401 2008 © A. Fedorova Data Consistency in GFS (cont.) Failures: –A modification may fail at one or more replicas –On modification failure, file region is inconsistent Successes: –Modifications are applied to a chunk in the same order on all replicas –After a number of successful modifications, the file region is guaranteed to be defined: All replicas have the same data All replicas contain all the data written by all the write operations

44. 44 CMPT 401 2008 © A. Fedorova Implications of Loose Data Consistency For Applications Applications are designed to handle loose data consistency Example 1: a file is generated from beginning to end –An application creates a file with a temporary name –Atomically renames the file –May periodically checkpoint the file while it is written –File is written via appends – more resilient to failures than random writes Example 2: producer-consumer file –Many writers concurrently append to one file (for merged results) –Each record is self-validating (contains a checksum) –Client filters out padding and duplicate records

45. 45 CMPT 401 2008 © A. Fedorova Updates of Replicated Data Each mutation (modification) is performed at all the replicas Modifications are applied in the same order across all replicas Master grants a chunk lease to one replica – i.e., the primary The primary picks a serial order for all mutations to the chunk The client pushes data to all replicas The primary tells the replicas in which order they should apply modifications

46. 46 CMPT 401 2008 © A. Fedorova Updates of Replicated Data (cont.) 1.Client asks master for replica locations 2.Master responds 3.Client pushes data to all replicas; replicas store it in a buffer cache 4.Client sends a write request to the primary (identifying the data that had been pushed) 5.Primary forwards request to the secondaries (identifies the order) 6.The secondaries respond to the primary 7.The primary responds to the client

47. 47 CMPT 401 2008 © A. Fedorova Failure Handling During Updates If a write fails at the primary: –The primary may report failure to the client – the client will retry –If the primary does not respond, the client retries from Step 1 by contacting the master If a write succeeds at the primary, but fails at several replicas –The client retries several times (Steps 3-7)

48. 48 CMPT 401 2008 © A. Fedorova Data Flow Data flow is decoupled from control flow Data is pushed linearly across all chunkservers in a pipelined fashion (not necessarily from client to primary and from primary to secondary) Client forwards data to the closest replica; that replica forwards to the next closest replica, etc. Pipelined fashion: while the data is incoming, the server begins forwarding it to the next replica This design ensures good network utilization

49. 49 CMPT 401 2008 © A. Fedorova Atomic Record Appends Atomic append is a write – but GFS (the primary replica) chooses the offset where the append happens; returns the offset to the client This way GFS can decide on serial order of concurrent appends without client synchronization If an append fails at some replicas – the client retries As a result, the file may contain multiple copies of the same record, plus replicas may be bytewise different But after a successful update all replicas will be defined – they will all have the data written by the client at the same offset

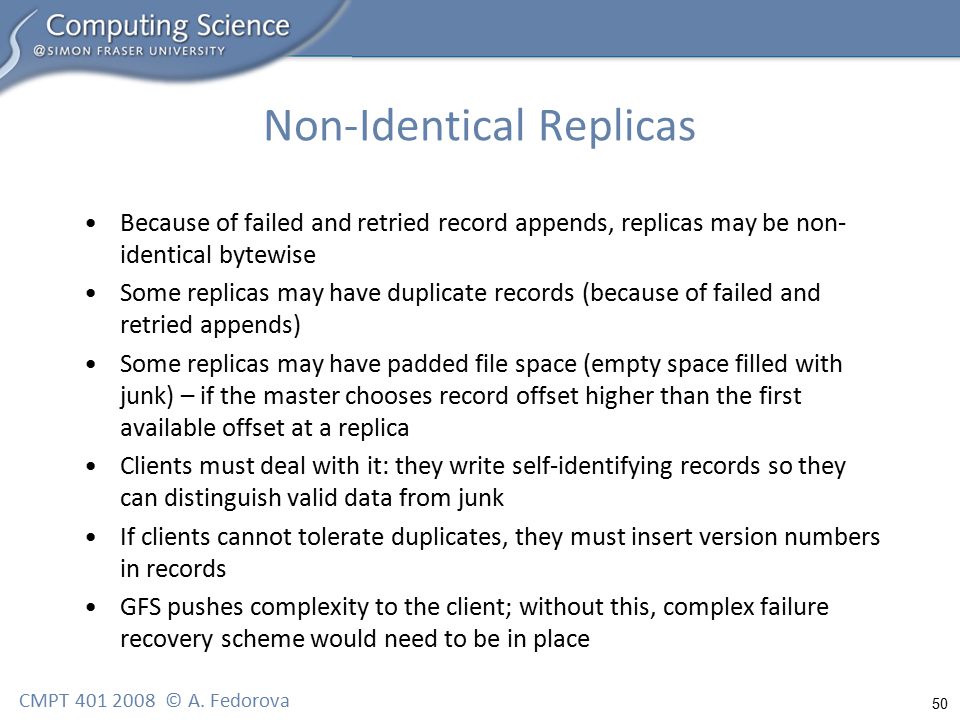

50. 50 CMPT 401 2008 © A. Fedorova Non-Identical Replicas Because of failed and retried record appends, replicas may be non- identical bytewise Some replicas may have duplicate records (because of failed and retried appends) Some replicas may have padded file space (empty space filled with junk) – if the master chooses record offset higher than the first available offset at a replica Clients must deal with it: they write self-identifying records so they can distinguish valid data from junk If clients cannot tolerate duplicates, they must insert version numbers in records GFS pushes complexity to the client; without this, complex failure recovery scheme would need to be in place

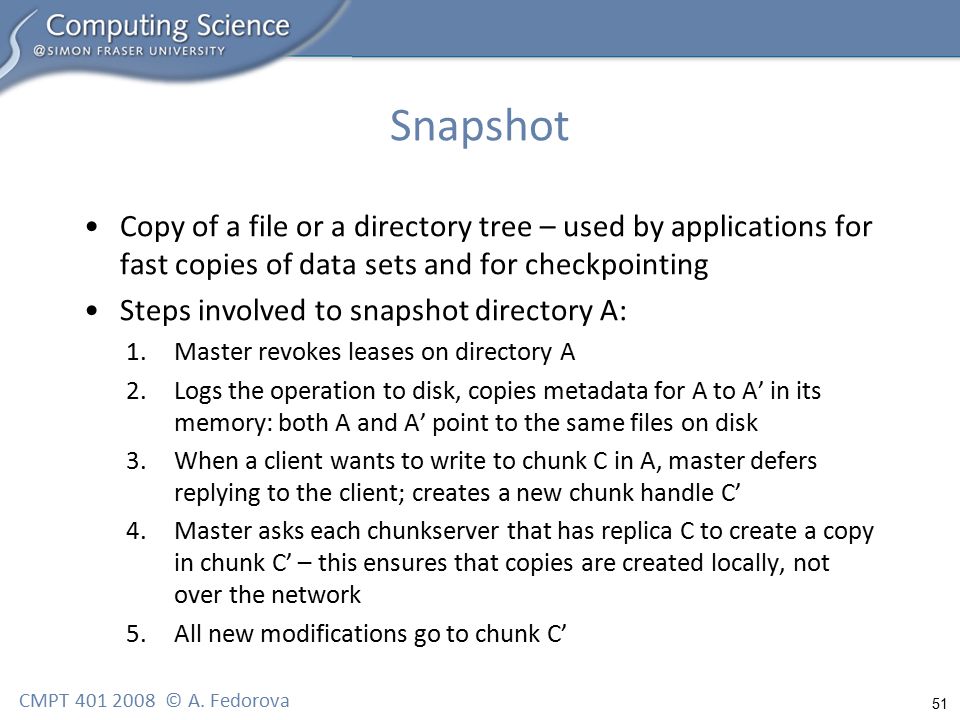

51. 51 CMPT 401 2008 © A. Fedorova Snapshot Copy of a file or a directory tree – used by applications for fast copies of data sets and for checkpointing Steps involved to snapshot directory A: 1.Master revokes leases on directory A 2.Logs the operation to disk, copies metadata for A to A’ in its memory: both A and A’ point to the same files on disk 3.When a client wants to write to chunk C in A, master defers replying to the client; creates a new chunk handle C’ 4.Master asks each chunkserver that has replica C to create a copy in chunk C’ – this ensures that copies are created locally, not over the network 5.All new modifications go to chunk C’

52. 52 CMPT 401 2008 © A. Fedorova Namespace Management and Locking Each file or directory has an associated read/write lock Each operation on a master acquires a set of read/write locks before it runs Read locks are acquired on all files/directories that are being accessed, i.e., each intermediate directory in /d1/d2/…/dn Write locks are acquired on –Snapshots (to prevent creation of new files in a directory during the snapshot) –File names – when that file is created –No write lock on directory is needed on file creation – no directory inode to modify; multiple file creations can be done concurrently

53. 53 CMPT 401 2008 © A. Fedorova Garbage Collection File deletion is not done immediately – space from deleted files is garbage collected lazily When a file is deleted – the master logs the operation and renames it to a hidden name During regular metadata scan the master deletes that file’s metadata (after at least three days) During regular scan of chunk namespace, the master identifies orphaned chunks, deletes that metadata Master tells chunk replicas to delete orphaned chunks

54. 54 CMPT 401 2008 © A. Fedorova Load Balancing Goals: –Maximize data availability and reliability –Maximize network bandwidth utilization Google infrastructure: –Cluster consists of hundreds of racks –Each rack has a dozen machines –Racks are connected by network switches –A rack is on a single power circuit Must balance load across machines and across racks

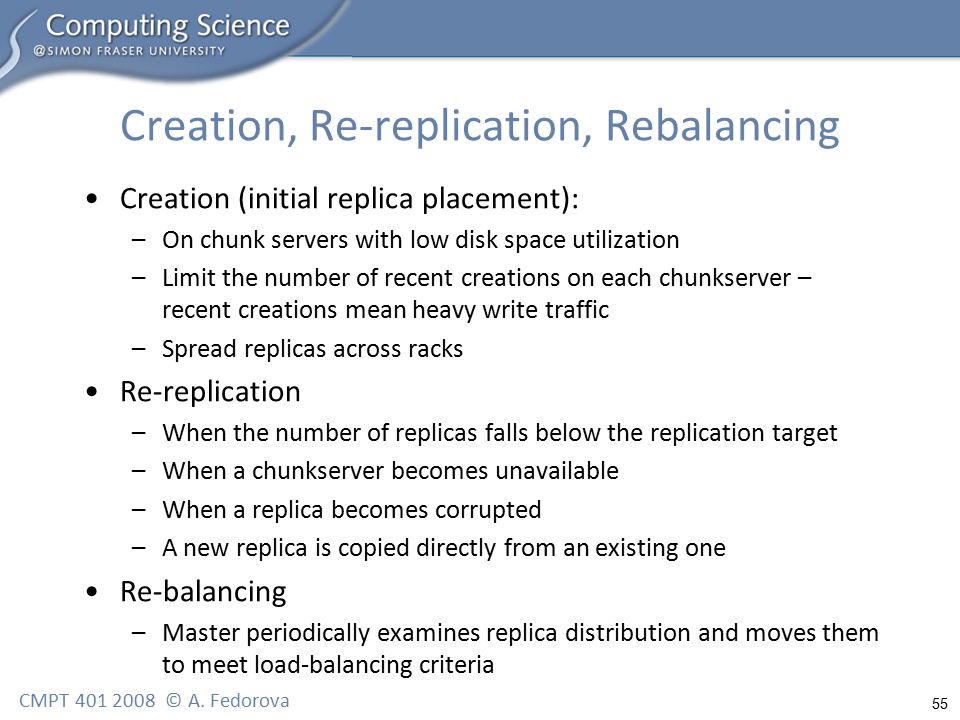

55. 55 CMPT 401 2008 © A. Fedorova Creation, Re-replication, Rebalancing Creation (initial replica placement): –On chunk servers with low disk space utilization –Limit the number of recent creations on each chunkserver – recent creations mean heavy write traffic –Spread replicas across racks Re-replication –When the number of replicas falls below the replication target –When a chunkserver becomes unavailable –When a replica becomes corrupted –A new replica is copied directly from an existing one Re-balancing –Master periodically examines replica distribution and moves them to meet load-balancing criteria

56. 56 CMPT 401 2008 © A. Fedorova Fault Tolerance Fast recovery –No distinction between normal and abnormal shutdown –Servers are routinely restarted by “killing” a server process –Servers are designed for fast recovery – all state can be recovered from the log Chunk replication Master replication Data integrity Diagnostic tools

57. 57 CMPT 401 2008 © A. Fedorova Chunk Replication Each chunk is replicated on multiple chunkservers on different racks Users can specify different replication levels for different parts of the file namespace (default is 3) The master clones existing replicas as needed to keep each chunk fully replicated

58. 58 CMPT 401 2008 © A. Fedorova Single Master Simplifies design Master can make sophisticated load-balancing decisions involving chunk placement using global knowledge To prevent master from becoming the bottleneck –Clients communicate with master only for metadata –Master keeps metadata in memory –Clients cache metadata –File data is transferred from chunkservers

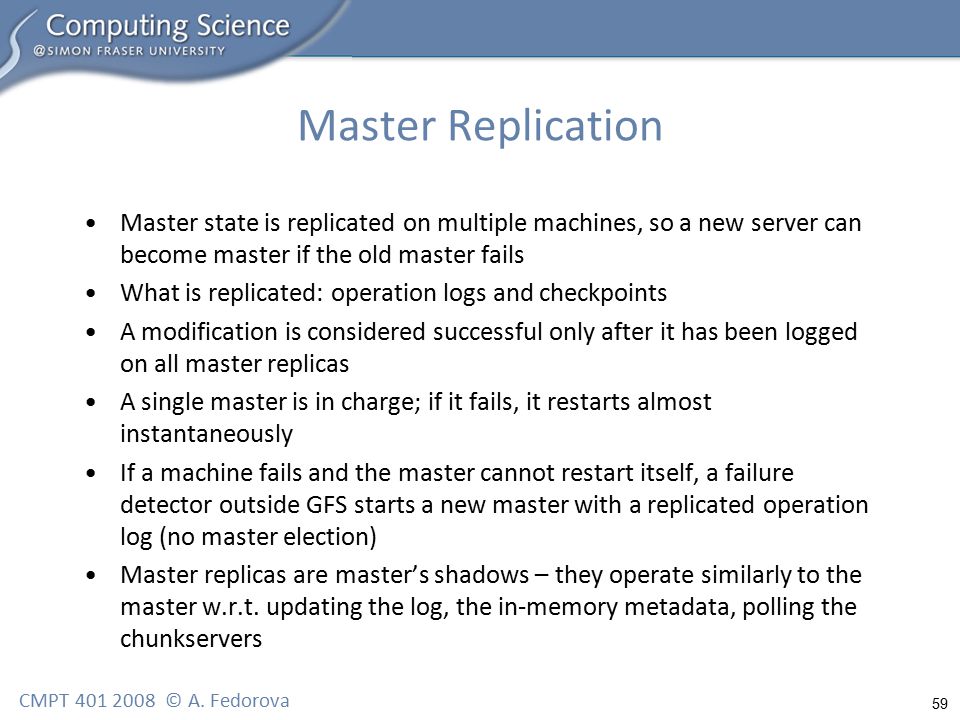

59. 59 CMPT 401 2008 © A. Fedorova Master Replication Master state is replicated on multiple machines, so a new server can become master if the old master fails What is replicated: operation logs and checkpoints A modification is considered successful only after it has been logged on all master replicas A single master is in charge; if it fails, it restarts almost instantaneously If a machine fails and the master cannot restart itself, a failure detector outside GFS starts a new master with a replicated operation log (no master election) Master replicas are master’s shadows – they operate similarly to the master w.r.t. updating the log, the in-memory metadata, polling the chunkservers

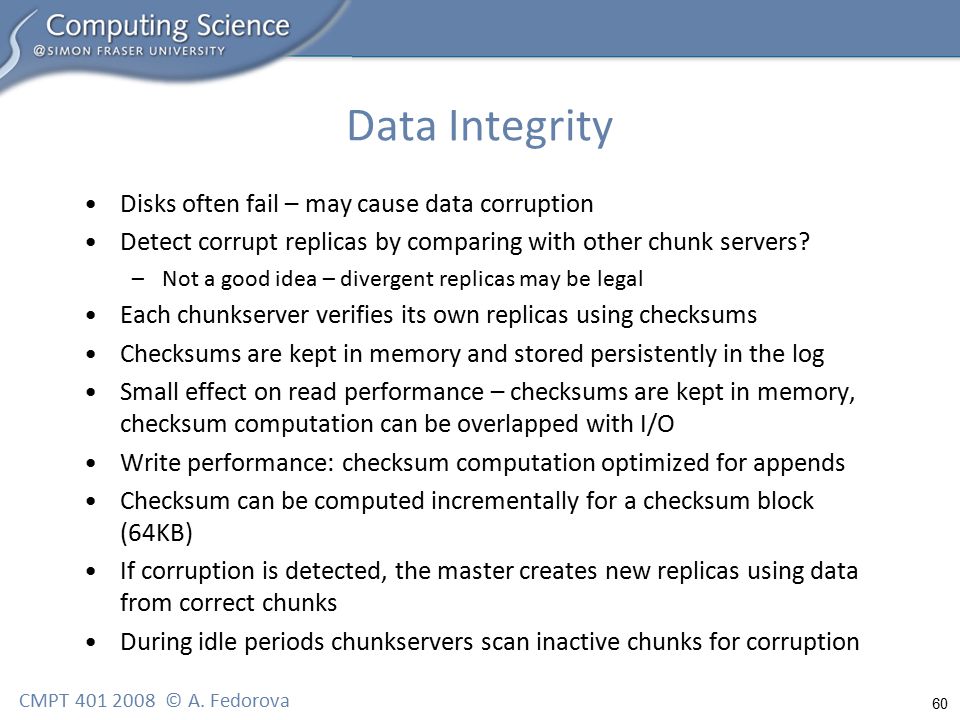

60. 60 CMPT 401 2008 © A. Fedorova Data Integrity Disks often fail – may cause data corruption Detect corrupt replicas by comparing with other chunk servers? –Not a good idea – divergent replicas may be legal Each chunkserver verifies its own replicas using checksums Checksums are kept in memory and stored persistently in the log Small effect on read performance – checksums are kept in memory, checksum computation can be overlapped with I/O Write performance: checksum computation optimized for appends Checksum can be computed incrementally for a checksum block (64KB) If corruption is detected, the master creates new replicas using data from correct chunks During idle periods chunkservers scan inactive chunks for corruption

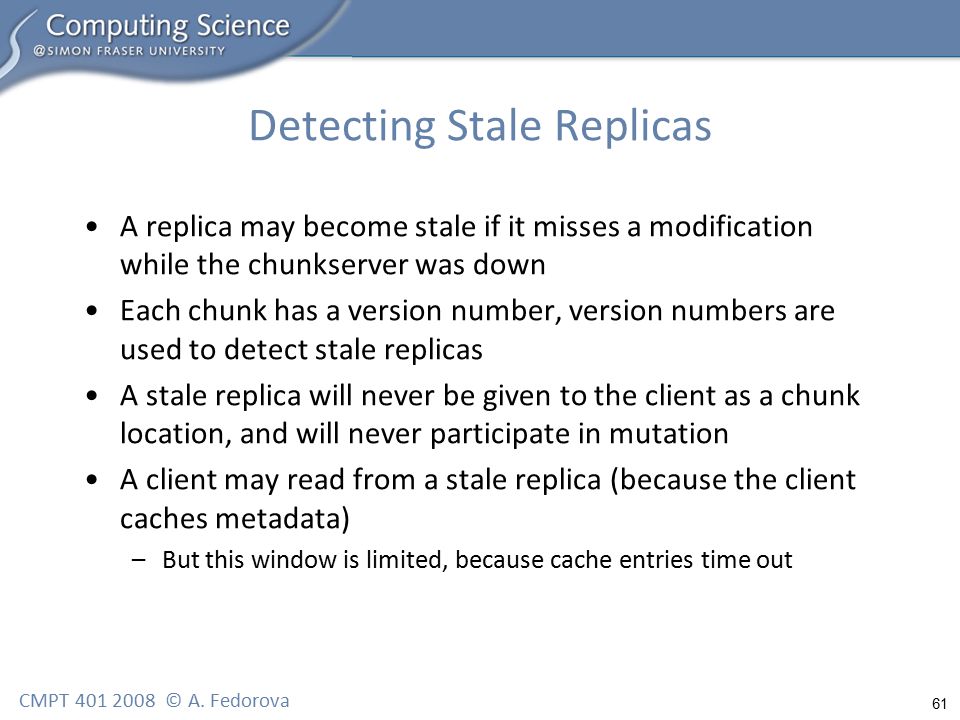

61. 61 CMPT 401 2008 © A. Fedorova Detecting Stale Replicas A replica may become stale if it misses a modification while the chunkserver was down Each chunk has a version number, version numbers are used to detect stale replicas A stale replica will never be given to the client as a chunk location, and will never participate in mutation A client may read from a stale replica (because the client caches metadata) –But this window is limited, because cache entries time out

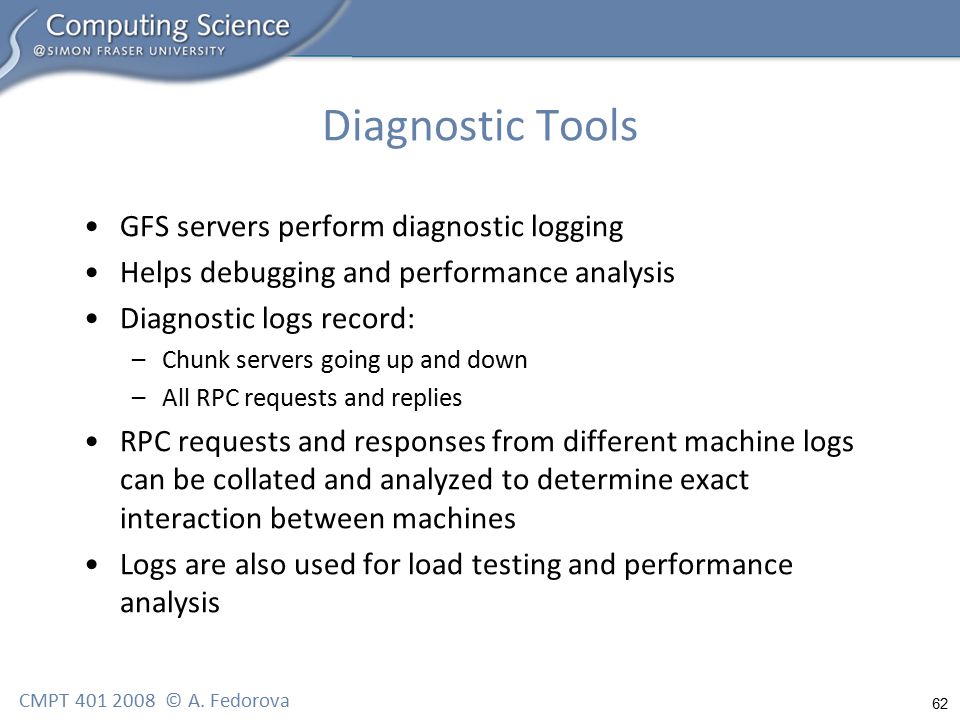

62. 62 CMPT 401 2008 © A. Fedorova Diagnostic Tools GFS servers perform diagnostic logging Helps debugging and performance analysis Diagnostic logs record: –Chunk servers going up and down –All RPC requests and replies RPC requests and responses from different machine logs can be collated and analyzed to determine exact interaction between machines Logs are also used for load testing and performance analysis

63. 63 CMPT 401 2008 © A. Fedorova GFS Summary Real replicated file system Uses commodity hardware – hundreds of commodity PCs and disks Two levels of replication: –Metadata is replicated via replicated masters –Data is replicated on replicated chunkservers Designed for specific use case – for Google applications –And applications are designed for GFS This is why it is simple and it actually works

64. 64 CMPT 401 2008 © A. Fedorova GFS Summary (cont.) Design philosophy: –A replicated FS can’t do all things right and all things well: –Strong data consistency? –Identical replicas? –Fast concurrent operations? –That’s too hard… –So make several operations fast, make them common case Common case operations – atomic appends Clients deal with weak consistency –Write self-identifying records –Deal with duplicate records and padding Something to learn: if generic design is hard, design for your specific use case!

65. 65 CMPT 401 2008 © A. Fedorova Outline Harp –A replicated research file system Google File System –A real replicated file system Amazon Distributed Data Store –A distributed database

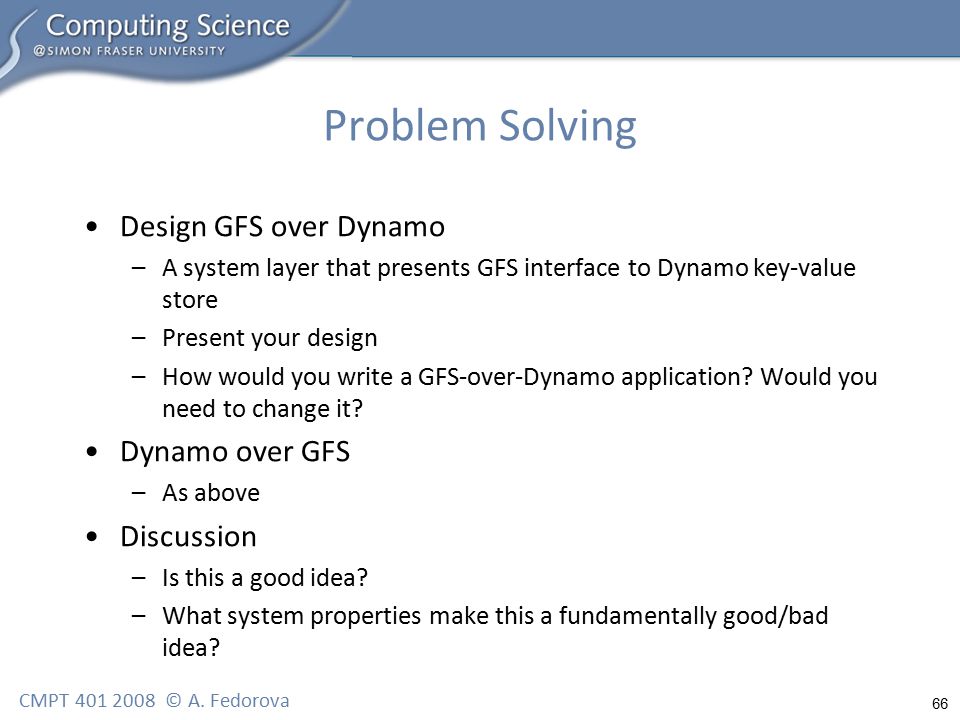

66. 66 CMPT 401 2008 © A. Fedorova Problem Solving Design GFS over Dynamo –A system layer that presents GFS interface to Dynamo key-value store –Present your design –How would you write a GFS-over-Dynamo application? Would you need to change it? Dynamo over GFS –As above Discussion –Is this a good idea? –What system properties make this a fundamentally good/bad idea?

67. 67 CMPT 401 2008 © A. Fedorova Dynamo: Amazon’s Key-Value Store A distributed database Contains data about: –Customer shopping carts –Customer sessions –Amazon search engine Highly replicated –Across data center –Across continents –“A customer must be able to update a shopping cart even if the world is being destroyed by a tornado”.

68. 68 CMPT 401 2008 © A. Fedorova Dynamo: A Database? This is basically a database But not your conventional database Conventional (relational) database: –Data organized in tables –Primary and secondary keys –Tables sorted by primary/secondary keys –Designed to answer any imaginable query –Does not scale to thousands of nodes –Difficult to replicate Amazon’s Dynamo –Access by primary key only

69. 69 CMPT 401 2008 © A. Fedorova ACID Properties Atomicity – yes –Updates are atomic by definition –There are no transactions Consistency – no –Data is eventually consistent –Loose consistency is tolerated –Reconciliation is performed by the client Isolation –No isolation – one update at a time Durability – yes –Durability is provided via replication

70. 70 CMPT 401 2008 © A. Fedorova High Availability Good service time is key for Amazon Not good when a credit card transaction times out Service-level agreement: the client’s response must be answered within 300ms Must provide this service for 99.9% of transactions at the load of 500 requests/second.

71. 71 CMPT 401 2008 © A. Fedorova The Cost of Respecting the SLA Loose consistency Synchronous replica reconciliation during the request cannot be done We contact a few replicas, if some do not reply, request is considered failed When to resolve conflicting updates? During reads or during writes? Usually resolved during writes Dynamo resolves it during reads Motivation: must have an always writable data store (can’t lose customer shopping card data)

72. 72 CMPT 401 2008 © A. Fedorova System Interface get ( key ) –Locate object replicas –Return: A single object A list of objects with conflicting versions Context (opaque information about object versioning) put (key, value, context) –Determines where the replicas should be placed –Writes them to disk

73. 73 CMPT 401 2008 © A. Fedorova Key System Architecture Components Partitioning Replication Versioning Membership Failure Handling Scaling

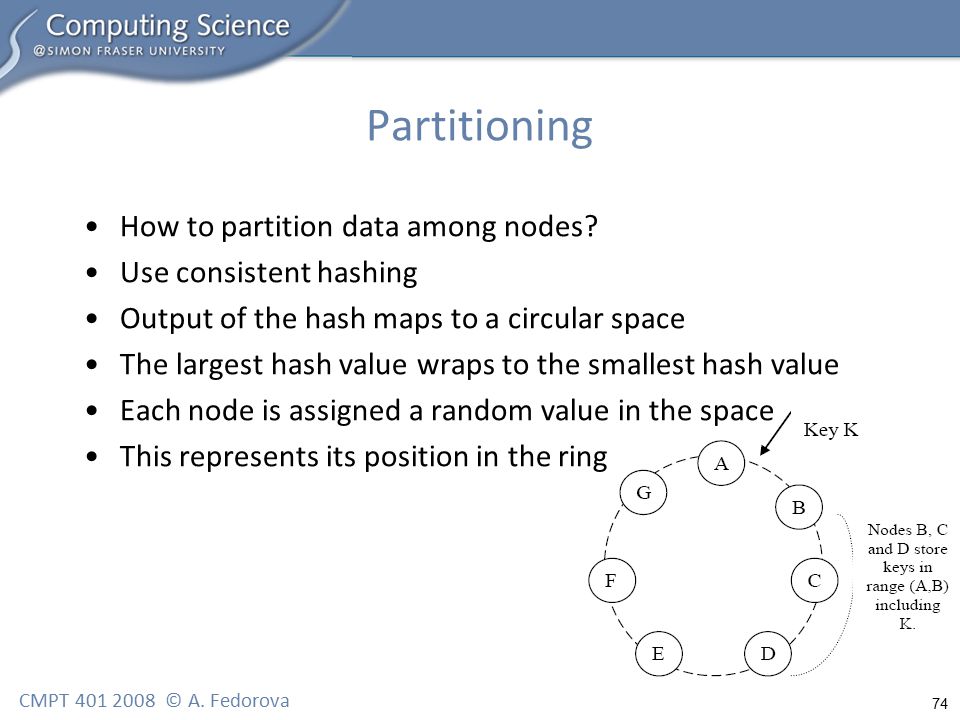

74. 74 CMPT 401 2008 © A. Fedorova Partitioning How to partition data among nodes? Use consistent hashing Output of the hash maps to a circular space The largest hash value wraps to the smallest hash value Each node is assigned a random value in the space This represents its position in the ring

75. 75 CMPT 401 2008 © A. Fedorova Assigning a Key to a Node Hash the key Find the node with the corresponding ring position Walk the ring clockwise to find the first node with the greater position than that of the key Similar search algorithms are used in distributed hash tables

76. 76 CMPT 401 2008 © A. Fedorova Problems With Consistent Hashing May lead to unbalance data and load distribution Solution: –Each node is a virtual node –Assign multiple virtual nodes to one physical node

77. 77 CMPT 401 2008 © A. Fedorova Replication Each node has a coordinator (the node determined by the hash) The coordinator hashes the node at N other replicas N replicas that are next to the coordinator node in the ring in the clockwise fashion Virtual nodes are skipped to ensure that replicas are located on different physical nodes

78. 78 CMPT 401 2008 © A. Fedorova Versioning Dynamo stores multiple versions of each data item Each update creates a new immutable version of the data item Versions are reconciled –By the system –By the client Versioning is achieved using vector clocks

79. 79 CMPT 401 2008 © A. Fedorova Routing of Requests Through a generic load balancer –May forward request to a node who is NOT a coordinator –The recipient node will forward the request to the coordinator Through a partition-aware client library that directly selects a coordinator

80. 80 CMPT 401 2008 © A. Fedorova Maintaining Consistency Via Quorum Dynamo is configured with two parameters: R and W R is the minimum number of nodes who participate in the successful Read operation W is the minimum number of nodes who participate in the successful Write operation Request handling protocol (for writes): –Coordinator receives request –Coordinator computes vector clock and writes new version to disk –Coordinator sends the new version and vector clock to the N replicas –If at least W-1 respond, the request is successful

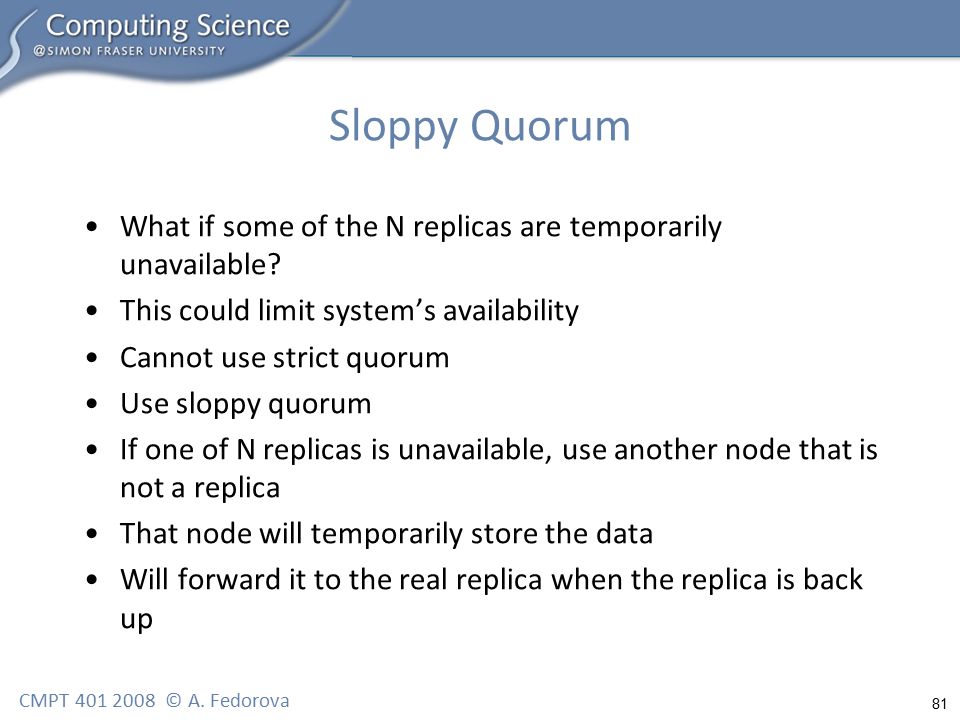

81. 81 CMPT 401 2008 © A. Fedorova Sloppy Quorum What if some of the N replicas are temporarily unavailable? This could limit system’s availability Cannot use strict quorum Use sloppy quorum If one of N replicas is unavailable, use another node that is not a replica That node will temporarily store the data Will forward it to the real replica when the replica is back up

82. 82 CMPT 401 2008 © A. Fedorova Replica Synchronization User Merkle trees Leaves are hashes of keys Can compare trees incrementally, without transferring the whole tree If a part the tree is not modified, the parent nodes’ hashes will be identical So parts of the tree can be compared without sending data between two replicas Only keys that are out of sync are transferred

83. 83 CMPT 401 2008 © A. Fedorova Membership Membership is always explicit Nodes are added/removed by the operator So there is no need for “coordinator election” If a node is unavailable, this is considered temporary A node that starts up chooses a set of tokens (virtual nodes) and maps virtual nodes to physical nodes Membership information is eventually propagated via gossip protocol Mapping is persisted on disk

84. 84 CMPT 401 2008 © A. Fedorova Preventing Logical Partitions A new node may be unaware of other nodes before memberships are propagated If several such nodes are added simultaneously, we may have a logical partition Partitions are prevented using seed nodes Seed nodes are obtained from a static source, and they are known to everyone Memberships are propagated to everyone via seed nodes

85. 85 CMPT 401 2008 © A. Fedorova Failure Detection Failure discovery is local Node A discovers that Node B has failed if Node B does not respond Failures (like memberships) are propagated via gossip protocol

86. 86 CMPT 401 2008 © A. Fedorova Problem Solving (I) Design GFS over Dynamo –A system layer that presents GFS interface to Dynamo key-value store –Present your design –How would you write a GFS-over-Dynamo application? Would you need to change it? Dynamo over GFS –As above Discussion –Is this a good idea? –What system properties make this a fundamentally good/bad idea?

87. 87 CMPT 401 2008 © A. Fedorova Problem Solving (II) Can you name similarities between GFS and Dynamo? Can you name the differences? Play in teams!
