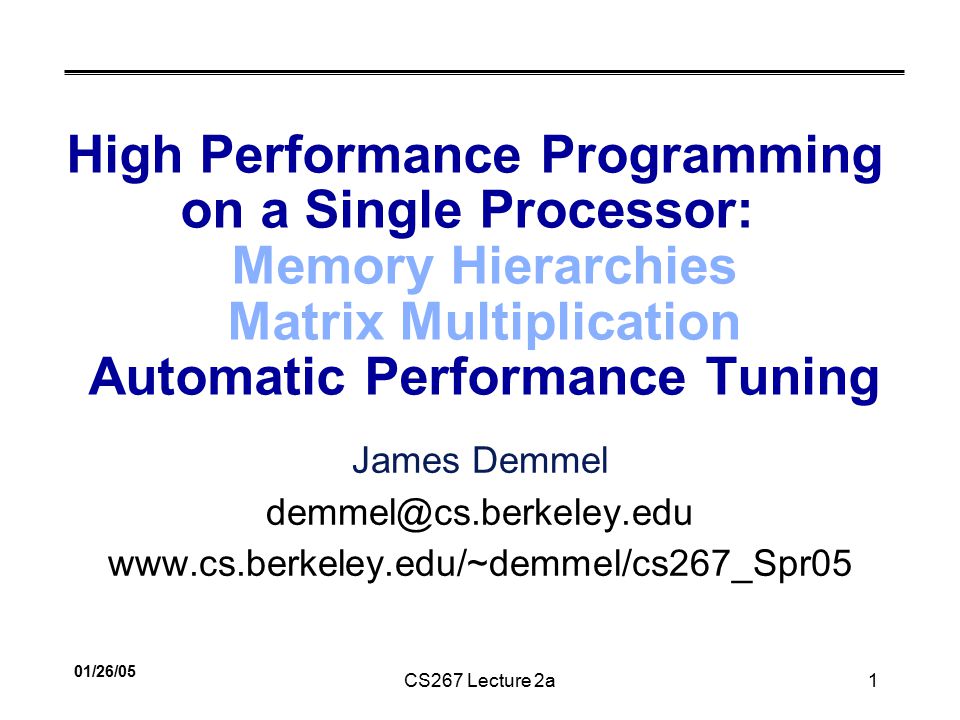

1. 01/26/05 CS267 Lecture 2a1 High Performance Programming on a Single Processor: Memory Hierarchies Matrix Multiplication Automatic Performance Tuning James Demmel demmel@cs.berkeley.edu www.cs.berkeley.edu/~demmel/cs267_Spr05

2. 01/26/05CS267 Lecture 2a2 Outline Idealized and actual costs in modern processors Memory hierarchies Case Study: Matrix Multiplication Automatic Performance Tuning

3. 01/26/05CS267 Lecture 2a3 Matrix-multiply, optimized several ways Speed of n-by-n matrix multiply on Sun Ultra-1/170, peak = 330 MFlops

4. 01/26/05CS267 Lecture 2a4 Automatic Performance Tuning Why can’t compilers choose fastest code? Difficulty of accurate performance modeling at compile time Remember complexity of Memory Benchmark! Large set of possible code variations to consider, with different Data structures Algorithms (i.e. perhaps (slightly) different answers) May not know everything needed to tune until run-time Architectures change faster than compilers Consequences Can’t replace expertise of user (yet) You need to know basics of writing efficient code You need to recognize previously well-solved problems Some important kernels (eg matmul) are automatically tuned Homework #1 (on web page) Optimizing matrix multiply Work in (assigned) interdisciplinary teams Race against one another, “best practice”

5. 01/26/05CS267 Lecture 2a5 Search Over Block Sizes Performance models are useful for high level algorithms Helps in developing a blocked algorithm Models have not proven very useful for block size selection too complicated to be useful –See work by Sid Chatterjee for detailed model too simple to be accurate –Multiple multidimensional arrays, virtual memory, etc. Speed depends on matrix dimensions, details of code, compiler, processor Some systems use search over “design space” of possible implementations PHiPAC: www.icsi.berkeley.edu/~bilmes/phipac in particular tr-98-035.ps.gz ATLAS: www.netlib.org/atlas www.netlib.org/atlas Part of Matlab, some vendor libraries

6. 01/26/05CS267 Lecture 2a6 What part of the Matmul Search Space Looks Like A 2-D slice of a 3-D register-tile search space. The dark blue region was pruned. (Platform: Sun Ultra-IIi, 333 MHz, 667 Mflop/s peak, Sun cc v5.0 compiler) Number of columns in register block Number of rows in register block

7. 01/26/05CS267 Lecture 2a7 ATLAS (DGEMM n = 500) ATLAS is faster than all other portable BLAS implementations and it is comparable with machine-specific libraries provided by the vendor. Source: Jack Dongarra

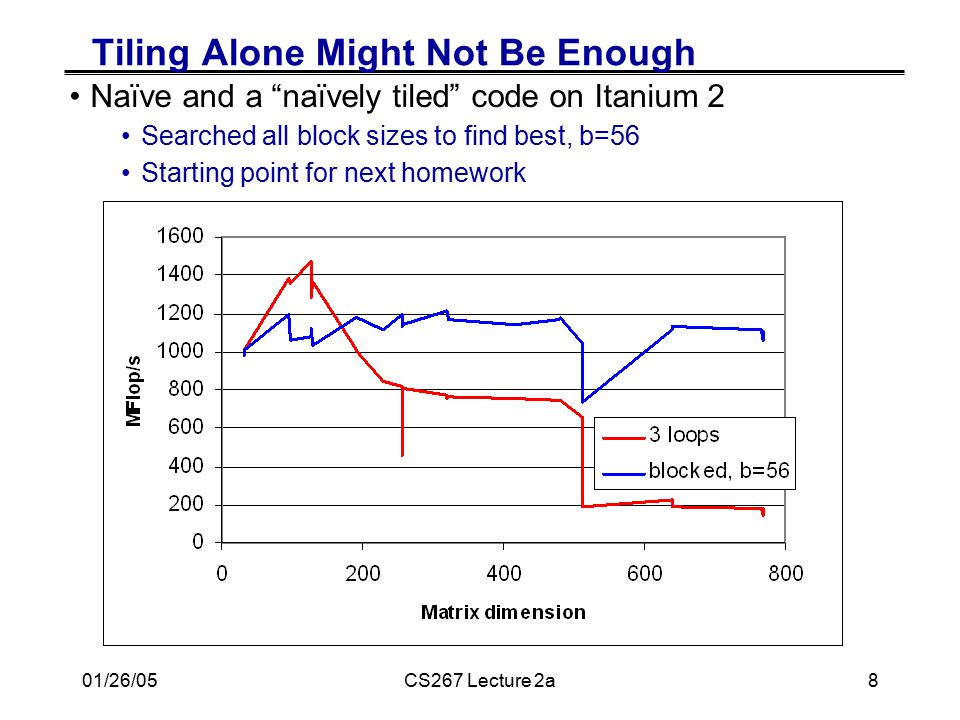

8. 01/26/05CS267 Lecture 2a8 Tiling Alone Might Not Be Enough Naïve and a “naïvely tiled” code on Itanium 2 Searched all block sizes to find best, b=56 Starting point for next homework

9. 01/26/05CS267 Lecture 2a9 Optimizing in Practice Tiling for registers loop unrolling, use of named “register” variables Tiling for multiple levels of cache and TLB Exploiting fine-grained parallelism in processor superscalar; pipelining Complicated compiler interactions Hard to do by hand (but you’ll try in homework #1)

10. 01/26/05CS267 Lecture 2a10 Removing False Dependencies Using local variables, reorder operations to remove false dependencies a[i] = b[i] + c; a[i+1] = b[i+1] * d; float f1 = b[i]; float f2 = b[i+1]; a[i] = f1 + c; a[i+1] = f2 * d; false read-after-write hazard between a[i] and b[i+1] With some compilers, you can declare a and b unaliased. Done via “restrict pointers,” compiler flag, or pragma)

11. 01/26/05CS267 Lecture 2a11 Exploit Multiple Registers Reduce demands on memory bandwidth by pre-loading into local variables while( … ) { *res++ = filter[0]*signal[0] + filter[1]*signal[1] + filter[2]*signal[2]; signal++; } float f0 = filter[0]; float f1 = filter[1]; float f2 = filter[2]; while( … ) { *res++ = f0*signal[0] + f1*signal[1] + f2*signal[2]; signal++; } also: register float f0 = …; Example is a convolution

12. 01/26/05CS267 Lecture 2a12 Minimize Pointer Updates Replace pointer updates for strided memory addressing with constant array offsets f0 = *r8; r8 += 4; f1 = *r8; r8 += 4; f2 = *r8; r8 += 4; f0 = r8[0]; f1 = r8[4]; f2 = r8[8]; r8 += 12; Pointer vs. array expression costs may differ. Some compilers do a better job at analyzing one than the other

13. 01/26/05CS267 Lecture 2a13 Loop Unrolling Expose instruction-level parallelism float f0 = filter[0], f1 = filter[1], f2 = filter[2]; float s0 = signal[0], s1 = signal[1], s2 = signal[2]; *res++ = f0*s0 + f1*s1 + f2*s2; do { signal += 3; s0 = signal[0]; res[0] = f0*s1 + f1*s2 + f2*s0; s1 = signal[1]; res[1] = f0*s2 + f1*s0 + f2*s1; s2 = signal[2]; res[2] = f0*s0 + f1*s1 + f2*s2; res += 3; } while( … );

14. 01/26/05CS267 Lecture 2a14 Expose Independent Operations Hide instruction latency Use local variables to expose independent operations that can execute in parallel or in a pipelined fashion Balance the instruction mix (what functional units are available?) f1 = f5 * f9; f2 = f6 + f10; f3 = f7 * f11; f4 = f8 + f12;

15. 01/26/05CS267 Lecture 2a15 Copy optimization Copy input operands or blocks Reduce cache conflicts Constant array offsets for fixed size blocks Expose page-level locality 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Original matrix (numbers are addresses) 0 1 4 5 2 3 6 7 8 9 12 14 10 11 13 15 Reorganized into 2x2 blocks

16. 01/26/05CS267 Lecture 2a16 Locality in Other Algorithms The performance of any algorithm is limited by q q = # flops / # memory refs = “Computational Intensity” In matrix multiply, we increase q by changing computation order increased temporal locality For other algorithms and data structures, tuning still an open problem sparse matrices (reordering, blocking) Weekly research meetings Bebop.cs.berkeley.edu About to release OSKI – tuning sequential sparse-matrix-vector multiply and related operations trees (B-Trees are for the disk level of the hierarchy) linked lists (some work done here)

17. 01/26/05CS267 Lecture 2a17 Other Automatic Tuning Efforts FFTW (MIT) “Fastest Fourier Transform in the West” Sequential and parallel Many variants (real/complex, sine/cosine, multidimensional) 1999 Wilkinson Prize www.fftw.org Spiral (CMU) Digital signal processing transforms FFT and beyond www.spiral.net BEBOP (UCB) Bebop.cs.berkeley.edu Sparse matrix kernels Interprocessor communication kernels Bebop, Dongarra (UTK)

18. 01/26/05CS267 Lecture 2a18 Summary of Performance Tuning Performance programming on uniprocessors requires understanding of memory system understanding of fine-grained parallelism in processor Simple performance models can aid in understanding Two ratios are key to efficiency (relative to peak) 1.computational intensity of the algorithm: q = f/m = # floating point operations / # slow memory references 2.machine balance in the memory system: t m /t f = time for slow memory reference / time for floating point operation Want q > t m /t f to get half machine peak Blocking (tiling) is a basic approach to increase q Techniques apply generally, but the details (e.g., block size) are architecture dependent Similar techniques are possible on other data structures and algorithms Now it’s your turn: Homework 1 (in assigned teams)

19. 01/26/05 CS267 Lecture 2a19 Extra Slides

20. 01/26/05CS267 Lecture 2a20 Reading for Today Sourcebook Chapter 3, (note that chapters 2 and 3 cover the material of lecture 2 and lecture 3, but not in the same order). "Performance Optimization of Numerically Intensive Codes", by Stefan Goedecker and Adolfy Hoisie, SIAM 2001.Performance Optimization of Numerically Intensive Codes Web pages for reference: BeBOP Homepage ATLAS Homepage BLAS (Basic Linear Algebra Subroutines), Reference for (unoptimized) implementations of the BLAS, with documentation.BLAS LAPACK (Linear Algebra PACKage), a standard linear algebra library optimized to use the BLAS effectively on uniprocessors and shared memory machines (software, documentation and reports)LAPACK ScaLAPACK (Scalable LAPACK), a parallel version of LAPACK for distributed memory machines (software, documentation and reports)ScaLAPACK Tuning Strassen's Matrix Multiplication for Memory Efficiency Mithuna S. Thottethodi, Siddhartha Chatterjee, and Alvin R. Lebeck in Proceedings of Supercomputing '98, November 1998 postscriptpostscript Recursive Array Layouts and Fast Parallel Matrix Multiplication” by Chatterjee et al. IEEE TPDS November 2002.

21. 01/26/05CS267 Lecture 2a21 Questions You Should Be Able to Answer 1.What is the key to understand algorithm efficiency in our simple memory model? 2.What is the key to understand machine efficiency in our simple memory model? 3.What is tiling? 4.Why does block matrix multiply reduce the number of memory references? 5.What are the BLAS? 6.Why does loop unrolling improve uniprocessor performance?

22. 01/26/05CS267 Lecture 2a22 Reading Assignment Next week: Current high performance architectures Cray X1 http://www.sc-conference.org/sc2003/paperpdfs/pap183.pdf Blue Gene L http://sc-2002.org/paperpdfs/pap.pap207.pdf Clusters http://www.mirror.ac.uk/sites/www.beowulf.org/papers/ICPP95/ Optional Chapter 1,2 of the “Sourcebook of Parallel Computing” Alternative to Beowulf paper: http://now.cs.berkeley.edu/Case/case.html

23. 01/26/05CS267 Lecture 2a23 Outline Goal of parallel computing Solve a problem on a parallel machine that is impractical on a serial one How long does/will the problem take on P processors? Quick look at parallel machines Understanding parallel performance Speedup: the effectiveness of parallelism Limits to parallel performance Understanding serial performance Parallelism in modern processors Memory hierarchies

24. 01/26/05CS267 Lecture 2a24 Microprocessor revolution Moore’s law in microprocessor performance made desktop computing in 2000 what supercomputing was in 1990 Massive parallelism has changed the high end From a small number of very fast (vector) processors to A large number (hundreds or thousands) of desktop processors Use the fastest “commodity” workstations as building blocks Sold in enough quantity to make them inexpensive Start with the best performance available (at a reasonable price) Today, most parallel machines are clusters of SMPs: An SMP is a tightly couple shared memory multiprocessor A cluster is a group of this connected by a high speed network

25. 01/26/05CS267 Lecture 2a25 A Parallel Computer Today: NERSC-3 Vital Statistics 5 Teraflop/s Peak Performance – 3.05 Teraflop/s with Linpack 208 nodes, 16 CPUs per node at 1.5 Gflop/s per CPU 4.5 TB of main memory 140 nodes with 16 GB each, 64 nodes with 32 GBs, and 4 nodes with 64 GBs. 40 TB total disk space 20 TB formatted shared, global, parallel, file space; 15 TB local disk for system usage Unique 512 way Double/Single switch configuration

26. 01/26/05CS267 Lecture 2a26 Performance Levels (for example on NERSC-3) Peak advertised performance (PAP): 5 Tflop/s LINPACK: 3.05 Tflop/s Gordon Bell Prize, application performance : 2.46 Tflop/s Material Science application at SC01 Average sustained applications performance: ~0.4 Tflop/s Less than 10% peak!

27. 01/26/05CS267 Lecture 2a27 Millennium and CITRIS Millennium Central Cluster 99 Dell 2300/6350/6450 Xeon Dual/Quad: 332 processors total Total: 211GB memory, 3TB disk Myrinet 2000 + 1000Mb fiber ethernet CITRIS Cluster 1: 3/2002 deployment 4 Dell Precision 730 Itanium Duals: 8 processors Total: 20 GB memory, 128GB disk Myrinet 2000 + 1000Mb copper ethernet CITRIS Cluster 2: 2002-2004 deployment ~128 Dell McKinley class Duals: 256 processors Total: ~512GB memory, ~8TB disk Myrinet 2000 (subcluster) + 1000Mb copper ethernet ~32 nodes available now~32 nodes available now

28. 01/26/05CS267 Lecture 2a28 Outline Goal of parallel computing Solve a problem on a parallel machine that is impractical on a serial one How long does/will the problem take on P processors? Quick look at parallel machines Understanding parallel performance Speedup: the effectiveness of parallelism Limits to parallel performance Understanding serial performance Parallelism in modern processors Memory hierarchies

29. 01/26/05CS267 Lecture 2a29 Speedup The speedup of a parallel application is Speedup(p) = Time(1)/Time(p) Where Time(1) = execution time for a single processor and Time(p) = execution time using p parallel processors If Speedup(p) = p we have perfect speedup (also called linear scaling) As defined, speedup compares an application with itself on one and on p processors, but it is more useful to compare The execution time of the best serial application on 1 processor versus The execution time of best parallel algorithm on p processors

30. 01/26/05CS267 Lecture 2a30 Efficiency The parallel efficiency of an application is defined as Efficiency(p) = Speedup(p)/p Efficiency(p) <= 1 For perfect speedup Efficiency (p) = 1 We will rarely have perfect speedup. Lack of perfect parallelism in the application or algorithm Imperfect load balancing (some processors have more work) Cost of communication Cost of contention for resources, e.g., memory bus, I/O Synchronization time Understanding why an application is not scaling linearly will help finding ways improving the applications performance on parallel computers.

31. 01/26/05CS267 Lecture 2a31 Superlinear Speedup Question: can we find “superlinear” speedup, that is Speedup(p) > p ? Choosing a bad “baseline” for T(1) Old serial code has not been updated with optimizations Avoid this, and always specify what your baseline is Shrinking the problem size per processor May allow it to fit in small fast memory (cache) Application is not deterministic Amount of work varies depending on execution order Search algorithms have this characteristic

32. 01/26/05CS267 Lecture 2a32 Amdahl’s Law Suppose only part of an application runs in parallel Amdahl’s law Let s be the fraction of work done serially, So (1-s) is fraction done in parallel What is the maximum speedup for P processors? Speedup(p) = T(1)/T(p) T(p) = (1-s)*T(1)/p +s*T(1) = T(1)*((1-s) + p*s)/p Even if the parallel part speeds up perfectly, we may be limited by the sequential portion of code. Speedup(p) = p/(1 + (p-1)*s) assumes perfect speedup for parallel part

33. 01/26/05CS267 Lecture 2a33 Amdahl’s Law (for 1024 processors) Does this mean parallel computing is a hopeless enterprise? See: Gustafson, Montry, Benner, “Development of Parallel Methods for a 1024 Processor Hypercube”, SIAM J. Sci. Stat. Comp. 9, No. 4, 1988, pp.609.

34. 01/26/05CS267 Lecture 2a34 Scaled Speedup Speedup improves as the problem size grows Among other things, the Amdahl effect is smaller Consider scaling the problem size with the number of processors (add problem size parameter, n) for problem in which running time scales linearly with the problem size: T(1,n) = T(1)*n let n=p (problem size on p processors increases by p) ScaledSpeedup(p,n) = T(1,n)/T(p,n) T(p,n) = (1-s)*n*T(1,1)/p +s*T(1,1) = (1-s)*T(1,1) + s*T(1,1)=T(1,1) ScaledSpeedup(p,n) = n = p assumes serial work does not grow with n

35. 01/26/05CS267 Lecture 2a35 Scaled Efficiency Previous definition of parallel efficiency was Efficiency(p) = Speedup(p)/p We often want to scale problem size with the number of processors, but scaled speedup can be tricky Previous definition depended on a linear work in problem size May use alternate definition of efficiency that depends on a notion of throughput or rate, R(p): Floating point operations per second Transactions per second Strings matches per second Then Efficiency(p) = R(p)/(R(1)*p) May use a different problem size for R(1) and R(p)

36. 01/26/05CS267 Lecture 2a36 Three Definitions of Efficiency: Summary People use the word “efficiency” in many ways Performance relative to advertised machine peak Flop/s in application / Max Flops/s on the machine Integer, string, logical or other operations could be used, but they should be a machine-level instruction Efficiency of a fixed problem size Efficiency(p) = Speedup(p)/p Efficiency of a scaled problem size Efficiency(p) = R(p)/(R(1)*p) All of these may be useful in some context Always make it clear what you are measuring

37. 01/26/05CS267 Lecture 2a37 Scaled Speedup See: Gustafson, Montry, Benner, “Development of Parallel Methods for a 1024 Processor Hypercube”, SIAM J. Sci. Stat. Comp. 9, No. 4, 1988, pp.609.

38. 01/26/05CS267 Lecture 2a38 Limits of Scaling – an example of a current debate Test run on global climate model reported on the Earth Simulator sustained performance of about 28 TFLOPS on 640 nodes. The model was an atmospheric global climate model (T1279L96) developed originally by CCSR/NEIS and tuned by ESS. This corresponds to scaling down to a 10 km^2 grid Many physical modeling assumptions from a 200 km^2 grid don’t hold any longer The climate modeling community is debating the significance of these results

39. 01/26/05CS267 Lecture 2a39 Performance Limits insufficient memory scaled speedup fixed size speedup insufficient parallelism Log of number of processors Log of problem size

40. 01/26/05CS267 Lecture 2a40 Outline Goal of parallel computing Solve a problem on a parallel machine that is impractical on a serial one How long does/will the problem take on P processors? Quick look at parallel machines Understanding parallel performance Speedup: the effectiveness of parallelism Limits to parallel performance Understanding serial performance Parallelism in modern processors Memory hierarchies

41. 01/26/05CS267 Lecture 2a41 Principles of Parallel Computing Speedup, efficiency, and Amdahl’s Law Finding and exploiting parallelism Finding and exploiting data locality Load balancing Coordination and synchronization Performance modeling All of these things make parallel programming more difficult than sequential programming.

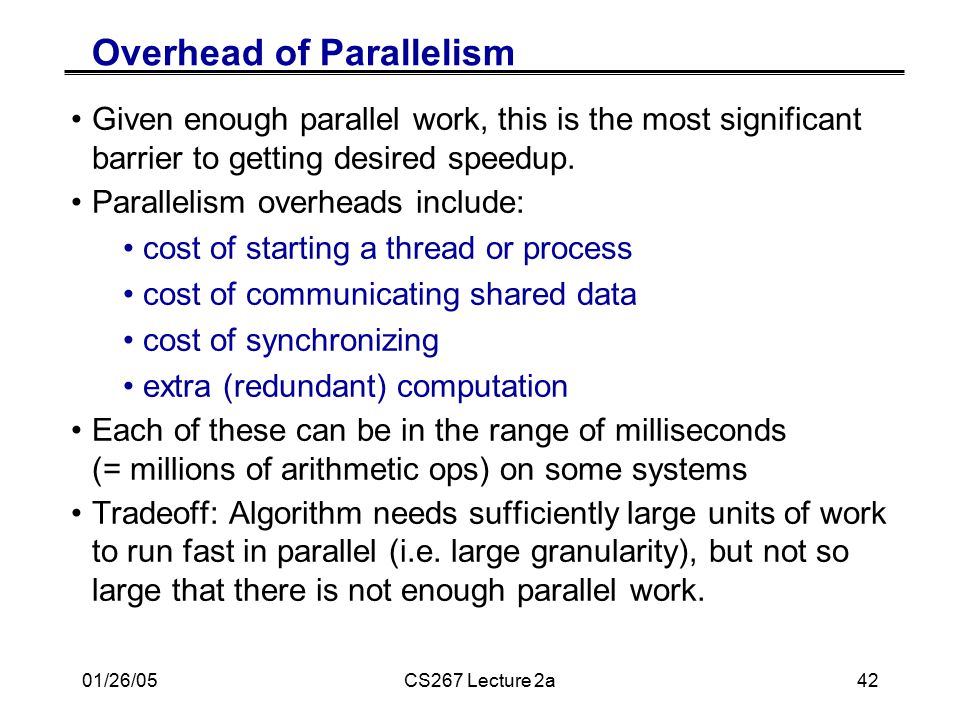

42. 01/26/05CS267 Lecture 2a42 Overhead of Parallelism Given enough parallel work, this is the most significant barrier to getting desired speedup. Parallelism overheads include: cost of starting a thread or process cost of communicating shared data cost of synchronizing extra (redundant) computation Each of these can be in the range of milliseconds (= millions of arithmetic ops) on some systems Tradeoff: Algorithm needs sufficiently large units of work to run fast in parallel (i.e. large granularity), but not so large that there is not enough parallel work.

43. 01/26/05CS267 Lecture 2a43 Locality and Parallelism Large memories are slower; fast memories are small. Storage hierarchies are designed to fast on average. Parallel processors, collectively, have large, fast memories -- the slow accesses to “remote” data we call “communication”. Algorithm should do most work on local data. Proc Cache L2 Cache L3 Cache Memory Conventional Storage Hierarchy Proc Cache L2 Cache L3 Cache Memory Proc Cache L2 Cache L3 Cache Memory potential interconnects

44. 01/26/05CS267 Lecture 2a44 Load Imbalance Load imbalance is the time that some processors in the system are idle due to insufficient parallelism (during that phase). unequal size tasks. Examples of the latter adapting to “interesting parts of a domain”. tree-structured computations. fundamentally unstructured problems. Algorithm needs to balance load but techniques the balance load often reduce locality

45. 01/26/05CS267 Lecture 2a45 Performance Programming is Challenging Speedup(P) = Time(1) / Time(P) Applications have “learning curves” Amber (chemical modeling)

46. 01/26/05CS267 Lecture 2a46 Limits to Instruction Level Parallelism (ILP) Limits to pipelining: Hazards prevent next instruction from executing during its designated clock cycle Structural hazards: HW cannot support this combination of instructions (single person to fold and put clothes away) Data hazards: Instruction depends on result of prior instruction still in the pipeline (missing sock) Control hazards: Caused by delay between the fetching of instructions and decisions about changes in control flow (branches and jumps). The hardware and compiler will try to reduce these: Reordering instructions, multiple issue, dynamic branch prediction, speculative execution… You can also enable parallelism by careful coding

47. 01/26/05CS267 Lecture 2a47 Dependences (Data Hazards) Limit Parallelism A dependence or data hazard is one of the following: true of flow dependence: a writes a location that b later reads (read-after write or RAW hazard) anti-dependence a reads a location that b later writes (write-after-read or WAR hazard) output dependence a writes a location that b later writes (write-after-write or WAW hazard) trueantioutput a = = aa = = aa =

48. 01/26/05CS267 Lecture 2a48 Outline Goal of parallel computing Solve a problem on a parallel machine that is impractical on a serial one How long does/will the problem take on P processors? Quick look at parallel machines Understanding parallel performance Speedup: the effectiveness of parallelism Limits to parallel performance Understanding serial performance Parallelism in modern processors Memory hierarchies

49. 01/26/05CS267 Lecture 2a49 Little’s Law Principle (Little's Law): the relationship of a production system in steady state is: Inventory = Throughput × Flow Time For parallel computing, this means: Required concurrency = Bandwidth x Latency Example: 1000 processor system, 1 GHz clock (1ns), 100 ns memory latency, 100 words of memory in data paths between CPU and memory at any given time. Main memory bandwidth is: ~ 1000 x 100 words x 10 9 /s = 10 14 words/sec. To achieve full performance, an application needs: ~ 10 -7 x 10 14 = 10 7 way concurrency

50. 01/26/05CS267 Lecture 2a50 “Naïve” Matrix Multiply {implements C = C + A*B} for i = 1 to n for j = 1 to n for k = 1 to n C(i,j) = C(i,j) + A(i,k) * B(k,j) Sequential access through entire matrix Stride-N access to one row* Reuse value from a register When cache (or TLB or memory) can’t hold entire B matrix, there will be a miss on every line. When cache (or TLB or memory) can’t hold a row of A, there will be a miss on each access *Assumes column-major order Slide source: Larry Carter, UCSD
