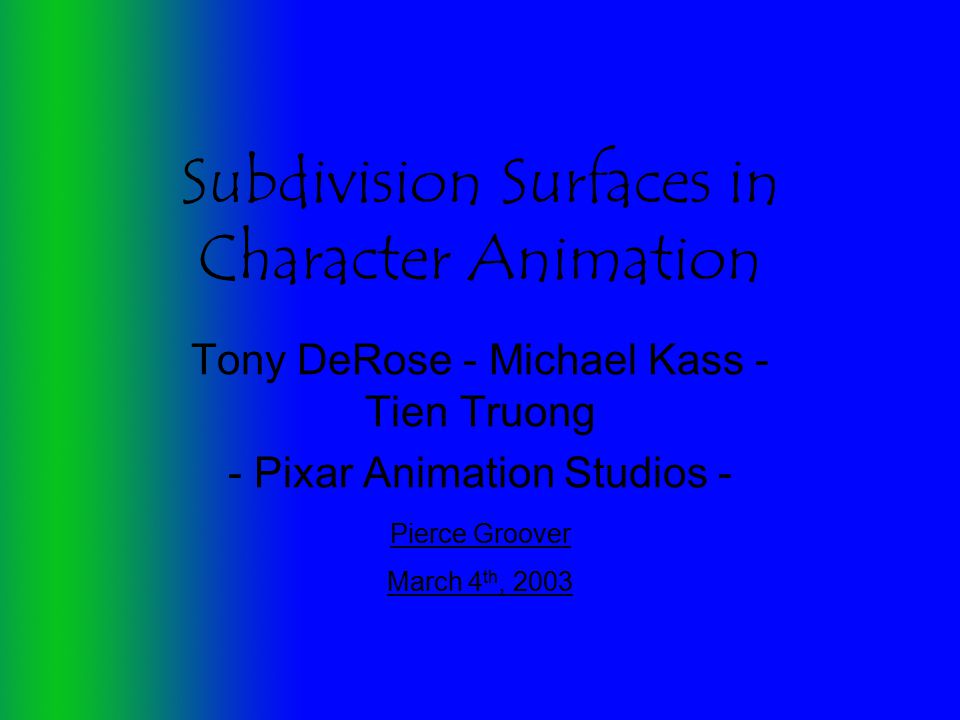

1. Subdivision Surfaces in Character Animation Tony DeRose - Michael Kass - Tien Truong - Pixar Animation Studios - Pierce Groover March 4 th, 2003

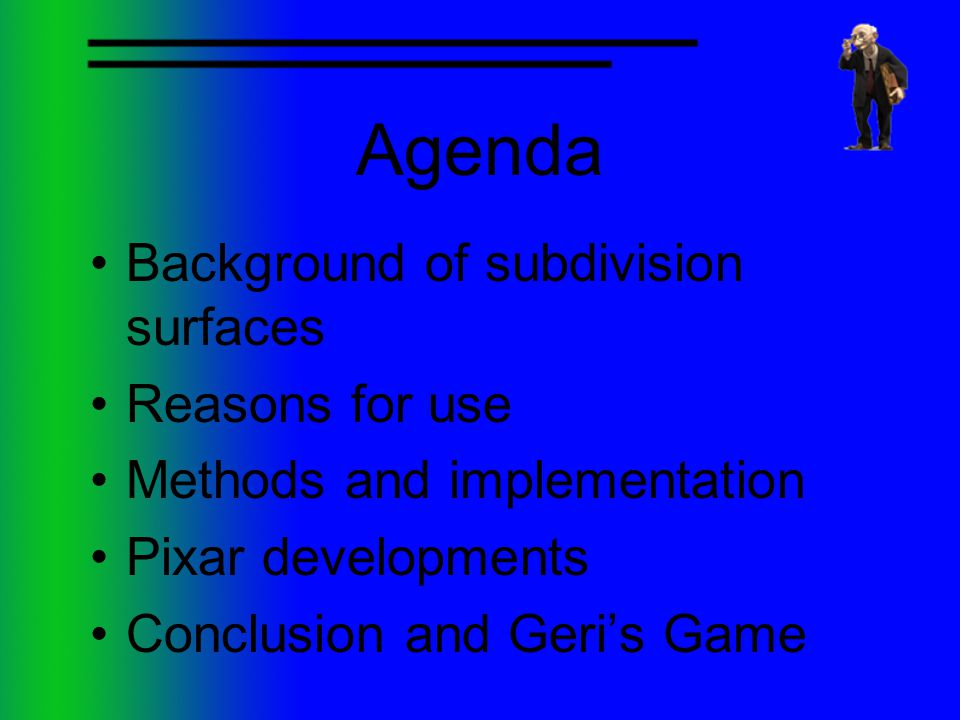

2. Agenda Background of subdivision surfaces Reasons for use Methods and implementation Pixar developments Conclusion and Geri’s Game

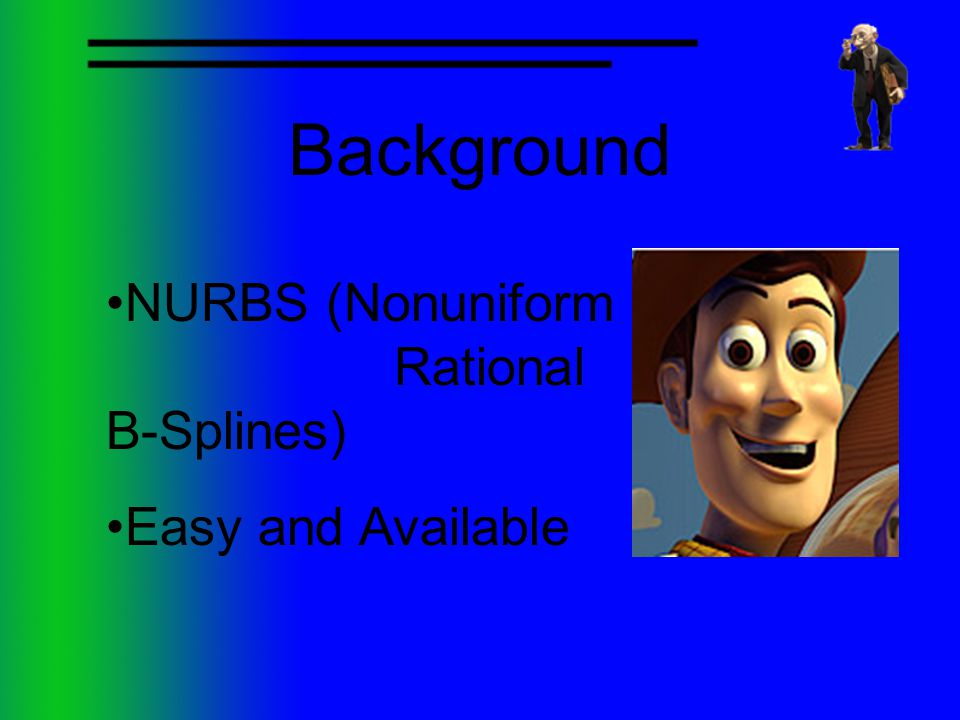

3. Background NURBS (Nonuniform Rational B-Splines) Easy and Available

4. Background Problems –Trimming NURBS is expensive and can have numerical errors –When used in animation, very hard to hide seams These problems can be fixed with Subdivision

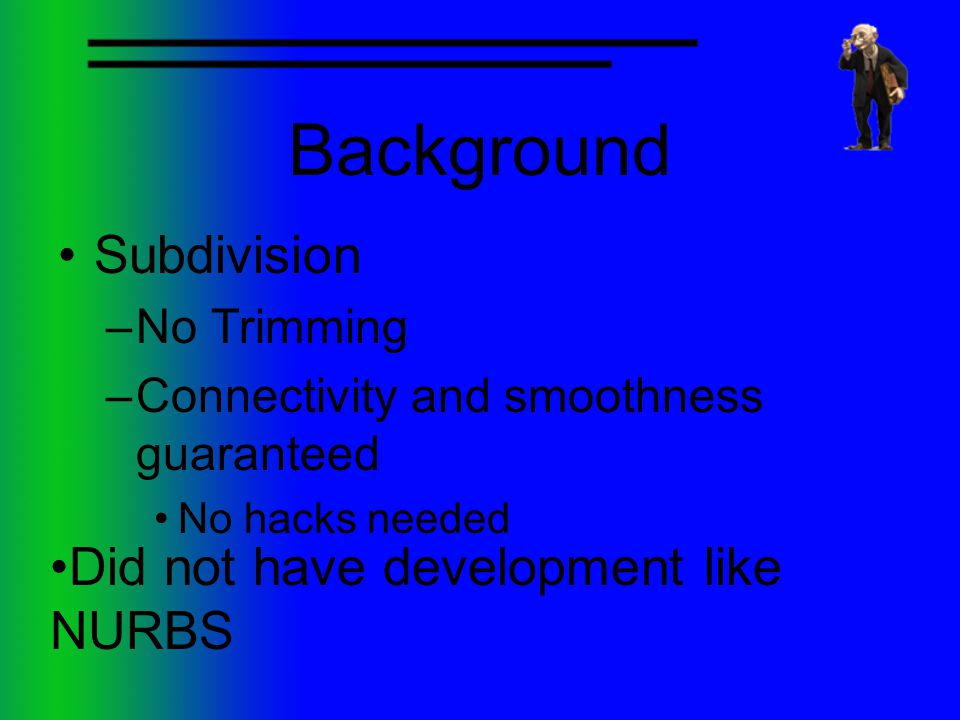

5. Background Subdivision –No Trimming –Connectivity and smoothness guaranteed No hacks needed Did not have development like NURBS

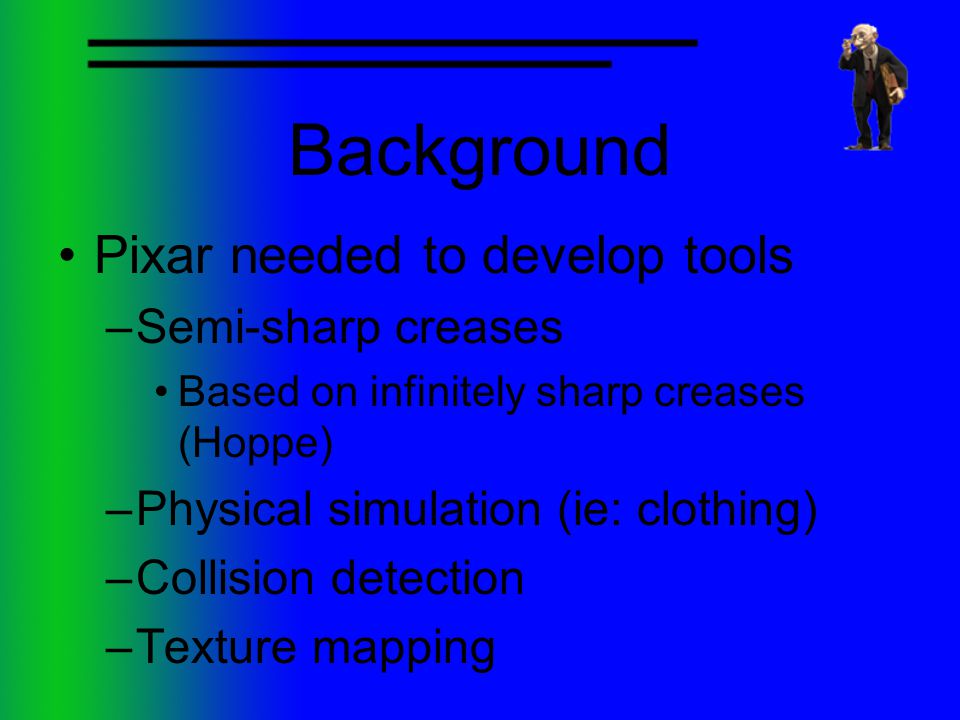

6. Pixar needed to develop tools –Semi-sharp creases Based on infinitely sharp creases (Hoppe) –Physical simulation (ie: clothing) –Collision detection –Texture mapping Background

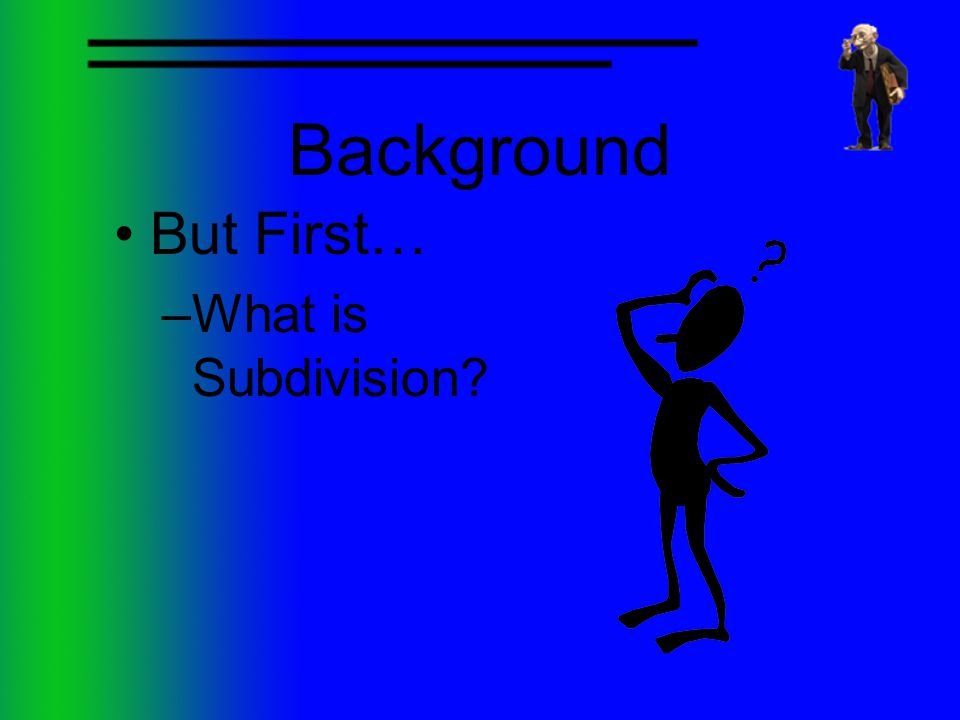

7. But First… –What is Subdivision?

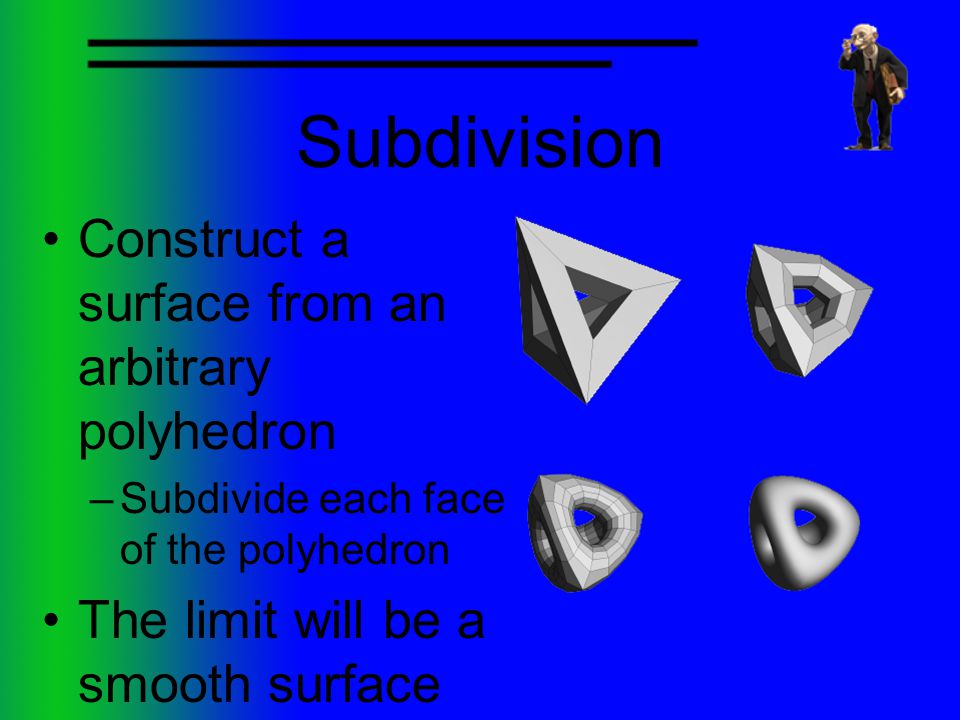

8. Subdivision Construct a surface from an arbitrary polyhedron –Subdivide each face of the polyhedron The limit will be a smooth surface

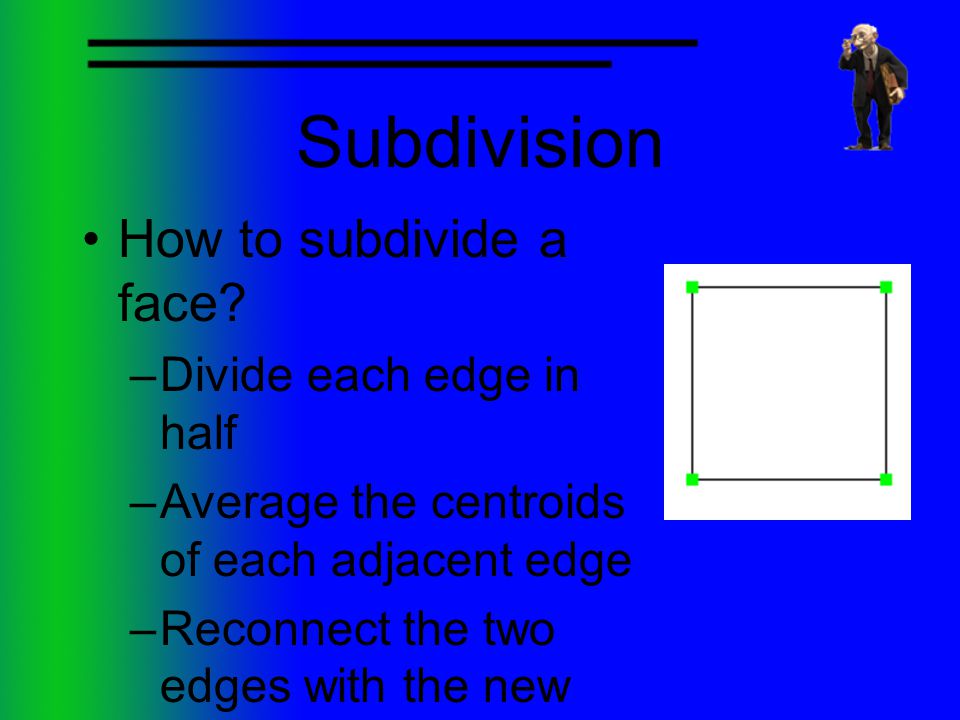

9. Subdivision How to subdivide a face? –Divide each edge in half –Average the centroids of each adjacent edge –Reconnect the two edges with the new vertex

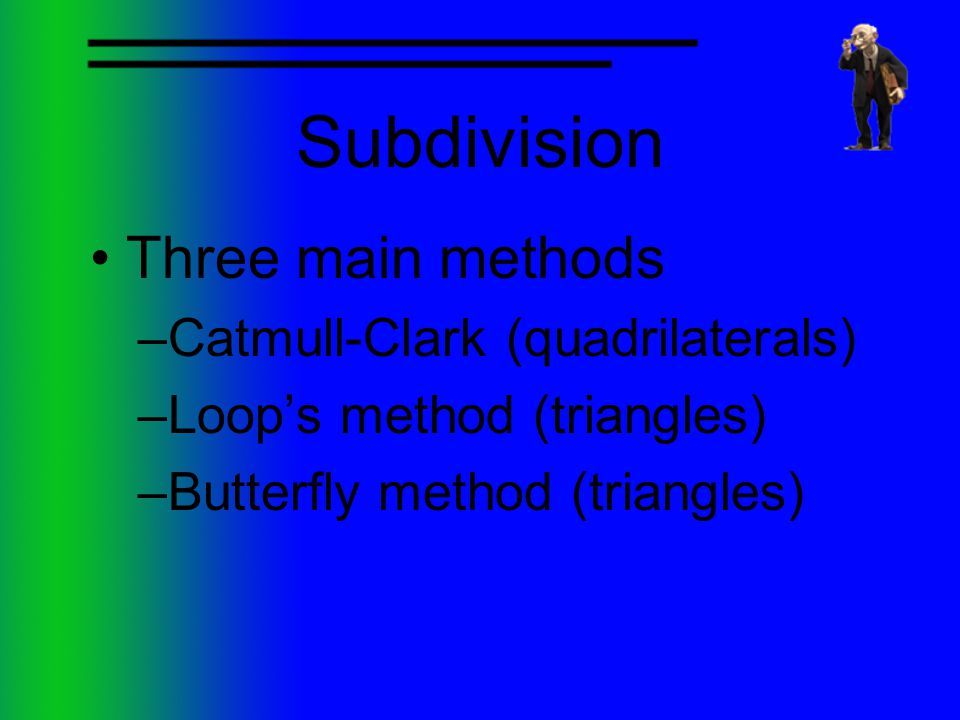

10. Three main methods –Catmull-Clark (quadrilaterals) –Loop’s method (triangles) –Butterfly method (triangles) Subdivision

11. Chose Catmull-Clark –Generalize B-Splines Easier to implement with existing software –Quadrilaterals are better at describing human body parts Tube-like arms, legs, fingers, etc… Subdivision

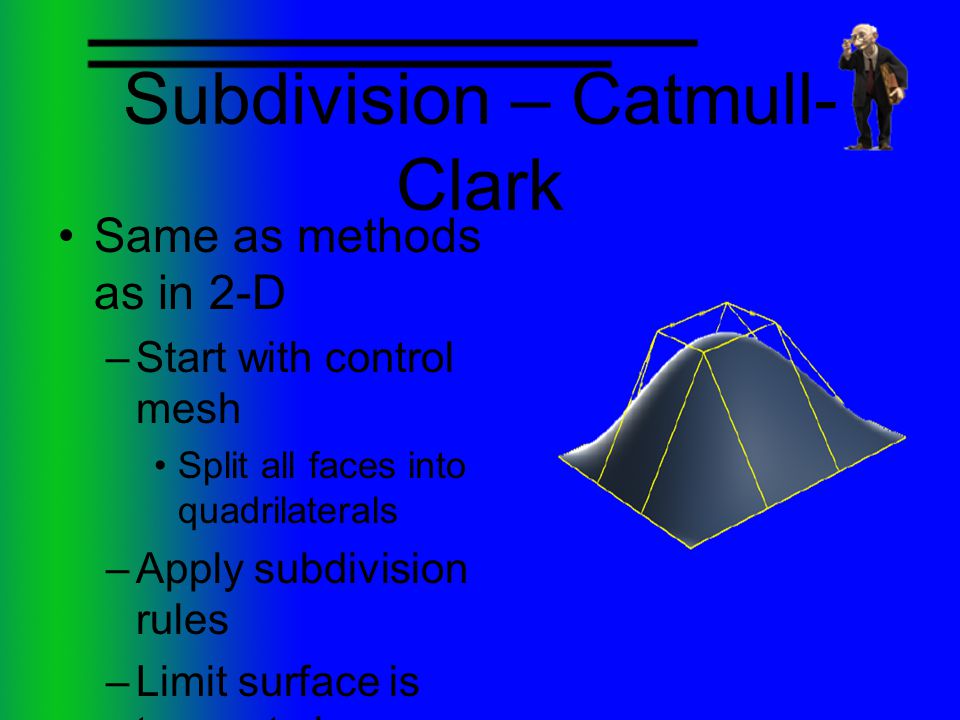

12. Subdivision – Catmull- Clark Same as methods as in 2-D –Start with control mesh Split all faces into quadrilaterals –Apply subdivision rules –Limit surface is tangent plane smooth no matter where the control vertices are placed

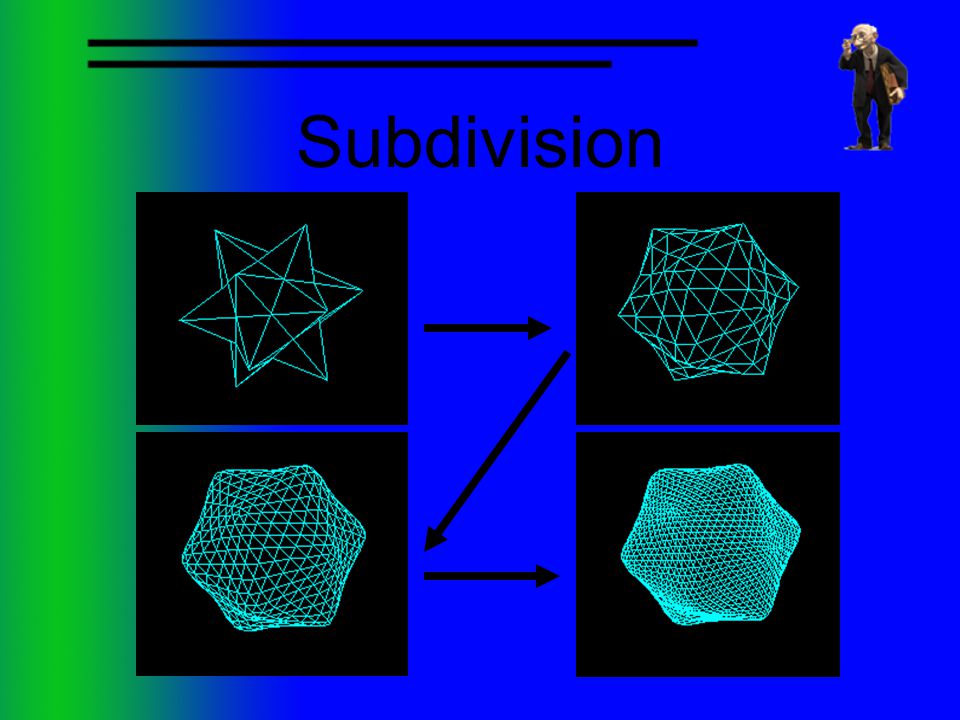

13. Subdivision

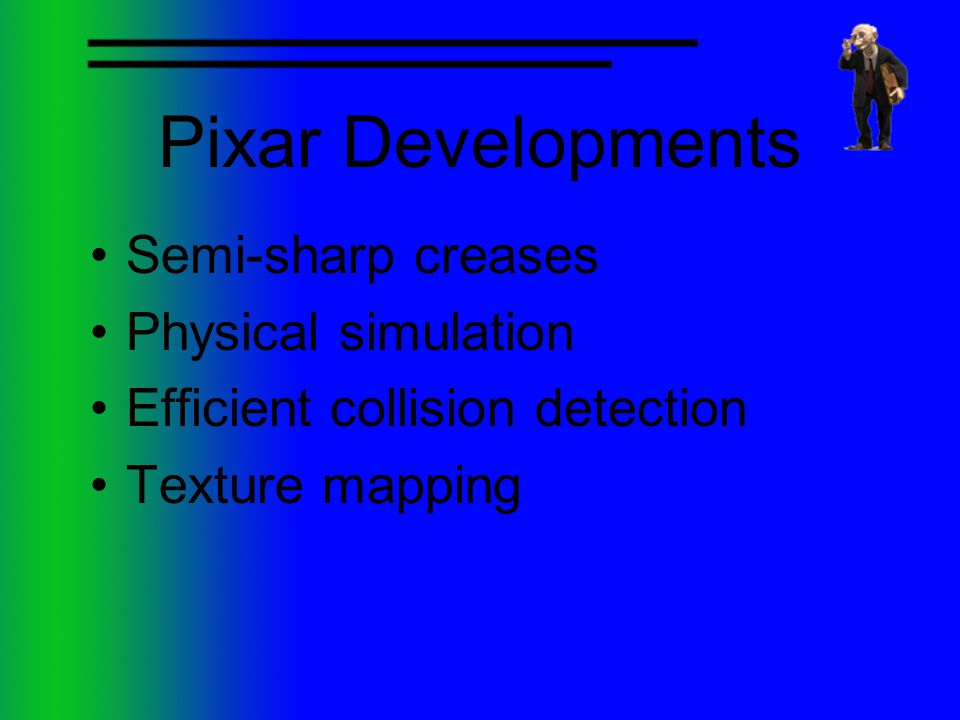

14. Pixar Developments Semi-sharp creases Physical simulation Efficient collision detection Texture mapping

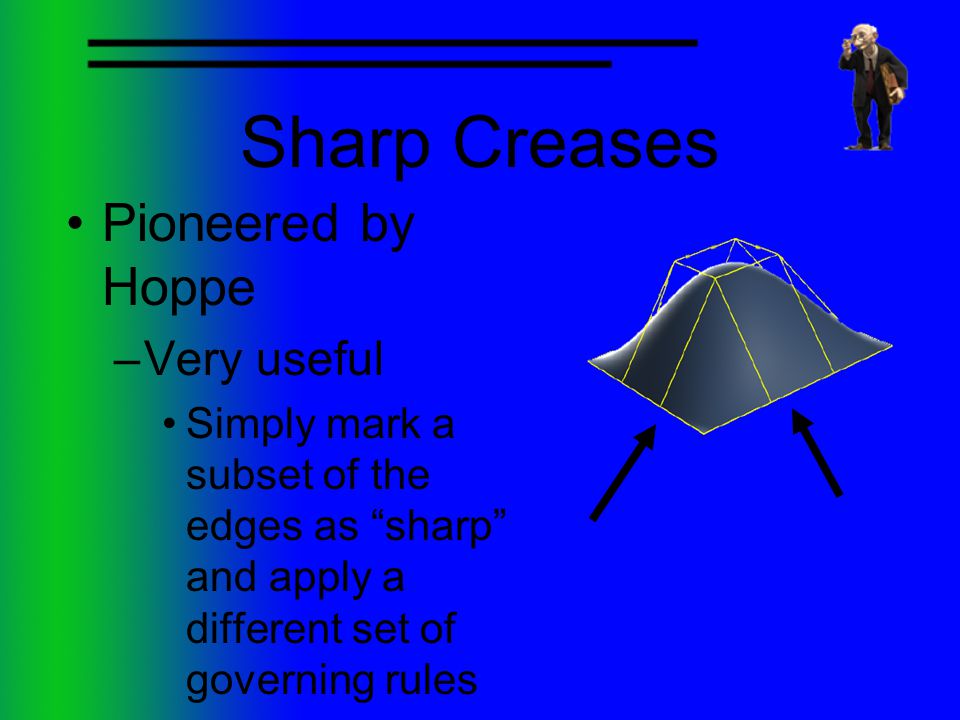

15. Pioneered by Hoppe –Very useful Simply mark a subset of the edges as “sharp” and apply a different set of governing rules Easy to model Sharp Creases

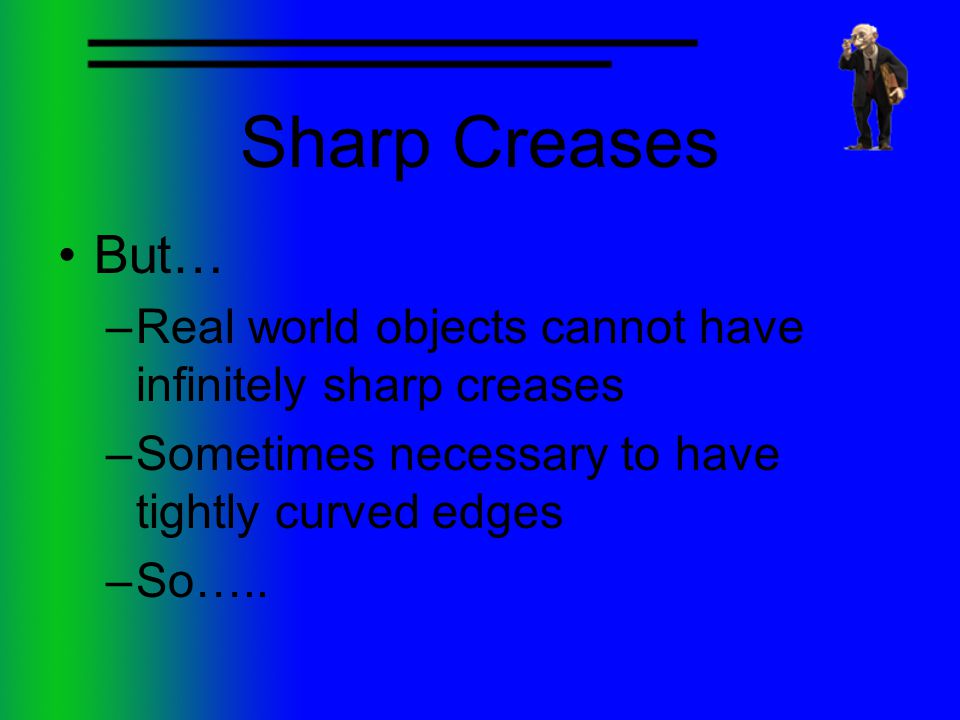

16. But… –Real world objects cannot have infinitely sharp creases –Sometimes necessary to have tightly curved edges –So….. Sharp Creases

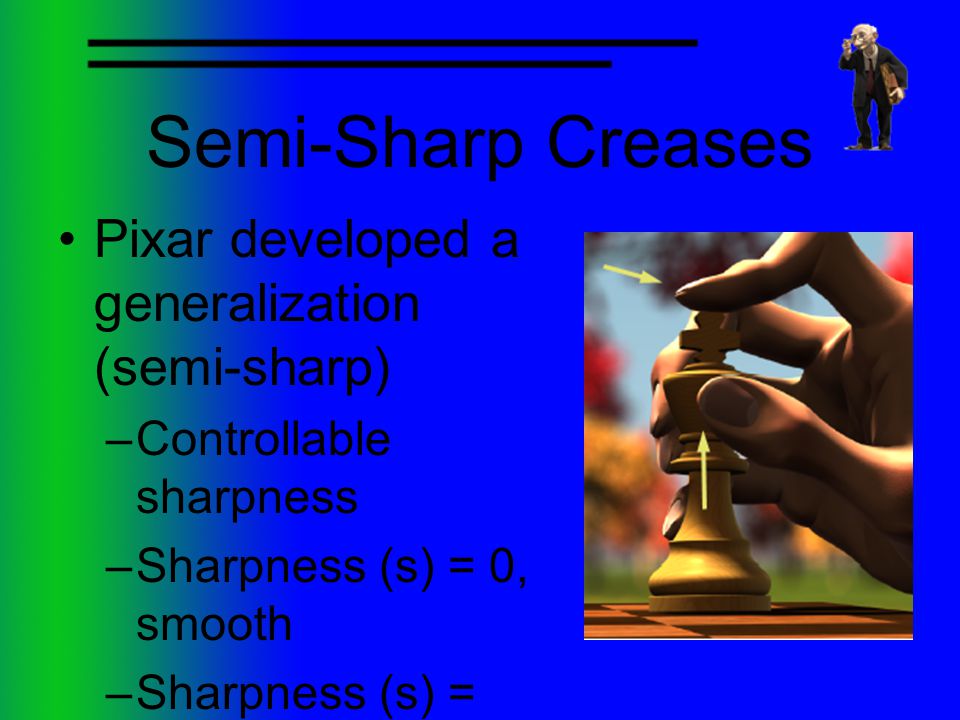

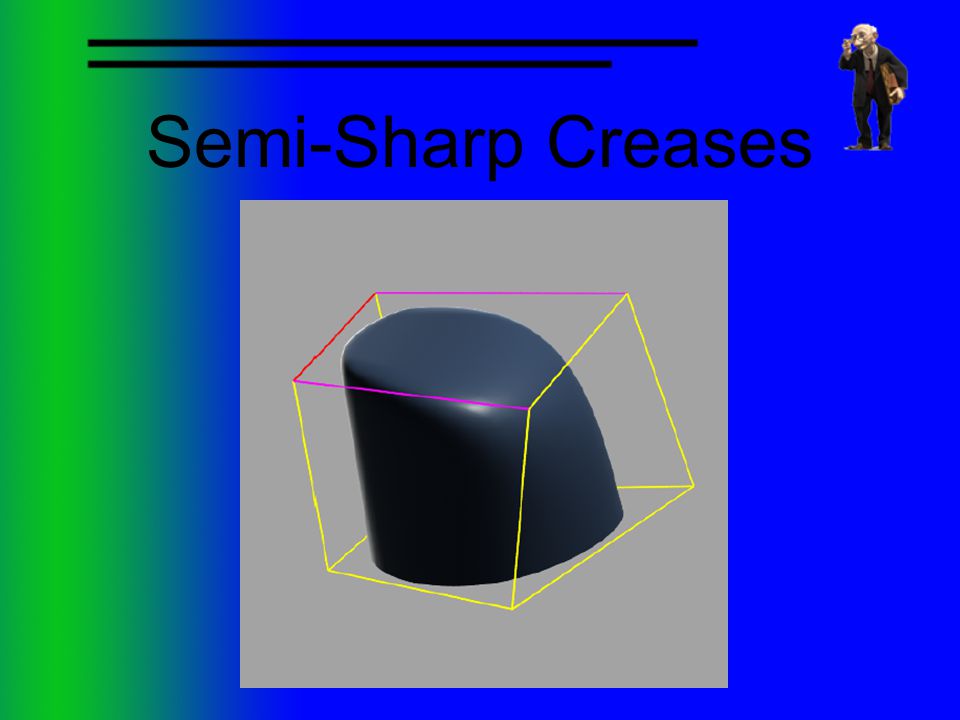

17. Pixar developed a generalization (semi-sharp) –Controllable sharpness –Sharpness (s) = 0, smooth –Sharpness (s) = inf, sharp –Achievable through hybrid subdivision Semi-Sharp Creases

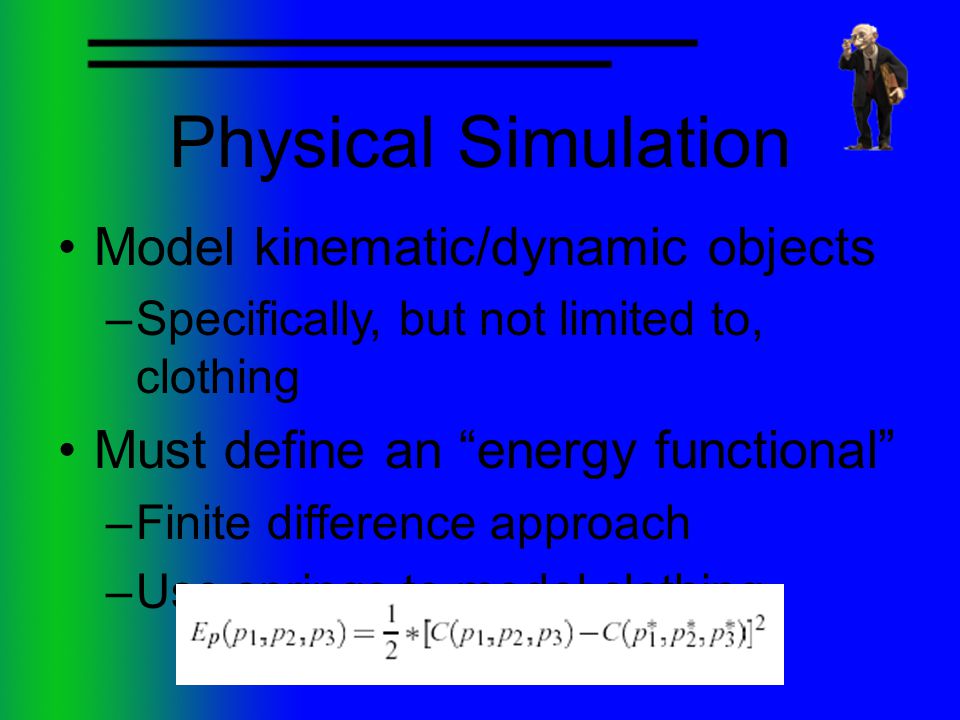

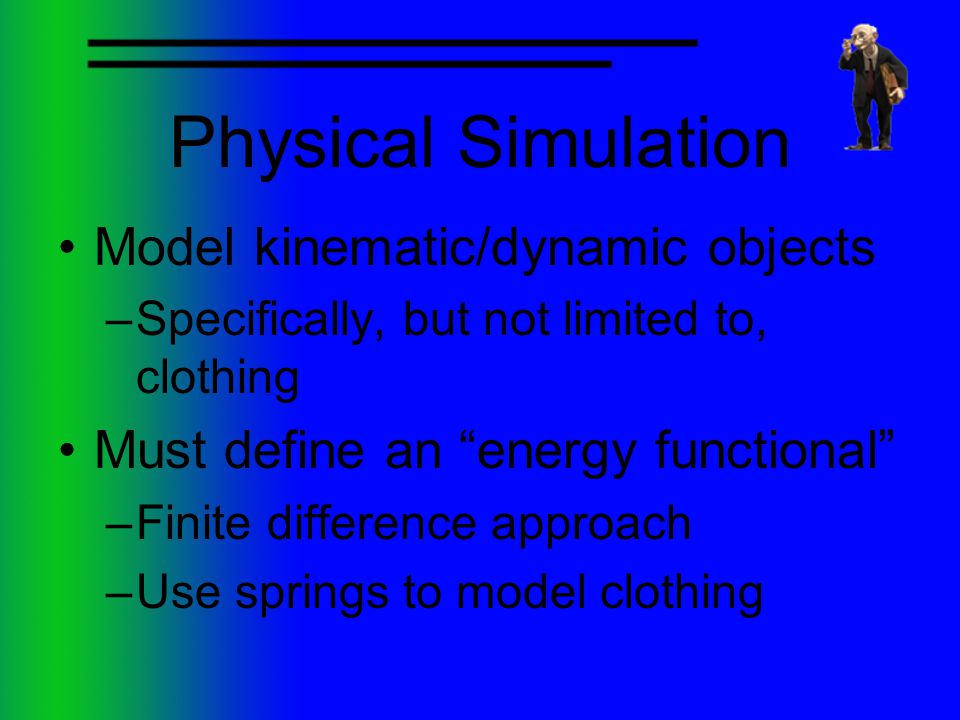

20. Model kinematic/dynamic objects –Specifically, but not limited to, clothing Must define an “energy functional” –Finite difference approach –Use springs to model clothing Physical Simulation

21. Model kinematic/dynamic objects –Specifically, but not limited to, clothing Must define an “energy functional” –Finite difference approach –Use springs to model clothing Physical Simulation

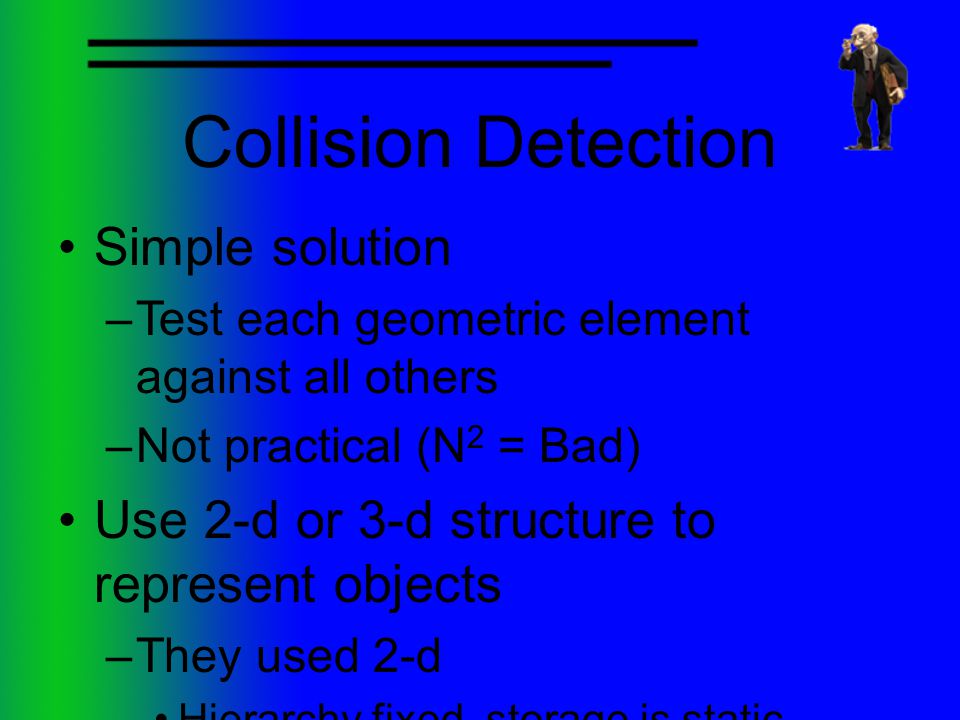

22. Simple solution –Test each geometric element against all others –Not practical (N 2 = Bad) Use 2-d or 3-d structure to represent objects –They used 2-d Hierarchy fixed, storage is static, never need rebalance Collision Detection

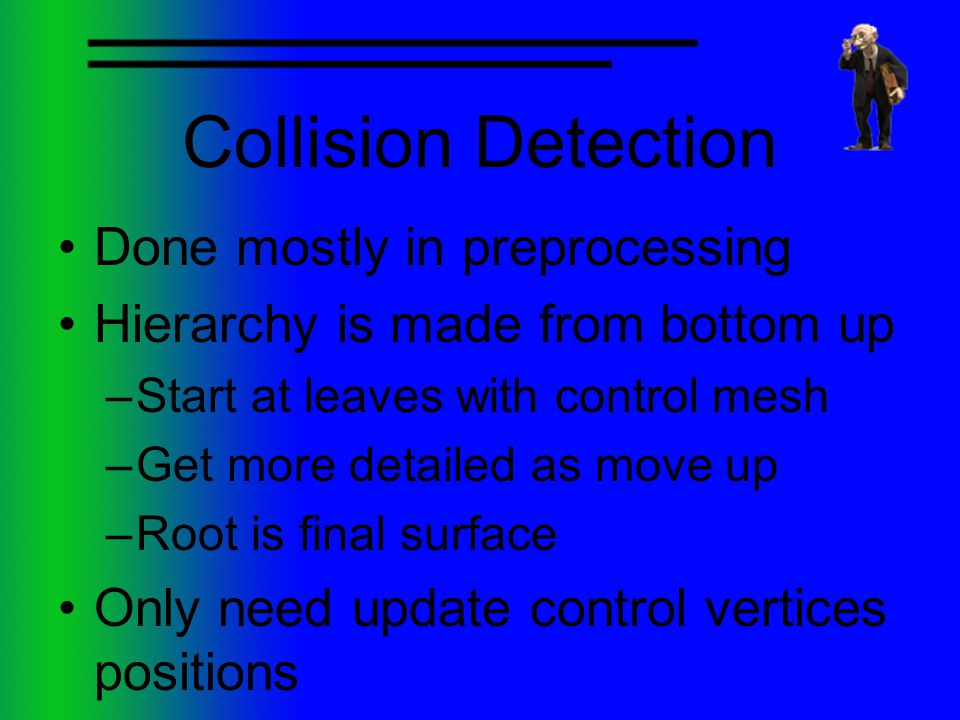

23. Done mostly in preprocessing Hierarchy is made from bottom up –Start at leaves with control mesh –Get more detailed as move up –Root is final surface Only need update control vertices positions Collision Detection

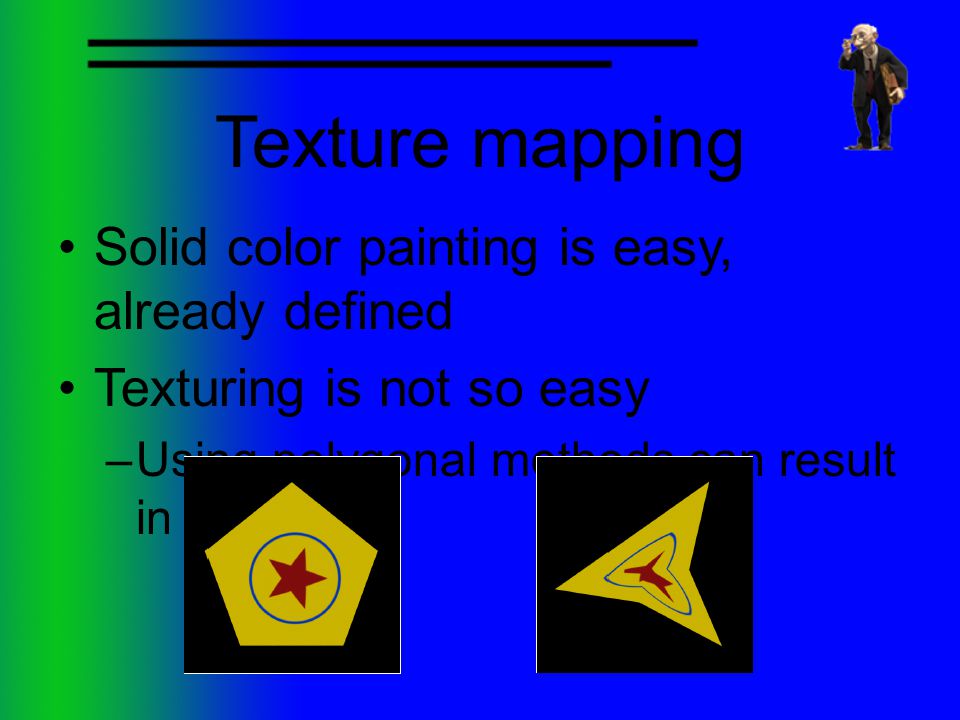

24. Solid color painting is easy, already defined Texturing is not so easy –Using polygonal methods can result in distortion Texture mapping

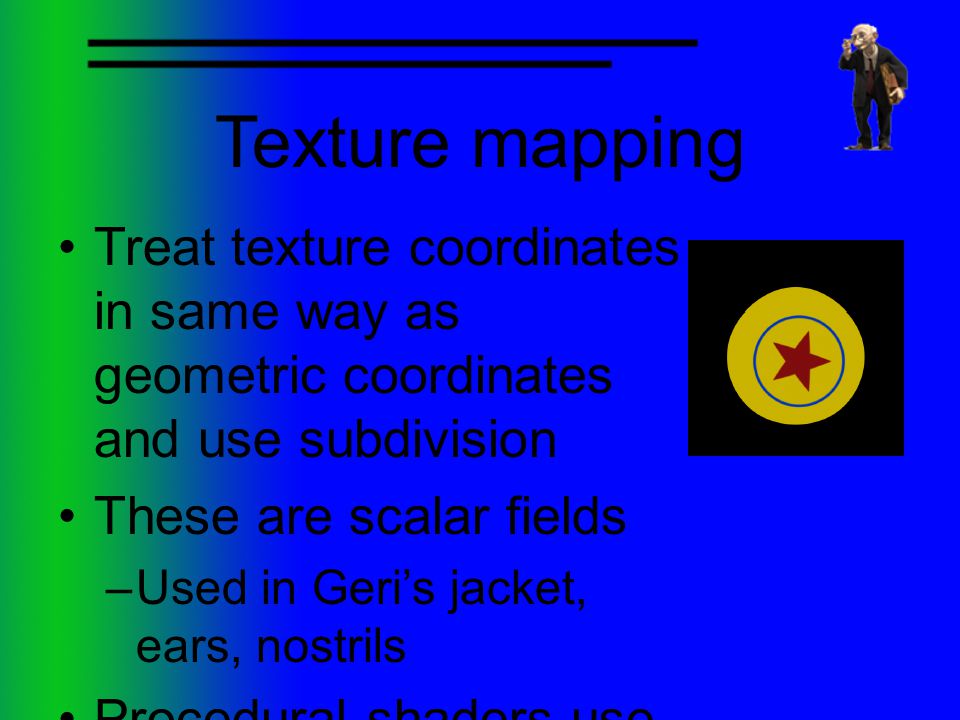

25. Treat texture coordinates in same way as geometric coordinates and use subdivision These are scalar fields –Used in Geri’s jacket, ears, nostrils Procedural shaders use scalar values to determine colors Texture mapping

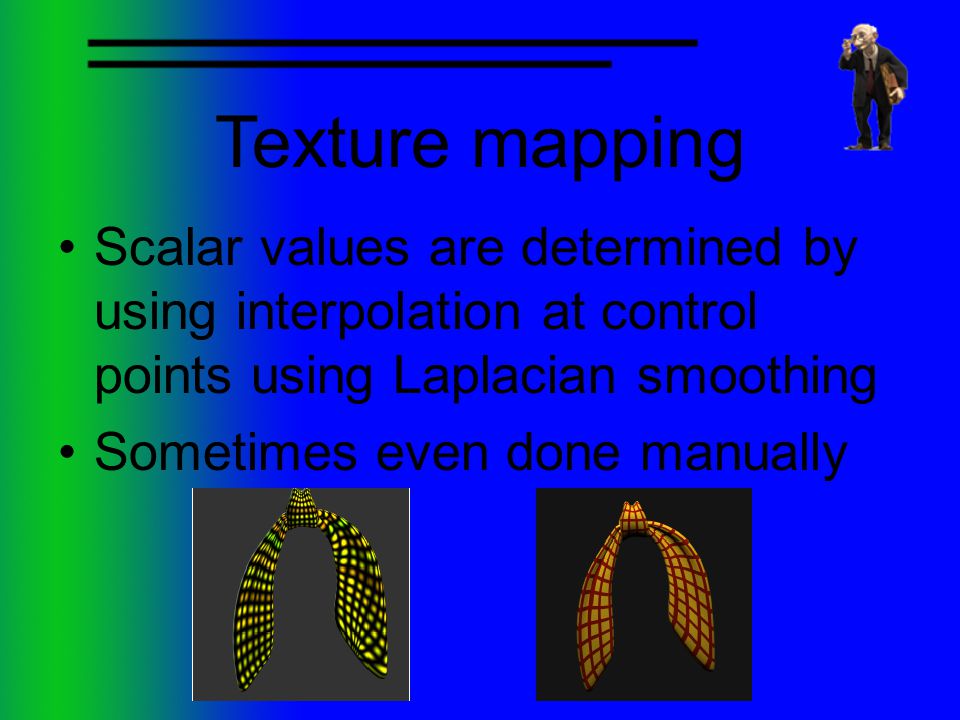

26. Scalar values are determined by using interpolation at control points using Laplacian smoothing Sometimes even done manually Texture mapping

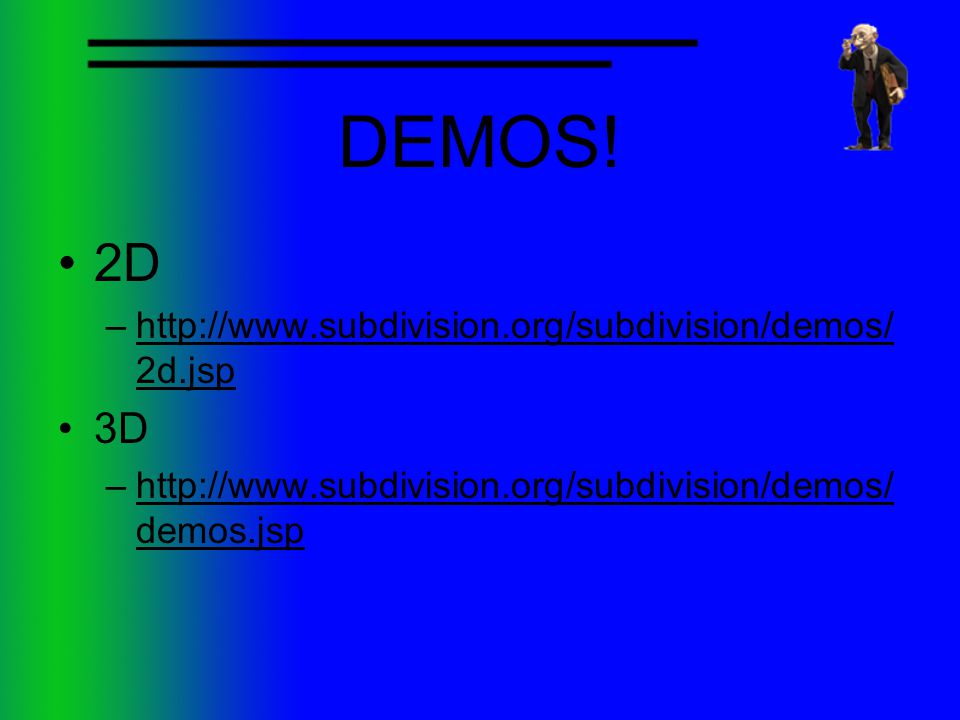

27. 2D –http://www.subdivision.org/subdivision/demos/ 2d.jsphttp://www.subdivision.org/subdivision/demos/ 2d.jsp 3D –http://www.subdivision.org/subdivision/demos/ demos.jsphttp://www.subdivision.org/subdivision/demos/ demos.jsp DEMOS!

28. Conclusion Subdivision > NURBS –More control, accuracy Pixar = sweet –Developments make subdivision surfaces very practical and useful –Now part of Renderman

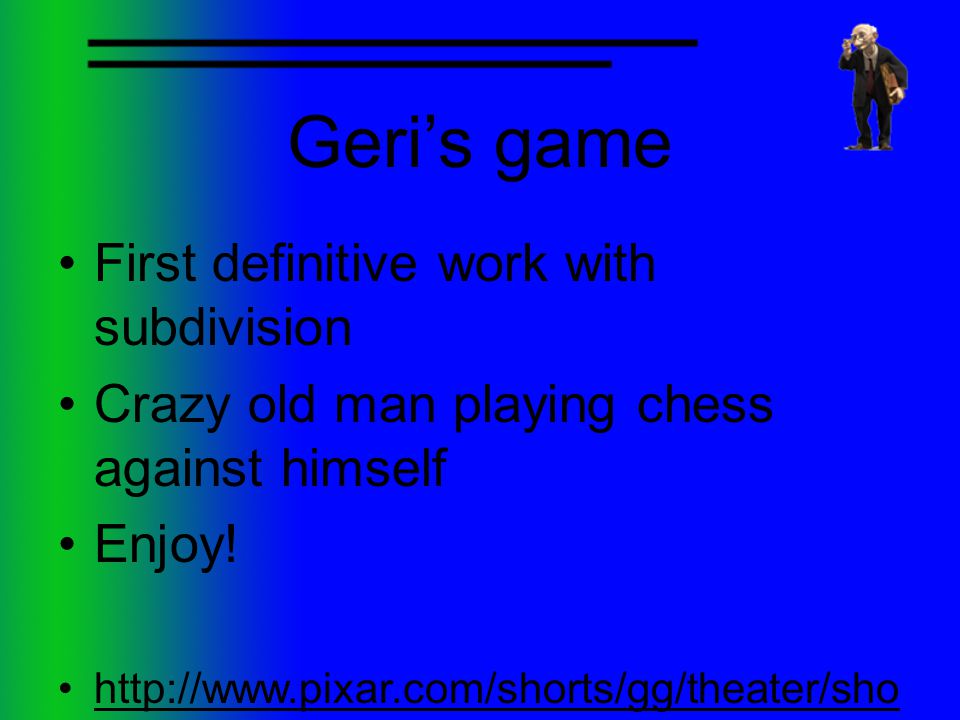

29. First definitive work with subdivision Crazy old man playing chess against himself Enjoy! http://www.pixar.com/shorts/gg/theater/sho rt_320.htmlhttp://www.pixar.com/shorts/gg/theater/sho rt_320.html Geri’s game

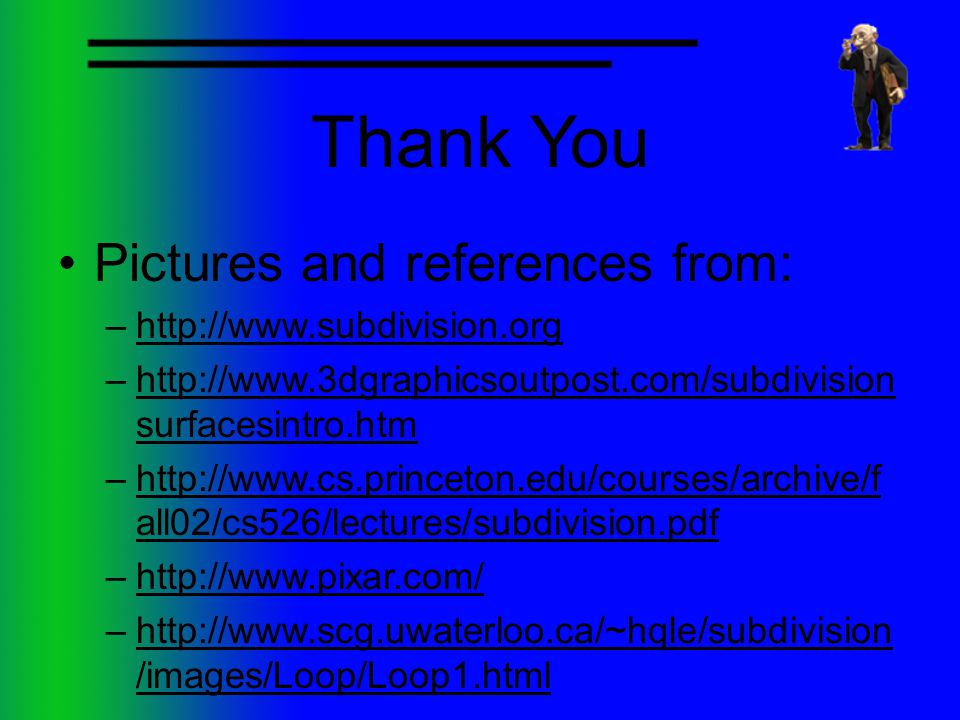

30. Pictures and references from: –http://www.subdivision.orghttp://www.subdivision.org –http://www.3dgraphicsoutpost.com/subdivision surfacesintro.htmhttp://www.3dgraphicsoutpost.com/subdivision surfacesintro.htm –http://www.cs.princeton.edu/courses/archive/f all02/cs526/lectures/subdivision.pdfhttp://www.cs.princeton.edu/courses/archive/f all02/cs526/lectures/subdivision.pdf –http://www.pixar.com/http://www.pixar.com/ –http://www.scg.uwaterloo.ca/~hqle/subdivision /images/Loop/Loop1.htmlhttp://www.scg.uwaterloo.ca/~hqle/subdivision /images/Loop/Loop1.html Thank You
