1. Trees

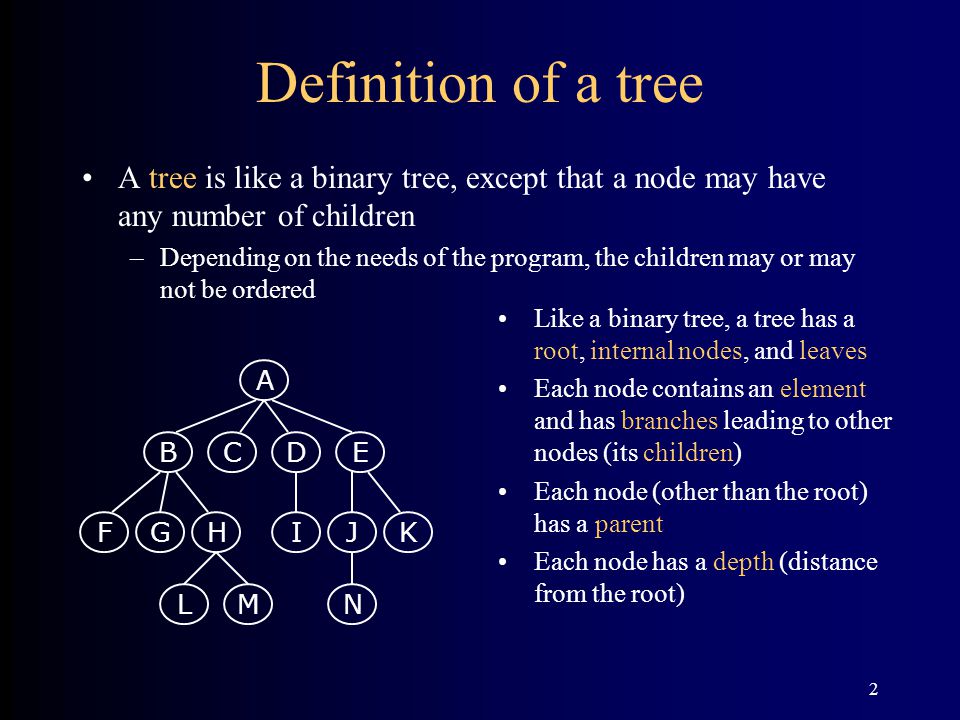

2. 2 Definition of a tree A tree is like a binary tree, except that a node may have any number of children –Depending on the needs of the program, the children may or may not be ordered Like a binary tree, a tree has a root, internal nodes, and leaves Each node contains an element and has branches leading to other nodes (its children) Each node (other than the root) has a parent Each node has a depth (distance from the root) A CBDE GFHJKI LMN

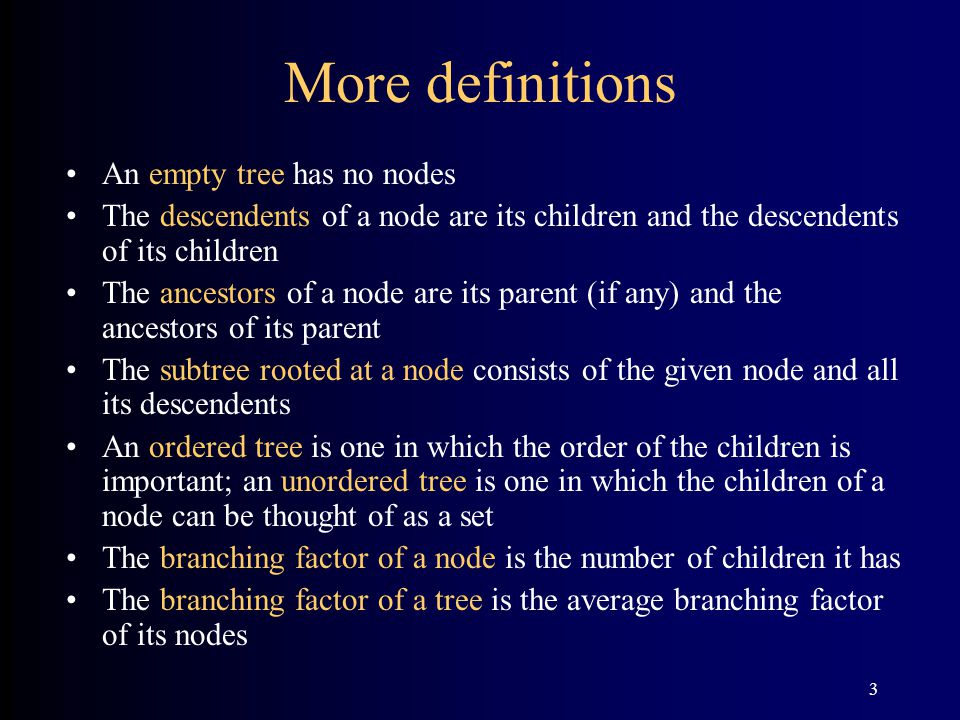

3. 3 More definitions An empty tree has no nodes The descendents of a node are its children and the descendents of its children The ancestors of a node are its parent (if any) and the ancestors of its parent The subtree rooted at a node consists of the given node and all its descendents An ordered tree is one in which the order of the children is important; an unordered tree is one in which the children of a node can be thought of as a set The branching factor of a node is the number of children it has The branching factor of a tree is the average branching factor of its nodes

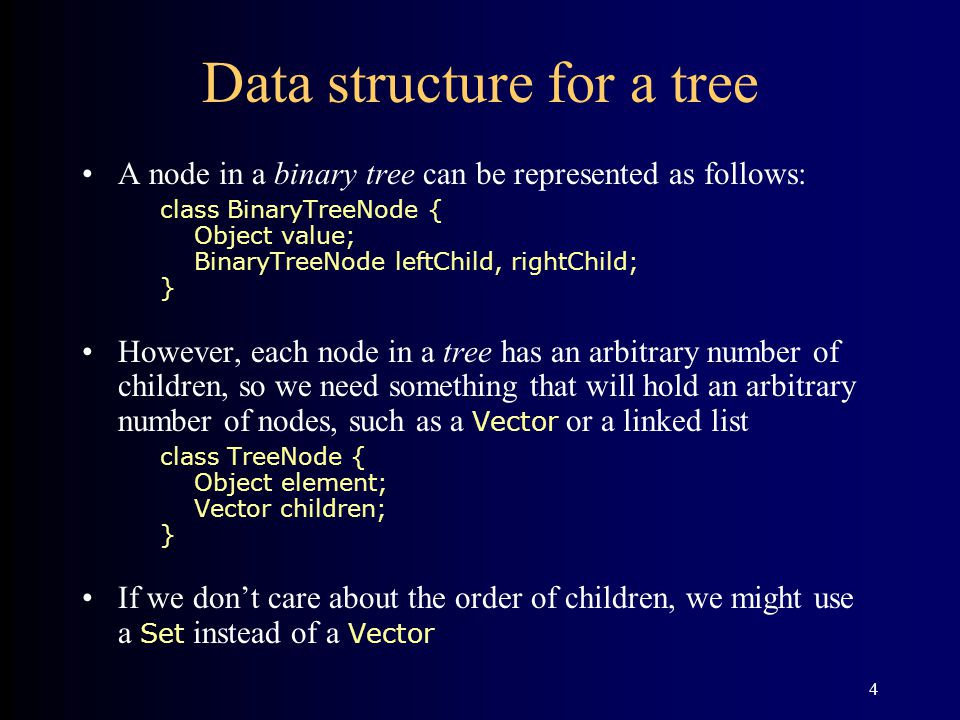

4. 4 Data structure for a tree A node in a binary tree can be represented as follows: class BinaryTreeNode { Object value; BinaryTreeNode leftChild, rightChild; } However, each node in a tree has an arbitrary number of children, so we need something that will hold an arbitrary number of nodes, such as a Vector or a linked list class TreeNode { Object element; Vector children; } If we don’t care about the order of children, we might use a Set instead of a Vector

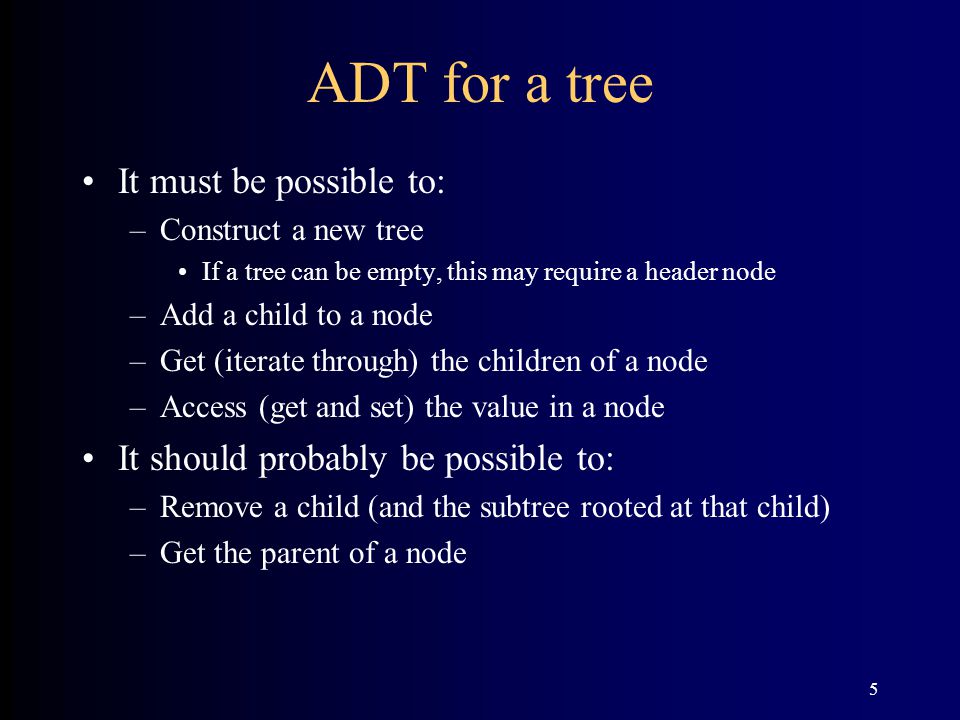

5. 5 ADT for a tree It must be possible to: –Construct a new tree If a tree can be empty, this may require a header node –Add a child to a node –Get (iterate through) the children of a node –Access (get and set) the value in a node It should probably be possible to: –Remove a child (and the subtree rooted at that child) –Get the parent of a node

6. 6 A Tree ADT, I Here is a Tree ADT defined in Java Collections by David A. Watt and Deryck F. Brown: public interface Tree { //...method declarations... public interface Node { public Object getElement(); public void setElement(Object elem); } } An interesting aspect of this ADT is that it uses an inner interface –An interface can’t have an inner class –The details are not important for our purposes The inner interface is referred to by Tree.Node

7. 7 A Tree ADT, II public interface Tree { // Accessors public Tree.Node root(); public Tree.Node parent(Tree.Node node); public int childCount(Tree.Node node); // Transformers public void makeRoot(Object elem); public Tree.Node addChild(Tree.Node node, Object elem); public void remove(Tree.Node node); // Iterator public Iterator children(Tree.Node node); // Inner interface for tree nodes public interface Node { public Object getElement(); public void setElement(Object elem); } }

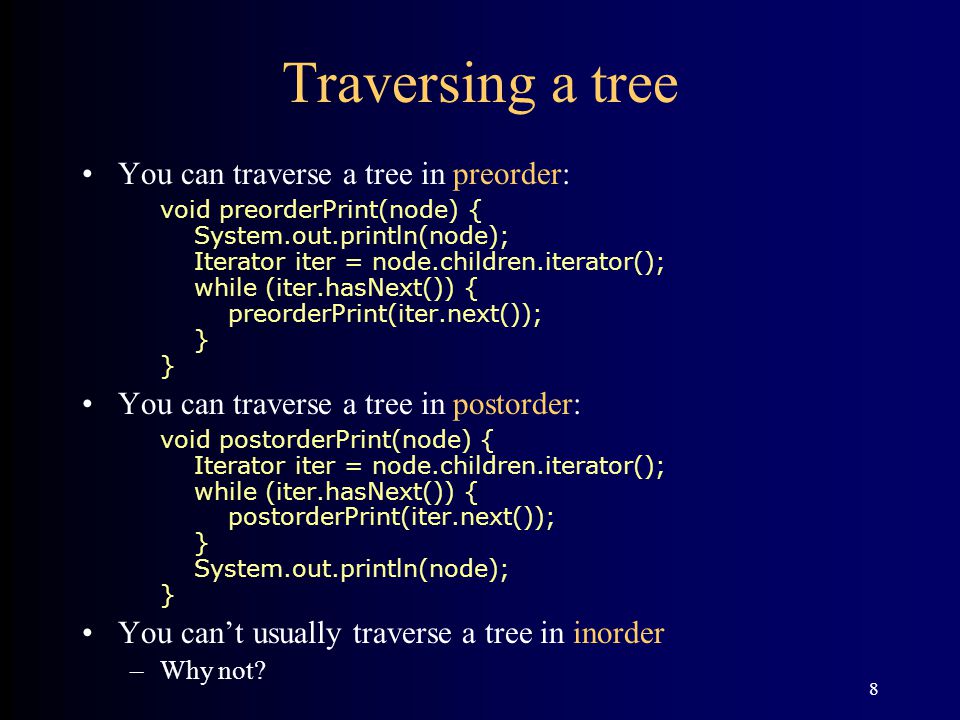

8. 8 Traversing a tree You can traverse a tree in preorder: void preorderPrint(node) { System.out.println(node); Iterator iter = node.children.iterator(); while (iter.hasNext()) { preorderPrint(iter.next()); } } You can traverse a tree in postorder: void postorderPrint(node) { Iterator iter = node.children.iterator(); while (iter.hasNext()) { postorderPrint(iter.next()); } System.out.println(node); } You can’t usually traverse a tree in inorder –Why not?

9. 9 Other tree manipulations There’s really nothing new to talk about; you’ve seen it all with binary trees A tree consists of nodes, each node has references to some other nodes—you know how to do all this stuff There are some useful algorithms for searching trees, and with some modifications they also apply to searching graphs Let’s move on to some applications of trees

10. 10 File systems File systems are almost always implemented as a tree structure –The nodes in the tree are of (at least) two types: folders (or directories), and plain files –A folder typically has children—subfolders and plain files A folder also contains a link to its parent—in both Windows and UNIX, this link is denoted by.. In UNIX, the root of the tree is denoted by / –A plain file is typically a leaf

11. 11 Family trees It turns out that a tree is not a good way to represent a family tree –Every child has two parents, a mother and a father –Parents frequently remarry An “upside down” binary tree almost works –Since it is a biological fact (so far) that every child has exactly two parents, we can use left child = mother and right child = father –The terminology gets a bit confusing –If you could go back far enough, it becomes a mathematical certainty that the mother and father have some ancestors in common

12. 12 Part of a genealogy Isaac David Paul a Steven Danielle Winfred Carol Chester Elaine Eugene Pauline

13. 13 Game trees Trees are used heavily in implementing games, particularly board games A node represents a position on the board The children of a node represent all the possible moves from that position –More precisely, the branches from a node represent the possible moves; the children represent the new positions Planning ahead (in a game) means choosing a path through the tree However— –You can’t have a cycle in a tree –If you can return to a previous position in a game, you have a cycle –Graphs can have cycles

14. 14 Binary trees for expressions Ordered trees can be used to represent arithmetic expressions To evaluate an expression (given as a node): –If it is a leaf, the element in it specifies the value If the element is a number, that number is the value If the element is a variable, look up its value in a table –If it is not a leaf, Evaluate the children and combine them according to the operation specified by the element + 22 The expression 2+2 + 2 * 34 The expression 2+3*4 * 4 + 23 The expression (2+3)*4

15. 15 (General) trees for expressions You can use binary trees for expressions if you have only unary and binary operators Java has a ternary operator Trees can be used to represent statements as well as expressions Statements can be evaluated as easily as expressions The expression x > y ? x : y ?: >x x y y The statement if (x > y) max = x; else max = y; y if > xxy max ==

16. 16 More trees for statements while (n >= 1) { exp = x * exp; n--; } for (int i = 0; i < n; i++) a[i] = 0; while >= n1 exp * = n -- x ; for i int = 0 a [ ]i i n0 ++=< i

17. 17 Writing compilers and interpreters A compiler does three things: –Parses the input program (converts it into an abstract syntax tree) –(Optionally) optimizes the abstract syntax tree –Traverses the tree and outputs assembly language or machine code to do the same operations An interpreter does three things: –Parses the input program (converts it into an abstract syntax tree) –(Optionally) optimizes the abstract syntax tree –Traverses the tree in an order controlled by the node contents, and performs the operations as it goes Parsing is usually the hard part, but there is a very simple technique (called recursive descent parsing) that can be used if the language is carefully designed and you don’t care too much about efficiency or good error messages

18. 18 I’ll never write a compiler... Are you sure? If you can’t parse text inputs, you are limited to reading simple things like numbers and Strings If you can parse text input, you can make sense of: –tell Mary "Meet me at noon" –fire phasers at 3, 7 –17.25, 0.203 + 8.97i, 0.95i –28°12"48' –3:30pm-5pm Parsing is less important in these days of GUIs, but it’s still pretty important –Java provides basic support for parsing with its StringTokenizer and StreamTokenizer classes
