1 Dark Matter from Universal Extra Dimensions Mitsuru Kakizaki (Bonn Univ. & ICRR, Univ. of Tokyo) 18 November, 2005 @ Bonn Univ. Collaborated with Shigeki Matsumoto (KEK) Yoshio Sato (Saitama Univ.) Masato Senami (ICRR, Univ. of Tokyo) Refs: PRD 71 (2005) 123522 [hep-ph/0502059] hep-ph/0508283

2 18 November, 2005Mitsuru Kakizaki2 1. Motivation Existence of non-baryonic cold dark matter Cosmic microwave background anisotropies: Rotation curve of galaxies: Mass-to-light ratio of galaxy clusters: [http://map.gsfc.nasa.gov] e.g. the Coma cluster: [Begeman, Broeils, Sanders (1991)]

3 18 November, 2005Mitsuru Kakizaki3 What is the constituent of dark matter? We need physics beyond standard model (SM) of particle physics Stable, neutral, weakly interacting massive particles are good candidates: Lightest supersymmetric particle (LSP) in supersymmetric (SUSY) models: e.g. neutralino, gravitino Lightest Kaluza-Klein particle (LKP) in universal extra dimension models etc. Today’s topic

4 18 November, 2005Mitsuru Kakizaki4 Cosmic-ray positron experiments The HEAT experiment indicated an excess in the positron flux: Future experiments (PAMELA, AMS-02, …) will confirm or exclude the positron excess [Hooper, Kribs, PRD70, (2004) 115004)] KK dark matter may explain the excess without any exceptional substructure Unnatural DM substructure is required to match the data in SUSY models [Hooper, Taylor, Silk, PRD69 (2004) 103509)] The positron excess could originate from the annihilation of DM particles in the Galactic halo [From Beatty et al., PRL93 (2004) 241102)]

5 18 November, 2005Mitsuru Kakizaki5 Outline In universal extra dimension (UED) models, Kaluza-Klein (KK) dark matter physics is drastically affected by second KK particles Reevaluation of relic density of KK dark matter including coannihilation and resonance effects Dark matter particle mass consistent with WMAP increases In universal extra dimension (UED) models, Kaluza-Klein (KK) dark matter physics is drastically affected by second KK particles Reevaluation of relic density of KK dark matter including coannihilation and resonance effects Dark matter particle mass consistent with WMAP increases 1.Motivation 2.Universal extra dimension (UED) models 3.Relic abundance of KK dark matter 4.Resonant KK dark matter annihilation 5.Relic abundance including full coannihilation effects 6.Summary

6 18 November, 2005Mitsuru Kakizaki6 2. Review of universal extra dimension (UED) models Idea: All SM particles propagate flat compact spatial extra dimensions [Appelquist, Cheng, Dobrescu, PRD64 (2001) 035002] Dispersion relation: Momentum along the extra dimension  Mass in four-dimensional viewpoint For compactification with radius, Mass spectrum for is quantized Momentum conservation in the extra dimension Conservation of KK number in each vertex Macroscopic Microscopic Magnify

7 18 November, 2005Mitsuru Kakizaki7 Conservation of KK parity [+ (--) for even (odd) ] The lightest KK particle (LKP) is stable The LKP is a good candidate for dark matter c.f. R-parity and LSP In order to obtain chiral fermions at zeroth KK level, the extra dimension is compactified on an orbifold Constraints from electroweak measurements are weak: Minimal UED model Only two new parameters in the minimal UED (MUED) model: : Size of extra dimension : Cutoff scale [Flacke, Hooper, March-Russel, hep-ph/0509352 (2005)] [Appelquist, Cheng, Dobrescu (2001); Appelquist, Yee, PRD67 (2003)] : Inclusion of 2-loop SM contributions and LEP2 data

8 18 November, 2005Mitsuru Kakizaki8 Mass spectra of KK states KK modes are degenerate in mass at each KK level: [From Cheng, Matchev, Schmaltz, PRD 036005 (2002)] Radiative corrections relax the degeneracy Lightest KK Particle (LKP): Next to LKP: SU(2) L singlet leptons: 1-loop corrected mass spectrum at the first KK level : Cutoff scale Compactification  5D Lor. inv. Orbifolding  trans. Inv. in 5th dim.

9 18 November, 2005Mitsuru Kakizaki9 3. Relic abundance of KK dark matter Dark matter was at thermal equilibrium in the early universe Neutralino (LSP) Majorana fermion Small Large Small (LKP) Spin-1 boson Large Small Large Dark matter particle Nature of spin Annihilation cross section Relic density Allowed mass of DM particle SUSY vs UED After the annihilation rate dropped below the expansion rate, the number density per comoving volume is fixed Thermal relic abundance Increasing Decoupling Co-moving number density

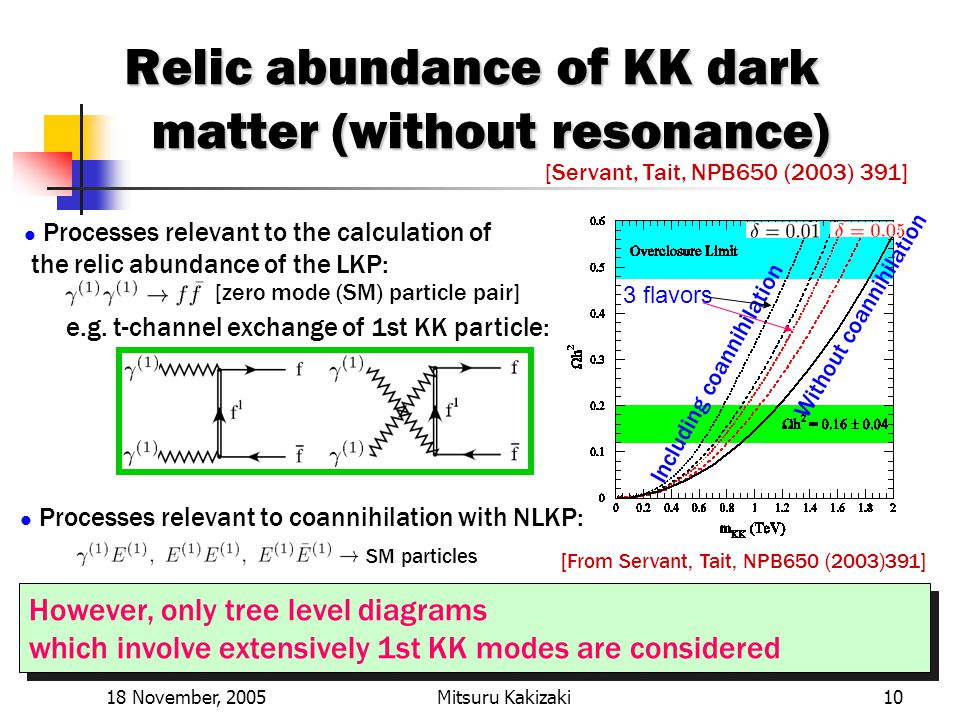

10 18 November, 2005Mitsuru Kakizaki10 Relic abundance of KK dark matter (without resonance) [From Servant, Tait, NPB650 (2003)391] However, only tree level diagrams which involve extensively 1st KK modes are considered [zero mode (SM) particle pair] e.g. t-channel exchange of 1st KK particle: [Servant, Tait, NPB650 (2003) 391] Including coannihilation Without coannihilation 3 flavors Processes relevant to the calculation of the relic abundance of the LKP: Processes relevant to coannihilation with NLKP: SM particles

11 18 November, 2005Mitsuru Kakizaki11 4. Resonant KK dark matter annihilation (Incident energy of two LKPs) Dark matter is non-relativistic in the early universe (Masses of 2nd KK modes) The annihilation cross section for the LKP is enhanced due to the resonance by s-channel 2nd KK Higgs boson at loop level Mass splitting in MUED:

12 18 November, 2005Mitsuru Kakizaki12 Thermal average of annihilation cross section for LKP Smaller The averaged cross section becomes maximum at later time and has larger maximum value

13 18 November, 2005Mitsuru Kakizaki13 Relic abundance of LKP (without coannihilation) 2nd KK modes play an important role in calculation of the relic density of the LKP dark matter The resonance effect raises the LKP mass consistent with the WMAP data The resonant annihilation by effectively reduces the number density of dark matter

14 18 November, 2005Mitsuru Kakizaki14 Coannihilation with NLKP Evolution of dark matter abundance [Three flavors: ] -resonance in : relatively small We can systematically survey effects of 2nd KK resonances: -resonance in : sizable No second KK resonance in The number density gradually decreases even after decoupling

15 18 November, 2005Mitsuru Kakizaki15 Allowed mass region Including resonance Tree level results

16 18 November, 2005Mitsuru Kakizaki16 5. Relic abundance including full coannihilation effects [Burnell, Kribs, hep-ph/0509118; Kong, Matchev, hep-ph/0509119] Colored KK particles can be degenerate with the LKP in mass [From Kong, Matchev, hep-ph/0509119] WMAP Disfavored by EWPT In MUED, inclusion of full coanninilation effects lowers favored range of Resonance effects may sizably shift the allowed mass scale In MUED, inclusion of full coanninilation effects lowers favored range of Resonance effects may sizably shift the allowed mass scale Relic abundance including coannihilation processes with all level one KK particles (ignoring resonance effects) Inclusion of full coannihilation modes change the abundance

17 18 November, 2005Mitsuru Kakizaki17 6. Summary UED models provide a viable dark matter candidate: (Masses of 2nd KK particles) The lightest Kaluza-Klein particle (LKP) We evaluated the relic abundance of the LKP dark matter including the resonance and coannihilation effects (with the NLKPs) The LKP mass consistent with WMAP is sizably raised due to the s-channel second KK resonance We evaluated the relic abundance of the LKP dark matter including the resonance and coannihilation effects (with the NLKPs) The LKP mass consistent with WMAP is sizably raised due to the s-channel second KK resonance (Masses of 1st KK particles) Resonant annihilation
