1. TSLC(TUMOR SUPPRESSOR IN LUNG CANCER)1 SUPPRESSES EPITHELIAL CELL SCATTERING AND TUBULOGENESIS Mari Masuda, et. al. (2005) J. Biol. Chem. 280, 42164-42171 銘傳大學生物科技學系 姓名 : 尹馭群 學號 :91390576

2. Introduction TSLC1 TSLC1 EMT EMT Cyst Cyst Cell adhesion molecules Cell adhesion molecules Epithelial tissue and connective tissue Epithelial tissue and connective tissue ZO-1 ZO-1 Tet-off System Tet-off System Cell scattering and tubulogenesis Cell scattering and tubulogenesis Rac, Rho, Rac, Rho, Actin cytoskeleton

3. TSLC1 TSLC/IGSF4A is a tumor suppressor gene in nonsmall cell lung cancer (NSCLC), which encodes a single membrane-spanning glycoprotein belong to the family of immunoglobulin superfamily cell adhesion molecules(IgCAMs) TSLC/IGSF4A is a tumor suppressor gene in nonsmall cell lung cancer (NSCLC), which encodes a single membrane-spanning glycoprotein belong to the family of immunoglobulin superfamily cell adhesion molecules(IgCAMs) The cytoplasmic tail of TSLC1 contains a juxtamembrane sequence interacting with protein 4.1 and a class II PDZ binding motif The cytoplasmic tail of TSLC1 contains a juxtamembrane sequence interacting with protein 4.1 and a class II PDZ binding motif In a primary NSCLC we have found a 2-bp deletion in the TSLC1 the cause replacement of the c-terminal 19 amino acid residues, indicating that the cytoplasmic domain of TSLC is crucial for tumor suppression In a primary NSCLC we have found a 2-bp deletion in the TSLC1 the cause replacement of the c-terminal 19 amino acid residues, indicating that the cytoplasmic domain of TSLC is crucial for tumor suppression

4. Epithelial tissue Epithelial tissue covers the whole surface of the body. It is made up of cells closely packed and ranged in one or more layers. Epithelial tissue covers the whole surface of the body. It is made up of cells closely packed and ranged in one or more layers. Epithelial tissue, regardless of the type, is usually separated from the underlying tissue by a thin sheet of connective tissue; basement membrane. The basement membrane provides structural support for the epithelium and also binds it to neighbouring structures Epithelial tissue, regardless of the type, is usually separated from the underlying tissue by a thin sheet of connective tissue; basement membrane. The basement membrane provides structural support for the epithelium and also binds it to neighbouring structures

5. Connective tissue Connective tissue is any type of biological tissue with an extensive extracellular matrix and often serves to support, bind together, and protect organs Connective tissue is any type of biological tissue with an extensive extracellular matrix and often serves to support, bind together, and protect organs Connective tissue has abundant extracellular matrix Connective tissue has abundant extracellular matrix Composed by smaller cells and low densities Composed by smaller cells and low densities

6. EMT (epithelial mesenchymal transitions) Epithelial cells are the cells that line virtually every organ in your body and 85% of cancers derive from epithelial cells. During embryonic development epithelial cells sometimes dissolve their junctions with their neighbors and become mesenchymal. Mesenchymal cells have a less rigid shape and are more likely to be motile. Epithelial to mesenchymal transitions, as well as the reverse process, are extremely important for normal development. In addition, these transitions are important in wound healing, and tumor cells that develop from epithelial cells must transform into motile cells in order to metastasize.

7. Cyst The cyst is a spherical monolayer of polarized cells that encloses a central lummen The cyst is a spherical monolayer of polarized cells that encloses a central lummen

8. Cell adhesion molecules (CAM)

9. ZO - 1 A marker of tight junctions, which is normally detected on the apical surfaces facing inwards of parental MDCK cyst A marker of tight junctions, which is normally detected on the apical surfaces facing inwards of parental MDCK cyst Apical Basal

10. Tet-off system

11. Cell scattering Cell scattering is used to describe the dispersion of compact colonies of epithelial cells induced by certain soluble factors such as growth factors, cytokines, and phorbol esters Cell scattering is used to describe the dispersion of compact colonies of epithelial cells induced by certain soluble factors such as growth factors, cytokines, and phorbol esters Procedures: Procedures: 1. Cell spreading 2. Dissociation cells from each other 3. Migration as individual cells

12. Tubulogenesis Tubulogenesis processed during HGF- induced EMT. Generally speaking, it is related with tumor cells’ invasion and matastasis Tubulogenesis processed during HGF- induced EMT. Generally speaking, it is related with tumor cells’ invasion and matastasis Procedures: Procedures: A. Formation of extensions B. Formation of single file chains C. Conversion to multilayered cords D. Maturation of tubules

13. *Actin cytoskeleton is regulated by small GTP-binding proteins (Rho, Rac ) Previous studies fromothers have shown that a constitutively active Rac mutant abolished HGF-mediated scattering Previous studies fromothers have shown that a constitutively active Rac mutant abolished HGF-mediated scattering And high in Rac and low in Rho activities are correlated with an epithelial phenotype by stabilizing E-cadherin cell-cell adhesion And high in Rac and low in Rho activities are correlated with an epithelial phenotype by stabilizing E-cadherin cell-cell adhesion A transient decrease in Rac activity is essential to induce disassembly of cell-cell junctions A transient decrease in Rac activity is essential to induce disassembly of cell-cell junctions

14. Material and Method Cells and proliferation Assay Cells and proliferation Assay Antibodies Antibodies Expression Vectors and Transfection Expression Vectors and Transfection Protein Analysis Protein Analysis Three-dimensional Culture in Collagen Gels and Tubulogenesis Assay Three-dimensional Culture in Collagen Gels and Tubulogenesis Assay Cell Scattering Assay Cell Scattering Assay Immunostaining and Confocal Microscopy Immunostaining and Confocal Microscopy Rac and Rho Activation Assay (GST pull-down assay) Rac and Rho Activation Assay (GST pull-down assay) Statistics Statistics

15. Three-dimensional culture Three-dimensional culture is a powerful tool for investigating the molecular signals, that specify epithelial architecture Three-dimensional culture is a powerful tool for investigating the molecular signals, that specify epithelial architecture

16. Immunostaining Direct immunofluorescence Direct immunofluorescence Indirect immunofluorescence Indirect immunofluorescence

17. Result 1.The obtained clones express the transgenes at a nearly equivalent level 2. MDCK Tet-off cells express a low level of endogenous TSLC detected as faint bands Overexpression of TSLC or any of the truncation mutants does not alter cell growth in MDCK cell

18. MDCK(-) TSLC1ΔC-HA TSLC1 ZO-1Merged

19. TSLC1 ZO-1Merged Δ4.1-BMΔPDZ-BM

20. HGF(-) DOX(-) DOX(+) HGF(+) MDCK(-) GFP TSLC1 ΔC-HA

21. HGF(-) DOX(-) DOX(+) HGF(+) TSLC1 Δ4.1-BM ΔPDZ-BM

22. Quantitativeanalysis of 30 cysts for each cell clone demonstrated that the differencein tubulogenesis between the Dox-treated (TSLC1 off) and untreated(TSLC1 on) MDCK/TSLC1 cells was statistically significant (p 0.05)

23. HGF(-) DOX(-) DOX(+) HGF(+) MDCK(-) GFP TSLC1ΔC-HA

24. HGF(-) DOX(-) DOX(+) HGF(+) TSLC1 ΔPDZ-BM Δ4.1-BM

25. A quantitative analysis of cell scattering confirmed that the difference between the Dox-treated and untreated MDCK/TSLC1 cells was statistically significant with p 0.05)

27. In response to HGF, the parental cells showed immediate early increase in Rac activity,which returned to basal levels within 15 min as well, as sustained Rho activation the HGF treatedMDCK/TSLC1 cells exhibited prolonged Rac activation, whichwas still observed 4 h after stimulation, but there was no increase in Rho activity.

28. Conclusion Both the Protein 4.1-BM and the PDZ-BM are Necessary for the lateral localization of TSLC1 in cyst grown in a 3D culture Both the Protein 4.1-BM and the PDZ-BM are Necessary for the lateral localization of TSLC1 in cyst grown in a 3D culture Expression of TSLC1 in MDCK cells suppressed HGF-induced tubulogenesis Expression of TSLC1 in MDCK cells suppressed HGF-induced tubulogenesis TSLC1 inhibits HGF-induced cell scattering by suppressing induction of EMT TSLC1 inhibits HGF-induced cell scattering by suppressing induction of EMT MDCK/TSLC1 cells retained E-cadherin-based cell-cell adhesion even after treated with HGF MDCK/TSLC1 cells retained E-cadherin-based cell-cell adhesion even after treated with HGF

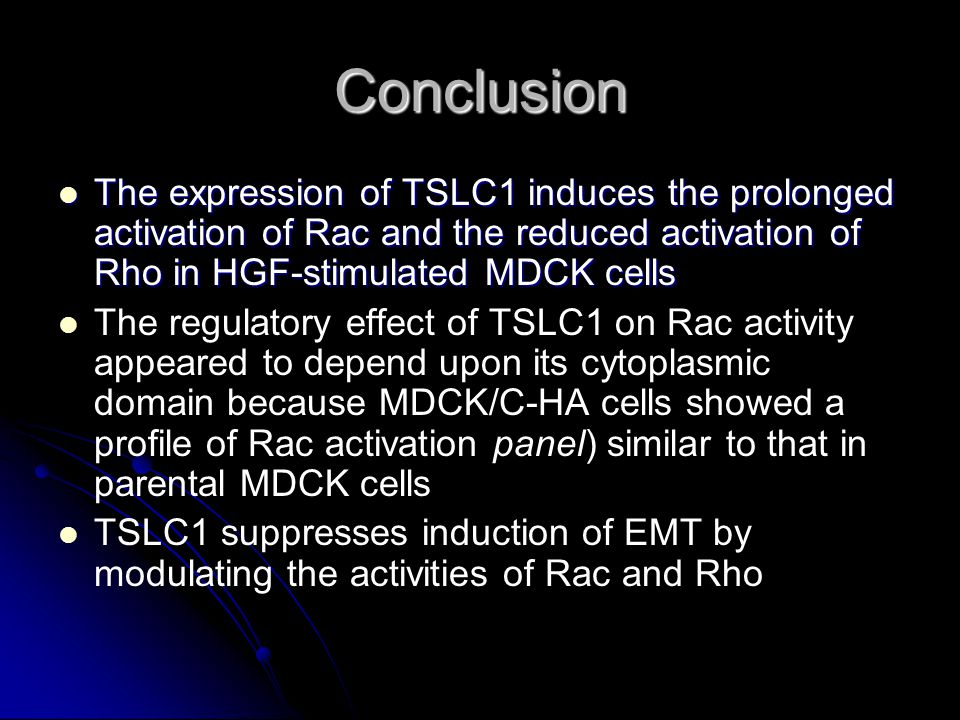

29. Conclusion The expression of TSLC1 induces the prolonged activation of Rac and the reduced activation of Rho in HGF-stimulated MDCK cells The expression of TSLC1 induces the prolonged activation of Rac and the reduced activation of Rho in HGF-stimulated MDCK cells The regulatory effect of TSLC1 on Rac activity appeared to depend upon its cytoplasmic domain because MDCK/C-HA cells showed a profile of Rac activation panel) similar to that in parental MDCK cells TSLC1 suppresses induction of EMT by modulating the activities of Rac and Rho

30. The End

31. Conclusion Both the Protein 4.1-BM and the PDZ-BM are Necessary for the lateral localization of TSLC1 in cyst grown in a 3D culture Both the Protein 4.1-BM and the PDZ-BM are Necessary for the lateral localization of TSLC1 in cyst grown in a 3D culture Expression of TSLC1 in MDCK cells suppressed HGF-induced tubulogenesis Expression of TSLC1 in MDCK cells suppressed HGF-induced tubulogenesis TSLC1 inhibits HGF-induced cell scattering by suppressing induction of EMT TSLC1 inhibits HGF-induced cell scattering by suppressing induction of EMT MDCK/TSLC1 cells retained E-cadherin-based cell-cell adhesion even after treated with HGF MDCK/TSLC1 cells retained E-cadherin-based cell-cell adhesion even after treated with HGF
