Lecture 16 Graphs and Matrices in Practice Eigenvalue and Eigenvector Shang-Hua Teng

2
Where Do Matrices Come From?

3

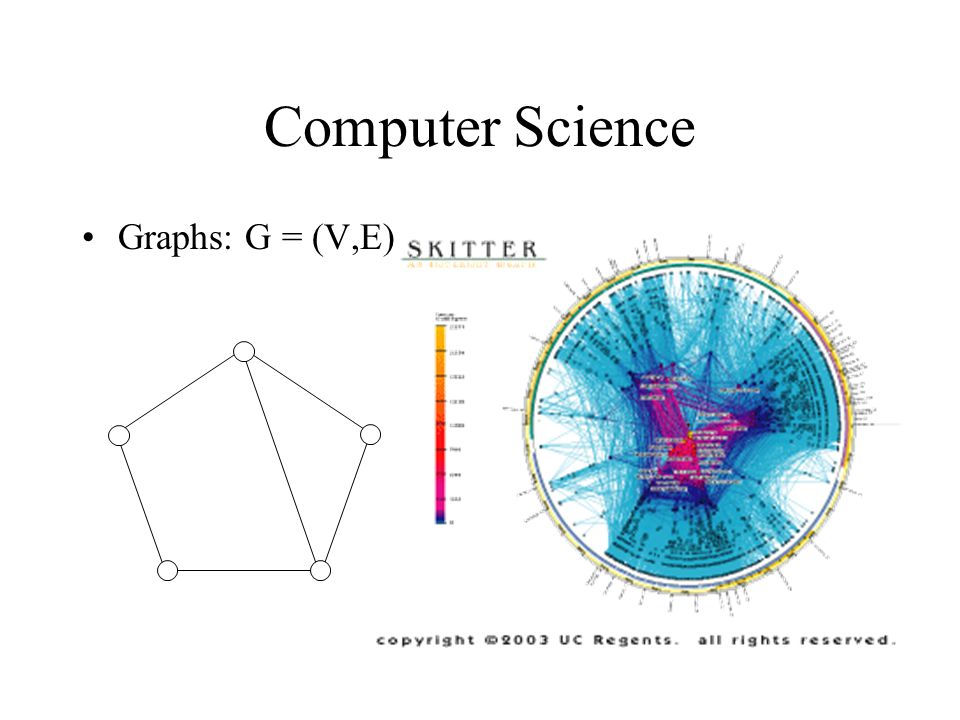

Computer Science Graphs: G = (V,E)

4

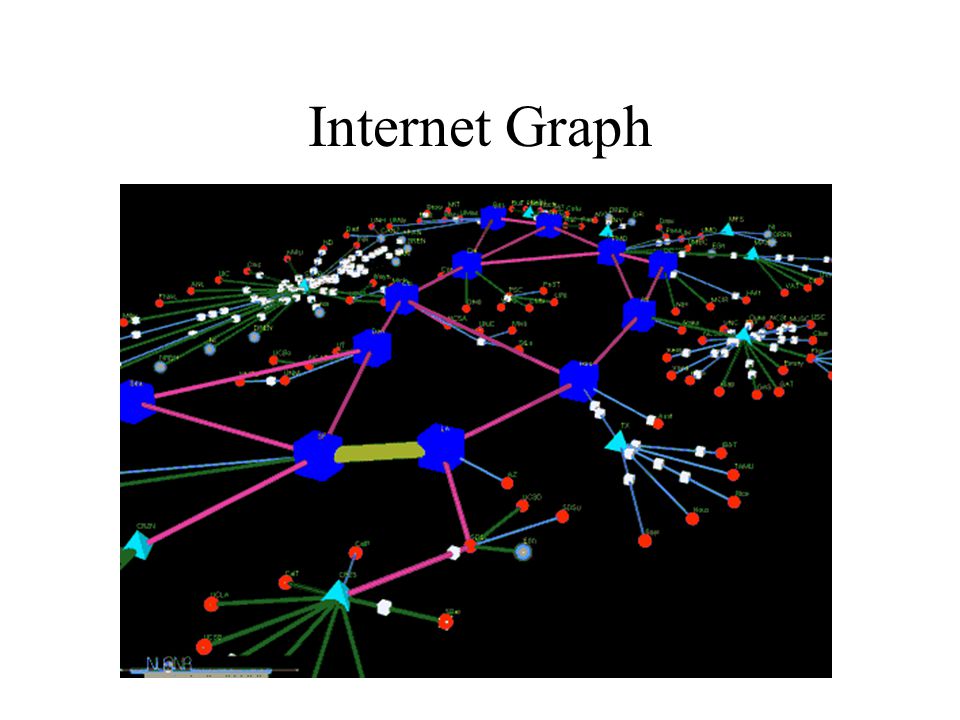

Internet Graph

6

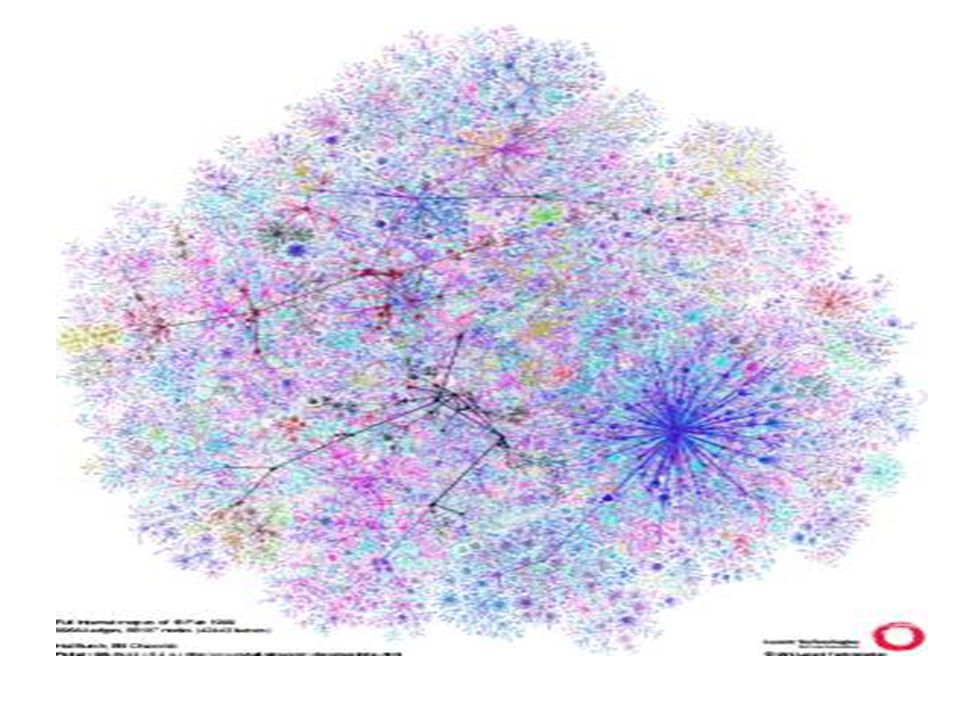

View Internet Graph on Spheres

7
Graphs in Scientific Computing

8
Resource Allocation Graph

9
Road Map

10
Matrices Representation of graphs Adjacency matrix:

11
Adjacency Matrix: 1 2 3 4 5

12
Matrix of Graphs Adjacency Matrix: If A(i, j) = 1: edge exists Else A(i, j) = 0. 12 34 1 -3 3 2 4

13
1 2 3 4 5 Laplacian of Graphs

14
Matrix of Weighted Graphs Weighted Matrix: If A(i, j) = w(i,j): edge exists Else A(i, j) = infty. 12 34 1 -3 3 2 4

15
Random walks How long does it take to get completely lost?

16
Random walks Transition Matrix 1 2 3 4 5 6

17
Markov Matrix Every entry is non-negative Every column adds to 1 A Markov matrix defines a Markov chain

18
Other Matrices Projections Rotations Permutations Reflections

19
Term-Document Matrix Index each document (by human or by computer) –f ij counts, frequencies, weights, etc Each document can be regarded as a point in m dimensions

20
Document-Term Matrix Index each document (by human or by computer) –f ij counts, frequencies, weights, etc Each document can be regarded as a point in n dimensions

21
Term Occurrence Matrix

22

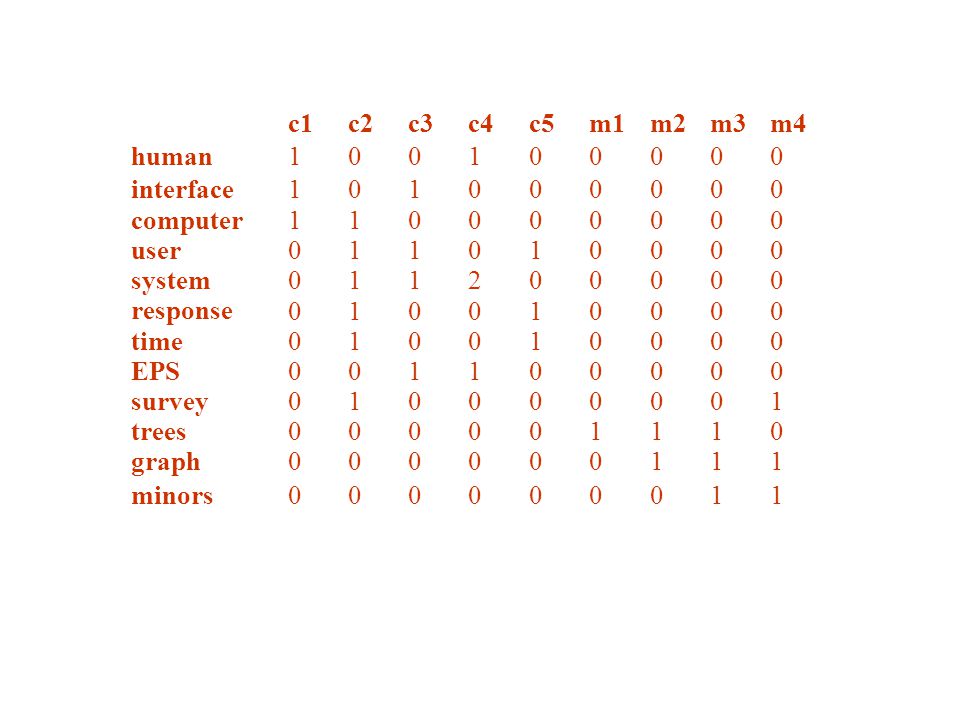

c1 c2 c3 c4 c5 m1 m2 m3 m4 human 1 0 0 1 0 0 0 0 0 interface 1 0 1 0 0 0 0 0 0 computer 1 1 0 0 0 0 0 0 0 user 0 1 1 0 1 0 0 0 0 system 0 1 1 2 0 0 0 0 0 response 0 1 0 0 1 0 0 0 0 time 0 1 0 0 1 0 0 0 0 EPS 0 0 1 1 0 0 0 0 0 survey 0 1 0 0 0 0 0 0 1 trees 0 0 0 0 0 1 1 1 0 graph 0 0 0 0 0 0 1 1 1 minors 0 0 0 0 0 0 0 1 1

23
Matrix in Image Processing

24
Random walks How long does it take to get completely lost?

25
Random walks Transition Matrix 1 2 3 4 5 6
