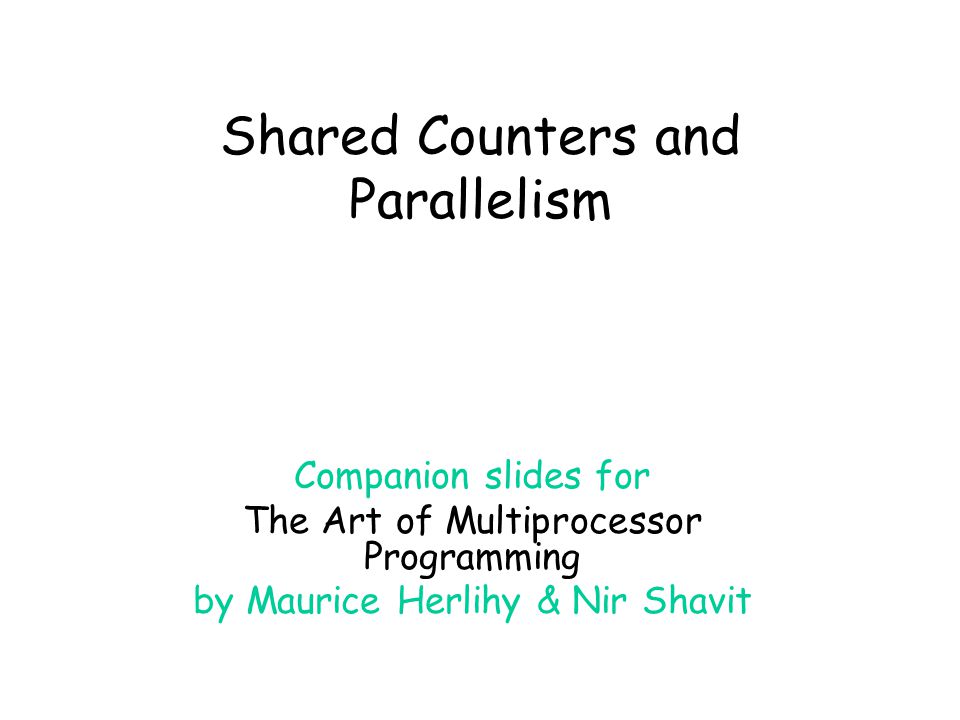

1. Shared Counters and Parallelism Companion slides for The Art of Multiprocessor Programming by Maurice Herlihy & Nir Shavit

2. Art of Multiprocessor Programming 2 A Shared Pool Put –Inserts object –blocks if full Remove –Removes & returns an object –blocks if empty public interface Pool { public void put(Object x); public Object remove(); } Unordered set of objects

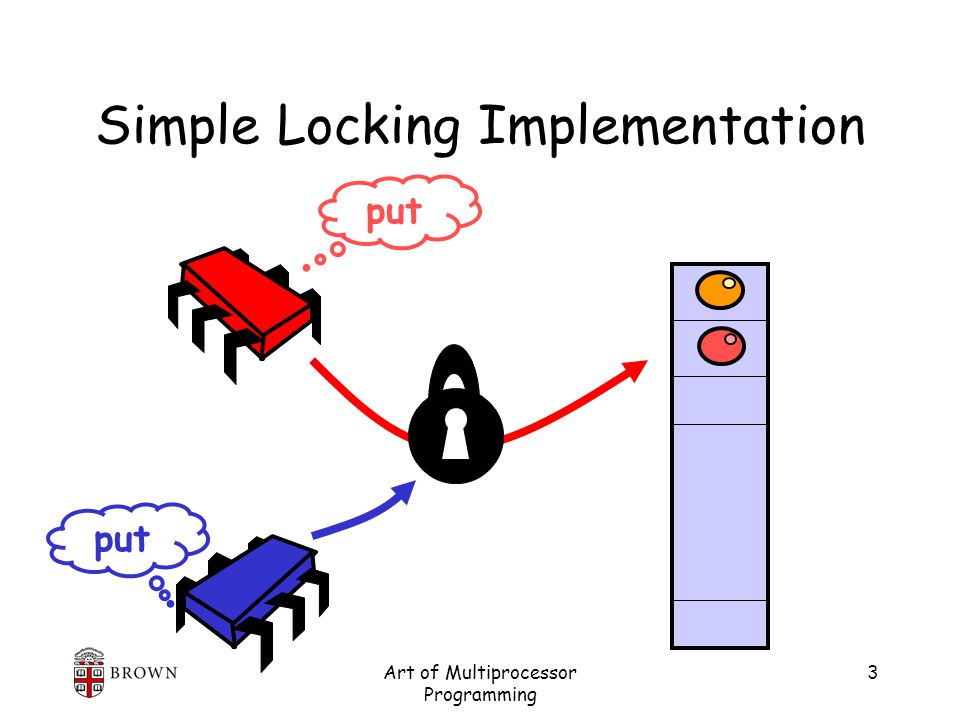

3. Art of Multiprocessor Programming 3 put Simple Locking Implementation put

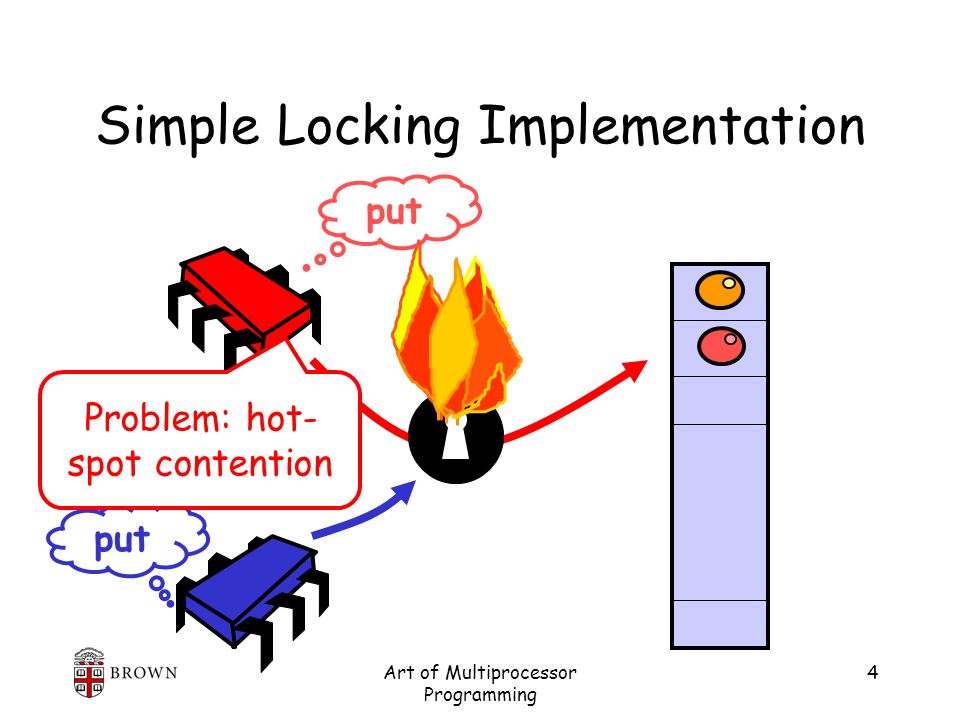

4. Art of Multiprocessor Programming 4 put Simple Locking Implementation put Problem: hot- spot contention

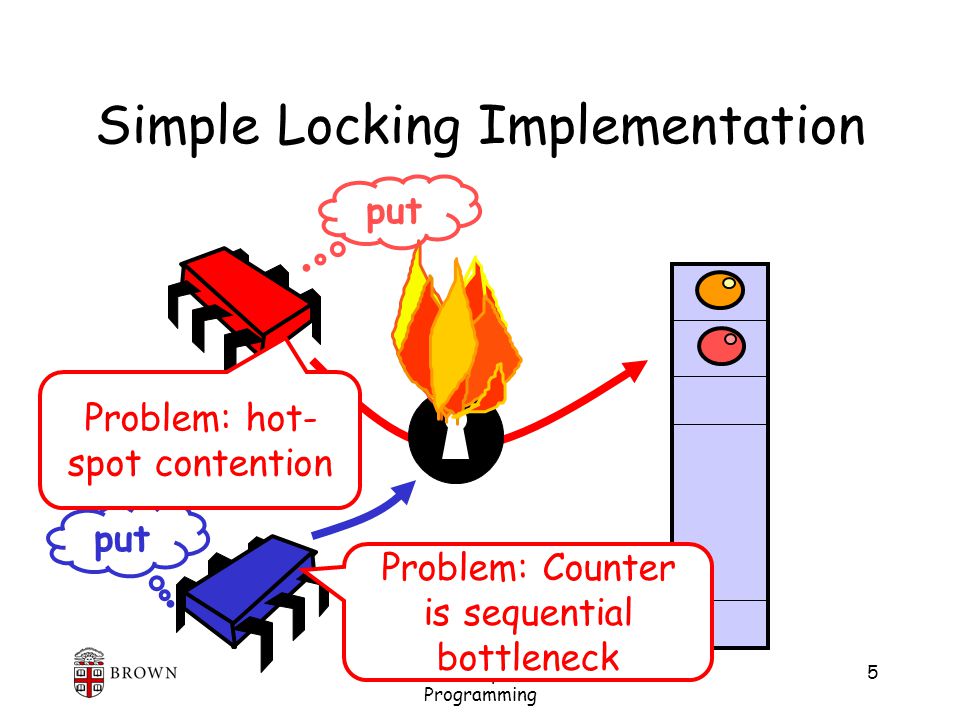

5. Art of Multiprocessor Programming 5 put Simple Locking Implementation Problem: hot- spot contention Problem: Counter is sequential bottleneck put

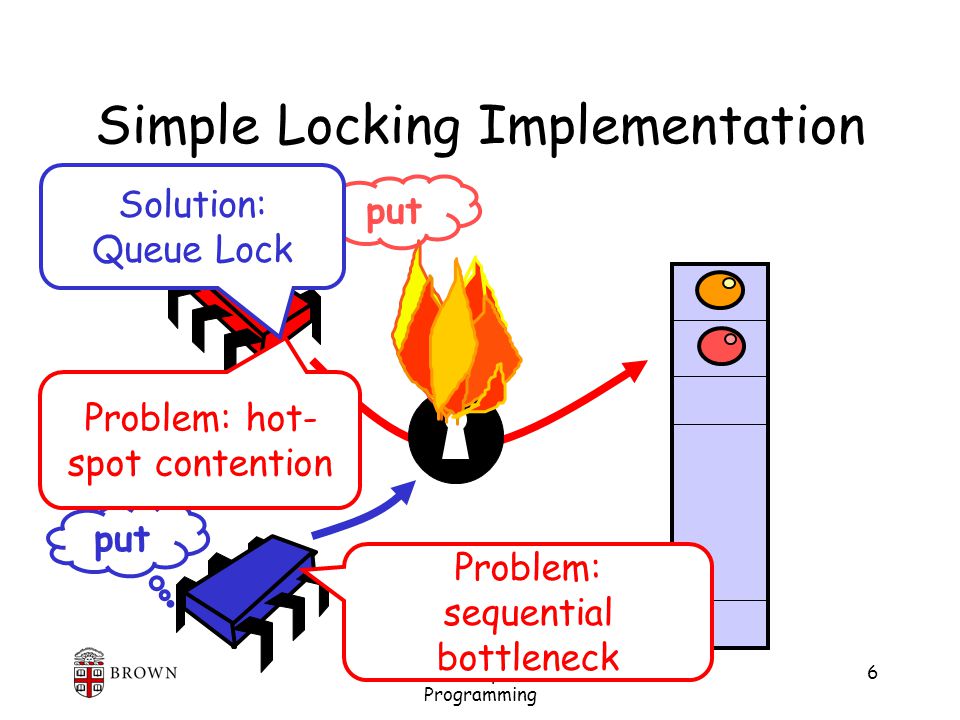

6. Art of Multiprocessor Programming 6 put Simple Locking Implementation Problem: hot- spot contention Problem: sequential bottleneck put Solution: Queue Lock

7. Art of Multiprocessor Programming 7 put Simple Locking Implementation Problem: hot- spot contention Problem: sequential bottleneck put Solution: Queue Lock Solution ???

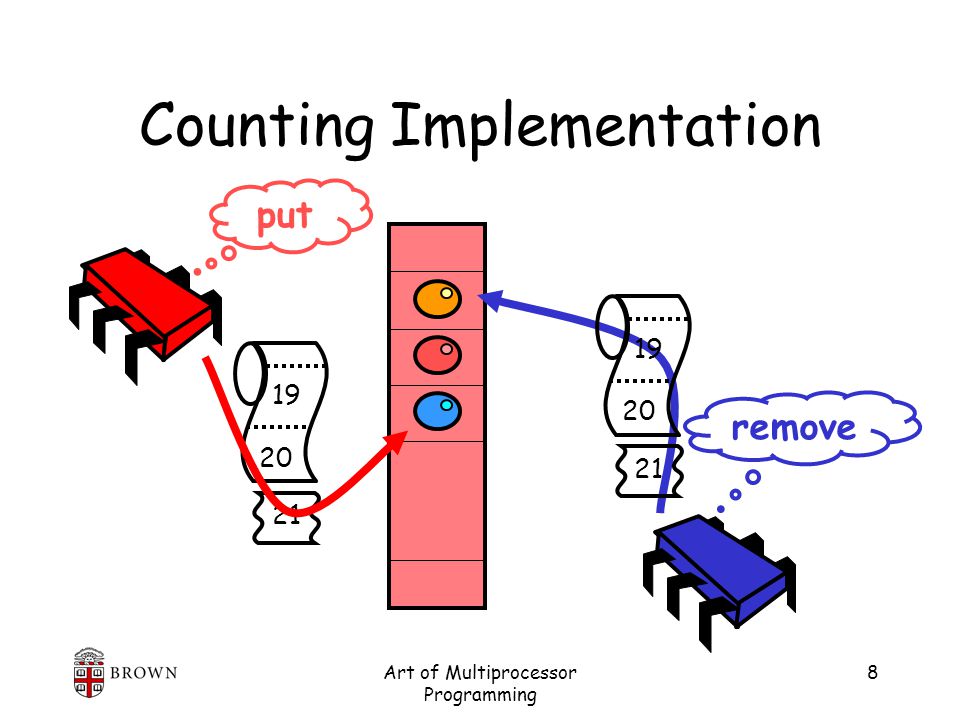

8. Art of Multiprocessor Programming 8 Counting Implementation 19 20 21 remove put 19 20 21

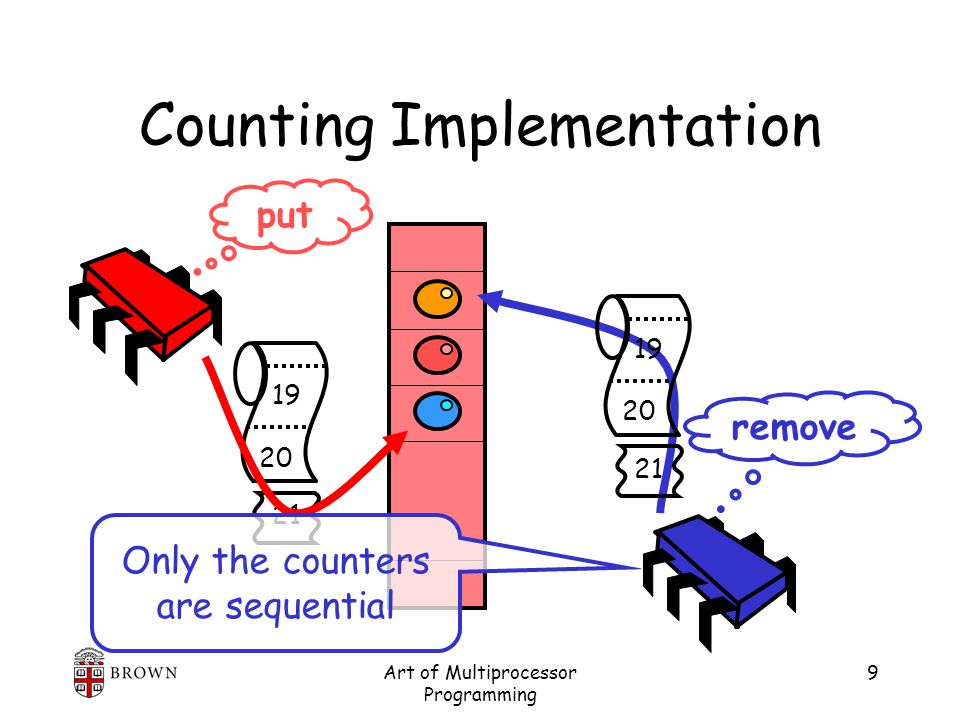

9. Art of Multiprocessor Programming 9 Counting Implementation 19 20 21 Only the counters are sequential remove put 19 20 21

10. Art of Multiprocessor Programming 10 Shared Counter 3 2 1 0 1 2 3

11. Art of Multiprocessor Programming 11 Shared Counter 3 2 1 0 1 2 3 No duplication

12. Art of Multiprocessor Programming 12 Shared Counter 3 2 1 0 1 2 3 No duplication No Omission

13. Art of Multiprocessor Programming 13 Shared Counter 3 2 1 0 1 2 3 Not necessarily linearizable No duplication No Omission

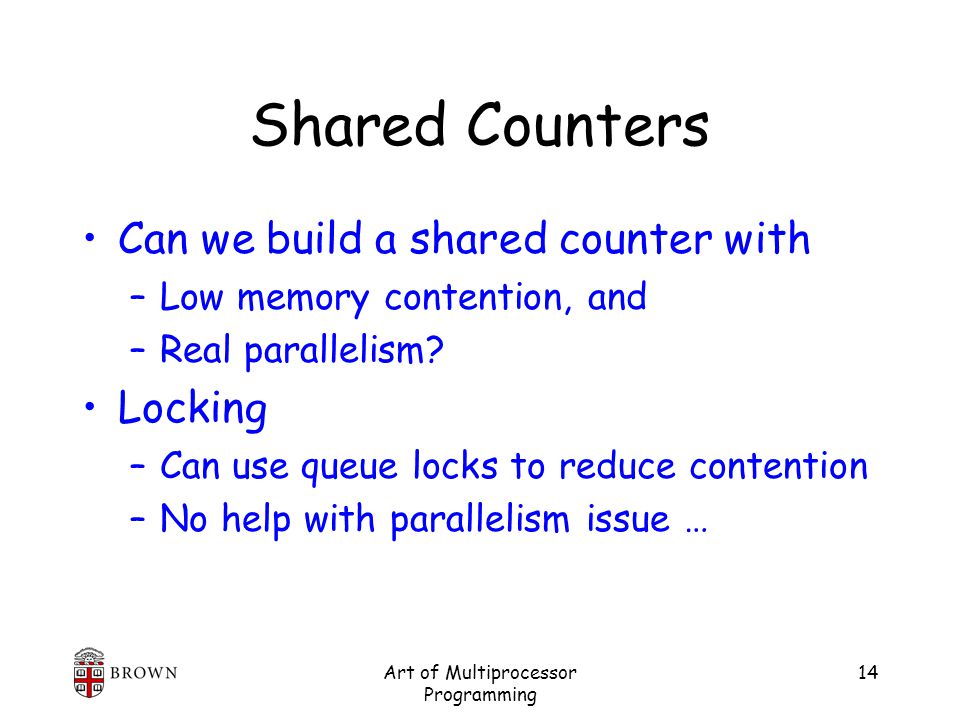

14. Art of Multiprocessor Programming 14 Shared Counters Can we build a shared counter with –Low memory contention, and –Real parallelism? Locking –Can use queue locks to reduce contention –No help with parallelism issue …

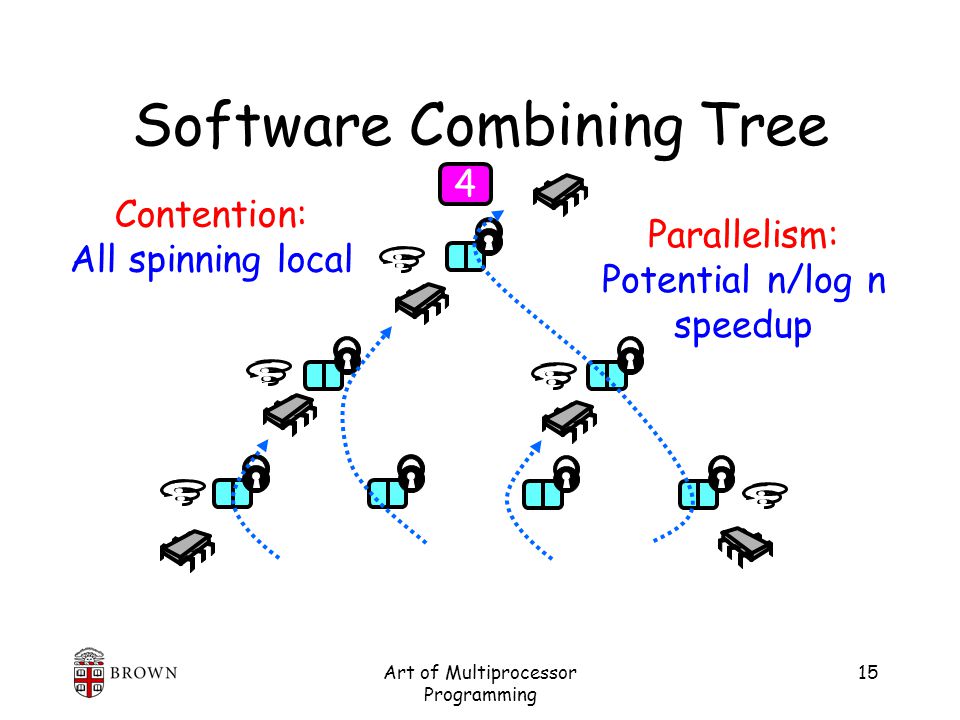

15. Art of Multiprocessor Programming 15 Software Combining Tree 4 Contention: All spinning local Parallelism: Potential n/log n speedup

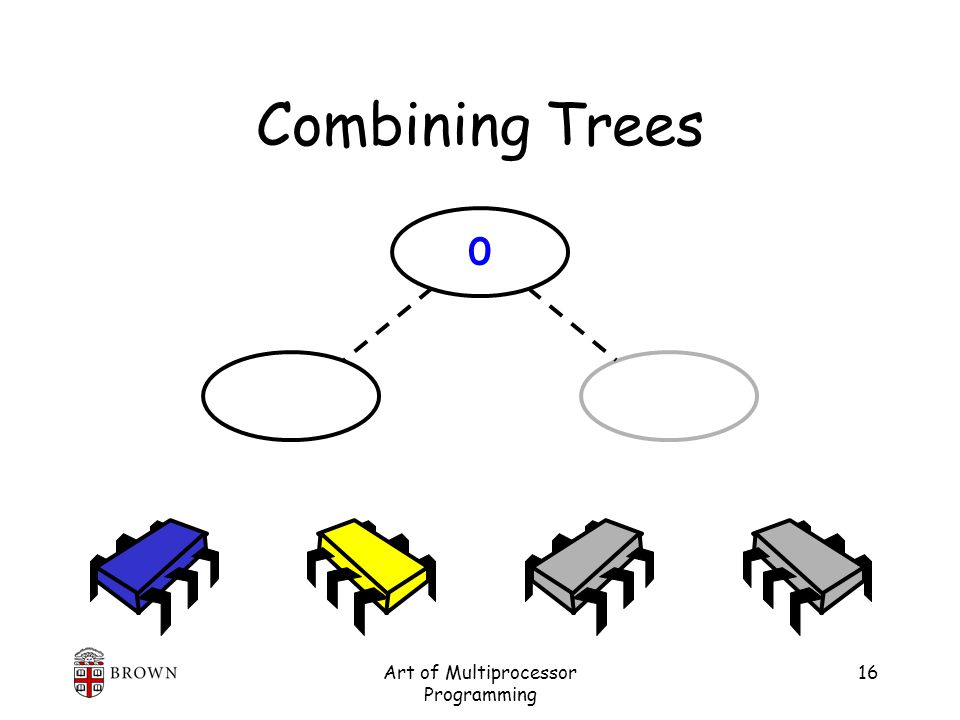

16. Art of Multiprocessor Programming 16 Combining Trees 0

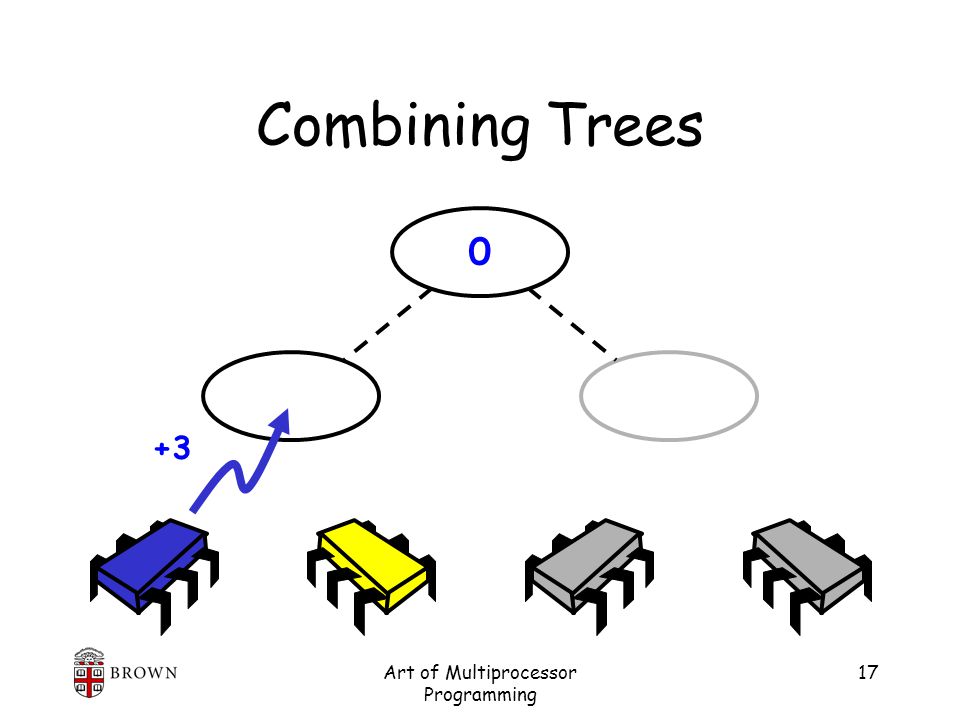

17. Art of Multiprocessor Programming 17 Combining Trees 0 +3

18. Art of Multiprocessor Programming 18 Combining Trees 0 +3 +2

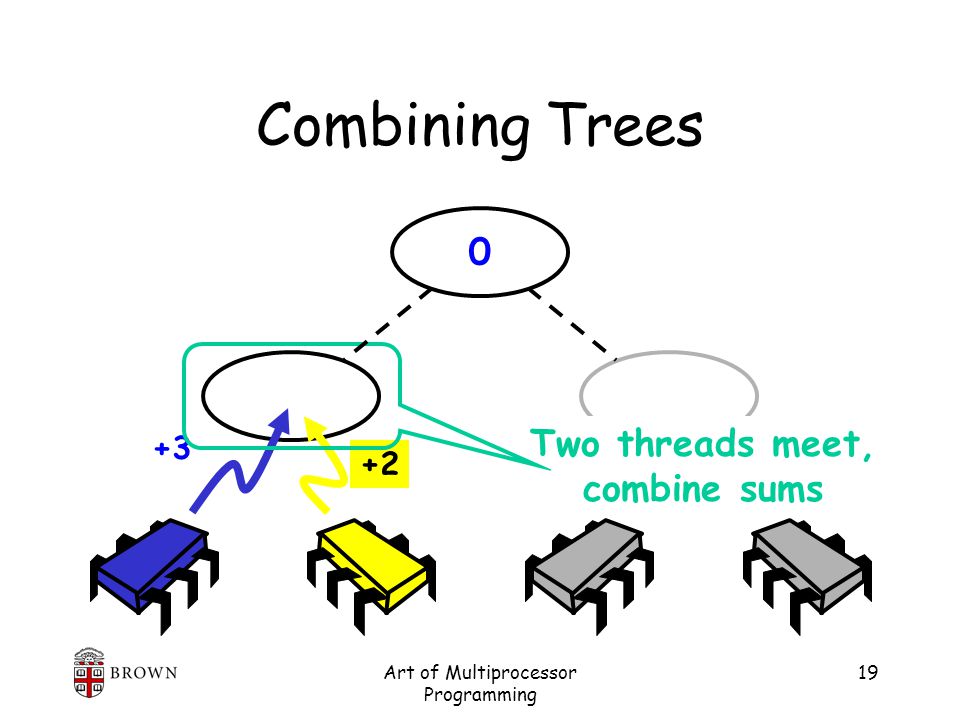

19. Art of Multiprocessor Programming 19 Combining Trees 0 +3 +2 Two threads meet, combine sums

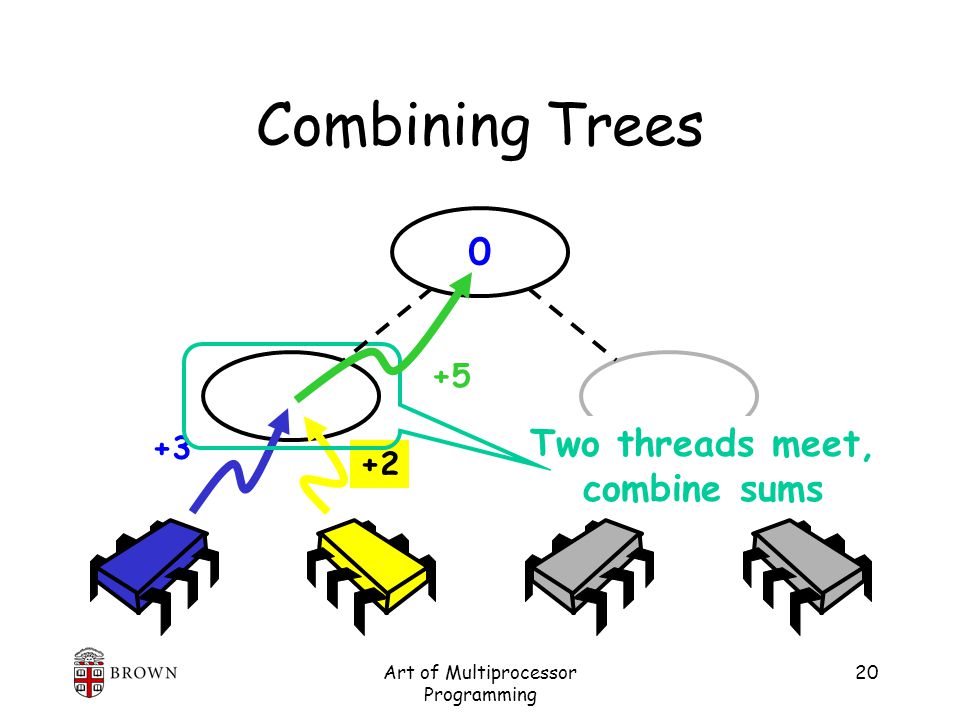

20. Art of Multiprocessor Programming 20 Combining Trees 0 +3 +2 Two threads meet, combine sums +5

21. Art of Multiprocessor Programming 21 Combining Trees 5 +3 +2 +5 Combined sum added to root

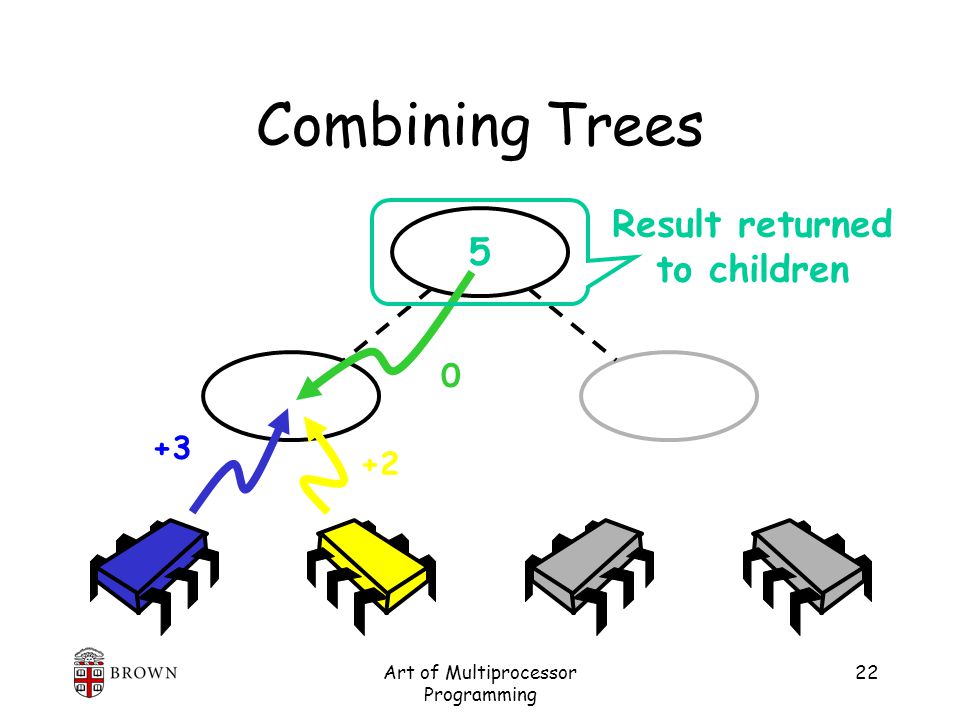

22. Art of Multiprocessor Programming 22 Combining Trees 5 +3 +2 0 Result returned to children

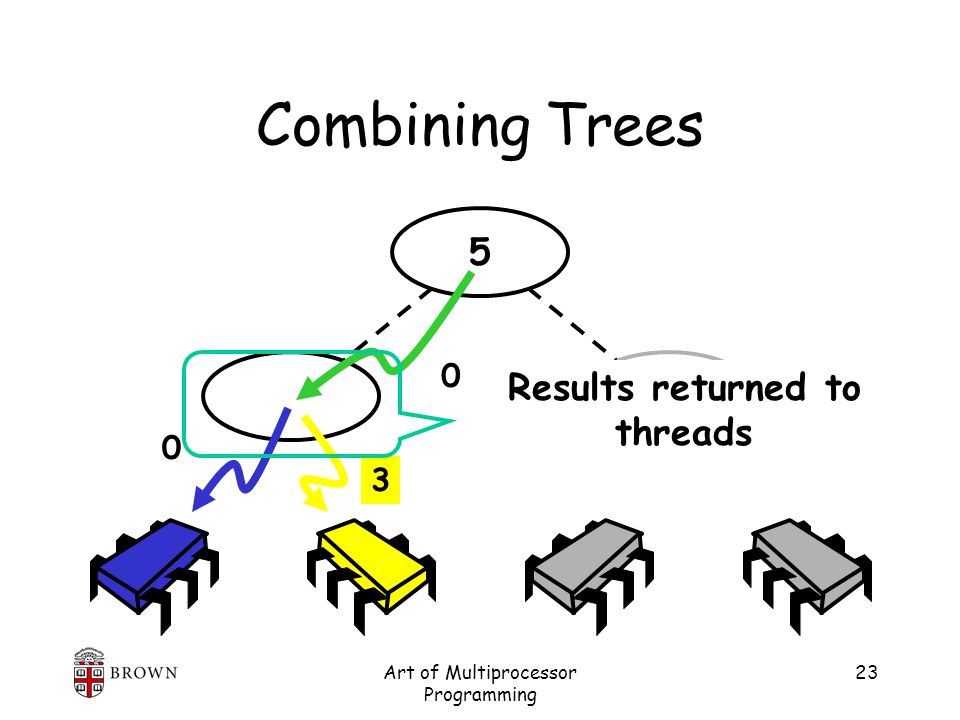

23. Art of Multiprocessor Programming 23 Combining Trees 5 0 0 3 0 Results returned to threads

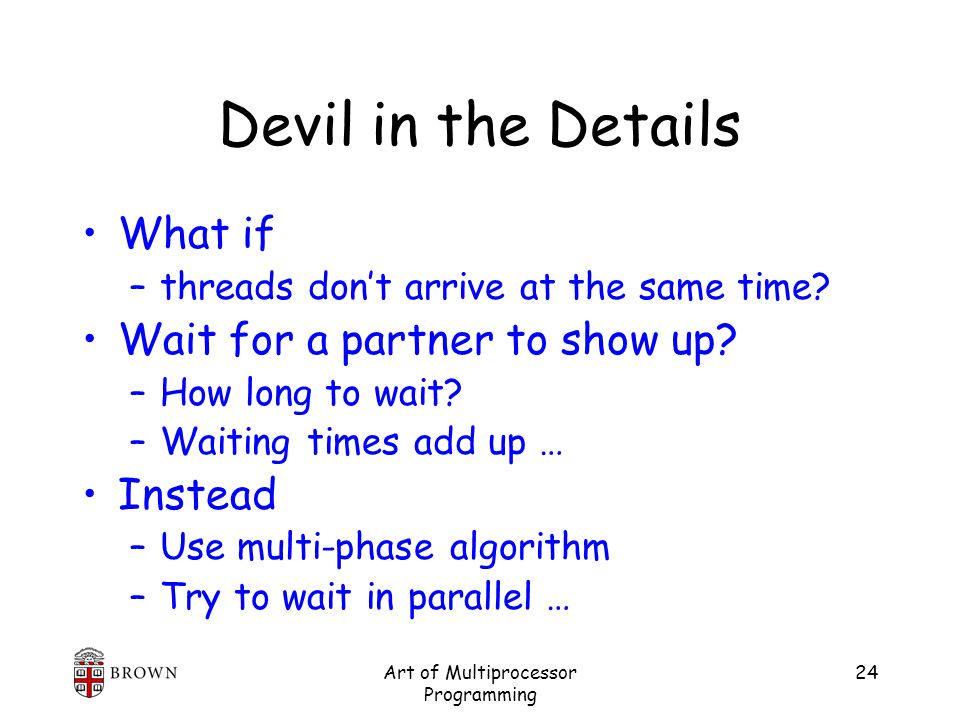

24. Art of Multiprocessor Programming 24 Devil in the Details What if –threads don’t arrive at the same time? Wait for a partner to show up? –How long to wait? –Waiting times add up … Instead –Use multi-phase algorithm –Try to wait in parallel …

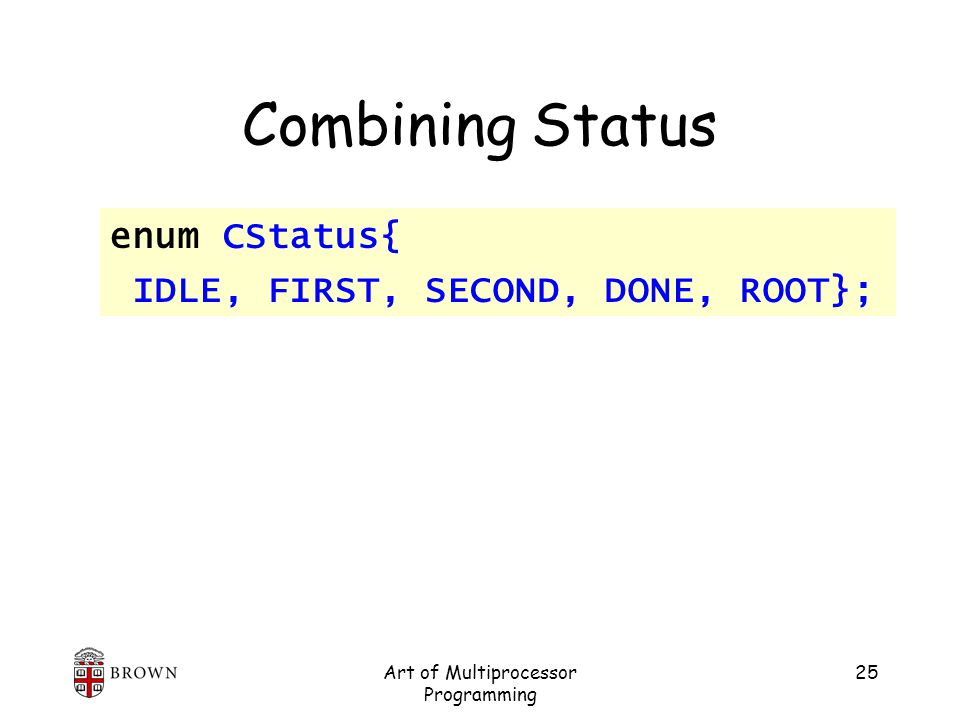

25. Art of Multiprocessor Programming 25 Combining Status enum CStatus{ IDLE, FIRST, SECOND, DONE, ROOT};

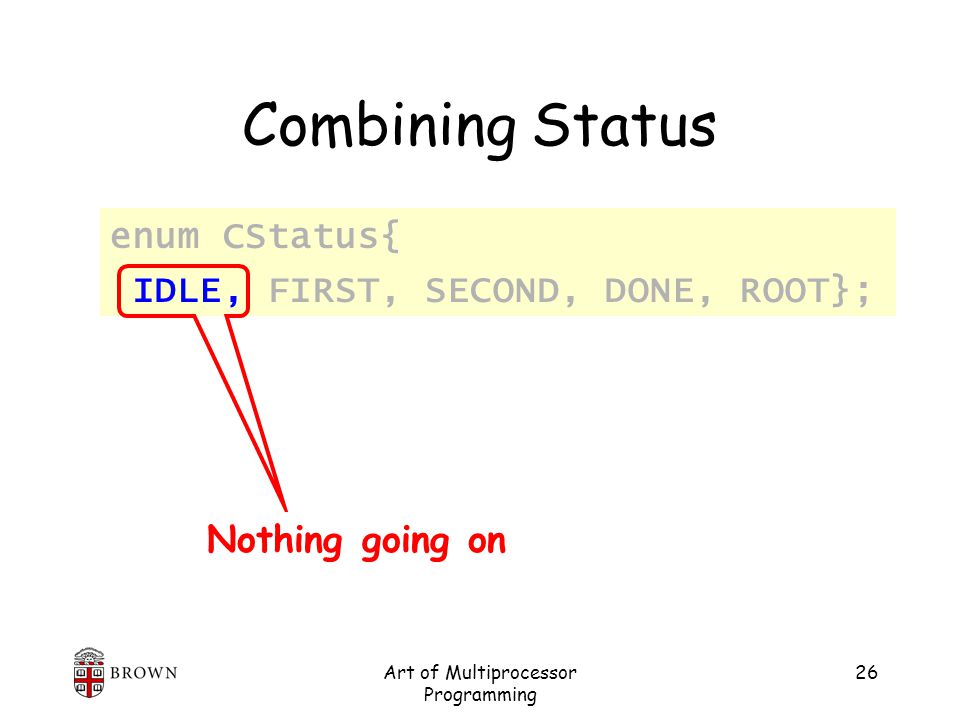

26. Art of Multiprocessor Programming 26 Combining Status enum CStatus{ IDLE, FIRST, SECOND, DONE, ROOT}; Nothing going on

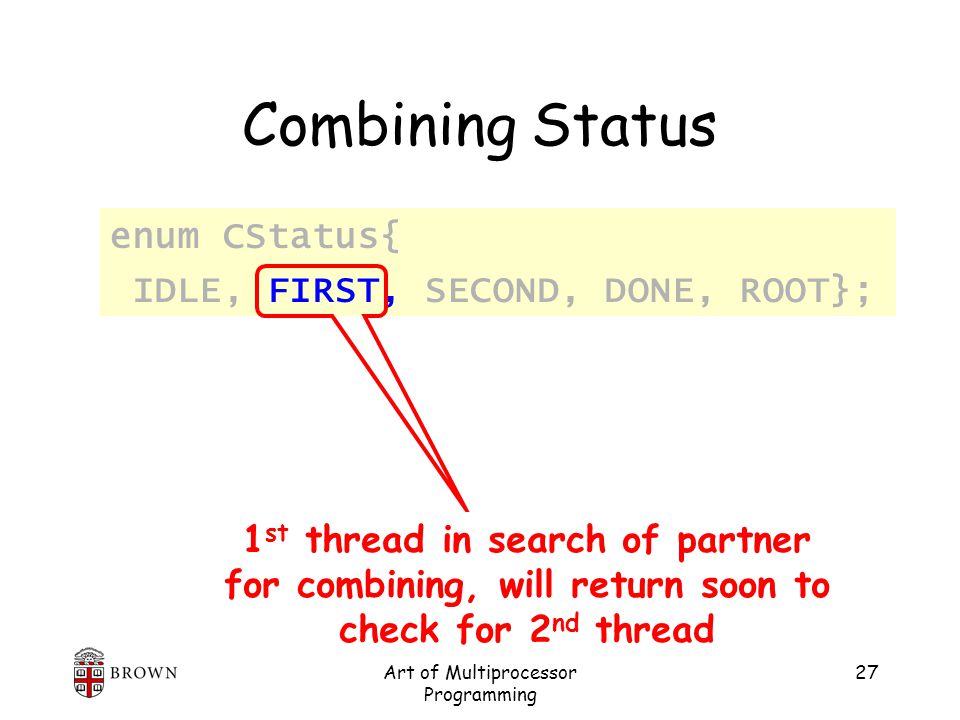

27. Art of Multiprocessor Programming 27 Combining Status enum CStatus{ IDLE, FIRST, SECOND, DONE, ROOT}; 1 st thread in search of partner for combining, will return soon to check for 2 nd thread

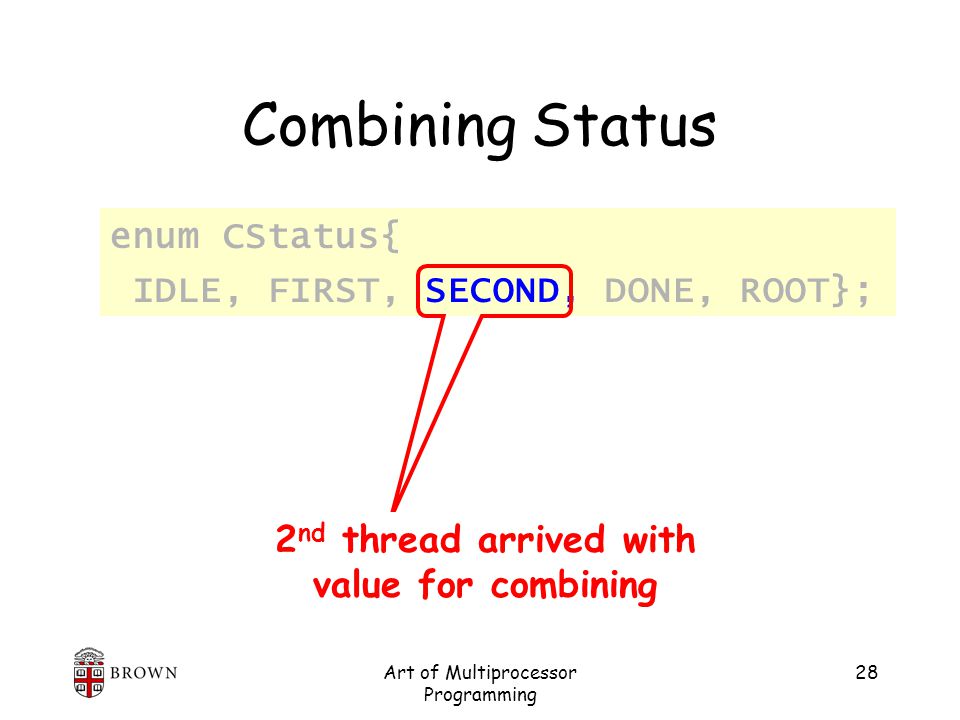

28. Art of Multiprocessor Programming 28 Combining Status enum CStatus{ IDLE, FIRST, SECOND, DONE, ROOT}; 2 nd thread arrived with value for combining

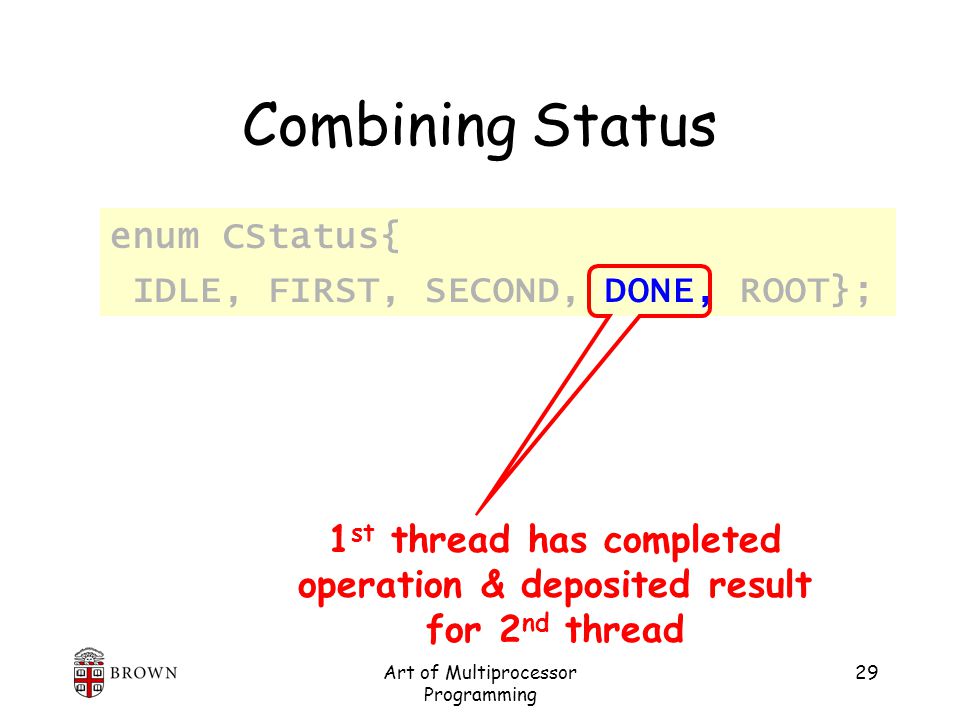

29. Art of Multiprocessor Programming 29 Combining Status enum CStatus{ IDLE, FIRST, SECOND, DONE, ROOT}; 1 st thread has completed operation & deposited result for 2 nd thread

30. Art of Multiprocessor Programming 30 Combining Status enum CStatus{ IDLE, FIRST, SECOND, DONE, ROOT}; Special case: root node

31. Art of Multiprocessor Programming 31 Node Synchronization Short-term –Synchronized methods –Consistency during method call Long-term –Boolean locked field –Consistency across calls

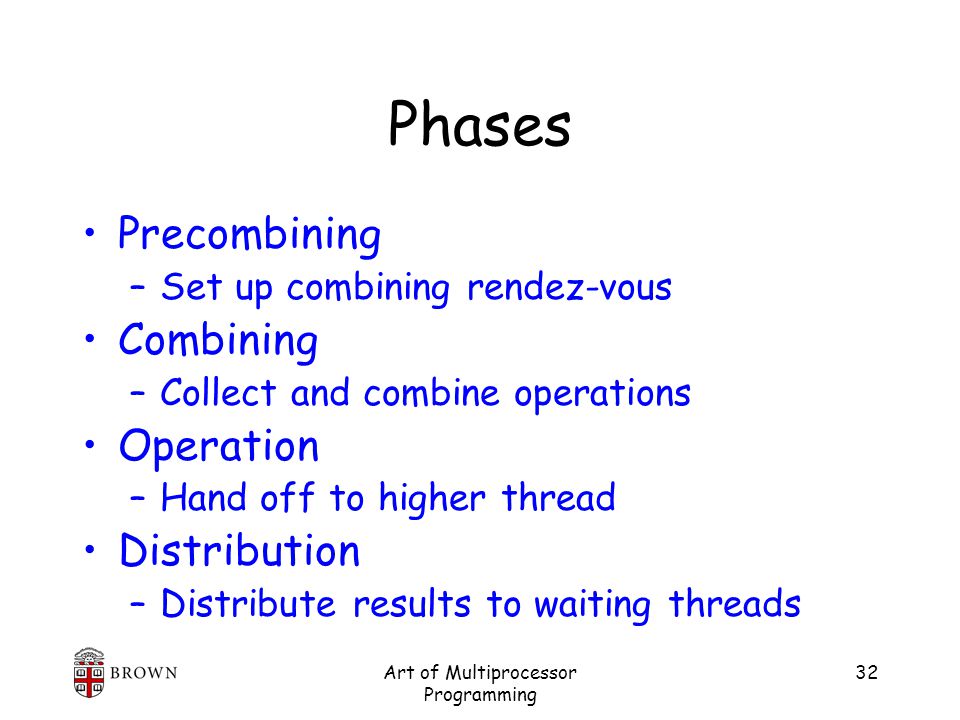

32. Art of Multiprocessor Programming 32 Phases Precombining –Set up combining rendez-vous Combining –Collect and combine operations Operation –Hand off to higher thread Distribution –Distribute results to waiting threads

33. Art of Multiprocessor Programming 33 Precombining Phase 0 Examine status IDLE

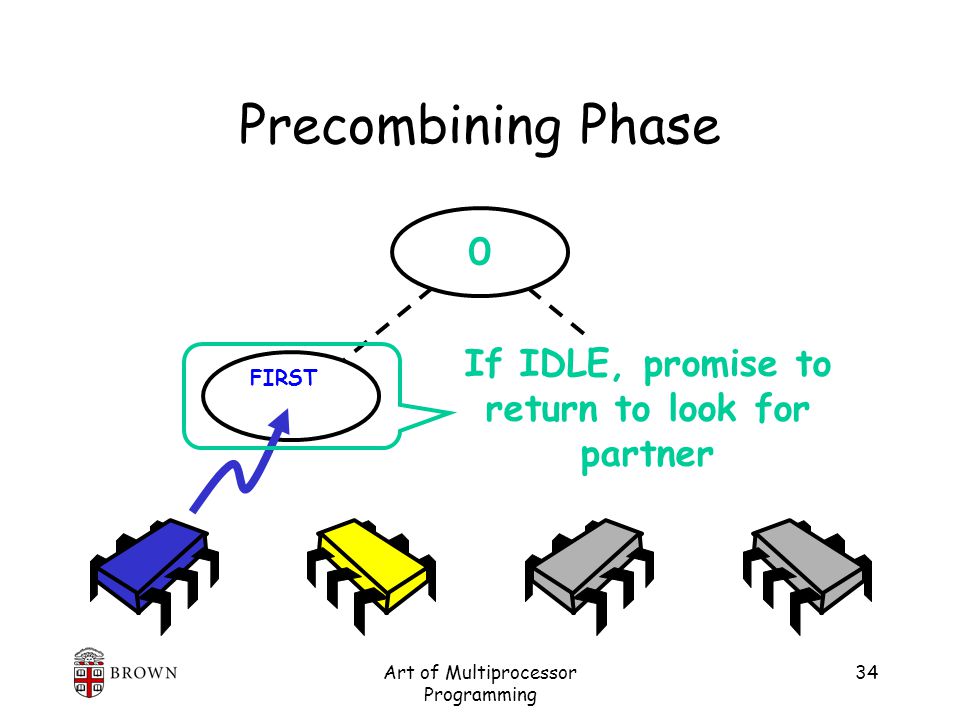

34. Art of Multiprocessor Programming 34 Precombining Phase 0 0 If IDLE, promise to return to look for partner FIRST

35. Art of Multiprocessor Programming 35 Precombining Phase 0 At ROOT, turn back FIRST

36. Art of Multiprocessor Programming 36 Precombining Phase 0 FIRST

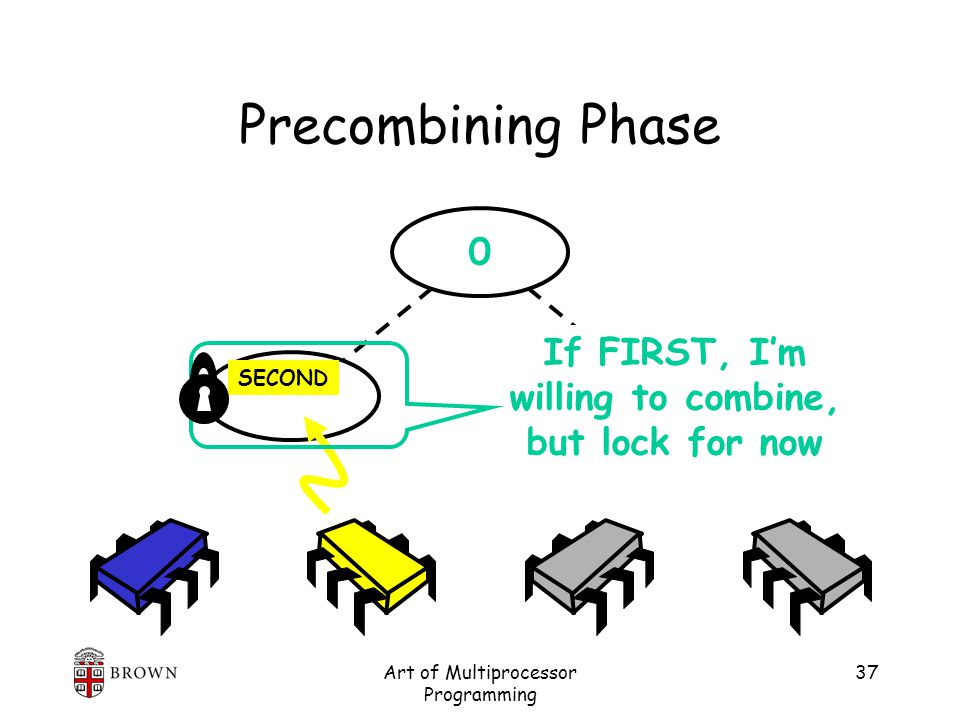

37. Art of Multiprocessor Programming 37 Precombining Phase 0 0 SECOND If FIRST, I’m willing to combine, but lock for now

38. Art of Multiprocessor Programming 38 Code Tree class –In charge of navigation Node class –Combining state –Synchronization state –Bookkeeping

39. Art of Multiprocessor Programming 39 Combining Phase 0 0 SECOND 1 st thread locked out until 2 nd provides value +3

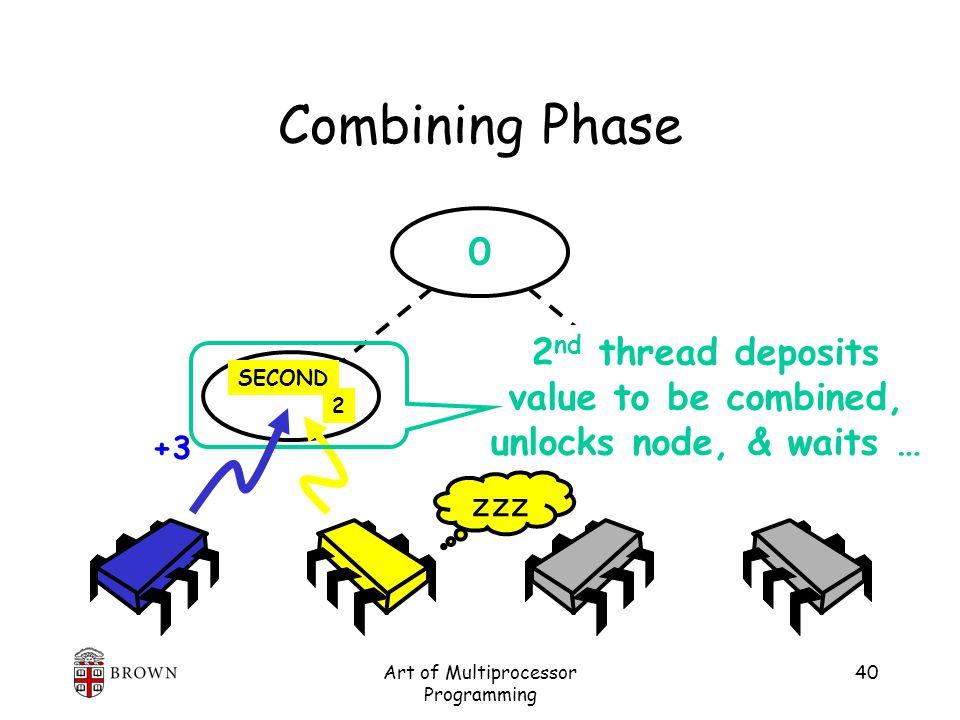

40. Art of Multiprocessor Programming 40 Combining Phase 0 0 SECOND 2 nd thread deposits value to be combined, unlocks node, & waits … 2 +3 zzz

41. Art of Multiprocessor Programming 41 Combining Phase +3 +2 +5 SECOND 2 0 1 st thread moves up the tree with combined value … zzz

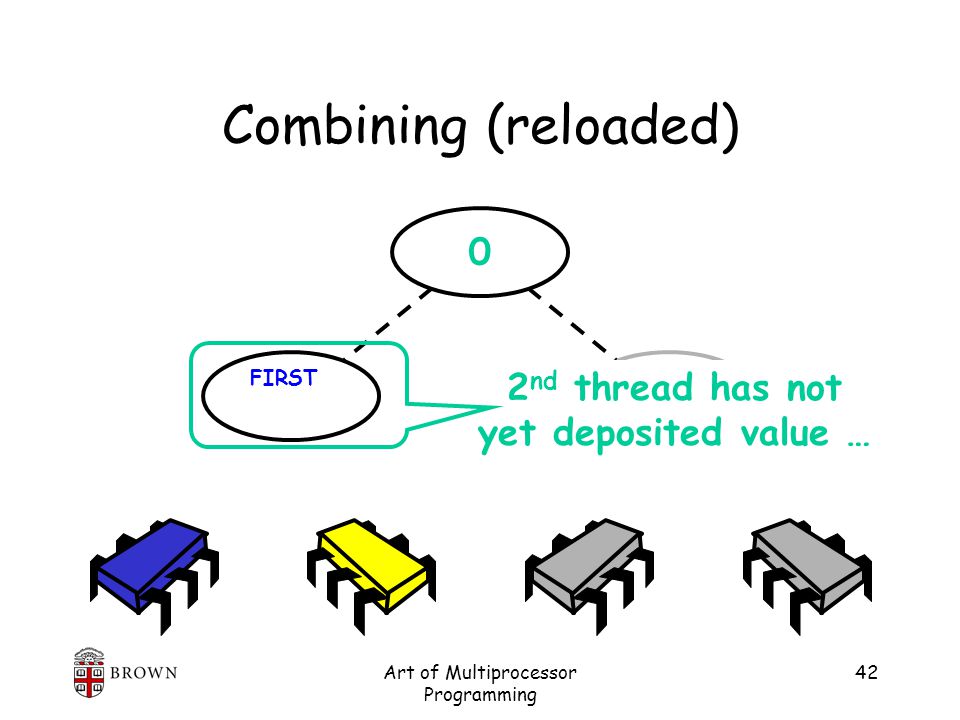

42. Art of Multiprocessor Programming 42 Combining (reloaded) 0 0 2 nd thread has not yet deposited value … FIRST

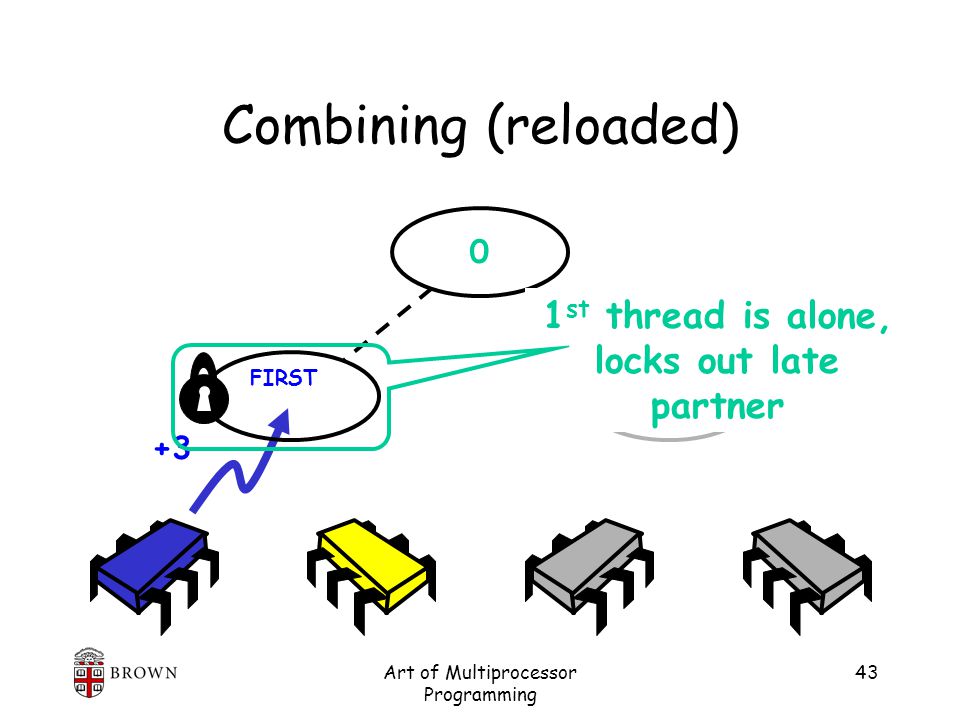

43. Art of Multiprocessor Programming 43 Combining (reloaded) 0 +3 FIRST 1 st thread is alone, locks out late partner

44. Art of Multiprocessor Programming 44 Combining (reloaded) 0 +3 FIRST Stop at root

45. Art of Multiprocessor Programming 45 Combining (reloaded) 0 +3 FIRST 2 nd thread’s phase 1 visit locked out

46. Art of Multiprocessor Programming 46 Operation Phase 5 +3 +2 +5 Add combined value to root, start back down (phase 4) zzz

47. Art of Multiprocessor Programming 47 Operation Phase (reloaded) 5 Leave value to be combined … SECOND 2

48. Art of Multiprocessor Programming 48 Operation Phase (reloaded) 5 +2 Unlock, and wait … SECOND 2 zzz

49. Art of Multiprocessor Programming 49 Distribution Phase 5 0 zzz Move down with result SECOND

50. Art of Multiprocessor Programming 50 Distribution Phase 5 zzz Leave result for 2 nd thread & lock node SECOND 2

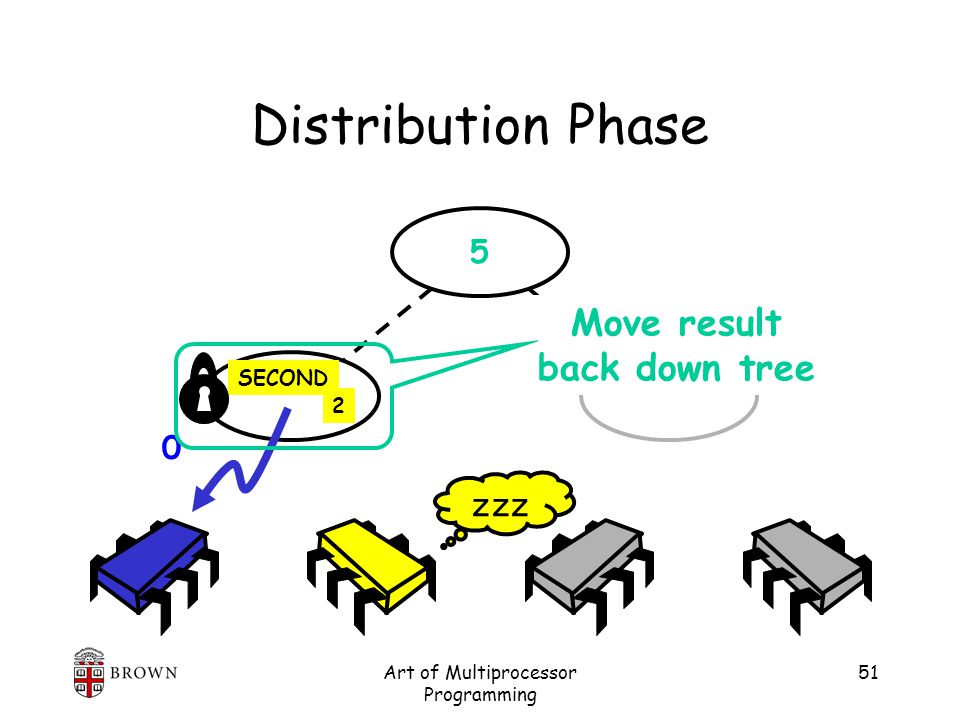

51. Art of Multiprocessor Programming 51 Distribution Phase 5 0 zzz Move result back down tree SECOND 2

52. Art of Multiprocessor Programming 52 Distribution Phase 5 2 nd thread awakens, unlocks, takes value IDLE 3

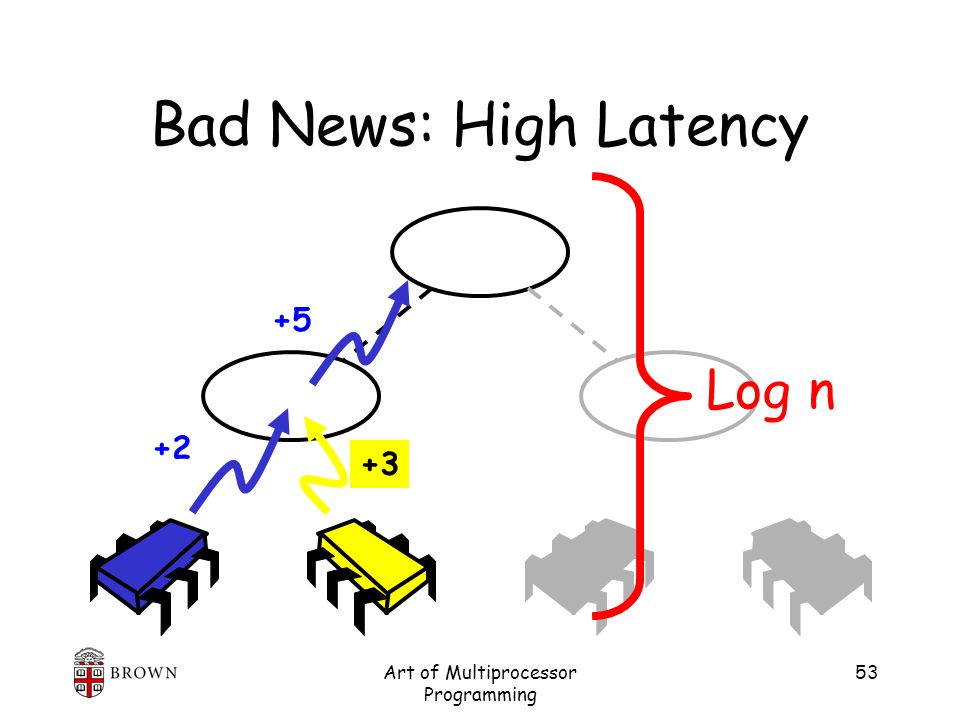

53. Art of Multiprocessor Programming 53 Bad News: High Latency +2 +3 +5 Log n

54. Art of Multiprocessor Programming 54 Good News: Real Parallelism +2 +3 +5 2 threads 1 thread

55. Art of Multiprocessor Programming 55 Throughput Puzzles Ideal circumstances –All n threads move together, combine –n increments in O(log n) time Worst circumstances –All n threads slightly skewed, locked out –n increments in O(n · log n) time

56. Art of Multiprocessor Programming 56 Index Distribution Benchmark void indexBench(int iters, int work) { while (int i < iters) { i = r.getAndIncrement(); Thread.sleep(random() % work); }}

57. Art of Multiprocessor Programming 57 Index Distribution Benchmark void indexBench(int iters, int work) { while (int i < iters) { i = r.getAndIncrement(); Thread.sleep(random() % work); }} How many iterations

58. Art of Multiprocessor Programming 58 Index Distribution Benchmark void indexBench(int iters, int work) { while (int i < iters) { i = r.getAndIncrement(); Thread.sleep(random() % work); }} Expected time between incrementing counter

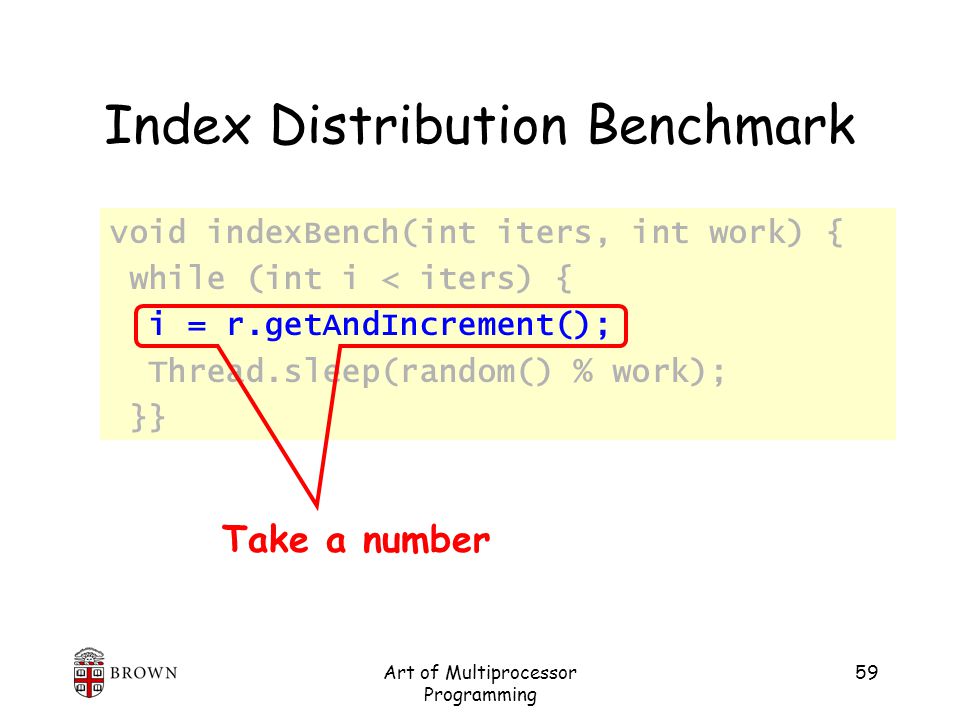

59. Art of Multiprocessor Programming 59 Index Distribution Benchmark void indexBench(int iters, int work) { while (int i < iters) { i = r.getAndIncrement(); Thread.sleep(random() % work); }} Take a number

60. Art of Multiprocessor Programming 60 Index Distribution Benchmark void indexBench(int iters, int work) { while (int i < iters) { i = r.getAndIncrement(); Thread.sleep(random() % work); }} Pretend to work (more work, less concurrency)

61. Art of Multiprocessor Programming 61 Performance Benchmarks Alewife –NUMA architecture –Simulated Throughput: –average number of inc operations in 1 million cycle period. Latency: –average number of simulator cycles per inc operation.

62. Art of Multiprocessor Programming 62 Performance Latency: Throughput: 90000 80000 60000 50000 30000 20000 0 0 50100150 200250 300 Splock Ctree[n] num of processors cycles per operation 100150 200250 300 90000 80000 70000 60000 50000 40000 30000 20000 Splock Ctree[n] operations per million cycles 50 10000 0 0 num of processors work = 0

63. Art of Multiprocessor Programming 63 The Combining Paradigm Implements any RMW operation When tree is loaded –Takes 2 log n steps –for n requests Very sensitive to load fluctuations: –if the arrival rates drop –the combining rates drop –overall performance deteriorates!

64. Art of Multiprocessor Programming 64 Combining Load Sensitivity Notice Load Fluctuations Throughput processors

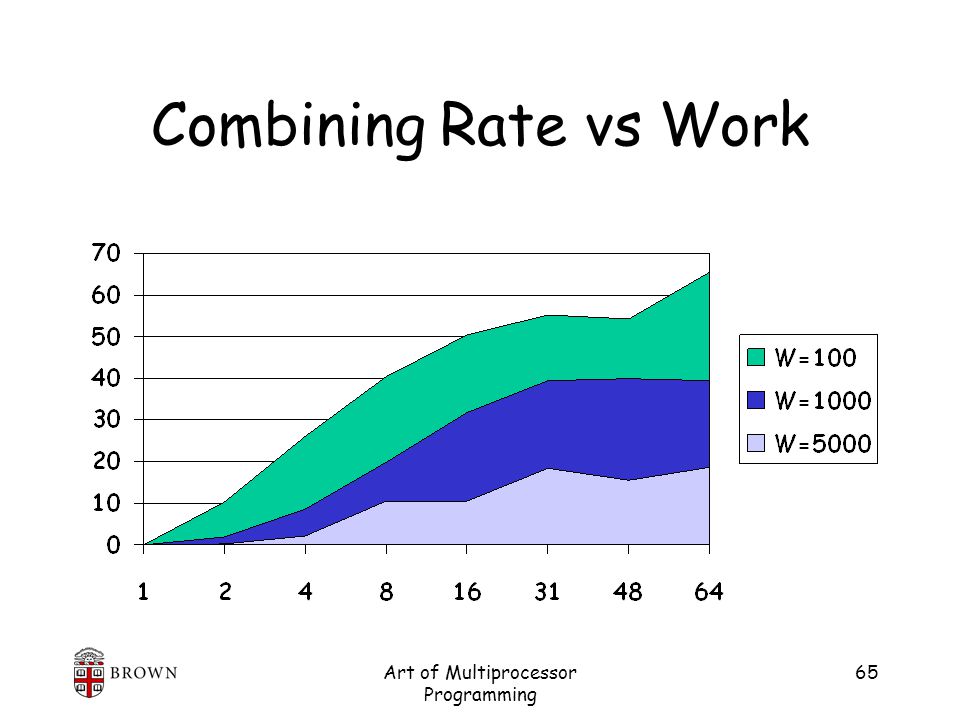

65. Art of Multiprocessor Programming 65 Combining Rate vs Work

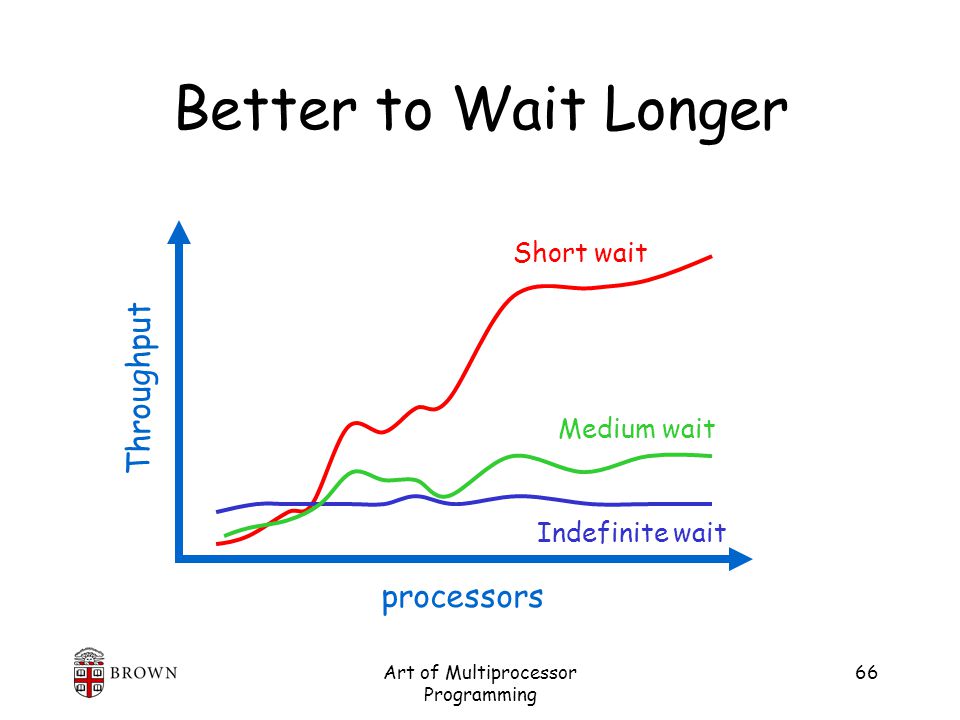

66. Art of Multiprocessor Programming 66 Better to Wait Longer Short wait Indefinite wait Medium wait Throughput processors

67. Art of Multiprocessor Programming 67 Conclusions Combining Trees –Work well under high contention –Sensitive to load fluctuations –Can be used for getAndMumble() ops Next –Counting networks –A different approach …
