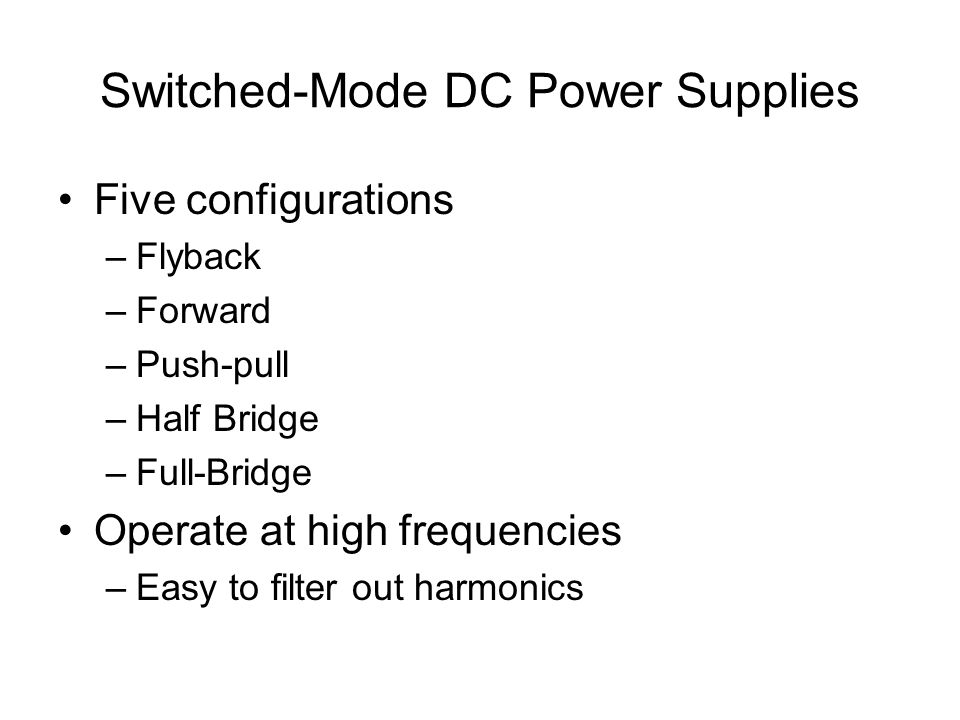

1. Switched-Mode DC Power Supplies Five configurations –Flyback –Forward –Push-pull –Half Bridge –Full-Bridge Operate at high frequencies –Easy to filter out harmonics

2. Flyback Converter

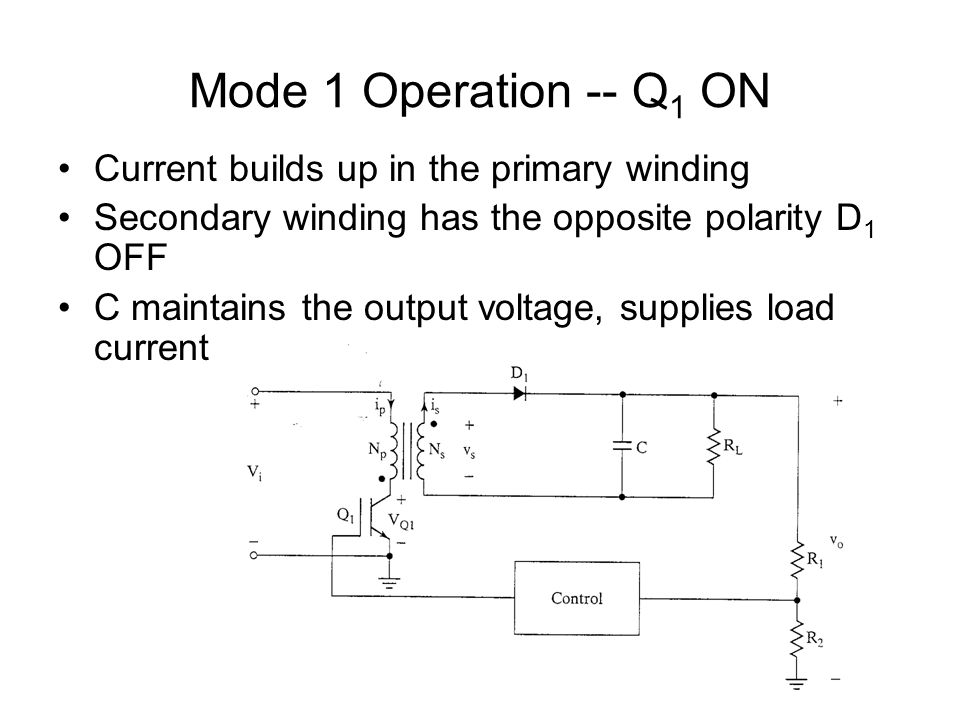

3. Mode 1 Operation -- Q 1 ON Current builds up in the primary winding Secondary winding has the opposite polarity D 1 OFF C maintains the output voltage, supplies load current

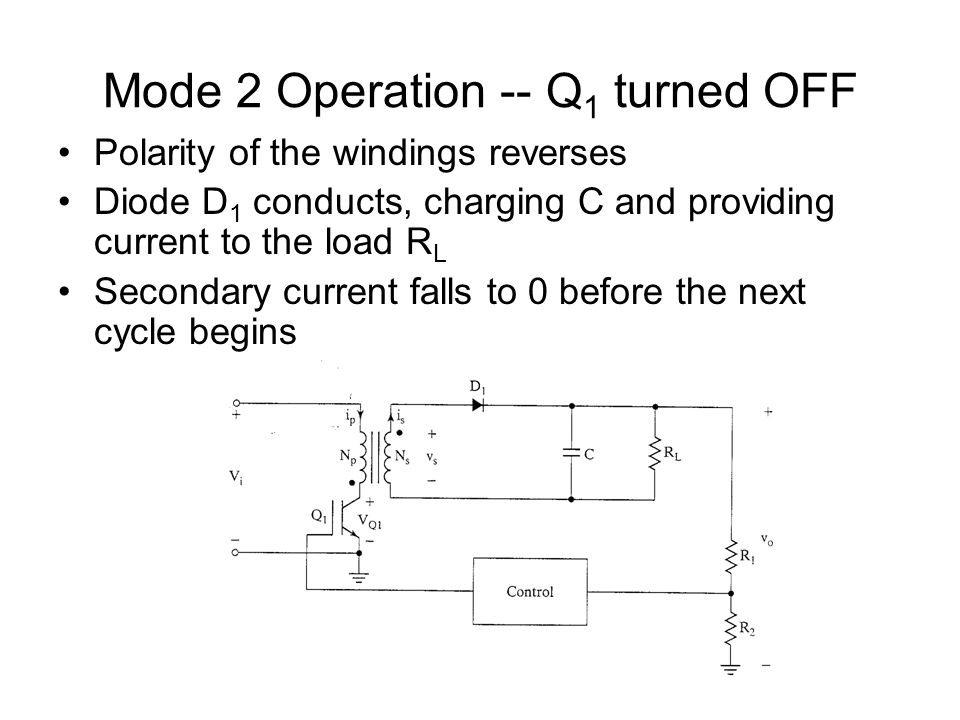

4. Mode 2 Operation -- Q 1 turned OFF Polarity of the windings reverses Diode D 1 conducts, charging C and providing current to the load R L Secondary current falls to 0 before the next cycle begins

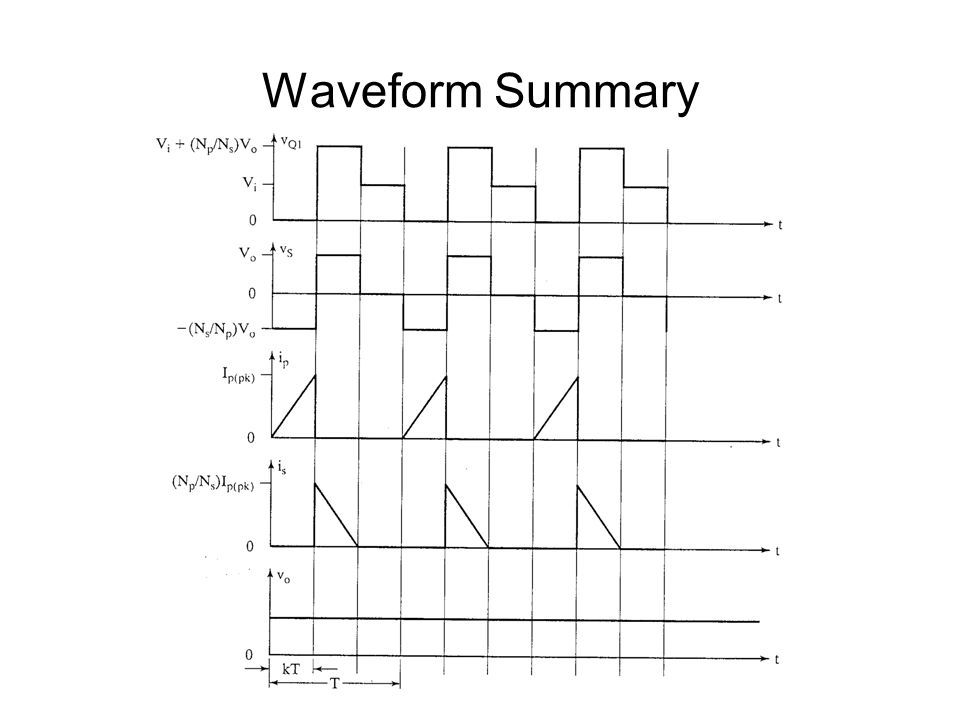

5. Waveform Summary

6. Double-ended Flyback Converter

7. Forward Converter

8. Features Includes a “reset” winding to return energy Secondary “dot” so that D 2 forward biased when Q 1 is ON – no energy stored in the primary Operates in continuous mode

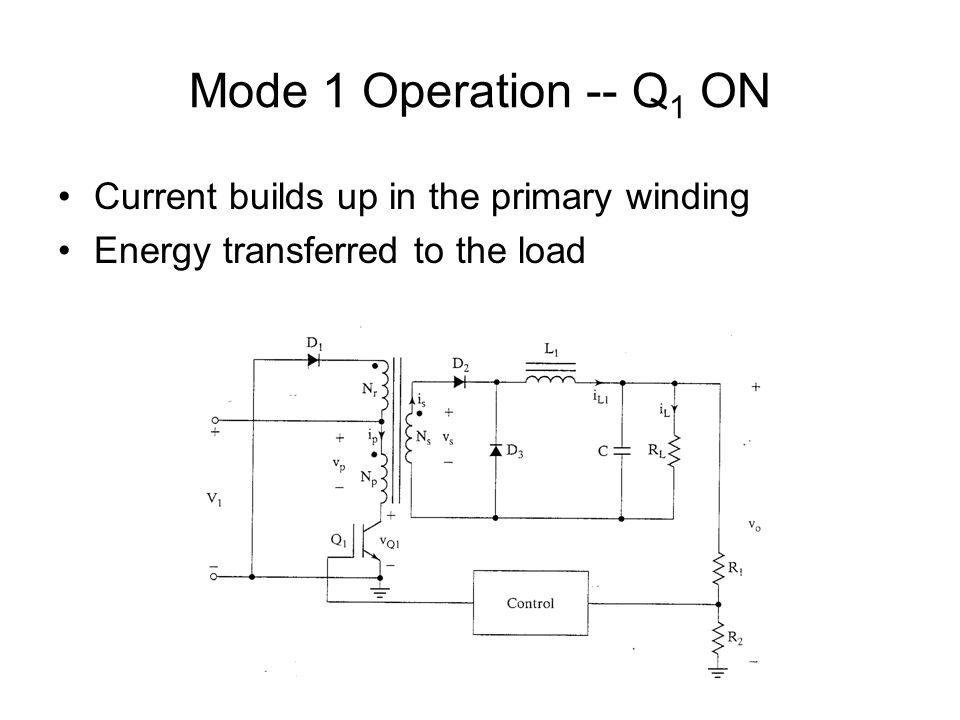

9. Mode 1 Operation -- Q 1 ON Current builds up in the primary winding Energy transferred to the load

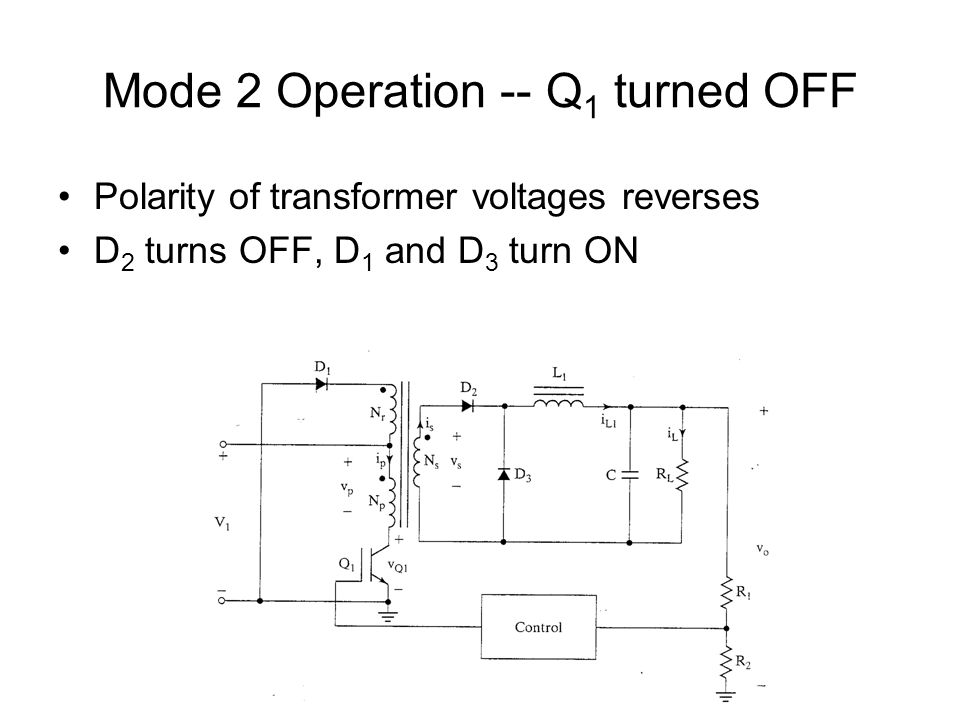

10. Mode 2 Operation -- Q 1 turned OFF Polarity of transformer voltages reverses D 2 turns OFF, D 1 and D 3 turn ON

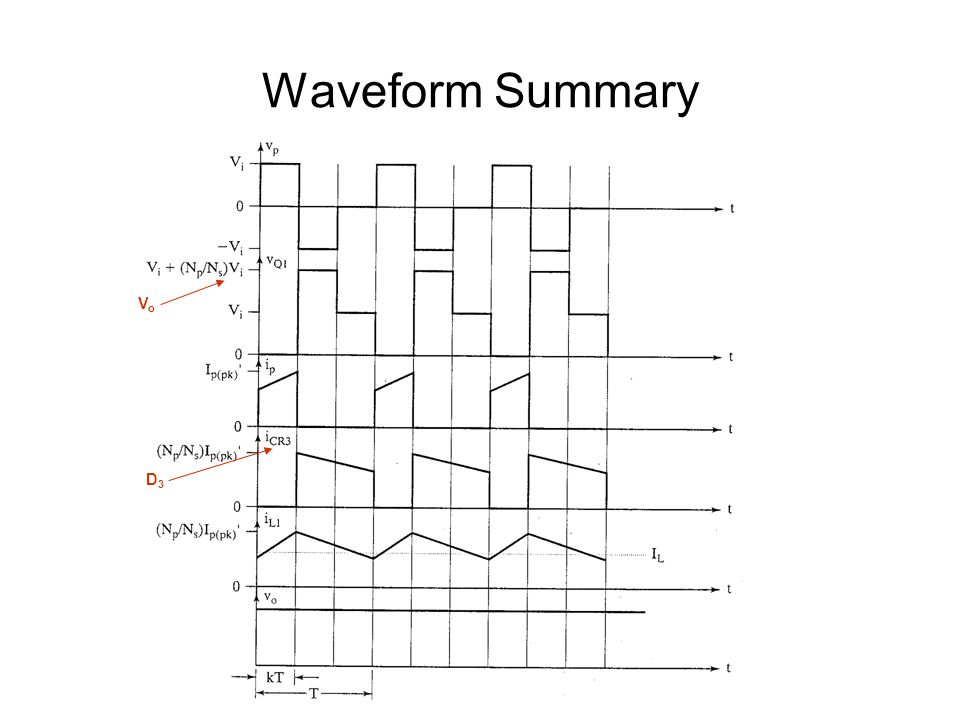

11. Waveform Summary VoVo D3D3

12. Current Components in the Primary

13. Double-ended Forward Converter

14. Push-Pull Converter

15. Push-Pull Operation Q 1 ON, V s across the lower primary winding Q 2 ON, V s across the upper primary winding

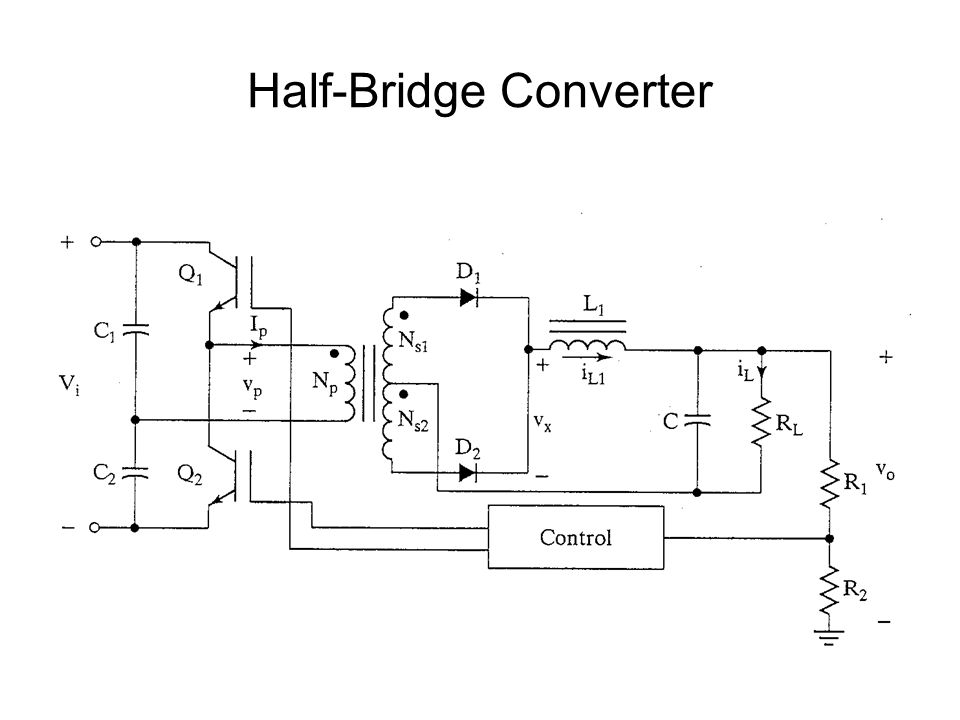

16. Half-Bridge Converter

17. Mode 1 Operation Q 1 ON, D 1 conducting Energy transferred to the load

18. Mode 2 Operation Both transistors are OFF D 1 continues to conduct due to current in L 1

19. Mode 3 Operation Q 2 ON, D 2 conducting Energy transferred to the load

20. Mode 4 Operation Both transistors OFF D 2 continues to conduct due to current in L 1

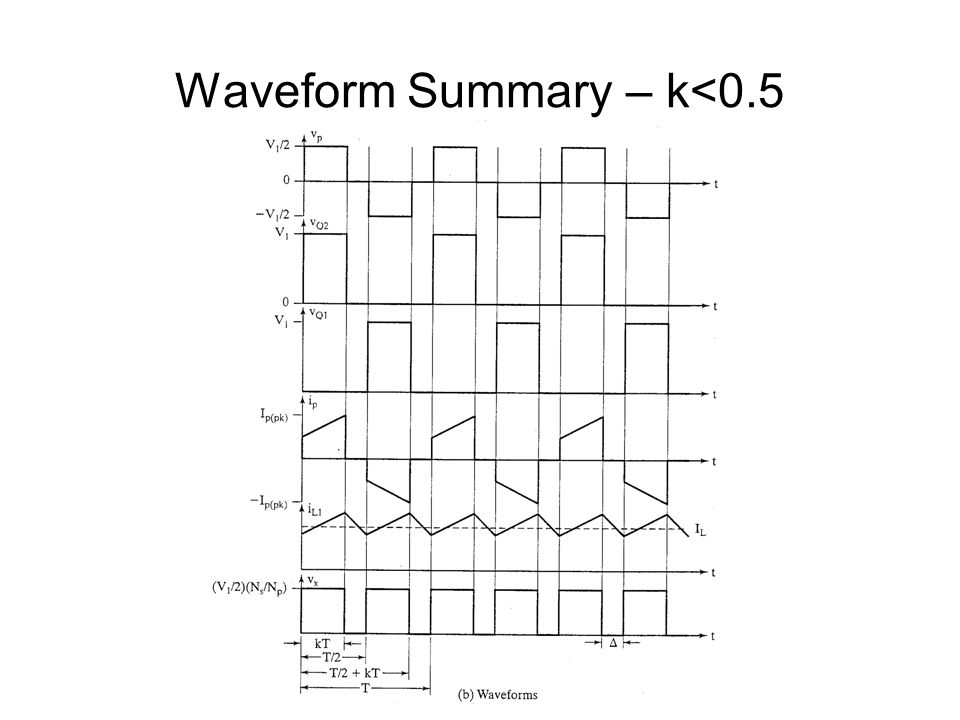

21. Waveform Summary – k<0.5

22. Full-Bridge Converter

23. Mode 1 Operation Q 1,Q 4 ON, Q 2,Q 3 OFF D 1 conducting, energy transferred to the load

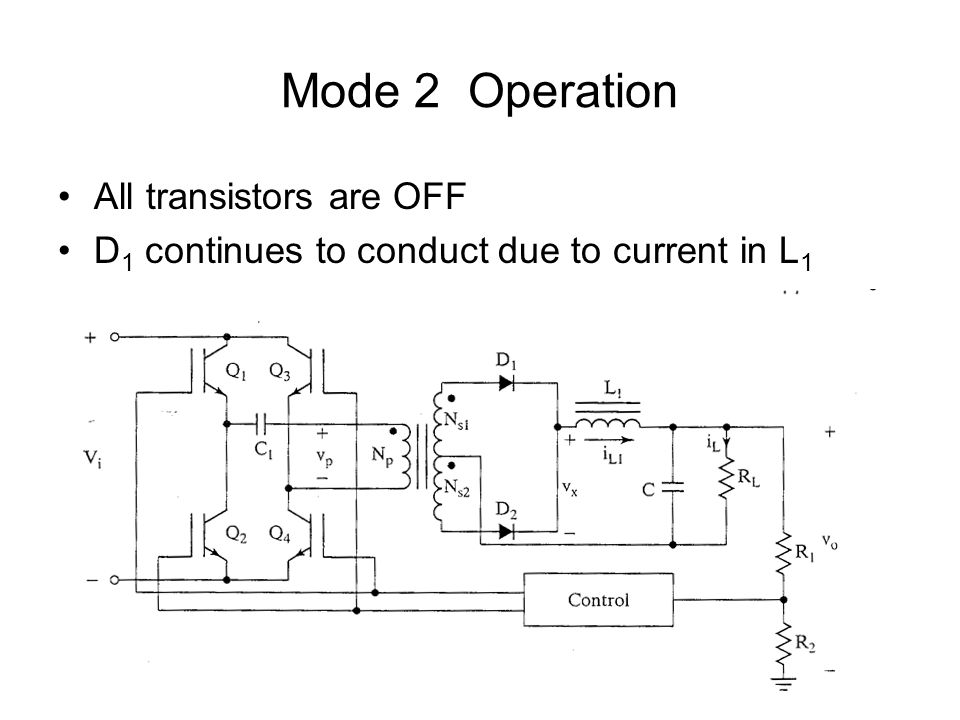

24. Mode 2 Operation All transistors are OFF D 1 continues to conduct due to current in L 1

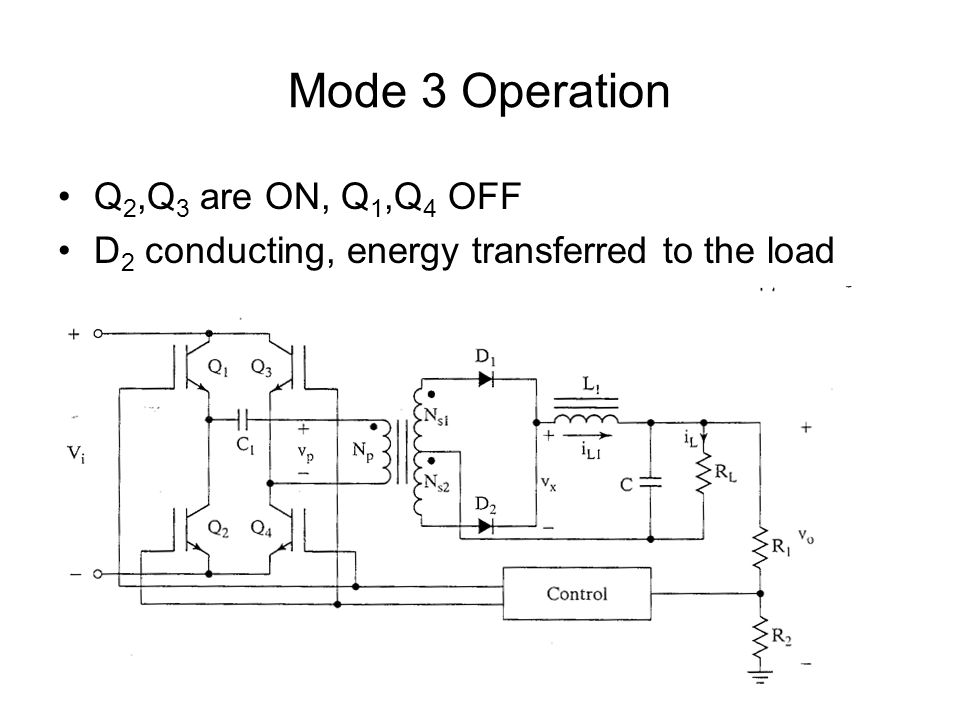

25. Mode 3 Operation Q 2,Q 3 are ON, Q 1,Q 4 OFF D 2 conducting, energy transferred to the load

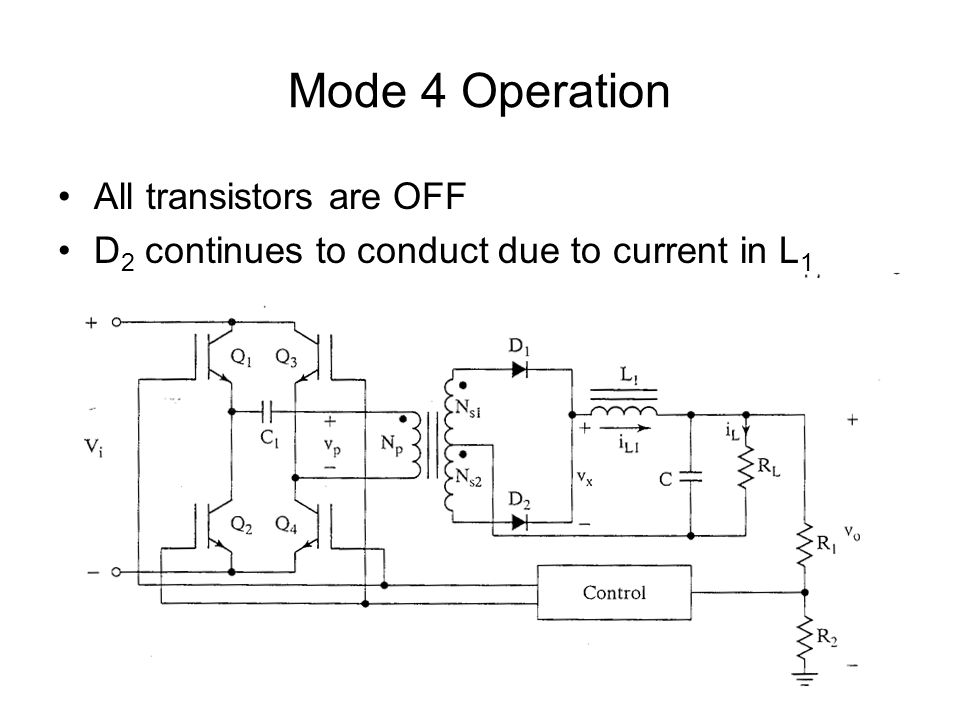

26. Mode 4 Operation All transistors are OFF D 2 continues to conduct due to current in L 1

27. Waveform Summary – k<0.5

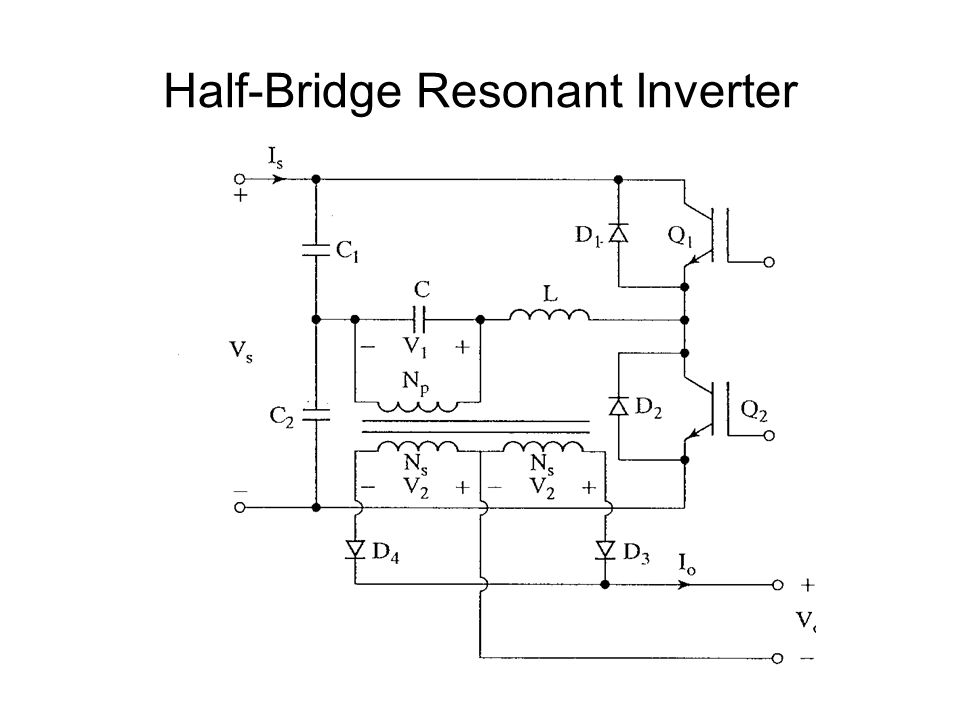

28. Half-Bridge Resonant Inverter

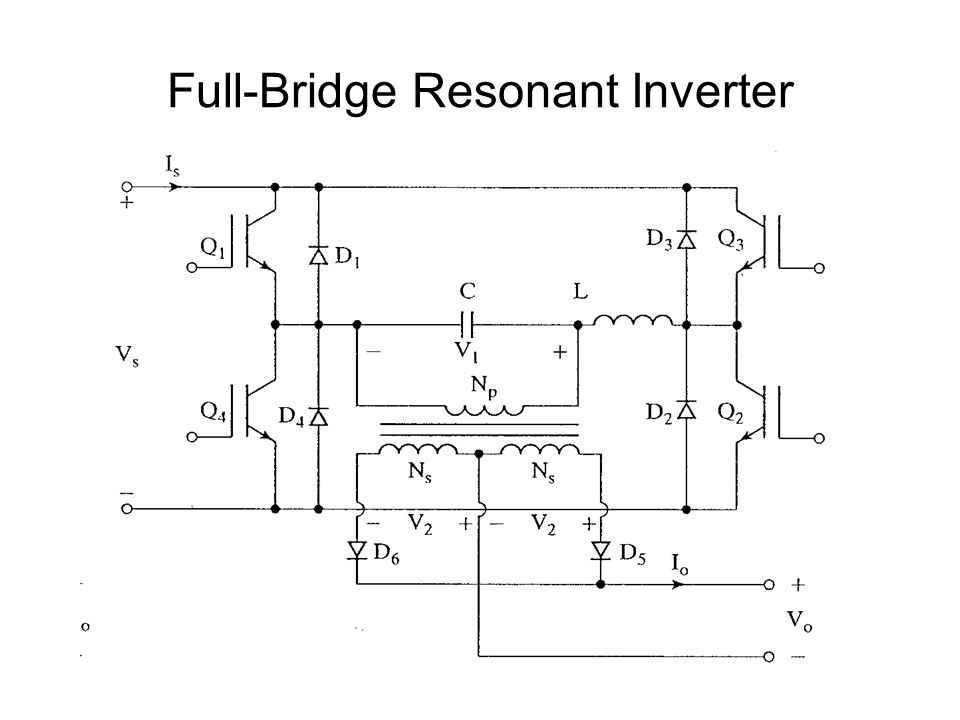

29. Full-Bridge Resonant Inverter

30. Bidirectional Power Supply
