1. IVOA Interop. Meeting, October 2005 VisIVO interoperability with VO enabled tools Claudio Gheller (CINECA) 1, Marco Comparato (OACt) 2 Ugo Becciani (OACt) 3, Alessandro Costa (OACt) 4 1: c.gheller@cineca.it 2: mcomp@oact.inaf.it 3: ube@oact.inaf.it 4: acosta@oact.inaf.it http://visivo.cineca.it astro@cineca.it

2. IVOA Interop. Meeting, October 2005 VisIVO in one slide Visualization of N-dimensional data (N > 2) Open Source MS Windows (porting to Linux version 1.0) Present Release : 0.9 Downloads : From web site (binaries only) http://visivo.cineca.it From CVS CVSROOT = :pserver:anonymous@sirio.cineca.it:/serv er/project/cvsrepos PASSWORD: no password required Checkout module openMAF Checkout module cosmoMAF Software requirements : MS Visual C++ 6 CMake 1.6 (patch 7) Libraries : VTK 4.2 (graphics) wxWindows (GUI) CFITSIO (Fits files) HDF5 (HDF Files) VO India C++ lib (VOTables) Xalan, Xerces (XML) Axis C++ (WS) Documentation : User Guide Developer Guide (who knows…) Examples (in the distribution) Contributions and collaborations : …are welcome!!!

3. IVOA Interop. Meeting, October 2005 VisIVO work in progress Implementation: Java external libraries interface New graphic tools (sampler, cutting and projection planes…) 3D Vectors support Multiple scalars/vectors support Multiplatform support: Linux porting Interoperabilty: Aladin + Topcat in the AstroGrid framework AstroNeural tool for clustering and data mining in high dimensionality spaces Access to web services

4. IVOA Interop. Meeting, October 2005 Apache Axis is an implementation of the SOAP ("Simple Object Access Protocol") submission to W3C VisIVO and VizieR communication layer VizieR Catalogues Web Service why Axis C++? C++ Open Source developed for Linux and Windows stable reliable many web services are developed using Axis Apache Software Fundation

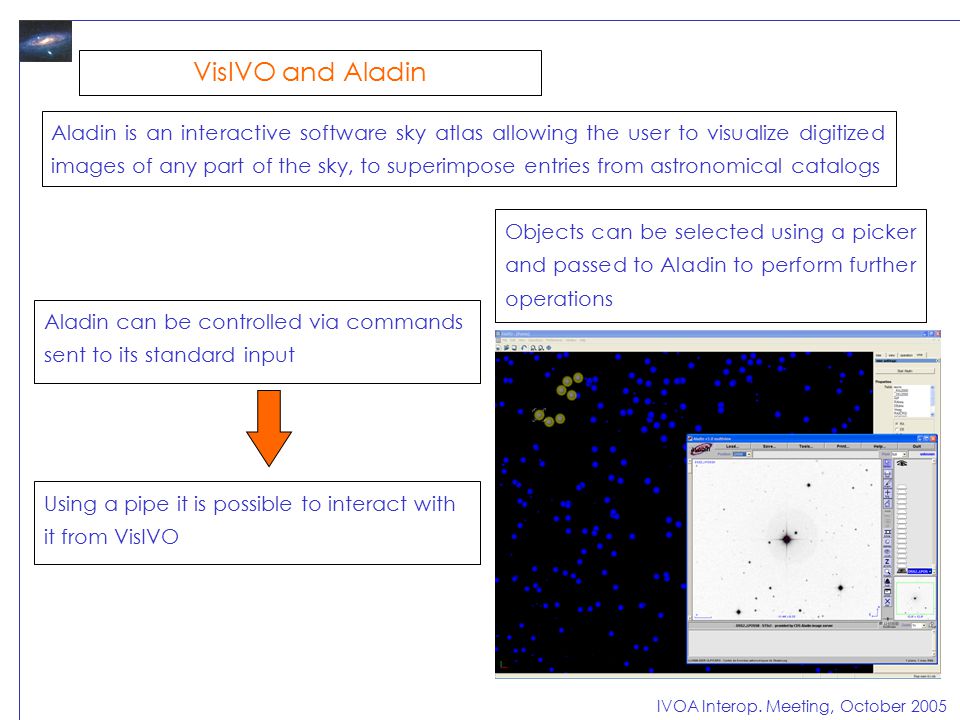

5. IVOA Interop. Meeting, October 2005 VisIVO and Aladin Aladin is an interactive software sky atlas allowing the user to visualize digitized images of any part of the sky, to superimpose entries from astronomical catalogs Aladin can be controlled via commands sent to its standard input Using a pipe it is possible to interact with it from VisIVO Objects can be selected using a picker and passed to Aladin to perform further operations

6. IVOA Interop. Meeting, October 2005 AstroNeural Data mining algorithm, in collaboration with the Universities of Napoli and Salerno, AstroNeural project. Aims and applications of AstroNeural: User friendly tool to perform clustering and data mining in high dimensionality spaces Clustering & pattern recognition in high dimensionality spaces Visualization (VisIVO) Classification Parametrization of images Modeling of massive data sets Astrophysics Genetics Geophysics High energy physics Atmospheric physics Etc. AimsApplications

7. IVOA Interop. Meeting, October 2005 VisIVO AstroNeural & Aladin: interoperability in action 1 VOTable from sloan catalogue SDSS VOTable data Query AstroNeural 2 Astroneural: photometric redshift estimation (PPS,NEC clustering) VOTable data VisIVO 3 VisIVO: outliers localization Aladin 4 Aladin: outliers visualization

8. IVOA Interop. Meeting, October 2005 VisIVO & AstroGrid: ACR access Registry Internet Local Astrogrid Client Runtime (ACR) http XML RPC Java-RMI VO

9. IVOA Interop. Meeting, October 2005 VisIVO & Plastic TOPCAT XMDV Other Tools (R, Python…) Plastic XML-RPC RMI
